Dell Studio PP39L User manual

SETUP GUIDE

SETUP GUIDE
Model PP39L

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft®Windows®operating systems
are not applicable.
__________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell , the DELL logo, YOURS IS HERE , and DellConnect are trademarks of Dell Inc.; Intel
is a registered trademark and Core is a trademark of Intel Corporation in the United States and/or other countries;
Microsoft , Windows , Windows Vista , and Windows Vista start button logo are either trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries; Bluetooth is a registered trademark owned by
Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
July 2009 P/N TD222 Rev. A00

3
Setting Up Your Studio Laptop . . . . . . . . . . .5
Before Setting Up Your Computer . . . . . . . . . 5
Connect the AC Adapter . . . . . . . . . . . . . . . . 6
Connect the Network Cable (Optional) . . . . . 7
Press the Power Button . . . . . . . . . . . . . . . . .8
Set Up Microsoft Windows. . . . . . . . . . . . . . . 9
Install the SIM (Optional) . . . . . . . . . . . . . . . 10
Enable or Disable Wireless (Optional). . . . . 12
Connect to the Internet (Optional) . . . . . . . . 14
Using Your Studio Laptop . . . . . . . . . . . . . .17
Right Side Features . . . . . . . . . . . . . . . . . . . . 17
Left Side Features . . . . . . . . . . . . . . . . . . . . . 21
Computer Base and Keyboard Features . . . 24
Touch Pad Gestures. . . . . . . . . . . . . . . . . . . . 26
Media Controls. . . . . . . . . . . . . . . . . . . . . . . . 28
Display Features . . . . . . . . . . . . . . . . . . . . . . 30
Removing and Replacing the Battery . . . . . 32
Using the Optical Drive . . . . . . . . . . . . . . . . . 34
Software Features . . . . . . . . . . . . . . . . . . . . . 35
Dell Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Free Fall Sensor . . . . . . . . . . . . . . . . . . . . . . . 41
Solving Problems . . . . . . . . . . . . . . . . . . . . .42
Touch Screen Problems . . . . . . . . . . . . . . . . 42
Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Network Problems . . . . . . . . . . . . . . . . . . . . . 45
Power Problems. . . . . . . . . . . . . . . . . . . . . . . 46
Memory Problems . . . . . . . . . . . . . . . . . . . . . 47
Lockups and Software Problems . . . . . . . . . 48
Contents

4
Using Support Tools. . . . . . . . . . . . . . . . . . .50
Dell Support Center . . . . . . . . . . . . . . . . . . . . 50
System Messages . . . . . . . . . . . . . . . . . . . . . 51
Hardware Troubleshooter. . . . . . . . . . . . . . . 53
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 53
Restoring Your Operating System . . . . . . .57
System Restore . . . . . . . . . . . . . . . . . . . . . . . 57
Dell Factory Image Restore . . . . . . . . . . . . . 59
Operating System Reinstallation . . . . . . . . . 60
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .62
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
DellConnect . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Online Services . . . . . . . . . . . . . . . . . . . . . . . 64
Automated Order-Status Service . . . . . . . . . 65
Product Information. . . . . . . . . . . . . . . . . . . . 65
Returning Items for Repair Under Warranty
or for Credit . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 67
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 68
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Specifications . . . . . . . . . . . . . . . . . . . . . . .71
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Macrovision Product Notice. . . . . . . . . . . . . 81
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

5
This section provides information about setting
up your Studio 1557/1558 laptop.
Before Setting Up Your
Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Studio
laptop may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 inches) at the back of the computer
and a minimum of 5.1 cm (2 inches) on all other
sides. You should never put your computer in an
enclosed space, such as a cabinet or drawer
when it is powered on.
WARNING: Do not block, push objects
into, or allow dust to accumulate in
the air vents. Do not store your Dell™
computer in a low-airflow environment,
such as a closed briefcase, while it is
running. Restricting the airflow can
damage the computer or cause a fire.
The computer turns on the fan when the
computer gets hot. Fan noise is normal and
does not indicate a problem with the fan or
the computer.
CAUTION: Placing or stacking heavy or
sharp objects on the computer may result
in permanent damage to the computer.
Setting Up Your Studio Laptop

6
Setting Up Your Studio Laptop
Connect the AC Adapter

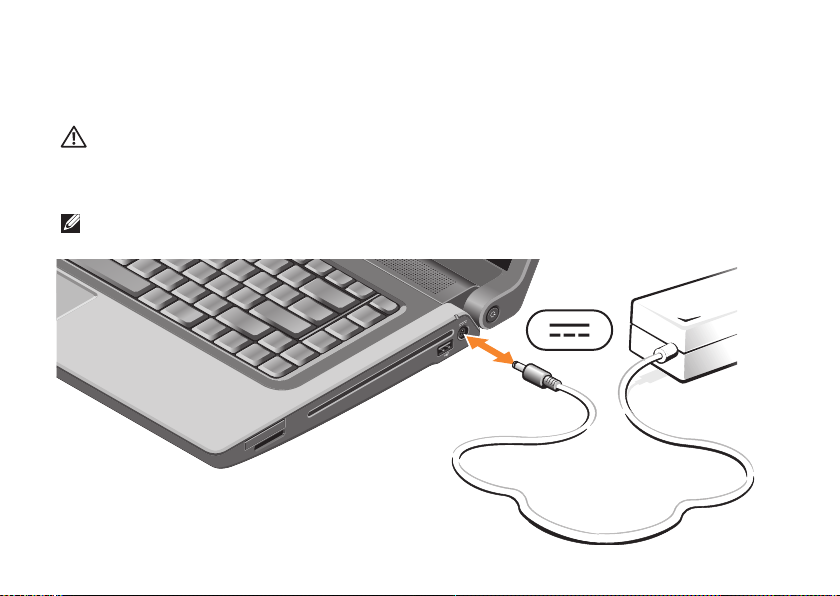

Connect the AC adapter to the computer and then plug it into a wall outlet or surge protector.
WARNING: The AC adapter works with electrical outlets worldwide. However, power
connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to a power strip or electrical outlet may cause fire or
permanent damage to your computer.
NOTE: Connect the power cord to the adapter firmly and ensure that the light on the adapter is
on when you turn on power.

7
Setting Up Your Studio Laptop
Connect the Network Cable (Optional)

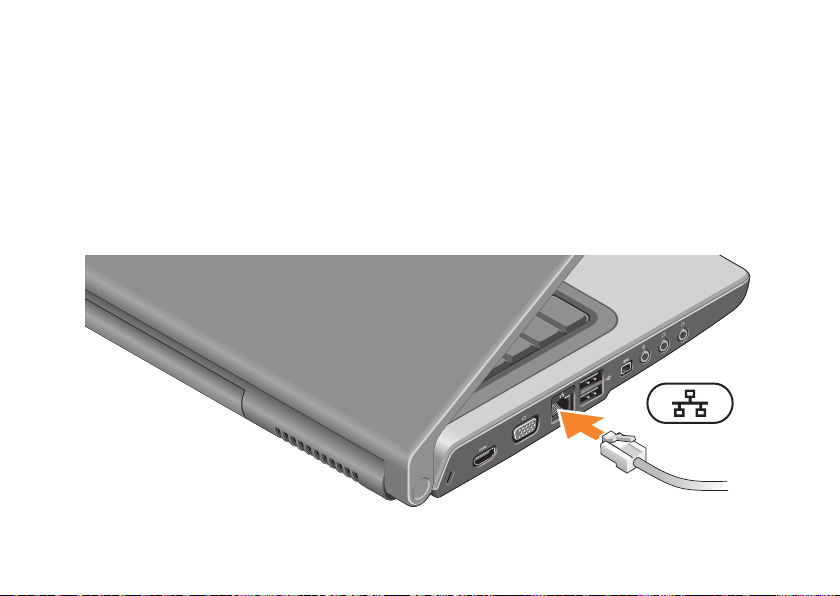

To use a wired network connection, connect the network cable.

8
Setting Up Your Studio Laptop

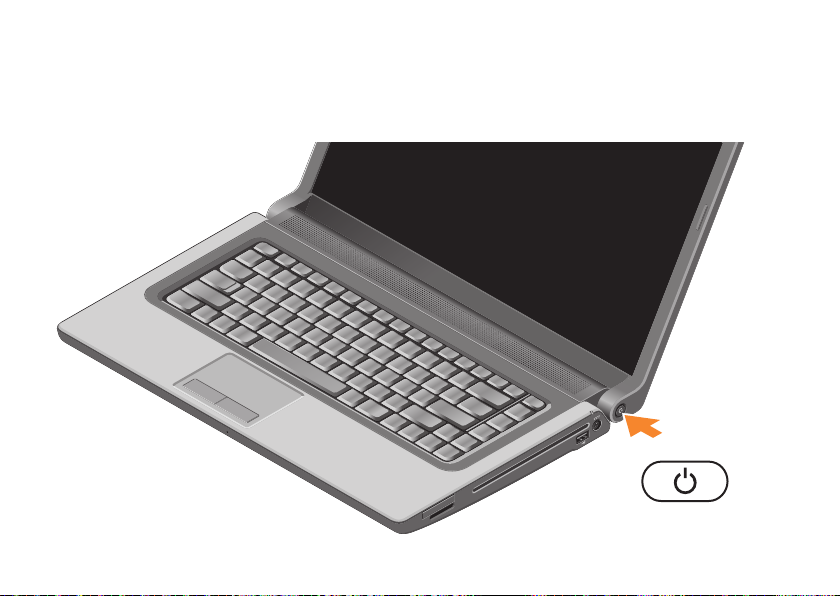

Press the Power Button

9
Setting Up Your Studio Laptop
Set Up Microsoft Windows
Your Dell computer is preconfigured with Microsoft®Windows®operating system. To set up
Windows for the first time, follow the instructions on the screen. These steps are mandatory
and may take some time to complete. The Windows setup screens will take you through several
procedures including accepting license agreements, setting preferences, and setting up an Internet
connection.
CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your
computer unusable and you will need to reinstall the operating system.
NOTE: It is recommended that you download and install the latest BIOS and drivers for your
computer available on the Dell Support website at support.dell.com.

10
Setting Up Your Studio Laptop
Install the SIM (Optional)
NOTE: Installing a SIM is not required if you are using an EVDO card to access the Internet.
Installing a Subscriber Identity Module (SIM) card on your computer allows you to connect to the
Internet. To access the Internet you must be within the network of your cellular service provider.
To install the SIM:
Turn off your computer.1.
Remove the battery (see “Removing and Replacing the Battery” on page XX).2.
In the battery bay, slide the SIM into the SIM card slot.3.
Replace the battery (see “Removing and Replacing the Battery” on page XX).4.
Turn on your computer.5.

11
Setting Up Your Studio Laptop
3
21
1battery bay
2SIM card slot
3SIM card

12
Setting Up Your Studio Laptop
Enable or Disable Wireless (Optional)

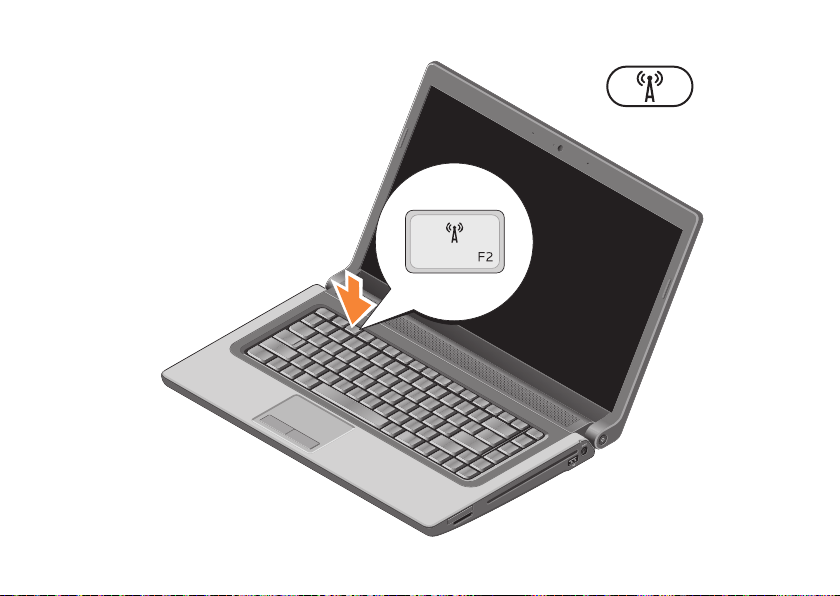

Press the key or press the <Fn><F2> keys on the keyboard to enable or disable wireless. The
wireless on or off icons appear on the screen to indicate the status.

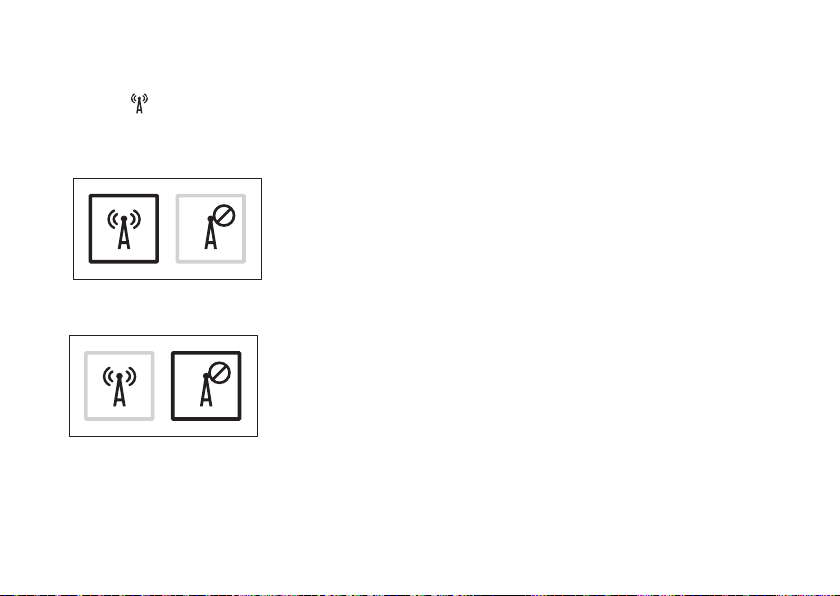

Wireless on:
Wireless off:
For information on changing the behavior of the Fn key, see “Media Controls” on page XX.

13
Setting Up Your Studio Laptop

14
Setting Up Your Studio Laptop
Connect to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection and an Internet
Service Provider (ISP).
If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one from the Dell website at
www.dell.com.
Setting Up a Wired Connection
If you are using a dial-up connection,•
connect the telephone line to the external
USB modem (optional) and to the telephone
wall connector before you set up your
Internet connection.
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
Setting Up a Wireless Connection
NOTE: To set up your wireless router, see
the documentation that shipped with your
router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
Windows Vista
®
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page XX).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Connect To.
Follow the instructions on the screen to4.
complete the setup.

15
Setting Up Your Studio Laptop
Windows
®
7
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page XX).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Control Panel→ Network
and Sharing Center→ Connect to a network.
Follow the instructions on the screen to4.
complete the setup.
Setting Up Your Internet Connection
ISPs and ISP offerings vary by country. Contact
your ISP for offerings available in your country.
If you cannot connect to the Internet but have
successfully connected in the past, the ISP
might have a service outage. Contact your ISP
to check the service status, or try connecting
again later.
Have your ISP information ready. If you do not
have an ISP, the Connect to the Internet wizard
can help you get one.

16
Setting Up Your Studio Laptop
Windows Vista
®
NOTE: The following instructions are
applicable to the Windows default view,
so they may not apply if you set your Dell™
computer to the Windows Classic view.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
Click3. Network and Internet→ Network and
Sharing Center→ Set up a connection→
Connect to the Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and4.
use the setup information provided by your
ISP to complete the setup.
Windows
®
7
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel→ Network
and Sharing Center→ Set up a new
connection or network→ Connect to the
Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and3.
use the setup information provided by your
ISP to complete the setup.

17
Your Studio 1557/1558 laptop has indicators and buttons that provide information and enable you to
perform common tasks. The connectors on your computer provide the option of attaching additional
devices.

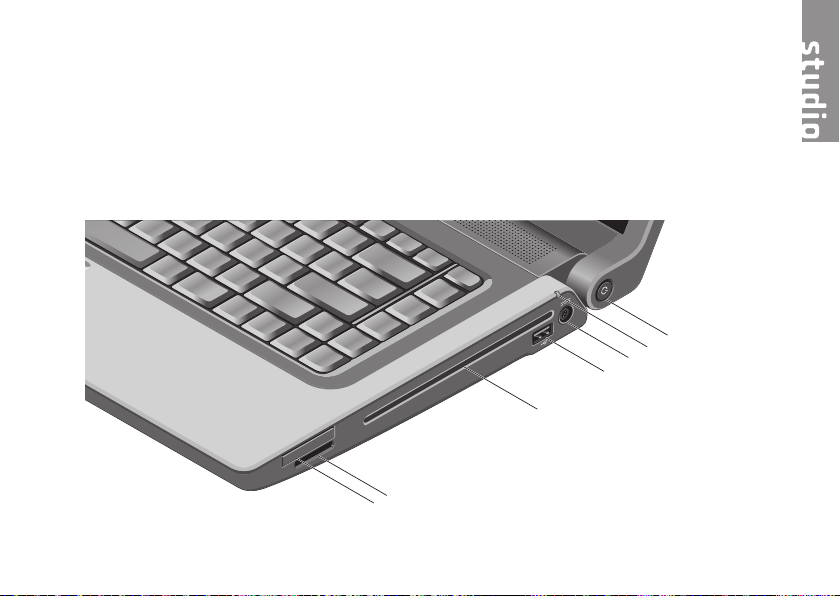

Right Side Features
12
3
45
7
6
Using Your Studio Laptop

18
Using Your Studio Laptop
1ExpressCard slot – Provides support for additional memory, wired and wireless
communications, multimedia, and security features. The slot supports 34 mm ExpressCards.
NOTE: The ExpressCard slot is designed only for ExpressCards. It does NOT support PC cards.
NOTE: Your computer ships with a plastic blank installed in the ExpressCard slot. Blanks
protect unused slots from dust and other particles. Save the blank for use when no
ExpressCard is installed in the slot; blanks from other computers may not fit your computer.
28-in-1 Media Card Reader – Provides a fast and convenient way to view and
share digital photos, music, videos, and documents stored on the following digital memory
cards:
Secure Digital (SD) memory card•
Secure Digital Input/Output (SDIO) card•
Secure Digital High Capacity (SDHC)•
Secure Digital High Density (SDHD)•
Memory Stick•
Memory Stick PRO•
MultiMedia Card (MMC)•
xD-Picture Card• (type - M and type - H)
NOTE: Your computer ships with a plastic blank installed in the media card slot. Blanks protect
unused slots from dust and other particles. Save the blank for use when no media card is
installed in the slot; blanks from other computers may not fit your computer.
3Optical drive –Plays or records CDs, DVDs, and Blu-ray Discs (optional). Ensure that the side
with print or writing is facing upward when inserting discs.
