Dell™ PowerEdge™
R410 Systems
Getting Started
With Your System
系统使用入门
Memulai Dengan Sistem Anda
はじめに
시스템시작하기

www.dell.com | support.dell.com
Dell™ PowerEdge™
R410 Systems
Getting Started
With Your System
Model code E07S

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data
if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.;
Intel,andXeon are registered trademarks of Intel Corporation in the U.S. and other countries;
Microsoft, Hyper-V, Windows,and Windows Server are either trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries; Red Hat and Red Hat Enterprise
Linux are registered trademarks of Red Hat, Inc. in the United States and other countries; SUSE is a
registered trademark of Novell, Inc. in the United States and other countries; VMware is a registered
trademark of VMware, Inc. in the United States and/or other jurisdictions.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model E07S
February 2009 P/N G710G Rev. A00

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.

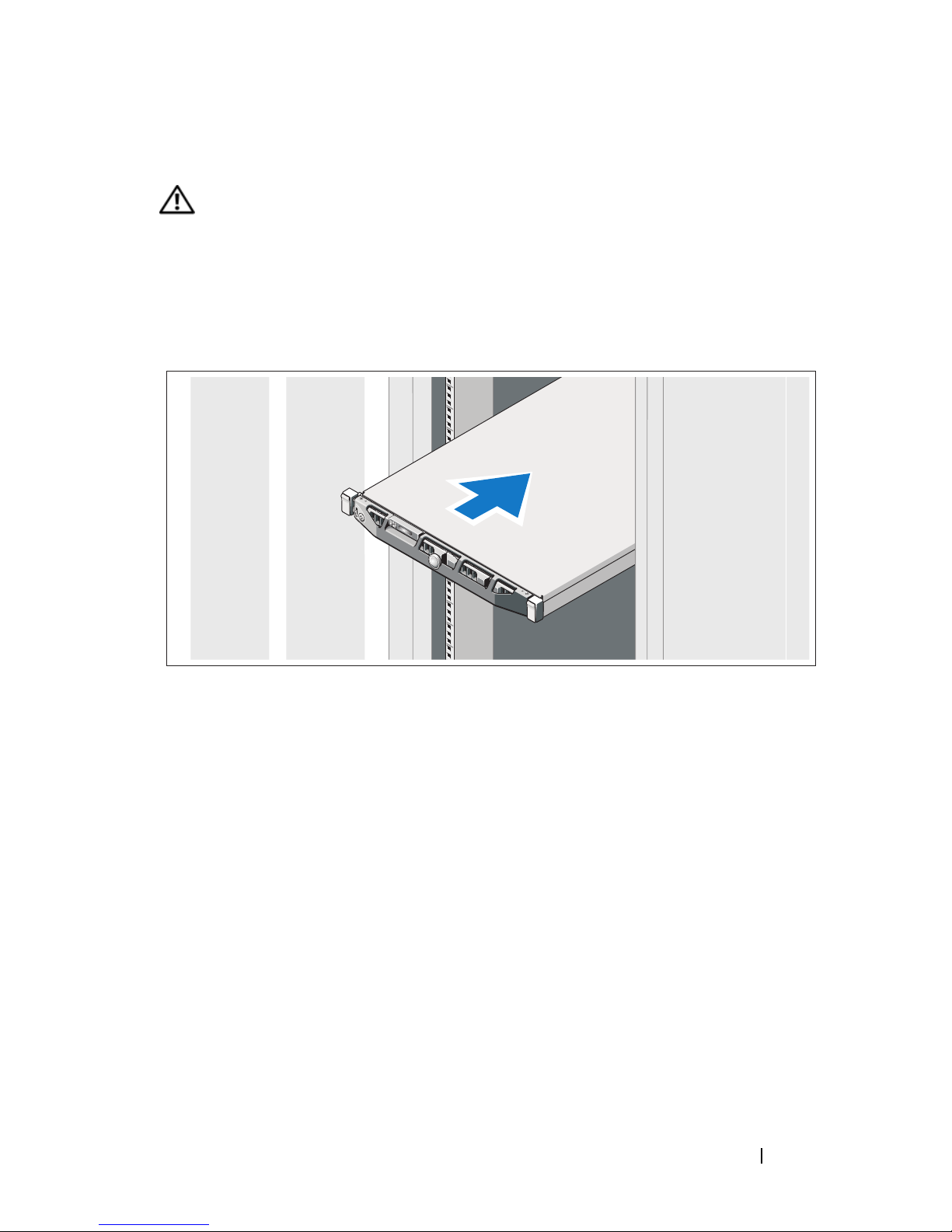

Installing the Rails and System in a Rack
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.

4Getting Started With Your System
Optional – Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.
Connecting the Power Cables
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

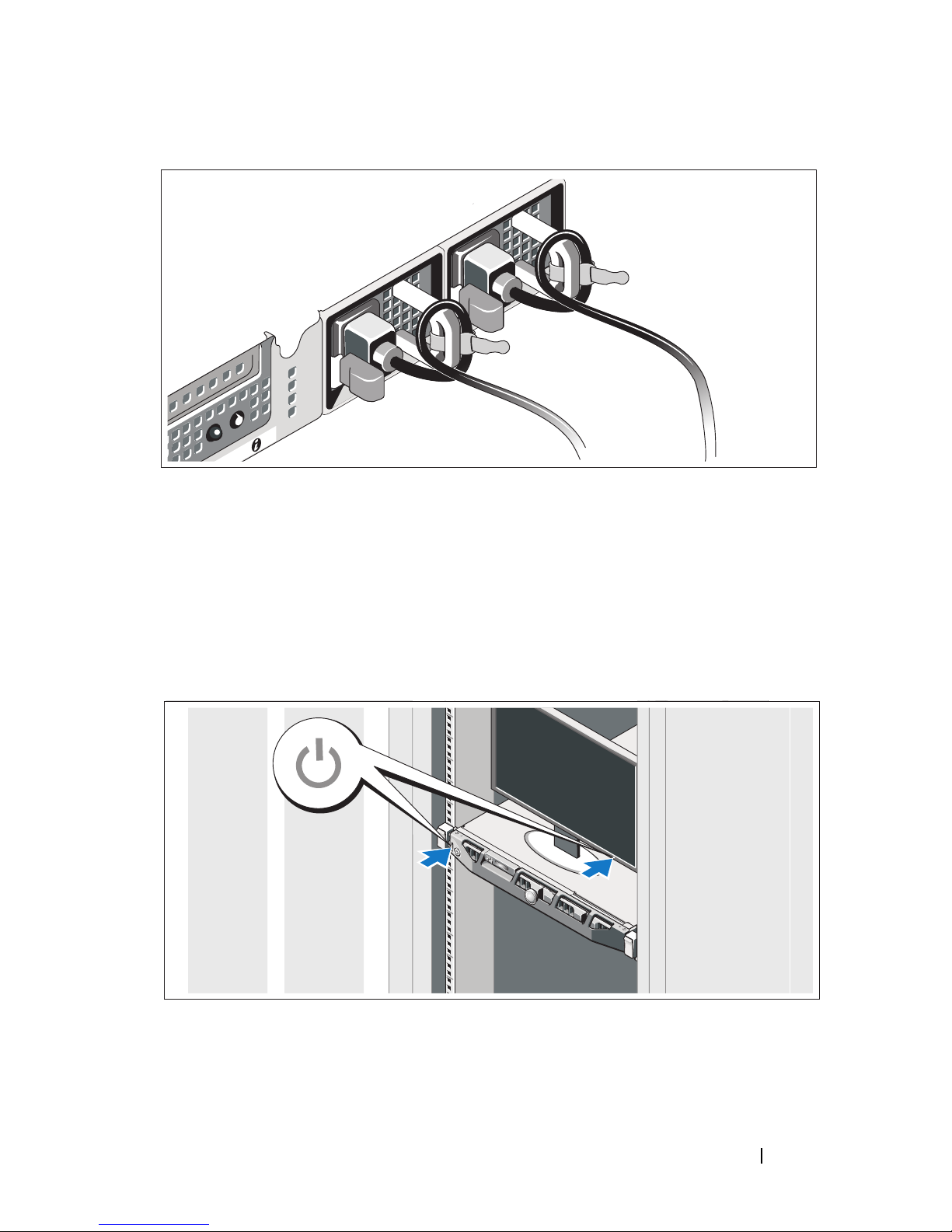

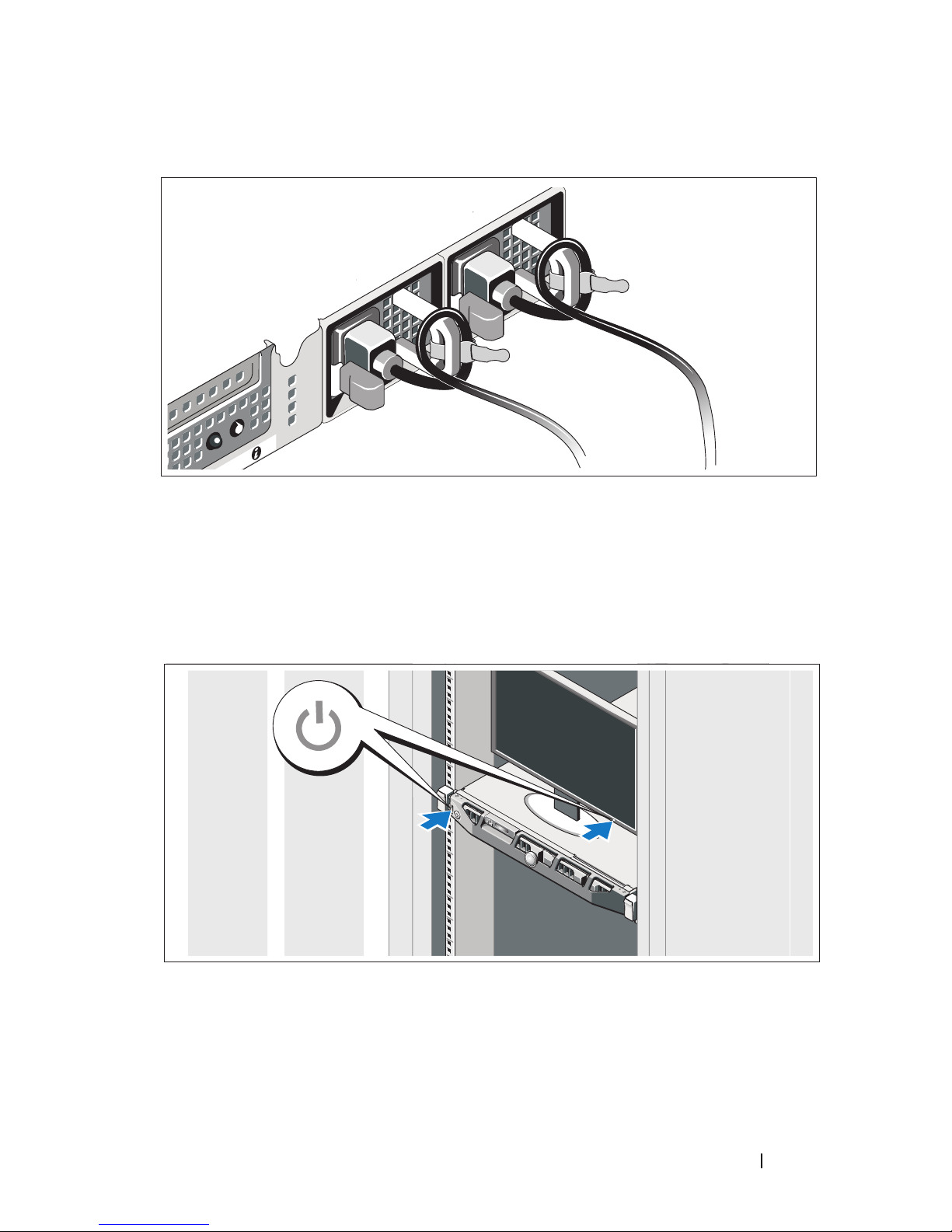

Installing the Power Cord Retention Bracket
Attach the power cord retention bracket on the right bend of the power
supply handle. Bend the system power cable into a loop as shown in the
illustration and attach to the bracket’s cable clasp.
Plug the other end of the power cable(s) into a grounded electrical outlet
or a separate power source such as an uninterrupted power supply (UPS)
or a power distribution unit (PDU).
Turning On the System
Press the power button on the system and the monitor. The power indicators
should light.

6Getting Started With Your System

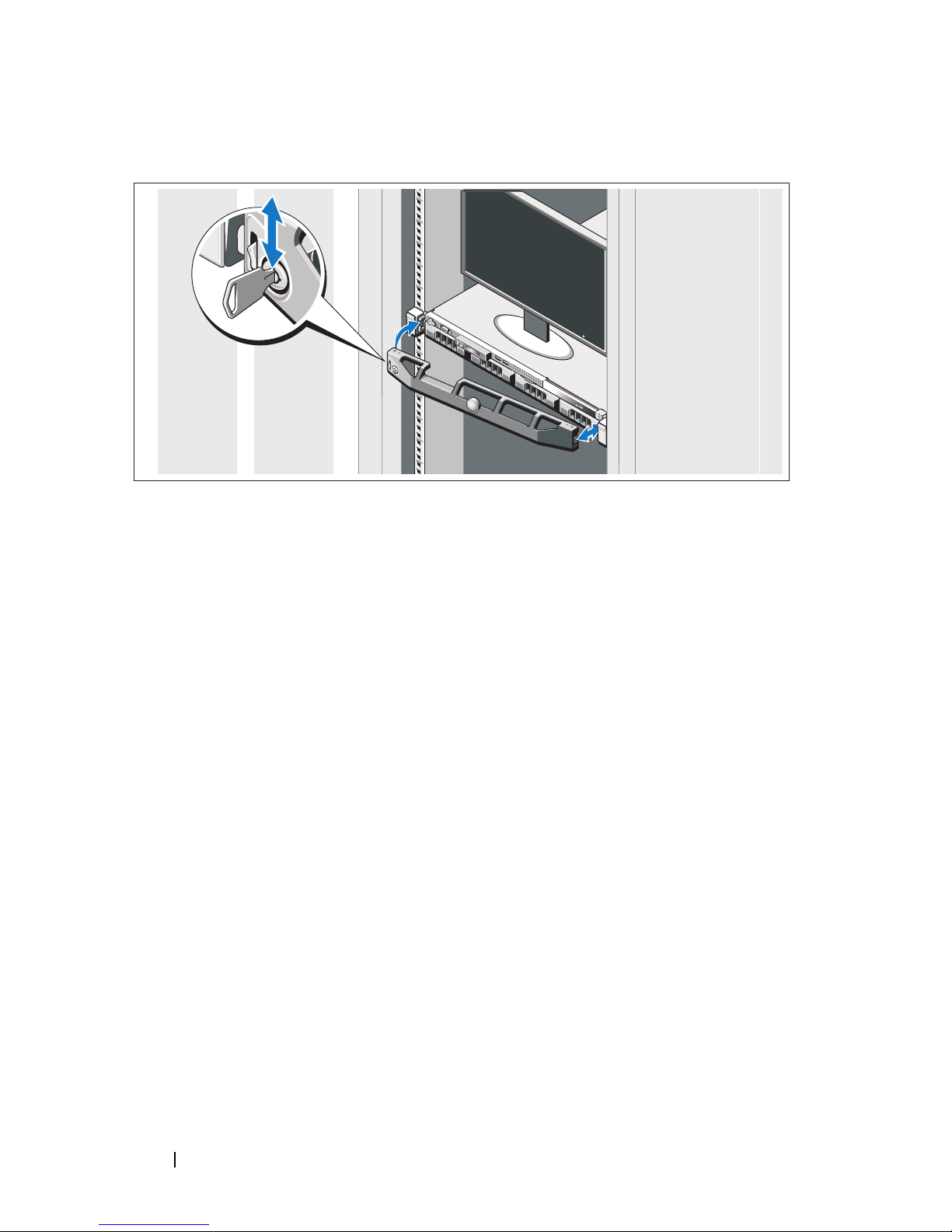

Installing the Optional Bezel
Install the bezel (optional).
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.
Supported Operating Systems
• Microsoft
®
Windows Server
®
2008 Hyper-V
™
• Microsoft Hyper-V Server 2008
• Microsoft Windows Server 2008 Web, Standard, and Enterprise (x86)
editions
• Microsoft Windows Server 2008 Web, Standard, Enterprise,
and Datacenter(x64) editions
• Microsoft Windows Server 2008 Web, Standard, and Enterprise (x86)
editions with SP2
• Microsoft Windows Server 2008 Web, Standard, Enterprise,
and Datacenter (x64) editions with SP2

Getting Started With Your System 7
• Microsoft Windows
®
Essential Business Server 2008 Standard
and Premium (x64) editions
• Microsoft Windows Small Business Server 2008 Standard
and Premium (x64) editions
• Microsoft Windows Server 2003 Web (x86) edition
• Microsoft Windows Small Business Server 2003 R2 Standard
and Premium editions
• Microsoft Windows Server 2003 R2 Standard and Enterprise (x86)
editions with SP2
• Microsoft Windows Server 2003 R2 Standard, Enterprise,
and Datacenter (x64) editions with SP2
•RedHat
®
Enterprise Linux
®
AS and ES (Version 4) (x86)
• Red Hat Enterprise Linux AS and ES (Version 4) (x86_64)
• Red Hat Enterprise Linux Server 5 (x86)
• Red Hat Enterprise Linux Server 5 (x86_64)
•SUSE
®
Linux Enterprise Server 11 (x86_64)
• SUSE Linux Enterprise Server 10 (x86_64)
•VMware
®
ESX Version 4.0 and 3.5, Update 4 (when available)
• VMware ESXi Version 4.0 and 3.5, Update 4 (when available)
NOTE: For the latest information on supported operating systems,
see www.dell.com.

8Getting Started With Your System
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document
or as a separate document.
• The rack documentation included with your rack solution describes
how to install your system into a rack.
•The
Hardware Owner’s Manual provides information about system features
and describes how to troubleshoot the system and install or replace system
components. This document is available online at
support.dell.com .
• Any media that ships with your system that provides documentation
and tools for configuring and managing your system, including those
pertaining to the operating system, system management software, system
updates, and system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com and read the updates
first because they often supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does
not perform as expected, see your Hardware Owner’s Manual. Dell™ offers
comprehensive hardware training and certification. See www.dell.com/training
for more information. This service may not be offered in all locations.
Información de la NOM (sólo para México)
La información que se proporciona a continuación aparece en el dispositivo
descrito en este documento, en cumplimiento de los requisitos de la Norma
Oficial Mexicana (NOM):
Importador:
Número de modelo: E07S
Voltaje de
alimentación: 100–240 V CA
Frecuencia: 50/60 Hz
Consumo eléctrico: 7–3,5 A

Getting Started With Your System 9
Technical Specifications
Processor
Processor type Intel®Xeon®processor 5500 series
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots One full-height, half-length x16 link
Memory
Architecture 1066 or 1333 MHz DDR3 registered or
unbuffered Error Correcting Code (ECC)
DIMMs.
Memory module sockets Eight 240-pin
Memory module capacities 1 GB, 2 GB, 4 GB, or 8 GB
Minimum RAM 1 GB (one processor) or
2 GB (two processors)
Maximum RAM 32 GB (one processor) or
64 GB (two processors)
Drives
Hard drives Up to four 3.5-inch, cabled or hot-swap SAS
or SATA internal drives
or
Up to four 2.5-inch, hot-swap SAS, SATA,
or SSD internal drives
Diskette drive Optional external USB 1.44-MB
Optical drive One optional internal slimline SATA
DVD-ROM or DVD+/-RW drive
NOTE: DVD devices are data only.
Optional external USB DVD-ROM

10 Getting Started With Your System
Connectors
Back
NIC Two RJ-45 (for integrated 1-GB NICs)
Serial 9-pin, DTE, 16550-compatible
USB Two 4-pin, USB 2.0-compliant
Video 15-pin VGA
Front
Video 15-pin VGA
USB Two 4-pin, USB 2.0-compliant
Internal
USB Two 4-pin, USB 2.0-compliant
Video
Video type Matrox G200, integrated in Winbond
WPCM450
Video memory 8 MB
Power
AC power supply
(per power supply)
Wattage 480W (non-redundant power supply)
500W (redundant power supply)
Voltage 100-240 VAC, 50/60 Hz, 7.5-3.8 A
(non-redundant power supply)
100-240 VAC, 50/60 Hz, 7-3.5 A
(redundant power supply)
Heat dissipation 1637 BTU/hr maximum
(non-redundant power supply)
1706 BTU/hr maximum
(redundant power supply)

Getting Started With Your System 11
Maximum inrush current Under typical line conditions and over
the entire system ambient operating range,
the inrush current may reach 25 A per power
supply for 10 ms or less.
Batteries
System battery CR 2032 3.0-V lithium ion coin cell
Physical
Height 4.3 cm (1.69 in)
Width 43.4 cm (17.09 in)
Depth 62.7 cm (24.69 in)
Weight (maximum configuration) 15.9 kg (35.02 lb)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet, the
maximum operating temperature is derated
1ºF/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a
maximum temperature gradation of 20°C
per hour
Power (continued)

12 Getting Started With Your System
Relative humidity
Operating 20% to 80% (noncondensing) with a
maximum humidity gradation of 10%
per hour
Storage 5% to 95% (noncondensing)
Maximum vibration
Operating 0.26 Grms at 5–500 Hz for 15 min
Storage 1.54 Grms at 10–250 Hz for 15 min
Maximum shock
Operating One shock pulse in the positive z axis
(one pulse on each side of the system) of
31 G for 2.6 ms in the operational orientation
Storage Six consecutively executed shock pulses
in the positive and negative x, y, and z axes
(one pulse on each side of the system)
of 71 G for up to 2 ms
Altitude
Operating –16 to 3048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet, the
maximum operating temperature is derated
1ºF/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Airborne Contaminant Level
Class G2 or lower as defined by ISA-S71.04-1985
Environmental (continued)

www.dell.com | support.dell.com
Dell™ PowerEdge™
R410 系统
系统使用入门
型号代码 E07S

注、小心和警告
注：“注”表示可以帮助您更好地使用计算机的重要信息。
小心：“小心”表示如果不遵循说明，就有可能损坏硬件或导
致数据丢失。
警告：
“警 ”表示可能会造成财产损失、人身伤害甚至死亡。
____________________
本说明文件中的信息如有更改，恕不另行通知。
© 2009 Dell Inc. 版权所有，翻印必究。
未经 Dell Inc. 书面许可，严禁以任何形式复制这些材料。
本文中使用的商标：
Dell、 DELL 标和 PowerEdge 是Dell Inc. 的商标； Intel 和Xeon 是Intel
Corporation 在美国 和其它国家和地区的注册商标； Microsoft、Hyper-V、Windows 和
Windows Server 是Microsoft Corporation 在美国和 /或其它国家和地区的商标或注册商标；
Red Hat 和Red Hat Enterprise Linux 是Red Hat, Inc. 在美国和其它国家 /地区的注册商标；
SUSE 是Novell Inc. 在美国和其它国家 /地区的注册商标； VMware 是VMware, Inc.
在美国和 /或其它管辖区域的注册商标。
本说明文件中述及的其它商标和商品名称是指拥有相应标记和名称的公司或其制造的产品。
Dell Inc. 对其它公司的商标和产品名称不拥有任何所有权。
型号 E07S
2009 年2 月P/N G710G Rev. A00

系统使用入门 15
安装和配置
警告：
执行下列步骤之前，请阅读系统随附的安全说明。
打开系统包装
打开系统包装并识别每项物品。
在机架中安装滑轨和系统
遵循系统随附的安全说明和机架安装说明组装滑轨并在机架中安装系统。

16 系统使用入门
可选 –连接键盘、鼠标和显示器
接键盘、鼠标和显示器（可选）。
系统背面的 接器附有图标，这些图标指示了要插入每个 接器的电缆。
确保拧紧显示器的电缆 接器上的螺钉（如果有）。
连接电源电缆
将系统电源电缆 接至系统，如果使用显示器，将显示器电源电缆 接
至显示器。

系统使用入门 17
安装电源线 定支架
在电源设备手柄的右侧拐弯处上方 接电源线固定支架。如图例所示，
将系统电源电缆弯曲成环状，并 接至支架的电缆挂钩。
将电源电缆的另一端插入接地的电源插座或单独的电源，如不间断电
源设备
(UPS)
或配电装置
(PDU)
。
开启系统
按下 系统和显示器的电源按钮。电源指示灯将会亮起。

18 系统使用入门
安装可选挡板
安装挡板（可选）。
完成操作系统安装
如果购买了预安装的操作系统，请参阅随系统提供的操作系统说明文件。
第一次安装操作系统时，请参阅操作系统的安装和配置说明文件。
请确保先安装操作系统，然后再安装未预装的硬件或软件。
支持的操作系统
•Microsoft
®
Windows Server
®
2008 Hyper-V
™
•Microsoft Hyper-V
Server 2008
•Microsoft Windows Server 2008 Web
、
Standard
和
Enterprise (x86)
版
•Microsoft Windows Server 2008 Web 、
Standard
、
Enterprise
和
Datacenter (x64)
版
•Microsoft Windows Server 2008 Web 、
Standard
和
Enterprise (x86)
版（含
SP2
）
•Microsoft Windows Server 2008 Web 、
Standard
、
Enterprise
和
Datacenter (x64)
版（含
SP2
）
•Microsoft Windows
®
Essential Business Server 2008 Standard
和
Premium (x64)
版
