Dell PowerEdge R515 Systems
Getting Started
With Your System
Regulatory Model E12S Series and E13S Series

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data
if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
Information in this publication is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.
AMD®is a registered trademark of Advanced Micro Devices, Inc. Microsoft®, Windows®, and
Windows Server®are either trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries. Red Hat Enterprise Linux®and Enterprise Linux®are registered
trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®and SUSE®are
registered trademarks of Novell Inc. in the United States and other countries. Citrix®, Xen®, and
XenServer®are either registered trademarks or trademarks of Citrix System, Inc. in the United States
and/or other countries.
Other trademarks and trade names may be used in this publication to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model E12S Series and E13S Series
June 2010 P/N 3MNKW Rev. A00

Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.

4Getting Started With Your System
Optional – Connecting the Keyboard, Mouse, and Monitor

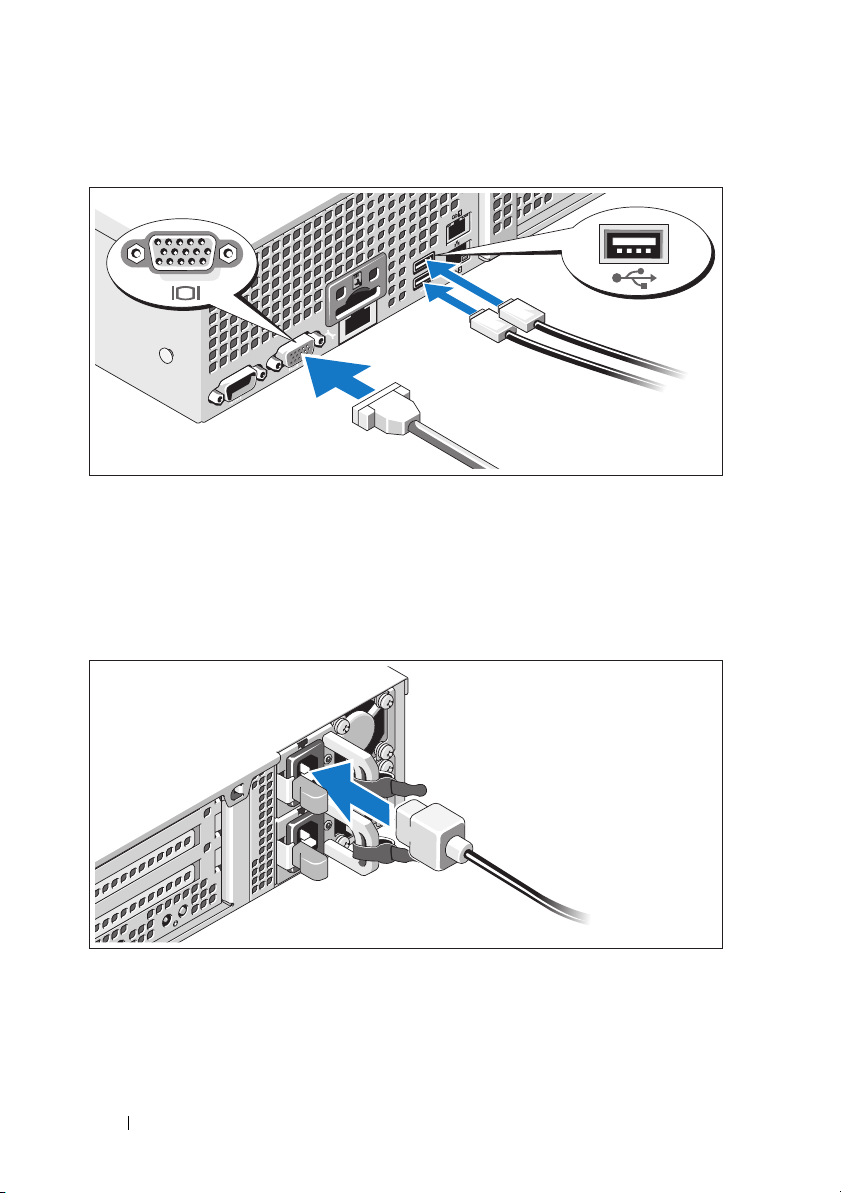

Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.
Connecting the Power Cable(s)
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.

Getting Started With Your System 5
Securing the Power Cable(s)
Bend the system power cable into a loop as shown in the illustration and secure
the cable to the bracket using the provided strap. Plug the other end of the
power cable into a grounded electrical outlet or a separate power source such as
an uninterrupted power supply (UPS) or a power distribution unit (PDU).
Turning On the System
Press the power button on the system and the monitor. The power indicators
should light.

6Getting Started With Your System

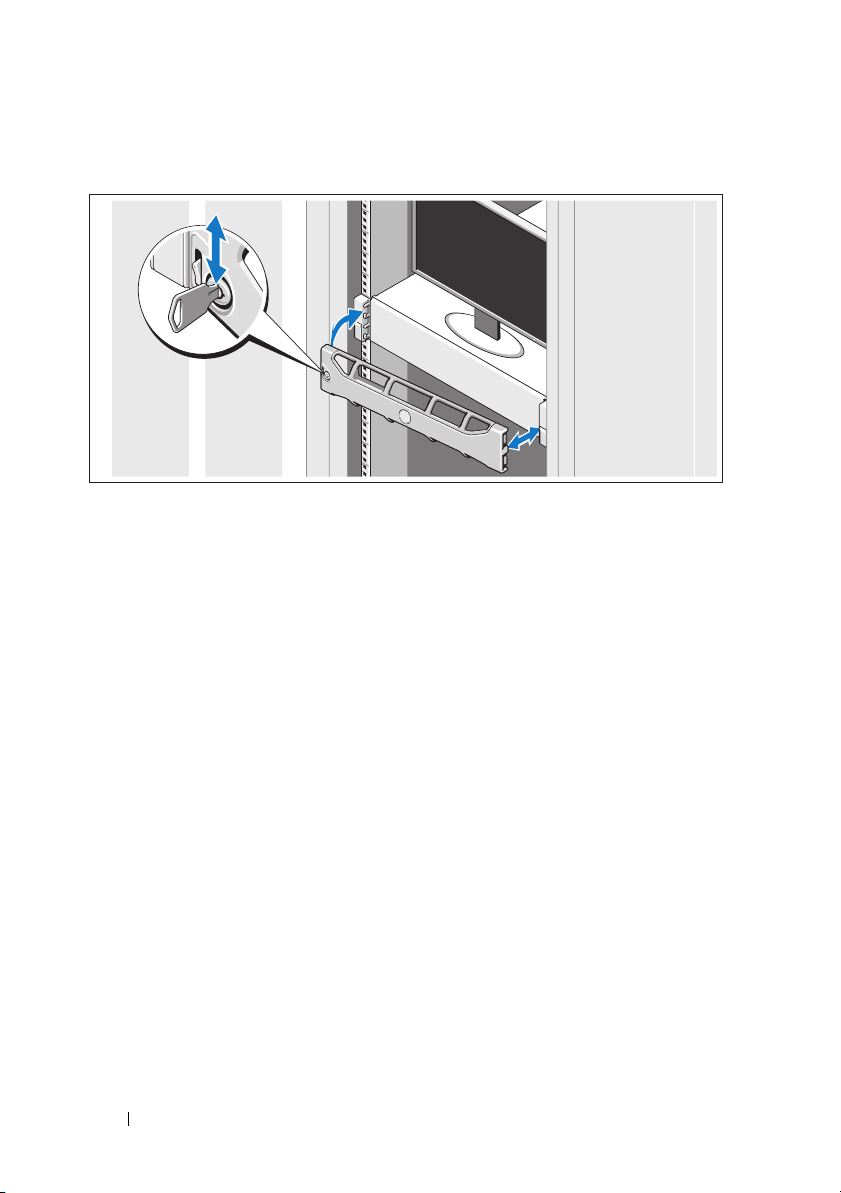

Installing the Optional Bezel
Install the bezel (optional).
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.

Getting Started With Your System 7
Supported Operating Systems
NOTE: For twelve–hard-drive systems with additional internal hard drives, it is
recommended that you install the operating system on the internal hard drives
in a RAID 1 configuration.
• Microsoft Windows Server 2008 SP2 Web, Standard, and Enterprise (x86)
Editions
• Microsoft Windows Server 2008 SP2 Web, Standard, Enterprise,
and Datacenter (x64) Editions
• Microsoft Windows Server 2008 R2 Web, Standard, Enterprise,
and Datacenter (x64) Editions
• Windows Small Business Server 2008 R2 (x64) Standard and
Premium Editions
• Microsoft Windows Server 2008 R2 HPC (x64) Edition
• Microsoft Windows Server 2008 SP2 HPC (x64) Edition
• Red Hat Enterprise Linux 5.5 Standard (x86_64),
Advanced Platform (x86_64), and HPC Editions
• SUSE Linux Enterprise Server 11 SP1 (x86_64)
• SUSE Linux Enterprise Server 10 SP3 (x86_64)
• VMware ESX 4.0 Update 2 Classic Edition
• VMware ESXi 4.0 Update 2 Installable Edition
• VMware ESX 4.1 Classic Edition
• VMware ESXi 4.1 Installable Edition
• Citrix XenServer 5.6 Enterprise Edition
• Microsoft Hyper-V Windows Server 2008 R2 (stand-alone)
• Microsoft Windows Server 2008 R2 Hyper-V role
NOTE: For the latest information on supported operating systems,
see support.dell.com.

8Getting Started With Your System
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document or
as a separate document.
• The rack documentation included with your rack solution describes
how to install your system into a rack.
•The
Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document is available online at
support.dell.com/manuals .
• Any media that ships with your system that provides documentation
and tools for configuring and managing your system, including those
pertaining to the operating system, system management software,
system updates, and system components that you purchased
with your system.
NOTE: Always check for updates on support.dell.com/manuals and read the
updates first because they often supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does
not perform as expected, see your Hardware Owner’s Manual. Dell offers
comprehensive hardware training and certification. See dell.com/training for
more information. This service may not be offered in all locations.

Getting Started With Your System 9
Información de la NOM (sólo para México)
La información que se proporciona a continuación aparece en el dispositivo
descrito en este documento, en cumplimiento de los requisitos de la Norma
Oficial Mexicana (NOM):
Technical Specifications
Importador:
Número de modelo: Series E12S y E13S
Voltaje de
alimentación:
100-240 V CA
Frecuencia: 50/60 Hz
Consumo eléctrico: De 7,5 a 4,0 A
Processor
Processor type Up to two AMD Opteron 4100 processors
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots using riser cards
NOTE: Depending on the configuration, your system may have either riser 1 or riser 2.
Riser 1
OR
Riser 2
Slot 1: PCIe x4, half-length, full-height
Slot 2: PCIe x4, full-length, full-height
Slot 3: PCIe x8, half-length, full-height
Slot 4: PCIe x4, internal slot for integrated card
NOTE: All four slots are x8 connectors.
Slot 1: PCIe x16, full-length, full-height
Slot 2: PCIe x4, internal for integrated card
NOTE: A General Purpose Computation on
Graphics Processing Units (GPGPU) optimized
configuration is available on riser 2.

10 Getting Started With Your System
Memory
Architecture 1333 MHz DDR3 registered or
unbuffered Error Correcting Code (ECC)
DIMMs
Memory module sockets Eight 240-pin
Memory module capacities 1 GB, 2 GB, 4 GB, or 8 GB
Minimum RAM 1 GB with a single processor (1 DIMM
per processor)
Maximum RAM 64 GB (8 GB dual-rank DIMMs)
128 GB (16 GB quad-rank DIMMs)
(when available)
Drives
Hard drives
Eight–hard-drive systems
Twelve–hard-drive systems
Up to eight 3.5" or 2.5", hot-swappable SAS,
SATA, or SSD drives
Up to twelve 3.5" or 2.5", hot-swappable SAS,
SATA, or SSD drives and up to two cabled
2.5" SAS or SSD drives
NOTE: For twelve–hard-drive systems with
additional internal hard drives, it is
recommended that you install the operating
system on the internal hard drives in a RAID 1
configuration.
Optical drive Optional internal slim-line SATA DVD-ROM
or DVD+/-RW
Optional external USB DVD-ROM
NOTE: Twelve–hard-drive systems support
only an external USB DVD-ROM.

Getting Started With Your System 11
Connectors
Back
NIC Two RJ-45 (for integrated 1-GB NICs)
Serial 9-pin, DTE, 16550-compatible
USB Two 4-pin, USB 2.0-compliant
Video 15-pin VGA
Front
Video 15-pin VGA
USB Two 4-pin, USB 2.0-compliant
Internal
USB Two 4-pin, USB 2.0-compliant
Video
Video type Matrox G200, integrated in the BMC
Video memory 8 MB
Power
AC power supply (per power supply)
Wattage 750 W (optional redundant power supply)
Voltage 100–240 VAC, autoranging, 50–60 Hz
Heat dissipation
Eight–hard-drive systems
Twelve–hard-drive systems
2200 BTU/hr maximum
2450 BTU/hr maximum
Maximum inrush current Under typical line conditions and over the
entire system ambient operating range,
the inrush current may reach 55 A per
power supply for 10 ms or less.
Batteries
System battery CR 2032 3.0-V lithium ion coin cell

12 Getting Started With Your System
Physical
Height
Eight– hard-drive systems
Twelve–hard-drive systems
8.64 cm (3.4 in)
8.67 cm (3.42 in)
Width
Eight–hard-drive systems
Twelve–hard-drive systems
43.66 cm (17.19 in)
44.52 cm (17.53 in)
Depth
Eight–hard-drive systems
Twelve–hard-drive systems
61.02 cm (24.09 in)
66.46 cm (26.17 in)
Weight (maximum configuration)
Eight–hard-drive systems
Twelve–hard-drive systems
22.5 kg (49.5 lbs)
29.0 kg (63.8 lbs)
Weight (empty)
Eight–hard-drive systems
Twelve–hard-drive systems
13.5 kg (29.7 lbs)
15.85 kg (34.87 lbs)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet,
the maximum operating temperature is
derated 1ºF/550 ft.
Storage –40° to 65°C (–40° to 149°F) with a
maximum temperature gradation
of 20°C per hour

Getting Started With Your System 13
Relative humidity
Operating 20% to 80% (noncondensing) with
a maximum humidity gradation
of 10% per hour
Storage 5% to 95%, maximum humidity gradation
of 10% per hour.
Maximum vibration
Operating 0.26 G at 5–350 Hz for 15 min
Storage 1.87 G at 10–500 Hz for 15 min
Maximum shock
Operating One shock pulse in the positive z axis
(one pulse on each side of the system) of
31 G for 2.6 ms in the operational orientation
Storage Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system)
of 71 G for up to 2 ms, and Square Wave
32G, 270 in/sec
Altitude
Operating –16 to 10,668 m (-50 to 35,000 ft)
NOTE: For altitudes above 2950 feet,
the maximum operating temperature
is derated 1ºF/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Airborne Contaminant Level
Class G1 or lower as defined by ISA-S71.04-1985
Environmental (Continued)

14 Getting Started With Your System

Dell PowerEdge R515 系统
系统使用入门
管制型号 E12S 系列和 E13S 系列

注、小心和警告
注：“注”表示可以帮助您更好地使用计算机的重要信息。
小心：“小心”表示如果不遵循说明，就有可能损坏硬件或导致数据
丢失。
警告：
“警 ”表示可能会造成财产损失、人身伤害甚至死亡。
____________________
本出版物中的信息如有更改，恕不另行通知。
© 2010 Dell Inc. 版权所有，翻印必究。
未经 Dell Inc. 书面许可，严禁以任何形式复制这些材料。
本文中使用的商标：Dell™、DELL 标和 PowerEdge™是Dell Inc. 的商标。 AMD®是
Advanced Micro Devices, Inc. 的商标。 Microsoft®、Windows®和Windows Server®是
Microsoft Corporation 在美国和 /或其他国家 /地区的商标或注册商标。 Red Hat Enterprise
Linux®和Enterprise Linux®是Red Hat, Inc. 在美国和 /或其他国家 /地区的注册商标。
Novell®和SUSE®是Novell Inc. 在美国和其他国家 /地区的注册商标。 Citrix®、Xen®和
XenServer®是Citrix System, Inc. 在美国和 /或其他国家 /地区的注册商标或商标。
本出版物中述及的其它商标和产品名称是指拥有相应商标和产品名称的公司或其制造的
产品。 Dell Inc. 对其它公司的商标和产品名称不拥有任何所有权。
管制型号 E12S 系列和 E13S 系列
2010 年6 月P/N 3MNKW Rev. A00

系统使用入门 17
安装和配置
警告：
执行下列步骤之前，请查看系统随附的安全说明。
打开系统包装
打开系统包装并确认各个组件。
遵循系统随附的安全说明和机架安装说明，在机架中组装滑轨并安装系统。

18 系统使用入门
可选 –
连接键盘、鼠标和显示器
接键盘、鼠标和显示器（可选）。
系统背面的 接器附有图标，指示要插入每个 接器的电缆。请确保拧紧显
示器电缆 接器上的螺钉（如果有）。
连接电源电缆
将系统电源电缆 接至系统，如果使用显示器，则将显示器电源电缆 接至
显示器。
