Dell AC411 User manual

What is the DELL AC411 Speaker and how does it work
Table of Contents
1. Overview
2. How to Connect the Dell AC411 Speaker to the Dell computer
3. How to pair the Bluetooth code
4. Trouble shooting Dell AC411 Speaker
1. Overview 1.1 Product over view
1.2 Product Labels
1.3 Product Spec
DELL AC411 Speaker

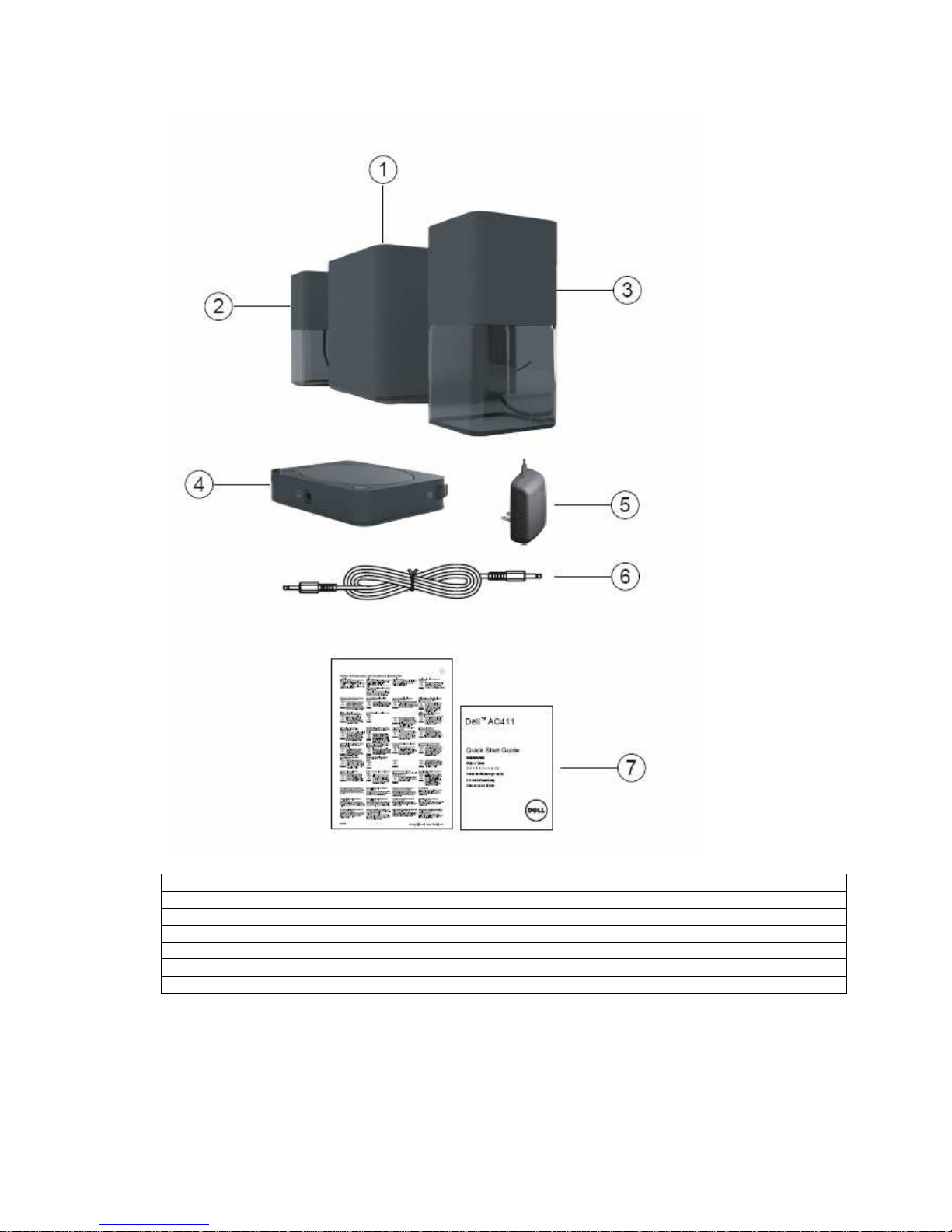

1.1 Product over view

1. Main unit 1pcs
2. Left satellite 1pcs
3 Right satellite 1pcs
4.RC remote control 1pcs
5.Power adaptor 1pcs
6. AUX In cable 1pcs
7. literature document 1pcs

View of the RC control
1. Bluetooth icon button
2. Earphone Jack
3. Power button
4. Bass button
5. Volume button
View of the main unit’s rear
1. Right Jack
2. Left Jack
3. DC IN Jack
4. RC IN Jack
5. AUX IN Jack

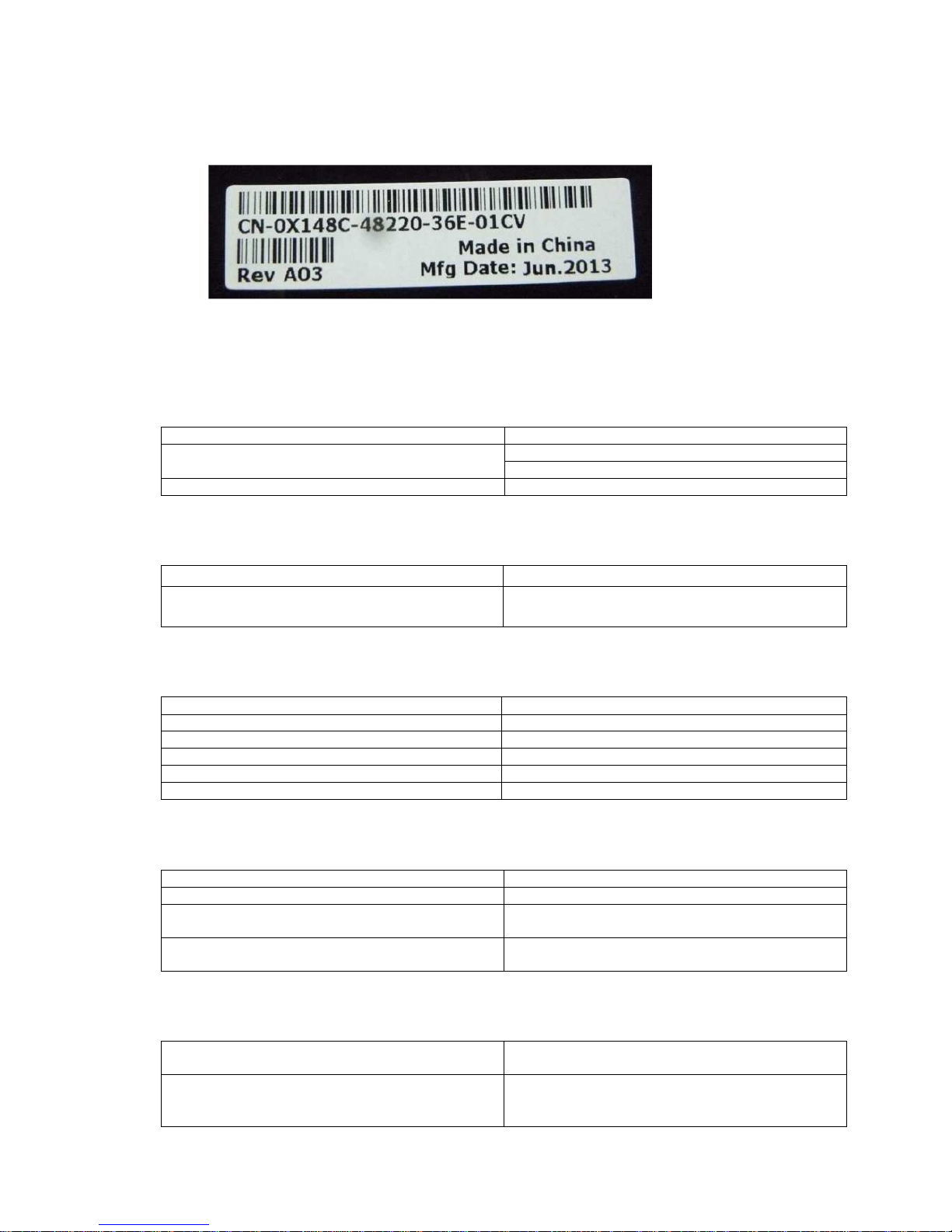

2. PPID Label
1.3 Product Spec
General
Model Number AC411
Bluetooth 3.0Connection Type AUX-IN (3.5mm Jack)
Supported Operating Systems Microsoft Windows 7 SP1 or later, Windows 8
Electrical

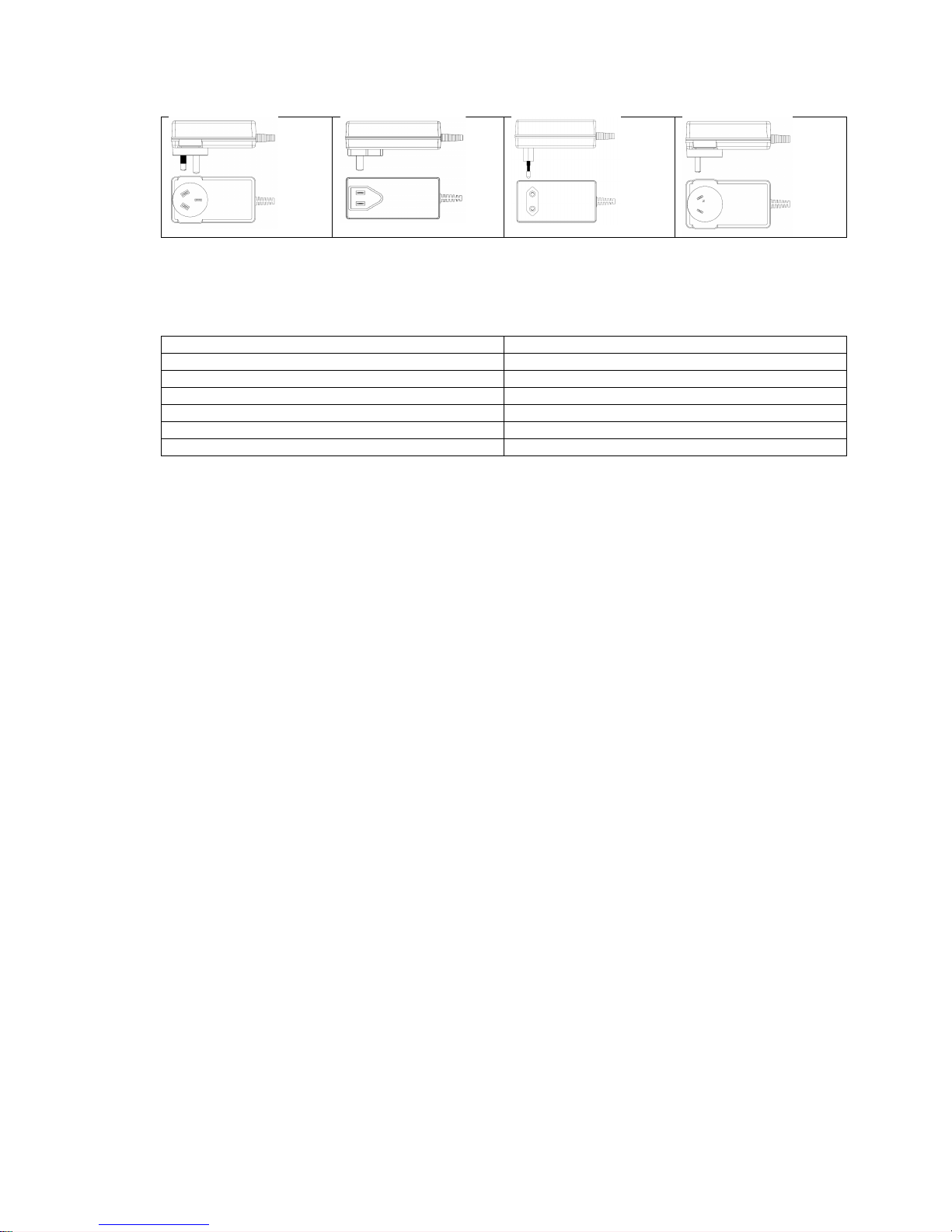

Power adaptor 18V 2.5A
Output power 7W+7W +15W continuous RMS power @ ≤10%
THD
Physical Characteristics
Main unit L*W*H 141*150*150 mm
Line in cable length 200 mm
RC remote control L*W*H 70*70*17.5 mm
Adaptor cable 179mm
Cable on the RC remote control 200 mm
Weight 2124 g
Environmental
Operating temperature 0 °C to 40 °C
Storage temperature -40 °C to 65 °C
Operating humidity 90% maximum relative humidity,
non condensing
Storage humidity 90% maximum relative humidity,
non condensing
Bluetooth 3.0 Wireless
Radio transmission The baseband transmit data is GFSK Modulated in
the 2.4 GHz ISM band
Range Up to 10m radio range.
No performance degradation up to max radio range
(10 m)

AC411 offers Customers the opportunity to bring the full range of audio to their workspace while continuing
to take advantage of the reduced footprint presented by their Dell Platform.
NOTE:
The Del l AC411 Speaker will also work with other Music sources such as,
MP3 or Mobile Phones with Ø3.5mm Audio jack.
All the speaker systems connect to the audio ports are in the same way. Refer to the connection diagrams
and quick start Guide for a better understanding of how they operated.
2. How to Connect the Dell AC411 Speaker to the Dell compute
1. Plug the satellites into the R/L Jack according to the silkscreen on the rear of the main unit.
2. Plug the RC remote control into the RC IN Jack.
3. Plug the AUX IN cable into the AUX IN Jack and with the other side into the 3.5mm jack or earphone
jack on the computer.
4. Connect the adaptor onto the AC411 via the DC IN Jack.
3. How to pair the Bluetooth

For Win7 operation system

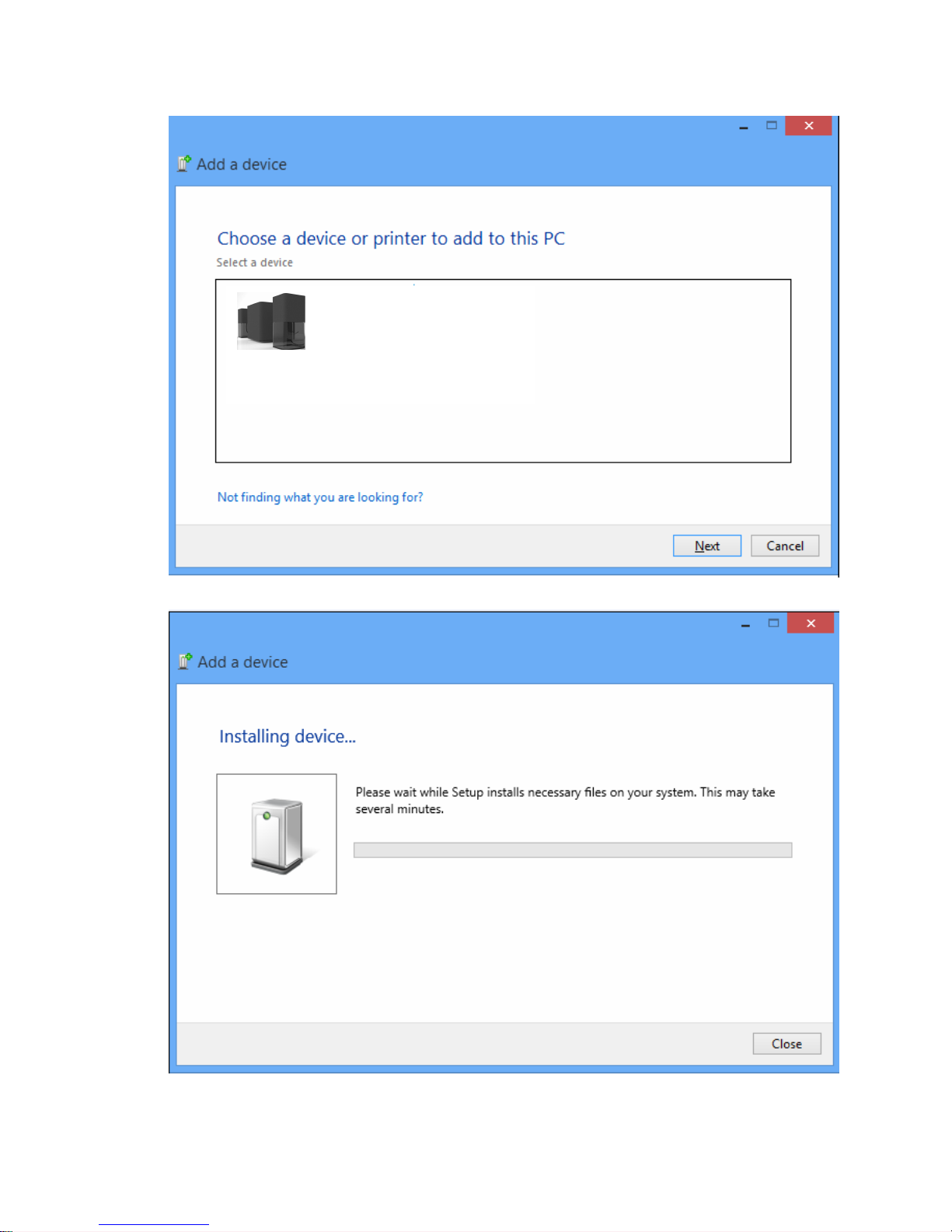

1. Start-> control Panel->Devices and Printers -> click add a device

DellAC411

DellAC411

For Win8 operation system

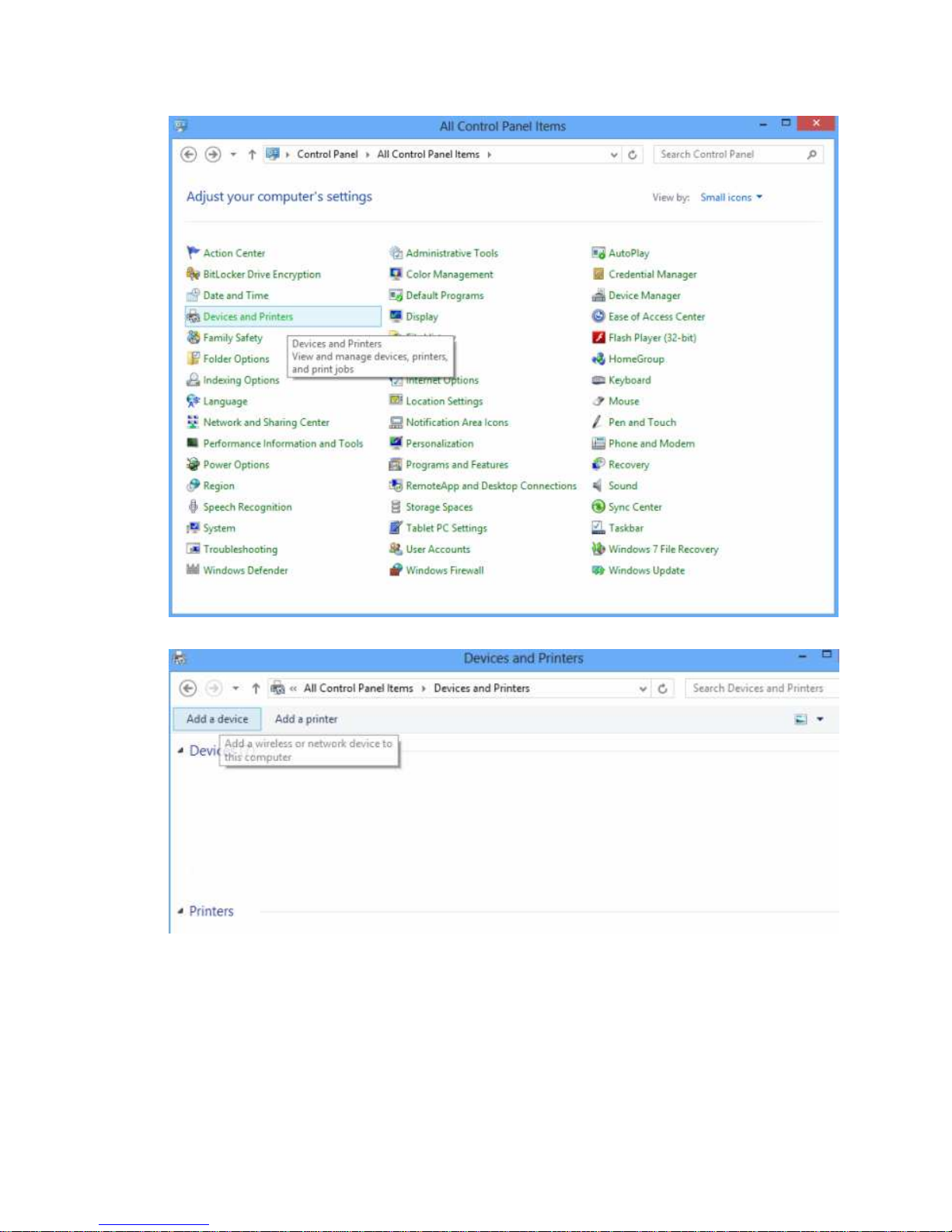

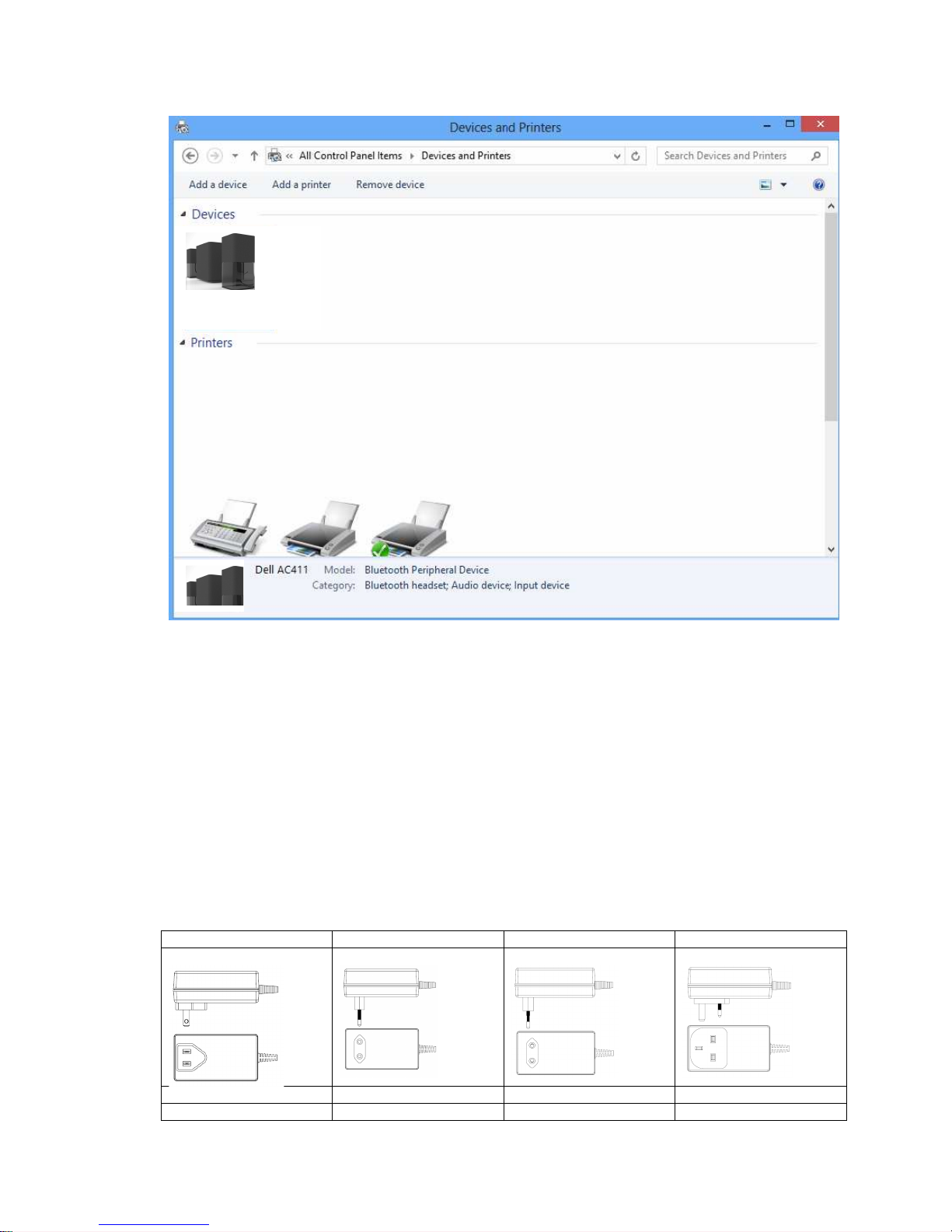

1. Start->Control panel->Devices and Printers
Dell AC411

2. Click add a device
