Dellcool M Series User manual

Models: Listed on Inside Cover
M-Series
Cooler
Instruction Manual
Mate100 Mate125
Mate150 Mate160

Models:
Mate100
Mate125
Mate150
Mate160
For Future Reference
• This easy-to-use manual will guide you in getting the best use of your cooler.
• Remember to record the model number and the serial number.
This information can be
found on the inside of your cooler.
• Keep your receipt with this manual for future warranty service.
Model #:
Serial #:
Date of Purchase:
3
Dellcool
M-Series Cooler
Instruction Manual
Mate100 Mate125
Mate150 Mate160
Mate Series
Table of Contents
. . .. . .. . . . .. . .. . .. . . 6
Safety Instructions . . .. . .. . . . .. . .. . .. . 7
Installation . . .. . . . .. . .. . .. . . . .. . .. . ... 8
Ambient Environment . . .. . . . .. . .. . .. . . . 8
. . .. . .. . . . ..8
Electrical Requirements .... . .. . . . .. . .. .. 8
Maintenance . . .. . . . .. . .. . .. . . . .. . .. . ...9
Cleaning . . .. . .. . . . .. . .. . .. . . . .. . .. . .9
Light Replacement . . .. . .. . . . .. . .. . .. . . .9
Power Failure . . .. . .. . . . .. . .. . .. . . . .. . 9
Moving the Cooler . . .. . . . .. . .. . .. . . . .. .9
Drip Pan. . . . . . . .. . .. . .. . . . .. . .. . . .. .9
Light Control . . .. . . . .. . .. . .. . . . .. . .. . .9
Load Level . . .. . . . .. . . . . .. . . . .. . .. . ... .9

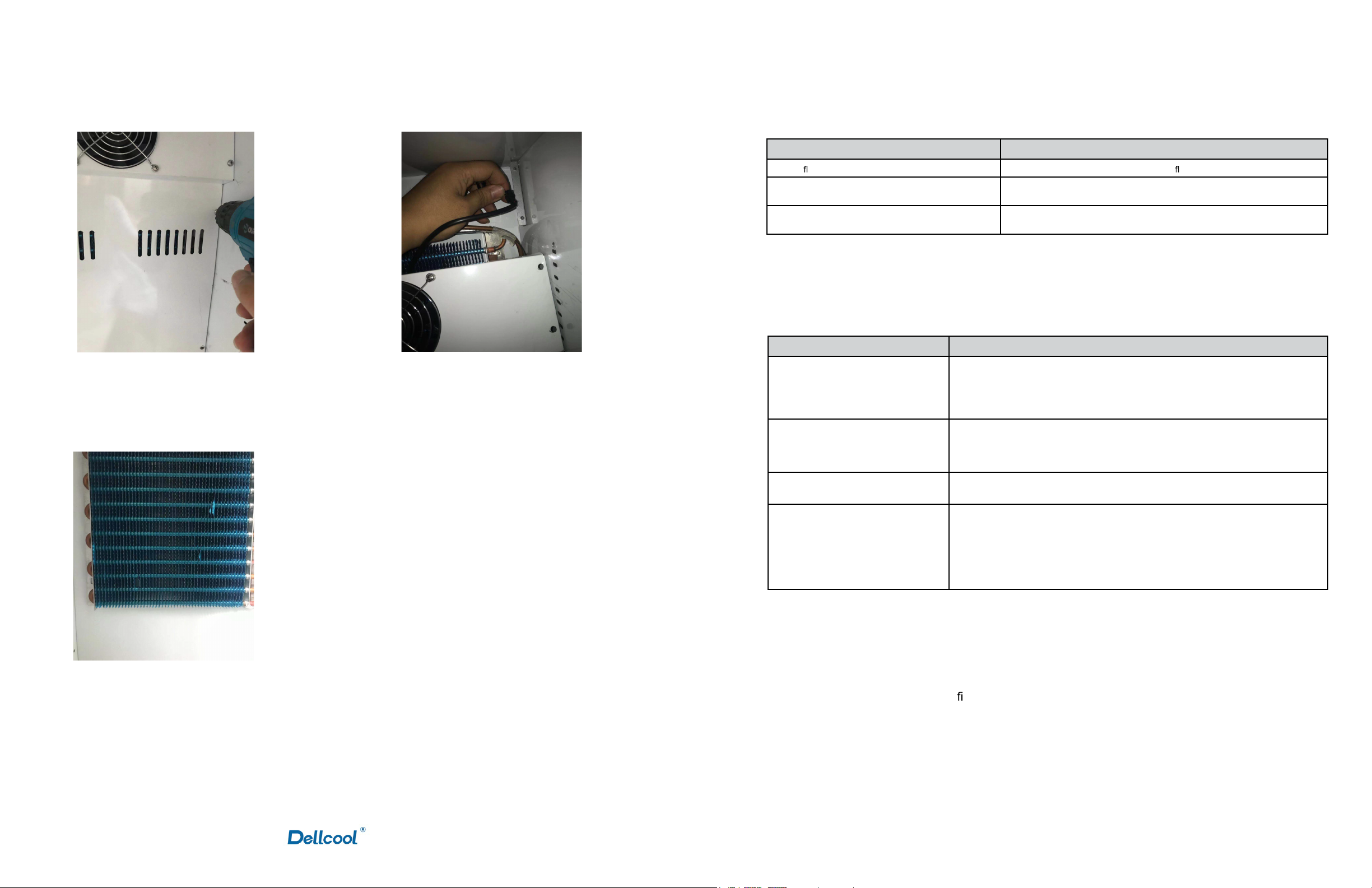

Evaporator Clenning . . .. . .. . . . .. . .. . .. . . .10
Troubleshooting . . .. . .. . . . .. . .. . .. . . . .. 11
. . .. . . . .. . .. . .. . . . .. . .. . 12
Flammable Refrigerant Warnings . . .. . .. . . . 12
Circuit Diagram . . .. . . . . . . .. . .. . .. . . . .. 13
Parts & Identification
. .. . . 4
COMMERCIAL REFRIGERATOR SAFETY
Preparation Prior to Operation
Specifications

Instruction Manual Mate Series
Dellcool
COMMERCIAL REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
Our product instructions will be uploaded on our company official website.
This is the Safety Alert Symbol. This symbol alerts you to potential
hazards that can kill or injure you and others. All safety messages will
follow the Safety Alert Symbol and either the words” DANGER”,
“WARNING” or “CAUTION”.
Danger means that failure to heed this
safety statement may result in severe
personal injury or death.
Warning means that failure to heed this
safety statement may result in
extensive product damage, serious
personal injury, or death.
Caution means that failure to heed this
safety statement may result in minor
or moderate personal injury, or
property or equipment damage.
All safety messages will alert you to what the potential hazard is, tell you how to reduce the
chance of injury, and let you know what can happen if the instructions are not followed.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.(EU)
Keep the appliance and its cord out of reach of children less than 8 years.
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
The max. loading of shelve is 10kg.
The appliance shall be used at an ambient temperature listed according to it’s climate class:
The appliance use flammable insulation blowing gas C5H10, disposal of the appliance shall in
accordance with the regulations of local authorities.
The appliance provided with double-capped fluorescent lamps, the lamp has to be replaced by
identical lamps only.’
The key for appliance electric box should be safe kept by qualified persons in order to avoid a
hazard
Based on business order(s) to EU market, give true EU authorized representative information on
the label with full business name and full EU address in the marking plate.
If the appliance use flammable refrigerant, such as R600a, R290:
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
Handling, moving, and use of the refrigerator or freezer to avoid either damaging the refrigerant
tubing, or increasing the risk of a leak
L’opération, le mouvement et l’utilisation du réfrigérant ou le congélateur doivent éviter les
dommages du tuyau réfrigérant ou le rique de la fuite.
Caution – Risk of Fire or Explosion due to Flammable Refrigerant Used. Follow Handling
Instructions Carefully in Compliance with U.S. Government Regulations
Component parts shall be replaced with like components and that servicing shall be done by
factory authorized service personnel, so as to minimize the risk of possible ignition due to
incorrect parts or improper service.
Les pièces de rechange doivent être remplacées par les components relatifs et les opérations
doivent être faites par les professionnels afin de minimaliser le risque d’allumage à cause des
parts incorrects ou des opérations impropres.
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. Flammable Refrigerant Used
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
Take off the doors
Leave the shelves in place so that children may not easily climb inside
45

Innovative DisplayWorks
of ce 909.447.8254 • fax 909.305.8756 • toll free 877.307.2665 • www.idw.global
Last Revised: January 20, 2021 6:43 PM
IC-90
PARTS & IDENTIFICATION
1. When using this appliance, always follow
the basic safety precautions:
2. Read the entire User’s Manual before
operating this appliance.
3. Use this appliance only for its intended
purpose as described in this User’s Manual.
4. This appliance must be properly installed
in accordance with the installation
instructions before being used.
5. Dellcool requires that a dedicated circuit be
used for the unit. Failure to do so voids
warranty.
6. Never unplug your cooler by pulling on the
and pull it straight out from the outlet.
7. Unplug your appliance before cleaning or
making any repairs. Note: If for any reason
this product requires service, we strongly
recommend that a certi ed technician
perform the service.
8. When disconnecting the power source,
wait at least 5 minutes to reconnect the
power to avoid damage to the compressor
and the cooling system.
9. Immediately repair or replace all electrical
cords that have become frayed or other-
wise damaged. Do not use a cord that
shows cracks or abrasion damage along its
length, the plug or the connector end.
10. Do not operate or store your appliance
near or around explosive fumes, gasoline
or other ammable vapors and liquids.
11. Do not use ammable liquids to clean unit.
12. Setting the temperature control to the
0 position does not remove power to
the light circuit, perimeter heaters, or
evaporator fans.
13. Do not adjust the temperature control.
The temperature control is factory set for
maximum performance.
SAFETY INSTRUCTIONS
PLEASE SAVE THESE
INSTRUCTIONS!
DANGER!
PROPER DISPOSAL OF THE
REFRIGERATOR
Pre-Caution, Non-Operating Coolers
Should Have:
1. Door removed.
2. Shelves kept in place in order
to prevent any small child from
climbing inside cooler.
For Proper Disposal of Cooler:
Distributors/retailers need to contact
1. To recover all refrigerant from
the cooler
2. To remove the compressor
or remove the oil from the
compressor
Then the distributor/retailer can
contact their local metal recycling
center to pick up the remaining
cabinet, shelves, etc. By law, disposal
of hazardous wastes may be subject
the provisions of the environmental
regulations. For more information
please visit: http://www.epa.gov/
osw/hazard/index.htm
Mate Series
6 7
Instruction Manual
Dellcool
1. Foot1
2. Bottom Hinge
3. Door
4. Top Hinge
5. Hinge cover
6. Cap Of Screw
7. Gasket
8. Shelf Support bar(Front)
9. Shelf Support bar(back)
10. Air Duct Support2
11. Fan Guard
12. Air Duct
13. Evaporator Fan
14. Evaporator
15. Cabinet
16. Air Duct Support1
17. Shelf Support
18. Shelf
19. Lock Catch
20. Foot2
21. Thermostat Box Clip
22. Compressor
23. Compressor Wire
24. Filter Drier
25. Base Plate
26. Drip Pan
27. Grill
28. Thermostat Cover
29. Condenser
30. Condenser Fan
31. Thermostat
32. Lamp Switch
33. Power Conversion Module
34. Switching Power Supply
35. Power Cord
36. LED Lamp Wire
37. Fan Wire
38. Thermostat Wire
39. Lampshade
40. LED Lamp
41. Lampshade clamp
42. Return Line
43. Microwave induction switch
44. Door LED Lamp
3
2
1
4
5
6
87
9
10
1112131415
18
17
16
1920
23
25
26
27
28
21
24
22
1
2
2
1
2
1
50
32 333435 36 37 38 39 40 41
30 31 42 43
44
29

INSTALLATION
Installation of the cooler must be done according to applicable local codes or equivalent.
Ambient Environment
• Place cooler on an even surface to reduce
vibration and noise.
• To transport, do not tilt the cooler beyond
a 45 degree angle.
• Do not place cooler in direct sunlight or
near any heat sources.
• Do not place cooler in environment
temperatures that exceed 90°F.
• Do not place cooler in below normal
temperatures.
• Do not place cooler in extreme humid
environments, this may cause components
to rust.
• Do not place cooler near constant running
or splattering water, this may cause
immediate damage to refrigeration system.
• Must allow at least 4” between rear of
cooler and wall for proper ventilation and
heat dissipation of cooler.
• Do not place furniture or other articles with
sharp edges near the cooler in order to
prevent damage to the glass door.
• This cooler is for indoor use.
•
there is adequate ventilation in the room.
WARNING: Warranty is void if ventilation
Preparation Prior to Operation
Electrical Requirements
• Remove all packaging materials before
using cooler. This includes: foam pedestal,
protective gaskets.
• Inspect cooler for concealed damage.
carrier if there is damage. Dellcool is not
responsible for damage incurred during
shipping.
• Cooler must remain unplugged in an
upright position for 1 hour prior to use.
• Clean the interior surface with a soft cloth
and lukewarm water before operation.
• Ensure that drain hose or hoses are
positioned in the pan.
• Remove plug and cord from inside the
lower rear of the cooler.
• The unit should be placed close enough
to the electrical supply so that extension
cords are not used.
• This model operates with a 110-120V/60Hz
power supply. Check the electrical outlet
for proper voltage.
• Dedicate one outlet for the use of the
cooler.
• Do not use an extension cord or any other
multiple connectors as this can lead to
compressor failure.
• If the cord is damaged, it must be replaced.
• For your safety, plug the unit into a
grounded wall outlet. Please check with a
WARNING: Do not use extension cords.
WARNING: Compressor warranties are
void if compressor burns out due to low
voltage.
WARNING: Power cord ground pin must
NOT be removed!
MAINTENANCE
Cleaning
• Before cleaning the appliance, always
remember to unplug it.
• Unplug the cooler at the electrical outlet;
never pull the service cord.
• Do not use sharp or pointed objects for
cleaning.
• Clean the inside cabinet of the cooler with
a clean damp cloth. Avoid damage by
using non-abrasive and non- ammable
cleaning products.
• Clean the condenser at least once a
month with a vacuum cleaner or a brush to
eliminate the dust accumulation.
Light Replacement
• Unplug the cooler before removing the
LED light strip.
• Remove the screws.
• Remove the light cover gently.
• Take out the LED light strip.
• Replace the used strip with new equivalent
light strip.
• Install the light cover and tighten the
screws.
• Plug in the cooler.
Power Failure
• Please minimize the frequency of opening
the door during a power failure.
• If your cooler is unused for an extended
period of time, unplug, empty, and clean
your cooler and keep the door open to
avoid condensation, formation of mold, or
odors.
Moving The Cooler
• Empty the unit.
• Secure all loose parts inside the cooler.
• Tape the door shut.
• During transportation, make sure that the
cooler is in an upright position.
Drip Pan
• During normal compressor cycle, water will
drain into the drain pan and evaporate.
• To clean, gently pull the drain pan towards
you and remove. Slowly reinstall it after
cleaning.
LOAD LEVEL
• When loading cooler, do not place product in direct contact with the evaporator fan cover in a
manner that prevents the movement of air. Leave approximately 1” of free space in front of the
Mate series
8 9
Instruction Manual
Dellcool
Place unit in it’s final location,making certain
is insufficient
adhesive tape (used to fix accessories) and
Immediately file a claim with the freight
certified electrician for details.
cover to allow sufficient airflow and proper function of the refrigeration system.

• Serial number from the interior wall of the
cooler
• Coolers’ installation address and contact
information
• Installation location hours and operation
• Nature of problem
• Any reports of power interruptions
• Recent service or maintenance completed
on the cooler
• Has the cooler been relocated from original
installation location
• Clear access to the cooler
• Coolers’ instruction manual
Information to provide to your quali ed service professional:
Situation Causes
Liquid owing noise within cooler • This is the sound of the cooling agent owing through the pipes.
Refrigeration system is shutdown for longer periods
of time while temperature inside is still very low
• This refrigerator is well insulated and can maintain a relatively
ambient temperature.
Condensation on door/lid • This may be due to a high indoor humidity or the cooler’s
temperature is set too low. Wipe the door dry with a towel.
Issues Solutions
Cooler is not working properly Please check power supply:
• Check the electrical outlet for power, and that the plug is properly inserted.
• Check to see if the circuit breaker is tripped or the fuse is blown.
• Check if the condenser is free of dirt and debris.
• Check for low voltage
Cooler is not keeping product cool • Provide ample space between all products to ensure proper circulation of air.
• Keep unit away from direct sunlight or other heating source.
• Keep the door closed as often as possible.
• Be certain the cooler is not touching external objects or walls.
Excessive noise • Be certain the cooler is placed on a level surface.
• Be certain the cooler is not touching external objects or walls.
Compressor turns on and off frequently • The room temperature is higher than normal.
• The door is not closed completely.
• The door gasket is not sealed properly.
•
• The thermostat is not set properly.
• The frequency of cycling will be reduced when all of the product reaches the
set temperature.
TROUBLESHOOTING
The following are NOT malfunctions:
1 This refrigerator has been designed and manufactured according to National standards. If there
are any questions during use, refer to this operation manual to help troubleshoot problems.
2 When disposing of the cooler, please remove the door/lid and lock assembly to avoid children
accidentally becoming trapped inside the cooler.
Prior to calling service, check the following:
AFTER SALES SERVICE
Any product has the possibility of malfunction. Please observe the cooler’s operation and any
changes to product being stored. If there are any abnormal cases, refer to the table below. If there
is still no change after following the below instructions, please inform our service center in a timely
manner to avoid a further loss of the unit.
EVAPERATOR CLEANING
1 Remove the screws from
both sides of the evaporator
cover.
3
Remove evaporator cover,
unplug the fan terminals.
Clean the fan evaporator
with a brush.
4 Reverse steps to reinstall
evaporator cover.
Mate Series
10 11
Instruction Manual
Dellcool
2
There is insufficient clearance around the cooler.

SPECIFICATIONS
CAUTION FLAMMABLE REFRIGERANT
• DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired
Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
• CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Install or Service This Product. All Safety
Precautions Must be Followed.
• CAUTION – Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With
Federal Or Local Regulations. Flammable Refrigerant Used.
• CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow
Handling Instructions Carefully. Flammable Refrigerant Used.
• CAREFUL - Handling, moving and operating of the refrigerator or freezer to avoid
either damaging the refrigerant tubing, or increasing the risk of a leak.
• CAUTION - Component parts shall be replaced with like components and that
servicing shall be done by factory authorized service personnel , so as to minimize the
risk of possible ignition due to incorrect parts or improper service.
DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be
Repaired By Trained Service Personnel Only. Do Not Puncture Refrigerant Tubing.
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult
Repair Manual/Owner’s Guide Before Attempting To Service This Product. All
Safety Precautions Must be Followed.
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With
Federal Or Local Regulations. Flammable Refrigerant Used.
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing;
Follow Handling Instructions Carefully. Flammable Refrigerant Used.
CAUTION FLAMMABLE - R600a Refrigerant
DANGER - Risque d'incendie ou d'explosion. Réfrigér .
Pour être répar . Ne pas percer
réfrigérant Tubing.
ATTENTION - Risque d'incendie ou d'explosion. Réfrigér .
Consultez manuel / guide de l 'utilisateur de réparation avant de tenter de
réparer ce produit. Toutes les précautions de sécurité doivent être respectées.
ATTENTION - Risque d'incendie ou d'explosion. Aliéner des biens conformé -
ment à la réglementation fédérales ou locales. Réfrigér
PRUDENCE INFLAMMABLE - R600a Réfrigérant
CIRCUIT DIAGRAM
Mate Series
12 13
Instruction Manual
Dellcool
MODEL VOLUME(L)
RATED
VOLTAGE
RATED
CURRENT
LAMP INPUT
POWER REFRIGERANT
Mate100
Mate125
3.43ft3
4.27ft3
5.12ft3
5.54ft3
110-120V/60Hz
110-120V/60Hz
110-120V/60Hz
110-120V/60Hz
1.3A
1.3A
1.5A
1.5A
6.0W
6.0W
8.4W
8.4W
R600a/48g
R600a/52g
R600a/60g
R600a/60g
Mate150
Mate160
PS Power Supply
OLP Overload protector
RC Run Capacitor
AC Ac Signal Converter
SH Light Switch
L1 L2
L Door LED Light
(Mate100 Mate125)
CIRCUIT DIAGRAM (Mate150 Mate160)
ED Light
MIS Microwave Induction Switch
CM Compressor
PTC Start Device
TC Thermostat
UR Switching Power Supply
FC Condenser Fan
FE Evaporation Fan
PS
L
N
TC
N
M
S
C
PTC
OLP
RC
CM
AC
1~
UR
+12V
M
M
FE
L1
FC
MI S
SH
L2
PS
L
N
TC
N
M
S
C
PTC
OLP
RC
CM
AC
1~
UR
+12V
M
M
L1
FC
MI S
SH
L2
FE2
M
FE1
PS Power Supply
OLP Overload protector
RC Run Capacitor
AC Ac Signal Converter
SH Light Switch
L1 L2
L Door LED Light
ED Light
MIS Microwave Induction Switch
CM Compressor
PTC Start Device
TC Thermostat
UR Switching Power Supply
FC Condenser Fan
FE1,2 Evaporation Fan

This manual suits for next models
4
Table of contents
Popular Accessories manuals by other brands

TopCold
TopCold AVF160ST user manual

Emerson
Emerson Rosemount 0065 quick start guide

Vinotemp
Vinotemp WINE-MATE WM-2500SSIWC Operation Care Installation Manual

IQAmerica
IQAmerica WD-6010 manual

Anemoment
Anemoment TriSonica Sphere user manual

Independence paragliding
Independence paragliding Slope EAPR GZ-0447/15 owner's manual
