Dellcos E175S User manual

Model No.: E1715S
Regulatory model: E1715Sc

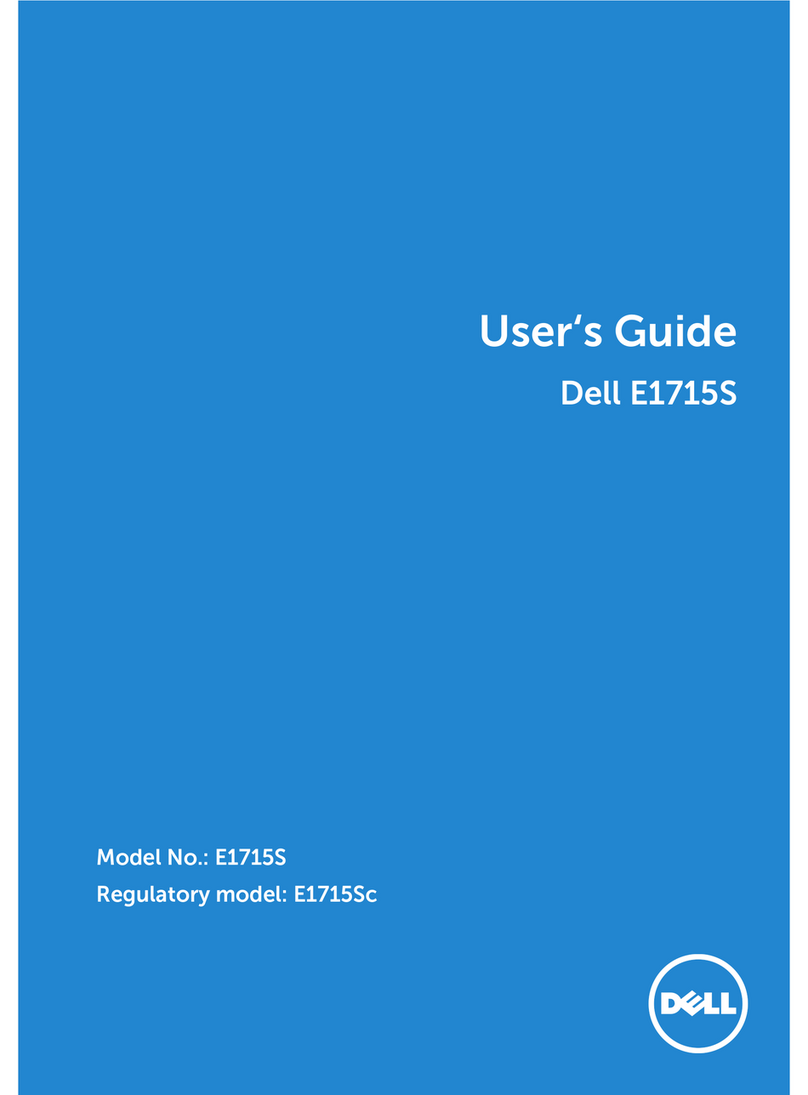

User‘s Guide
Dell E1715S

NOTE: A NOTE indicates important information that helps you make
better use of your monitor.
CAUTION: A CAUTION indicates potential damage to hardware or
loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
© 2015–2016 Dell Inc. All rights reserved.
Information in this document is subject to change without notice.
Reproduction of these materials in any manner whatsoever without the
written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks
of Dell Inc. Microsoft and Windows are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/ or other
countries.
Other trademarks and trade names may be used in this document to refer
to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names
other than its own.
2016 – 07 Rev. A03

3
Contents
Dell Display Manager User's Guide ................6
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the Quick Settings Dialog . . . . . . . . . . . . . . . . 6
Setting Basic Display Functions . . . . . . . . . . . . . . . . 7
Assigning Preset Modes to Applications . . . . . . . . . . . 7
Applying Energy Conservation Features . . . . . . . . . . . 9
About Your Monitor ............................10
Package Contents . . . . . . . . . . . . . . . . . . . . . . . 10
Product Features . . . . . . . . . . . . . . . . . . . . . . . . .11
Identifying Parts and Controls . . . . . . . . . . . . . . . . 12
Monitor Specifications . . . . . . . . . . . . . . . . . . . . . 14
Power Management Modes . . . . . . . . . . . . . . . . . . . . . . . 14
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Plug and Play Capability . . . . . . . . . . . . . . . . . . . . .17
Flat-Panel Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 17
Resolution Specifications . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 18
Preset Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 19
Environmental Characteristics . . . . . . . . . . . . . . . . . . . . . 20
LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . 21
Maintenance Guidelines . . . . . . . . . . . . . . . . . . . 21
Caring for Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . 21

4 
Setting Up the Monitor..........................23
Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . 23
Connecting Your Monitor . . . . . . . . . . . . . . . . . . . 24
Connecting the blue VGA Cable . . . . . . . . . . . . . . . . . . . . 24
Connecting the black DP cable . . . . . . . . . . . . . . . . . . . . . 24
Removing the Monitor Stand . . . . . . . . . . . . . . . . . 25
Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . 26
Operating the Monitor ..........................27
Power On the Monitor . . . . . . . . . . . . . . . . . . . . . 27
Using the Front-Panel Controls . . . . . . . . . . . . . . . 27
Front-Panel Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using the On-Screen Display (OSD) Menu . . . . . . . . . 29
Accessing the Menu System . . . . . . . . . . . . . . . . . . . . . . . 29
OSD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Setting the Maximum Resolution . . . . . . . . . . . . . . 44
Using the Tilt feature . . . . . . . . . . . . . . . . . . . . . . 45
Troubleshooting ...............................46
Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Built-in Diagnostics. . . . . . . . . . . . . . . . . . . . . . . 47
Common Problems . . . . . . . . . . . . . . . . . . . . . . . 48
Product-Specific Problems . . . . . . . . . . . . . . . . . . 51
Appendix ......................................52
FCC Notices (U.S. Only) and Other Regulatory Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Contact Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5
Setting Up Your Monitor ........................53
Setting the display resolution to 1280 x 1024 (Maximum) 53
If you have a Dell desktop or a Dell portable computer with
Internet access . . . . . . . . . . . . . . . . . . . . . . . . . 54
If you have a non Dell desktop, portable computer, or
graphics card . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Procedures for setting up dual monitors in Windows 7,
Windows 8/Windows 8.1 or Windows 10. . . . . . . . . . 55
For Windows 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
For Windows 8/Windows 8.1 . . . . . . . . . . . . . . . . . . . . . . 57
For Windows 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

6 Dell Display Manager User's Guide
Dell Display Manager User's Guide
Overview
Dell Display Manager is a Windows application used to manage a monitor
or a group of monitors. It allows manual adjustment of the displayed
image, assignment of automatic settings, energy management, image
rotation and other features on select Dell models. Once installed, Dell
Display Manager will run each time the system starts and will place its
icon in the notification tray. Information about monitors connected to the
system is always available when hovering over the notification tray icon.
Using the Quick Settings Dialog
Clicking Dell Display Manager’s notification tray icon opens the Quick
Settings dialog box. When more than one supported Dell model is
connected to the system, a specific target monitor can be selected using
the menu provided. The Quick Settings dialog box allows convenient
adjustment of the monitor’s Brightness and Contrast levels, Preset Modes
can be manually selected or set to Auto Mode, and the screen resolution
can be changed.

Dell Display Manager User's Guide 7
The Quick Settings dialog box also provides access to Dell Display
Manager’s advanced user interface which is used to adjust Basic
functions, configure Auto Mode and access other features.
Setting Basic Display Functions
A Preset Mode for the selected monitor can be manually applied using
the menu on the Basic tab. Alternatively, Auto Mode can be enabled. Auto
Mode causes your preferred Preset Mode to be applied automatically
when specific applications are active. An onscreen message momentarily
displays the current Preset Mode whenever it changes.
The selected monitor’s Brightness and Contrast can also be directly
adjusted from the Basic tab.
Assigning Preset Modes to Applications
The Auto Mode tab allows you to associate a specific Preset Mode
with a specific application, and apply it automatically. When Auto
Mode is enabled, Dell Display Manager will automatically switch to the
corresponding Preset Mode whenever the associated application is
activated. The Preset Mode assigned to a particular application may be
the same on each connected monitor, or it can vary from one monitor to
the next.

8 Dell Display Manager User's Guide
Dell Display Manager is pre-configured for many popular applications. To
add a new application to the assignment list, simply drag the application
from the desktop, Windows Start Menu or elsewhere, and drop it onto the
current list.
NOTE: Preset Mode assignments targeting batch files, scripts, and
loaders, as well as non-executable files such as zip archives or packed
files, are not supported and will be ineective.

Dell Display Manager User's Guide 9
Applying Energy Conservation Features
On supported Dell models the PowerNap tab will be available to provide
energy conservation options. When the screensaver activates, the
monitor’s Brightness can automatically be set to minimum level or the
monitor can be put to sleep in order to save additional power.

10 About Your Monitor
About Your Monitor
Package Contents
Your monitor ships with all the components shown below. Ensure that
you have received all the components and Contact Dell if anything is
missing.
NOTE: Some items may be optional and may not ship with your
monitor. Some features or media may not be available in certain
countries.
•Monitor
•Stand Riser
•Stand Base
•VESA™ Screw Cover
•Power Cable (varies with countries)
•VGA Cable
Q41G78S170035A
(DELLP/N:N3WJYrev.A00)
Contents:
•Devicedrivers
•QuickSetupGuide
•User'sGuide
•DellDisplayManager
Drivers and Documentation
P/NC8N40Rev.A00
P/NQ70G17C170004A
February2014
MadeinChina
©
2
0
1
4
D
e
l
l
I
n
c
.
A
ll
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
Dell™ E1715S
0C8N40A00
Contents:
•Devicedrivers
•QuickSetupGuide
•User'sGuide
•DellDisplayManager
Drivers and Documentation
P/NC8N40Rev.A00
P/NQ70G17C170004A
February2014
MadeinChina
©
2
0
1
4
D
e
l
l
I
n
c
.
A
ll
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
Dell™ E1715S
0C8N40A00
2014
E1715S
Q41G78S170035A
(DELLP/N:N3WJYrev.A00)
Drivers and Documentation
Dell E1715S
2014
E1715S
Contents:
•Devicedrivers
•QuickSetup Guide
•User'sGuide
•DellDisplay Manager
Driver s an d Docu mentati on
P/NC8N40 Rev. A00
P/NQ70G17C170004A
February2014
Madein China
©
2
0
1
4
D
e
l
l
I
n
c
.
A
ll
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
Dell™ E1 715S
0C8N40A00
•Drivers and Documentation media
•Quick Setup Guide
•Product Information Guide

About Your Monitor 11
Product Features
The Dell E1715S flat-panel display has an active matrix, Thin-Film
Transistor, Liquid Crystal Display. The monitor’s features include:
• 43.2 cm (17 inches) diagonal viewable image size,
1280 x 1024 resolution, plus full-screen support for lower resolutions.
• LED backlit monitor
• Tilt adjustment capability.
• Removable pedestal and Video Electronics Standards Association
(VESA) 100 mm mounting holes for flexible mounting solutions.
• Plug and play capability if supported by your system.
• On-Screen Display (OSD) adjustments for ease of set-up and screen
optimization.
• Software and documentation media which includes an information file
(INF), Image Color Matching File (ICM), and product documentation.
• Dell Display Manager Software
• Security lock slot.
• Asset Management Capability.
• CECP
• RoHS compliant.

12 About Your Monitor
Identifying Parts and Controls
Front View
1
2
1. Function buttons (For more information, see Operating the Monitor)
2 Power On/O button (with LED indicator)
Back View
1
2
3
4
CAN ICES-3 (B)/NMB-3(B)
3
XXXXXXX-XXXXX
MSIP-REM-TPV-E1715Sc
TPV Electronics (Fujian) Co., Ltd.
080-854-0066
신청인:
제조자:
xxxxx
xxxxxx-x x
E1715Sc
TOP VICTORY ELECTRONICS (FUJIAN) CO., LTD.
S/N: CN-12MWY-64180-341-001L
REV A00
E1715Sc
100-240V 50/60Hz 1.5A 輸入電源: 交流電壓100-240伏特, 1.5安培, 50/60赫茲
Consumode energía: xx.x Wh
Consumode energía en modo de espera: x.xx Wh
Удельная мощность рабочего режима - x.xxx Вт/см²
Потребляемая мощность изделием в режиме ожидания - x.xx Вт
Потребляемая мощность изделием в выключенном режиме - x.xx Вт
Madein Chi na /Fabricado en China /中國製造/中国制造/중국에서 만든 Q40G017N-700-39A
输入电源/정격입력:
FlatPanel Monitor /Monitor Plano Panel /液晶顯示器 /液晶显示器 /모니터 www.dell.com
Label Description Use
1 VESA mounting holes (100
mm)
To mount the monitor.
2 Regulatory rating label Lists the regulatory approvals.
3 Regulatory rating label Lists the regulatory approvals.
4 Security lock slot Use a security lock with the slot to help
secure your monitor.

About Your Monitor 13
Side View
Right Side
Bottom View
E1715S:
1 3
2
Label Description Use
1 AC power connector To connect the monitor power cable.
2 DP connector To connect your computer to the monitor using a
DP cable (optional).
3 VGA connector To connect your computer to the monitor using a
VGA cable.

14 About Your Monitor
Monitor Specifications
The following sections give you information about the various power
management modes and pin assignments for the various connectors of
your monitor.
Power Management Modes
If you have VESA’s DPM compliance display card or software installed
in your PC, the monitor automatically reduces its power consumption
when not in use. This is referred to as Power Save Mode. If the computer
detects input from keyboard, mouse, or other input devices, the monitor
automatically resumes functioning. The following table shows the power
consumption and signaling of this automatic power saving feature:
E1715S:
VESA Modes Horizontal
Sync
Vertical
Sync Video Power Indicator
Power
Consumption
Normal operation Active Active Active White 15 W (Maximum) **
11 W (Typical)
Active-o mode Inactive Inactive Blank Glowing
white
Less than 0.5 W
Switch o - - O Less than 0.5 W *
The OSD will only function in the normal operation mode. When any
button except power button is pressed in Active-off mode, the following
messages will be displayed:
Dell E1715S
There is no signal coming from your computer. Press any key on the
keyboard or move the mouse to wake it up. If there is no display,
press the monitor button now to select the correct input source on
the On-Screen-Display menu.
Activate the computer and monitor to gain access to the OSD.
* Zero-power consumption in OFF mode can only be achieved by
disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance and contrast.

About Your Monitor 15
Pin Assignments
15-pin D-Sub connector
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
Pin Number Monitor Side of the 15-pin Side Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 DDC +5 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock

16 About Your Monitor
DisplayPort Connector
1
2 20
19
Pin Number 20-pin Side of the Connected Signal Cable
1 ML0 (p)-
2 GND
3 ML0 (n)
4 ML1 (p)
5 GND
6 ML1 (n)
7 ML2 (p)
8 GND
9 ML2 (n)
10 ML3 (p)
11 GND
12 ML3 (n)
13 GND
14 GND
15 AUX (p)
16 GND
17 AUX (n)
18 HPD
19 Re-PWR
20 PWR

About Your Monitor 17
Plug and Play Capability
You can install the monitor in any Plug and Play compatible system. The
monitor automatically provides the computer with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols
so that the system can configure itself and optimize the monitor settings.
Most monitor installations are automatic. You can select different settings
if required.
Flat-Panel Specifications
Model number Dell E1715S monitor
Screen type Active matrix - TFT LCD
Panel Type TN
Viewable image dimensions:
Diagonal 43.20 cm (17 inches)
Horizontal 337.92 mm (13.30 inches)
Vertical 270.33 mm (10.64 inches)
Area 91349.91 mm2(141.59 inch2)
Pixel pitch 0.264 mm
Viewing angle:
Horizontal 170° typical
Vertical 160° typical
Luminance output 250 cd/m² (typical)
Contrast ratio 1000 to 1 (typical)
Faceplate coating Antiglare with hard-coating 3H
Backlight LED light bar system
Response Time 5 ms typical (black to white)
Color Depth 16.77 mil colors
Color Gamut 85 % (typical) **
** [E1715S] color gamut (typical) is based on CIE1976 (85 %) and CIE1931
(72 %) test standards.

18 About Your Monitor
Resolution Specifications
Model number Dell E1715S monitor
Scan range
• Horizontal 30 kHz to 81 kHz (automatic)
• Vertical 56 Hz to 76 Hz (automatic)
Maximum preset resolution 1280 x 1024 at 60 Hz
Electrical Specifications
Model number Dell E1715S monitor
Video input signals Analog RGB: 0.7 Volts +/- 5 %, 75 ohm input impedance
Synchronization input
signals
Separate horizontal and vertical synchronizations,
polarity-free TTL level, SOG (Composite SYNC on green)
AC input voltage /
frequency / current
100 VAC to 240 VAC/50 Hz or 60 Hz + 3 Hz/1.5 A (Max.)
Inrush current 120 V: 30 A (Max.)
240 V: 60 A (Max.)

About Your Monitor 19
Preset Display Modes
The following table lists the preset modes for which Dell guarantees
image size and centering:
E1715S:
Display Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/
Vertical)
VESA, 720 x 400 31.5 70.1 28.3 -/+
VESA, 640 x 480 31.5 59.9 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
Physical Characteristics
The following table lists the monitor's physical characteristics:
Model Number Dell E1715S monitor
Connector type D-subminiature, blue connector,
DisplayPort, black connector
Signal cable type Analog: Detachable, D-Sub, 15-pin
DP 1.2 signal input support, 20-pin, optional
Dimensions: (with stand)
Height 389.5 mm (15.33 inches)
Width 374.5 mm (14.74 inches)
Depth 165.5 mm (6.52 inches)
Dimensions: (without stand)
Height 306.9 mm (12.08 inches)
Width 374.5 mm (14.74 inches)

20 About Your Monitor
Depth 46.5 mm (1.83 inches)
Stand dimensions:
• Height 149.0 mm (5.87 inches)
• Width 180.5 mm (7.11 inches)
• Depth 165.5 mm (6.52 inches)
Weight:
Weight with packaging 3.75 kg (8.24 lb)
Weight with stand assembly and
cables
2.68 kg (5.90 lb)
Weight without stand assembly
(For wall mount or VESA mount
considerations - no cables)
2.08 kg (4.85 lb)
Weight of stand assembly 0.34 kg (0.75 lb)
Environmental Characteristics
The following table lists the environmental conditions for your monitor:
Model Number Dell E1715S monitor
Temperature
• Operating 0 °C to 40 °C (32 °F to 104 °F)
• Non-operating Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
• Operating 10 % to 80 % (non-condensing)
• Non-operating Storage: 5 % to 90 % (non-condensing)
Shipping: 5 % to 90 % (non-condensing)
Altitude
• Operating 5,000 m (16,387 ft) max
• Non-operating 12,191 m (40,000 ft) max
Thermal dissipation 75.09 BTU/hour (maximum)
61.43 BTU/hour (typical)
