Dellonda Dh17 User manual

Model No. DH17

Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly

maintained, give you years of trouble free performance.

www.dellonda.co.uk DH17 Issue:4 13/01/2022

Dellonda Single Motor Height Adjustable Sit & Stand Black

Workstation Desk Frame

Important Information

Please read these instructions carefully and note any safe operational requirements, warnings & cautions. Use the product correctly and with

care for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep

these instructions safe for future use.

Contents

Specication

• Height range: 710-1210mm

• Horizontal adjustment: 850-1290mm

• Speed: 25mm/s

• Max. load capacity: 70kg

• Sound level: 50dB

• Supply: 230V

• Minimum Desktop Dimensions (W x D): 900 x 500mm

• Maximum Desktop Dimensions (W x D): 1400 x 700mm

About the Product

Height adjustable desk creates the possibility of a sitting or standing working environment. Single motor system ensures a fast and stable

adjustment. Features ultra-quiet operation with sound level less than 50dB. Range of four desktop designs available; Model No’s. DH19, DH20,

DH21, DH22.

Safety Instructions

• ELECTRICAL SAFETY

• WARNING! It is the user’s responsibility to check the following:

• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all electrical

connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. You may

obtain an RCD by contacting your electrical retailer.

• connections to ensure that they are secure.

• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse - see

fuse rating in these instructions.

• DO NOT pull or carry the appliance by the power cable.

• DO NOT pull the plug from the socket by the cable.

• DO NOT use worn or damaged cables, plugs or connectors.

• Ensure that any faulty item is repaired or replaced immediately by a qualied electrician.

• This product is tted with a BS1363/A 13 Amp 3 pin plug.

• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.

• Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.

• Class II products are wired with live (brown) and neutral (blue) only, and are marked with the Class II symbol.

A) Connect the BROWN live wire to the live terminal ‘L’.

B) Connect the BLUE neutral wire to the neutral terminal ‘N’.

C) Check that there are no bare wires and ensure that all wires are correctly connected.

• Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.

• DO NOT connect either wire to the earth terminal.

• Dellonda recommend that repairs are carried out by a qualied electrician.

• ALWAYS make sure there are no hazards in the operating environment. e.g., nothing that will get hooked up on the desk, or stop the desk from

raising or lowering fully.

• Unplug the power source before cleaning. Wipe the dust on surface with slight damp cloth when cleaning, DO NOT get water in the electrical

housing, and be careful not to loosen any cables.

• The electrical housing contains electronic components, metals, plastics, wires etc., dispose of in accordance with environmental legislation, not

the general household waste.

• Check carefully to ensure correct and complete assembly before use.

• Familiarise yourself with all functions and program settings of the product before rst use.

• DO NOT let Children play on the product

• Slight noise caused by the V-ribbed belt or brake system due to structure will not have any effect on the use of the equipment.

• DO NOT clean the unit with corrosive or abrasive materials.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, it’s service agent or a similarly qualied person in order to avoid a hazard

and prolong the life of the equipment.

• Keep the original instructions, for future reference.

• ALWAYS inspect the unit prior to use for fatigue and damage. Professional repair only.

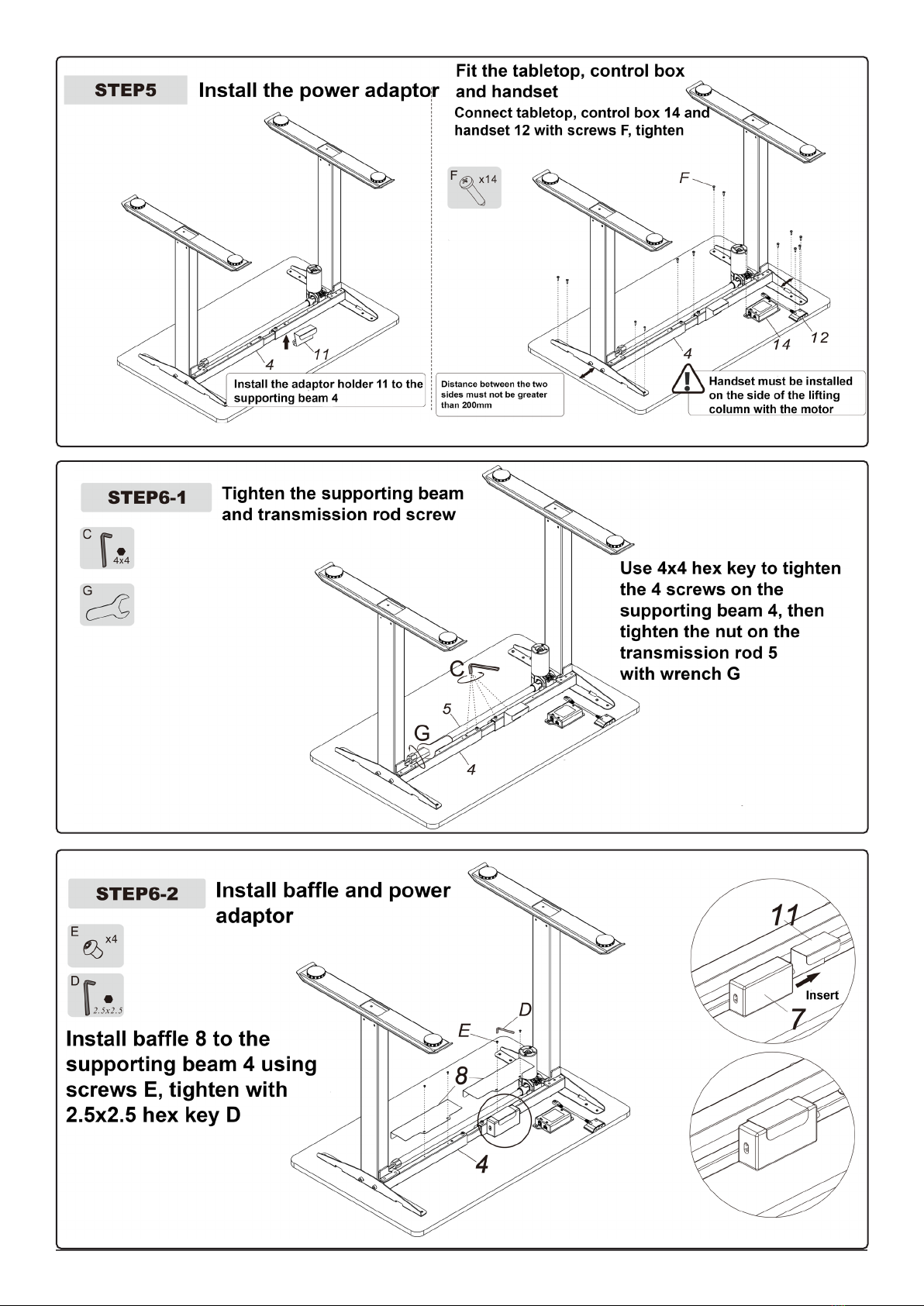

Assembly

Recommended

fuse rating:

13A

Environment Protection, Waste Electrical and Waste Electronic Equipment Regulations

(WEEE)

Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of its useful life, please dispose

of in an environmentally friendly way. Drain any uids (if applicable) into approved containers, in accordance with local waste regulations.

It is our policy to continually improve products and we reserve the right to alter data, specications and parts without prior notice. No

liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.

Dellonda Limited

Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757575 [email protected] www.dellonda.co.uk

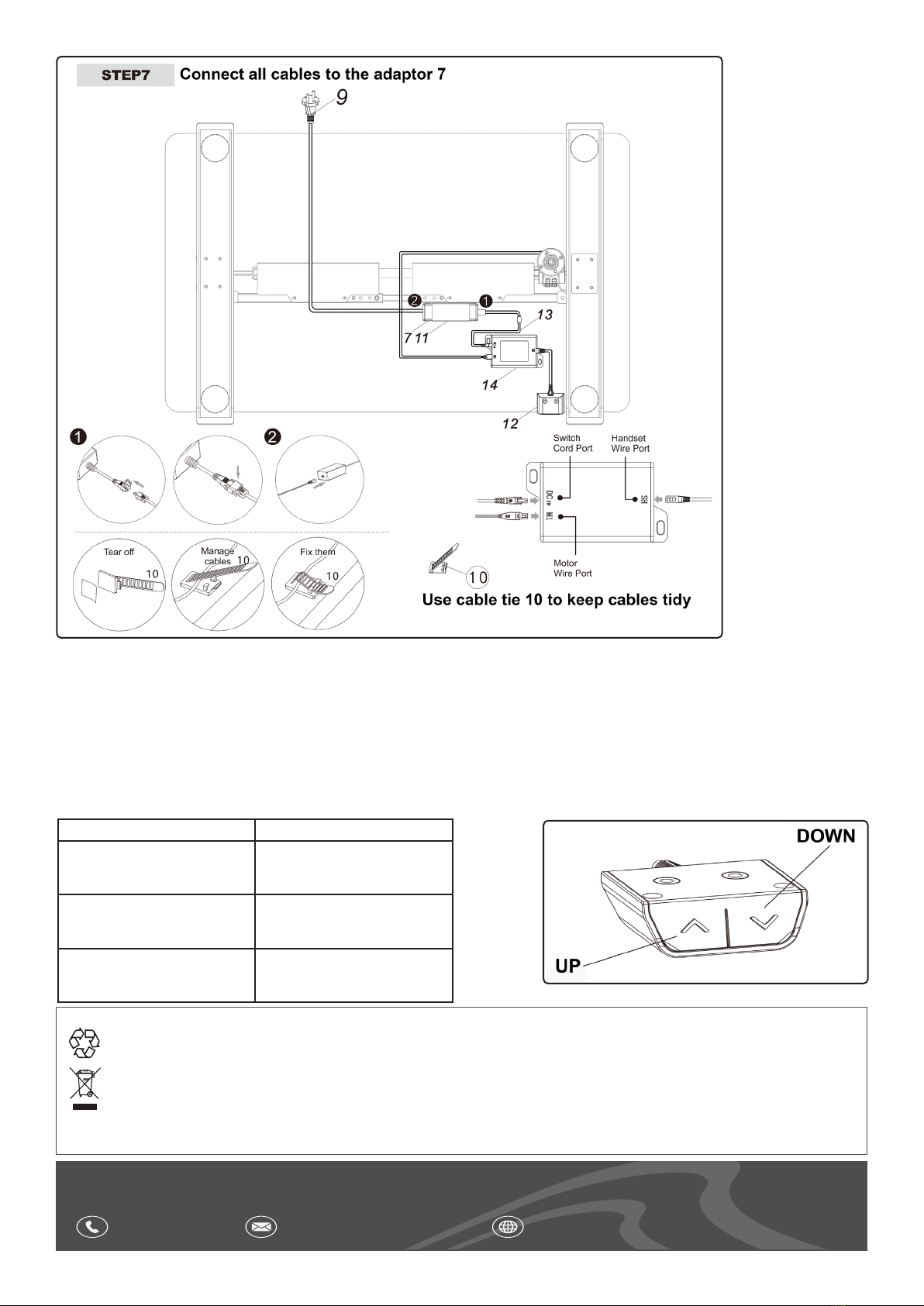

Operation

• Press UP or DOWN button to lift or lower height of the desk.

• RESET:

• a. When desk is at its lowest position, long press the down button to enter reset mode. Reset is completed when desk reaches bottom and

rebounds to a stop.

• b. When the lifting system fails, release the button, long press the down button, reset will be completed when desk reaches the bottom and

rebounds to a stop.

• If there is no response after pressing the buttons after using the desk for a period of time, allow desk to rest for 18 minutes before using agaain.

Troubleshooting

Fault Solution

No response whilst pressing the

down button after mains supply

is connected

1. Check if mains supply is

connected

2. Contact Dellonda
