dellonda baridi DH72 User manual

Dellonda 3 Place Settings Mini Portable
Tabletop Dishwasher 7 Wash Functions
Model No. DH72
Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard,
this product will, if used according to these instructions, and properly maintained, give you years of
trouble free performance.
DH72 Issue 1 12/05/2021

2
CONTENTS
QUICK USER GUIDE ................................................
IMPORTANT SAFETY INFORMATION......................
INTRODUCTION .....................................................
SPECIFICATION .....................................................
INSTALLATION PREPARATION ...............................
ELECTRICAL CONNECTION ...................................
WATER CONNECTION.............................................
GENERAL USE.........................................................
GETTING TO KNOW YOUR APPLIANCE...................
CONTROL PANEL....................................................
USING YOUR DISHWASHER....................................
LOADING THE DISHWASHER BASKET.....................
PROGRAMMING THE DISHWASHER.......................
TURNING ON THE APPLIANCE...............................
MAINTENANCE AND CLEANING.............................
TROUBLESHOOTING TIPS......................................
ERROR CODES........................................................
TECHNICAL INFORMATION....................................
3
5
6
6
6
6
6
7
8
9
11
12
16
17
19
22
25
26

3
QUICK USER GUIDE
• Please read the corresponding content on the instruction manual for detailed operating method•
Connected to power supplies
Add water into the dishwasher’s tank
Remove the larger residue
The power supply is 220-240V AC 50Hz
The specication of the socket is 13A 250V AC
The connection of the drain pipe: Put end of the drain into a sink or bucket.
Fix the drain pipe with
suction cups
Note: Before adding water , you need to press the power
button to turn the dishwasher on.
There are two ways to add water to the tank:
Connect the inlet hose to the tap.
Open the top cap and add water into the dishwasher’s
tank manually
There are two ways of showing if the water tank is either
full or requires lling.
1. Before starting:
When the tank is full of water, the machine will beep
quickly for 3 seconds.
2. After starting :
Not enough water. The light will be illuminated;
Water tank is full. The light will be off and the machine will
beep quickly for 3 seconds.
Rinse and remove the large residue before adding to
the dishwasher

4
Open the door, placing the dishes and adding detergent in
Close the door, select the program and start the dishwasher
Place the dishes in order of size from larger on the outside to smaller in
the middle. Cutlery should be tilted to improve cleaning performance.
The wash arm will be blocked with the improper placement of the cutlery
and cleaning will be affected.
DO NOT place the dishwares
facing up, place them facing down
allowing the dirtiest face to face the
spray arm for best cleaning
performance.
Location for adding the detergent

5
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Replacement fuse
rating:
13A
Refer to
instructions
Indoor use
only
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect
power supply leads, plugs and all electrical connections for wear and damage. Dellonda recommend
that an (Residual Current Device) is used with all electrical products. You may obtain an RCD by
contacting your local domestic stockist. If the product is used in the course of business duties, it
must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.
• Electrical safety information: It is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the
power supply
• Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and
that the plug is tted with the correct fuse - see fuse rating in these instructions.
• DO NOT pull or carry the appliance by the power cable.
A) Connect the GREEN/YELLOW earth wire
to the earth terminal ‘E’.
B) Connect the BROWN live wire to the live
terminal ‘L’.
C) Connect the BLUE neutral wire to the
neutral terminal ‘N
• DO NOT pull the plug from the socket by the
cable.
• DO NOT use worn or damaged cables, plugs or
connectors.
• Ensure that any faulty item is repaired or
replaced immediately by a qualied electrician.
• This product is tted with a BS1363/A 13 Amp
• 3 pin plug. If the cable or plug is damaged
during use, switch off the electricity supply
and remove from use.
• Ensure that repairs are carried out by a
qualied electrician.
• Replace a damaged plug with a BS1363/A 13
amp 3 pin plug.
• If in doubt contact a qualied electrician.
• Ensure that the cable outer sheath extends
inside the cable restraint and that the restraint
is tight.
• Dellonda recommend that repairs are carried
out by a qualied electrician.

6
• GENERAL SAFETY
• DO NOT store explosive substances such as aerosol cans with a ammable propellant in this
appliance.
• WARNING: Ensure the supply cord is not trapped or damaged.
• WARNING: DO NOT locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
• This appliance is intended to be used in household and similar applications such as staff kitchen
areas in shops, ofces and other working environments; holiday homes, hotels and other residential
settings; and catering and similar non-retail applications.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of knowledge and experience if they have been given
supervision or instruction concerning the use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision (EN60335-1).
• INTRODUCTION
• Freestanding tabletop dishwasher can be connected to water supply or run using built in water
tank. Touch controls and LED display. 7 programmed wash cycles; Hygiene72°/Intensive/ECO/
Glass/58min Wash/Rapid/Self-cleaning. Each cycle uses just 6L of water! 1-24hr Delayed start.
Supplied with basket, adjustable silverware tray, 1.5m inlet water hose and 1.5m drain/waste hose.
• SPECIFICATION
• Model no:..........................................DH72
• Dimensions (WxDxH). 420 x 435 x 465mm
• Place settings............................................ 3
• Water usage............................................. 6L
• Water Pressure ...................... 0.04-1.0MPa
• Power rating ............................... 730-860W
• Voltage/frequency ..................230V/50Hz
• IP Rating ............................................... IPX1
• Energy efciency Class...............................F
• Noise level ............................................58dB
• Energy Consumption ...... 0.446KWh/cycle
• INSTALLATION PREPARATION
• The installation position of dishwasher should be near the existing water inlet tap and drain outlet
and power socket.
• One side of the cabinet sink should be chosen to facilitate the connection of drain hose of the
dishwasher.
• Position the appliance in the desired location. The back should rest against the wall behind it, and
the sides, along the adjacent cabinets or wall. The dishwasher is equipped with a water supply and
drain hoses that can be positioned on either side to facilitate proper installation.
• ELECTRICAL CONNECTION
• Do not use this appliance on an extension cable or adaptor plug.
• Please look at the rating label to know the rating voltage and connect the dishwasher to the
appropriate power supply. Use the required fuse 13 amp, time delay fuse or circuit breaker
recommended and provide separate circuit serving only this appliance.
• Ensure the voltage and frequency of the power supply corresponds to those on the rating plate. Only
insert the plug into an electrical socket which is earthed properly. If the electrical socket to which
the appliance is connected is not appropriate, replace the socket, rather than using adaptors or
connectors as they could cause overheating and risk of re.
• WATER CONNECTION
• Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is
fastened tightly in place.

7
• If the water pipes are new or have not been used for an extended period of time, let the water run to
make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk
that the water inlet can get blocked and damage the appliance.
•
•
•
•
•
•
•
•
• Please Note: If the supplied hose does not t your tap, please contact your local plumbing supply
centre to nd a suitable adaptor.
• Connect the drain hose. Put the end of the drain hose into a sink or bucket.
Fix the drain pipe to the outlet at the
back of the machine. The drainpipe is
tted with clamps and tightened with a
screwdriver.
• Water Outlet, connect the water drain hose. The drain hose must be correctly tted to avoid
water leaks. Ensure that the water drain hose is not kinked or squashed. If you need a drain hose
extension, make sure to use a similar drain hose. It must be no longer than 4 metres, otherwise the
cleaning effect of the dishwasher could be reduced.
• To drain the excess water from the hoses ensure the level of the sink or vessel the dishwasher is
draining into is below the level of the outlet pipe from the appliance, this will ensure the dishwasher
and any water in the pipe will drain fully.
• GENERAL USE
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip
forward when loading items to be washed:
• Locate sharp items so that they are not likely to damage the door seal. Knives and other utensils
with sharp points must be loaded in the basket with their points down or placed in a horizontal
position.
• Check that the detergent powder is empty after completion of the wash cycle.

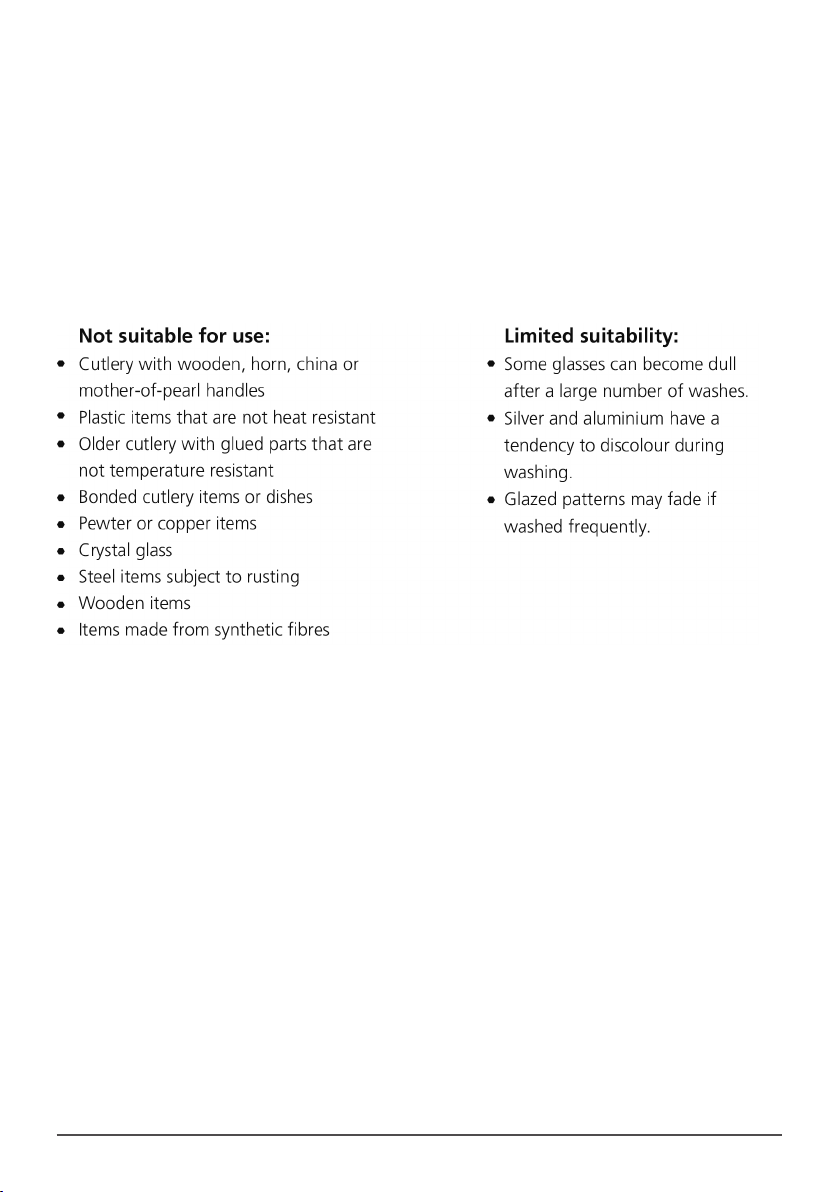

• Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
Fix the drain pipe with the suction cups

8
• For plastic items without mark, check the manufacturer’s recommendations.
• Use only detergent additives designed for an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• Children should be supervised to ensure that they do not play with the appliance.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualied person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or attened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets and that old hose-sets
should not be reused.
• The maximum number of place settings to be washed is 3.
• The maximum permissible inlet water pressure is 1MPa.
• The minimum permissible inlet water pressure is 0.04MPa.
• GETTING TO KNOW YOUR APPLIANCE
Dishwasher features

9
• CONTROL PANEL

10

11
• USING YOUR DISHWASHER
NOTE! If your model has no water softener, you can skip to the next section.
Loading the salt into the softener
• Always use salt intended for use with dishwasher.
• The salt container is located beneath the basket and should be lled as follows:
• A. Remove the basket and then unscrew and remove the cap from the salt container.
• B. Before rst wash, add 1lt of water in the salt container of your machine.
• C. Place the end of the funnel (if supplied) into the hole and introduce about, 0.13kg of salt. It is
normal for a small amount of water to come out of the salt container.
• D. After lling the container, screw the cap tightly back clockwise.
• E. Usually, the salt warning light will be cease to be illuminated within 2-6 days check the salt
container has been lled with salt.
• F. Immediately after lling the salt into the salt container, a washing programme should be started
(Suggest choose rapid program). Otherwise lter system, pump or other important parts of the
machine may be damaged by salty water. This will not be covered by the warranty.
Adjusting the salt consumption
• Step 1: Enter the status of salt adjustment Close the door, within 60 seconds after power on, press
button and hold for 5 seconds, the machine will enter setting mode
• Step 2: select a certain level of salt consumption. Press the button to select the proper setting
according to your local environment, the sets will change in the following sequence: H1->H2->H3-
>H4->H5->H6.
• Step 3: Exit the status of salt adjustment. Without any operation in ve seconds, the machine will
exit from set mode, the machine is into standby mode.
• There are 6 levels of salt consumption in all. It is recommended to select the level according to
below table:
NOTE! The salt container must only be relled when the salt warning light in the control panel
comes on. Depending on how fully the salt dissolves, the salt warning light may still be on even
though the salt container is lled.
If there is no salt warning light in the control panel (For some Models), you can judge when to
load the salt into the softener by the cycles that the dishwasher had run. If there are spills of the
salt, a soak or a rapid program should be run to remove the excess salt.

12
1) German degree of measurement for the water hardness
2) millimol, international unit for water hardness
3) factory setting
Contact your local water board for information on the hardness of your water supply.
• LOADING THE DISHWASHER BASKETS
• Consider buying utensils which are identied as dishwasher-proof.
• Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information
from detergent manufacturers.
• For particular items, select a program with as low temperature as possible.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the
program has ended.
• For the best performance of the dishwasher, follow these loading guidelines.
• Features and appearance of baskets and cutlery baskets may vary from your model.
• Scrape off any large food particles. Soften remnants of burnt food in pans. It is not necessary to
rinse the dishes under running water. Place objects in the dishwasher in following way:
• Items such as cups, glasses, pots/pans, etc. should face downwards.
• Curved items, or those with recesses, should be loaded at an angle so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils need to be placed in the way that the spray arms can rotate freely during washing.
• Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that
water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not be placed in the appliance touching.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the
basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable
energy consumption.

13
Using the dish ware support
• Small-size dish ware will drop through the basket and block the rotation of spray arm.
• Flip the dish ware support inward to support the small-size dish ware

14
Loading the basket
• Position the dishes and cookware so that they will not get moved by the spray of water.
Loading the cutlery basket
• Position the dishes and cookware so that they will not get moved by the spray of water.
• For personal safety and a top quality clean, make sure place the silverware in the basket as shown
in the illustration shown below so that do not nest together.
• Place silverware with handles-down.
• But place knives and other potentially dangerous utensils handles-up.

15
Adding detergent
• Concentrated Detergent
• Based on their chemical composition, detergents can be split in two basic types:
• Conventional, alkaline detergents with caustic components.
• Low alkaline concentrated detergents with natural enzymes.
• The use of a n ormal washing program in combination with concentrated detergent reduces
pollution and is good for your dishes.
• Detergent Tablets
• Detergent tablets of different brands dissolve at different speeds. For this reason some detergent
tablets cannot dissolve and develop their full cleaning power during short programs. Therefore
please use long programs when using detergent tablets, to ensure the complete removal of
detergent residuals.
• Detergent
• The detergent must be relled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table. Your dishwasher uses less detergent than a conventional
dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More
heavily soiled items need more detergent.
• Always add the detergent just before starting the dishwasher, otherwise it could get damp and will
not dissolve properly.
WARNING! Only use detergent specically for dishwashers.
Never use any other detergents this will damage the appliance.
Dishwasher detergent is corrosive!
Keep dishwasher detergent out of the reach of children.
Location for adding the detergent

16
• PROGRAMMING THE DISHWASHER
Wash cycle table according to EN60436.
• The table below shows the best programmes for the levels of food residue and how much
detergent is needed. It also shows various information about the programmes
This program is the test cycle. The information for
comparability test in accordance with EN60436
NOTE! : ECO
(*EN60436)

17
• TURNING ON THE APPLIANCE
Starting a wash cycle
• Pull out the basket (see the section entitled “Loading the Dishwasher”).
• Pour in the detergent (see the section “Adding the detergent”).
• Insert the plug into the socket.
• Press the power button to turn on the appliance,
• Connect the inlet hose to the tap, make sure that the water supply is turned on to full pressure, or
add water to the tank manually.
• Select a suitable program according to the “Wash cycle table”; If a program is selected, the
corresponding light will be lit. Then press the Start/Pause button, the dishwasher will start.
NOTE! When you press the Start/Reset button to pause during washing, the dishwasher will
beep every minute unless you press the Start/Reset button to start.
Change the programme
• How to interrupt/modify the wash program, if the dishwasher has only run for a short time.
Otherwise, the detergent may have already been released, and the appliance may have already
drained the wash water, in this case the cycle must be restarted.
• Press Start/Pause Button to pause the machine when the door is closed.
• Press Program Button for more than 3 seconds the machine will be in stand-by mode, then you can
change the program to the desired cycle (see the section entitled “Starting a wash program” ).
The Display window shows the state of the dishwasher:
• a) Display window shows “-:--” ----------------------------------> stand by;
• b) Display window shows “H:MM” and not blinking -------------> pause;
• c) Display window shows “H:MM” and blinking ------------------------> run;
• d) Display window shows “END” ------------------------> end.
NOTE! If you open the door during washing, the machine will pause. When you and press the
Start/Pause Button, the machine will restart after 10 seconds.
• If your model has the power interruption function, the machine will go on to nish the selected
program after the power cut.
Forgot to add a dish
• A forgotten dish can be added any time before the detergent dispenser opens. If this is the case,
follow the instructions below:
• 1. Press the Start/Pause button.
• 2. Open the door.
• 3. Add forgotten dishes.
• 4. Close the door.
• 5 Press the Start/Pause button, the dishwasher will run

18
At the end of a wash cycle
• When the working cycle has nished, the buzzer will sound for 8 seconds, then stop. Turn off the
appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait a few minutes before unloading the dishwasher to avoid scalding, the dishes and utensils are
still hot and more susceptible to breakage. They will also dry better.
• Switch Off the Dishwasher
• 1. Switch off the dishwasher by pressing the ON/OFF button.
• 2. Turn off the water tap.
• Open the door carefully
• Hot dishes are sensitive to knocks. The dishes should be allowed to cool down for around 15
minutes before removing from the appliance.
• Open the dishwasher’s door, leave it open and wait a few minutes before removing the dishes. In
this way they will be cooler and the drying will be improved.
• Unloading the dishwasher
• It is normal that the dishwasher is wet inside.
WARNING!
It is dangerous to open the door when washing, because the hot water may scald you.
Forced drainage operation
• In standby mode, you can press and hold the “Hygiene” button + “Rapid” button for 3 seconds
simultaneously to drain the water tank.

19
• MAINTENANCE AND CLEANING
Filter system
WARNING!
• Never use the dishwasher without lters!
• Make sure the lters is properly assembled.
The performance may be affected and dishes and utensils could become damaged
• The lter efciently removes food particles from the wash water, allowing it to be recycled during
the cycle.
• For best performance and results, the lter assembly must be cleaned regularly, For this reason,
it is a good idea to move the larger food particles trapping in he lter after each wash cycle by
rinsing the lter and cup under running water. To remove the lter assembly, rotate the lter handle
anticlockwise and then (see step 1 and 2)
NOTE! Following the process from step1 to step 2 will remove the lter from the appliance,
whilst following the process from Step 2 to Step 1 will install the lter in appliance.
The entire lter assembly should be removed and cleaned once a week.
• Inspect the lters for blockages after each time the dishwasher has been used.
• By unscrewing the coarse lter, you can remove the lter system. Remove any food remnants and
clean the lters under running water.
WARNING!
When cleaning the lters, be careful, if they become damaged the performance of dishwasher
could be affected.

20
Caring for the dishwasher
• The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry
it thoroughly. For the exterior use a good appliance polish wax. Never use sharp objects, scouring
pads or harsh cleaners on any part of the dishwasher.
• Caring for the Dishwasher
• Cleaning The Door
• To clean the edge around the door, you should use only a soft warm, damp cloth.
• To avoid penetration of water into the door lock and electrical components, do not use a spray
cleaner of any kind.
WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical
components.
Protect against freezing
• Please take frost protection measures on the dishwasher in winter. Each time after washing cycles,
please operate as follows.
• 1. Cut off electrical power to the dishwasher.
• 2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
• 3. Drain water from the inlet pipe and water valve (Use a pan to catch the water).
• 4. Reconnect the water inlet pipe to the water valve.
• 5. Remove the lter at the bottom of the tub and use a sponge to soak up water in the sump.
NOTE! If the dishwasher will not work due to ice, contact an authorised service person.
Cleaning the spray arms
• The spray arms can easily be removed to periodic cleaning of the nozzles to prevent possible
clogging. Wash them under running water and carefully replace them in their seats, checking that
the rotary movement is in no way impeded.
• Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running
water and replace it carefully. After reassembly check that the spray arms rotate freely. If not check
they have been installed correctly.
