Dellonda Baridi dh86 User manual

Baridi Compact Tabletop Dishwasher

8 Place Settings, 6 Programmes

Model No: DH86, DH87, DH88

Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard,

this product will, if used according to these instructions, and properly maintained, give you years of

trouble free performance.

DH86, DH87, DH88 Issue 1 20/10/2021

CONTENTS

• General safety 3

• Electrical safety 4

• Introduction 4

• Specication    5

• General Information

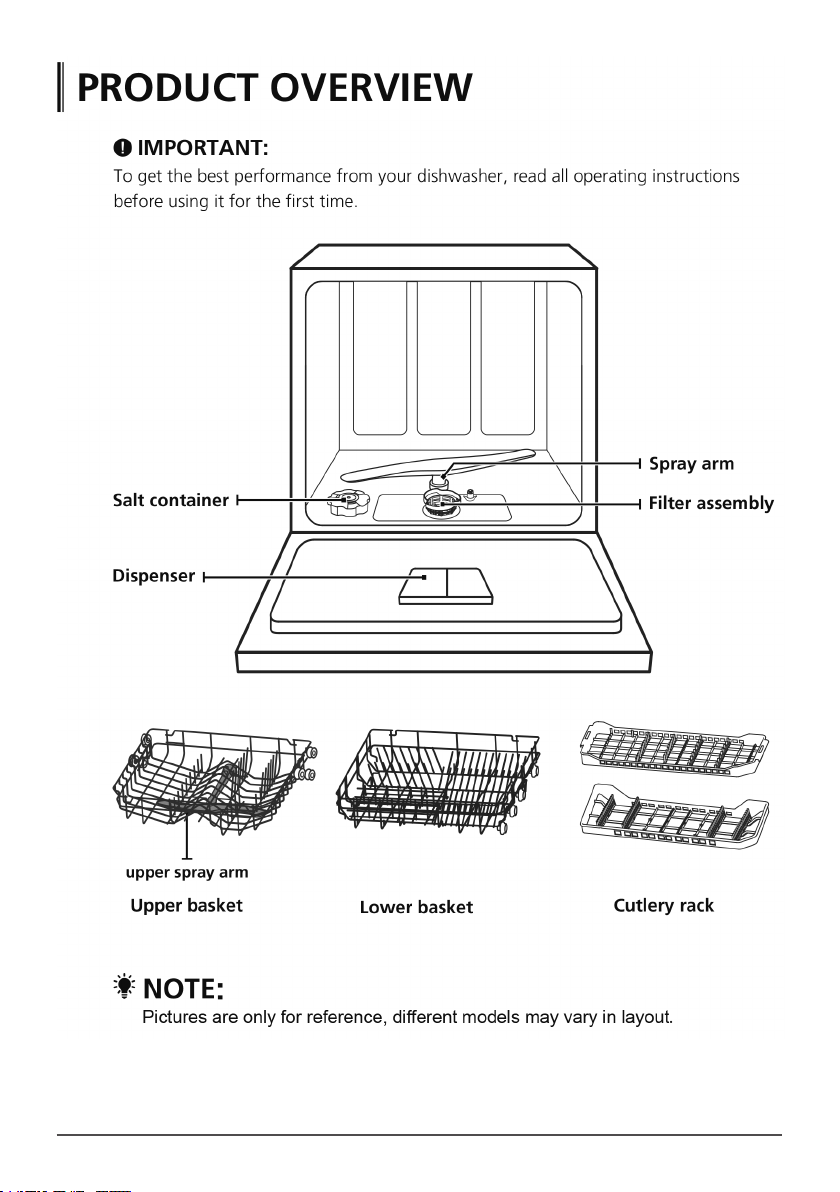

• Product Overview 6

• Using the dishwasher 7

• Maintenance and cleaning 9

• External care 9

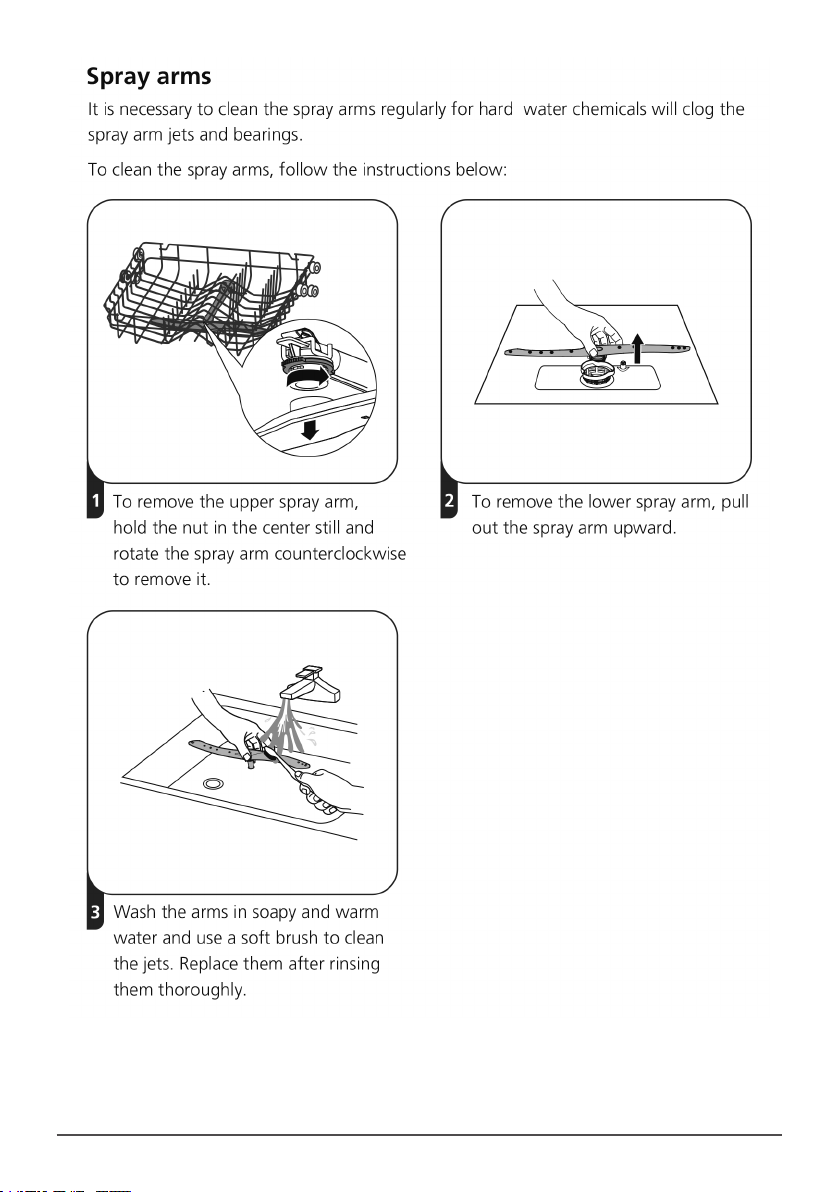

• Internal care 9

• Caring for the dishwasher 12

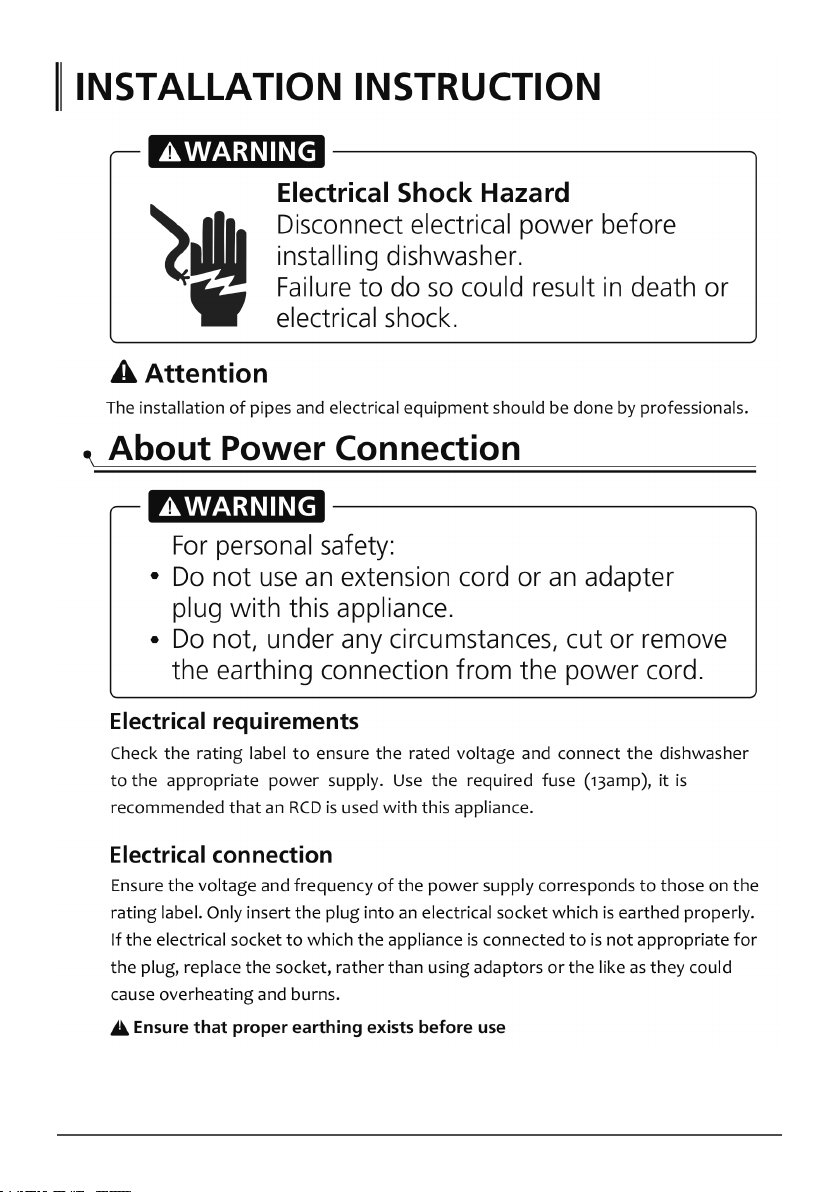

• Installation instructions 13

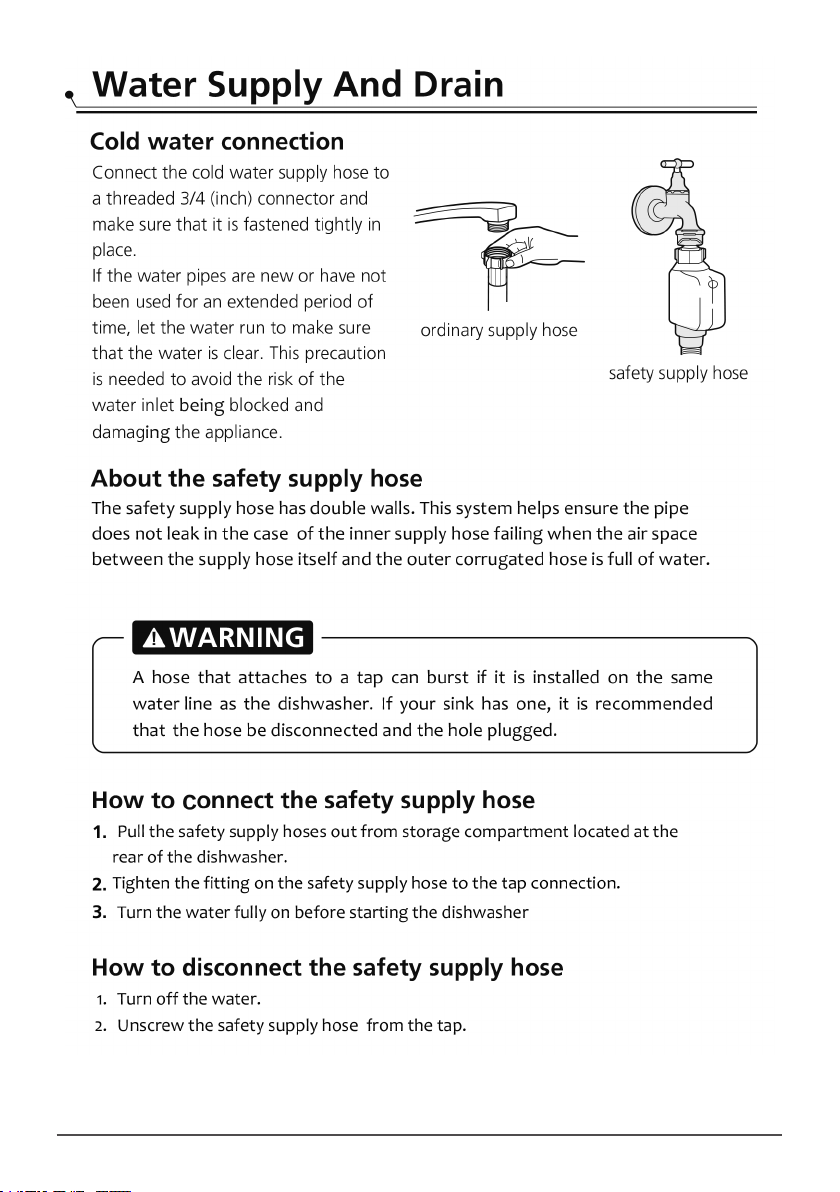

• Water supply and drain 14

• Connectionofdrainhoses   15

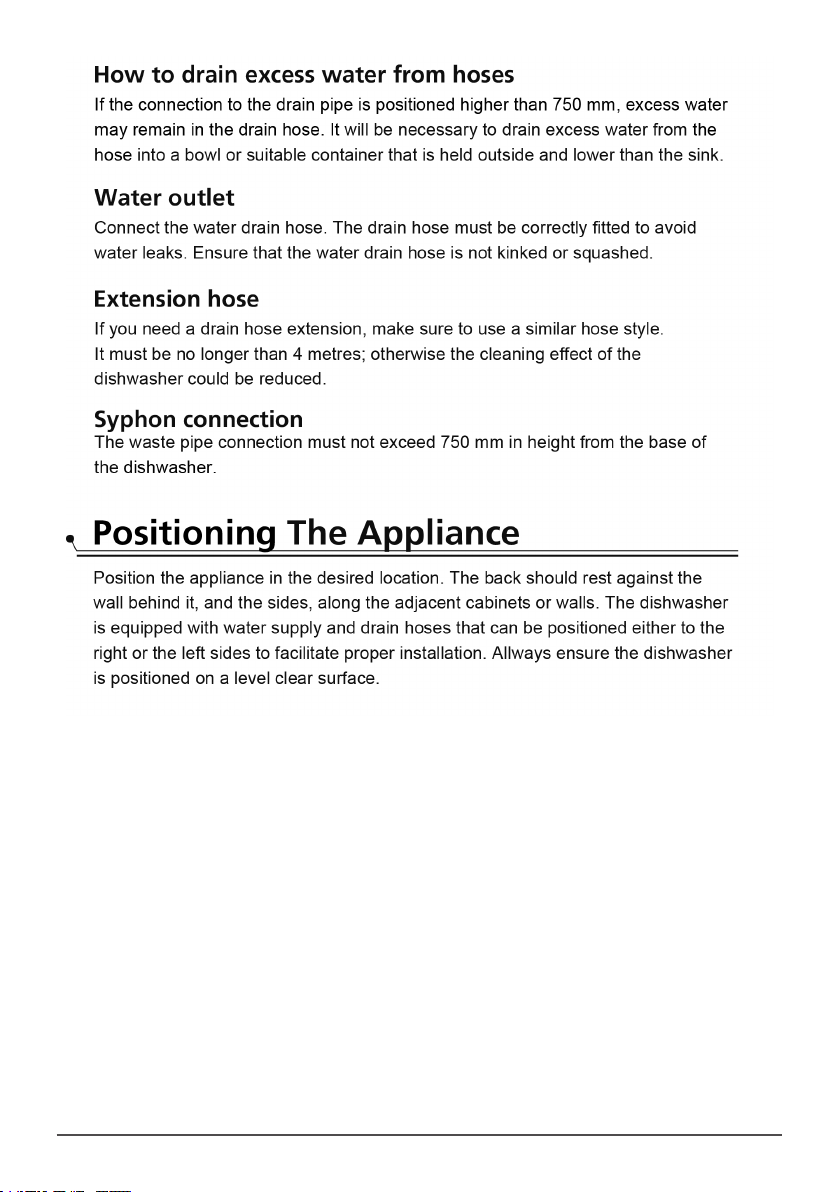

• Positioning the appliance 16

• Product Information

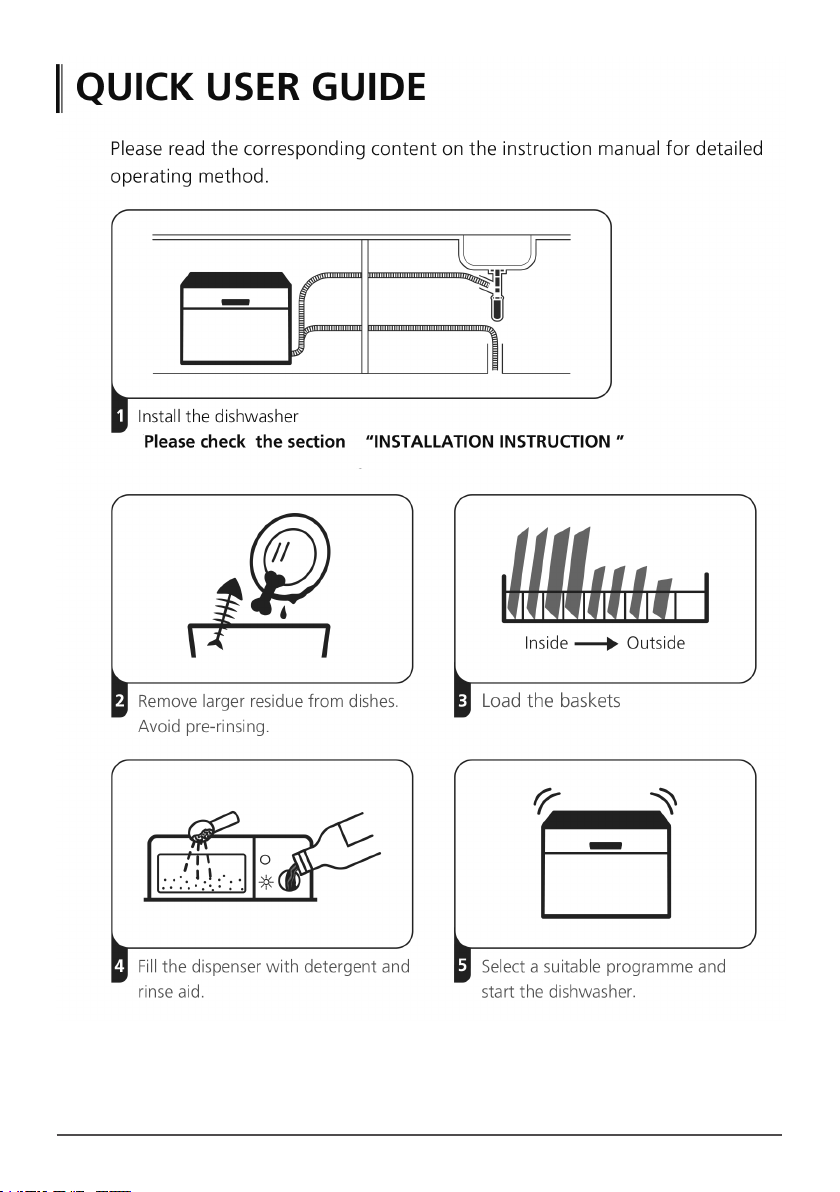

• Quick user guide 17

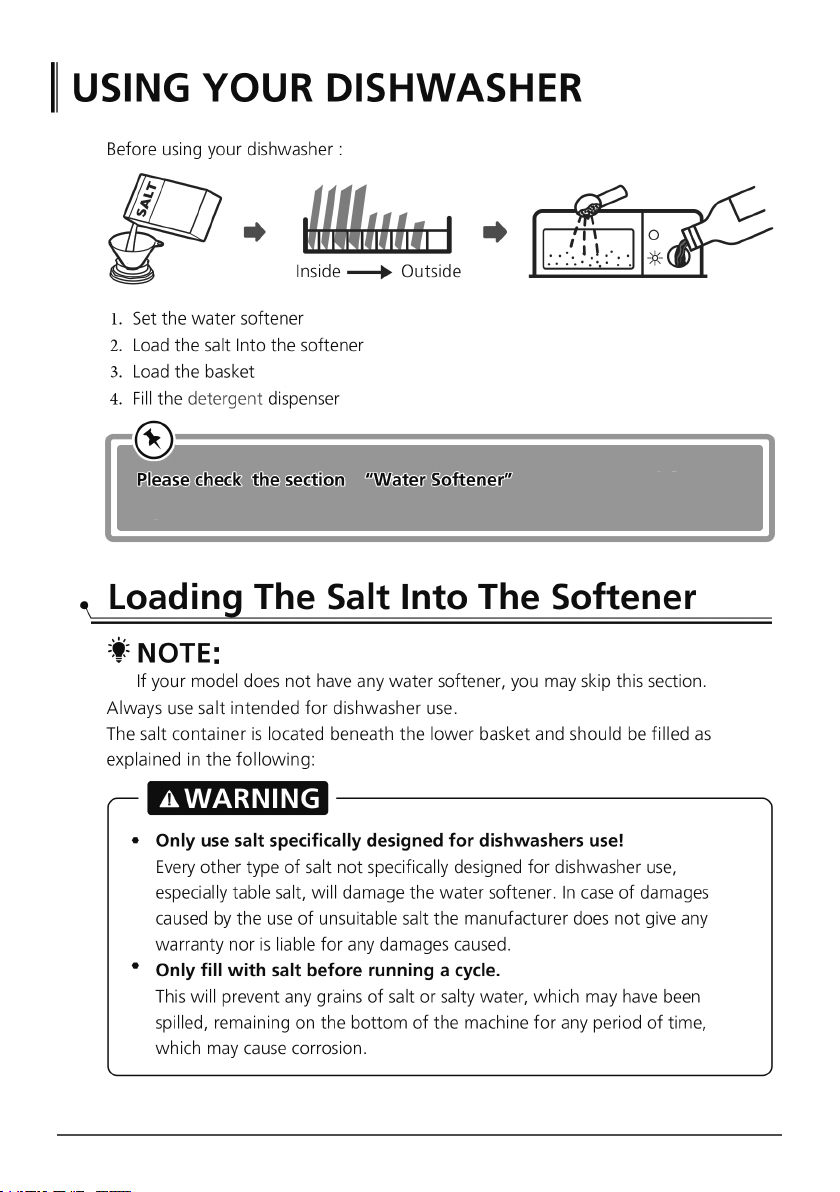

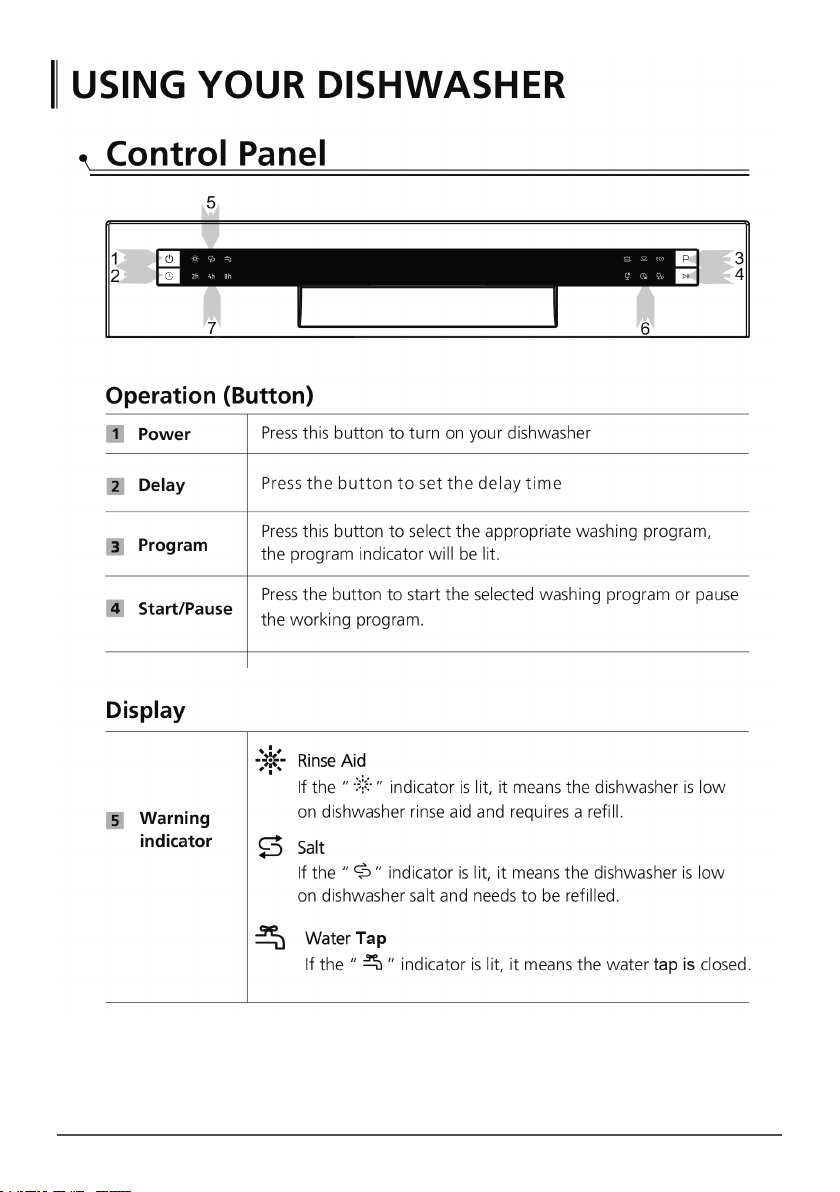

• Using your dishwasher 18

• Preparing and loading dishes 20

• Loading the baskets (EN60436) 23

• Cutlery rack 24

• Functionoftherinseaidanddetergent  25

• Filling the rinse aid reservoir 26

• Filling the detergent dispenser 27

• Programming the dishwasher

• Wash cycle tables 28

• Saving energy 29

• Starting a program 29

• Changing the program mid cycle 29

• Forgot to add a dish 30

• Error codes 31

• Troubleshooting tips 32

• Technicalinformation   35

• Product information sheet 36

• GENERAL SAFETY

• WARNING! When using this dishwasher, follow the precautions listed below.

• WARNING: Ensure the supply cord is not trapped or damaged.

• WARNING: DO NOT locate multiple portable socket-outlets or portable power supplies at the rear of

the appliance.

• This appliance is intended to be used in household and similar applications such as staff kitchen

areasinshops,ofcesandotherworkingenvironments;holidayhomes,hotelsandotherresidential

settings;andcateringandsimilarnon-retailapplications.

• This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of knowledge and experience if they have been given

supervision or instruction concerning the use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall

notbemadebychildrenwithoutsupervision(EN60335-1).

• Packaging materials could be dangerous for children.

• DO NOT abuse, sit on or stand on the door or dish rack of the dishwasher

• DO NOT operate this dishwasher unless the unit is fully assembled and all enclosures panels are

fully in place.

• DO NOT open the door whilst the dishwasher is switched on and operating, you are at risk of

scalding from hot water and steam.

• When loading items to be washed locate sharp items so that are unlikely to damage the door seals,

also knives and other utensils with sharp points must be loaded in the cutlery basket with their

points facing down or placed horizontally on a shelf.

• Some dishwasher detergents have strong alkalinity, they are extremely dangerous if ingested, avoid

contact with skin and eyes and keep children away from the dishwasher when the door is open.

• Always check there is no detergent residue left after the completion of a wash cycle.

• DO NOT wash plastic items unless they are marked dishwasher safe.

• Use only detergents and rinse agents that are recommended for use with automatic dishwashers .

• Never use soap, laundry detergent, or hand washing detergents in this dishwasher.

• DO NOT leave the door of this dishwasher open when the appliance is not in use.

• DO NOT tamper with the appliance or controls.

• If the appliance is moved it is recommend it is installed with new hose sets and NOT reused ones

• InStandbymodetheappliancewillswitchoffautomaticallyafter15minuteswithoutanyuser

interaction

• The maximum number of place settings to be washed is 8

Important Information

Please read these instructions carefully and note any safe operational requirements, warnings &

cautions. Use the product correctly and with care for the purpose for which it is intended. Failure

to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these

instructions safe for future use.

Refer to

instructions

Indoor use

only

Replacement fuse

rating:

13A

A) Connect the GREEN/YELLOW earth wire

to the earth terminal ‘E’.

B) Connect the BROWN live wire to the live

terminal ‘L’.

C) Connect the BLUE neutral wire to the

neutral terminal ‘N

• ELECTRICAL SAFETY

• WARNING! It is the user’s responsibility to check the following:

• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect

power supply leads, plugs and all electrical connections for wear and damage. Dellonda recommend

that an (Residual Current Device) is used with all electrical products. You may obtain an RCD by

contacting your local domestic stockist. If the product is used in the course of business duties, it

must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.

• Electrical safety information: It is important that the following information is read and understood.

• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the

power supply

• Regularly inspect power supply cables and plugs for wear or damage and check all

connections to ensure that they are secure.

• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and

thattheplugisttedwiththecorrectfuse-seefuseratingintheseinstructions.

• DO NOT pull or carry the appliance by the power cable.

• DO NOT pull the plug from the socket by the cable.

• DO NOT usewornordamagedcables,plugsorconnectors.

• Ensurethatanyfaultyitemisrepairedorreplacedimmediatelybyaqualiedelectrician.

• ThisproductisttedwithaBS1363/A13Amp

• 3 pin plug. If the cable or plug is damaged during use, switch off the electricity supply and remove

from use.

• Ensurethatrepairsarecarriedoutbyaqualiedelectrician.

• Replace a damaged plug with a BS1363/A 13 amp 3 pin plug.

• Ifindoubtcontactaqualiedelectrician.

• Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.

• Dellondarecommendthatrepairsarecarriedoutbyaqualiedelectrician.

INTRODUCTION

• Compact design ideal for homes with limited kitchen space! The dishwasher connects the same

as any normal dishwasher. It can however be connected to a kitchen tap for temporary use by

unscrewingtheaeratorandttinganadaptorwhichcanbeeasilypurchasedfrommosthardware

stores. The waste pipe can be plumbed in or just directed toward the plug drain. Attractive, modern

design makes it suitable to be used as a countertop dishwasher but the compact size gives the

option to be installed or freestanding in a cupboard space. Delayed start options of 2, 4, 6 or 8 hours

so dishwasher can come on during the night on cheaper energy rates or be set to wash whilst you

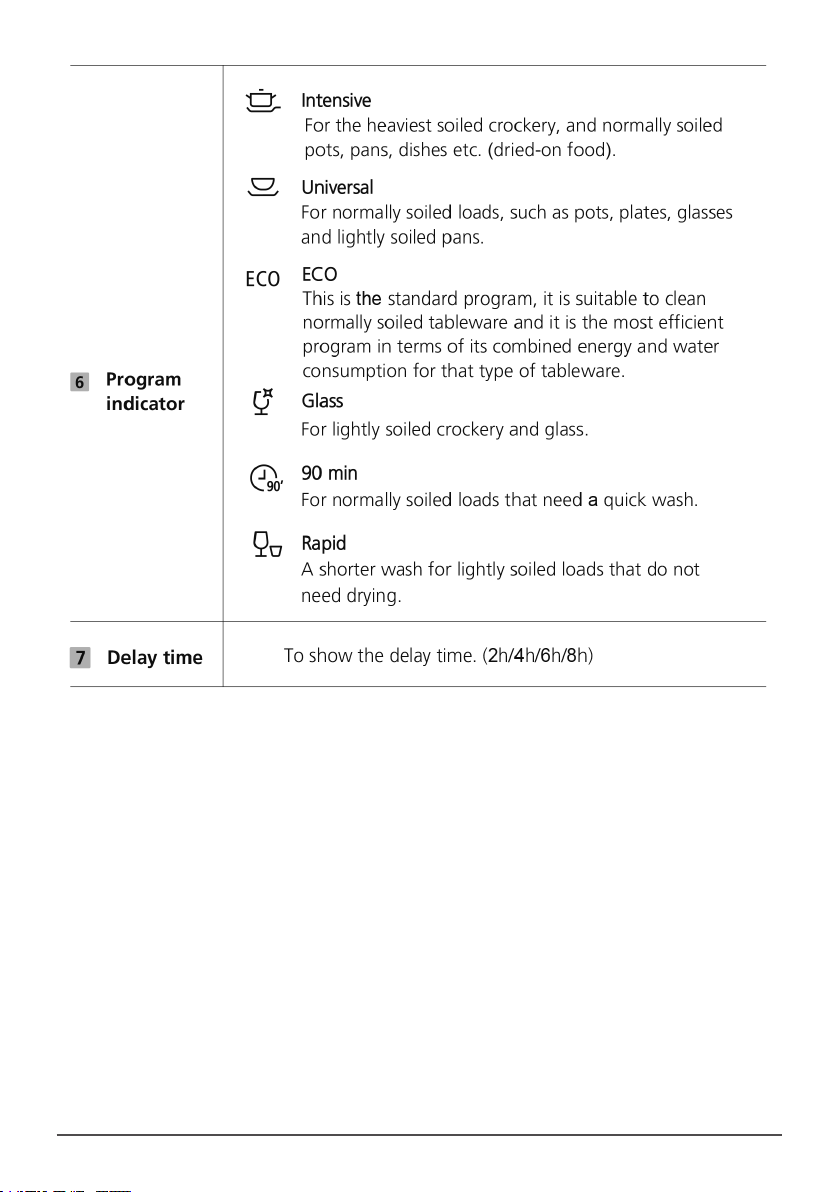

areout.6washprogrammes;Intensive,Normal,Eco,Glass,90minutes&RapidClean.Usesless

water than washing up at only 8L/cycle! Energy Class F.

5

• SPECIFICATION

• Model no: ......................................................................................................... DH86, DH87, DH88

• Dimensions(WxDxH):..........................................................................................500x500x595mm

• Place settings: .......................................................................................................................................... 8

• Water usage: ........................................................................................................................................... 8L

• Water Pressure: ..................................................................................................................... 0.04-1.0MPa

• Powerrating:...................................................................................................................................1500W

• Voltage/frequency:...................................................................................................................230V/50Hz

• IP Rating: ............................................................................................................................................. IPX1

• EnergyefciencyClass:............................................................................................................................F

• Noise level: .......................................................................................................................................... 49dB

• Energy Consumption: ........................................................................................................ 0.72kWh/cycle
