dellonda DL22 User manual

Model No. DL22
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
Dellonda 18ft Deluxe Steel Swimming Pool with Filter Pump
DL22 Issue:1 11/12/2020

Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Keep children
under supervision
in the aquatic
environment
No diving Wear personal

devices

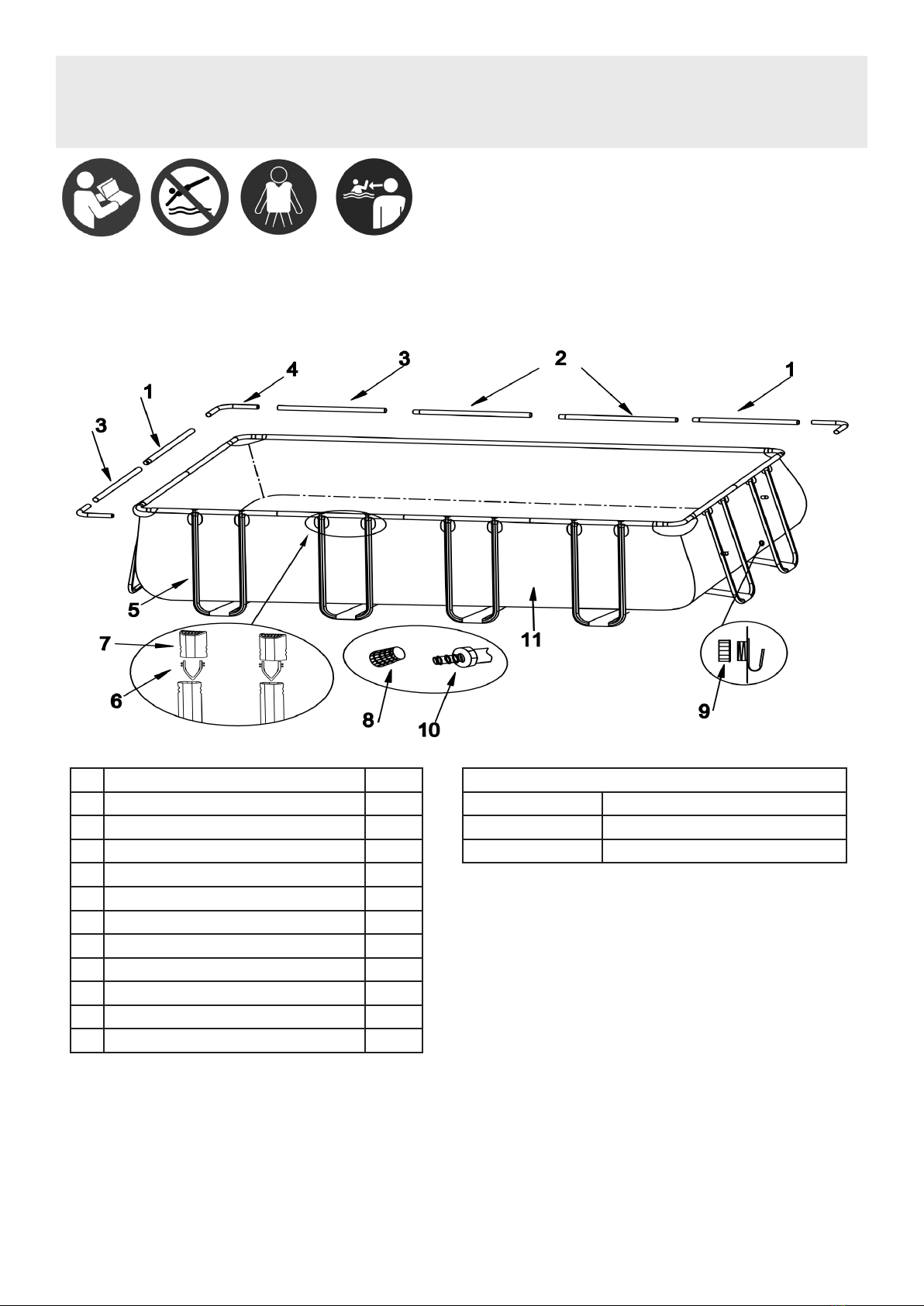

Contents
NAME QTY
1 Horizontal Beam A 4
2 Horizontal Beam B 4
3 Horizontal Beam C 4
4 L-Tube 4
5 U-Tube 12
6 Plastic Spring Pin 24
7 U-Tube Joint 24
8 Hole Strainer 2
9 Drainage valve cover 1
10 Drainage valve connector 1
11 Pool Liner 1
About The Product
Easy set up with no tools required. Anti-corrosion steel structure and triple layered PVC walls make this pool extremely strong and durable. Water

ground sheet, cover and repair kit.
Pool Accessories
DL43 Top cover
DL47 Ground Sheet
DL48 and DL49 Filters

Safety Instructions

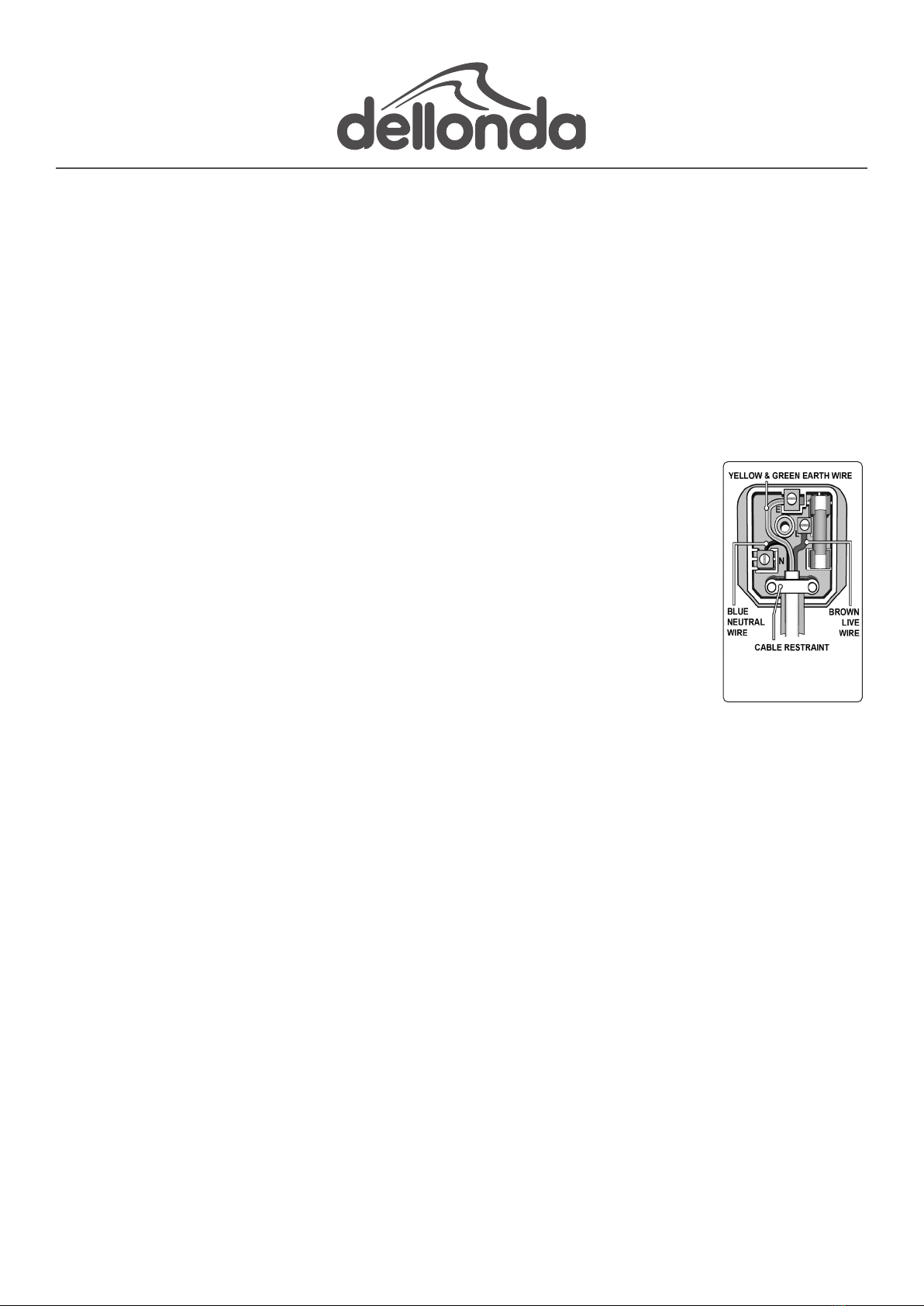

• ELECTRICAL SAFETY
• WARNING! REFER TO AND FULLY COMPLY WITH THE ELECTRICAL AND SAFETY INSTRUCTIONS IN THE ENCLOSED FILTER PUMP MANUAL.
• WARNING! The pool must be accessible to a 110 or 230V AC outlet protected by a Ground Fault Circuit Interrupter.
• The pool should be set no closer than 2m to the power source, but no further than the length of the ller pump cord. Under no circumstances
should an extension cord be used to extend the range of the connection.
• GENERAL SAFETY
• WARNING! Carefully read, understand, and follow all information in this user manual before installing and using the swimming pool. These
warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in
all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Please read carefully and keep for future
reference.
• WARNING! The use of a swimming pool implies compliance with the safety instructions described in the operating and maintenance guide. In
order to prevent drowning or other serious injuries, pay particular attention to the possibility of unexpected access to the swimming pool by
children under 5 by securing the access to it, and, during the bathing period, keep them under constant adult supervision.
• Non-swimmers safety
• Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is required at all times
(remembering that children under five are at the highest risk of drowning).
• Designate a competent adult to supervise the pool each time it is being used.
• Weak swimmers or non-swimmers should wear personal protection equipment when using the pool.
• When the pool is not in use, or unsupervised, remove all toys from the swimming pool and its surrounding to avoid attracting children to the pool.
• Safety devices
• In order to prevent children from drowning, it is recommended to secure access to the pool with a protection device. It is recommended to install
a barrier (and secure all doors and windows, where applicable) to prevent unauthorized access to the swimming pool.
• Fences, safety covers, enclosures or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult
supervision.
• Safety equipment
• It is recommended to keep rescue equipment (e.g. a ring buoy) by the pool.
• Keep a working phone and a list of emergency numbers by the pool.
• Safe use of the pool
• Encourage all users especially children to learn how to swim;
• Instruct all pool users, including children, what to do in case of an emergency;
• Never dive into any shallow body of water. This can lead to serious injury or death;
• Encourage all users especially children to learn how to swim.
• Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly. This can make a lifesaving difference in
the event of an emergency;
• DO NOT use the swimming pool when using alcohol or medication that may impair your ability to safely use the pool.
• When pool covers are used, remove them completely from the water surface before entering the pool.
• Protect pool occupants from water related illnesses by keeping the pool water treated and practicing good hygiene. Consult the water treatment
guidelines in the user’s manual;
• Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the reach of children.
• Use the signage as outlined on below.
• This safety sign must be posted in a prominent visible position within 2 m of the pool. Alternatively you may purchase a vinyl base glue (not
included) to glue the sign to the pool wall next to the entry and exit point,assuring it is prominently visible to all users when approaching the pool.
• Removable ladders shall be placed on a horizontal surface. Ladders must not be used for another purpose.
• WARNING! a drained pool outdoors may cause unknown hazards.
• WARNING! Installation and assembly shall be done by adults.
• WARNING! Read and follow the instruction for use and maintenance to ensure a safe use of the swimming-pool kit. Not following the instructions
for use and maintenance can cause serious health hazards, in particular for children.
• WARNING! Only for domestic outdoor use.
• WARNING! Drowning hazard. Children have drowned in portable swimming-pools.
• WARNING! Empty the pool when not in use. DO NOT leave a small pool empty outdoors.
• WARNING! Keep children under supervision in the aquatic environment.
• WARNING! No diving.
Ladder Safety
• 
• The ladder must be installed as per the manufacturers instructions.
• DO NOT play on the ladder.
• Only climb on the ladder using footsteps.
• DO NOT use the ladder for any purpose other than that for which it was intended.
• Make sure ladder is fully assembled according to instructions.
• DANGER! Metal conducts electricity!
• DO NOT allow ladder to come in contact with live electrical wires.
• Remove ladder from pool immediately after use. Store ladder .
• IMPORTANT: The max load capacity is 150kg
• Always check ladder assembly screws and retention clips, splinters or sharp edges before use.
No diving Wear personal

devices
Keep children
under supervision
in the aquatic
environment

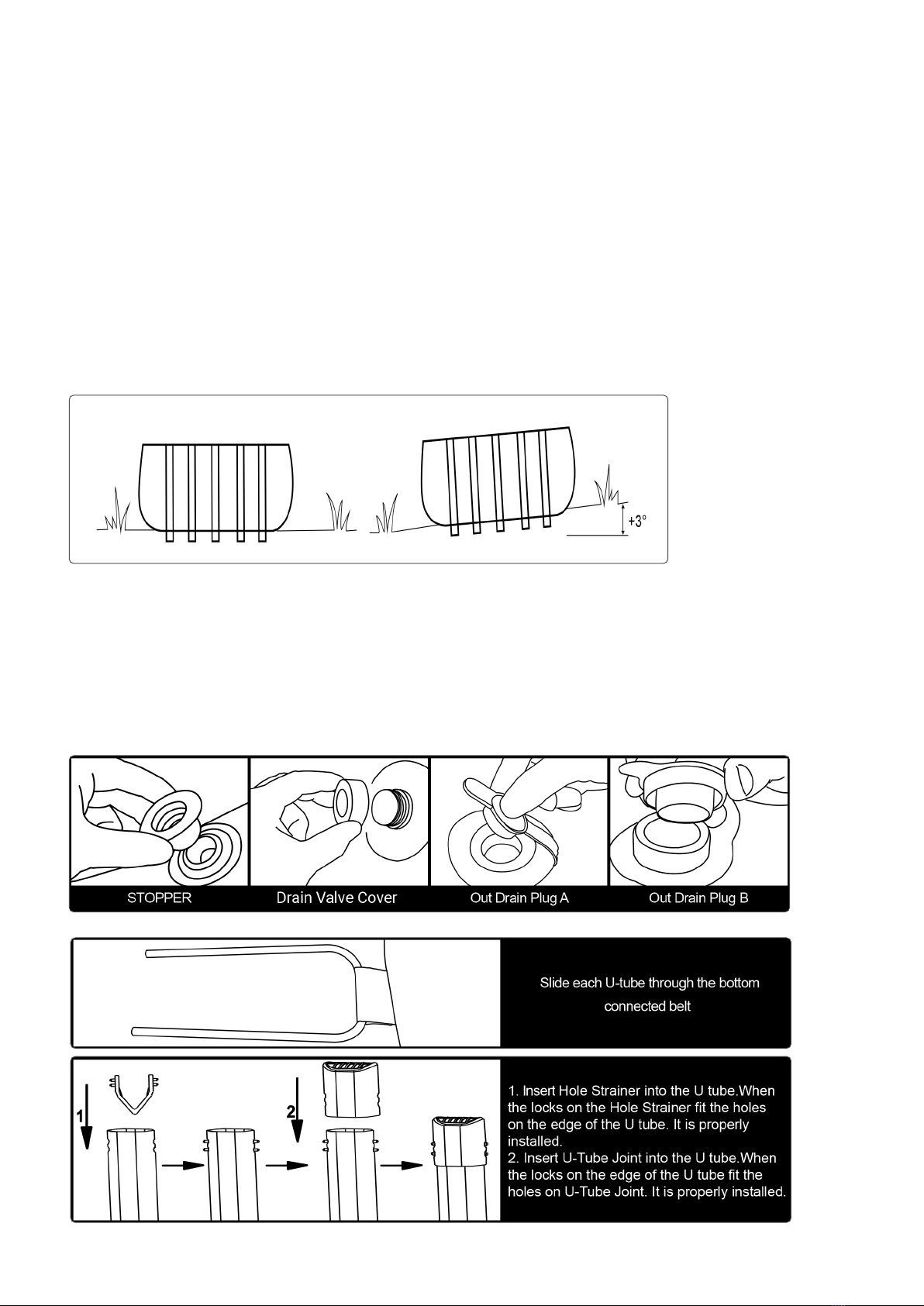

Site Selection
• WARNING: Pools installed on inadequately level surfaces are subject to leaking, forming irregularities, or collapse, which can result in property
damage or serious injury for those in or around the pool area!
• WARNING: Do not use sand during setup process. If it appears that there is a need for use of a “levelling agent”, then your set-up site is likely
unsuitable. FAILURE TO OBEY THIS WARNING MAY RESULT IN SERIOUS PERSONAL INJURY.
• CAUTION: Please choose your set-up area carefully, as lawn and other desirable vegetation underneath the ground cloth (if applicable) will die.
Furthermore, try to avoid setting the ground cloth (if applicable) in areas prone to aggressive plant and weed species, as they may grow through
the ground cloth.
• CAUTION: The pool must be accessible to a 110 or 230-volt AC outlet protected by a Ground Fault Circuit Interrupter (GFCI). The pool should be

cord be used to extend the range of the connection.
• It is absolutely essential to select a suitable site for your pool BEFORE
conforms to the following guidelines:
• 
set-up area.
• 2. Make sure that the area you have selected to set-up the pool is completely free of sticks, stones, sharp objects or other foreign debris.
• 3. Select an area that is not directly underneath overhead power lines or trees. Additionally, make sure that the pool set-up area does not contain
underground utility pipes, lines, or cables of any kind.
• 4. If a ground cloth is provided with your pool kit, its use is highly recommended. The ground cloth will help protect the pool liner from damage
due to weed growth, sharp objects, and debris.
• 5. If at all possible, choose an open location on your property that is exposed to direct sunlight. This will help to warm your pool.
Pool Setup
• Step1. ACCOUNT FOR ALL PARTS.
• Remove all the parts from the carton(s) and place them on the ground in the location where they are to be assembled
• Check each part according to “CONTENTS PAGE” Make sure all the pieces to be assembled are accounted for.
• IMPORTANT: DO NOT start assembly if any pieces are missing. For replacement pieces call the Dellonda number.
• The number of persons required for installation: 2 adults at least.
• 
• Step2. INSTALL DRAIN VALVE COVERS AND STOPPER
• Make sure that the outer drain plug is inserted into the outer drain cap and the drain valve cover is screwed on tightly. Plug the connection holes
with the stoppers. (The outer drain plug changes according to different size of pool.)
• Step3. INSTALL THE U-TUBES

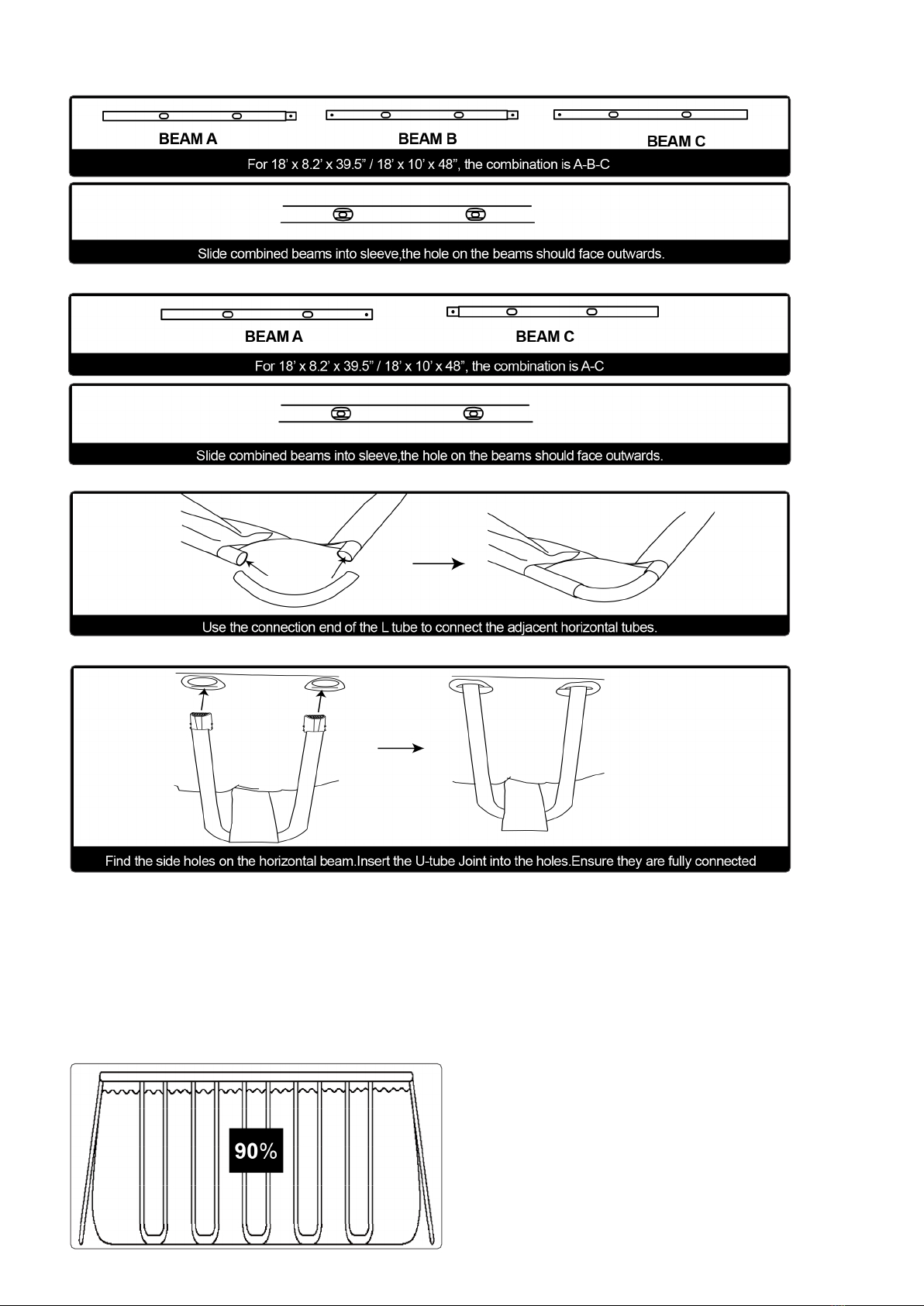

• Step4. INSTALL HORIZONTAL BEAM
• For the long side sleeve of the pool:
• For the short side sleeve of the pool:
• Step5. INSTALL HORIZONTAL BEAM AND L-TUBE
• Step6. INSTALL HORIZONTAL BEAM AND U-TUBES
Fill The Pool With Water
• WARNING: DO NOT
• WARNING
be corrected! You shall pull out the drain plug, release the water completely, disassemble the pool completely,locate the pool on a level surface,
repeat set up instruction.
• WARNING: DO NOT OVERFILL as this could cause the pool to collapse. In times of heavy rainfall you may need to empty some of the water to
ensure the level is correct.
• 


• 

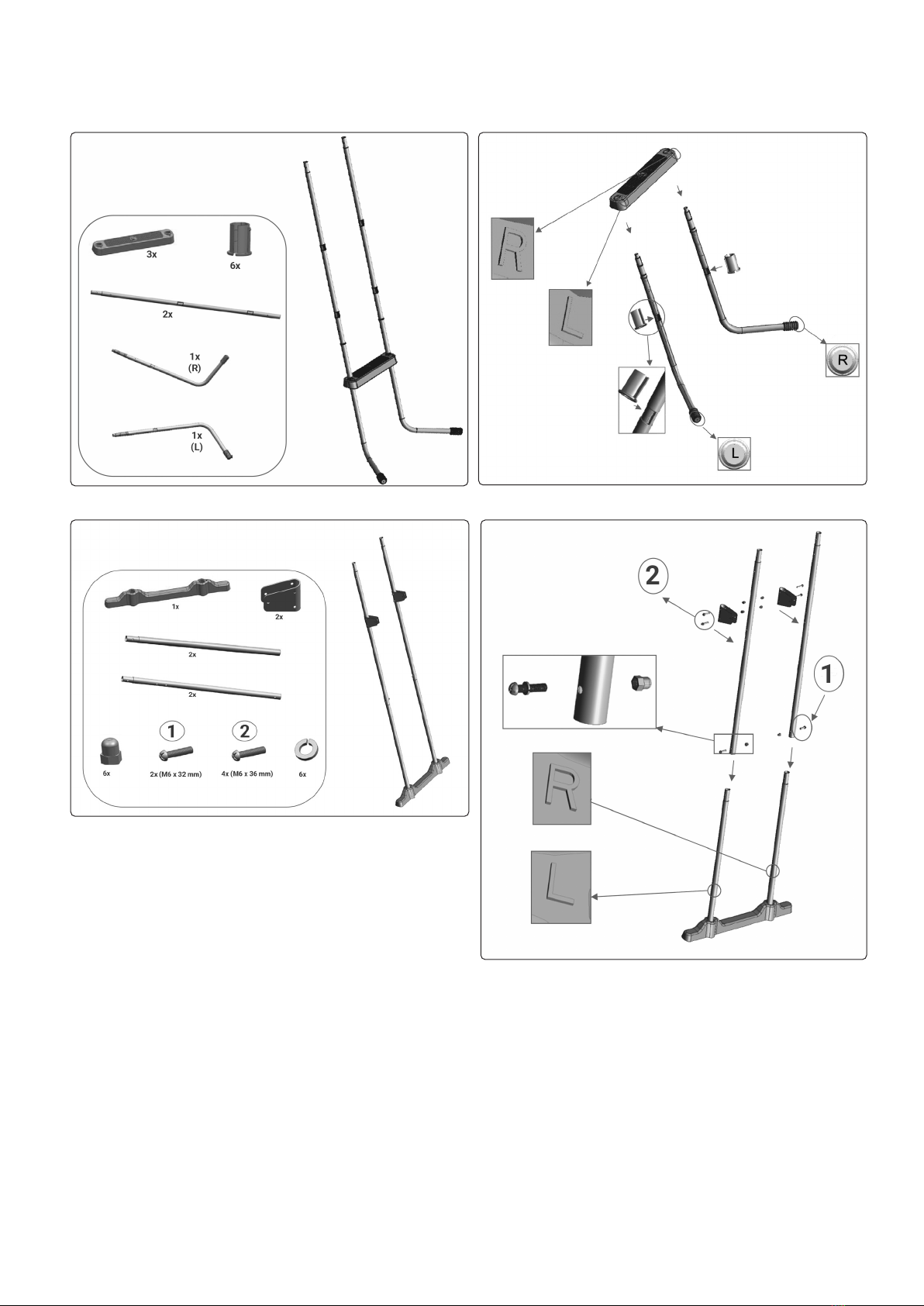

Assembling The Ladder
• 
• Fit a pair of plastic sleeves to the poles, they should align with the crimp marks. Then press one of the plastic steps onto prepared leg.
• Repeat this process until all three steps are assembled on the this side.
• Assemble the other side of the ‘A’ frame.

• Attach the platform and handles.
• Secure the handles and platform using the screws provided.

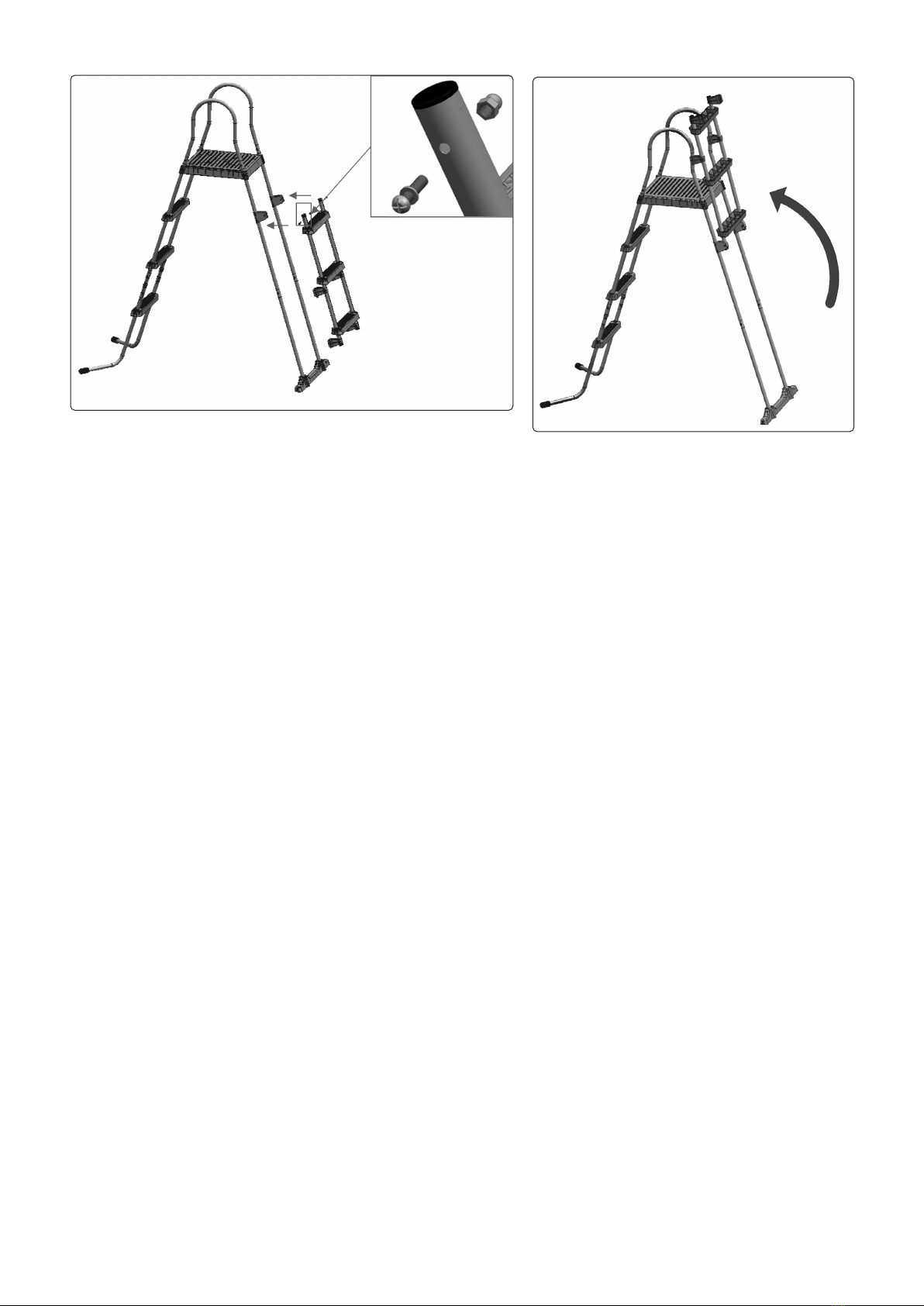

• Assemble the fold away section of the ladder.
• 
• Before assembling the second step remember to attach the free moving clips.

• Attach the fold away set of steps to the brackets on the ladder.
Winter and Long-Term Storage
• WARNING: DO NOT let your children stand at the outlet and face the water outlet during the drainage. The water current may sweep children
away.
• WARNING: Pool should be stored in a cool and dry place, with no sharp objects around, and no heavy objects lying above, which may cause
damage to the pool.
• 
• 
• Step3. Attach your garden hose to the drainage valve connector, and place the other end of the hose in an area where the water can drain safely,

than the pool to ensure complete drainage.
• 
pump hoses.
• Step5. Attach the drainage valve connector to the drain outlet by turning connector in a clockwise direction.
• Step6. Open the outlet plug on the inside of the pool and the water will begin to drain immediately.
• 
• Step8. Replace the outlet plug on the inside of the pool.
• Step9. Be sure that the pool liner is completely dry before folding the pool for long-term storage. Leaving the pool exposed to sunlight for a few
hours will clean and speed the drying process and make it easier to fold the pool for storage. (Never attempt to fold or stow a pool that is not
completely dry as this could lead to a proliferation of mould or mildew build-up during the time the pool is in storage.)
• Step10. Remember, proper off-season storage is critical to protect your investment in your pool (especially in winter). Once drained and dry,
your pool should be carefully folded and wrapped in a ground cloth (if available) or other similar protective tarp-like material. The pool and all
applicable accessories such as the pump, cover, ground cloth, ladder, hoses, clamps, and hardware should be kept together and stored indoors, in
a reasonably warm, dry and weatherproof location.
Maintenance and Storage Of Steps
• Store ladder in a safe and dry place.
• Never store any materials on the ladder.
• Keep ladder clean and free of all foreign materials.
• Do periodic maintenance on screws, when the ladder is not in use, put some anti-rust oil on them.
• DO NOT use ladder in temperatures below -5C.
• Remove pool ladder from swimming pool during the off season (winter months). Disassemble all the components and dry thoroughly. Store in a
dry location out of children’s reach.

Folding Instruction
• Before folding, it’s better to dry all parts of the pool completely by lying them in the sun for one hour or so.(PIC.1). And then, spread some talcum
powder to prevent the vinyl from sticking together.
• Step1. Please fold the protrusion sides inside to create a rectangle shape. (PIC.2).
• Step2. Fold each half of the rectangle to create a smaller rectangle shape. (PIC.3).
• Step3. Fold each end backwards. (PIC.4).
• Step4. Fold the ends together to create an ultimate rectangle (PIC.5).
• TIPS
• TIPS2. The original packing can be used for storage.
In-Season Pool Maintenance and Water Care
• WARNING
However, to maintain pool water that is perfectly clear, algae free, and safe from harmful bacteria, it is VERY IMPORTANT TO ENGAGE IN A
CONSISTENT REGIMENT OF CHEMICAL TREATMENT. Contact your local pool supply retailer for guidance on the safe and effective use of
chlorine, shock, algaecide and other such chemicals.
• WARNING: To avoid skin and eye irritation or even injury to bathers, never add chemicals to the pool while it is occupied. Never add any chemicals

guidelines concerning the use of chemicals in your pool.
• WARNING: It is highly recommended that pool owners frequently test their pool water to ensure that the pH and chlorine concentration in

instructions on its use.
• WARNING: Non-respect of the maintenance rules may result in serious hazards for health and especially for children.
• This product is designed to be a storable, seasonal pool. If you live in a temperate area in which the pool will not be in use year-round, it is
STRONGLY RECOMMENDED that you drain your pool, clean and dry it thoroughly, and store it in a protected area for the off-season. This will help
extend the life of your pool and prevent a safety hazard from developing while the pool is not in use. During the season of use of the pool kit, the

• In order to keep your pool water clean and hygienic all season long please closely adhere to the following guidelines:
• A: The proper and consistent use of basic pool chemicals are required to maintain the proper pH balance in your pool water.
• 
keeping your water crystal clear. Chemicals that your pool may require include but are not limited to:
• 1) Tabular, Granular, or Liquid Chlorine: Disinfects pool water and inhibits algae growth.
• 2) PH Adjusting Chemicals: These are used to correct PH levels and make water more or less acidic.
• 3) Algaecides: These chemicals are formulated to remove algae.
• 4) “Shock” (Super chlorinator): Eliminates certain organic and other combination compounds that can affect water clarity.
• 


• B: Never let chlorine come into direct contact with the pool liner until it has completely dissolved. This means that granular or tabulated chlorine

various locations around the pool perimeter.
• DANGER: NEVER add water to chemicals. INSTEAD, always add chemicals to water. Also, never mix separate chemicals together, rather, add
chemicals to the pool separately and allow them to circulate throughout the pool before adding additional types of chemicals.
• C: We recommend that you purchase a Dellonda test kit (pool Starter Kit: Model no. DL63 and Test Strips: Model no. DL32 test kit) and frequently
test your pool water to make sure that your PH balance and chlorine levels are optimal.
NOTE: Excessive chlorine levels or low (acidic) pH levels can damage your pool liner, so please take corrective action as soon as possible if
testing reveals either condition.
• 
garden hose powered vacuum. Please contact the Dellonda service centre if you want to get advice on any repair during the life of the pool kit.
• D: 
or replaced. If your cartridge is no longer white in colour, attempt to spray it clean with a strong blast of water from your garden hose. If your

• 
• E: If your pool system included a cover, try to keep your pool covered at all times when not in use. This will help keep the wind and other elements


• F: Remind your family and friends to always hose or rinse off any dirt or tanning oil from their hands, feet, and body prior to entering the pool.
• G: It’s necessary to monitor the bolts and hardware of the pool (eg. rust stain) when possible (if applicable).
• H: 
should occur, it is important to drain or bale out the excess water as soon as possible.
• I: Irrespective of materials used for swimming pool construction, accessible surfaces have to be checked regularly to avoid injuries.
Trouble Shooting
• REPAIR PATCH INSTRUCTIONS
• Small pinhole and small puncture leaks can be repaired with the included repair patch.
• a) Locate the source of the leak.
• b) Clean the area surrounding the leak and wipe up all water from the surface.
• c) Take out the repair patch, cut it into required shape and size, which should be larger than the leaking area, put the patch on the leaking area and
press tightly.
• d) Wait 30 minutes for open-air drying of the repaired position.
• If the damaged area is large, we recommend using a Silicone or rubber based glue for repair.
• GLUE REPAIR INSTRUCTIONS
• 1 Locate the source of the leak.
• 2 Drain completely.
• 3 Clean the area surrounding the leak and wipe up all water from the surface.
• 4 Thoroughly clean the area surrounding the leak .Cut a piece of repair material in a round shape, which should be larger than the damaged area.
• 5 Glue (purchase adhesive separately) one side of the material patch to the repair area.
• Note: The glue needs to be evenly applied to the material patch.
• 6 Put the patch on the damaged area and press tightly. Wait 12 hours for drying. After patch has dried, apply glue around the edges for a
complete seal (dry for 4 hours).

PROBLEM DESCRIPTION CAUSE REMEDY
Coloured Water • Water turns blue, brown, or

chlorine.
• The chlorine is oxidizing
minerals in your water. This
commonly occurs with water
from different sources.
• Adjust pH to recommended
level.
• 
• Regularly clean cartridge.
Particle’s Suspended in
Water
• Water looks “milky” or cloudy. • “Hard Water” caused by an
elevated pH.
• Chlorination is inadequate.
• Foreign debris in water.
• Bathers are not cleaning their
feet prior to entering pool.
• Adjust pH. Check with a
swimming pool supply retailer
for correct water treatment.
• Ensure proper chlorine level.
• 
• Spray off dirt with a high-
pressure hose before entry.
Persistent Low Water
Level
• Pool appears to be losing water
on a daily basis.
• Tear or hole in pool liner.
• 
hose.
• Hose clamps are too loose.
• Evaporation from high summer
temperatures.
• Locate damage and repair with
the included patch kit.
• Repair or replace hoses.
• Tighten all hose clamps.
• Keep pool covered when not
in use.
Algae • Water has greenish tint.
• Green, brown or black spots
appear on pool liner.
• Pool bottom is slippery and/or
an unpleasant odour is present.
• Warm weather.
• Poor Circulation.
• Low free Chlorine.
• Apply “shock” treatment
(superchlorinator). Check pH
and adjust to an appropriate
level per your local pool supply
retailer.
• Vacuum or lightly scrub pool
liner.
• Test water often to maintain
proper chlorine levels.
Pool Water is Cool • Water is not warming to
a comfortable swimming
temperature.
• Pool was set up in an
excessively shady or tree lined
area.
• Heat is escaping from pool
water.
• Relocate pool to a more open
location where it can get
maximum exposure to sunlight
during peak daylight hours.
• Keep your pool covered
whenever it is not in use.
Deformation from Frame • 
level
• 
water to water level
Troubleshooting

Filter Pump
Safety Instructions
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage.
• WARNING! The pump must be supplied through a Residual Current device (RCD) having a rated residual operating current
not exceeding 30mA.
• Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. If the product is used in the course of business
duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.
• Electrical safety information, it is important that the following information is read and understood.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the 
fuse rating in these instructions.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is

• BS1363/A 13 Amp 3 pin plug.
• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
• 
• Replace a damaged plug with a BS
• a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
• b) Connect the BROWN live wire to the live terminal ‘L’.
• c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
• Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
• WARNING! The mains cable can not be replaced. If it is damaged the appliance should be scrapped.
• 
• GENERAL SAFETY
• DO NOT connect to the mains supply with wet hands or while standing in water.
• Mains supply must be protected by a RCD, see above.
• DO NOT use a damaged or frayed mains cable.
• WARNING! The pump must be installed at least 2m from the pool.
• WARNING
• WARNING! Filter pump is not to be used by children. Adult assembly and operation only.
• DO NOT bury the mains cable. Locate it where it will not be damaged by lawn mowers, hedge trimmers and other garden equipment.
• Ensure before each use of the pump, that all clamps are tightened and that all hoses are properly connected.
• WARNING! DO NOT
• WARNINGONLY for use with storable pools. It must not be used for permanently installed pools.
Improper use will cause overheating and the motor to be damaged.
• WARNING! To avoid overheating of the pump motor, make sure the pump is pumping water. Never allow to run dry.
• WARNING! Air in the system will make the pump race and will cause damage to the pump. Refer to Operation section.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• WARNING! The pump must not be used when people are in the water.
• The maximum total head is 0.9m.
Recommended fuse rating
13 Amp

Contents
Installation
• Refer to Contents and Installation diagrams
• 
• 
• 
• Place the pump at least 0.2m below the level of the pool water and not more than 1m below the level of the pool water.
• 
• DO NOT place the pump in tall grass as it may cause the motor to overheat.
• 
• 
• 
• Gently turn the air purge cover (P1) anticlockwise 1-2 turns.
•  
hose with the hose clamp, (P11).
Operation
• Ensure that all Safety and Installation instructions have been carried out.
• 
• Then gently tighten clockwise, the air purge cover (P1).
• Connect the mains supply after ensuring that all electrical and safety instructions have been carried out (refer to Electrical and General
safety sections above.)
• 
• Pump must NOT be used when the pool is occupied.
Maintenance
• WARNING
• 
• CLEANING
• DO NOT use solvents.
• FILTER CLEANING/REPLACEMENT
• 
• 
•  
of water or use a hose.
• 
• Reconnect the mains supply.
• STORAGE
• 
• 
• Store all components in a dry and ventilated location. Ensure all parts are dry.

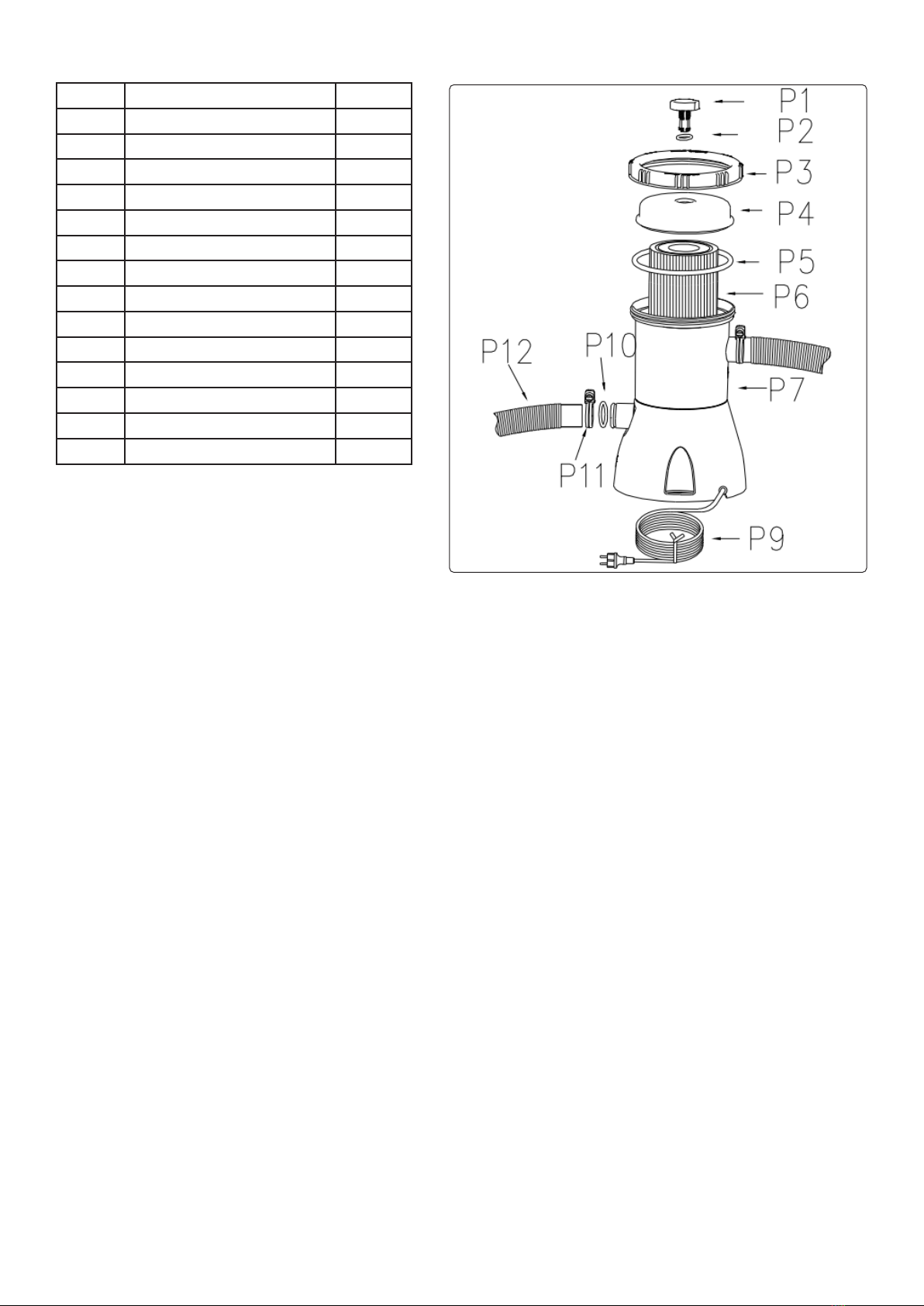

Part no. Description Quantity
P1 Air purge cover 1
P2 Air purge cover seal 1
P3 Filter chamber cover retainer 1
P4 Filter chamber cover 1
P5 Filter chamber cover gasket 1
P6 Filter chamber 1
P7 Filter chamber 1
P8 Number not used 1
P9 Power cable 1
P10 Oring 2
P11 Hose clamp 4
P12 Connector hose 2
P13 Filter net 2
P14 Connector 2

Troubleshooting
• PUMP DOES NOT OPERATE:
• Check for blown fuses, trip switches or disconnected mains supply.
• Check the motor, if it is too hot or overloaded turn it off and let the motor cool down.
• Seek professional help with the repair.
• PUMP MOTOR RUNS BUT DOES NOT PUMP WATER OR WATER FLOW IS SLOW:
• Check for obstructions in the intake or discharge hoses or in the pool itself.
• Tighten hose clamps, check hoses for damage, check pool water level.
• 
• PUMP LOSES PRIME
• Ensure water level is at least 5cm above the outlet pipe.
• Ensure there are no leaks in the suction piping.
• 
• FILTER DOES NOT CLEAN POOL
• Adjust chlorine and pH level.
• 
• Check for holes in cartridge.
• Let pump operate for longer.
• 
• Seek expert help.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 suppor[email protected] www.dellonda.co.uk
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of
it in an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations.
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey would like to inform the user that this product contains one
or more batteries. It is our policy to continually improve products and we reserve the right to alter data, specifications and parts without
prior notice. No liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required
for any claim.
