DeLonghi EN560W User manual

My
Machine
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 1 14.09.17 15:31

EN - CN 4-33
HK 34-57
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 2 14.09.17 15:31

AB C
13
11 12
10
9
1
2
8
23
26
30
31
29
32
7
5
6
33
22
4
3
24
25
23
27
28
26
22
15 19
20
21
16
17
18
14
4
3
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 3 19.10.17 13:35

OVERVIEW/机器概览
Tactile beverage buttons/
触摸型饮料按钮
13 ON/OFF button/开/关按钮
15 Espresso 40 ml/浓 缩 咖 啡（ 40 ml）
16 Cappuccino/卡布奇诺
17 Latte Macchiato/拿铁玛奇朵
19 Lungo 110 ml/大 杯 咖 啡（ 110 ml）
20 Creamy Latte/拿铁
21 Warm milk froth/热奶泡
Rapid Cappuccino System (R.C.S.)/
快速卡布奇诺 系统（R.C.S.）
22 Lid detach button/盖子分离按钮
23 Milk container Lid/牛奶容器盖
24 Milk froth density: MIN/奶 泡 密 度 ：最 小
25 Position for milk froth regulator knob (insertion/removal)/
奶泡调节旋钮的位置：（插入/移开）
26
Milk froth regulator knob/
奶泡调节旋钮
27 CLEAN : Rinsing button/
清洁 ：清 洗 按 钮
28 Milk froth density: MAX/奶 泡 密 度 ：最 大
29 Rapid Cappuccino System connector/
快速卡布奇诺系统连接装置
30 Milk spout/牛奶喷嘴
31 Milk Spout Lever/牛奶喷嘴手柄
32 Milk aspiration tube/牛奶吸管
33 Milk container (0.35 L)/牛 奶 容 器（ 0.35升）
Overview of machine/
机器概览
AMachine without Rapid Cappuccino System/
未配备快速卡布奇诺 系统的装置
BMachine with Rapid Cappuccino System (for Cappuccino)/
配备了快速卡布奇诺 系统的装置（用于冲泡
卡布奇诺）
CMachine with Rapid Cappuccino System (for Latte Macchiato
and Creamy Latte)/
配备了快速卡布奇诺 系统的装置（用于冲泡
拿铁玛奇朵 和拿铁）
1Lever/手柄
2Capsule compartment/胶囊放置口
3Water tank (0.9 L)/水 箱（ 0.9 升）
4Coee outlet/咖啡出口
5Used capsule container/废弃粉囊储存盒
6Drip tray (push inside for Latte Macchiato glass)/
滴水盘（如需放置拿铁玛奇朵杯，需向内推
动滴水盘）
7Left grid/左格栅
8Right grid/右格栅
9Descaling pipe storage door (pull to open)/
除垢管道储存区（拉开即可）
10 Descaling pipe/除垢管道
11 Steam connector door/蒸汽连接装置门
12 Steam connector/蒸汽连接头
Alert/警报
14 «Descaling» : descaling alert refer to
section «Descaling»
“除垢” ：除 垢 警 报 ，请 参
见“ 除 垢 ”章 节 内 容
18 «Clean» : milk system cleaning alert
refer to section «Preparing Cappuccino»
“清洁” ：牛 奶 系 统 清 洁 ，
请参见“冲泡 卡布奇诺 ”章节
4
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 4 19.10.17 13:35

EN
CN
CONTENT/内容
Nespresso is an exclusive system creating the ultimate Espresso, time after time. Our Nespresso machines are equipped with an extraction system that guarantees up to 19 bar pressure. Each parameter has been calculated with
great precision to ensure that all the aromas from each capsule can be extracted, to give the coee body and create an exceptionally thick and smooth crema.
Nespresso咖啡机拥有卓越的萃取系统，专为制作臻品浓缩咖啡。所有的Nespresso咖啡机均配备此系统，以保证高达19巴 的 萃 取 压 力 。咖 啡 机 中 的 每 个 参 数 均 通 过
精确计算，保证萃取出的每杯优选咖啡保留馥郁芳香，凸显咖啡所具有的丰富主体、醇厚度及柔滑油沫。
FACTORY SETTINGS/出厂设置......................................................................
DESCALING/除垢.........................................................................................
WATER HARDNESS SETTING/水硬度设置.....................................................
EMPTYING THE SYSTEM BEFORE A PERIOD OF NONUSE, FOR FROST
PROTECTION OR BEFORE A REPAIR/在下述情况下，请排空系统：长时间
不使用之前、防冻保护或维修之前。 .....................................................
AUTOMATIC POWER OFF/自动断电 ..............................................................
TROUBLESHOOTING/故障排除 ....................................................................
SPECIFICATIONS/规格..................................................................................
DISPOSAL AND ECOLOGICAL CONCERNS/
机器处置和环境保护...............................................................................
CONTACT THE NESPRESSO CLUB/联系NESPRESSO俱乐部 .................................
WARRANTY/保修.........................................................................................
OVERVIEW/机器概览......................................................................................
SAFETY PRECAUTIONS/安全信息 .....................................................................

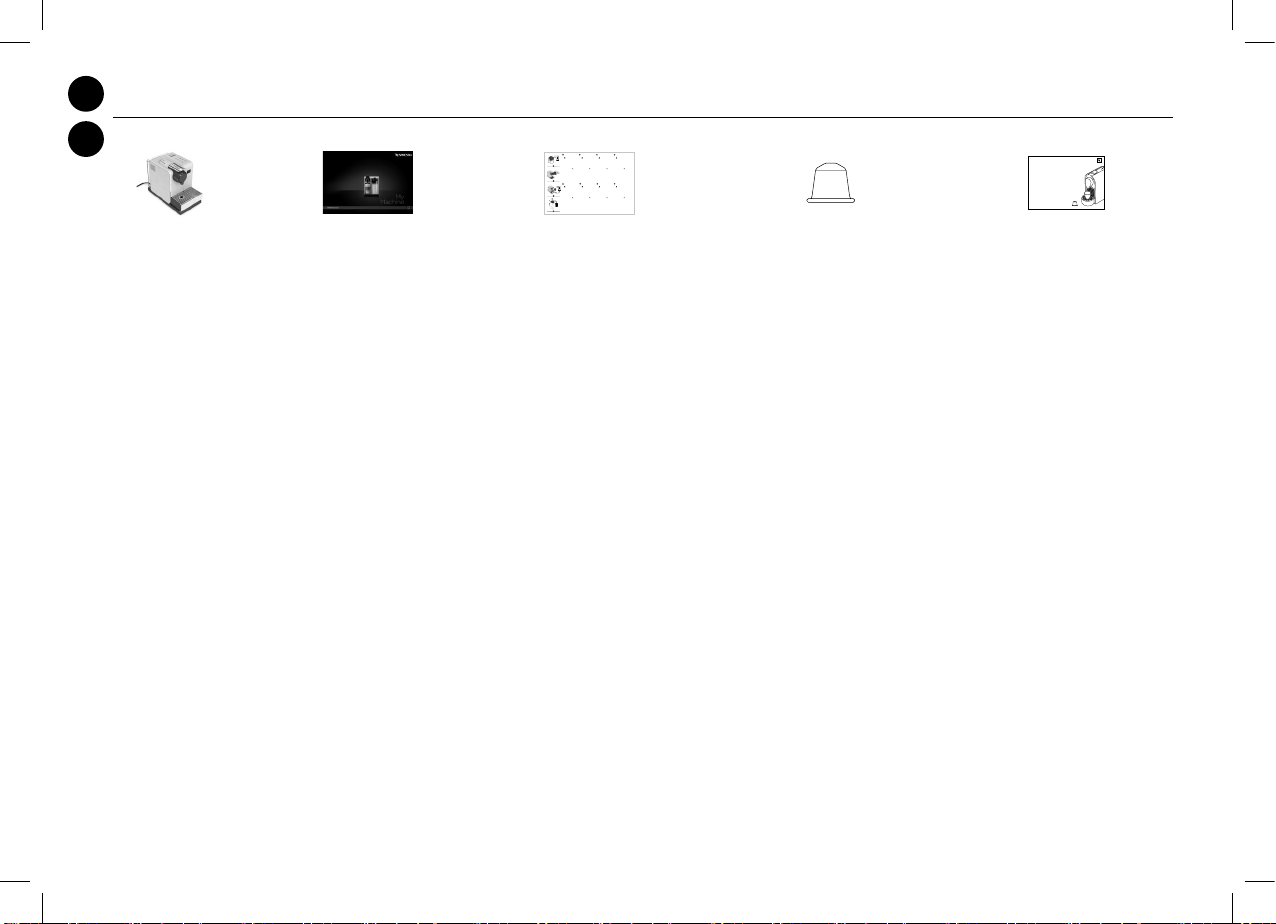

PACKAGING CONTENT/装箱清单 ......................................................................
FIRST USE OR AFTER A LONG PERIOD OF NONUSE/
首次使用时或长时间未使用后....................................................................
COFFEE PREPARATION/冲泡咖啡 .....................................................................
ASSEMBLING/DISASSEMBLING OF RAPID CAPPUCCINO SYSTEM R.C.S./
快速卡布奇诺 系统 (R.C.S.)的组装/拆卸......................................................
PREPARING CAPPUCCINO  LATTE MACCHIATO  CREAMY LATTE  WARM MILK
FROTH/冲泡 卡布奇诺-拿铁玛奇朵-拿铁-热奶泡.......................................
PROGRAMMING COFFEE QUANTITY/设定咖啡量....................................................
PROGRAMMING QUANTITY FOR CAPPUCCINO  LATTE MACCHIATO  CREAMY LATTE 
WARM MILK FROTH/为卡布奇诺-拿铁玛奇朵-拿铁-热奶泡制作设定水量...
DAILY CARE/日常保养 .....................................................................................
HAND WASHING OF RAPID CAPPUCCINO SYSTEM R.C.S./
手动清洗快速卡布奇诺 系统 R.C. S...........................................................
RESTORING QUANTITY TO FACTORY SETTINGS/将水量恢复至出厂设置...........
22
23
24
26
27
28
29
30
31
31
32
CAUTION: when you see this sign, please refer to the safety precautions to avoid possible harm and damage.
INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your coee machine.
注意：当看见该标志时，请参见安全保护措施以避免可能带来的伤害和损坏。
信息：当看见该标志时，请留意该建议，以正确、安全地使用咖啡机。
03
06
12
13
15
15
16
19
20
21
21
5
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 5 19.10.17 13:35

SAFETY
PRECAUTIONS
CAUTION / WARNING
ELECTRICAL DANGER
DISCONNECT DAMAGED
SUPPLY CORD
CAUTION HOT SURFACE
CAUTION: the safety
precautions are part of
the appliance. Read them
carefully before using your
new appliance for the rst
time. Keep them in a place
where you can nd and
refer to them later on.
CAUTION: when you see
this sign, please refer to the
safety precautions to avoid
possible harm and damage.
INFORMATION: when you
see this sign, please take
note of the advice for the
correct and safe usage of
your appliance.
• The appliance is intended to
prepare beverages according to
these instructions.
• Do not use the appliance for other
than its intended use.
• This appliance has been designed
for indoor and non-extreme
temperature conditions use only.
• Protect the appliance from direct
sunlight eect, prolonged water
splash and humidity.
• This is a household appliance
only. It is not intended to be
used in: sta kitchen areas in
shops, oces and other working
environments; farm houses; by
clients in hotels, motels and other
residential type environments;
bed and breakfast type
environments.
• This appliance may be used by
children of at least 8 years of age,
as long as they are supervised
and have been given instructions
about using the appliance safely
and are fully aware of the dangers
involved. Cleaning and user
maintenance shall not be made
by children unless they are older
than 8 and they are supervised by
an adult.
• Keep the appliance and its cord
out of reach of children under
8 years of age.
• This appliance may be used by
persons with reduced physical,
sensory or mental capabilities, or
whose experience or knowledge
is not sucient, provided they
are supervised or have received
instruction to use the device
safely and understand the
dangers.
• Children shall not use the device
as a toy.
• The manufacturer accepts no
responsibility and the warranty
will not apply for any commercial
use, inappropriate handling or
use of the appliance, any damage
resulting from use for other
purposes, faulty operation, non-
professionals’ repair or failure to
comply with the instructions.
Avoid risk of fatal
electric shock and re
• In case of an emergency:
immediately remove the plug
from the power socket.
• Only plug the appliance into
suitable, easily accessible, earthed
mains connections. Make sure
that the voltage of the power
source is the same as that
specied on the rating plate. The
use of an incorrect connection
voids the warranty.
The appliance must only be
connected after installation
• Do not pull the cord over sharp
edges, clamp it or allow it to hang
down.
• Keep the cord away from heat and
damp.
• If the supply cord or the plug are
damaged, they must be replaced
by the manufacturer, its service
agent or similarly qualied
persons, in order to avoid all risks.
• If the supply cord or the plug
are damaged, do not operate
EN
6
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 6 19.10.17 13:35

the appliance. Return the
appliance to the Nespresso Club
or to a Nespresso authorized
representative.
• To avoid hazardous damage,
never place the appliance on
or beside hot surfaces such as
radiators, stoves, ovens, gas
burners, open ame, or similar.
• Always place it on a horizontal,
stable and even surface.
The surface must be resistant to
heat and uids, like water, coee,
descaler or similar.
• Disconnect the appliance from
the mains when not in use for
a long period. Disconnect by
turning the machine o, pulling
out the plug and not by pulling
the cord itself or the cord may
become damaged.
• Before cleaning and servicing,
remove the plug from the mains
socket and let the appliance cool
down.
• Never touch the cord with wet
hands.
• Never immerse the appliance or
part of it in water or other liquid.
• Never put the appliance or part
of it in a dishwasher, except
the Rapid Cappuccino System
(R.C.S.).
• Electricity and water together is
dangerous and can lead to fatal
electrical shocks.
• Do not open the appliance.
Hazardous voltage inside!
• Do not put anything into any
openings. Doing so may cause
re or electrical shock!
• The use of accessory attachments
not recommended by the
manufacture may result in re,
electric shock or injury to persons.
Avoid possible harm when
operating the appliance
• Never leave the appliance
unattended during operation.
• Do not use the appliance if it
is damaged or not operating
perfectly. Immediately remove
the plug from the power
socket. Contact the Nespresso
Club or Nespresso authorized
representative for examination,
repair or adjustment.
• A damaged appliance can
cause electrical shocks,
burns and re.
• Always completely close the lever
and never lift it during operation.
Scalding may occur.
• Do not put ngers under coee
outlet, risk of scalding.
• Do not put ngers into capsule
compartment or the capsule
shaft. Danger of injury!
• Do not touch surfaces that
become hot during and
after operation and descaling:
descaling pipe and milk spout.
Use handles or knobs.
• If coee volumes higher than
150 ml are programmed: let the
machine cool down for 5 minutes
before making the next coee.
Risk of overheating!
• Water could ow around a
capsule when not perforated
by the blades and damage the
appliance.
• Never use an already used, a
damaged or deformed capsule.
• If a capsule is blocked in the
capsule compartment, turn the
machine o and unplug it before
any operation. Call the Nespresso
Club or Nespresso authorized
representative.
• Coee-maker shall not be placed
in a cabinet when in use.
• Heating element surface is
subject to residual heat
after use.
• Fill the water tank only with fresh
and potable water.
• Empty water tank if the appliance
will not be used for an extended
time (holidays, etc.).
• Replace water in water tank when
the appliance is not operated for
a weekend or a similar period of
time.
• Do not use the appliance without
the drip tray and drip grid to avoid
spilling any liquid on surrounding
surfaces.
• Do not use any strong cleaning
agent or solvent cleaner. Use a
damp cloth and mild cleaning
EN
7
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 7 19.10.17 13:35

agent to clean the surface of the
appliance.
• To clean machine, use only clean
cleaning tools.
• When unpacking the machine,
remove the plastic lm and
dispose.
• This appliance is designed
for Nespresso coee capsules
available exclusively through the
Nespresso Club or your Nespresso
authorized representative.
• All Nespresso appliances pass
stringent controls. Reliability tests
under practical conditions are
performed randomly on selected
units. This can show traces of any
previous use.
• Nespresso reserves the right to
change instructions without prior
notice.
Descaling
• Nespresso descaling agent, when
used correctly, helps ensure the
proper functioning of your machine
over its lifetime and that your
coee experience is as perfect as
the rst day.
CAUTION: the descaling
solution can be harmful. Avoid
contact with eyes, skin and surfaces.
Nespresso descaling agent has
been specically developed for
Nespresso machines; the use of any
unsuitable descaling agent may lead
to machine component damage or
an insucient descaling process. For
any additional questions you
may have regarding descaling,
please contact your Nespresso Club.
SAVETHESE
INSTRUCTIONS
Pass them on to any
subsequent user.
This instruction manual is
also available as a PDF at
nespresso.com
安全信息
小心/警告
电气危险
断开损坏的电源线
小心热表面
注意：安全保护措施
属于本电器不可分割的
组成部分。在第一次使用
本 电 器 之 前 ，请 仔 细 阅 读
该等信息。请将该等信息
放置于适当的位置，以便
于日后查看。
注 意 ：当 看 见 该 标 志
时，请参见安全保护措施
以避免可能带来的伤害
和损坏。
信 息 ：当 看 见 该 标 志
时 ，请 留 意 该 建 议 以 正
确、安全地使用咖啡机。
• 请根据如下指示使用该
设备制备饮料。
• 请勿将本电器用于其他
用途。
• 本产品只适用于室内使
用。请勿在极端温度下
使用。
• 请避免让电器暴露在阳
光 直 射 、较 长 时 间 的 水
喷溅或潮湿环境中。
• 本 咖 啡 机 是 为了家 庭 使
用和类似的应用而设
计。不 适 用 于 商 店 里 的
员 工 餐 厅，办 公 室 和 其
他 办 公 场 所 ，乡 村 酒 店 ，
各类酒店房间内，汽车
旅馆和其它提供住宿的
场 所 ，或 其 他 简 易 旅 馆
类的环境供客人使用。
• 此 设 备不 得 由 8岁以下的
儿 童 使 用 ，除 非 有 人 监
督或他们已经获得了如
何安全使用本产品的相
关 指 导 ，并 且 理 解 相 关
危险。8岁以下儿 童不 得
在没有监护的情况下对
机器进行清洗和维护。
• 切勿让8岁以下儿童 接 触
咖啡机及其电源线。
• 本电器可能被身体状
态 、感 觉 能 力 或 精 神 状
EN
CN
8
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 8 19.10.17 13:35

态受限的人员使用，或
者被经验或知识不足的
人 员 使 用 ，但 前 提 条 件
是该等人士在他人的监
督之下操作本电器，并
且获得了关于如何安全
使用本电器的指示并完
全意识到了所涉及的危
险。
• 儿童不能将本装置作为
玩具使用。
• 制造商对于以下情况不
承 担 任 何 责 任 ，且 保 修
也不适用于任何以下情
况 ：商 业 用 途 、不 当 操 作
或使用本装置、因用于
其他用途而产生的任何
损 坏 、错 误 操 作 、由 非 专
业人士进行维修或未能
遵循操作指示。
请注意防范致命电
击和火灾危险！
• 紧 急 情 况 下，请 立 即 将 本
装置的插头从电源插座
上拔出。
• 仅将本装置连接至合适
的 、易 于 接 触 且 接 地 的
电源接头。请确保电源
电压与本装置标牌上
指示的电压一致。使用
不当电源将导致保修失
效。
安 装 完 成 后 ，才 能 将 本 装
置连接至电源
• 请勿将电源线置于锋
利 边 沿 之 上 、夹 紧 或 悬
垂。
• 请勿将电源线暴露于高
热或潮湿环 境中。
• 如果电线或插头损坏，
需送回厂家、服务商或
者具有类似认可资质人
员 进 行 更 换 ，以 免 造 成
危险。
• 如果电线或插头损坏，
请停止使用。请将设备
送回奈斯派索用户俱乐
部或授权方进行检查，
维修或调整。
• 为了避免导致产生 危险
性 损 坏 ，请 勿 将 本 装 置
放置于热表面之上或旁
边，例如散热器、炉子、
烤 箱 、煤 气 灶 、明 火 或 类
似物体。
• 请将装置放置在水平、
稳定和平坦的表面上。
该等表面应该具有防热
和 防 水 功 能 ，例 如 水 、
咖 啡 、除 垢 剂 或 类 似 液
体。
• 长 时 间 不 用 时 ，请 将 本
装置的主电源断开。 首
先 应 关 机 ，拔 下 电 源 插
头 ，切 勿 直 接 拉 电 源 线 ，
以免损坏电源线。
• 在实施清洁和维护操作
之前，请将插头从主电
源 插 座 上 拔 出 ，并 让 装
置冷却。
• 请勿用湿手触碰电源
线。
• 请勿将本装置或其部分
浸泡在水中或其他液体
中。
• 请勿将本装置或其部分
放 置 于 洗 碗 机 中 ，快 速
卡布奇诺 系统 (R.C.S.)除
外。
• 电和水接触非常危险，
可能导致致命电击。
• 请勿私自拆卸本装置。
内有危险电压！
• 请勿在任意开口处放置
其 他 物 体 。否 则 可 能 导
致火灾或电击！
• 使用非原厂推荐的配件
可 造 成 火 灾 ，电 击 或 使
人受伤。
操作机器过程中避免可
能的危险
• 在操作过程中，请勿让
本装置处于无人看管状
态。
• 如果装置受损或者不
能 正 常 操 作 ，请 停 止 使
用 。请 立 即 将 插 头 从 电
源 插 座 上 拔 出 。请 联 系
Nespresso俱乐部或Nespresso
授权代表以进行检查、
维修或调整。
• 受损的装置可能导
致 电 击 、烧 伤 和 火
灾。
• 请 完 全 关 闭 手 柄 ；在 操
作 过 程 中 ，请 勿 拉 起 手
柄 。可 能 发 生 烫 伤 。
• 请勿将手指放置在咖啡
出 口 下 方，这 存 在 烫 伤
CN
9
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 9 19.10.17 13:35

危险。
• 请勿将手指探入粉囊仓
或粉囊轴内。
小心受伤！
• 操作过程中、操作
结束后以及除垢过
程 中 ，请 勿 接 触 发 热 表
面 ：除 垢 管 道 和 牛 奶 喷
嘴 。请 使 用 手 柄 或 旋
钮。
• 如果设定的咖啡量大于
150 ml：在 冲 泡 下 一 杯 咖
啡 之 前 ，请 先 让 装 置 冷
却 5 分 钟 。小 心 过 热 危
险！
• 如果刀片未能将咖啡粉
囊 刺 穿 ，水 可 能 流 过 粉
囊并继而导致机器受
损。
• 请 勿 使 用 已 用 、损 坏 或
变形的胶囊。
• 如果咖啡粉囊卡在粉囊
仓内，在进行任意操作
之 前 ，请 关 闭 机 器 并 断
开 电 源 。请 联 系 Nespresso
俱乐部或Nespresso授权代
表。
• 勿将使用中的机器置于
柜子内。
• 加热元件表面仍有
余热。
• 仅使用新鲜的可饮用水
填充水箱。
• 如果机器将长时间不用
（ 假 期 等 ），请 将 水 箱 中
的水排空。
• 如果一个星期或类似
时间段内并未操作本
机 器 ，请 更 换 水 箱 中 的
水。
• 未安装滴水盘和滴水隔
栅 时 ，请 勿 使 用 本 机 器 ，
以避免将任何液体喷溅
至周围表面上。
• 请勿使用任何强力清洁
剂或溶剂清洗剂。请使
用湿布及温和的清洁剂
来清洁机器表面。
• 清 洁 本 机 器 时 ，仅 使 用
干净的清洁工具。
• 在 拆 箱 时 ，请 将 塑 料 膜
移除并妥当处理。
• 本咖啡机是为搭配
Nespresso咖啡粉囊使用而
设 计，Nespresso咖啡粉囊仅
可以从Nespresso会员俱乐
部或授权方购买。
• 所有Nespresso咖啡机均通
过了严格的品质控制。
我们曾按照随机抽样的
形式对一些机器在实际
应用条件下进行了可靠
性 测 试 。所 以 有 些 机 器
会有被使用过的痕迹。
• Nespresso保留对说明书进
行更改而不发出任何预
先通知的权利。
除垢
• 如果使用得当，Nespresso
除垢剂可以帮助您的机
器在其服务期限内保持
功能始终正常并让您的
使 用 体 验 始 终 如 一 。关
于正确的用量及操作程
序 ，请 参 考 Nespresso除垢套
件内的用户手册。
注意：除垢溶液对身
体 有 害 。请 避 免 让 其 接
触眼睛、皮肤和任何表
面。
Nespresso除垢剂是专为
Nespresso咖啡机开发的除
水 垢 产 品 。使 用 不 合 适
的除垢剂可能导致机器
零件损坏或除垢效果不
佳 。如 果 您 有 关 于 除 垢 的
任 何 问 题 ，请 致 电 Nespresso
用户俱乐部。
请保存这些
指示
并将其移交给任何后续
用户。
可访问nespresso.com网站，
查看本指示手册的PDF
版本。
CN
10
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 10 19.10.17 13:35

EN
CN
CHINA ROHS
The People’s Republic of China released a regulation called „Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products” or commonly referred to as China RoHS. All
products which are produced and sold for China market have to meet this regulation.
中国人民共和国发布了一项条例称为” 电器电子产品有害物质限制使用管理办法”或通常所说的中国 RoHS。所有在中国市场生产和销售的产品都必
须符合此项规例。
Name and content of hazardous substances in products / 名称和产品中有害物质的含量
Hazardous substance/有害物质
Component Name
组件名称
Lead (Pb)
铅
Mercury (Hg)
汞
Cadmium (Cd)
镉
Hexavalent
chromium (Cr (VI))
六价铬
Polybrominated
biphenyls (PBB)
多溴联苯
Polybrominated
diphenyl ethers (PBDE)
多溴二苯w醚
Plastic enclosure and chassis
塑料外壳和底盘 OOOOOO
Printed Circuit Board Assembly
印刷电路板组装 OOOOOO
Motors, valves
电 机 、阀 门 OOOOOO
Cable and wiring
电缆和电线 OOOOOO
Metall parts
金属零件 XOOOOO
This table is prepared in accordance with the provisions of SJ/T 11364. / 本表格依据SJ／T 11364的规定编制。
O: The content of such hazardous substance in all homogeneous materials of such component is below the limit required by GB/T 26572.
O: 表示该有害物质在该部件所有均质材料中的含量均在GB/T26572规定的限量要求以下。
X: The content of such hazardous substance in a certain homogeneous material of such component is beyond the limit required by GB/T 26572.
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T26572规定的限量要求。
GB/T 26572 is designed to promote the sustainable development of the electronic and electric industry, as well as the resource saving and environmental
protection aspect of electronic and electric products. Due to the functional requirements of the product and the limitation of the production technology, some
parts contain hazardous materials, which shall be correctly disposed in accordance with EFUP in order to avoid environmental pollution or waste of resources.
GB/T 26572 旨在促进电子电气行业的可持续发展以及电子电气产品的资源节约，环境保护。由于产品的功能需
要和生产技术的局限，部分部件仍含有限用物质，在产品废弃后需妥善处置以避免环境污染或者资源浪费。
The Environment Friendly Using Period
for this product is:
此产品的环保使用期限是:
11
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 11 19.10.17 13:35

4°
4°
1
2
3
4
EN
PTIT HU
FR
CZESDE
Specialcare for your rapid
cappuccinoSyStem(r.c.S.)
important : refer
toUsermanual for
completeinstructions.
1-Fora perfec t milk froth, us e skimmed
orsemi-skimmedmi lk at refriger ator
temperature(about4° C ).
2-Rinseafter each m ilk based prep aration.
Placearecipient under m ilk outlet, pre ss
andholdthe «CLEAN » buttonuntil
machinestopspumpingau tomatically
(approx.15sec.).
Machinestartsrinsing, stops automatically
(~15se c. ).
3-Placethe milk container in t he fridge
immediately.
4-Everytwodays, disassemble t he
RapidCappuccinoSysteman d clean
allcomponentsin the u pper level of a
dishwasher.
Specialcare for your rapid
cappuccinoSyStem(r.c.S.)
important : refer
toUsermanual for
completeinstructions.
1-Fora perfec t milk froth, us e skimmed
orsemi-skimmedmi lk at refriger ator
temperature(about4° C ).
2-Rinseafter each m ilk based prep aration.
Placearecipient under m ilk outlet, pre ss
andholdthe «CLEAN » buttonuntil
machinestopspumpingau tomatically
(approx.15sec.).
Machinestartsrinsing, stops automatically
(~15se c. ).
3-Placethe milk container in t he fridge
immediately.
4-Everytwodays, disassemble t he
RapidCappuccinoSysteman d clean
allcomponentsin the u pper level of a
dishwasher.
Specialcare for your rapid
cappuccinoSyStem(r.c.S.)
important : refer
toUsermanual for
completeinstructions.
1-Fora perfec t milk froth, us e skimmed
orsemi-skimmedmi lk at refriger ator
temperature(about4° C ).
2-Rinseafter each m ilk based prep aration.
Placearecipient under m ilk outlet, pre ss
andholdthe «CLEAN » buttonuntil
machinestopspumpingau tomatically
(approx.15sec.).
Machinestartsrinsing, stops automatically
(~15se c. ).
3-Placethe milk container in t he fridge
immediately.
4-Everytwodays, disassemble t he
RapidCappuccinoSysteman d clean
allcomponentsin the u pper level of a
dishwasher.
Specialcare for your rapid
cappuccinoSyStem(r.c.S.)
important : refer
toUsermanual for
completeinstructions.
1-Fora perfec t milk froth, us e skimmed
orsemi-skimmedmi lk at refriger ator
temperature(about4° C ).
2-Rinseafter each m ilk based prep aration.
Placearecipient under m ilk outlet, pre ss
andholdthe «CLEAN » buttonuntil
machinestopspumpingau tomatically
(approx.15sec.).
Machinestartsrinsing, stops automatically
(~15se c. ).
3-Placethe milk container in t he fridge
immediately.
4-Everytwodays, disassemble t he
RapidCappuccinoSysteman d clean
allcomponentsin the u pper level of a
dishwasher.
Specialcare for your rapid
cappuccinoSyStem(r.c.S.)
important : refer
toUsermanual for
completeinstructions.
1-Fora perfec t milk froth, us e skimmed
orsemi-skimmedmilkat ref rigerator
temperature(about4°C).
2-Rinseafter each m ilk based prep aration.
Placearecipient under m ilk outlet, pre ss
andholdthe «CLEAN » buttonuntil
machinestopspumpingau tomatically
(approx.15sec.).
Machinestartsrinsing, stops automatically
(~15se c. ).
3-Placethe milk container in t he fridge
immediately.
4-Everytwodays, disassemble t he
RapidCappuccinoSysteman d clean
allcomponentsin the u pper level of a
dishwasher.
Specialcare for your rapid
cappuccinoSyStem(r.c.S.)
important : refer
toUsermanual for
completeinstructions.
1-Fora perfec t milk froth, us e skimmed
orsemi-skimmedmilkat ref rigerator
temperature(about4°C).
2-Rinseafter each m ilk based prep aration.
Placearecipient under m ilk outlet, pre ss
andholdthe «CLEAN » buttonuntil
machinestopspumpingau tomatically
(approx.15sec.).
Machinestartsrinsing, stops automatically
(~15se c. ).
3-Placethe milk container in t he fridge
immediately.
4-Everytwodays, disassemble t he
RapidCappuccinoSysteman d clean
allcomponentsin the u pper level of a
dishwasher.
Specialcare for your rapid
cappuccinoSyStem(r.c.S.)
important : refer
toUsermanual for
completeinstructions.
1-Fora perfec t milk froth, us e skimmed
orsemi-skimmedmi lk at refriger ator
temperature(about4° C ).
2-Rinseafter each m ilk based prep aration.
Placearecipient under m ilk outlet, pre ss
andholdthe «CLEAN » buttonuntil
machinestopspumpingau tomatically
(approx.15sec.).
Machinestartsrinsing, stops automatically
(~15se c. ).
3-Placethe milk container in t he fridge
immediately.
4-Everytwodays, disassemble t he
RapidCappuccinoSysteman d clean
allcomponentsin the u pper level of a
dishwasher.
Specialcare for your rapid
cappuccinoSyStem(r.c.S.)
important : refer
toUsermanual for
completeinstructions.
1-Fora perfec t milk froth, us e skimmed
orsemi-skimmedmi lk at refriger ator
temperature(about4° C ).
2-Rinseafter each m ilk based prep aration.
Placearecipient under m ilk outlet, pre ss
andholdthe «CLEAN » buttonuntil
machinestopspumpingau tomatically
(approx.15sec.).
Machinestartsrinsing, stops automatically
(~15se c. ).
3-Placethe milk container in t he fridge
immediately.
4-Everytwodays, disassemble t he
RapidCappuccinoSysteman d clean
allcomponentsin the u pper level of a
dishwasher.
Welcome
EN
CN
Coee machine
咖啡机 «Welcome to Nespresso folder»
《欢迎使用Nespresso》资 料 夹
User manual
用户手册
Capsules set
粉囊套装
PACKAGING CONTENT/装箱清单
Care of Rapid Cappuccino System leaet
快速卡布奇诺系统保养手册
12
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 12 19.10.17 13:35

Max/
最高水位
EN
CN
FIRST USE OR AFTER A LONG PERIOD OF NONUSE/
长时间未使用后或首次使用
CAUTION: rst read the safety
precautions to avoid risks of fatal
electrical shock and re.
注意：请首先阅读安全须
知，以防范致命电击和火灾
危险！
1. When unpacking the machine, remove the
plastic lm and dispose from both left grid
and right grid, and machine panels.
1. 在 机 器 拆 箱 时 ，请 将 左 格 栅 、
右格栅和机器面板处的塑料薄
膜撕下并妥善处理。
6. Switch the machine on. For the rst 2 seconds, the automatic power o and water hardness setting are
indicated with steady light.
6. 启动机器。在最初的2秒钟内，自动断电和水硬度设置按钮的指示灯亮起并
保持稳定。
3. Put the machine in upright position,
plug machine into mains.
3. 将机器竖直放置，然后将其连
接至主电源。
2. Remove the water tank, drip tray, and capsule
container. Adjust the cable length and store the excess
in the cable guide under the machine.
2. 拆下水箱、滴水盘和粉囊盒。调整电
线长度并将过长的电线放置在机器下
方的电缆导槽内。
4. The water tank can be carried by
its cover.
4. 可通过水箱盖提起水箱。
5. Rinse the water tank before lling with
potable water up to maximum level.
5. 清 洗 水 箱 ，然 后 向 其 中 加 入 饮
用水至最高水位处。
13
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 13 19.10.17 13:35

25 sec.
x3
EN
CN
FIRST USE OR AFTER A LONG PERIOD OF NONUSE/
长时间未使用后或首次使用
8. Disassemble the Rapid Cappuccino System (R.C.S.) and clean all 6 components in the upper level of your
dishwasher. In case a dishwater is not available, refer to the «Hand Washing of Rapid Cappuccino System (R.C.S.)»
section. After reassemble and re-attach the R.C.S. to the machine, use the "Clean" button before preparing milk
beverage.
8. 拆 开 快 速 卡 布 奇 诺 系 统（ R.C.S.）并在洗碗机的上层格内清洁所有6个部件。如果
没 有 洗 碗 机 ，请 参 见“ 手 动 清 洗 快 速 卡 布 奇 诺 系 统 ( R.C.S.)”章节。将装配好的快速
卡布奇诺系统重新安装到机器上后，在制备牛奶配方饮品前应先按下清洁按键进
行清洗。
INFORMATION:refer to section Assembling/Disassembling of Rapid Cappuccino System, on page 15.
信息：请参见“快速卡布奇诺 系统的组装/拆卸”章节（见第15页 ）。
7. Rinsing: place a container under coee outlet and press the lungo button. Repeat three
times.
7. 清洗：请在咖啡出口下方放置一个容器，并按下大杯咖啡按钮。
重复操作3次。
INFORMATION:machines are fully tested after being produced. Some traces of
coee powder could be found in rinsing water.
信息：机器在生产后均接受过全面测试。因此，清洗出的水中可
能存在少量咖啡渣的痕迹。
Descaling Clean Descaling Clean
Automatic power o, refer to
page 28
自 动 断 电 设 置 ，请 参 见
第28页
- Espresso for 8 h/浓缩咖啡按
键对应为8小时
- Cappuccino for 30 min/
卡布奇诺按键对应
30分钟
- Latte Macchiato 9 min/
拿铁玛奇朵按键对应
9分钟
How to read automatic power o and water hardness settings:/如何读取自动断电和水硬度设置：
Water hardness settings, refer to
page 26
水硬度设置，请参见第26页
- Lungo: level 0/
大杯咖啡按键对应为：0级
- Creamy Latte: level 1/
拿铁：1级
- Warm milk froth: level 2/
热奶泡按键对应：2级
- Warm milk froth + Lungo: level 3/
热奶泡及大杯咖啡按键对
应：3级
- Warm milk froth + Creamy Latte: level 4/
热奶泡及拿铁按键对应：4级
After the rst 2 seconds,
the machine heats up for
approximately 25 seconds
(blinking lights). Machine ready is
indicated by steady lights.
最初2秒 过 后 ，机 器 将 加
热25秒 钟（ 指 示 灯 闪 烁 ）
。机 器 准 备 就 绪 后 ，指
示灯亮起并保持稳定。
14
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 14 19.10.17 13:35

EN
CN
COFFEE PREPARATION/冲泡咖啡
ASSEMBLING/DISASSEMBLING OF RAPID CAPPUCCINO SYSTEM R.C.S./
快速卡布奇诺 系统(R.C.S.)的组装/拆卸
1. Lift the lever completely and insert the
capsule.
1. 完全抬起手柄，并插入咖啡
粉囊。
2. Close the lever and place a cup under the
coee outlet.
2. 关 闭 手 柄 ，并 将 咖 啡 杯 放 置 在
咖啡出口下方。
3. Press the Espresso (40 ml) or the Lungo (110 ml) button. Preparation
will stop automatically. To stop the coee ow or top up your coee, press
again.
3. 按 下 浓 缩 咖 啡（ 40 ml) 或 大 杯 咖 啡（ 110 ml)按键。
冲泡过程将自动停止。如需中断咖啡流出或加满
咖 啡 杯 ，请 再 次 按 下 该 按 钮 。
4. Take the cup. Lift and close the lever
to eject the capsule into the used capsule
container.
4. 取 走 咖 啡 杯 。抬 起 并 关 闭 手
柄，以便将用过的粉囊弹入废弃
粉囊储存盒。
1. Remove the milk container lid and unplug
milk aspiration tube.
1. 拆下牛奶容器盖并拔出牛奶
吸管。
4. Remove the milk spout by pulling it o.
4. 取下牛奶喷嘴。
2. Remove the milk froth regulator knob by
turning it until and pulling it up.
2. 拆下奶泡调节装置旋钮—将
其旋转至 并向上拉。
3. Remove Rapid Cappuccino System connector by
unlocking it from to and pulling it o.
3. 拆下快速卡布奇诺 系统连接装置—
将其从 移动至 位 置 ，并 取 下 。
NOTE:during heat up, you can press any coee buttons. The coee will then ow automatically when the machine is ready.
注意：在加热过程中，可以触碰任何咖啡按钮。机器就绪后，咖啡将自动流出。
15
110 ml40 ml
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 15 19.10.17 13:35

4°C
15 sec.
EN
CN
PREPARING CAPPUCCINOLATTE MACCHIATOCREAMY LATTEWARM MILK FROTH/
冲泡 卡布奇诺-拿铁玛奇朵-拿铁-热奶泡
1. Fill the milk container with desired
quantity of milk.
1. 请向牛奶容器中加入适量的
牛奶。
2. Close the milk container.
2. 关闭牛奶容器。
3. Open the steam connector door by sliding
it to the right.
3.
将蒸汽连接装置门向右滑动，
以打开装置门。
4. Connect the Rapid Cappuccino System to
the machine.
4. 将快速卡布奇诺系统连接至
本装置。
5. Machine heats up for approximately
15 seconds (blinking lights).
5. 机 器 加 热 时 间 约 为 1 5 秒 钟（ 指
示灯闪烁）。
6. Lift the lever completely and insert the
capsule.
6. 将 手 柄 完 全 抬 起 ，然 后 插 入 咖
啡粉囊。
INFORMATION: for a perfect milk froth, use skimmed or semi-skimmed milk at refrigerator temperature (about 4° C).
信息：要产生完美的奶泡，请使用冷藏后（温度约为4°C）的脱脂或半脱脂牛奶。
INFORMATION: when the milk container is
empty, before relling, thoroughly rinse it and the
milk aspiration tube with potable water.
信息：牛 奶 容 器 排 空 时 ，请 使 用 饮 用
水彻底清洗牛奶容器和牛奶吸管，然后
才能再次添加牛奶。
INFORMATION: only for Cappuccino,
Latte Macchiato and Creamy Latte. Skip this
step when preparing a Warm milk froth only.
信息：仅 针 对 卡 布 奇 诺 ，拿 铁 玛
奇 朵 和 拿 铁 咖 啡 。如 果 仅 需 要 制
作热奶泡，请略去这一步骤。
16
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 16 19.10.17 13:35

Clean
EN
CN
PREPARING CAPPUCCINOLATTE MACCHIATOCREAMY LATTEWARM MILK FROTH/
冲泡 卡布奇诺-拿铁玛奇朵-拿铁-热奶泡
INFORMATION: rinse the milk system after each use.
注意：每次冲泡结束后应冲洗奶泡系统。
INFORMATION: recommended settings:
Cappuccino min/Macchiato max/Creamy Latte min.
建议设置：卡布奇诺对应最小/ 玛奇
朵对应最大/ 拿铁对应最小奶沫。
10. At the end of the preparation, the CLEAN shines orange.
10. 冲泡过程结束后，清洁 按钮亮橙色灯。
11. Lift and close the lever to eject the
capsule into the used capsule container.
Place a container under milk spout.
11. 抬 起 并 关 闭 手 柄 ，以 便 将 用
过的粉囊弹入废弃粉囊储存
盒。 在奶泡出口下方放置一个
容器。
7. Close the lever, place a Cappuccino cup or a
Latte Macchiato glass under the coee outlet
and adjust milk spout position by lifting it up
to the right level.
7. 关 闭 手 柄 ，然 后 将 卡 布 奇 诺 杯
或拿铁玛奇朵 玻璃杯放置于咖
啡 出 口 下 方 ，并 调 整 牛 奶 喷 嘴
的位置。
8. Adjust the milk froth regulator knob according to the volume of froth you want.
8. 根据您需要的奶泡量，调整奶泡调节装置旋钮。
NOTE: do not overturn the milk froth regulator. Overturned position is for inserting/
removing dial for cleaning.
注意：请勿过度调节奶泡调节装置。过度调节会将旋钮旋出。
9. Press the Cappuccino, Macchiato, Creamy
Latte or Warm milk froth button.
9. 按下卡布奇诺，拿铁玛奇朵，
拿铁或热奶沫按键。
INFORMATION: for Cappuccino, Latte Macchiato and
Creamy Latte, the preparation starts after a few seconds and
will stop automatically. For Warm milk froth, only milk froth
will be prepared.
信息：对于卡布奇诺，拿铁玛奇朵和拿铁咖
啡，冲泡过程将于几秒钟后开始，并将自动停
止。制作热奶泡时，机器仅制作奶泡。
17
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 17 19.10.17 13:35

16 sec.
4°C
Clean Clean
EN
CN
12. Press and hold the «CLEAN» button until machine stops pumping automatically. Rinsing process lasts
approximately 16 seconds. «CLEAN» blinks. Milk system rinsing process starts and hot water combined
with steam ows through the milk spout.
12. 向 下 按 住“ 清 洁 ” 按钮，直至机器自动停止出水。清洗过程大约持续16
秒 钟 。“ 清 洁 ” 按钮闪烁。牛奶系统清洗程序开始，热水和蒸汽流经牛奶
喷嘴。
PREPARING CAPPUCCINOLATTE MACCHIATOCREAMY LATTEWARM MILK FROTH/
冲泡 卡布奇诺-拿铁玛奇朵-拿铁-热奶泡
13. When the rinsing process is nished, the
«CLEAN» alert is resumed.
13. 清洗过程结束之后，“清洁”
警报灯恢复原状。
14. Disconnect the R.C.S. from machine and place it
immediately in the refrigerator. Close the machine steam
connector door.
14. 将R.C.S.取 下 并 立 即 放 入 冰 箱 。关 闭 机 器
的蒸汽连接装置门。
INFORMATION: refer to section «Assembling/
Disassembling of Rapid Cappuccino system (R.C.S.)».
信息：请参见“快速卡布奇诺 系统（R.C.S.）的 组
装/拆卸”章节。
CAUTION: this milk should not be kept for more than 2 days
in the refrigerator. In the case the milk container is kept outside
refrigerator for longer than 2 hours, disassemble the R.C.S. and
clean all components (refer to dishwashing or hand washing
recommendations).
注意：牛奶在冰箱内的储存时间不得超过2天 。如
果牛奶容器在冰箱外的放置时间超过2个 小 时 ，请 将
R.C.S.拆卸下来，并清洁所有部件（请参见洗碗机清洗
或手动清洗建议）。
15. After each use, disassemble the Rapid Cappuccino System, and
clean all components in the upper side of your dishwasher. In case a
dishwasher is not available, refer to section Hand washing of Rapid
Cappuccino System (R.C.S.).
15. 每 次 使 用 后 ，拆 开 快 速 卡 布 奇 诺 系 统 ，将 所 有 零
件放在洗碗机的上层网格上进行清洗。如果没有
洗 碗 机 ，请 参 考 手 洗 章 节 。。
18
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 18 19.10.17 13:35

3 sec.
EN
CN
PROGRAMMING COFFEE QUANTITY/
设定咖啡量
INFORMATION: follow the step 1-2 of section «coee preparation».
信息：请按照“冲泡咖啡”章节的第1-2步进行操作。
NOTE: please refer to factory settings section for min/max programmable quantities.
注意：请 参 见“ 出 厂 设 置 ”章 节 以 了 解 最 小 / 最 大 设 定 量 。
1. Touch and hold Espresso or Lungo button for at least 3 sec to
enter the programming mode. Brewing starts. Button blinks fast:
programming mode.
1. 按下并按住浓缩咖啡或大杯咖啡的按钮至
少3秒钟后，进入编程模式。 冲泡过程开始。
按 钮 快 速 闪 烁 ：已 进 入 编 程 模 式 。
2. Release button when desired volume is reached.
2. 达到所需的量时，请释放按钮。
3. Water volume is now stored for the next coee preparations.
Button blinks 3 times to conrm the new water volume.
3. 现在，下一次咖啡冲泡的设定水量已经保
存 。按 钮 闪 烁 3次以确认新设定的水量。
19
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 19 19.10.17 13:35

EN
CN
INFORMATION: follow the steps 1-8 of section «Preparing Cappuccino, Latte Macchiato or Creamy Latte
信息：请按照“制备卡布奇诺，拿铁玛奇朵或拿铁”章节中的步骤1-8进行操作。
1. Touch and hold Cappuccino/ Latte Macchiato/Creamy Latte/
Warm milk froth button for at least 3 sec. Milk frothing starts.
Button blinks fast: programming mode.
1. 持 续 按 住 卡 布 奇 诺 ，拿 铁 玛 奇 朵 ，拿 铁 或 热
奶沫按键至少3秒 钟 ，打 奶 泡 过 程 开 始 。按 钮
快 速 闪 烁 ：进 入 编 程 模 式 。
PROGRAMMING QUANTITY FOR CAPPUCCINO/LATTE MACCHIATO/CREAMY LATTE/WARM MILK
FROTH/为卡布奇诺/拿铁玛奇朵/拿铁/热奶泡制作设定杯量
3. Touch and hold the same button. Brewing starts. Release
button when desired coee volume is reached. Recipe volume
is now stored for the next preparations. Button blinks 3 times to
conrm the new water volume.
3. 持续按下相同的按钮。冲泡过程开始。达到
所需的咖啡量时，请释放按钮。现在，下一次
咖啡冲泡的配方量已经保存。按钮闪烁3次以
确认新设定的配方量。
2. Release button when desired milk froth volume is reached.
Button still blinks fast: programming mode. (Cappuccino/Latte
Macchiato/Creamy Latte). When programming the Warm milk
froth beverage, the programming ends here.
2. 达到所需的奶泡量时，请释放按钮。按钮快
速闪烁：编程模式中。（卡布奇诺/拿铁玛奇朵/
拿铁）。在对热奶泡饮料进行设定操作时，设
定到此结束。
NOTE: please refer to factory settings section for min/
max programmable quantities.
注意：请 参 见“ 出 厂 设 置 ”章 节 以 了 解 最 小 /
最大设定量。
NOTE: the milk froth volume depends on the kind of
milk that is used, its temperature and the position of the
milk regulator knob.
注意：奶泡量取决于所使用牛奶的种类、
温度以及奶泡调节装置旋钮的位置。
NOTE: for Creamy Latte, coee comes rst and milk
froth comes second.
说明: 对于拿铁咖啡, 制作顺序是先出咖
啡， 然后再出奶泡。
20
3 sec. 3 sec.
UM_LATTISSIMA_TOUCH_FACELIFT_Z3A.indb 20 19.10.17 13:35
