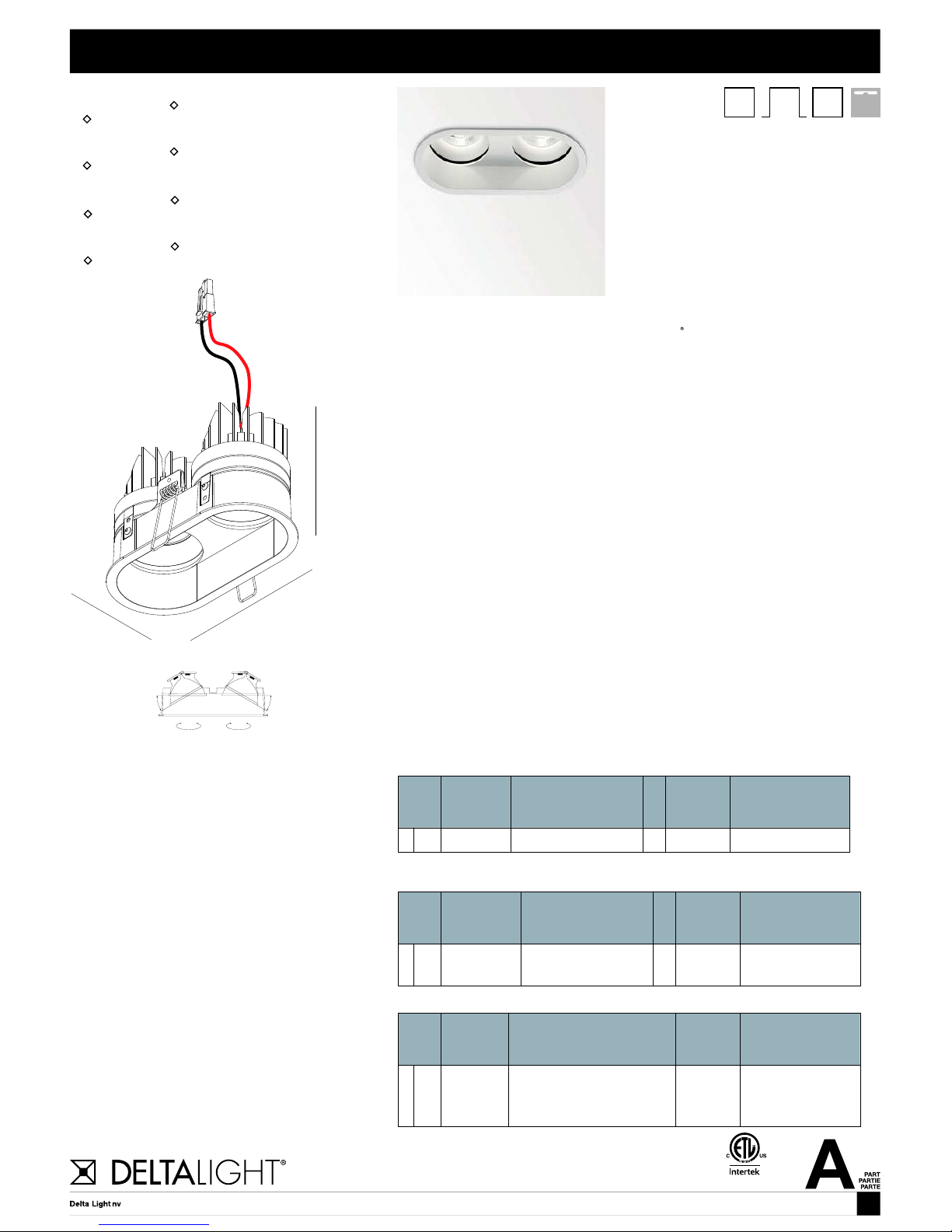

Delta Light DIRO DUO ST OK LED User manual

1
NORTH AMERICAN EDITION
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
Installation instruction DIRO DUO ST OK LED
Last Update ALLU 13/04/2018
DIRO DUO ST OK LED 3033
6 202 292 28222
= MMAT / W
DIRO DUO ST OK LED 2733
6 202 292 28223
= MMAT / W
DIRO DUO ST OK LED 3033-9
6 202 292 29222
= MMAT / W
DIRO DUO ST OK LED 2733-9
6 202 292 29223
= MMAT / W
Application
Finishing section to be used with DELTA LIGHT rough-in housing,
Plasterframe or Remodel IJB
Ceiling Thickness
For 5/8" ceiling standard up to 7/8”
Light source
For two max 15W POWERLED WHITE
Power Supply
Current controled Class 2 power supply required. (supplied with housing or plasterframe)
Max 700mA, typical forward voltage 21,4V. Do not interconnect in parallel!
Connector
Housing and trim connection through pre-installed snap-in connector
Specification features
Housing fabricated of surface treated aluminum
Pre-installed springs for easy installation
Suitable for dry or damp locations
Weight: 1,8lbs 0,8kg
Dimensions
Height: 100mm = 3”- 15/16
width: 82mm x 160mm = 3”-1/4 x 6”-5/16
Required options
New construction
Housing for IC and/or airtight applications
New construction
Plasterframe for NON-IC applications
Remodel (2 NEEDED PER FIXTURE)
IJB NIC
IC
AT
Conforms to ANSI/UL Std. 2108
Cert. to CAN/CSA Std. 22.2 No. 250.0
0°-20°
0°-20°
350° 350°
100mm
3”-15/16
160mm
6”-5/16
82mm
3”-1/4
Voltage
7 - IC AT Housing S
7 - IC AT Housing S
6
6
202
202
45 - 10,4W 1-10V dimmable
50 - 10,4W Lutron Ecosystem dimmable
48
48
3- 120-277V
3- 120-277V
1- Bar hangers standard
1- Bar hangers standard
Range Installation
type
Power/Dimming 0- No bar hangers
1- Bar hangers standard
Voltage
1 - 120V
2 - 277V
3 - 120-277V
Mounting Option
01 - NIC Plasterframe S
01 - NIC Plasterframe S
01 - NIC Plasterframe S
01 - NIC Plasterframe S
6
6
6
6
202
202
202
202
45 - 10,4W 1-10V dimmable
45 - 10,4W 1-10V dimmable
50 - 10,4W Lutron Ecosystem dimmable
50 - 10,4W Lutron Ecosystem dimmable
48
48
48
48
1- 120V
2- 277V
1- 120V
2- 277V
1- Bar hangers standard
1- Bar hangers standard
1- Bar hangers standard
1- Bar hangers standard
Range Installation
type
Power/Dimming 0- No bar hangers
1- Bar hangers standard
Voltage
1 - 120V
2 - 277V
3 - 120-277V
Mounting Option
9 - NIC-IC IJB
9 - NIC-IC IJB
9 - NIC-IC IJB
9 - NIC-IC IJB
9 - NIC-IC IJB
9 - NIC-IC IJB
6
6
6
6
6
6
202
202
202
202
202
202
19 - 10,4W mains dimmable (ELV)
20 - 10,4W 0-10V dimmable
20 - 10,4W 0-10V dimmable
21 - 15W mains dimmable (ELV)
69 - 15W 0-10V dimmable
69 - 15W 0-10V dimmable
1- 120V
1- 120V
2- 277V
1- 120V
1- 120V
2- 277V
1- Standard spacings
1- Standard spacings
1- Standard spacings
1- Marked spacings
1- Marked spacings
1- Marked spacings
1- Standard spacings
1- Marked spacings
Range Installation
type
Power/Dimming
Voltage
1 - 120V
2 - 277V
3 - 120-277V
Spacings

Installation instruction DIRO DUO ST OK LED
2
NORTH AMERICAN EDITION
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
INSTALLATION LUMINAIRE
Not Supplied
12 3
A
B
A
B
SAVE!
B
A
NIC
IC
AT
HOUSING PLASTERFRAME
Part no. 6 300 92 91 0X
supplied with the rough-in
housing or plasterframe
321
123
BLACK =1
RED = 3
BLACK =1
RED = 3
Rough-in Requirements
IJB
OR OR

Installation instruction DIRO DUO ST OK LED
3
NORTH AMERICAN EDITION
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
INSTALLATION IJB
21
3
3
123
BLACK = 1
RED = 3
on
