Deluxe RK2106C Quick start guide

DELUXE MASSAGE CHAIR
Operational manual
Please read the “Attention points for safety”
carefully before using operational manual.
RK2106C/D

RK2106C/D DELUXE MASSAGE CHAIR
Thank you for buying RK2106C/D deluxe massage chair, for better under
standing on the operational method of the product, please read this opera-
tional manual before using, meanwhile, please keep this manual in good
condition for reference, and pay more attention to “attention for safety”
paragraph.
Note: We reserve the right of design modification and explanation to our
products;it is subject to change without notice, products color is subject to
actual products.
Content
Function introduction
Attention for safety
Installation illustration
Name of external structure
Name of internal structure
Remote control usage
VFD screen illustration
Operational method and function illustration
FAQ and troubleshooting
Technical parameter
Schematics of mechanical parts
Mechanical parts list
Please keep the manual in a good candition for future reference after reading.
1
1
5
7
7
8
10
11
14
14
15
16

Function introduction
1 RK2106C/D is high-grade newly developed massage chair with original shape and full function.．
2 S-shaped back rail meets human body's curve; four-roller massage mechanism gives you a
comfortable feeling.
3. Rolling, kneading, pressing, tapping and massaging on head, neck, back, waist and hips can
eliminate whole body's fatigue.
4. 6 air bags on two sides of seat, pressing massage mode for you to choose to easily remove
8. Control with wide angle VFD display, active flip cover, intelligent sound&light navigation
9 Adjust backrest and legrest with electric actuator; angle of backrest and legrest can be freely．
10. Footrest can be flexibly stretched out or drawn back within 13.50cm, ideal for people of different
11. Mechanical drive and mute design bring you silence and gentle feeling.
5. 24 air bags in legrest and footrest gives shanks and feet pulse pressing massage, which can promote
circulation of blood capillary.
6. Heat function can promote blood circulation, eliminate fatigue and make you feel warm and comfortable.
fatigue.
system. Open the cover to choose your favorite massage programs.
adjusted, which is more humanized.
body height.
Attention for safety
Please read the manual carefully before use in order to install and operate the
“Attention for safety”is made into two terms of warning and caution.
massager in correct way.
Please make sure that power switch is at “OFF”position before inserting the
plug into the socket.
This sign indicates “warning of causing possible death, hurt to body”.
Warning
This sign indicates “caution of causing possible hurt,damage to things.”
Caution
This sign indicates “forbidden behavior”.
This sign indicates”self disassembly
is forbidden”.
This sign indicates “must follow
instruction to operate”.
This sign indicates “correct operation
way for wire”.
Attention for safety
Warning
Kids or babies are not allowed to use the massager nor play on it; standing
or sitting on back or armrest is also not allowed.
Those who can't express himself or can't operate it by himself are not
allowed to use it in case of any accident or hurt.
Don't use other power except rated voltage in case of fire, electric shock
Power cord, plug, socket can't be used in broken or loose contact condition.
or any breakdown.
During operation, if you feel abnormal or abnormal phenomenon occurs,
Make sure there is nobody or something around (under, behind or in front of)
the chair when using backrest, legrest up/down or legrest extension function.
please consult doctor to avoid any accident or bad effects to your body.
Please don't do too much massage on head.
Before use, please check carefully if there is any defective cloth, for any minor
broken cloth, please unplug the power and have it repaired instead of continuous use.
7. Upper cover of the armrest can be freely open/closed, a group of air bags on each of the two
armrests, when the cover is open, it can massage arms, when closed, it will be naturally
matched to the armrest.
Please turn off the power and pull off the plug if long time not in use,don’t
pull off the plug until all massage keys and power switch are turned off.

Warning
Any broken, re-process, knotted, twisted and pressed power cord under heavy
cargo is not allowed to use, especially under this massage chair; massage pad
and other parts are forbidden to be stored in folding status otherwise it may cause
short circuit, fire or electric shock.
For any troubles in the massager, make sure to have it repaired by professional
repairman, self-modification, disassembly or maintenance is forbidden.
If power cord is damaged, please don't replace it by yourself, please contact us
or appointed dealer for replacement.
Caution
Please operate the chair in a flat or even place to avoid falling down.
Please check if the massage heads are in correct position before you sit on the
chair to avoid any possible accident or hurt.
It is suggested that every operation time is 20mins and max. 5mins massage for
massage on same position may cause uncomfortable feeling.
one same position, and please begin with slight-step massage; long time continuous
Please turn off the switch behind the massager after use to prevent children
from playing on it.
For sake of safety, please insert the plug into the socket with earth
the plug of earth wire can't be bended or removed in case of
electric leakage or shock.
wire;
Don't press with hands or step on the massage heads with feet.
Don't put hands between the working massage heads.
Don't put hands or feet between mechanical parts.
Don't stand or sit nor put something on the backrest, armrest or legrest.
Don't move the chair during it is working.
Don't put your hands or head between legrest or place under it .
Don't massage when you have hard hairpin on.
No hard things inside the pocket when massaging hip or thighs.
Don't pull out the plug or turn off the power during operation.
Please don't sleep during operating the chair.
For drunk people or those who feel uncomfortable, please don't use the chair.
No water, dust or other waste things is available on the power plug;
otherwise it may cause fire, electric shock or short circuit.
Operating the massage chair on heating items like electric heat blanket is
strictly forbidden otherwise it may cause fire.
Be careful not to drop or embed anything into the slot of massage chair
in case of any damage to it.
Don't put the chair in direct sunlight, or close to stove, heating machine
system; otherwise it may fade leather surface.
Please don't use or store it in the wet place like swimming pool, bathroom, etc.
Keep dry on the control and chair itself, please don't operate the chair when
you are in wet in case of electric leakage or shock.
Please unplug the power when repairing or cleaning the chair, don't touch
plug with wet hands in case of electric shock or hurt.
Please turn off the switch immediately when electricity is off in case of any
possible accident or hurt when the electricity comes on again.
Please be sure to take PLUG out of the socket instead of holding power cord to
unplug it otherwise the plug may drop or cause electric shock troubles.
For normal use, clean it with dry cloth, chemical detergent is not allowed to use.
For dirt or dust, please clean it with soft cloth with warm water or with neutral
detergent, then re-clean it with twisted dry cloth, let it dry naturally,
don't clean it with diluent of alcohol or gasoline.
Earth wire is not allowed here
Gas pipe: probably cause explosion or fire.
Phone wire and lightning rod: probably cause electric shock
and fire when thundering.
Water pipe: earth wire is useless where there are plastics.
Attention for safety
Caution
cleaning
Attention for safety

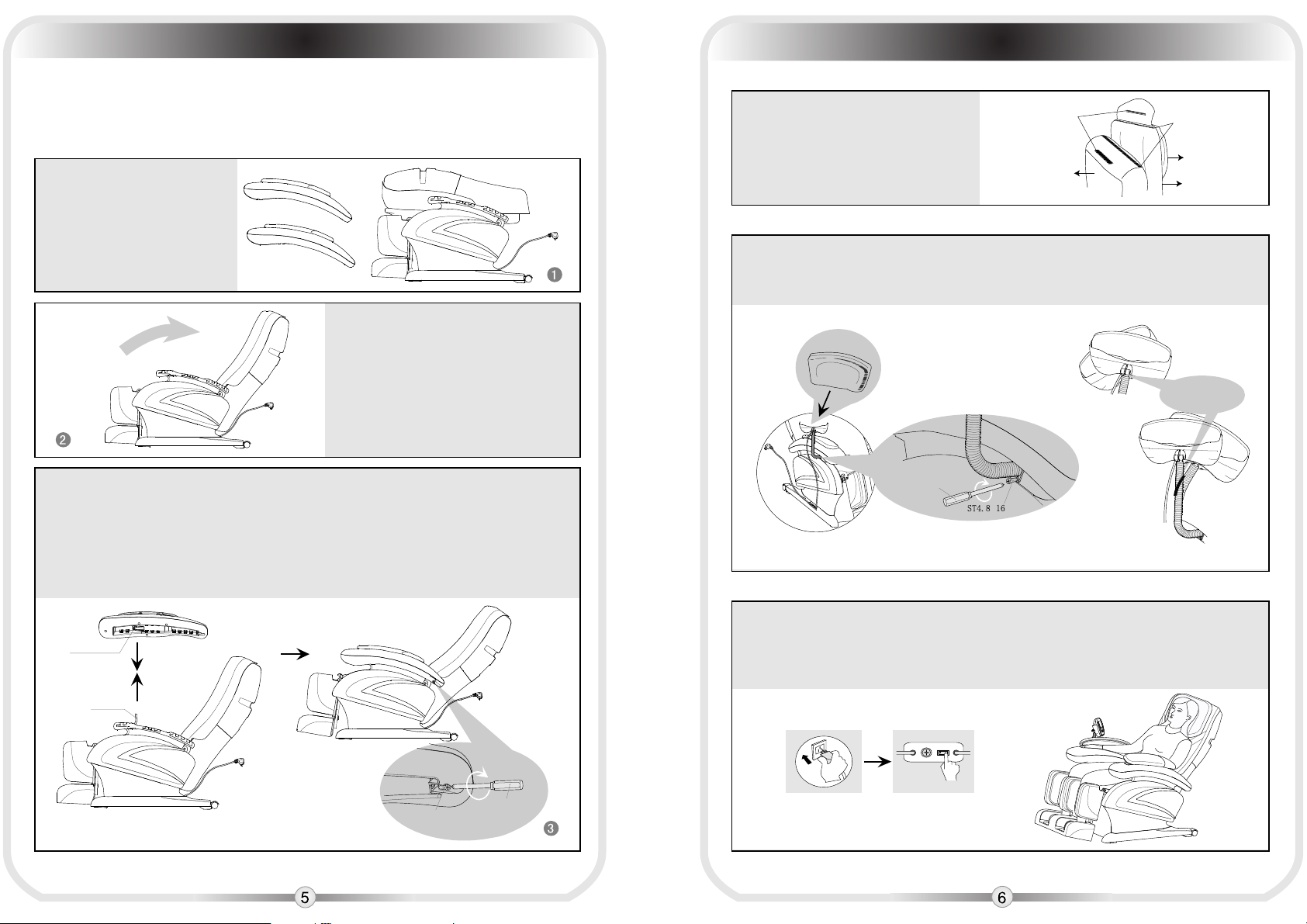

Installation illustration
There are two packing ways for this chair: one is backrest folding packing, the other
is backrest flat packing, for backrest folding packing, the two armrests are attached
as parts of the chair; for backrest flat packing, the two armrests have already been
installed onto the chair.
Step 1
Take the chair, left and right armrest
out of packing carton by two or more
people. No attached armrests if the
chair has already been installed
armrests.
Step 2
Raise the backrest backward until about
110 , the backrest is fixed in a correct
position with a crash sound.
Connect the air pipe on the armrest body to the pipe mouth on armrest cover, assembly the armrest
air pipe
pipe mouth
M6*15screw
twist cross screwdriver
clockwise
Installation illustration
Step 4
Connect the back pad, head pad
with the chair back.
Connect the head
pad and backrest
with velcro
Connect the
pad and
with a
back
backrest
zipper
head pad
back pad
backrest
Step 5
Install the control bracket to the right armrest with three screws, put the control into
the control holder.
Control
Twist cross
screwdriver clockwise
screw
*
the control holder
can be moved freely
on the bracket
Step 6
After completing installation, turn on the power, open switch on the out side of right armrest,
choose your favorite function to enjoy gentle and comfortable massage.
onto the blowing parts of the armrest body, be sure to fully insert the air pipe into the square hose of
blowing parts in case the air pipe is broken .push it forward and screw it on.
(same installation method for left and right armrest).
Step 3

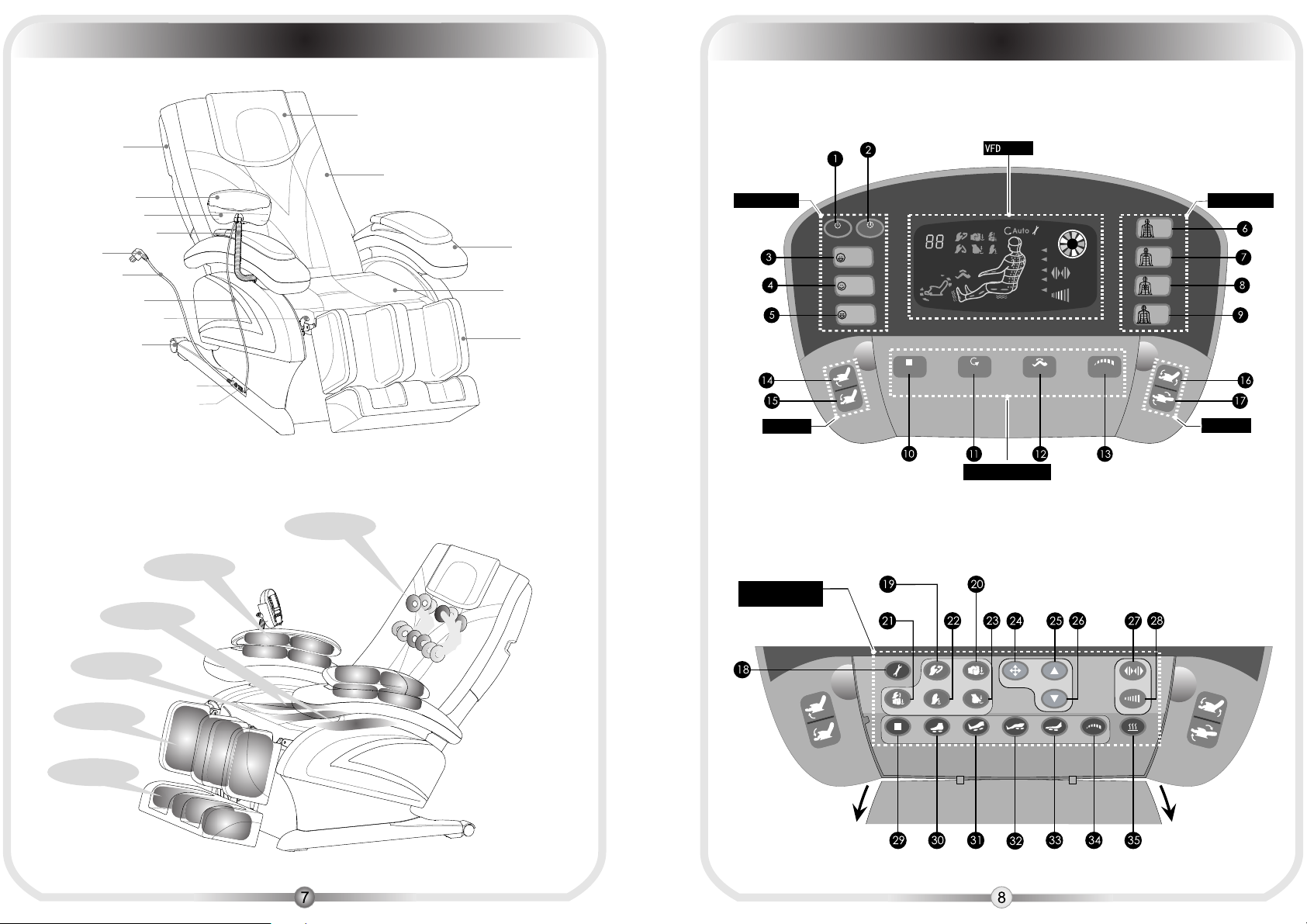

Name of external structure
Head pad
Back pad
Armrest
Seat pad
Legrest
Switch
Fuse case
Movable castor
Trigger
Control cable
Power cord
Power plug
Control bracket
Control holder
Control
Backrest
Massage head
Air bag in armrest
Air bag in seat
Air bag in legrest
Air bag in footrest
Double sides airbag
screen
Auto program on back
Auto program on back
Legrestup/down
Backrestup/down
Air pressure massage
Overall
Shoulder
Back
Waist
On/Off
Timing
Fatigue
recovery
Pain
relieving
comfortable
mood
stop Auto
Stretch
Intensity
Custom
Overall
Shoulder
Back
Waist
Point
Width
Strength
Returning Body detecting… …
Kneading
Tapping
Position
Width
Simul K+T
Knocking
Strength
Custom
Remote control usage
Pressing
Manual program under
the active flip cover
Name of internal structure
Heating
Intensity
Shank
Arm
Foot
Stop
Buttocks

On/Off
Fatigue
recovery
Pain
relieving
comfortable
mood
Overall
Shoulder
Back
Waist
stop
Auto
Stretch
Intensity
Turn on/off the massage machine, when power is on, default working time displayed on VFD is 20mins,
“full course”,“shoulder”,“back”,“waist”indicators will flash, you may choose auto massage program, i.e.
press any one of the “full course”,“shoulder”,“back”and “waist”keys, then indicators of “fatigue recovery”,
“pain relieving”and “comfortable mood”will flash, you may choose any one of them, the massage
machine will automatically work as per your choice; open the cover below the screen and press “custom”
key to choose your favorite massage function manually, Turn off the power, the massage machine will be
stored automatically.
2.During working mode, press this key to set three shifts working time 10mins, 20mins and 30mins.
3.During working mode, press this key to choose “Fatigue recovery”function.
4. In auto mode, press this key to choose “Pain relieving”function.
5. In auto mode, press this key to choose “Comfortable mood”function.
6. In “ON”status, press this key to choose automatically upper body full course massage.
7. In “ON”status, press this key to choose automatically shoulder massage.
8. In “ON”status, press this key to choose automatically back massage.
9. In “ON”status, press this key to choose automatically waist massage.
Remote control usage
10. In “ON”status, press this key to stop air pressure massage on hips, legs, feet and arms.
11. In “ON”status, press this key to choose automatic air pressure massage, VFD will display “AU”.
12. In automatic air pressure working mode, press this key to open/close legrest stretching function.
13. In air pressure working mode, press this key to choose intensity of air pressure massage.
14. Press this key, the legrest will go up, release it, the legrest will stop going up.
15. Press this key, the legrest will go down, release it, the legrest will stop going down.
16. Press this key, the backrest will go up, legrest will go down; release it, the backrest and legrest
will stop going up/down.
17. Press this key, the backrest will go down, legrest will go up; release it, the backrest and
legrest will stop going up/down.
Kneading
Tapping
Simul K+T
Knocking
Custom
Pressing
18. In “ON”mode, press this key to choose your favorite massage function manually.
19. In “CUSTOM”mode, press this key to start kneading massage.
20. In “CUSTOM”mode, press this key to start tapping massage.
21. In “CUSTOM”mode, press this key to start “kneading and tapping”massage.
22. In “CUSTOM”mode, press this key to start k massage.nocking
23. In “CUSTOM”mode, press this key to start pressing massage.
Remote control usage
Position
Width
Intensity
Shank
Heating
Arm
Strength
Foot
Stop
Buttocks
24. In “CUSTOM”mode, press this key to choose massage position such as full course,
shoulder, back, waist and fixed position.
27. In “CUSTOM”mode, when you choose “tapping, pressing, hitting function”, press this key to
adjust width between two sets of rollers.
28. In “CUSTOM”mode, when you choose “tapping, kneading+tapping, hitting function”, press
this key to adjust massage intensity.
25. In “CUSTOM”mode, when you choose “fixed massage position”, press to slightly adjust
massage position upward.
”“
26. In “CUSTOM”mode, when you choose “fixed massage position”, press to slightly adjust
massage position downward.
”“
29. Press this key to stop air pressure massage on feet, shanks, hips and arms.
30. In “ON”mode, press this key to open/close air pressure massage on feet.
31. In “ON”mode, press this key to open/close air pressure massage in shanks,
32. In “ON' mode, press this key to open/close air pressure massage in hips.
33. In “ON”mode, press this key to open/close air pressure massage in arms.
34. When air pressure is in “ON”mode, press this key to choose air pressure intensity
on feet, shanks, hips and arms.
35. For RK2106C, in “ON’' mode, press this key to turn on/off heat function on sole and waist.
For RK2106D, in 'ON'' mode, press this key to turn on/off heat function in seat and waist.
Digital display: Standby is in “_ _”status showing balance working time, when the
is in “ON”mode, press air pressure's “auto”key, it shows “Au”; press
it shows “E1”,“E2”,“E3”,“E4”as different intensity lever, if the
abnormal status, it shows “Er”.
air pressure
“intensity”key,
machine is in
Function
Kneading
Tapping
Simul k+T
Pressing
Hitting
Automatic
Custom
Width
N
M
W
N:narrow
M:medium
W:wide
Strength
oringe---fatigue recovery
green---pain relieving
blue---comfortable mood
up/down
up/down
air pressure position
massage roller
position
heat in sole and waist
Leg stretch
Overall
Shoulder
Back
Waist
Point
VFD screen illustration
heat in seat and waist
Timing

Operational method and function illustration

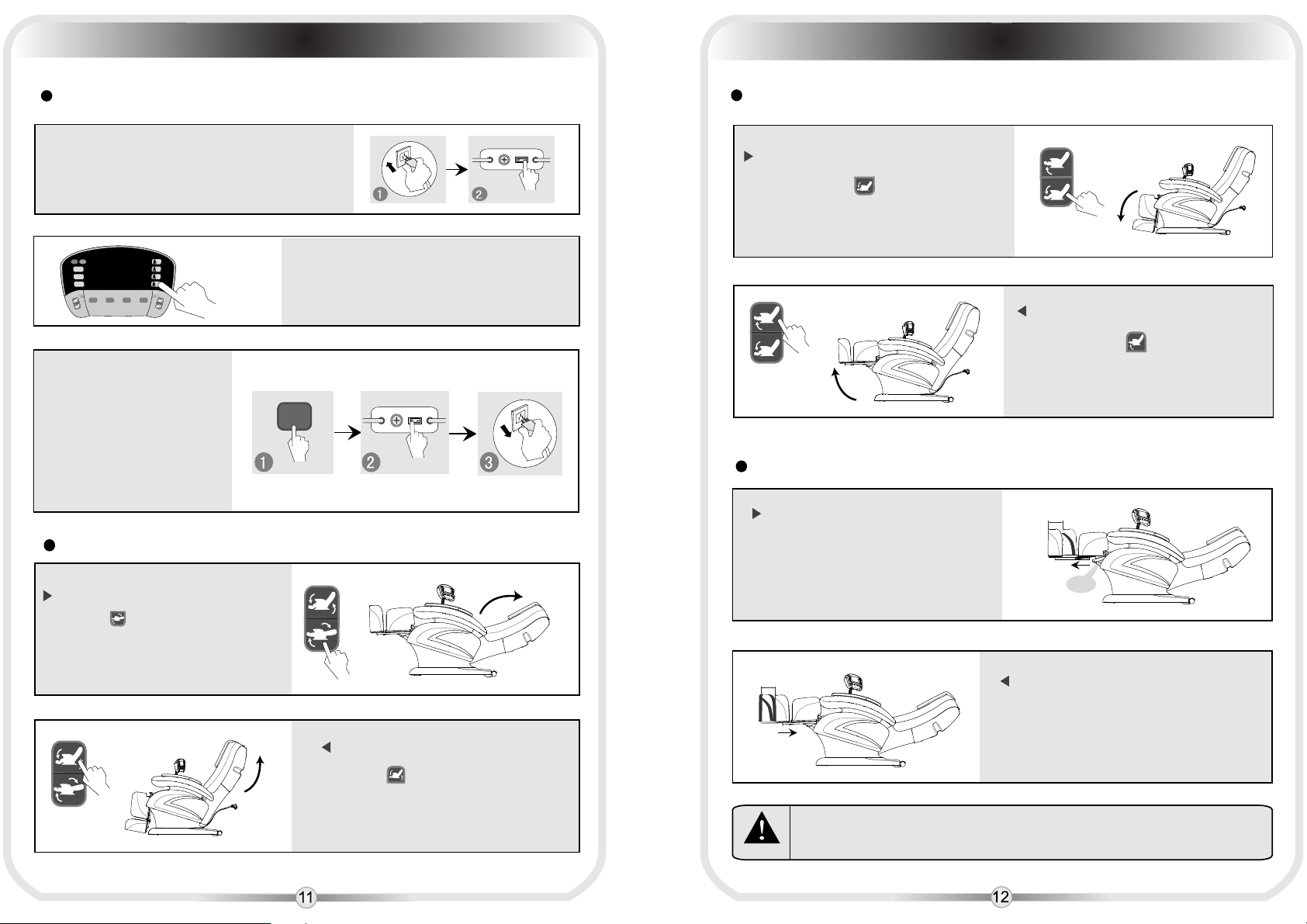

Operational procedure
Step 1. Turn on power
1. Put the plug into socket
Open power switch on the bottom of the outside right
of the armrest, the machine is on standby status.
Overall
Shoulder
Back
Wa
On/Off T m ng
Fatigue
recovery
Pain
relieving
comfortable
mood
stop Auto
Stretch
Intensity
Choose massage function as per control
operation instruction.
Step 3. Turn off the power
1. Press on/off key on the
control to turn off the
massage machine.
2. Turn off power switch on the
bottom of the outside right of
the armrest after the rollers
stay at storage position.
3. Unplug the power from the
socket.
On/Off
Backrest up/down
Backrest down
Press “”key on the control, the
backrest will go down and legrest will
goup simultaneously. Release this key;
the backrest and legrest will be fixed at
locked angle.
Backrest up
Press “ ” key on the control, the
backrest will go up and legrest will go
down simultaneously. Release this
key; the backrest and legrest will be
fixed at locked angle.
Operational method and function illustration
Legrest up/down
Legrest down
Press legrest “ ” key on the control,
the legrest will go down slowly. Release
this key, the legrest will be fixed at
locked angle.
Legrest up
Press legrest “ ” key on the control,
the legrest will go up slowly. Release
this key, the legrest will be fixed at
locked angle.
Legrest stretched out/retracted
Legrest stretched out
Pull the trigger on the right of legrest
backward till ideal angle while the
feet stretch forward, the legrest will
be fixed at this position, stretching
range is within 13.50cm.
Stretching range is
with in 13.5cm
Trigger
Stretching range is
with in 13.5cm Legrest retracted
Pull the trigger on the right of the
legrest backward till ideal angel while
the feet , the legrest will be fixed
at this position, retracting range is
within 13.50cm.
retract
Please make sure there is nobody, no pet or nothing within permitted range for
backrest and legrest to avoid any unexpected hurt or property loss. When you
adjust the backrest, be careful with the gap between the backrest and armrest.
Step 2. Massage

13
Operational method and function illustration

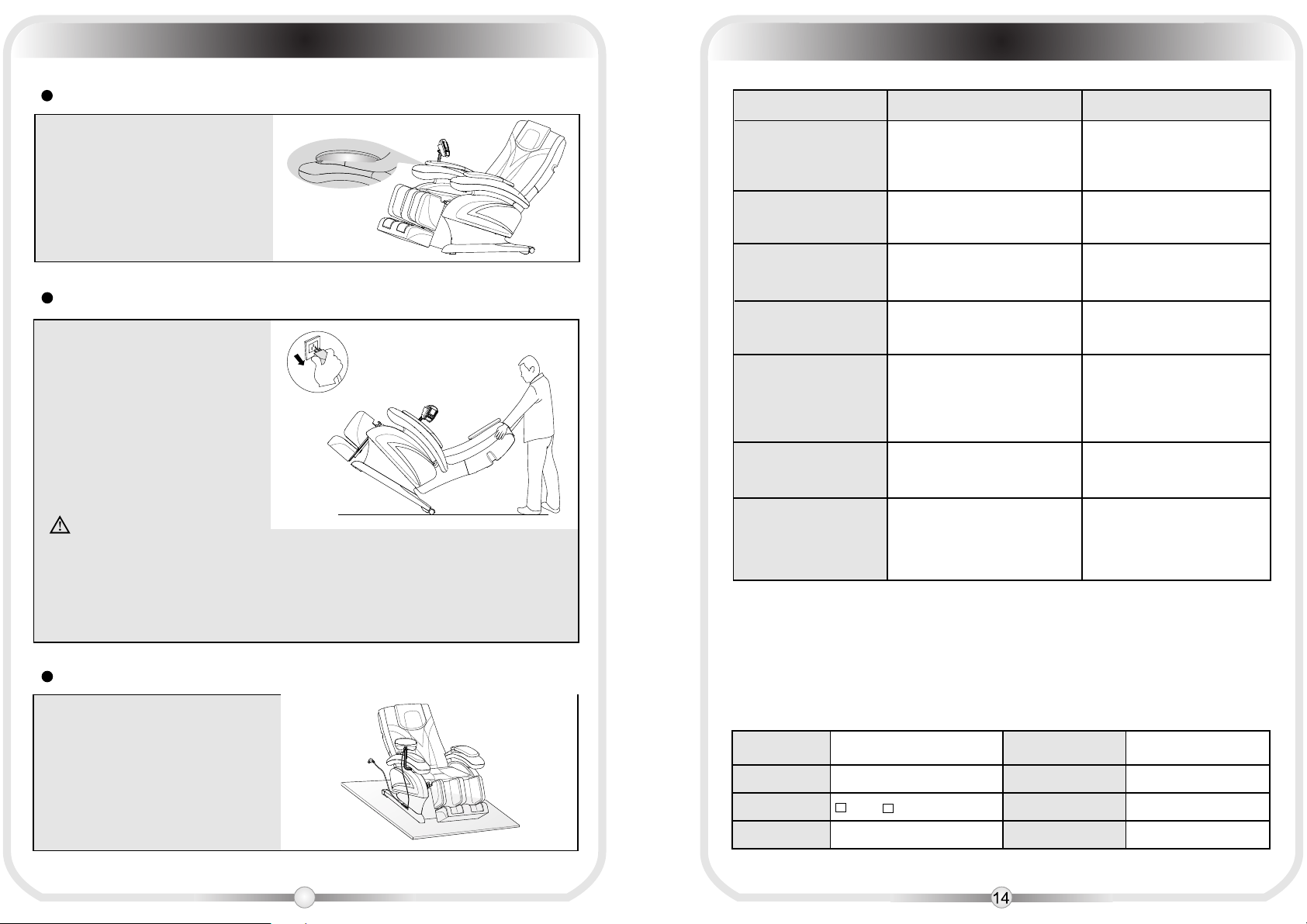

Arm massage
Open upper cover of the armrest,
put arms on the armrest, press
“auto”key on the control or “arm”
key under the active flip cover to
enjoy air pressure massage.
Moving
Turn off the power and unplug it
( it is better to make the chair in
storage status to avoid any
moving it ) , press down the
backrest as showed in the
picture, push the chair forward
with the castors and put it down
Note
Power cord should be wrapped on the chair seat in case of damage to it during moving.
Please put down the chair slightly otherwise some parts may be damaged due to rough
handling.
Don't use castor on uneven ground.
Please don't push the chair on wood floor as the castor may scratch the floor, if needed,
please raise the chair by two or more people working together.
Kind suggestion
Due to the chair itself weight, long
time pressure on the floor may leave
Scratches on it, it is suggested that
you put a piece of carpet or some-
thing soft for floor protection.
FAQ and troubleshooting data
Trouble Possible reason Troubleshooting
The massage chair
can't work after
power is on.
Check if the switch is on or not;
Not choose massage function;
Check if the plug and socket is
loosely contact or not.
Open control switch;
Choose massage function;
Check plug and socket.
There is beep sound
inside the massager
while working.
It is sound of air pump, motor
and mechanical parts.
normal ,Normal sound, no need
to pay attention to it.
Sound sunddenly
becomes much
lounder while working
Massage function
suddenly stops while
working.
Check if it is due to long time
working.
Setting time is up.
Turn off the power to have the
massager rest for over half an
hour before next turn working.
Turn off the power to have the
massager rest for over half an
hour before next turn working.
Neither the backrest
nor the legrest can
be lay down.
Check if there are any obstacles;
the chair overloads; for the sake
of safety, sometimes the
massage machine may
automatically stop working.
Remove the obstacles; turn off
the power to have the massager
rest for over half an hour before
next turn working.
Turn off the power to have the
massager rest for over half an
hour before next turn working.
Make plug and socket is in
good contact;Change fuse of
same specification.
Check if the plug and socket
are loose contact or not;Check
if the fuse is blown out or not.
The chair can't return
to its original position.
Power indicator doesn't
come on even if turning
on the power switch on
the outside of the right
armrest.
Excessive operation; setting
is up.time
Note! If above-mentioned reasons are not included, please turn off the power switch on the outside of
the right armrest, unplug the power and contact your dealer or our company for repair or maintenance.
Technical parameter
Name
Type
Input voltage
Working voltage
Deluxe massage chair
Power
NW/GW
Packing size (mm)
Safety design
RK2106C/D
DC 110V
260W
80/94KGS
Class I
AC110V AC220V~240V 50/60HZ
1160X840X850
Slightly.
damage to the backrest when

1 2345678 9
11
10
12
13
14
15
16
17
18
19
20
21
22232425262728
30
29
31
32
33
34
35
36
37
38
39
40
41
15 16
No. Name
Mechanical parts list
Schematics of mechanical parts
Q’ty
(pcs) No. Name Q’ty (pcs)
Backrest frame
Stroke switch
Step screw
Internal machine assy
Upper back cover
Guide screw motor
Big belt wheel
Rotation frame
Left armrest
Fender of left armrest
Seat frame welding parts
Electric cylinder
Power case
Transformer cover
Legrest assy
Cable holder
Circular transformer
Switch case assy
Right armrest assy
Control holder
Seat cover
Backrest welding assy
Anti-abrasion piece
Back massage assy
Guide screw assy
Lower back cover
Small belt wheel
Belt
Seat spring
Left armrest assy
Left armrest bottom part
Gas case
Legrest lever hook
E-shape transformer
Front fender
Cable
Cable trigger
Right armrest bottom parts
Fender of right armrest
Right armrest
Control
