Denafrips Terminator-plus User manual

V1.

10th June 2021

TERMINATOR

PLUS DAC

OWNER’S MANUAL

Contents

1. INSTALLATION & SAFETY INSTRUCTIONS ........................................................................... 2

2. INTRODUCTION .................................................................................................................. 3

3. DESIGN HIGHLIGHTS ........................................................................................................... 4

3.1 DIGITAL / ANALOGUE ISOLATION ............................................................................... 4

3.2 OVEN-CONTROLLED CRYSTAL OSCILLATOR – OCXO ................................................... 4

3.3 ADAPTIVE FIFO BUFFER RECLOCKING ......................................................................... 4

3.4 I2S INPUT ..................................................................................................................... 4

3.5 PROPRIETARY, STATE-OF-THE-ART USB INTERFACE ................................................... 5

3.6 PROPRIETARY SPDIF DIGITAL AUDIO RECEIVER .......................................................... 5

3.7 NOS/OS ........................................................................................................................ 5

3.8 PROPRIETARY R-2R AND DSD DECODING ARCHITECTURE .......................................... 5

3.9 DAC ARCHITECTURE .................................................................................................... 6

4. OPERATING INSTRUCTION .................................................................................................. 7

4.1 Quick Start Guide ........................................................................................................ 7

4.2 USB DRIVER INSTALLATION – WINDOWS OS ............................................................ 14

5. SPECIFICATIONS ................................................................................................................ 18

6. WARRANTY ....................................................................................................................... 19

1. INSTALLATION & SAFETY INSTRUCTIONS

This DAC is designed and built to provide trouble-free performance, but as with all

electronic devices it is necessary to observe a few precautions:

 Unpack the DAC carefully. It weights 20KG. Have a second person to assist would be

helpful.

 Position the DAC on a stable, horizontal surface, i.e. sturdy rack. Please use the spike

shoes provided for vibration control and protection of the surface.

 The DAC supports voltage 100-250VAC worldwide voltage. Please connect the AC

power cord with earth(ground) pin unless it is absolutely required to reduce hum

from the ground loops of the connected devices.

 Always ensure that when disconnecting and reconnecting your audio equipment the

mains supply is turned off.

 Position the power cord and signal interconnects where they are not likely cause trip

and fall hazard.

 Do not use the DAC near water, or place water-filled containers on the DAC. Entry of

liquid into the DAC is hazardous and may cause electric shock and/or fire hazard.

 Do not place the unit under direct sunlight or heat source.

 Do not remove any covers or try to gain access to the inside. There are no user

adjustments or fuses to change without qualification.

 Clean regularly with a damp soft cloth. Do not use any cleaning agents as it might

damage the surface finishing.

 The electronics in modern hi-fi equipment is complex and may, therefore, be

adversely affected or damaged by lightning. For protection of the audio system

during electrical storms, disconnect the mains plugs.

2. INTRODUCTION

Thank you for purchasing the DENAFRIPS TERMINATOR-PLUS DAC. It is a state-of-the-art

Digital to Analog Converter, one of the finest available on the market.

The TERMINATOR-PLUS DAC is built upon the success of the TERMINATOR DAC. DENAFRIPS

push the boundaries further in all aspects, to reach the new heights. The top-quality

performance of the TERMINATOR-PLUS DAC is for the serious audiophile who seek the very

last bit of ultimate-refinement.

3. DESIGN HIGHLIGHTS

3.1 DIGITAL / ANALOGUE ISOLATION

The TERMINATOR-PLUS Digital Processing Board and R-2R ladder network arrays are

completely isolated. The two boards are physically linked by the OCXO module. The physical

isolation yields even lowered noise-floor and achieved higher signal to noise ratio.

3.2 OVEN-CONTROLLED CRYSTAL OSCILLATOR – OCXO

“The best clocks are the clocks inside the DAC”.

The TERMINATOR-PLUS is equipped with dual OCXO operating at audio frequencies

45.1584Mhz, 49.152Mhz. Encapsulated in a metal casing, located at the centre of the DAC,

these OCXO are specially designed for high-end audio applications with ultra-low phase-

noise and ultra-accuracy. The dual OCXO are powered by the complete redesigned power

supply circuitry (encapsulated, shielded, underneath the main boards), supplying constant

current to the OCXO. The adequate power reserves ensure the linearity and stability of the

OCXO.

3.3 ADAPTIVE FIFO BUFFER RECLOCKING

The DENAFRIPS approach to address the jitters issue by FIFO BUFFER RECLOCKING. The

adaptive FIFO buffer store the source digital audio data in the memory. These data are read

from the memory using the ultra-low phase noise, ultra-accuracy OCXO, located right in the

DAC.

This technology is close to the perfection, especially so with the local OCXO. The jitter is so

small that it can be neglected.

3.4 I2S INPUT

TERMINATOR-PLUS comes with three (3) types of I2S input. Despite the I2S input has no

industrial standard, it is probably the best digital input interface to-date. NOTE: DENAFRIPS

cannot guarantee the compatibility with other I2S devices.

3.5 PROPRIETARY, STATE-OF-THE-ART USB INTERFACE

The TERMINATOR-PLUS is equipped with the proprietary USB Audio Solution, powered by

STM32F446 Advanced AMR Based MCU. DENAFRIPS redesigned and optimized circuitry,

allow the DAC to be used as high-end DAC with computers / streamers. It supports

24bit/1536kHz* PCM data stream, and native decoding of DSD up to DSD1024*. It comes

with licensed THESYCON USB Driver for Windows Platform.

NOTE: The USB Module is designed to trigger on only when USB Input is selected. This is

intended design to reduce digital input interfaces cross-interference for best sound

reproduction. *High-res support may vary depending on system compatibility.

3.6 PROPRIETARY SPDIF DIGITAL AUDIO RECEIVER

The SPDIF Coaxial, Optical, AES/EBU input support up to 24bit/192kHz digital audio format.

The TERMINATOR-PLUS abandon the use of Digital Audio Receiver chip. The digital data is

decoded by the on-board FPGA (Field Programmable Gate Array), signal path is shortened

and eliminated the undesirable coloration.

3.7 NOS/OS

The TERMINATOR-PLUS allow the user to change the sampling mode on the fly.

NOS, as the name suggested, does not over-sampling to digital input data.

In OS mode, the PCM 44.1kHz or 48kHz based audio data are up-sampled to the maximum

rate of PCM1411.2 or PCM1536. There is no up-sampling of DSD audio signal.

3.8 PROPRIETARY R-2R AND DSD DECODING ARCHITECTURE

The TERMINATOR-PLUS is equipped with 26Bit R-2R DAC to decode PCM data stream and 32

steps FIR analogue filters hardware decoder to decode DSD data stream. These designs

guaranteed the PCM format can be perfectly decoded, at the same time, the DSD format

can be perfectly decoded as well. It is rare in the currently market that a R-2R DAC can

hardware decode both the PCM and DSD formats.

3.9 DAC ARCHITECTURE

DIGITAL SIGNAL PROCESSING – All digital input data are stored in the on-board FPGA high-

speed RAM.

OCXO – These data are read from the memory using the ultra-low phase noise, super

accurate OCXO, located right in the DAC. The processed data are sent to the final stage

Discrete R-2R for DA conversion.

R-2R LADDER NETWORK – The data bits are converted to analogue signal by the true

balanced R-2R ladder network arrays. The linearity of the conversion is guaranteed by the

high-precision thin film resistors, with low thermal effect temperature coefficient of the low

10/15ppm.

4. OPERATING INSTRUCTION

4.1 Quick Start Guide

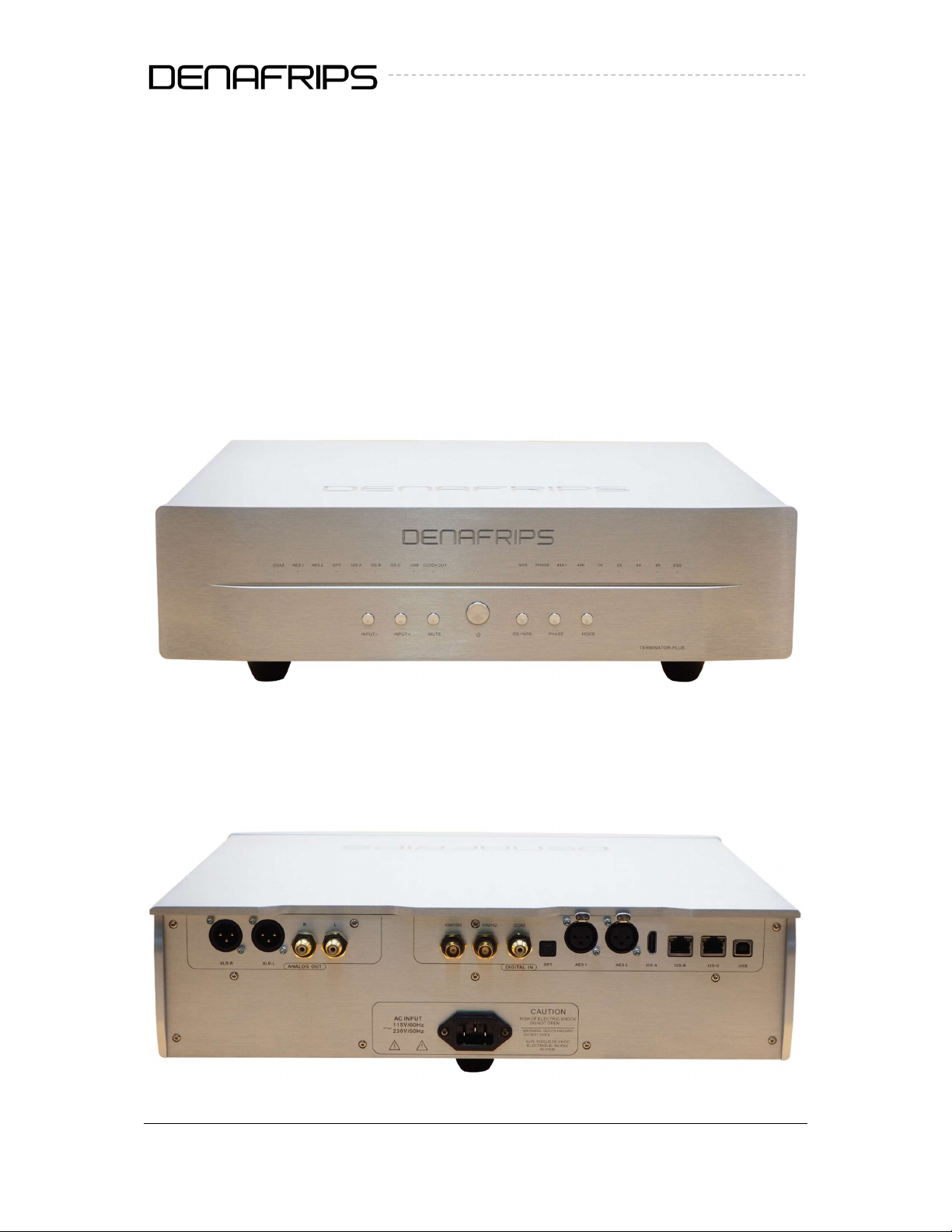

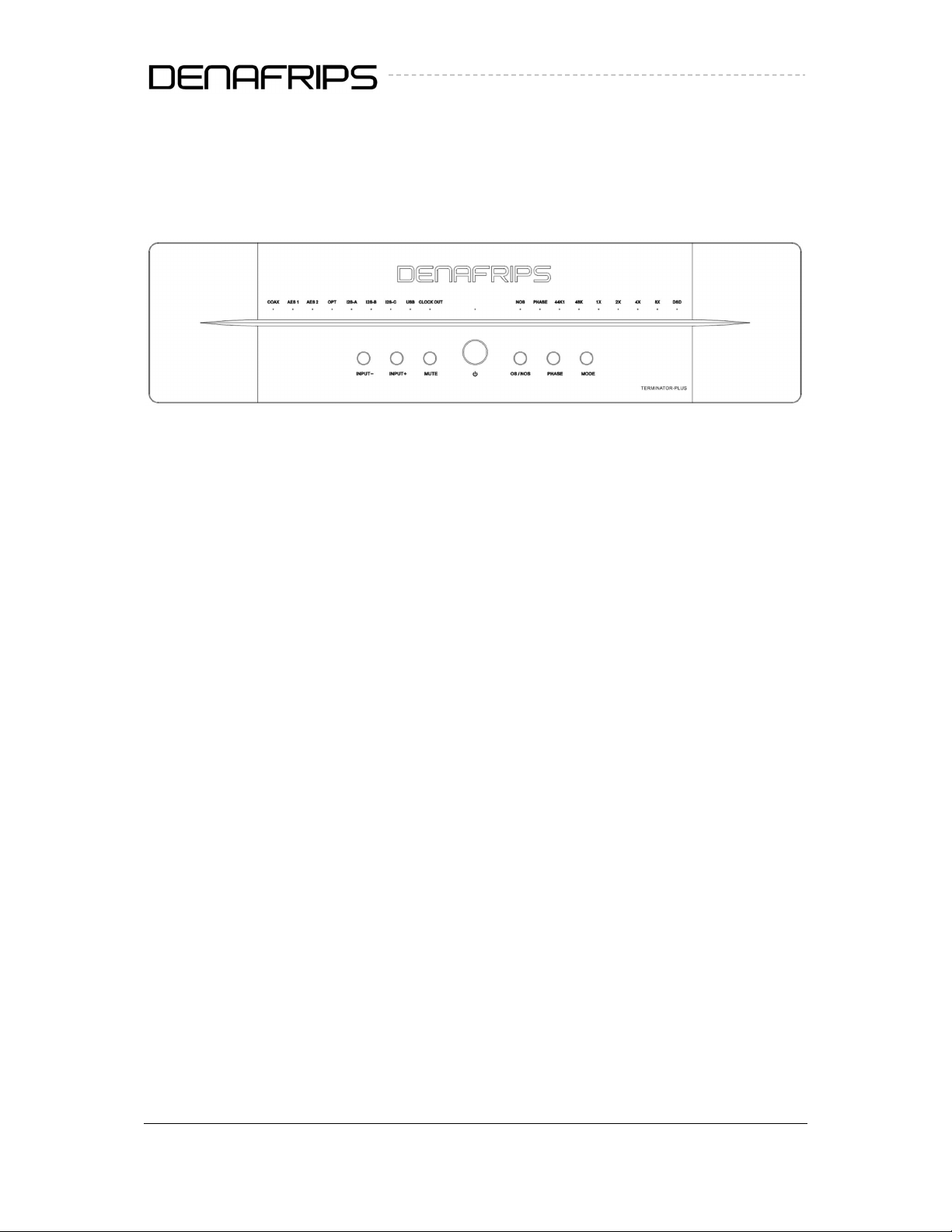

Figure 1. Front Panel

(1) Standby Button

Press the button once to switch on the DAC, vice versa, press once to put the DAC into

standby mode. The Standby LED shall be on when the DAC is in Standby Mode. The LED shall

be off when the DAC is in Operating Mode.

(2) Control Button (From left to right)

a. INPUT + / Input - :

Press the buttons to select the input source, namely, COAX, AES1, AES2, OPT, I2S-A,

I2S-B, I2S-C, USB. Press + to select the next right input. Press – to select the previous

left input. The respective input source LED shall be on to indicate that the input

source is selected.

b. PHASE

Press the button to toggle Phase Output. LED On: Positive Phase, LED Off: Negative

Phase

c. OS/NOS

Press the button to toggle between OS/NOS model. The LED lit to indicate the DAC is

in NOS mode.

d. MUTE

Press the button to enable/disable Mute. When mute, the Input Signal LED will be

blinking from Left to Right.

(3) Digital Audio Signal Input Sampling Rate

The following table illustrate the Input Sampling Rate LED status.

Base Sampling Rate Multiplier Input Format

44.1 kHz

1X 44.1 kHz

2X 88.2 kHz

4X 176.4 kHz

8X 352.8 kHz

16X = 2X + 8X 705.6 kHz

32X = 4X + 8X 1,411.2 kHz

48 kHz

1X 48 kHz

2X 96 kHz

4X 192 kHz

8X 384 kHz

16X = 2X + 8X 768 kHz

32X = 4X + 8X 1536 kHz

DSD

1X DSD 64

2X DSD 128

4X DSD 256

8X DSD 512

16X = 2X + 8X DSD 1024

Table 1. Sampling Rate

Parameter Settings:

(1) Filter Selection (Effective in OS Only)

1. Press the Mute button once to enter configuration mode

2. Press the Mode momentarily

 1X LED On, 8X LED On = Slow Filter

 1X LED Off, 8X LED On = Sharp Filter

3. Wait for 10s

4. DAC back in operational mode

(2) Dual AES/EBU Input

1. Press the Mute button once to enter configuration mode

2. Press the INPUT+ momentarily, AES 1, AES 2 LED will turn on/off

 AES1 On = Dual AES/EBU Input Enabled

 AES2 Off = Dual AES/EBU Input Disabled

3. Wait for 10s

4. DAC back in operational mode

(3) I²S Pinout Configuration

1. Select I²S-A Input

2. Press the Mute button once to enter configuration mode

3. Press the Phase button momentarily, 1X 2X 4X will turn on/off in a fixed pattern to

denote binary 000-111

 PSAUDIO I²S Standard = 1X On, 2X 4X Off = 100

4. Wait for 10s

5. DAC back in operational mode

(4) I²S DSD Channel Swap Configuration

1. Select I²S-A Input

2. Press the Mute button once to enter configuration mode

3. Press the NOS button momentarily

 COAX On = DSD Channel Swap

 AES1 On = Normal

4. Wait for 10s

5. DAC back in operational mode

I²S Pinout Configuration

MODE

LED

I2S PINOUT

1X 2X 4X

PIN DATA BCK LRCK

DATA

BCK LRCK

MODE 1 3 4 6 7 9

0 0 0 0

0 DATA- DATA+

BCK+ BCK- LRCK- LRCK+

1 1 0 0

1 DATA+

DATA- BCK+ BCK- LRCK- LRCK+

2 0 1 0

2 DATA- DATA+

BCK- BCK+ LRCK- LRCK+

3 1 1 0

3 DATA+

DATA- BCK- BCK+ LRCK- LRCK+

4 0 0 1

4 DATA- DATA+

BCK+ BCK- LRCK+

LRCK-

5 1 0 1

5 DATA+

DATA- BCK+ BCK- LRCK+

LRCK-

6 0 1 1

6 DATA- DATA+

BCK- BCK+ LRCK+

LRCK-

7 1 1 1

7 DATA+

DATA- BCK- BCK+ LRCK+

LRCK-

Table 2. I2S PINOUT CONFIGURATION

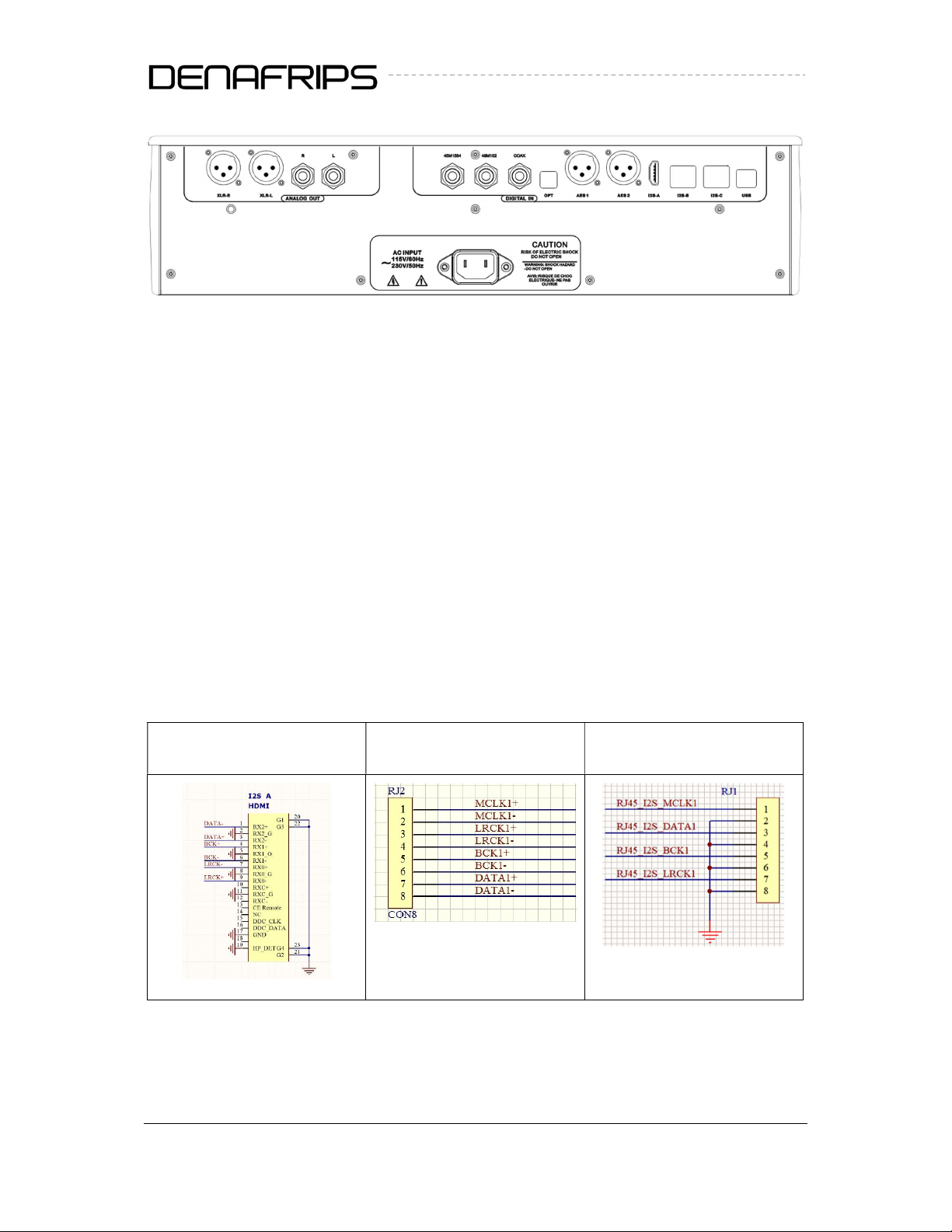

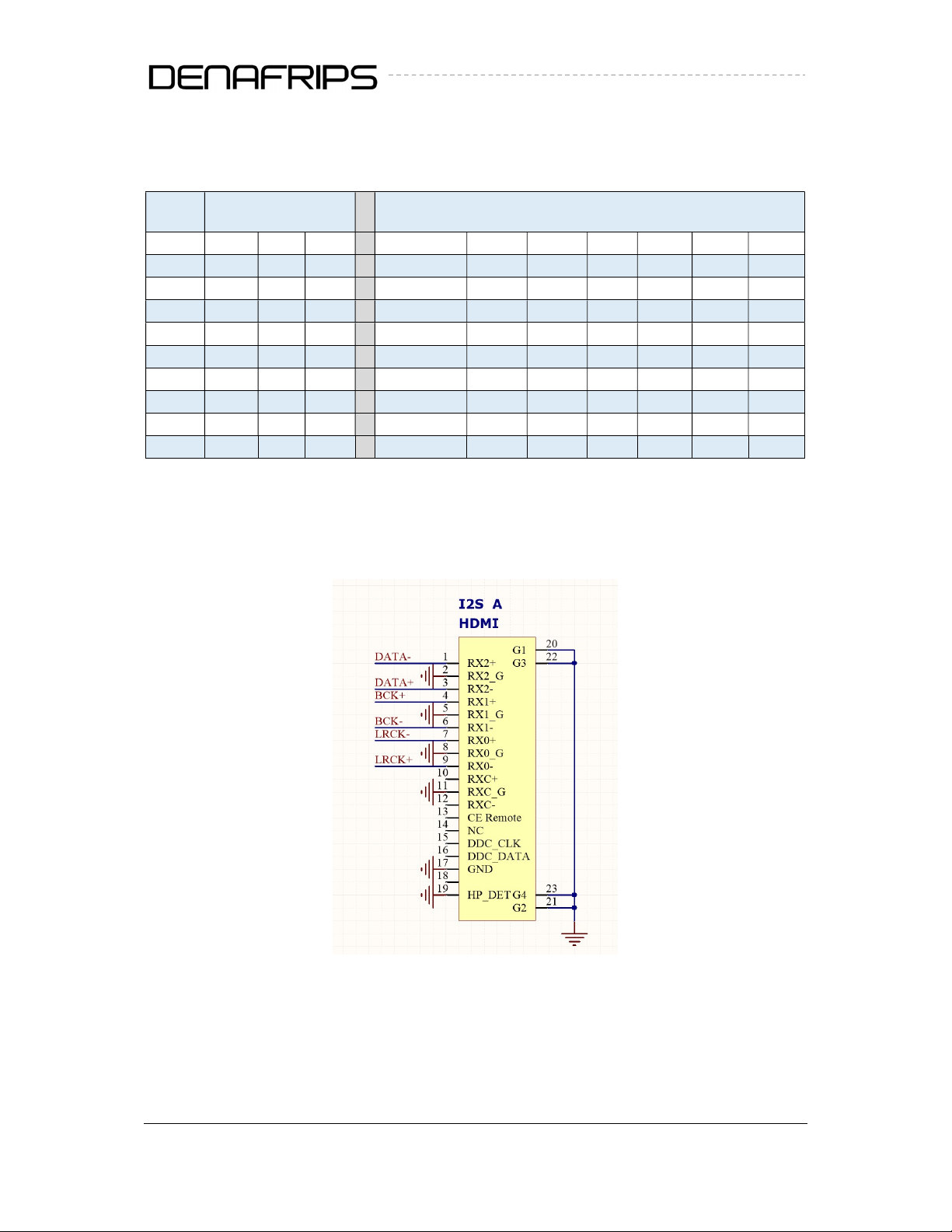

Figure 2. HDMI i2s Input

Figure 3. Read Panel

Description:

(1) AC Power Supply

CAUTION! TERMINATOR-PLUS supports worldwide AC mains, range from 100-250VAC. The

Please use a good quality power cord with earth/ground pin connected

(2) Analog Audio Signal Output

Balanced output via XLR (pin2 hot), singled ended output via RCA. The TERMINATOR-PLUS is

a true balanced DAC, we recommend using balanced output whenever possible. The RCA

and XLR output are shared, please use either of the output at a time. It is not recommended

to use both RCA and XLR output simultaneously.

(3) Digital Input Interface

There are 8 Digital Input Interfaces, namely, COAX, AES1, AES2, OPT, I2S-A, I2S-B, I2S-C, USB.

I2S-A HDMI (LVDS) I2S-B (LVDS) I2S-C RJ45 (LVCMOS)

(4) CLOCK OUT

The TERMINATOR-PLUS supports the following clock frequencies output, leveraging the

high-quality internal OCXO, you may sync the audio equipment clocks to improve the sonic

performance.

MASTER CLOCK

 45.1584MHz, 49.152Mhz

 22.5792Mhz, 24.576Mhz

WORD CLOCK

 44.1KHz, 48KHz

CLOCK-OUT Configuration

1. Press Mute button to engage mute/setting mode

2. Press Input- button momentarily multiple times. The LED light up in the following

sequence as you press/release the Input- button

o COAX (No output)

o AES1 (44.1K/48K)

o AES2 (24/25Mhz)

o OPT (45/49Mhz)

o I2S-A (Clock out disable, note that CLOCK LED will be off too)

3. To confirm the setting, wait for 10s, the DAC shall be back to operation mode

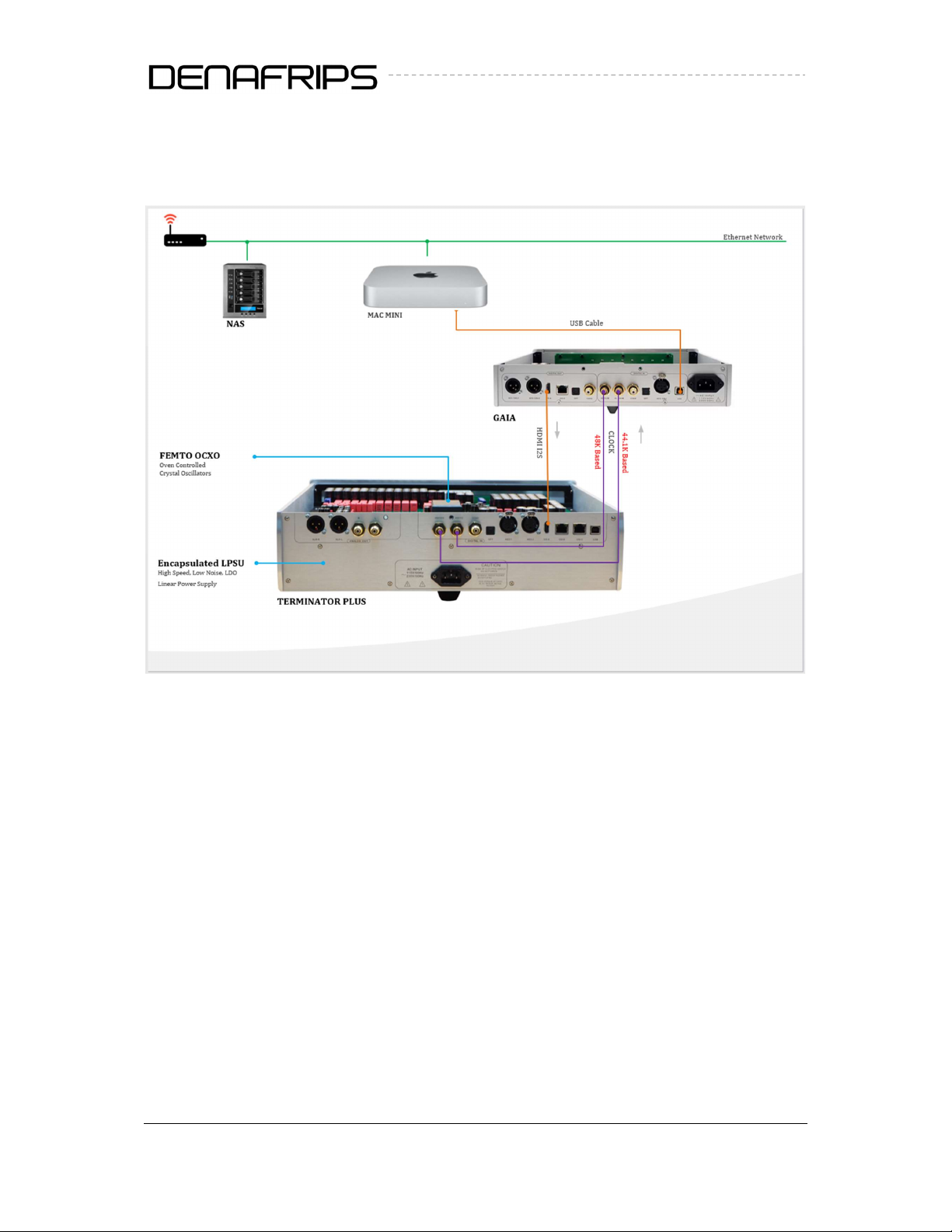

Use Case Examples:

Table 4. Use case examples of TERMINATOR-PLUS CLOCK OUT

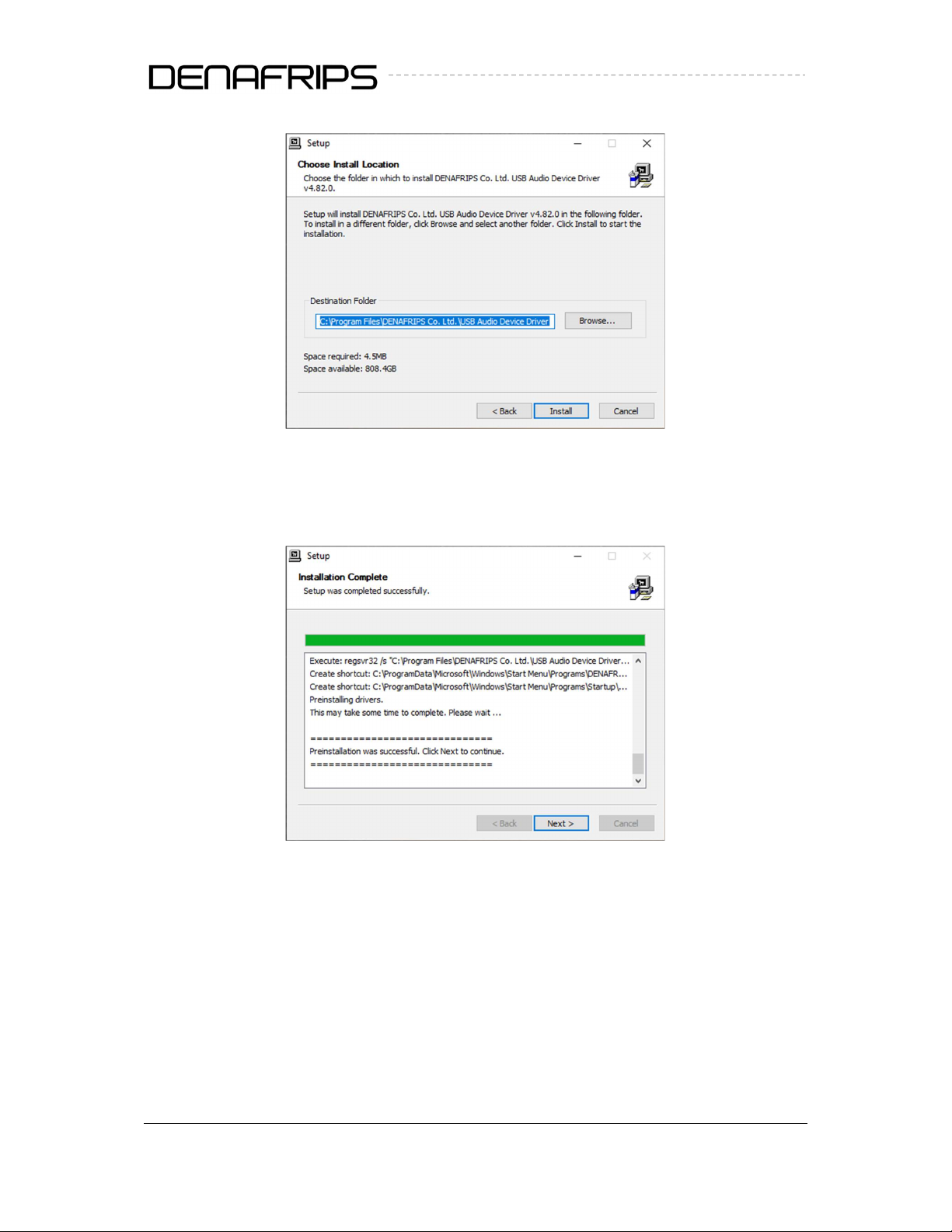

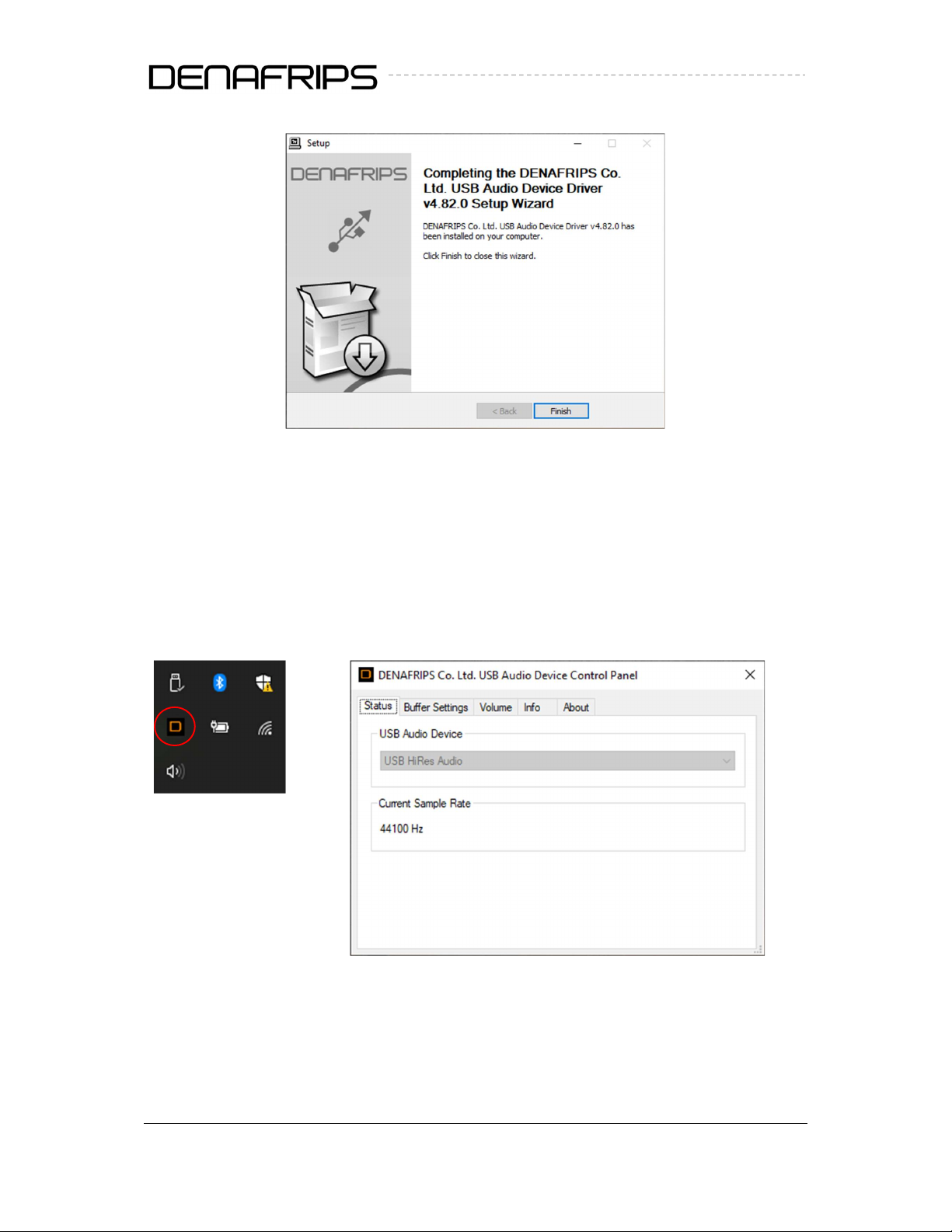

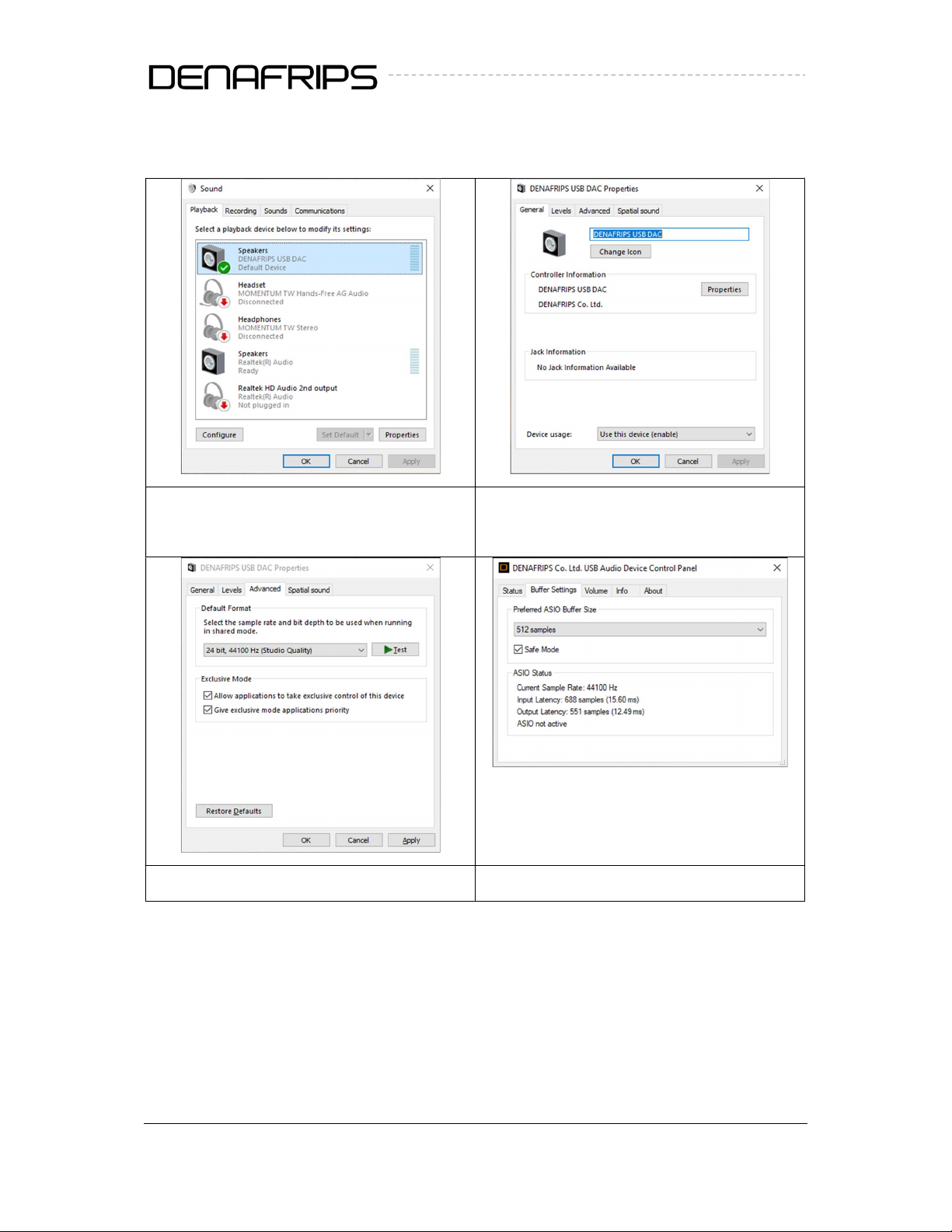

4.2 USB DRIVER INSTALLATION – WINDOWS OS

USB driver is required for Windows Operating System (Windows 7/8/8.1/10, X86/X64). The

USB driver is licensed by THESYCON to provide the highest quality audio playback for

Computer Audio System.

NOTE: Mac and Linux OS do not require the USB driver.

Installation Guide:

 Download the driver from the support page: https://www.denafrips.com/support

 Do not connect the USB cable from the computer to the DAC. Remove it before the

USB driver installation

 Double click the “DENAFRIPS_UsbAudio_v4.82.0” (or the latest version) to install the

USB driver.

 Follow the on-screen instruction to complete the installation

Figure 4. Welcome screen

Figure 5. Default Installation Directory

Figure 6. Preinstallation Successful

Figure 7. Completed

 Restart the computer to complete the installation

 Connect the USB cable to the DAC

 Power on the DAC. Select USB input

 The USB DAC shall be detected. The driver status can be monitored as follows

Figure 8. Taskbar & Control Panel

 Select DENAFRIPS USB DAC as default Windows OS Soundcard

Press Set Default button

Properties of the DENAFRIPS USB DAC

Direct

Sound default format

ASIO Buffer Size

Playback software recommendation:

 roon

 JRiver

 Foobar2000

 Sonicstudio Amarra

5. SPECIFICATIONS

Description Parameters

AC Power

Worldwide AC Power Supported 110 - 230V, 50/60Hz

In 110VAC mains, the min voltage ranges from 92V to max 126V

In 230VAC mains, the min voltage ranges from 184V to max 253V

Power Consumption < 30W

Frequency Response 20-40KHz -0.2dB

THD+N ≤0.0010% (1KHz A Weighted)

Output (RCA) 2.2(+/-10%) V RMS(1KHz)

Output (XLR) 4.4(+/-10%) V RMS(1KHz)

Supported Format (DSD) DSD64 All Input

DSD64 – DSD1024 USB & I²S Only

Supported Format (PCM) 24bit/44.1, 48, 88.2, 96, 176.4, 192 kHz All Input

44.1 – 1536 kHz USB & I²S Only

S/N Ratio 122dB(RCA), 127dB(XLR)

Dynamic Range >132dB

Stereo Crosstalk -110dB

Dimension 430*380*105 mm

Weight 19.0kg

6. WARRANTY

DENAFRIPS TERMINATOR-PLUS purchased from the Authorized Distributor comes with 36

months of warranty from the date of purchase / delivery (whichever later).

Defective

Within

Warranty Policy

First 30 Days

DENAFRIPS

to bear both way shipping fee.

Within 1st Year

Customer to bear one

way shipping fee.

DENAFRIPS

shall

cover the return shipping fee.

Within Warranty

Period

Customer to bear both way shipping fee.

DENAFRIPS

to repair

at free of charge.

Out of Warranty Customer to bear both way shipping cost. DENAFRIPS to

provide repair / maintenance services at cost.

This manual suits for next models

Table of contents

Other DENAFRIPS Media Converter manuals

DENAFRIPS

DENAFRIPS IRIS User manual

DENAFRIPS

DENAFRIPS PONTUS II DAC User manual

DENAFRIPS

DENAFRIPS GAIA DDC User manual

DENAFRIPS

DENAFRIPS VENUS II User manual

DENAFRIPS

DENAFRIPS ARES 12TH DAC User manual

DENAFRIPS

DENAFRIPS HERMES DDC User manual

DENAFRIPS

DENAFRIPS Ares II User manual

DENAFRIPS

DENAFRIPS ARES II DAC User manual

DENAFRIPS

DENAFRIPS Terminator User manual

DENAFRIPS

DENAFRIPS VENUS II User manual

DENAFRIPS

DENAFRIPS Ares User manual

Popular Media Converter manuals by other brands

Altera

Altera MAX 10 user guide

METRObility Optical Systems

METRObility Optical Systems R821-1S Installation and user guide

Sencore

Sencore Impulse NB200E user manual

Bryston

Bryston BDA-3 Service bulletin

Linear Technology

Linear Technology Analog Devices LT8301 Demo Manual

Vivace

Vivace VPO10 INSTALLATION, OPERATION, CONFIGURATION AND MAINTENANCE MANUAL

Net Optics

Net Optics Gigabit Fiber installation guide

ICP DAS USA

ICP DAS USA tSH-722i quick start

Mediastar Evolution

Mediastar Evolution 780-AV quick start guide

Rockwell Automation

Rockwell Automation Allen-Bradley 1606-XLDF240F Reference manual

Transition Networks

Transition Networks CSDTF3011-115 user guide

Hagstrom

Hagstrom KE24 user manual

Kramer

Kramer VM-80VN quick start guide

iLive

iLive IKB333 user guide

Korg

Korg KPR-77 installation instructions

Wavetronix

Wavetronix Click 421 Installation & quick start guide

Siemens

Siemens SINAMICS G120X operating instructions

Inside Out Networks

Inside Out Networks Digi Edgeport/2i installation guide

DENAFRIPS TERMINATOR-PLUS User manual

Popular Media Converter manuals by other brands
