SERVICE MANUAL
BLU-RAY DISC/DVD VIDEO TRANSPORT
MODEL JP E3 E2 EK E2A E1C E1K EUT
DVD-2500BTCI
3
●For purposes of improvement, specifications and
design are subject to change without notice.
●Please use this service manual with referring to the
operating instructions without fail.
●Some illustrations using in this service manual are
slightly different from the actual set.
注 意
サービスをおこなう前に、このサービスマニュアル
を必ずお読みください。本機は、火災、感電、けが
などに対する安全性を確保するために、さまざまな
配慮をおこなっており、また法的には「電気用品安
全法」にもとづき、所定の許可を得て製造されてお
ります。従ってサービスをおこなう際は、これらの
安全性が維持されるよう、このサービスマニュアル
に記載されている注意事項を必ずお守りください。
●本機の仕様は性能改良のため、予告なく変更すること
があります。
●補修用性能部品の保有期間は、製造打切後 8 年です。
●修理の際は、必ず取扱説明書を参照の上、作業を行っ
てください。
●本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。
X0374 V.01 DE/CDM 0801

2
DVD-2500BTCI
--- MEMO---

3
DVD-2500BTCI
Please heed the points listed below during servicing and inspection.
◎Heed the cautions!
Spots requiring particular attention when servicing, such as
the cabinet, parts, chassis, etc., have cautions indicated on
labels or seals. Be sure to heed these cautions and the cau-
tions indicated in the handling instructions.
◎Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching inter-
nal metal parts when the set is energized could cause
electric shock. Take care to avoid electric shock, by for ex-
ample using an isolating transformer and gloves when
servicing while the set is energized, unplugging the power
cord when replacing parts, etc.
(2)There are high voltage parts inside. Handle with extra care
when the set is energized.
◎ Caution concerning disassembly and assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are moved
across them. Use gloves to protect your hands.
◎Only use designated parts!
The set's parts have specific safety properties (fire resis-
tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In particu-
lar, for the important safety parts that are marked zon wiring
diagrams and parts lists, be sure to use the designated parts.
◎Be sure to mount parts and arrange the
wires as they were originally!
For safety reasons, some parts use tape, tubes or other insu-
lating materials, and some parts are mounted away from the
surface of printed circuit boards. Care is also taken with the
positions of the wires inside and clamps are used to keep
wires away from heating and high voltage parts, so be sure to
set everything back as it was originally.
◎Cautions concerning the power supply!
Current continues to flow in the set for 10 to 20 seconds after
the power cord is unplugged. Wait until the power LED turns
completely off before proceeding
◎Inspect for safety after servicing!
Check that all screws, parts and wires removed or discon-
nected for servicing have been put back in their original posi-
tions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insulation
check on the external metal connectors and between the
blades of the power plug, and otherwise check that safety is
ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect the
antenna, plugs, etc., and turn the power switch on. Using a
500V insulation resistance tester, check that the insulation re-
sistance between the terminals of the power plug and the ex-
ternally exposed metal parts (antenna terminal, headphones
terminal, microphone terminal, input terminal, etc.) is 1MΩor
greater. If it is less, the set must be inspected and repaired.
Concerning important safety parts
Many of the electric and structural parts used in the set have
special safety properties. In most cases these properties are
difficult to distinguish by sight, and using replacement parts
with higher ratings (rated power and withstand voltage) does
not necessarily guarantee that safety performance will be pre-
served. Parts with safety properties are indicated as shown
below on the wiring diagrams and parts lists is this service
manual. Be sure to replace them with parts with the designat-
ed part number.
(1) Schematic diagrams ... Indicated by the zmark.
(2) Parts lists ... Indicated by the zmark.
Using parts other than the designated parts
could result in electric shock, fires or other
dangerous situations.
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power
cord is less than 460 kohms, the unit is defective.
LASER RADIATION
Caution - Class 1M visible and invisible laser radiation when open.
Do not view directly with optical instruments.
CAUTION
CAUTION
サービス、点検時にはつぎのことにご注意願います。
◎注意事項をお守りください！
サービスのとき特に注意を必要とする個所についてはキャ
ビネット、部品、シャーシなどにラベルや捺印で注意事項を
表示しています。これらの注意書きおよび取扱説明書などの
注意事項を必ずお守りください。
◎感電に注意！
(1) このセットは、交流電圧が印加されていますので通電時
に内部金属部に触れると感電することがあります。従っ
て通電サービス時には、絶縁トランスの使用や手袋の着
用、部品交換には、電源プラグを抜くなどして感電にご
注意ください。
(2) 内部には高電圧の部分がありますので、通電時の取扱に
は十分ご注意ください。
◎分解、組み立て作業時のご注意！
板金部品の端面の『バリ』は、部品製造時に充分管理をして
おりますが、板金端面は鋭利となっている箇所が有りますの
で、部品端面に触れたまま指を動かすとまれに怪我をする場
合がありますので十分注意して作業して下さい。手の保護の
ために手袋を着用してください。
◎指定部品の使用！
セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は、使用されていたも
のと同じ特性の部品を使用してください。特に配線図、部品
表に z印で指定されている安全上重要な部品は必ず指定の
ものをご使用ください。
◎部品の取付けや配線の引きまわしは、
元どおりに！
安全上、テープやチューブなどの絶縁材料を使用したり、プ
リント基板から浮かして取付けた部品があります。また内部
配線は引きまわしやクランパーによって発熱部品や高圧部
品に接近しないように配慮されていますので、これらは必ず
元どおりにしてください。
◎電源に注意！
このセットは電源プラグを抜いても、十数秒間通電していま
すので、電源 LED が完全に消灯してからサービス作業を実施
してください。
◎サービス後は安全点検を！
サービスのために取り外したねじ、部品、配線などが元どお
りになっているか、またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し、外部金属端子部
と、電源プラグの刃の間の絶縁チェックをおこなうなど、安
全性が確保されていることを確認してください。
（絶縁チェックの方法）
電源コンセントから電源プラグを抜き、アンテナやプラグな
どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用
いて、電源プラグのそれぞれの端子と外部露出金属部［アン
テナ端子、ヘッドホン端子、マイク端子、入力端子など］と
の間で、絶縁抵抗値が１ MΩ 以上であることを確認してく
ださい。この値以下のときはセットの点検修理が必要です。
安全上重要な部品について
本機に使用している多くの電気部品、および機構部品は安全
上、特別な特性を持っています。この特性はほとんどの場合、
外観では判別つきにくく、またもとの部品より高い定格（定
格電力、耐圧）を持ったものを使用しても安全性が維持され
るとは、限りません。安全上の特性を持った部品は、この
サービスマニュアルの配線図、部品表につぎのように表示し
ていますので必ず指定されている部品番号のものを使用願
います。
(1) 配線図…zマークで表示しています。
(2) 部品表…zマークで表示しています。
指定された部品と異なるものを使用した場合に
は、感電、火災などの危険を生じる恐れがあり
ます。
注 意
注 意

4
DVD-2500BTCI
DIMENSION WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange
them neatly as they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise generation.

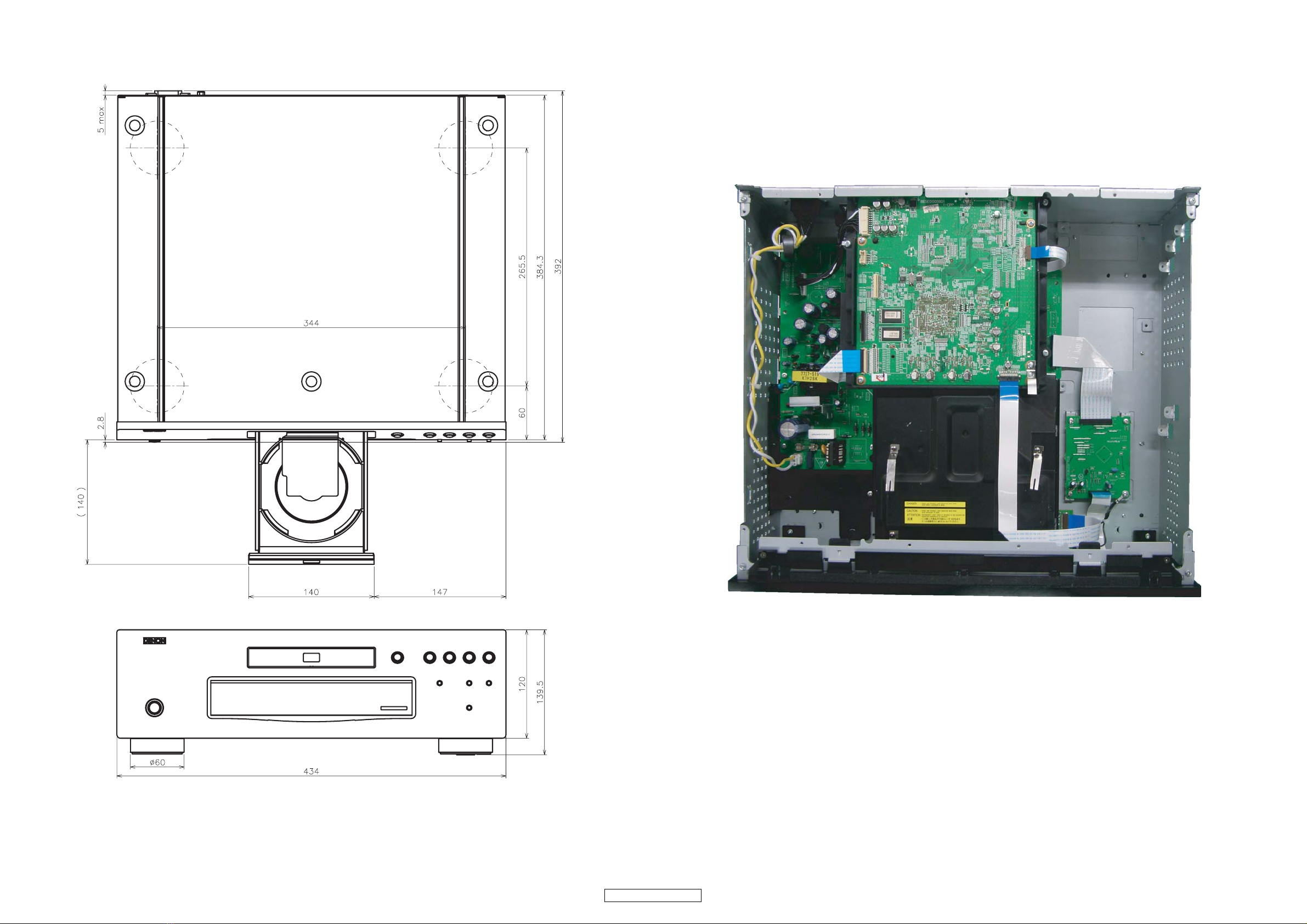

Wire arrangement viewed from the top

5
DVD-2500BTCI
SPECIFICATIONS
Note:
1. Power supply: AC 120 V, 60 Hz
Item
HDMI Output Output jack: 19-pin HDMI terminal, 1 set HDMI (Deep Color, Dolby Digital Plus, Dolby TrueHD, DTS-
HD)

6
DVD-2500BTCI

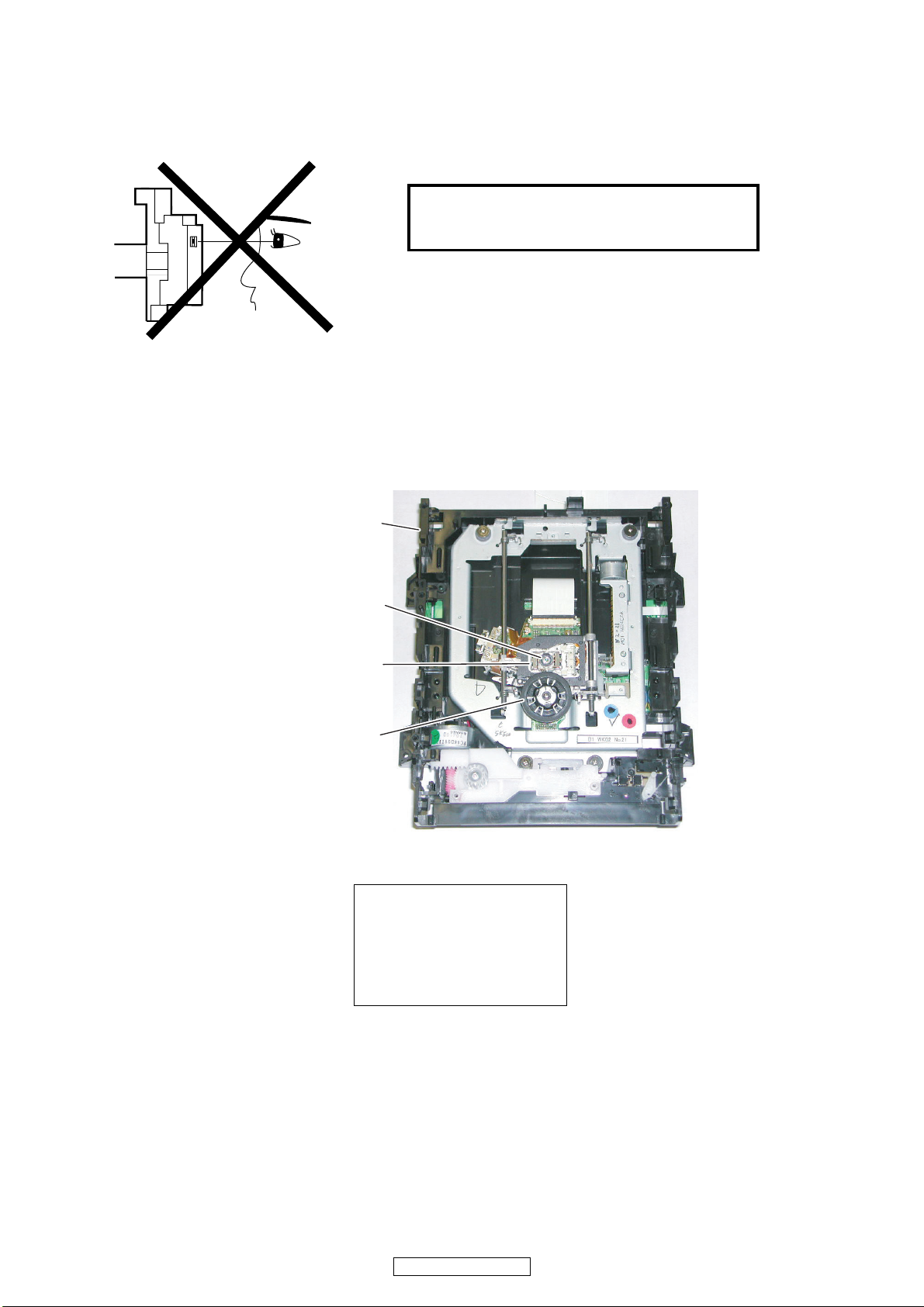

LASER BEAM SAFETY PRECAUTIONS
This BD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Location: Top of BD mechanism.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Drive Mechanism Assembly
Laser Beam Radiation
Laser Pickup
Turntable
LASER RADIATION
WHEN OPEN. DO NOT
STARE INTO BEAM.
CAUTION

7
DVD-2500BTCI
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON):
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Clearance Distance (d), (d’)
120 V ≥3.2 mm (0.126 inches)
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V 0.15 μF CAP. & 1.5 kΩRES.
Connected in parallel i≤0.5 mA Peak Exposed accessible parts
Chassis or Secondary Conductor
Primary Circuit
Fig. 1
d' d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BEarth Ground
Power Cord Plug Prongs
Z
Fig. 2

8
DVD-2500BTCI
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.

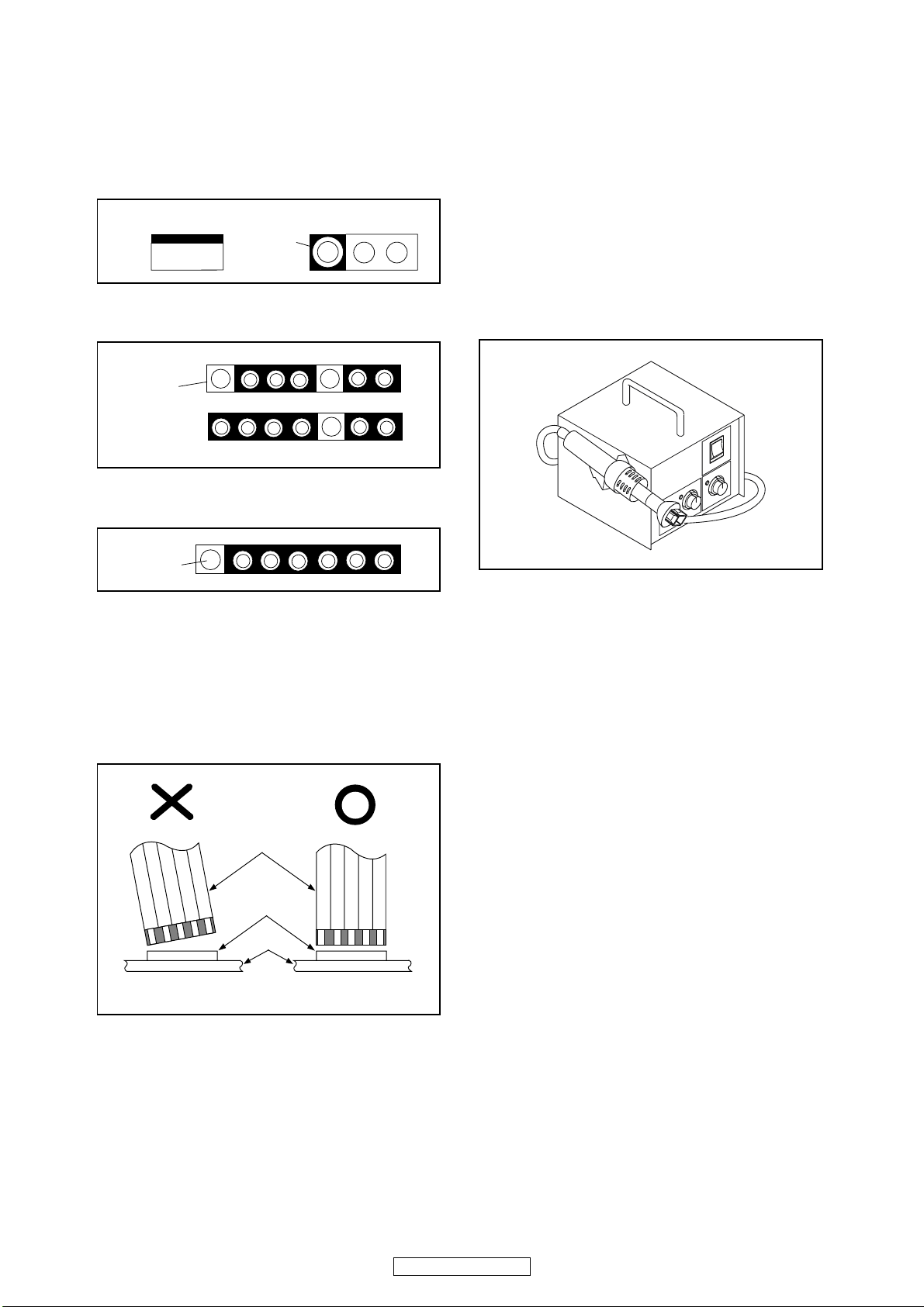

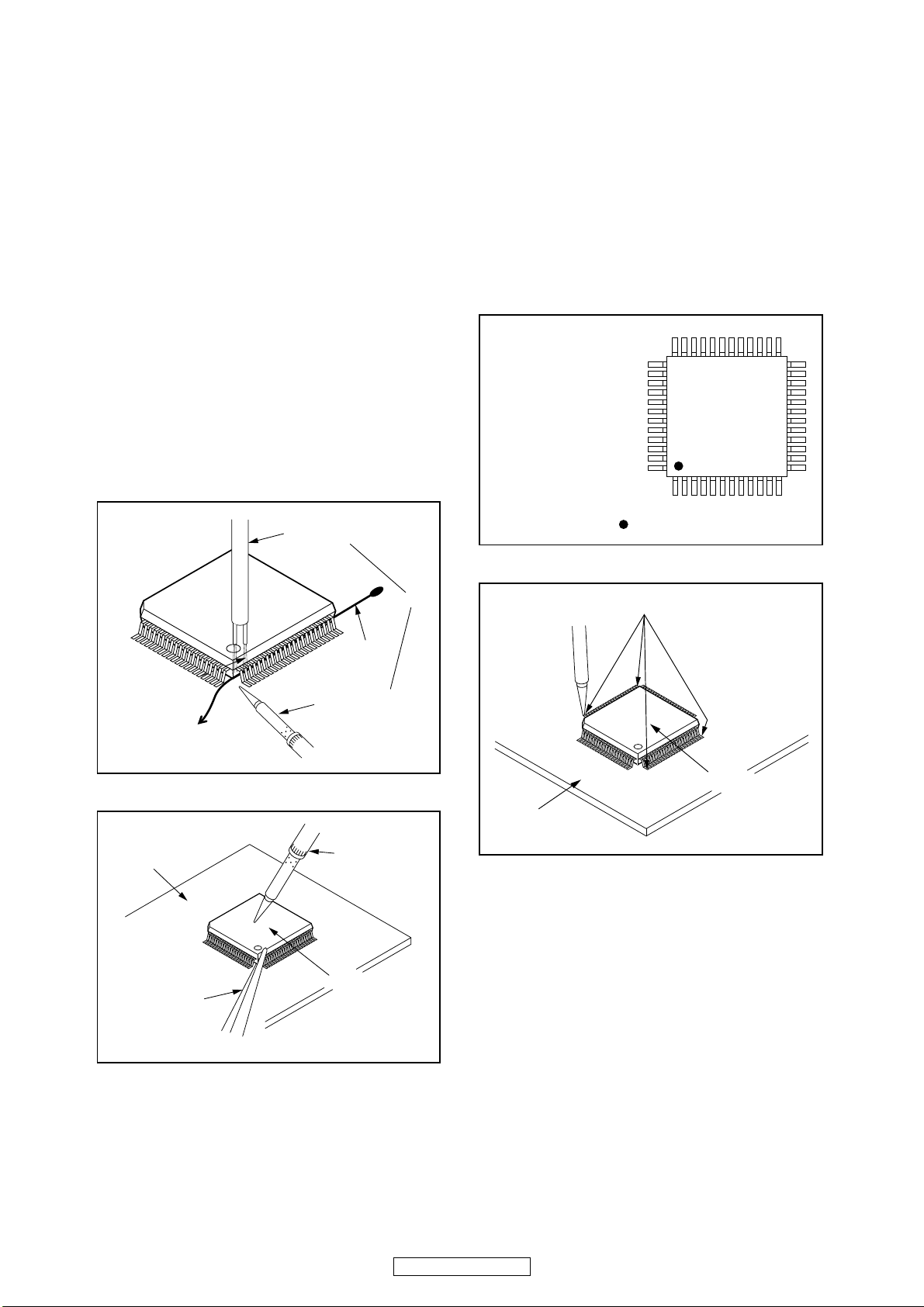

How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1

9
DVD-2500BTCI
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8

10
DVD-2500BTCI
Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

11
DVD-2500BTCI
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly of Main parts
When replacing the main parts, see the following pro-
cedures. For more details, refer to Fig. D1~D9.
*About *[9](S-14), remove only (S-14) of Rear Panel.
Note: Be sure to unplug the power cord from the
power outlet before disassembling.
“Current continues to flow in the set for 10
to 20 seconds after the power cord is
unplugged. Wait until the power LED turns
completely off before proceeding.”
3. Disassembly Method
Part Steps
[10] BE Main CBA Unit [1] ψ[2] ψ*[9](S-14) ψ[10]
[11]
FE Main CBA & BD
Mechanism
Assembly
[1] ψ[2] ψ[3] ψ*[9](S-14) ψ
[10] ψ[11]
[12] Fan Holder [1] ψ[2] ψ*[9](S-14) ψ[10] ψ
[12]
[13] Fan Motor [1] ψ[2] ψ*[9](S-14) ψ[10] ψ
[12] ψ[13]
[14] RS232C CBA [1] ψ[2] ψ[9] ψ[10] ψ[14]
[15] Power Supply CBA [1] ψ[2] ψ*[9](S-14) ψ[12] ψ
[15]
[16] AV CBA [1]ψ[2]ψ[3]ψ[9]ψ[10]ψ[11]
ψ[12] ψ[13] ψ[14] ψ[16]
[17] Sub Microcontroller
CBA [1] ψ[2] ψ[17]
[1] Top Cover
[6] Power SW CBA
[7] SD CBA
[3] Tray Panel
[4] Front Assembly
[8] Front Bracket
[2] Top Panel
[14] RS232C CBA
[16] AV CBA
[18] Pedestal
[15] Power
Supply CBA
[17] Sub Microcontroller CBA
[9] Rear Panel
[10] BE Main CBA Unit
[11] FE Main CBA & BD Mechanism Assembly
[13] Fan Motor
[5] Front CBA
[12] Fan Holder
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1] Top Cover D1 9(S-1), 2(S-2) ---
[2] Top Panel D2 10(S-3) ---
[3] Tray Panel D3 *2(L-1) 1
[4] Front
Assembly D3
2(S-4), 2(S-5), (S-5a),
*3(L-2), *CN2001,
*CN4002
1
[5] Front CBA D4 7(S-6) ---
[6] Power SW
CBA D4 2(S-7), Desolder ---
[7] SD CBA D4 2(S-8), SD PCB
Holder ---
[8] Front
Bracket D5 2(S-9) ---
[9] Rear Panel D5
2(S-10), 2(S-11),
2(S-12), (S-13),
(S-14), 3(S-15),
*CN1003
2
[10] BE Main
CBA Unit D6
4(S-16), 4(S-17),
3(S-18), *CN6401,
*CN7001, *CN7401,
BE Scaler Holder, BE
Scaler Sub Holder
2
[11]
FE Main
CBA & BD
Mechanism
Assembly
D7 4(S-19), *CN2601 ---
[12] Fan Holder D7 2(S-20), *CN2500 ---
[13] Fan Motor D7 2(S-21) ---
[14] RS232C
CBA D8 3(S-22), *CN2551, RS232C Holder ---
[15]
Power
Supply
CBA
D8
2(S-23), 2(S-24),
2(S-25), *CN2501,
Power PCB Holder
---
[16] AV CBA D8 7(S-26), *CN2503 ---
[17]
Sub
Microcontro
ller CBA
D9 4(S-27) ---
[18] Pedestal D9 3(S-28) ---
p
(1)
p
(2)
p
(3)
p
(4)
p
(5)

12
DVD-2500BTCI
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
About tightening screws
When tightening screws, tighten them with the
following torque.
Reference Notes
1. CAUTION 1: Locking Tabs (L-1) and (L-2) are
fragile. Be careful not to break them.
1) Release three Locking Tabs (L-2).
2) Disconnect connectors CN2001, CN4002, then
remove the Front Assembly.
2. CAUTION 2: When installing the BE Main CBA
Unit with a screw, hold and press the BE Main
CBA Unit to align the HDMI connector with the
connector’s hole for HDMI on the Rear Panel.
Torque
0.45 ± 0.05 N·m
(S-2)
(S-2)
(S-1)
(S-1)
(S-1)
(S-1)
(S-1)

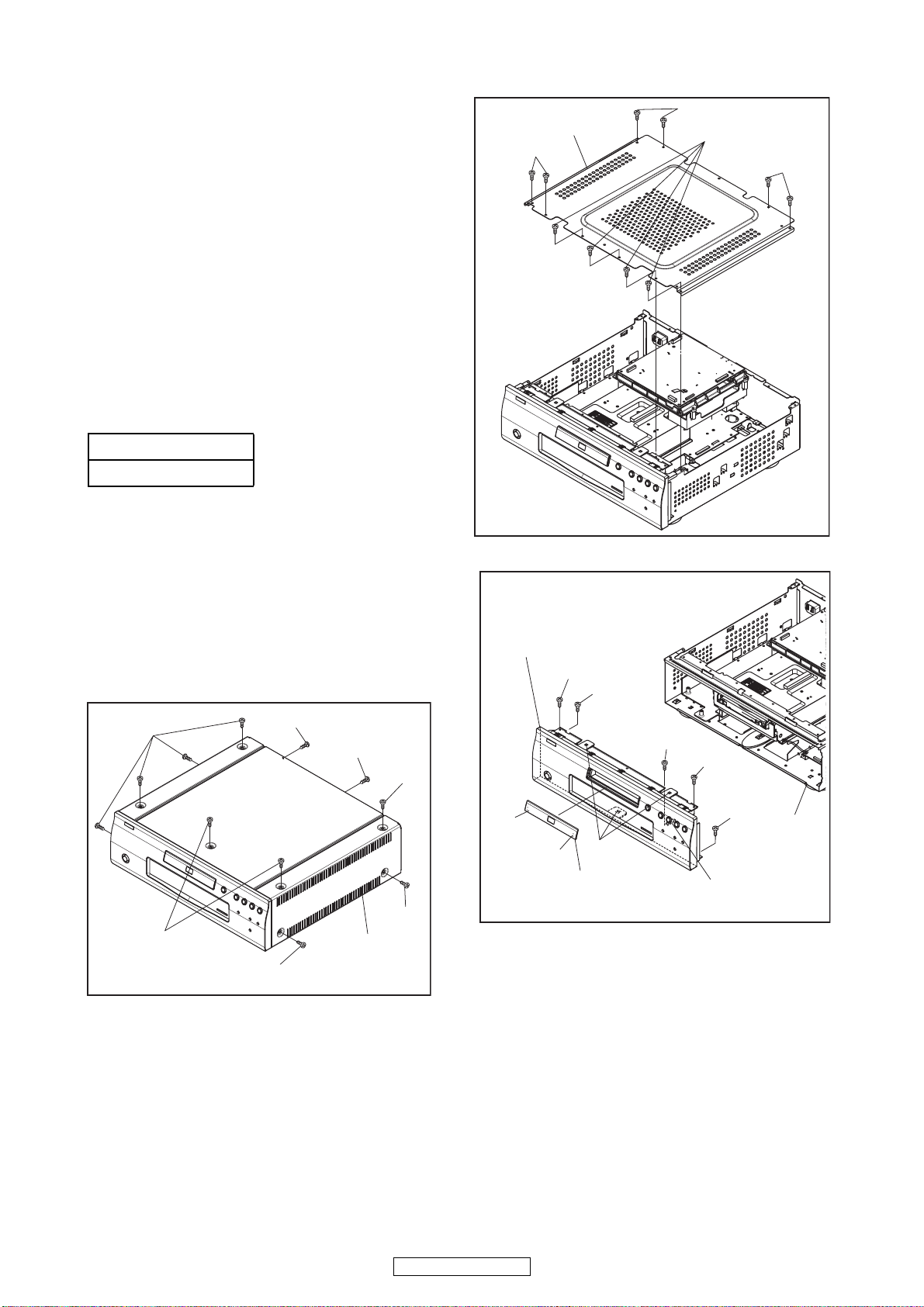

Fig. D1
[1] Top Cover
(S-3)
(S-3)
(S-3)
(S-3)
[2] Top Panel
Fig. D2
CN2001
CN4002
(L-2)
(S-5)
(S-5)
(S-4)
(L-1)
(L-1)
(S-4)
(S-5a)
[4] Front Assembly
[3] Tray Panel
Fig. D3

13
DVD-2500BTCI
(S-6)
(S-6)
(S-7)
(S-8)
Lead with
blue stripe
Desolder
[6] Power SW CBA
[7] SD CBA
SD PCB
Holder
[5] Front CBA
Fig. D4
(S-10)
(S-10)
(S-11)
(S-12)
(S-13) (S-14)
(S-15)
(S-15)
(S-15)
CN1003
[9] Rear Panel
(S-9)
(S-9)
[8] Front Bracket
Fig. D5
(S-16)
(S-16)
(S-17)
(S-17)
(S-17)
(S-18)
(S-18)
(S-18)
CN6401
BE Scaler
Holder
BE Scaler
Sub Holder
CN7001
CN7401
Fig. D6
[10] BE Main
CBA Unit
(S-19)
(S-19)
(S-19)
(S-20)
(S-20)
(S-21)
CN2500
CN2601
[11] FE Main CBA &
BD Mechanism Assembly
[12] Fan Holder
[13] Fan Motor
Fig. D7

14
DVD-2500BTCI
4. How to Eject Manually
1. Remove the Top Cover and the Top Panel.
2. Insert a screwdriver, etc. into the Hole A straightly so that the Portion A is pushed.
3. Pull the tray out manually and remove a disc.
(S-22)
(S-22)
(S-23)
(S-24)
Power PCB
Holder
RS232C
Holder
(S-24)
(S-26)
(S-26)
(S-25)
CN2551
CN2501
CN2503
Fig. D8
[14] RS232C CBA
[15] Power Supply
CBA
[16] AV
CBA
(S-27)
Wire
(S-28)
Fig. D9
[17] Sub
Microcontroller
CBA
[18] Pedestal
Portion A
Hole A
Screwdriver,
hexagon wrench

15
DVD-2500BTCI
View from the bottom
Cautions concerning the structure
The chassis touches the patterns on the circuit board at 6 points, but these patterns are all ground patterns,
so performance is not affected.

16
DVD-2500BTCI
HOW TO INITIALIZE THE BLU-RAY DISC PLAYER
To put the program back at the factory-default,
initialize the BD player as the following procedure.
1. Turn the power on by pressing the [POWER]
button and the tray will close.
2. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. a appears on the screen.
3. Press [STOP] button on the remote control unit.
Fig. b appears on the screen and Fig. c appears
on the VFD.
4. To exit this mode, press [POWER OFF] button.
Fi
g
. a
"*******" differ depending on the models.
MODEL : *******
Version : *.***
Region : * / *
EXIT: POWEREEPROM CLEAR : STOP
Fi
g
. b
"*******" differ depending on the models.
MODEL : *******
Version : *.***
Region : * / *
EXIT: POWEREEPROM CLEAR : STOP
EEPROM CLEAR : OK
Fig. c

17
DVD-2500BTCI
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the BD player into version up mode, press
[9], [8], [7], [6], and [MENU/POP MENU] buttons
on the remote control unit in that order. The tray
will open automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.
The BD player can also enter the version up mode
with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.
3. Load the disc for version up.
4. The BD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.
The appearance shown in (*1) of Fig. c is
described as follows:
5. After programming is finished, the checksum on
the VFD (Fig. f).
At this time, no button is available.
6. Unplug the AC cord from the AC outlet. Then plug
it again.
7. Turn the power on by pressing the [POWER ON]
button and the tray will close.
8. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. g appears on the screen.
F/W VERSION UP MODE Model No : ******* VERSION : *.***
Please insert a DISC
for F/W Version Up.
"*******" differs depending on the models.
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
F/W VERSION UP MODE Model No : ******* VERSION : *.***
1. ALL
"*******" differs depending on the models.
Fig. c Programming Mode Screen (Example)
Now Loading...
(*1)
VERSION : *.** ************A*.bin
Fig. d VFD in Programming Mode (Example)
No. Appearance State
1 Now Loading... Loading the disc
2 Reading...
Sending files into the
memory.
After reading, automatically
the tray opens.
3Remove the
disc
Reading has finished.
Remove the disc and close
the tray.
4 See FL display Writing new version data, the progress will be displayed
as shown in Fig. e.
Fig. e VFD in Version Up Mode
Fig. f VFD upon Finishing the Programming Mode (Example)
Fig. g
"*******" differ depending on the models.
MODEL : *******
Version : *.***
Region : * / *
EXIT: POWEREEPROM CLEAR : STOP

18
DVD-2500BTCI
9. Press [STOP] button on the remote control unit.
Fig. h appears on the screen and Fig. i appears on
the VFD.
10. To exit this mode, press [POWER OFF] button.
Fig. h
"*******" differ depending on the models.
MODEL : *******
Version : *.***
Region : * / *
EXIT: POWEREEPROM CLEAR : STOP
EEPROM CLEAR : OK
Fig. i

19
DVD-2500BTCI
SERVICE MODE
Service Mode
Note: If some test are performed continuously, any error will occur.
1st level 2nd level 3rd level Description
1 Mecha test
1 Tray Aging Aging of tray open/close
2 TOC Read TOC reading
3HeatRun Tray close -> TT1 playback -> TT10
playback -> Tray open -> Tray close
2 VFD/LED Test 1 All On Turning on all VFD
2 All Off Turning off all VFD
3ErrorRate Displaying Error rate, Jitter
during playback
4LDTest
1LDPower
1 Off Turning off LD
2 BD Turning on BD LD
3 DVD Turning on DVD LD
4 CD Turning on CD LD
2 Operating Time Displaying LD Operation Time
(with clear function)
5 Channel Level
1TESTTONE
1
Center/
Subwoofer/Front
LR
2Surround LR/
Surround Back LR
2 Front Lch
3Center
4FrontRch
5 Surround Rch
6Surround Back
Rch
7Surround Back
Lch
8 Surround Lch
9 Sub woofer
6 RS-232C
1 Parity Setting 1 Even Setting even parity
2 Non Setting non parity
2 Version Up Mode Realta Version up with connecting
RS-232C
7 SD Card Test
8 Default Setting Default setting

20
DVD-2500BTCI
Entering Service Mode
In power on condition, no discs and tray close, it will be entered into service mode by the following operation using
the remote controller. However, it will not be entered when Media Select Item is SD Memory.
Service Mode by using remote controller
Press the following buttons on the remote controller in power on condition, no discs and tray close;
[2]->[5]->[8]->[0]->[CLEAR]
Release from Service Mode
Press the [POWER OFF] button to turn off power.
Screen saver/Auto Power Off in Service Mode
These functions are not performed in Service Mode.
After entering, Fig. j appears on the screen and Fig. k appears on the VFD.
Available button in service mode
Note:Press the number key to select items. Or, press the cursor button (up/down) to select items and press
[ENTER] button.
Button condition
ENTER Enter the next level
POWER Turn the power off (when the service mode is completed)
1~8 Enter the selected item (next level)
OTHER Not available
INDICATION DESCRIPTION REMARK
Model Name Model Name E5E***D, etc.
Region BD region - DVD region A-1, etc.
Rel. Ver. Release version
Service Mode
1. Mecha Test
2. VFD/LED Test
3: Error Rate
4: LD Test
5: RS-232C
6: Channel Level
7: SD Card Test
8: Default Setting
Model: :E5E**UD Region :A-1
Release Ver. :*.***
ADSP1/2 Ver.: ----/---- PLD Ver. :-
FPGA Ver.:-- I/P Scaler Ver.:-----
Fig. j Service Mode (Main menu)
* Firmware Version differs depending on the
models, and this indication is one example.
Fig. k Service Mode
