DentaSonic IPR-EVO User manual

1
SWISS IPR
INNOVATION
Universal
brushless motor for:
• IPR
• Finishing, Polishing
Feautures:
• Torque sensor
• Acustic alarm
IPR-EVO
®
interproximal reduction
evolution
PATENT PENDING
Short
Instruction
of use

2
UNIVERSAL USE
Polishing
Program
Suitable for all nishing, and polishing
strips and discs with RA shank (2,35mm
contrangle).
IPR
Program
Suitable for DentaSonic DiaStrip, and all
automatic strip on the market today

3
Foreword 4
Notice and Caution 5
01 Introduction 6
02 IPR-EVO Multitalend 8
03 Technical details 9
04 Operation panel introduction 10
IPR Program 11
05 Troubleshooting 12
06 Maintenance 12
Content

4
Foreword
Thanks for using the cordless endo motor. For the sake of safety and efcient using
of this product, please read this manual carefully.
This equipment meets the national standard: GB9706.1 M2007, medical electrical
equipment Part 1 and general requirements for safety.
Protection against electrical shock: class Il, type B We’ll take the responsibility for the
product’s safety, reliability and property under the following conditions:
1. lnstallation, commissioning and maintenance of the equipment should operate
by professionals approved by our company or who gain national appropriate
level qualications.
2. This equipment should be operated by qualied or approved personnel.
Operator should have specialized medical application skills, and work follow
the manual.
3. The equipment can’t be used in the environment with ammable anesthetic
gases mixed with air or nitrous oxide.
This device is a dental instrument, besides dental treatment, please don’t use it.
Our company reserves the right to modify the design, technology, accessories, manual
and package content for this equipment. Please prevail in kind. If there is difference
between pictures and object, please make the object as the standard.

5
Notice
(The following conditions are not covered by the company’s warranty)
1. Faults and damage caused by maintenance without authorization.
2. Faults and damage due to any Retting are unauthorized.
3. Faults and damage result from factor of other company’s products.
4. Faults and damage result from using non specied spare parts when
maintaining equipment.
5. Fault and damage because of failure to comply with the precautions and operation
method described in the manual.
6. Faults and damage due to inappropriate environment for operation,
such as the environment for supply, installation etc.
7. Faults and damage caused by earthquakes, oods, lightning and other
irresistible factors.
8. The user did not install and use base on the electromagnetic compatibility
information provided in the random le
9. Use due to strong electromagnetic interference, such as close to the mobile phone,
microwave oven and other portable and mobile RF communication equipment may
affect the IPR-EVO 1 performance.
Caution
The equipment or system shall not be used close to or stacked with other equipment.
If it must be used close to or stacked, it shall be observed and veried to work properly
in the conguration used.
In addition to transducers and cables sold by the manufacturer of the equipment or
system as spare parts for internal components, the use of non-prescribed accessories,
transducers and cables may result in increased emission or reduced immunity of the
equipment or system.
Use with equipment and systems of non-specied accessories, transducers or cables
may result in increased emission or reduced immunity of equipment or systems.

6
01 Introduction
Cordless IPR motor is a professional equipment for interproximal treatment.
It converts electrical energy into mechanical energy, and then controls the rotation
and transmission through the motor. It uses micro motor to achieve the purpose
of expanding the approximal enamel treatment. Cordless hand piece delivers freedom
of movement.
Features
1. Lightweight, ergonomic design, easy to carry.
2. With 1:1 electric contra angle.
3. The equipment will auto-reverse or auto reverse & stop, auto-stop according
to different torque and resistance.

7

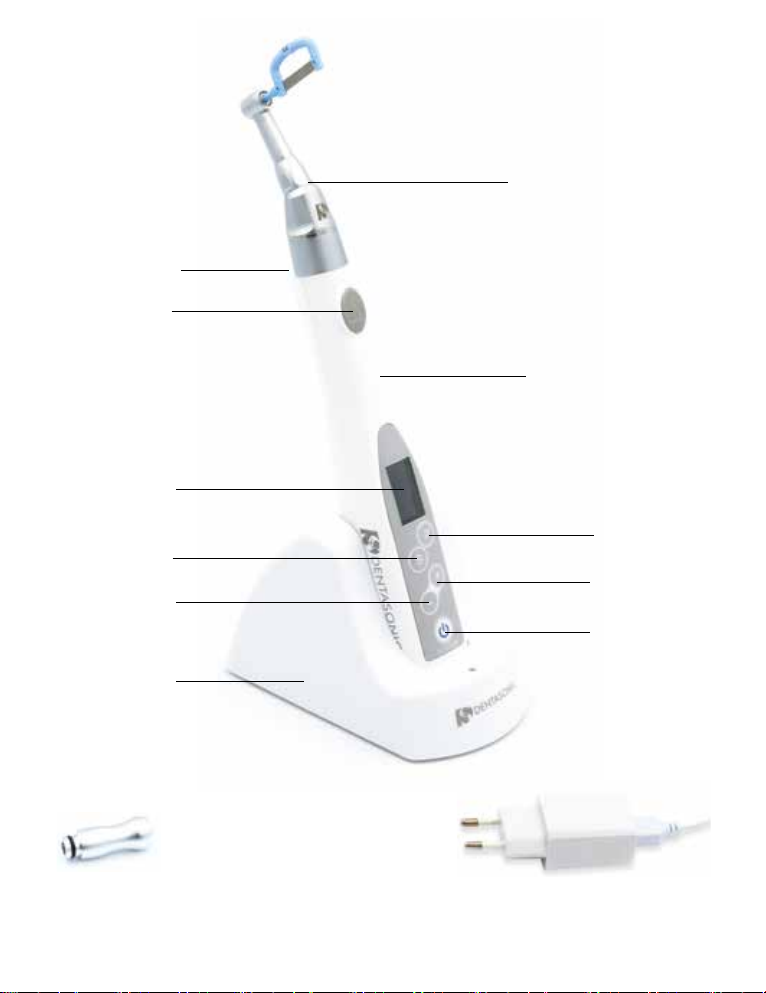

LED Light
Motor switch
LCD Screen
IPR Head 1.1
Spray Nozzle
Adapter /Plug
Main unit
Function key
Minus Plus
program key
Power
ON/OFF
Charger
bases

8
RA contra-angle
rotating head 16:1
and 1:1 can also be
used with LED light
Name: IPR-EVO IPR-EVO Head Endo Head Finishing Head
Article Ref. IPR-EVO1 IPR-H1 EH-2 FP-3
Light: – no yes yes
Stroke / movement: rotating 0.9mm reciprocating rotating rotating
Transmission Ratio: silver (ring) 1:1 green (ring) 16:1 silver (ring) 1:1
Speed: 140 - 600 min-1 max 4'000 min-1 140 - 600 min-1 max 3'000 min-1

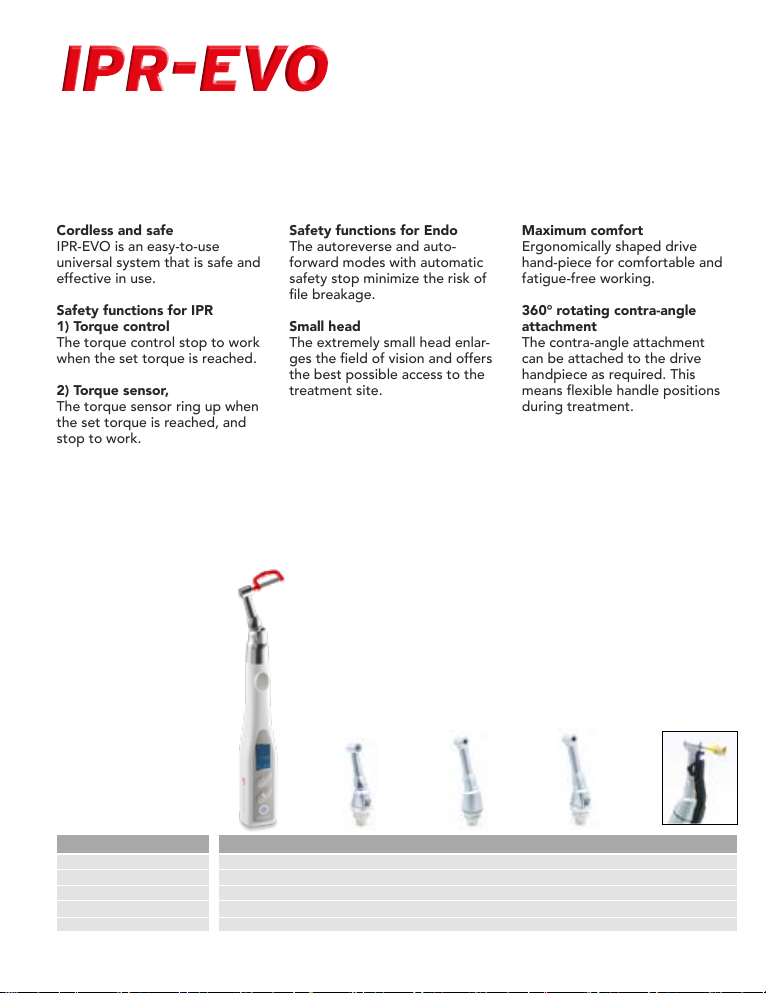

Cordless and safe
IPR-EVO is an easy-to-use
universal system that is safe and
effective in use.
Safety functions for IPR
1) Torque control
The torque control stop to work
when the set torque is reached.
2) Torque sensor,
The torque sensor ring up when
the set torque is reached, and
stop to work.
Safety functions for Endo
The autoreverse and auto-
forward modes with automatic
safety stop minimize the risk of
le breakage.
Small head
The extremely small head enlar-
ges the eld of vision and offers
the best possible access to the
treatment site.
Maximum comfort
Ergonomically shaped drive
hand-piece for comfortable and
fatigue-free working.
360° rotating contra-angle
attachment
The contra-angle attachment
can be attached to the drive
handpiece as required. This
means exible handle positions
during treatment.
interproximal enamel reduction evolution
IPR-EVOIPR-EVO
02 Multitalent IPR-EVO The evolution in IPR
03 Technical details

9
RA contra-angle rotating head 1:1. Speed, Torque, Working mode can be adjusted.
Speed: 1400-2000 rpm adjustable Torque: 0.6-4.0N.cm adjustable
IPR-EVO reciprocating head 1:1. Speed, Torque, Working mode can be adjusted.
Speed: 1400-5000 rpm adjustable Torque: 0.6-4.0N.cm adjustable
PATENT PENDING

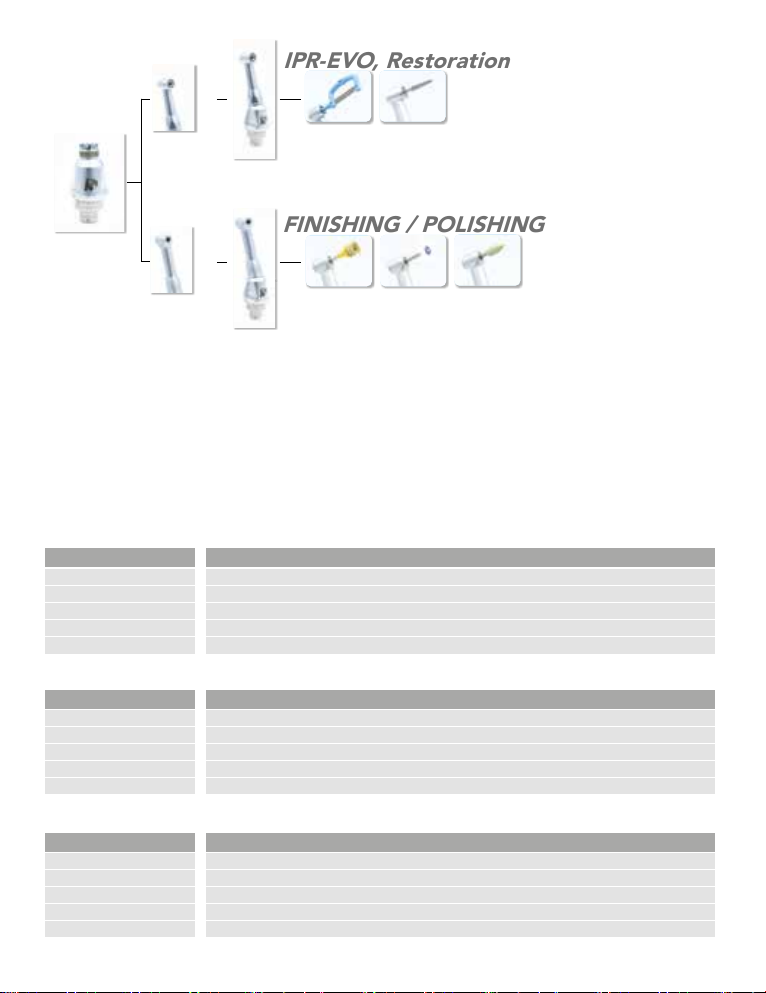

FINISHING / POLISHING
Brushes Discs Polishers
All DiaStrip All Proxo le
IPR-EVO
reciprocating head
1:1
compatible with all automatic
strips and other brands like
(Dentsply, Dentatus, Intensiv).
reciprocating head
push botton rotating head
IPR-EVO, Restoration
IPR-EVO handpiece drive
Battery type: Li-ion
Battery voltage: 3.7 V
Rated capacity: 1050 mAh
Torque range / Torque stages 0.6 – 4.0 Ncm / 0.6 / 0.7/ 0.8 / 0.9 / 1.0 / 1.1 / 1.2 / 1.3 / 1.4 / 1.5 / 1.6 / 1.7 / 1.8 / 2.0 until 4.0 Ncm
Weight: 120 g
EH-2 contra-angle head
Transmission ration: 16:1
Coupling system: Dentasonic coupling
Recommended root canal instruments: Files for rotary root canal preparation at 300 min-1 with a shaft of Ø 2.35 mm
Weight: 20g
Hygene: thermo washer disinfectable / sterilizable
Charging station
Main voltage: 100-240V 50/60Hz standart EU for US plug, please ask
Permissible voltage uctuation: +/- 10%
Frequency: 50 – 60 Hz
Power: 5W
Weight: 60g

10
04 Operation panel introduction
POWER ON/OFF button
Power ON: Press the POWER ON/OFF button more than 2 second to turn
on the equipment.
Power OFF: Press the POWER ON/OFF button again to turn off the equipment.
Motor switch
After turn on the equipment, press motor switch start to work. Press It again, the motor
wlll stop.
Function key----S
Press function key, can be adjusted speed, Torque and Working mode
Order is: Speed(SP)----Torque(TQ)----
Working mode--- Save
When the option ickers, the data can be adjusted. When setting the data, press Sto
save the data in the current program number.
Program key-----P
Press”P”, working program is Selectable (P1-P9)
Unit of per mode: Speed: rpm Torque: N•cm
This instrument is equipped with 1:1 IPR angle head
Please select according to the following range of angle head parameters:
Speed (rpm): 140~600
Radio: 1:1
Torque (N•cm): 0.6~4.0
TQ
P1
8
This instrument is equipped with 16:1 angle head.
Please select according to the following range of angle
head parameters:
Speed（rpm）Radio Torque（N•cm）
~ 006041 16:1 0.6~4.0

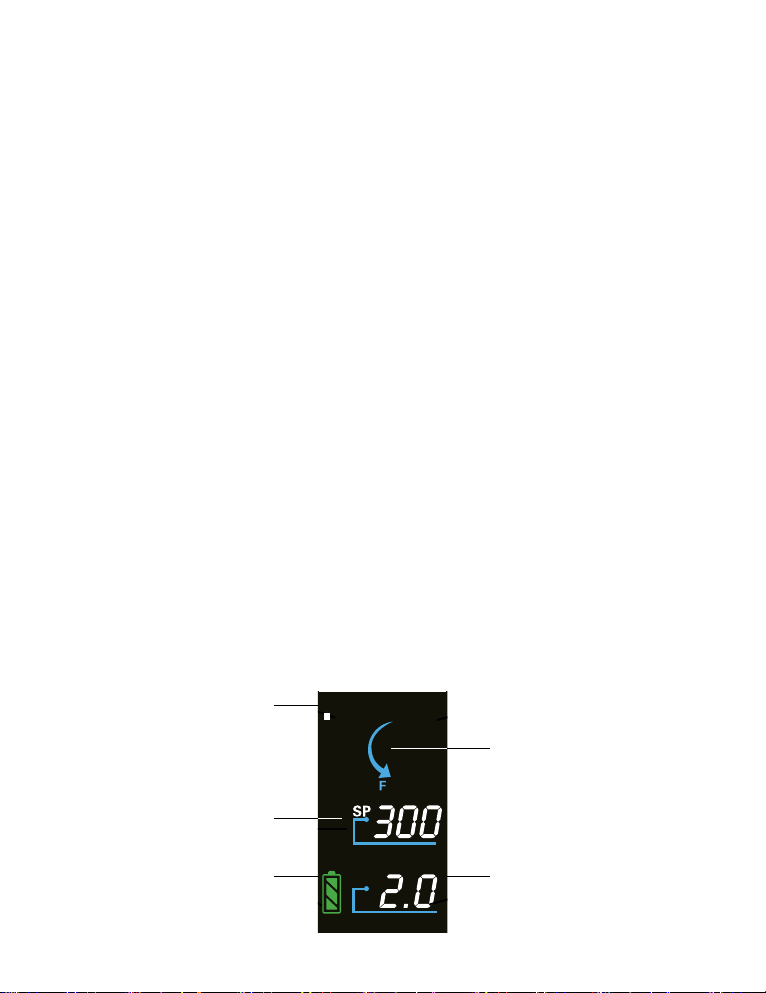

Program
Speed
Battery status
Working mode
Torque
9
POWER ON/OFF button
Power ON: Press the POWER ON/OFF button
morethan 2 second to turn onthe equipment.
Power OFF: Press thePOWER ON/OFF button
again to turn off the equipment.
Motor switch
After turn onthe equipment, press motor switch
startto work. Press Itagain, the motor wlll stop.
Function key----S
Press function key,can beadjusted speed,Torque
and Working mode
Order is: Speed(SP)----Torque(TQ)----
Working mode--- Save
When the option flickers, the data can beadjusted.
When setting the data, press S to savethedata in
the current program number.
Program key-----p
Press"P",working program is Selectable(P1-P9)
Unit of per mode: Speed : rpm; Torque : N•cm
Torque
Working Mode
Program
Speed
Battery status

11
IPR Head Usage Program: P2 (adjustable IPR Program)
Program Code: P2 IPR-Low
Speed, Torque, Working mode can be adjusted.
Speed: 200-300rpm adjustable
Torque: 2.5-4N.cm adjustable
Working mode
Stop working with acustic alarm when
the resistance exceeds the setting torque.
P2
Program code: P2 IPR-Low
Speed, Torque, can be adjusted.
Speed: 200 - 300rpm are low
Torque: 1.5 - 2.5N.cm adjustable light pressure
Program code: P2 IPR-Medium
Speed, Torque, can be adjusted.
Speed: 250 - 400rpm adjustable are medium
Torque: 2 - 3.5N.cm adjustable medium pressure
Program code: P2 IPR-High
Speed, Torque, can be adjusted.
Speed: 200 - 500rpm adjustable are high
Torque: 2.5 - 4N.cm adjustable strong pressure
Finishing Usage Program: P3
Program Code: P3 Finishing, Polishing
Speed, Torque, Working mode can be adjusted.
Speed: 200-400rpm adjustable
Torque: 0.6-2N.cm adjustable
Working mode
Stop working with acustic alarm when
the resistance exceeds the setting torque.
Program code: P3 Contouring, Finishing, Polishing
Speed, Torque, Working mode can be adjusted.
Speed: 200-400rpm adjustable
Torque: 0.6-4N.cm adjustable
P3
TQ
P1
Program Code：-P1 P9
Program code:P7
Speed can be adjusted
Torque:-----
Working mode:Reverse mode,when
encountering resistance,speed-up
and increase the torque. When the
resistance is too large, stop working,
the resistance decreases, and restart
10
Program code:P8
Speed:140-600rpm adjustable
Torque:-----
Working code:Forward working,
When encountering resistance,
speed up and increase the resistance.
When the resistance is too large, stop
working, the torque encountered
decreases, and restart the work.
Program code:P9
Speed:160-300rpm adjustable
Torque:----
Working mode:Forward 45°,reverse 135°
11
TQ
P7
TQ
P9
TQ
P8
45
Program Code:P1-P6
Speed,Torque,Working mode can
be adjusted
Speed:140-600rpm adjustable
Torque:0.6-4.0N.cm adjustable
Keep running then stop when the
resistance exceeds the setting torque.
In forward mode,auto-reverse
when the resistance exceeds the setting
torque.
Working mode: Stop working when
the resistance exceeds the setting torque.
TQ
P1
Program Code：-P1 P9
Program code:P7
Speed can be adjusted
Torque:-----
Working mode:Reverse mode,when
encountering resistance,speed-up
and increase the torque. When the
resistance is too large, stop working,
the resistance decreases, and restart
10
Program code:P8
Speed:140-600rpm adjustable
Torque:-----
Working code:Forward working,
When encountering resistance,
speed up and increase the resistance.
When the resistance is too large, stop
working, the torque encountered
decreases, and restart the work.
Program code:P9
Speed:160-300rpm adjustable
Torque:----
Working mode:Forward 45°,reverse 135°
11
TQ
P7
TQ
P9
TQ
P8
45
Program Code:P1-P6
Speed,Torque,Working mode can
be adjusted
Speed:140-600rpm adjustable
Torque:0.6-4.0N.cm adjustable
Keep running then stop when the
resistance exceeds the setting torque.
In forward mode,auto-reverse
when the resistance exceeds the setting
torque.
Working mode: Stop working when
the resistance exceeds the setting torque.
TQ
P1
Program Code：-P1 P9
Program code:P7
Speed can be adjusted
Torque:-----
Working mode:Reverse mode,when
encountering resistance,speed-up
and increase the torque. When the
resistance is too large, stop working,
the resistance decreases, and restart
10
Program code:P8
Speed:140-600rpm adjustable
Torque:-----
Working code:Forward working,
When encountering resistance,
speed up and increase the resistance.
When the resistance is too large, stop
working, the torque encountered
decreases, and restart the work.
Program code:P9
Speed:160-300rpm adjustable
Torque:----
Working mode:Forward 45°,reverse 135°
11
TQ
P7
TQ
P9
TQ
P8
45
Program Code:P1-P6
Speed,Torque,Working mode can
be adjusted
Speed:140-600rpm adjustable
Torque:0.6-4.0N.cm adjustable
Keep running then stop when the
resistance exceeds the setting torque.
In forward mode,auto-reverse
when the resistance exceeds the setting
torque.
Working mode: Stop working when
the resistance exceeds the setting torque.

12
05 Troubleshooting
If the product is found to be in abnormal operation during use, please refer
to the following methods for maintenance and adjustment.
Problem Reason & Solution
Doesn’t work: 1. Nopower, please charge it.
2. Press the ON/OFF button in short time, please
press the ON/OFF button more than 2 seconds.
3. POWER ON/OFF button is broken:
please contact the dealer or manufacturer.
No charging display: 1. Doesn’t connect well with adapter,
please pull out and try it again.
2. There are other things in the bottom
of the machine or changing base, please clean it.
3. Doesn’t put the main unit in the right place
of the charging base.
If the above methods are still not working properly, please contact the dealer
or our company.
06 Maintenance
If not using for a long time, when you reuse it, please check it works normally and safely
or not. If not using for a long time, please make sure to charge it every month, in order
to protect the working life of the battery.
From the purchasing date, the working life is about 5 years.
Please clean the surface of the main unit by soft cloth with neutral detergent,
and then using wet cloth to clean it.
Note: It is forbidden to wipe the banana oil, oil (light gasoline) and so on. Do not put the
machine in the sun or near the re, so as not to cause battery explosion.
If the instrument reaches the service life and the parts are damaged and scrapped,
it should be handled according to the local medical equipment scrapping regulations.

13
Contra angle head

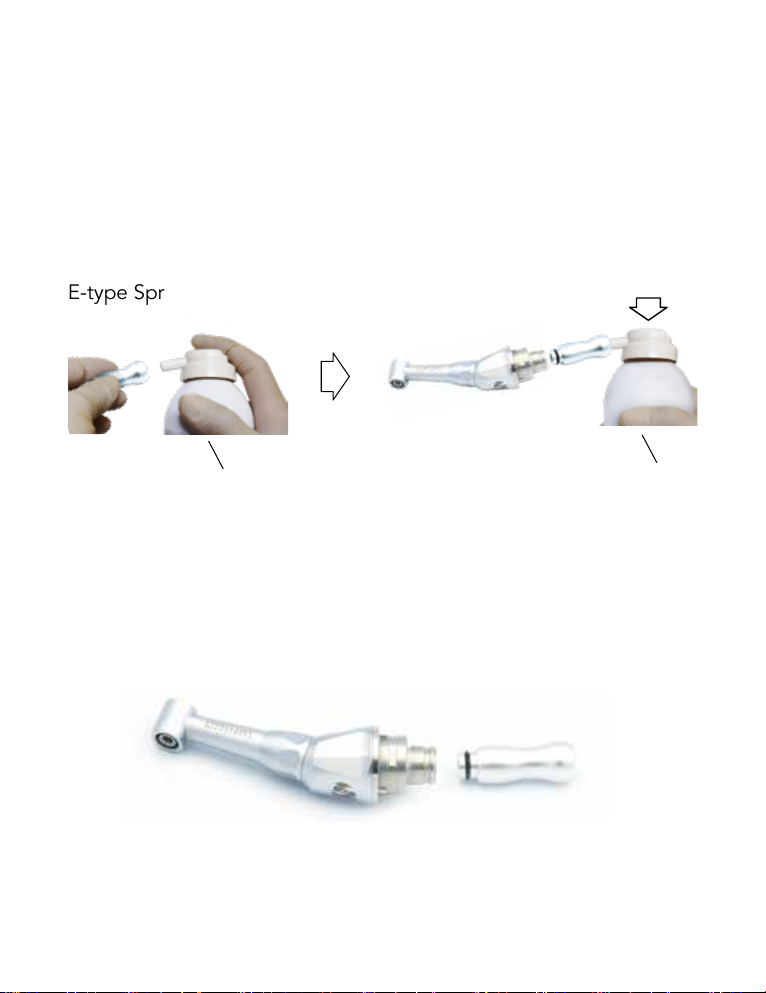

1. Lubricating:Twist the nozzle into the oil outlet of the spray lubricant, remove the
le from the angle, as shown in Pic 12, insert the outer sheath of the angle, and
spray inwardly shoot for at least 2-3 seconds, until the oil comes out of the IPR head,
keep the Spray can upright.
2. After that, remove the spray nozzle and clean with a paper towle the head.
3. Autoclave the head for 12 min at 135°C.
Note: it is recommended to use “disassemble” cleaning and maintenance method
every time. After the contra angle is reloaded, please load the motor and run for 1
minute to ensure the uniform distribution of lubricating oil.
pic. 12
¡Incasethesterilizerchambertemperaturecouldexceed
135℃duringthedrycycle,skipthedrycycle.
¡Alwaysplacethehandpieceinthecenteroruppershelf
ofthechamber,asthelocaltemperatureatthebottom
ofchambercouldrisebeyondthesetvalue.
3．Sterilization
 Steamautoclaveisrecommended.
AutoclaveProcedure:
 ① Scrubdirtanddebrisfromthehandpiece,andwipeclean
withalcohol-immersedcottonswaborcloth.Donotusea
wirebrush.
 ② LubricatewithPANA-SPRAYorLubricantoil.Referto２.
Lubrication.
 ③ Insertintoanautoclavepouch.Sealthepouch.
 ④ Autoclavefor20min.at121℃（103KPa）or15min.at
132℃（186KPa）.
４．Warranty
 NSKwarrantsthehandpieceagainstpoormanufacturing,poor 
workmanshipanddefectsinmaterials.NSKreservestheright
toanalyzeanddeterminethecauseofanyproblem.

Warrantyisvoidedshouldthehandpiecebenotusedcorrectly .

Replacementpartsareavailablefor７yearsbeyonddiscontinua- 
tionofthemodel.
E-typeSprayNozzle
PANA-SPRAY
Handpiece
Fig.2
PANA-SPRAY
¡Besuretoholdthehandpiecefirmlytopreventthe 
handpiecefromslippingoutbythespraypressurewhen
lubricating.
¡Supplylubricantuntilitcomesoutofthehandpiecenose
(forapprox.2seconds).
¡KeepthePANA-SPRAYcanupright.
04.01.005◯
Ｍ
¡Incasethesterilizerchambertemperaturecouldexceed
135℃duringthedrycycle,skipthedrycycle.
¡Alwaysplacethehandpieceinthecenteroruppershelf
ofthechamber,asthelocaltemperatureatthebottom
ofchambercouldrisebeyondthesetvalue.
3．Sterilization
 Steamautoclaveisrecommended.
AutoclaveProcedure:
 ① Scrubdirtanddebrisfromthehandpiece,andwipeclean
withalcohol-immersedcottonswaborcloth.Donotusea
wirebrush.
 ② LubricatewithPANA-SPRAYorLubricantoil.Referto２.
Lubrication.
 ③ Insertintoanautoclavepouch.Sealthepouch.
 ④ Autoclavefor20min.at121℃（103KPa）or15min.at
132℃（186KPa）.
４．Warranty
 NSKwarrantsthehandpieceagainstpoormanufacturing,poor 
workmanshipanddefectsinmaterials.NSKreservestheright
toanalyzeanddeterminethecauseofanyproblem.

Warrantyisvoidedshouldthehandpiecebenotusedcorrectly .

Replacementpartsareavailablefor７yearsbeyonddiscontinua- 
tionofthemodel.
E-typeSprayNozzle
PANA-SPRAY
Handpiece
Fig.2
PANA-SPRAY
¡Besuretoholdthehandpiecefirmlytopreventthe 
handpiecefromslippingoutbythespraypressurewhen
lubricating.
¡Supplylubricantuntilitcomesoutofthehandpiecenose
(forapprox.2seconds).
¡KeepthePANA-SPRAYcanupright.
04.01.005◯
Ｍ
E-type Spray Nozzle
PANA-SPRAY PANA-SPRAY
Spray Nozzle

DS DentaSonic SA • Via Piodella 12 • CH-6933 Muzzano • Switzerland
Tel. [phone] • [e-mail] • www.denta-sonic.com
FDA Owner Operator Number: 10051861
DS-V1- 3.2023-EN, © Rekdesign
0598
European representative:
Quaser S.r.l., Via Aprutina 152, 62018 Potenza Picena (MC), Italy
You must report us any serious incidents occurring in connection with the medical de-
vice we suppied, as also to the competent authority of the member state in which you
are located.
