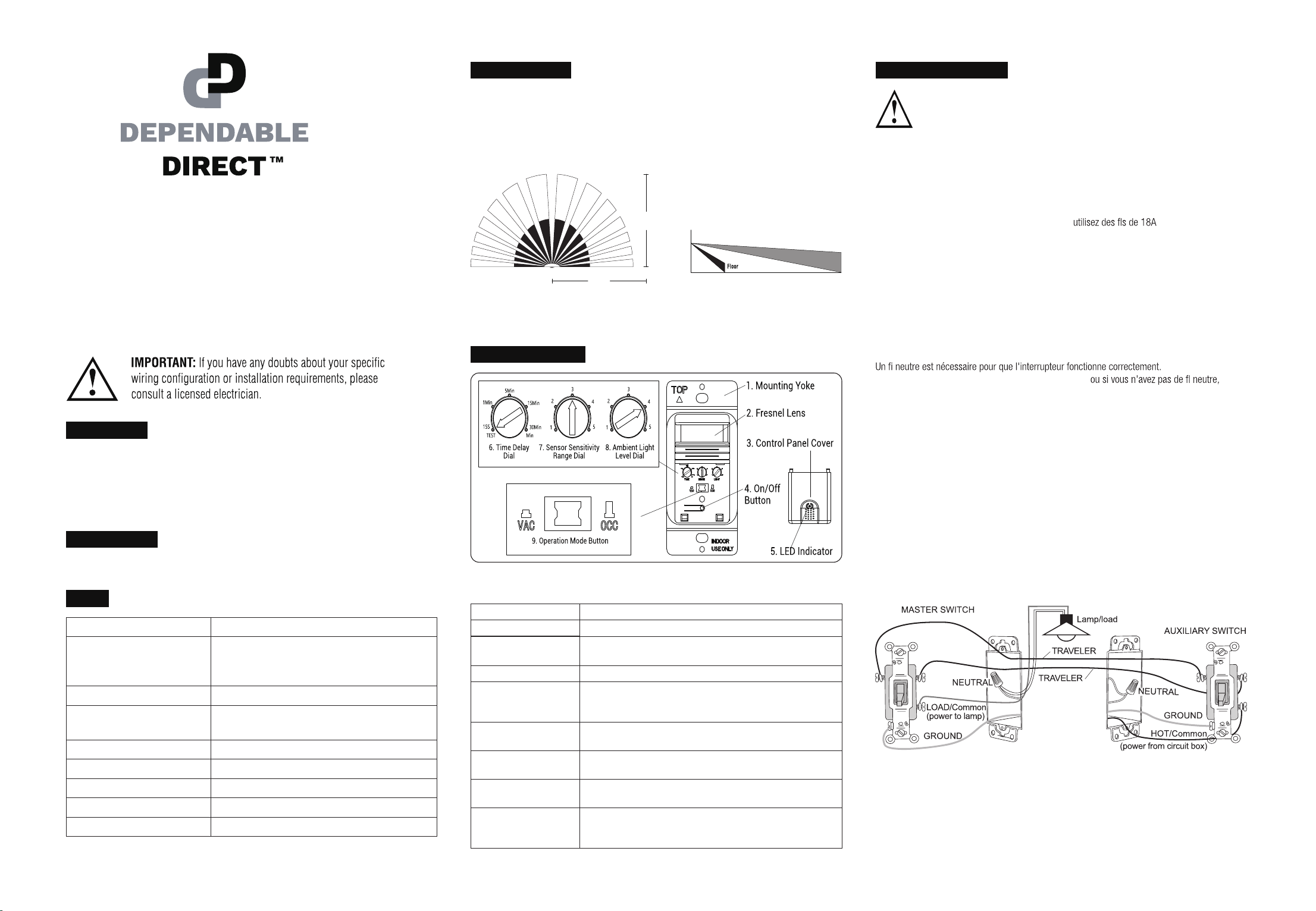

DEPENDABLE DIRECT YT-C2 Series User manual
SPECS
120V/277VAC, 60Hz
120V 800W Incandescent Lamp
800VA Fluorescent Lamp (Rapid Start)
277V 1200VA Fluorescent Lamp (Rapid Start)
1/6 hp
Preset intervals of 15 sec (Test),1 min,
5 min, 15 min, and 30 min
Indoor use only
32˚ to 131˚F (0˚ to 55˚C)
95% RH, non-condensing
180˚ (at optimal temperature of 20˚ to 25˚C)
720 ft 2 (47m2 )
Voltage
Max Lamp Load
Max motor load
Time Delay Adjustment
Environment
Operating Temperature
Humidity Range
Coverage Range
Coverage Area
TOOLS NEEDED
You will need an insulated fathead screwdriver, wire strippers, and a small athead screwdriver
to adjust the sensor dials.
DESCRIPTION
COVERAGE AREA
Figure 1: Sensor coverage area
(top view)
30ft
(9.1m)
12ft
(3.7m)
30ft
(9.1m)
4ft
(1.2m)
6ft
(1.8m)
Figure 2: Sensor coverage area
(side view)
BEFORE INSTALLATION
IMPORTANT:
A neutral wire is required for the switch towork properly. If the existing wiring does not match
thedescription for a two-pole circuit, or if you do not have aneutral wire, consult a qualifed
electrician.
IMPORTANT:
Si le câblage existant
ne correspond pas à la description d'un circuit bipolaire,
consultez un électricien qualifé.)
SWITCH OVERVIEW
Figure 3: YT-C2 Series sensor switch diagram
9. Operation Mode
Button
The sensor has two positions that correspond to operation modes:
vacancy (when the button is pressed) and occupancy (when the
button is released).
3. Control Panel
Cover
4. On/Off Button
5. LED Indicator
6. Time Delay Dial
7. Sensor Sensitivity
Range Dial
8. Ambient Light
Level Dial
Covers the switch’s adjustment dials. Remove the cover to see
the dials.
Lets you turn the light or fan on or off.
Indicates when the sensor detects motion. The green LED lights
the On/Off button while the lights or fan are off. When they are
on, the LED turns off.
Controls how long the light or fan stays on after no motion is
detected.
Adjusts the sensitivity setting to avoid unwanted detection
such as hallway traffc or adjacent movement.
Prevents the sensor from automatically turning the lights or
fan on if the area has enough ambient lighting.
1. Mounting Yoke
2. Fresnel Lens
Lets you mount the switch to the wall.
Detects motion.
●These instructions describe only the 3-way circuit applications.
●For information about other applications,
●consult technical support.
1. Prepare the switch box
●After the power is turned OFF at the circuit breaker box,remove the existing wall plate and
mounting screws. Pull the old switch out from the wall box.
2. Identify the type of circuit
●You may connect the YT-C2 to a single pole or multi-way circuit. If you are unable to clearly
identify some or all of the wires mentioned in this manual, you should consult with a qualifed
electrician.
●In a 3-way circuit (see Fig. 4), two traveler wires connect to both switches. Another wire provides
power from the circuit box to one of the switches. A wire connects from one switch to the load.
A ground wire may also be connected to a ground terminal on the old switches. A neutral wire
should also be present in both wall boxes.
Figure 4: Typical 3-way switch wiring
The YT-C2 Series sensor switch is designed to replace a standard light or fan switch. This device
can automatically turn lights or a fan on and off by detecting motion from a heat-emitting source
such as a person entering an area. The lights or fan will stay on until no motion is detected and
the time delay has expired. This product offers optimal coverage for random traffc areas such
as hallways, stairways, or large spaces with multiple entries. Use indoors only.
●The sensor must have a clear and unobstructed view of the area. If an object blocks the
sensor’s lens, the sensor may not detect motion and may turn the lights or fan off even if
someone is in the area. Windows, glass doors, and other transparent barriers will
obstruct the sensor’s view and prevent motion detection.
●The coverage area data is measured under the best temperature condition (20 to 25˚ C),
and a higher or lower temperature may not leadto an ideal coverage area (see fgures 1 and 2).
WARNING:
●Before installing the YT-C2 Series sensor switch,disconnect power to the
wall switch box by turning off the circuit breaker or removing the fuse for the
circuit.
●For supply connections use 18AWG or larger wires suitable for at least 75°C
●Tightly secure the ground wire to ensure that thesensor functions properly.
AVERTISSEMENT:
●avant d'installer l'interrupteur du capteur de la série YT-C2, débranchez
l'alimentation du boîtier d'interrupteur mural en éteignant le disjoncteur ou
en retirant le fusible du circuit.
●Pour les connexions d'alimentation, WG ou plus adaptés
à au moins 75 ° C
●fxez fermement le l de terre pour vous assurer que le capteur fonctionne
correctement.
Installation Instructions for YT-C2 Series
YT-C2 Series
Three-Way 180°Occupancy and Vacancy Sensor Switch
Please read all instructions before installing the YT-C2 Series sensor switch.
*Intended for use with electronic ballast, Type ICN-4S54-90C-2LS-G, manufactured by Philips
Lighting Electronics N A.
Thank you for your purchase from Dependabel Direct, your satisfaction
is our top priority. If you have any questions or concerns, please email
YM2108T
REV 1.1
●Occupancy: In occupancy mode (auto on, auto off with auto reset), the lights or fan turn
on automatically when the space is occupied. The YT-C2 Series sensor switch
automatically turns off the lights or fan after the time delay. If the lights or fan are turned
off manually, automatic on is re-enabled when no motion is detected for one minute. This
way, the lights or fan will remain off if they were deliberately turned off.
IMPORTANT: When installing two YT-C2 Series sensor switches,either sensor can turn
the lights on. For the lights to turn off, both sensors must time out, or you must manually turn
them off.
Adjust the Time Delay
The Time Delay Dial, labeled as TIME, controls how long the light or fan stays on after no
motion is detected. The minimum setting is 15 seconds (fully counterclockwise) and the
maximum setting is 30 minutes (fully clockwise). Adjust the setting as desired for your area.
Adjust the Sensitivity Range of the Sensor
●The Sensor Sensitivity Range Dial, labeled as SENSE, lets you adjust the sensor to avoid
unwanted motion detection such as hallway traffc.
●To decrease sensitivity, turn the setting counterclockwise. To increase sensitivity, turn the
setting clockwise. The sensor’s default setting is 3 (75%). You can adjust it from setting
1 (50%) to setting 5 (100%).
Figure 5: Wire diagram for YT-C2 with regular 3-way wall switch
Adjust the Ambient Light Level
The Ambient Light Level Dial, labeled as LIGHT, lets you adjust the sensor to detect whether
other light sources (such as sunlight) are enough to light the space without turning on the
lights. If you would like the sensor to consider the amount of ambient light in your area, turn
the dial counterclockwise. If you would rather not use the ambient light level, leave it on the
maximum, default setting (5). This will allow the sensor to turn the light on and off regardless
of ambient light.
Lights or Fan Will Not Turn On
Push the On/Off button. The load should turn on. If not:
1. Check the light bulb and/or motor switch on the fan.
2. Turn off power to the circuit and check the wire connections.
Lights or Fan Will Not Turn Off
●Ensure that no motion is occurring in the coverage area until the set time period.
●Ensure that the sensor is at least 6 ft (2 m) away from devices that are a signifcant heat
source (e.g., heater, heater vent, and high wattage light bulbs). Hot air currents and heat
-radiating devices (such as 100W incandescent bulbs) can cause false detection.
●Push the On/Off button to Off. If the lights or fan do not turn off, turn off power to the circuit
and check wire connections.
Lights or Fan Turn Off Too Quickly
The time delay or sensitivity range may be improperly set. Refer to the Adjustment and
Programming section.
Lights or Fan Turn on When Movement Is Detected in Adjacent Areas
If the sensor’s location gives it a view of other areas or hallways,the lights will turn on when
motion is detected in those areas. Try adjusting the sensitivity range (refer to the Adjustment
and Programming section). You may need to move the sensor to another location.
Lights or Fan Turn on When the Area is Unoccupied
The sensor may be mounted too closely to an air conditioning or heating vent. Move the
sensor to another location or close the vent.
TROUBLESHOOTING
Wire according to the wiring diagram below (see fgure 5).
IMPORTANT: The YT-C2 must be installed in the wiring wall box that connects to the load.
INSTALLATION AND WIRING
OPTION A
WIRING YT-C2 WITH REGULAR 3-WAY SWITCH
GROUND wire in each wiring box to the green
terminal on YT-C2
from the lamp (LOAD) to the white wire on the YT-C2
box to the black wire of the YT-C2.
on the YT-C2.
YT-C2 MOTION SENSOR INSTALLATION
Figure 7:
Lift the screwdriver upward
to open the cover.
Adjust Operation Modes
The YT-C2 Series sensor switch has two operation modes:
●Vacancy: In vacancy mode (manual on/off, auto off), press the On/Off button to turn the
light or fan on or off like you would a standard switch. The YT-C2 Series sensor switch
automatically turns off the lights or fan after the time delay.
1. Connect the green or non-insulated (copper)
GROUND wire in each wiring box to the green
terminal on Regular Switch.
2. (SKIP #2 IF NEW INSTALLATION) Traveler #2 has
to be removed and installed where the hot was.
3. Connect TRAVELER 2 to Regular Switch common
screw (dark screw).
4. Connect the POWER wire(HOT) and TRAVELER 1
wire to the Regular Switch screw(light color screw).
REGULAR SWITCH INSTALLATION
Wire according to the wiring diagram below (see fgure 6).
Figure 6: Sensor orientation, wire connections, and wall box assembly when wiring the YT-C2
Series sensor switch with another YT-C2 Series sensor switch
To program the sensor, frst remove the cover:
1. Insert a small fathead screwdriver into the notch
located on the bottom of the cover below the sensor.
2. Gently lift the screwdriver upward to unlatch the
cover (see fgure 7).
ADJUSTMENT AND PROGRAMMING
OPTION B
WIRING YT-C2 WITH ANOTHER YT-C2 3-WAY SWITCH
Blue-Traveler 2
TOP
Red-Load
(power to
lamp or fan)
Black-Traveler 1
White-
Neutral
Ground
Terminal
Dark screw
Traveler 1
Ground
Terminal
Traveler 2
Line(power from
circuit box)
power from
AUX YT-C2
Master YT-C2
TOP
Ground
Terminal
White-
Neutral
Black-Traveler 1
Blue-Traveler 2
to AUX YT-C2
Red-Load
(power to
lamp or fan)
power to
Master YT-C2
AUXILIARY YT-C2
TOP
Blue-Traveler 2
to Master YT-C2
Line(power
from circuit box )
Black-Traveler 1
White-
Neutral
Ground
Terminal
Red – capped
MASTER YT-C2 MOTION SENSOR INSTALLATION
1.Connect the green or non-insulated (copper)
GROUND wire from the circuit to the green
wire on master YT-C2
2.Connect the NEUTRAL wire from the circuit
and from the lamp (LOAD) to the white wire
on the master YT-C2.
3.Connect the lamp power (LOAD) to the red
wire on the master YT-C2.
4.Connect the TRAVELER 1 wire from the black
wire of the auxiliary YT-C2 to the black wire
of the master YT-C2.
5.Connect the TRAVELER 2 wire coming from
the blue wire of two YT-C2 that you are wiring.
1.Connect the green or non-insulated (copper)
GROUND wire from the circuit to the green
wire on master YT-C2
2.Connect the NEUTRAL wire from the circuit
and from the lamp (LOAD) to the white wire
on the master YT-C2.
3.Cap the red wire on the auxiliary YT-C2.
4.Connect the power wire from the circuit box (HOT)
to the black wire on the auxiliary YT-C2 and to the
TRAVELER 1 wire.
5.Connect the TRAVELER 2 wire coming from
the blue wire of two YT-C2 that you are wiring.
AUXILIARY YT-C2 MOTION SENSOR INSTALLATION
1. Insert the switch into the wall box by positioning the lens at the top and the On/Off button
at the bottom.
2. Secure the switch to the wall box with the screws provided.
Attach the new UL listed cover plate(include)and secure it to the wall box with the
4. Restore the power to the circuit by turning on the breaker or replacing the fuse.

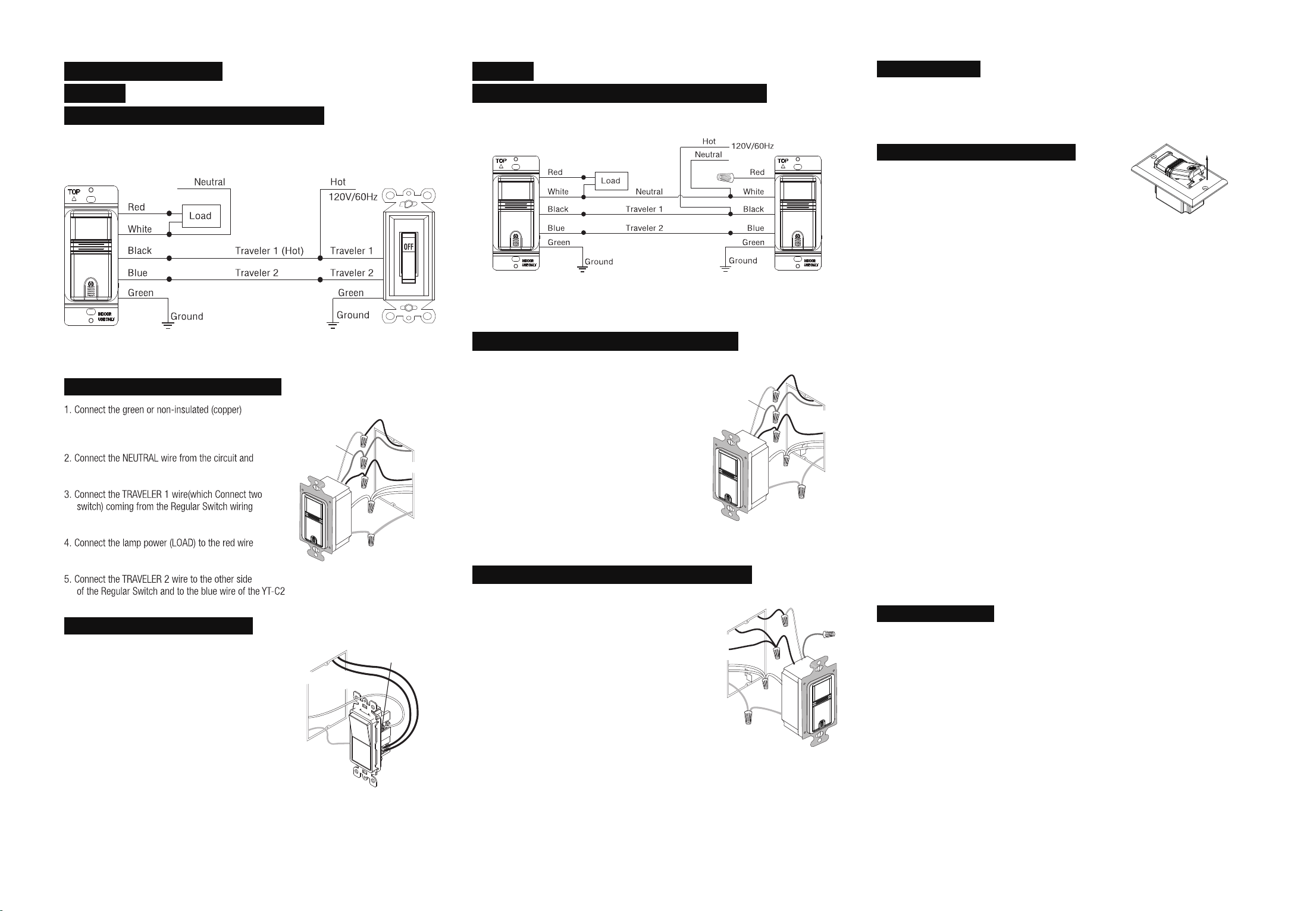

Finish Installation
YM2108T
REV 1.1
Note: After the time setting is expired, the switch is set to auto off. If motion is detected
within 30 seconds of auto off, switch will turn on automatically.
Note: If the switch is manually turned off, the motion sensor detection will pause for
15 seconds and then resume normal.
3.
screws provided.
