Dermalife Spa-Oceana 2G User manual

Owner’s Manual
Thank you for purchasing the Dermalife®Spa-Oceana™ 2G System
Before using the Dermalife®Spa-Oceana™ 2G System, please read this
owner’s manual thoroughly to ensure proper and safe use.
 Copyright 2008, Sybaritic Inc.
All Rights Reserved © 2008
206364 Rev 803U
SO.10.803.4.U

Dermalife
®
Spa-Oceana™ 2G System
Owner’s, Installation, and Service Manual
Voice Direct Dial: [phone]
Toll Free: [phone]
Fax: [phone]
Web Site: http://www.sybaritic.com
E-mail: [email protected]
SYBARITIC, INC.
9220 James Avenue South
Minneapolis, MN 55431
USA

Sybaritic, Inc.
9220 James Avenue South, Minneapolis, MN 55431 USA
To the New Owner of a Dermalife
®
Spa-Oceana™ 2G System:
Congratulations! We at Sybaritic, Inc. welcome you as a new owner of a Dermalife
®
Spa-Oceana™ 2G System. Enclosed you’ll find your Dermalife
®
Spa-Oceana™ 2G
System Owner’s, Installation, and Service Manual. In it, you’ll find set-up and operating
instructions, as well as service and troubleshooting tips. If you have questions, please
feel free to contact your Sybaritic Sales Representative or our Customer Service
Department.
We look forward to the opportunity of offering additional products and services to you.
Please forward all inquiries to the address listed above or visit us at www.sybaritic.com.
In order to offer the highest quality products and services to our customers, we welcome
your feedback regarding your new Dermalife
®
Spa-Oceana™ 2G System. Thank you
for your business!
Very truly yours,
Steven Daffer
Founder, Sybaritic, Inc.
Voice Direct Dial: [phone]  Toll Free: [phone]  Fax: [phone]
E-mail: [email protected]om  Web Site: http://www.sybaritic.com

TABLE OF CONTENTS
TABLE OF CONTENTS Page
Section 1 Introduction
1.1 Purpose of the Manual 1
1.2 Customer Service 1
1.3 Disclaimer 1
1.4 Copyright 2
1.5 Warranty 2-3
Section 2 Safety
2.1 Preinstallation Technical Safety Tips 4
2.2 General and User Safety 4-5
2.3 Safety Precautions 5-7
Section 3 Shipping, Storing, and Installation Conditions
3.1 Shipping, Storing, and Installation Conditions 8
Section 4 Electrical and Plumbing Requirements
4.1 Electrical Installation Requirements 9
4.2 Plumbing Installation Requirements 10-11
Section 5 Installation Drawings
5.1 Removing Panels 12
5.2 Removing the Hood Cover 12
5.3 Removing the Hood 13
5.4 Adjusting the Legs 14
5.5 Electrical, Water, DVD, and Audio Connection Drawings 14-16
Section 6 Product Introduction
6.1 Dermalife
®
Spa-Oceana™ 2G System Introduction 17
6.2 Dermalife
®
Spa-Oceana™ 2G System Features 17-18
6.3 Dermalife
®
Spa-Oceana™ 2G System Contraindications 18
6.4 Water Intake 18
Section 7 Operation
7.1 The Control Panel(s) 19-20
7.2 Dermalife
®
Spa-Oceana™ 2G Component Drawings 21
7.3 Preparation for Operation 22
7.4 How to Run Your First Warm-Up Session 22
7.5 Working with the Options 23-24
7.6 Working with the Dermalife
®
Spa-Oceana™ 2G System 24-30
7.7 How to Run Your First Bath Session 30
7.8 Working with the Dermalife
®
Spa-Oceana™ 2G Bath System 30-32
7.9 Safety Shut Off 32
7.10 Stopping Your Session 32
7.11 Turning Off Your Dermalife
®
Spa-Oceana™ 2G System 32
7.12 Program Descriptions and Device Working Charts 32-44

TABLE OF CONTENTS
(Continued)
Section 8 Service (Hood)
8.1 Removing the Hood Cover 45
8.2 Removing the Hood and Changing the Strut Nut 45-46
8.3 Principle Water Diagram with Valve Connections 46
8.4 Water Connection Types 47
8.5 Water Jet 47
8.6 Mist Jet 48
8.7 Radiant Heat Emitter 48
8.8 Speaker 49
8.9 Temperature Sensor 49
8.10 Opening the LCD Housing 49-50
8.11 Replacing Parts in the LCD Housing 51-52
Section 9 Service (Bottom)
9.1 Removing Panels 53
9.2 Drainage 53
9.3 Aroma System 54
9.4 Mineral/Vitamin System 54
9.5 Vibratory Bed 55-56
9.6 On-off Switch 56
9.7 Hood Switch 57
9.8 Supply Transformers 57
9.9 Steam Generator 58
9.10 Replacing the Heating Element 59
9.11 Replacing the Thermal Fuse 59-60
9.12 Replacing the MG Anode 60
9.13 Replacing the Water Level Sensor 60-61
Section 10 Advanced Electronics and Troubleshooting
10.1 Electrical Connections 62
10.2 Other Components on the PC Board 63
10.3 Principal Water and Electrical Diagram 64
10.4 Principal Water and Electrical Component List 65
10.5 Troubleshooting 66-67
Section 11 Maintenance and Reinstallation
11.1 General Cleaning and Mandatory Use of Pre-Approved Solution 68-69
11.2 Cleaning the Shell 69
11.3 Cleaning the Underbed Area 69-70
11.4 Cleaning Contact Surfaces (Bed, Head Pillow, Interior of Shell) 70
11.5 Cleaning the Steam Generator 70
11.6 Cleaning the Aroma/Liquid Vitamin Diffusion System 70-71
11.7 Cleaning the System Drain 71

TABLE OF CONTENTS
(Continued)
Section 12 Specification Information
12.1 General 72
12.2 Supplied Accessories 73
APPENDICES
Owner Record A
Owner’s Registration Form B
Standard Warranty C

Section 1 Introduction
Sybaritic, Inc. Dermalife® Spa-Oceana™ 2G System 1
SECTION 1: INTRODUCTION
1.1 Purpose of the Manual
This manual explains how to correctly install, operate, and get the best performance from your
Dermalife® Spa-Oceana™ 2G System. It may be used as a guide, suitable for all levels of
technical expertise, in determining and servicing mechanical and electrical difficulties. This
owner’s manual is organized as a quick reference guide. Any additional updated or
supplemental information for this reference guide may be distributed to you as needed.
Please read this owner's manual carefully before installing your machine. Keep your manual
near your machine for quick reference.
1.2 Customer Service
We welcome and appreciate your comments, questions, and suggestions in order to continually
offer the highest quality products, accessories, and services to our customers. Our qualified
professional teams are ready to assist you with a prompt response to any question
communicated to us by telephone, email, and/or fax.
1.3 Disclaimer
While every attempt is made to ensure the accuracy and completeness of the information in this
document, some errors may exist. Sybaritic, Inc. does not accept responsibility of any kind for
customer loss due to use of or reliance upon this document.
Sybaritic, Inc. reserves the right to make changes without notice in the product described or
contained herein in order to improve design and/or performance. Sybaritic, Inc. assumes no
responsibility or liability for the use of the product, conveys no license or title under any patent,
copyright, or trademark right to this product or processes and makes no representation or
warranty that this product is free from patent, copyright, or trademark right infringement, unless
otherwise specified. Applications that are described herein for the product are for illustrative
purposes only. Sybaritic, Inc. makes no representation or warranty that such applications are
suitable for the specified use without further testing or modification.

Section 1 Introduction
Sybaritic, Inc. Dermalife® Spa-Oceana™ 2G System 2
1.4 Copyright
This manual is protected by copyrights. All rights are reserved. No part of this publication may
be reproduced, stored in a retrieval system, or transmitted in any form or by any means:
electronic, mechanical, photocopying, recording, or otherwise without the prior written
permission from the author and publisher. All inquiries should be addressed to Dermalife® Spa-
Oceana™ 2G System Owner’s, Installation, and Service Manual, Sybaritic, Inc., at the
headquarters address listed inside the front cover of this manual, along with a date from a copy
of the original purchase receipt of the Dermalife® Spa-Oceana™ 2G System. No attempt has
been made to designate as trademarks or service marks all words or terms in which proprietary
rights might exist. The inclusion, exclusion, or definition of a word or term is not intended to
affect, or to express a judgment on, the validity or legal status of the word or term as a
trademark, service mark, or other proprietary term.
1.5 Warranty
Sybaritic, Inc. warrants to the original retail purchaser of the Dermalife® Spa-Oceana™ 2G
System that said machine is free of defects in materials and workmanship under normal and
intended use for the period specified in the Sybaritic, Inc. Standard Warranty for the Dermalife®
Spa-Oceana™ 2G System as shown in the Appendix of this reference guide. Sybaritic, Inc.
may, at its option, repair or replace any parts found to be defective during said warranty period.
Sybaritic, Inc. has designed a Warranty Parts Replacement Policy to keep service as simple
and timely as possible. Only the major component parts of the Dermalife® Spa-Oceana™ 2G
System should be replaced on site with defective components to be returned to Sybaritic, Inc.
for failure analysis. This policy will allow Sybaritic, Inc. to engineer even higher quality products
in the future. Repairs required for major components will be rendered upon receipt of defective
parts with an accompanying copy of an original purchase receipt at Sybaritic's factory location
listed on the first page of this manual.
SYBARITIC NEITHER CONDONES NOR AUTHORIZES TECHNICAL WORK INSIDE
CERTAIN COMPONENTS, INCLUDING, BUT NOT LIMITED TO, THE MAIN POWER BOX,
CONTROL PANEL, AND MAIN HEATER ASSEMBLY, WITHOUT WRITTEN AUTHORIZATION
FROM SYBARITIC'S ENGINEERING DEPARTMENT. SUCH UNAUTHORIZED ACTIVITIES
MAY VOID UNIT WARRANTY AND ACCESS TO WARRANTY PARTS.
WARRANTY NOTICE: Addendum to the Spa-Jet™ 2G Product Warranty by Sybaritic, Inc.
Amended - Section 6:
CUSTOMER’S RESPONSIBILITIES: The Customer is responsible to:
Use ONLY the SYB approved Accel TB Cleaning Solution. Use of any and all other
cleaning products for cleaning and disinfecting your unit will immediately void your
product warranty covering the Polycarbonate material on the machine.

Section 1 Introduction
Sybaritic, Inc. Dermalife® Spa-Oceana™ 2G System 3
Limited Manufacturer’s Warranty
•Limited Manufacturer’s Warranty only applies if all shipping, storing, installation, operation,
and maintenance/cleaning conditions have been followed. The warranty only applies to defects
in the materials and workmanship. Limited Manufacturer’s Warranty does not apply to normal
wear of the unit or to any damage of the unit or its subparts in result of blatant misuse of the
unit.
•Limited Manufacturer’s Warranty period length is 12 months.
•Limited Manufacturer’s Warranty for steam generators does not apply for defects and/or
malfunctions arising from water hardness.
•Limited Manufacturer’s Warranty does not cover any indirect losses and/or loss of profits, nor
does it cover any indirect or related costs arising from the defect or malfunction of the unit.
NOTE: Manufacturer reserves the right to change technical aspects of this product without prior
notice.

Section 2 Safety
Sybaritic, Inc. Dermalife
®
Spa-Oceana™ 2G System 4
SECTION 2: SAFETY
2.1 Preinstallation Technical Safety Tips
•ATTENTION: WHEN RECEIVING A PACKED DERMALIFE
®
SPA-OCEANA™ 2G
SHIPMENT TRANSPORTED IN WINTER CONDITIONS (transportation temperature below
32°F [0°C]), THE UNIT MUST BE STORED AT A ROOM TEMPERATURE (conditions +59 to
+86°F or +15 to +30°C, relative humidity max. 95%) FOR TWENTY-FOUR HOURS TO BE
WARMED UP BEFORE INSTALLATION AND OPERATION. INSTALLING THE UNIT AND
STARTING THE UNIT PREMATURELY (WITHOUT PRIOR SLOW WARMING PERIOD) MAY
RESULT IN SERIOUS DAMAGE TO THE ELECTRONICS AND LCD PANEL OF THE UNIT.
•ONLY A QUALIFIED/CERTIFIED/LICENSED ELECTRICIAN IS AUTHORIZED TO MAKE
THE ELECTRICAL CONNECTIONS STRICTLY ACCORDING TO ALL LOCAL ELECTRICAL
INSTALLATION REQUIREMENTS. ANY UNAUTHORIZED AND/OR IMPROPER ELECTRICAL
INSTALLATION IS STRICTLY FORBIDDEN. IN CASE OF UNAUTHORIZED AND/OR
IMPROPER INSTALLATION THIS UNIT MUST NOT BE USED, AND IT WILL RESULT IN
WAIVE OF ANY TYPE OF MANUFACTURER’S WARRANTY.
•Only a qualified/certified/licensed plumber is authorized to make the plumbing installation
strictly according to all local plumbing installation requirements. ANY UNAUTHORIZED
AND/OR IMPROPER PLUMBING INSTALLATION IS STRICTLY FORBIDDEN. IN CASE OF
UNAUTHORIZED AND/OR IMPROPER INSTALLATION THIS UNIT MUST NOT BE USED,
AND IT WILL RESULT IN WAIVE OF ANY TYPE OF MANUFACTURERS’ WARRANTY.
•THE USE AND OPERATION OF THE UNIT MUST BE CEASED IMMEDIATELY IF, AFTER
INSTALLATION, THE UNIT DOES NOT OPERATE PROPERLY.
•BEFORE EVERY USE OF THE UNIT THE OPERATOR MUST BE SURE THAT THE UNIT
IS COMPLETE AND ALL PANELS AND/OR OTHER SUBPARTS ARE IN PLACE.
2.2 General and User Safety
•IN ORDER TO GUARANTEE FULL USER SAFETY THIS UNIT MUST BE INSTALLED
ACCORDING TO THE REQUIREMENTS OF THIS INSTALLATION MANUAL AND IN
COMPLIANCE WITH ALL LOCAL ELECTRICAL AND PLUMBING REQUIREMENTS AND
WITH OTHER APPLICABLE STANDARDS. (See the Electrical Installation Requirements and
Plumbing Installation Requirements in Section 4.)
•IN ORDER TO GUARANTEE FULL USER SAFETY AND REDUCE ANY TYPE OF RISK
FOR INJURY, THIS UNIT MUST AT ALL TIMES BE OPERATED UNDER THE FULL
SUPERVISION AND ASSISTANCE OF A TRAINED QUALIFIED ASSISTANT; CHILDREN ARE
PROHIBITED TO USE THIS UNIT WITHOUT A TRAINED, QUALIFIED ASSISTANT.

Section 2 Safety
Sybaritic, Inc. Dermalife
®
Spa-Oceana™ 2G System 5
•PREGNANT WOMEN AND/OR PERSON HAVING A MEDICAL CONDITION AND/OR
USING MEDICATION, AND/OR HAVING ADVERSE MEDICAL HISTORY SHOULD NOT USE
THIS UNIT UNLESS RECOMMENDED BY A PHYSICIAN.
•IN ORDER TO GUARANTEE USER SAFETY AND COMFORT, THIS UNIT MUST BE
TECHNICALLY INSPECTED DAILY AND THOROUGHLY CLEANED AND DISINFECTED
BEFORE EVERY USE. ALL UNIT OPERATIONS, TECHNICAL INSPECTION, AND CLEANING
MUST BE DONE BY TRAINED QUALIFIED PERSONNEL.
2.3 Safety Precautions
•Check the unit’s operating voltage before operation. It must be identical with that of your
local power supply.
•When using any setting of Radiant Heat with the Dermalife
®
Spa-Oceana™ 2G System, be
sure to refrain from touching the upper portion of the inside of the cabinet. The radiant
emitters are located in this area and become very hot when the Radiant Heat feature is in
use.
•Do not disassemble or modify the unit.
•Prevent flammables and metallic objects from entering the unit.
•Do not use the unit when there is lightning in the vicinity. Disconnect the power cable of
connected equipment.
•Avoid using the unit under the following conditions:
Places subject to excessive shock or vibration.
Extremely hot places.
•Use carefully. May cause burns.
•Do not sit on top of the cover.
•Do not sit on the unit when cover is only half open or closed.
Read this manual carefully before using the Dermalife
®
Spa-Oceana™ 2G System.
NOTE: The rating plate (serial number plate) and safety caution of the main unit are located
at the base of the machine on the lower right leg.
2.4 IMPORTANT SAFETY INSTRUCTIONS
• READ AND FOLLOW ALL INSTRUCTIONS
• WARNING – To reduce the risk of injury, do not permit children to use this product unless they
are closely supervised at all times.
• DANGER – Risk of injury.
a) Replace damaged cord immediately;
b) Do not bury cord;
c) Connect to a grounded, grounding type receptacle only.

Section 2 Safety
Sybaritic, Inc. Dermalife
®
Spa-Oceana™ 2G System 6
• WARNING – For indoor use only. This unit is not intended for outdoor use.
• WARNING – This product is provided with a ground-fault circuit-interrupter ( see page 24). The
GFCI must be tested before each use. With the product operating, open the service door. Next
push the reset button and close the service door. The product should not operate. Now open
the service door, push the reset button on the GFCI and close the service door. The product
should now operate normally. When the product fails to operate in this manner, there is a
ground current flowing indicating the possibility of an electric shock. Disconnect the power until
the fault has been identified and corrected.
• DANGER – Risk of Accidental Drowning. Extreme caution must be exercised to prevent
unauthorized access by children. To avoid accidents, ensure that children cannot use this
capsule unless they are supervised at all times.
• DANGER – Risk of injury. The suction fittings in this capsule are sized to match the specific
water flow created by the pump. Should the need arise to replace the suction fittings or the
pump, be sure that the flow rates are compatible.
Never operate the capsule if the suction fittings are broken or missing. Never replace the
suction fitting with one rated less than the flow rate marked on the original suction fitting.
• DANGER – Risk of electric shock. Install at least 1,5 m (5 feet) from all metal surfaces. As an
alternative, a capsule may be installed within 1,5 m of metal surfaces if each metal surface is
permanently connected by a minimum 8,4 mm2 (8 AWG) solid copper conductor to the wire
connector on the terminal box that is provided for this purpose.
• DANGER – Risk of electric shock. Do not permit any electric appliance, such as a light,
telephone, radio or television within 1,5 m (5 feet) of capsule.
• CAUTION – Test the ground fault circuit interrupter before each use of the spa
• CAUTION – Adequate drainage must be provided if the equipment is to be installed in a pit
• CAUTION – Connect only to a circuit protected by a class a ground fault circuit interrupter
• WARNING – People with infectious diseases should not use a capsule.
• WARNING – To avoid injury exercise care when entering or exiting the capsule.
• WARNING – To not use a capsule immediately following strenuous exercise.
• WARNING – Prolonged immersion in a capsule may be injurious to your health.
• WARNING – Maintain water chemistry in accordance with manufacturer’s instruction.
• WARNING – To reduce the risk of injury:

Section 2 Safety
Sybaritic, Inc. Dermalife
®
Spa-Oceana™ 2G System 7
a) The water in a capsule should never exceed 40˚C (104˚F). Water temperatures
between 38˚C (100˚F) and 40˚C are considered for a healthy adult. Lower water
temperatures are recommended for young children and when capsule use exceeds 10
minutes.
b) Since excessive water temperatures have high potential for causing fetal damage
during the early months of pregnancy, pregnant of possibly pregnant women should
limit capsule water temperatures to 38˚C (100˚F).
c) Before entering a capsule, the user should measure the water temperature with an
accurate thermometer since the tolerance of water temperature-regulating devices
varies.
d) The use of alcohol, drugs or medication before or during capsule use may lead to
unconsciousness with the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high blood pressure,
circulatory system problems or diabetes should consult a physician before using the
capsule.
f) Persons using medication should consult a physician before using capsule since some
medication may induce drowsiness while other medication may affect heart rate, blood
pressure and circulation.
• CAUTION – Risk of electric shock. Replace audio/video components only with identical
components.
• Do not operate the audio/video controls while inside the capsule.
• WARNING – Prevent electrocution. Do not connect any auxiliary components (for example
cable, additional speakers, headphones, additional audio/video components etc.) to the system.
• These units are not provided with an outdoor antenna; when provided it should be installed in
accordance with Article 810 of the National Electrical Code, ANSI/NFPA 70.
• Do not service this product yourself as opening or removing covers may expose you to
dangerous voltage risk of injury. Refer all servicing to qualified service personnel.
• When the power supply connections or power supply cord are damaged; if water is entering the
audio/video compartments or any electrical equipment component area; if the protective shields
of barriers are showing signs of deterioration; or if there are signs of other potential damage to
the unit, turn off the unit and refer servicing to a qualified service personnel.
• SAVE THESE INSTRUCTIONS

Section 3 Shipping, Storing, and Installation Conditions
Sybaritic, Inc. Dermalife
®
Spa-Oceana™ 2G System 8
SECTION 3: SHIPPING, STORING, AND
INSTALLATION CONDITIONS
3.1 Shipping, Storing, and Installation Conditions
•This unit is designed for permanent indoor installation with the following conditions:
a. Temperature of the room: +59 to +86°F (+15 to +30°C). Relative humidity max. 85%.
b. Shipping conditions: temperature -4 to 104°F (–20 to + 40°C).
c. Storing conditions: temperature -4 to 104°F (–20 to +40°C). Relative humidity max. 95%.
•ATTENTION: WHEN RECEIVING A SHIPMENT TRANSPORTED IN WINTER
CONDITIONS (transportation temperature below 32°F [0°C]), THE UNIT MUST BE STORED
AT A ROOM TEMPERATURE (conditions +59 to +86°F [+15 to +30°C], relative humidity max.
95%), FOR TWENTY-FOUR HOURS TO BE WARMED UP BEFORE INSTALLATION AND
OPERATION. INSTALLING THE UNIT AND STARTING UP THE UNIT PREMATURELY
(WITHOUT PRIOR SLOW WARMING PERIOD) MAY RESULT IN SERIOUS DAMAGE TO
THE ELECTRONICS AND LCD PANEL OF THE UNIT.
•The unit must be installed on an even, dry, solid floor surface and levelled.
•The floor must have a central floor drain for the drainage connection and emergency draining
in order to avoid flooding (in case of plumbing failure).
•It is best if the room has a separate ventilation system guaranteeing the sufficient fresh air
supply to the room.

Section 4 Electrical and Plumbing Requirements
Sybaritic, Inc. Dermalife
®
Spa-Oceana™ 2G System 9
SECTION 4: ELECTRICAL AND PLUMBING REQUIREMENTS
4.1 Electrical Installation Requirements
NOTE: Only a qualified/certified/licensed electrician is authorized to make the electrical
connections/installation of this unit strictly according to all local electrical installation
requirements. All local electrical installation requirements and loading value for one phase must
be observed when carrying out electrical installation/connections.
•The unit’s power supply must be shut off prior to installation and/or any work on the unit.
•The Dermalife
®
Spa-Oceana™ 2G System should be used with AC 220-240, 50/60 Hz.
•CAUTION: To prevent electric shocks and fire hazards, do NOT use any other power
source.
•Because of the special nature of this device, an entire circuit needs to be dedicated to the
operation of the Dermalife
®
Spa-Oceana™ 2G System. Each individual Dermalife
®
Spa-
Oceana™ 2G System should have its own dedicated circuit breaker. The current draw
depends on the voltage and is rated at 13.41 amps for 220 volts when Radiant Heat and
Steam are running.
•The unit is designed for use in current circuits where either a neutral conductor or a
stationary protective conductor with equivalent potential is available — system TN-S. It is
strictly prohibited to use the unit in alternating current circuits TT and IT.
•Unit electrical specifications: 25A, 220V, 50/60Hz.
•For electrical installation, the right hand side panel of the unit must be removed.
•Place the unit on a level surface.
•Make sure the cover can be opened without hitting the ceiling. Check the SPECIFICATIONS
SECTION for more details of the dimensions.
•Do not install the unit near heat sources such as radiators, or in places subject to excessive
dust, mechanical vibration, shock, or heat.
•Do not block the air inlet of the face fan located on top of the unit (hood).
•If the unit is located in a cold location, the supporting hood strut may decrease pressure in
the strut chambers, which may cause the hood to drop sharply. The operating temperature
range for the struts is from 50 to 180°F or 15 to 80°C.
•The unit must be connected to the electricity system stationary according to the following:

Section 4 Electrical and Plumbing Requirements
Sybaritic, Inc. Dermalife
®
Spa-Oceana™ 2G System 10
4.2 Plumbing Installation Requirements
NOTE: Only a qualified/certified/licensed plumber is authorized to make the plumbing
installation strictly according to all local plumbing installation requirements.
•The unit’s power supply must be shut off prior to installation and/or any work on the unit.
•For plumbing installation, the
right hand side panel of the unit
must be carefully removed.
After installation, the side panel
must be reinstalled before
operating the unit.
•Minimum allowed water
pressure is 1.5 bars (21.75 psi) and maximum allowed water pressure is 4 bars (58 psi).
•Pressure difference between cold and hot water supply must not exceed 2 bars (29 psi).
•For normal over-body jet operation, the cold water must be between +50 to +59°F (+10 to
+15°C) and the hot water between +122 to +140°F (+50 to +60°C).
•Cold water supplying the steam generator must have measured water hardness below
71ppm USA (<4 PH German); if the water supply is harder, a water softener must be
installed for the steam generator.
•The water supply for this unit must be mechanically cleaned/filtered. In order to avoid
damage to the unit subparts, nonsoluble, solid elements in the water supply must be less
than 50 microns. In order to guarantee that, it is necessary to install mechanical water filters
(50 micron filtering). Filters must have a flow rate of 2.5 gallons (9.5 liters) per minute.
•All other water supply characteristics must meet the local drinking water requirements.
•Water supply connections in capsule are for ½” water inlets and the drain is 40mm.
•BOTH THE COLD AND HOT WATER SUPPLY MUST HAVE SHUTOFF (OPEN/CLOSE)
VALVES THAT WOULD ENABLE REGULAR, EASY OPENING AND CLOSING OF THE
VALVES.
•IN ORDER TO AVOID WATER SUPPLY PIPE BURSTS AND/OR FLOODING, THIS UNIT
MUST BE PROTECTED WITH COLD AND HOT WATER SHUTOFF VALVES. SHUTOFF
VALVES ENABLE THE OPERATOR TO CUT OFF THE WATER SUPPLY WHEN THE
UNIT IS NOT BEING OPERATED. THIS UNIT MUST NOT BE CONNECTED TO THE
WATER PRESSURE CONTINUOUSLY; THE WATER SUPPLY MUST BE CUT OFF AT
ALL TIMES WHEN NOT IN USE.

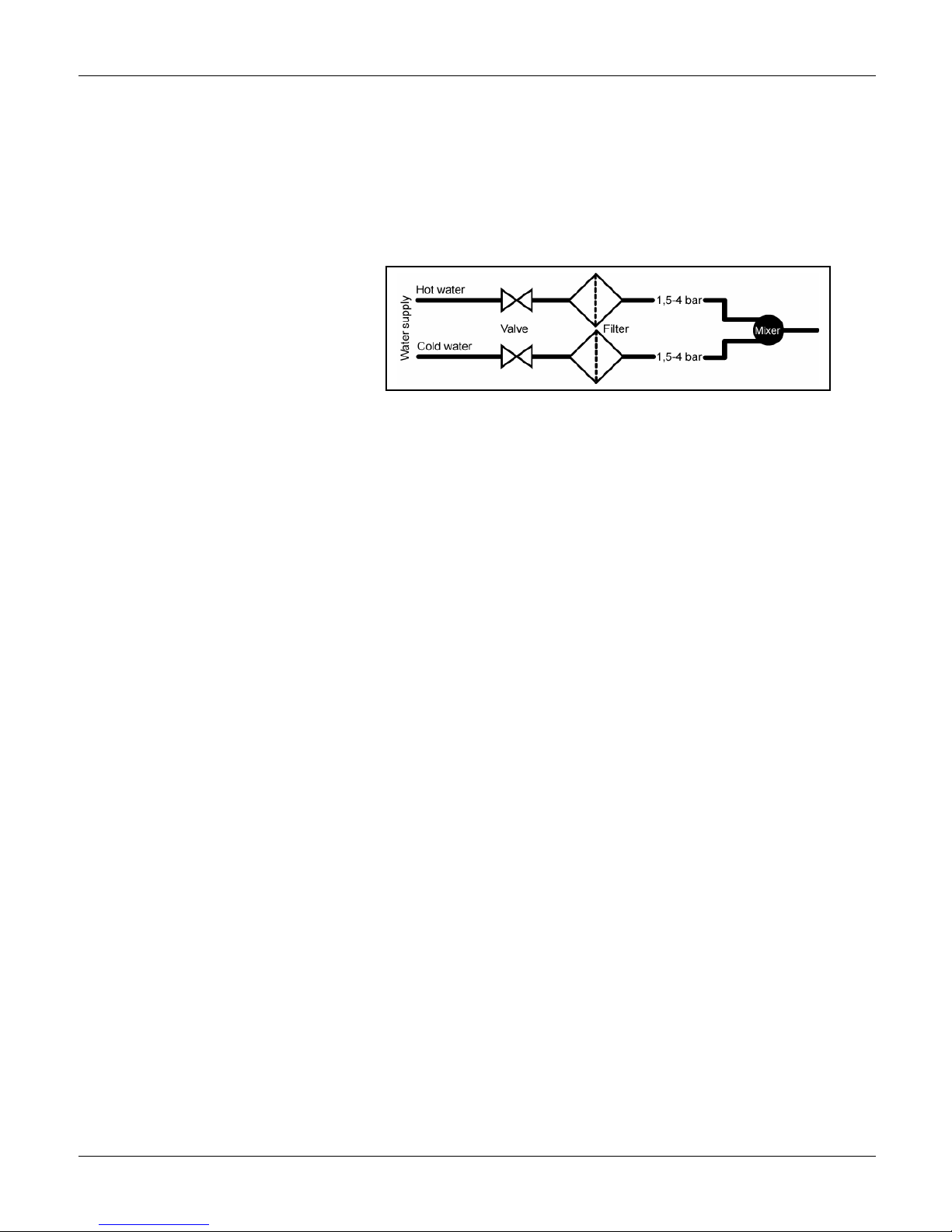

•½” hot and cold lines should come from the floor or wall to the area where the unit is to be
placed. Connect them to the ½” male connections on the thermostatic mixing valve on the
right side of the unit.
•Ensure that the water lines are purged of sand and grit prior to final connection to the unit.
•The capsule’s 1 ½” (40mm) O.D. drain should be spilled directly or indirectly into the
drain/floor sink.
•Dermalife
®
Spa-Oceana™ 2G has a steam/shower system that utilizes approximately 64 gallons
(240 liters) of water per 30-minute shower session.
•Assume 40 gallons (150 liters) of this to be hot water.
•Based upon the expected number of sessions daily, an appropriate hot water supply needs
to be installed.

Section 4 Electrical and Plumbing Requirements
Sybaritic, Inc. Dermalife
®
Spa-Oceana™ 2G System 11
•The tub has a working capacity of approximately 60 gallons (220 liters) assuming a 50/50 mix of
hot and cold water, this equates to approximately 30 gallons (110 liters) of hot water per tub
session.
•The steam/shower system and the tub are used as separate sessions.
NOTE: Only a qualified/certified/licensed plumber is authorized to make the plumbing
installation strictly according to all local plumbing installation requirements.

Section 5 Installation Drawings
____________________________________________________________________________________________
Sybaritic, Inc. Dermalife® Spa-Oceana™ 2G System 12
SECTION 5: INSTALLATION DRAWINGS
5.1 Removing Panels
•BEFORE ANY REPAIR AND/OR INSPECTION OF THE UNIT, THE ELECTRICAL
SUPPLY MUST BE SHUT OFF.
•BEFORE REMOVING THE SIDE PANEL OF THE UNIT, SHUT OFF THE ELECTRICAL
SUPPLY TO THE UNIT.

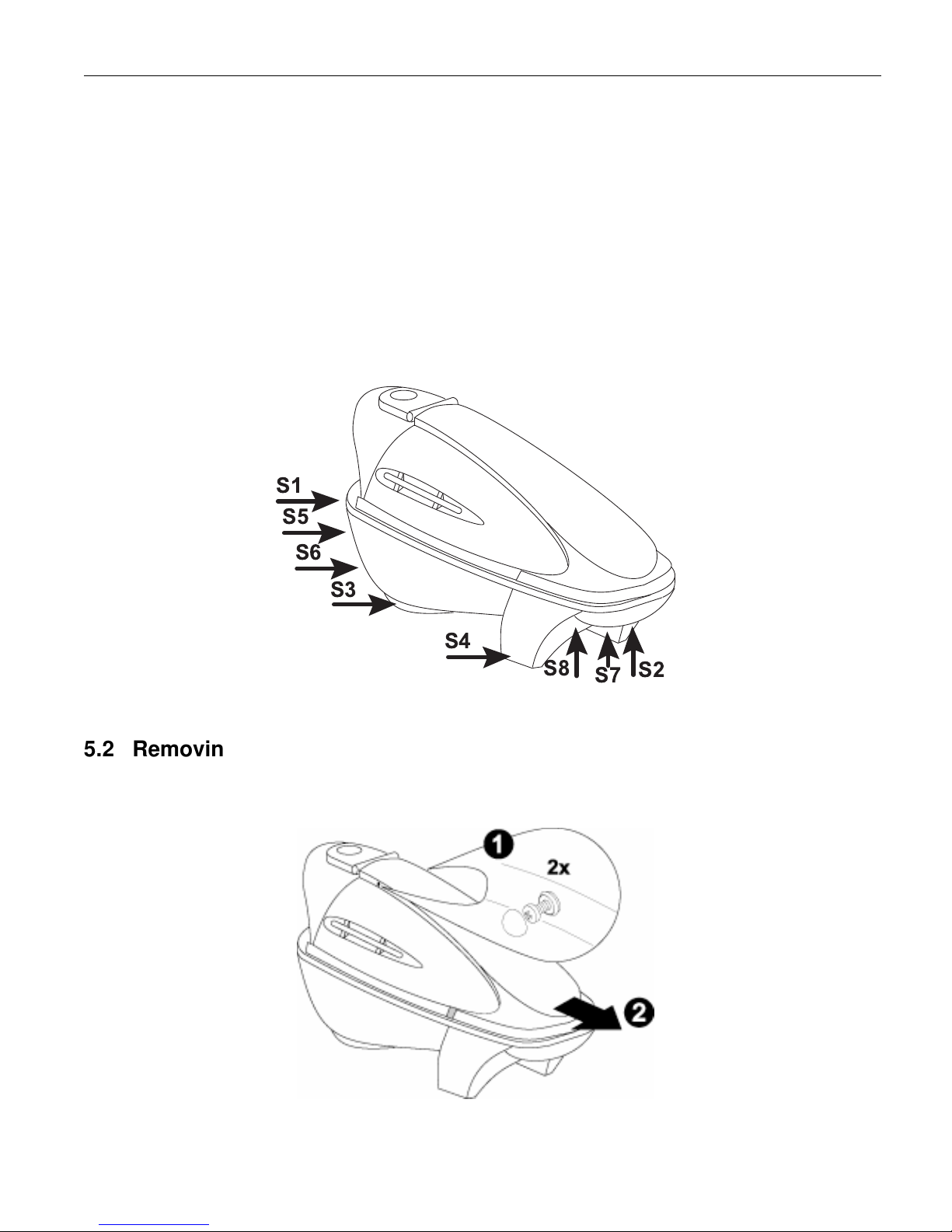

•To remove the right side panel, remove screws S1, S2, S3, S5, S6, S7, S8 and S4 (S3 and
S4 have two [2] screws on the opposite side panel).
S1
S7
S3
S4
S5
S6
S2
S8
5.2 Removing the Hood Cover
•Remove two (2) screws and pull the cover in the direction of the arrow.

Section 5 Installation Drawings
____________________________________________________________________________________________
Sybaritic, Inc. Dermalife® Spa-Oceana™ 2G System 13
5.3 Removing the Hood
•To remove the hood, disconnect the wires from the valves in the hood.
•Disconnect all cables and wires.
•Disconnect water quick connections by pressing the opening ring, while at the same time
pulling the male end in the direction of the arrow.
•To reconnect the quick connections, press the male portion of the fitting into the female
portion of the fitting.
•Open capsule and unscrew strut nuts while keeping the capsule open.
•Remove strut nuts and close capsule.
•Remove hinge pins using a punch and hammer.

Section 5 Installation Drawings
____________________________________________________________________________________________
Sybaritic, Inc. Dermalife® Spa-Oceana™ 2G System 14
1
2
3
5.4 Adjusting the Legs
•This unit must be installed on an even, dry surface and
levelled by adjusting the unit legs.
•Loosen nut 2.
•Regulate height by adjusting nut 3 (nut 1 must held).
•If the position is correct, tighten nut 2.
•If unable to hold nut 1 with a wrench, use a wedge
(example screwdriver).
5.5 Electrical, Water, DVD, and Audio Connection Drawings
•DISCONNECT CAPSULE FROM ELECTRIC SUPPLY BEFORE SERVICING!
•SHUT OFF THE HOT AND COLD WATER SUPPLY PRIOR TO ANY PLUMBING
INSTALLATION AND/OR REPAIR WORK.
•BE CAREFUL WITH HEADPHONES PLUG!
•Electrical cables must be inserted into the lower part of the unit through the lower open
areas (shaded area on the drawing).
•Please see additional information on plumbing and electrical installation at “Plumbing
Installation Requirements” and “Electrical Installation Requirements” in Section 4.
•Audio connection plug (3.5 mm) with black cable (0.5 m) is located beside the circuit
breaker box.
DVD Connection
•2G machines are equipped with video and audio inputs: 3 male RCA connectors. The input
cables are located on the right side of the machine under the side cover.
•Color code for connecting the external audio-video device:
oYellow – composite video input
oRed – right audio channel input
oWhite/Black – left audio channel input
•To use the Dermalife® Spa-Jet™ 2G System with an external video source (DVD-player,
VHS player, portable DVD-player or any other equipment that has a composite video
output) it is needed to use the video cable (yellow) to connect it with an external video
source. The external video source has to have a video-out female RCA-jack. Connect the
video cable (yellow) of the spa system to the yellow video output jack/plug of the external
video source. Video can be activated as described in the user manual.
•To use the Dermalife® Spa-Jet™ 2G System with an external audio source (DVD-player,
VHS player, general audio system, portable multimedia-player or any other equipment that
has a LINE-OUT or EARPHONES output) it is needed to use the red and white/black audio
cables to connect it with an external audio source. The external audio source has to have
