Pre-Delivery and Installation
Checklist
Most cities and counties require permits for exterior construction and
electrical circuits. In addition, some communities have codes requiring
residential barriers such as fencing and/or self-closing gates on property to
prevent unsupervised access to the property by children under the age of
5. Your dealer can provide information on which permits may be required
and how to obtain them prior to the delivery of your Cal Spa®.
We strongly recommend you have a qualied, licensed contractor perform
the installation of your in-ground or ported spa. The installation instructions
contained in the manual are for the use of a qualied contractor or
installer.
Consumers who choose to install their own in-ground spas bear sole
responsibility for any performance or warranty issues and may void portions
of their warranty as a result. For this reason, we strongly recommend they
hire an experienced professional for their installation.
For additional operating and installation information, please see your
selling dealer. To locate a dealer nearest you call 800-CALSPAS or visit
www.calspas.com.
Portable Spa
Pre-Delivery Checklist
Before Delivery

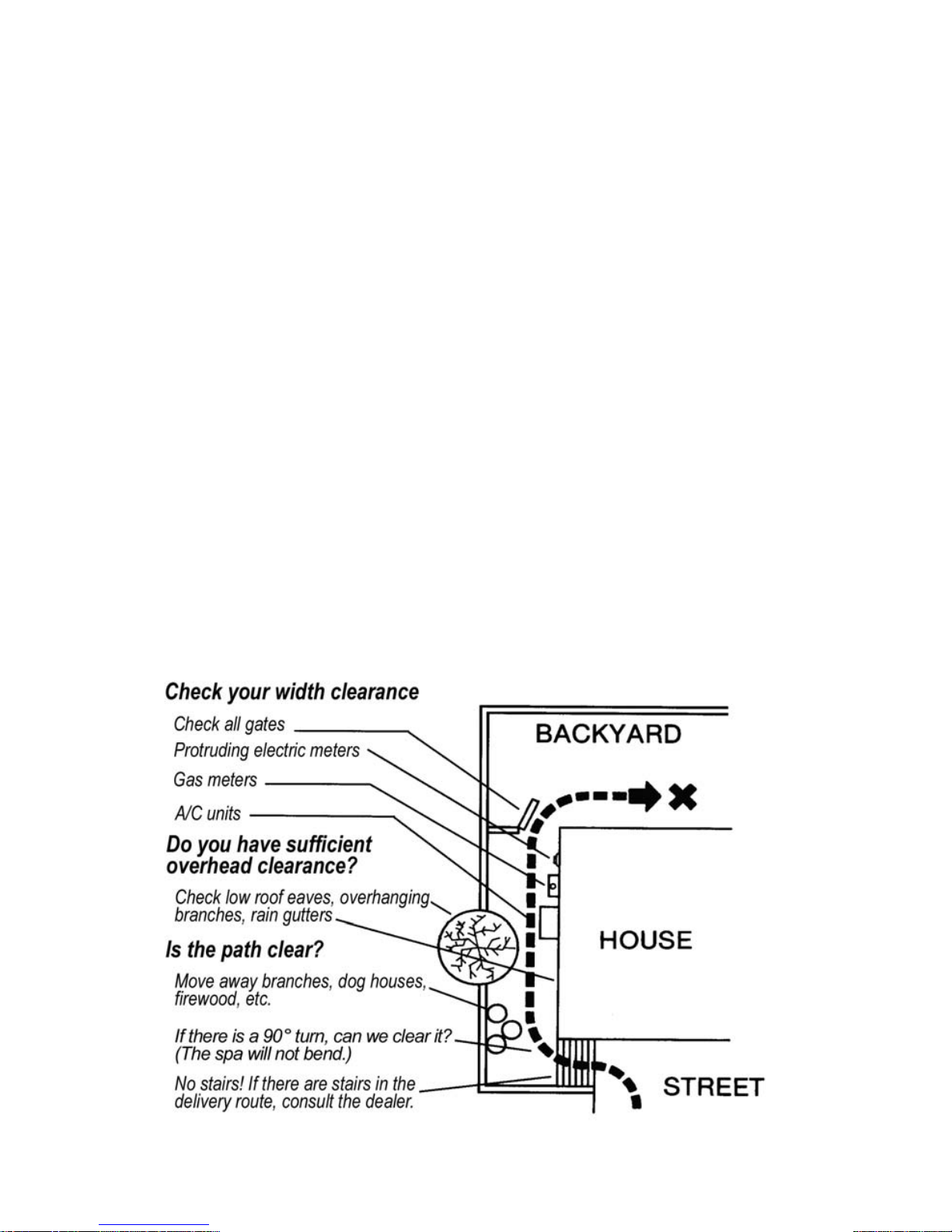

Plan your delivery route
Choose a suitable location
for the spa
Lay a 3” - 4” concrete slab
Install dedicated electrical
supply
After Delivery
Place spa on slab
Connect electrical
components
In-Ground Spa
Pre-Delivery Checklist
Before Delivery
Plan your delivery route
Choose a suitable location
for the shell and equipment
pack
Excavate the hole
Install dedicated electrical
supply
Install dedicated NG line for
gas heater
After Delivery
Install shell in ground
Install equipment pack
Connect plumbing
Connect electrical
components
Pour the deck

2
Planning the Best Location
Safety rst
Do not place your spa within 10 feet (3 m) of overhead power lines.
Make sure the spa is positioned so that access to the equipment
compartment and all side panels will not be blocked. Be certain that your
installation will meet all city and local safety codes and requirements.
Consider how you will use your spa
How you intend to use your spa will help you determine where you should
position it. For example, will you use your spa for recreational or therapeutic
purposes? If your spa is mainly used for family recreation, be sure to leave
plenty of room around it for activity. If you will use it for relaxation and
therapy, you’ll probably want to create a specic mood around it.
Plan for your environment
If you live in a region where it snows in the winter or rains frequently, place
the spa near a house entry. By doing this, you will have a place to change
clothes and not be uncomfortable.
Consider your privacy
In a cold-weather climate, bare trees won’t provide much privacy. Think of
your spa’s surroundings during all seasons to determine your best privacy
options. Consider the view of your neighbors as well when you plan the
location of your spa.
Provide a view with your spa
Think about the direction you will be facing when sitting in your spa. Do
you have a special landscaped area in your yard that you nd enjoyable?
Perhaps there is an area that catches a soothing breeze during the day or
a lovely sunset in the evening.
Keep your spa clean
Prevent dirt and contaminants from being tracked into your spa by placing
a foot mat at the spa’s entrance where the bather’s can clean their feet
before entering your spa. You may also consider keeping a small water-
lled basin nearby for bathers to rinse their feet before entering your spa.
In planning your spa’s location, consider a location where the path to and
from the house can be kept clean and free of debris.

3
Allow for service access
Many people choose to install a decorative structure around their spa. If
you are installing your spa with any type of structure on the outside, such
as a gazebo, remember to allow access for service. It is always best to
design special installations so that the spa can still be accessed.
Consider the best place for the outdoor equipment pack
(in-ground spas only)
The Designer Spa series requires an external equipment pack. When
locating the outdoor equipment pack, you will want to consider the
following:
The equipment pack must be located within a maximum of 15 feet•
from the spa.
Ensure the equipment running its normal ltration cycles does not •
make too much noise for spa owners and/or neighbors.
Ensure the equipment can be easily serviced for lter cleaning and •
periodic inspections in the location chosen.
If you are using a gas heater, you will need to consider wind and drafts•
as well as heater exhaust for proper heater placement. (See heater
owner’s manual for important location and safety information.)
The equipment base and heater must be placed on either a 3 1/2”•
cement slab or 3” paving stones.
Make sure the equipment area selected will not be in an area where•
water could run or stand.
If the area receives direct sunlight, you will want to provide some•
protection for the equipment portion of the equipment pack.
The equipment pack and heater are delivered separately. Do not cover gas
heaters unless properly vented. (See heater owner’s manual for important
safety information.)

4
Portable Spa Site Preparation
Your spa needs a solid and level foundation. The area that it sits on must
be able to support the weight of the spa, with water and the occupants who
use it. If the foundation is inadequate, it may shift or settle after the spa
is in place, causing stress that could DAMAGE YOUR SPA SHELL AND
FINISH.
Note: Damage caused by inadequate or improper foundation support is
not covered by the warranty. It is the responsibility of the spa owner to
provide a proper foundation for the spa.
Place the spa on an elevated foundation (preferably a 3” - 4” concrete
slab). Pavers, gravel, brick, sand, timbers or dirt foundations are not
adequate to support the spa. If you are installing the spa indoors, pay
close attention to the ooring beneath it. Choose ooring that will not be
damaged or stained.
If you are installing your spa on an elevated wood deck or other structure, it
is highly recommended that you consult a structural engineer or contractor
to ensure the structure will support the weight of 150 pounds per square
foot.
To properly identify the weight of your new spa when full, remember water
weighs 8.33 lbs. per gallon. For example, an average 8’ spa spa holds
approximately 500 gallons of water. Using this formula, you will nd that
the weight of the water alone is 4,165 lbs. Combined with the dry weight
of the spa you will note that this spa will weigh approximately 5,000 lbs.
when full of water.
Note: It is strongly recommended that a qualied, licensed contractor
prepare the foundation for your spa.
Your Cal Spas®retailer can help you with your foundation and more. Your
retailer has a wealth of information and experience about how to get the
most out of your spa and can provide you with a full line of accessories
that are designed to complement your spa and increase your enjoyment.
In-Ground Spa Site Preparation
Ensure there is enough room for the spa and equipment.•
The equipment pack must be located within a maximum of 15 feet•
from the spa.
Plan for proper electrical and gas service to both the equipment area•
and spa side.
Ensure the required at, level foundation can be constructed in the •
area chosen.

5
The spa must be properly back-lled with wet sand, underneath and •
on all four sides.
The nal architecture must include permanent ground coverage within •
a 10 feet radius of the spa.
Never place any spa in a sealed area. Water must be able either to be•
absorbed into the surrounding area or channeled away. Water build-
up under and/or around the spa, will cause the spa to oat out of the
ground.
Grading Prior to Excavation
Selection of the Designer Spas site will determine how much grading will
have to be accomplished prior to the actual dig for the spa. Naturally, a
level area is best because it will require the least amount of preparation for
the dig, but in many cases there is no level area, therefore, the site must
be prepared to accept the Spa prior to dig. The spa site should be elevated
slightly higher than the surrounding area
When dealing with slopes, the severity of the slope will determine if
retaining walls must be built in order to have a level area for the spa. If the
slope is relatively minor, contact your local building safety.
Site Excavation – Hard Bottom
For hard bottom placement for in-ground spas, you will need a smooth and
at concrete surface at least 4” thick as large as the bottom contact points.
Be sure not to seal the bottom off and making a sealed box. You will need
adequate water drainage for escape under the spa. A gravel beds around
the concrete base will help with this.
Site Excavation – Sand Bottom
With the spa area and all elevations planned including your decided type
of decking, you are now ready to proceed with the dig. An ideal excavation
is one that is as close as possible to the dimensions of the spa shell, but
with the following rules in mind. The excavation should be 2” to 4” deeper
than the actual spa for your sand bed. The sand bed is to level the spa
shell and provide a perfect support base with no voids when the spa is
lowered into the hole. Your excavation should be approximately one foot
longer and one foot wider than the spa shell. This will allow for a six inch
over dig all the way around the spa once it is in place. Additional hand
excavation will be required to insure the skimmer will t in the excavation
when attached to the spa.
Sand or rock dust must be used to bed the shell into the excavation and
for backll. In no event is dirt to be used. One of the easiest ways to know
how much sand is needed to be placed on the bottom of the excavation is
to set a grade stake at all four corners, and one on each side of the center
line in the bottom of the hole. If there are areas that are deeper than 2” to
4”, these can be lled with sand and are of no consequence.

6
Getting the Spa Into Your Yard
Check the Dimensions of Your New Cal Spa®
The Cal Spas® specication chart lists your spa’s model and its dimension
as it sits on the delivery cart. During delivery, the spa must remain on the
delivery cart at all times. Compare the dimensions to the width of the gates,
sidewalks, and doorways along the delivery route. It may be necessary for
you to remove a gate or partially remove a fence in order to provide an
unobstructed passageway to the installation location.
Plan the Delivery Route
Consider the following when planning your delivery route:
Check the width of gates, doors and sidewalks to make sure your spa•
will pass through unobstructed. You may have to remove a gate or
part of a fence to allow for adequate width clearance.
Are there low roof eaves, overhanging branches or rain gutters that•
could be an obstruction to overhead clearance?
8’ spas need at least 42” wide gate and 9’ height clearance.•
If the delivery route will require a 90º turn, check the measurements at•
the turn to ensure the spa will t.

7
Are there protruding gas meters, water meters or A/C units on your•
home which will cause obstructions along the delivery path to your
yard?
Are there stairs in your delivery route? If so, you must consult your Cal•
Spas®dealer prior to delivery to make adequate preparations.
Special Circumstances
The use of a crane for delivery and installation may become necessary if
you are unable to provide an adequate delivery route. It is used primarily
to avoid injury to your spa, your property or to delivery personnel. Your Cal
Spas®dealer may be able to assist you with the arrangements. If your spa
delivery requires the use of a crane, the cost of a crane is generally not
included in the standard delivery service.

8
Electrical Requirements
Electrical Requirements – US and Canada
240 Volt Electrical Installation
All 240V spas must be permanently connected (hardwired) to the power
supply. These instructions describe the only acceptable electrical wiring
procedure. Spas wired in any other way will void your warranty and may
result in serious injury.
This is the only acceptable electrical wiring procedure. Spas wired in any
other way will void your warranty. See the wiring diagram on page 9.
When installed in the United States, the electrical wiring of this spa must
meet the requirements of National Electric Code, ANSI/NFPA 70-2008 and
any applicable local, state, and federal codes. The electrical circuit must
be installed by an electrical contractor and approved by a local building /
electrical inspector.
GFCI and Wiring Requirements
The power supplied to the spa must be on a dedicated GFCI protected
circuit as required by ANSI/NFPA 70 with no other appliances or lights
sharing the power.
Use copper wire with THHN insulation. Do not use aluminum wire.
Use the table on the next page to determine your GFCI and wiring
requirements.
When NEC requires the use of wires larger than #6 AWG, install a junction
box near the spa and use #6 AWG wire between the junction box and the
spa.
Wire runs over 85 feet must increase wire gauge to the next lower number.
For example: A normal 50 amp GFCI
with four #8 AWG Copper wires run
over 85 feet would require you to go to
four #6 AWG copper wires.
Read and follow the heater
manufacturer’s safety and installation
instructions prior to installation and
operation. Incorrect installation may
damage the heater and void its
warranty.

9
Spa Model GFCI Required Wires Required
Portable Spas
All 240V spas (except
6300 control boxes
requiring high amperage
- see below)
One 50 amp GFCI Four #8 AWG copper
wires
Spas with the 6300
control box (when high
amperage is selected on
circuit board)
SEE CONFIGURATION
INSTRUCTIONS ON
NEXT PAGE.
One 60 amp GFCI Four #8 AWG copper
wires
Ultimate Fitness Spas
Fitness spa with 5.5 kW
heater
One 50 amp GFCI Four #8 AWG copper
wires
Fitness spa with two 11
kW heater and Fitness
Pro 2500 spa
Service 1: One 50
amp GFCI
Service 2: One 30
amp GFCI
Service 1: Four #8
AWG copper wires
Service 2: Three #8
AWG copper wires
Fitness Pro 4700 spa
Service 1 (swim
side): One 60 amp
GFCI
Service 1: Four #8
AWG copper wires
Service 2 (swim
side): One 30 amp
GFCI
Service 2: Three #8
AWG copper wires
Service 3 (spa
side): One 40 amp
GFCI
Service 3: Four #8
AWG copper wires
In-Ground Spas
Designer in-ground spas
with one 5.5 kW heater
One 50 amp GFCI Four #8 AWG copper
wires
Designer in-ground spa
with two 5.5 kW heaters
Service 1: One 50
amp GFCI
Service 2: One 30
amp GFCI
Service 1: Four #8
AWG copper wires
Service 2: Three #8
AWG copper wires
Designer in-ground spa
with gas heater
One 50 amp GFCI Four #8 AWG copper
wires

10
Testing the GFCI Breaker
Test the GFCI breaker prior to
rst use and periodically when the
spa is powered. To test the GFCI
breaker follow these instructions
(spa should be operating):
Press the TEST button on the1.
GFCI. The GFCI will trip and
the spa will shut off.
Reset the GFCI breaker by2.
switching the breaker to the full
OFF position, wait a moment,
then turn the breaker back on.
The spa should have power
again.
Conguring the 6300
Control System
The 6300 control system requires
higher power than other 240V sys-
tems. Dip switch #10 is factory set
in the ON position. This causes the
heater to shut off when any pump
is running in high speed. To allow
the heater to continue operating,
dip switch #10 must be set to the
OFF position.
To ensure your spa functions prop-
erly, ensure the following steps are
performed before starting your spa:
When installing the electrical•
system, use a 60 amp GFCI.

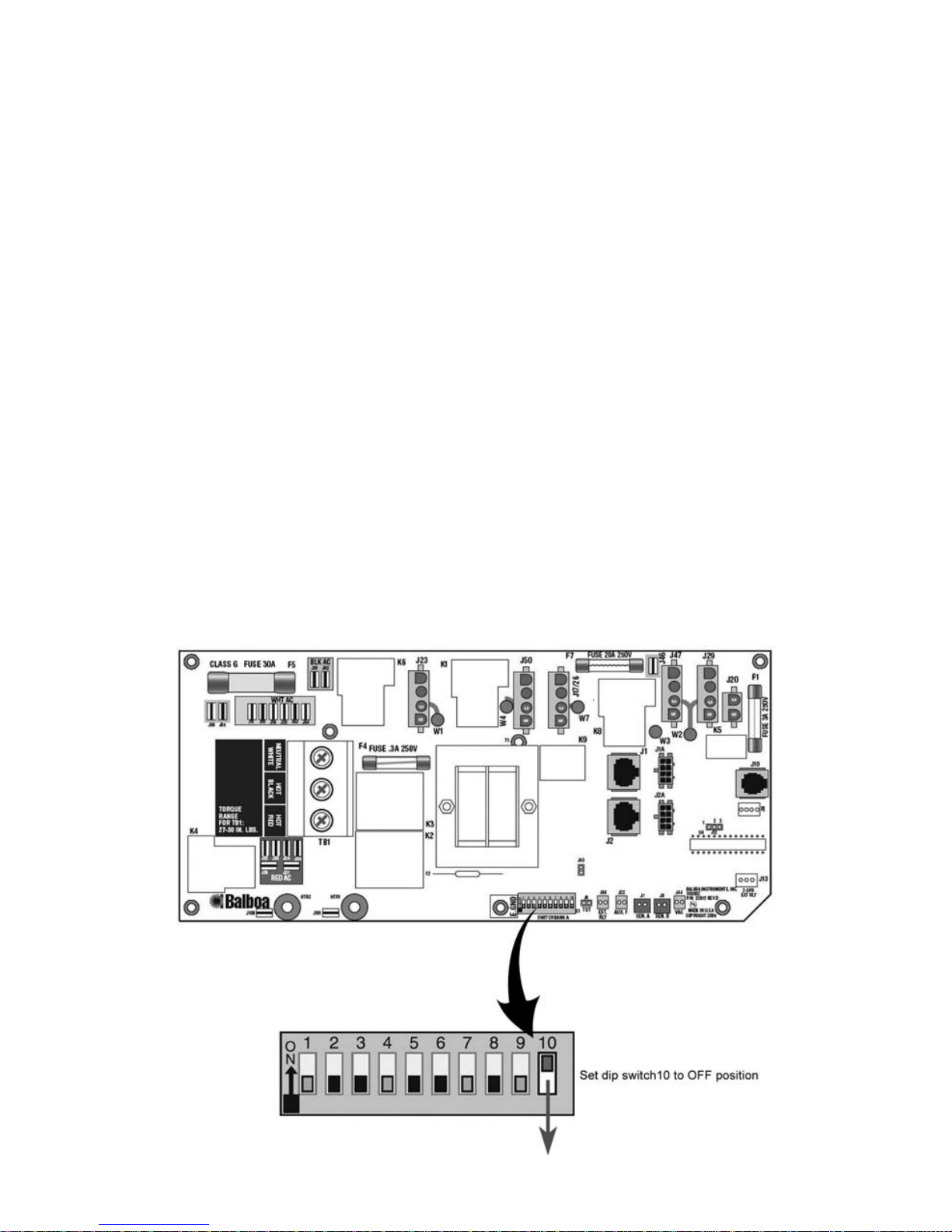

Follow the GFCI wiring diagram
on the next page.
Have your dealer or installer•
set dip switch #10 to the OFF
position on the circuit board as
shown below.

11

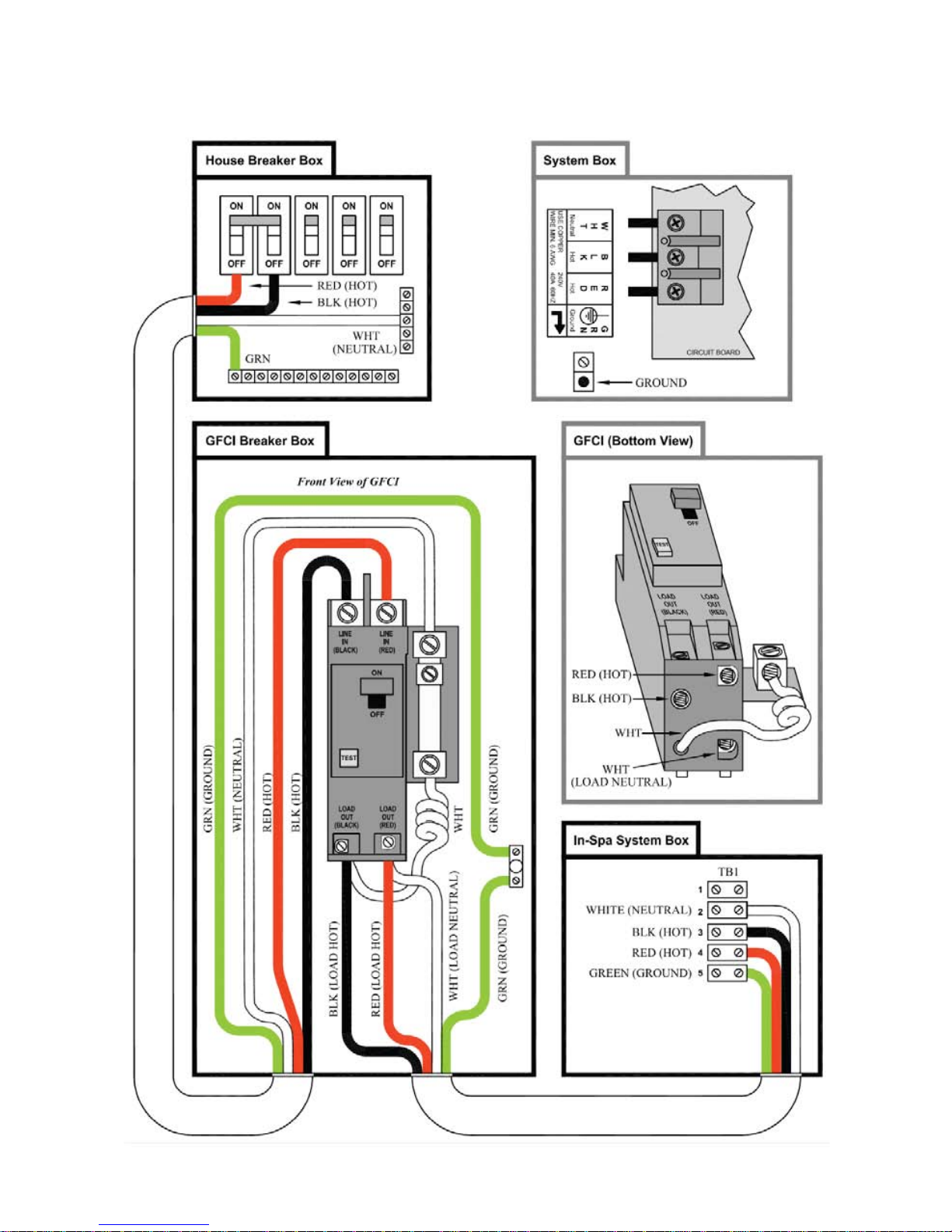

GFCI Wiring Diagram

12
120 Volt Electrical Installation
Always follow applicable local, state and federal
codes and guidelines.
Use only a dedicated electrical line with a 20-amp
breaker.
Cord-and-plug connections may not use a cord
longer than 15 ft (4.6 m) and must be plugged into
a dedicated 20-amp GFCI connection. Do not use
extension cords!
Always use a weatherproof-covered receptacle.
Receptacle shall be located not less than 5 ft (1.5 m)
from and not exceeding 10 ft (3.0 m) from the inside wall of the spa.
Do not bury the power cord.
If your cord becomes damaged, replace it before next usage.

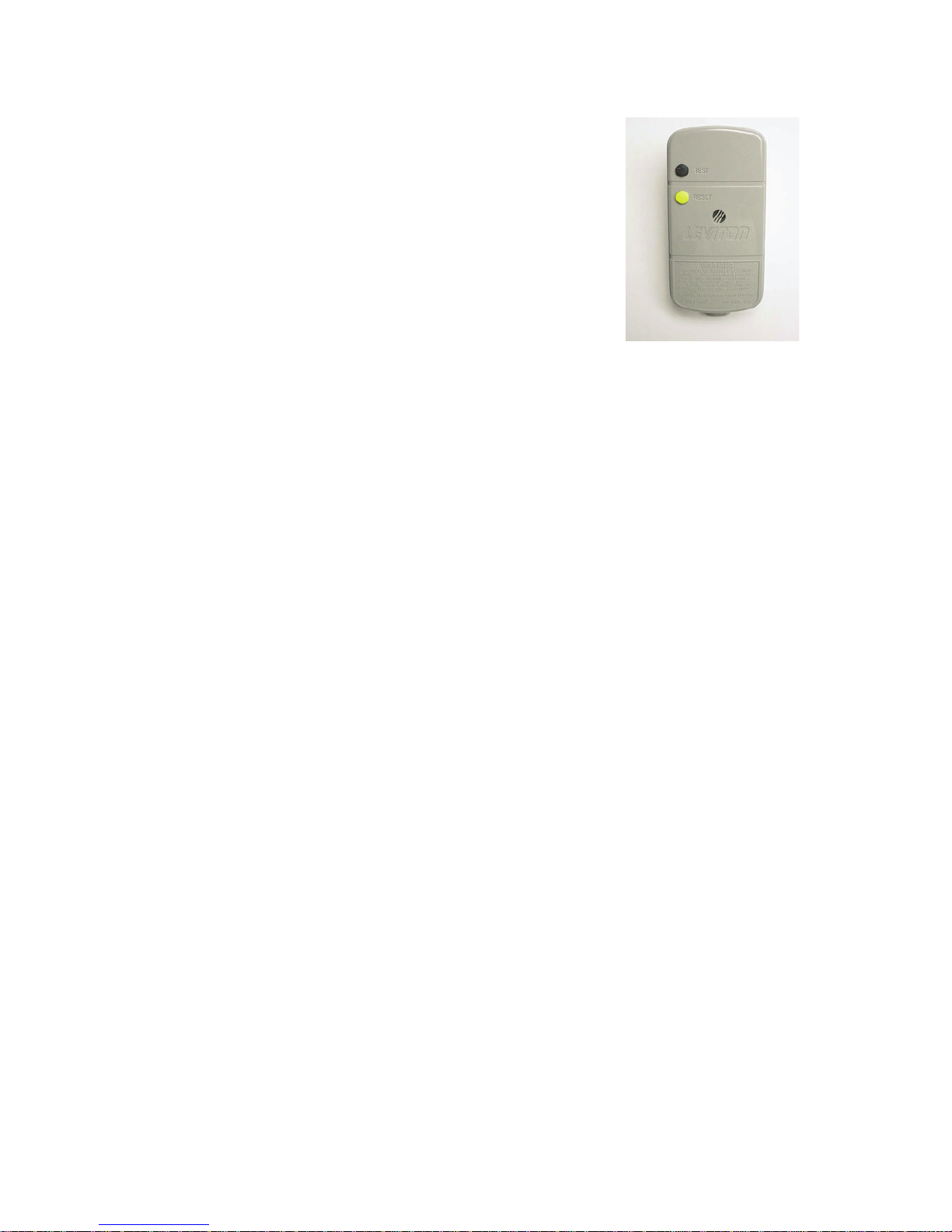

All 120V spas must have a GFCI. This can be either a 20-amp GFCI

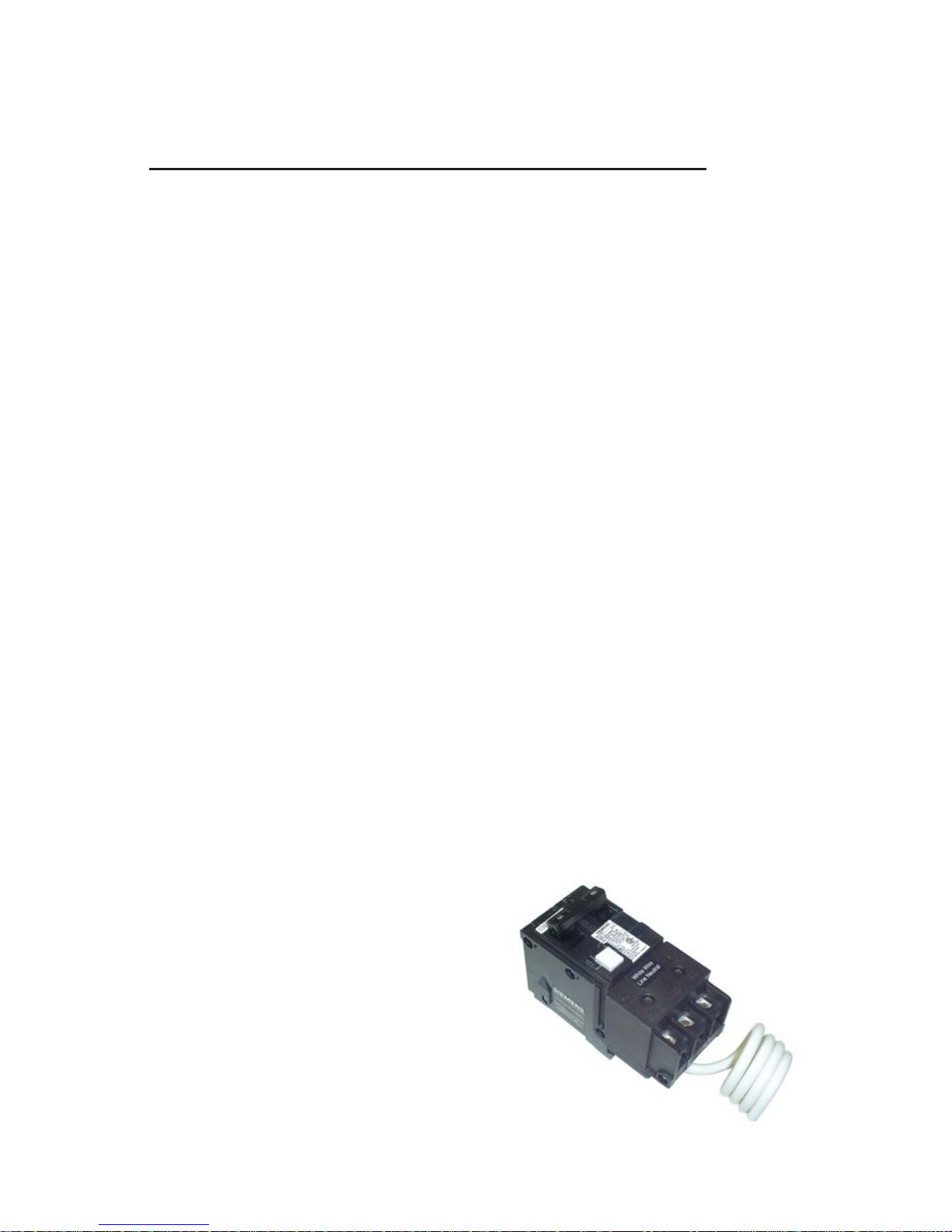

receptacle or a GFCI cord and plug kit as shown at right (CKIT110 - P/N
ELE09700086).
Testing the GFCI Breaker
Test the GFCI plug prior to rst use and periodically when the spa is
powered. To test the GFCI plug version, follow these instructions. (Spa
should already be plugged in and operational.)
Press the TEST button on the GFCI. The GFCI will trip and the spa will1.
stop operating.
Press the RESET button on the GFCI. The GFCI will reset and the spa2.
will turn back on.
The spa is now safe to use.
If the GFCI trips while the spa is in use, press the RESET button. If the
GFCI does not reset, unplug the spa and call your local Cal Spas®dealer
for service. DO NOT USE THE SPA!

13
Electrical Installation -- Europe
230 Volt Electrical Installation
All 230V spas must be permanently connected (hardwired) to the power
supply. These instructions describe the only acceptable electrical wiring
procedure. Spas wired in any other way will void your warranty and may
result in serious injury.
This is the only acceptable electrical wiring procedure. Spas wired in any
other way will void your warranty. See the wiring diagram on page 13.
The electrical wiring of this spa must meet the requirements of any applicable
local, state, and federal codes. The electrical circuit
must be installed by an electrical contractor and
approved by a local building / electrical inspector.
RCD and Wiring Requirements
The power supplied to the spa must be on a dedicated
RCD protected circuit with no other appliances or
lights sharing the power.
Use copper wire with THHN insulation. Do not use
aluminum wire.
Use the table on the next page to determine your
GFCI and wiring requirements.
When wires larger than #6 AWG are required, install a junction box near
the spa and use #6 AWG wire between the junction box and the spa.
Wire runs over 85 feet must increase wire gauge to the next lower number.
For example: A normal 50 amp RCD with four #8 AWG copper wires run
over 85 feet would require you to go to four #6 AWG copper wires.

14
Spa Model GFCI Required Wires Required
Portable Spas
All 230V spas (except
6205 control boxes
requiring high amperage
- see below)
One 32 amp RCD
or two 16 amp
RCDs
Four #10 AWG
copper wires
Spas with the 6300
control box (when high
amperage is selected on
circuit board)
SEE CONFIGURATION
INSTRUCTIONS ON
NEXT PAGE.
One 32 amp RCD
or two 16 amp
RCDs
Four #10 AWG
copper wires
Ultimate Fitness Spas
Ultimate Fitness spas
with one 5.5 kW heater
One 32 amp RCD
or two 16 amp
RCDs
Four #10 AWG
copper wires
Ultimate Fitness spas
with two 5.5 kW heaters
Service 1: One 32
amp RCD or two 16
amp RCDs
Service 1: Four #10
AWG copper wires
Service 2: One 32
amp RCD or two 16
amp RCDs
Service 2: Three #10
AWG copper wires
In-Ground Spas
Designer in-ground spas
with one 3 kW heater
One 32 amp RCD
or two 16 amp
RCDs
Four #10 AWG
copper wires
Designer in-ground spa
with one 3 kW heater
and one 5.5 kW heater
Service 1: One 32
amp RCD or two 16
amp RCDs
Service 1: Four #10
AWG copper wires
Service 2: One 32
amp RCD or two 16
amp RCDs
Service 2: Three #10
AWG copper wires
Testing the RCD Breaker
Test the RCD breaker prior to rst use and periodically when the spa is
powered. To test the RCD breaker follow these instructions (spa should
be operating):
Press the TEST button on the RCD. The RCD will trip and the spa will1.
shut off.
Reset the RCD breaker by switching the breaker to the full OFF position,2.
wait a moment, then turn the breaker back on. The spa should have
power again.

15

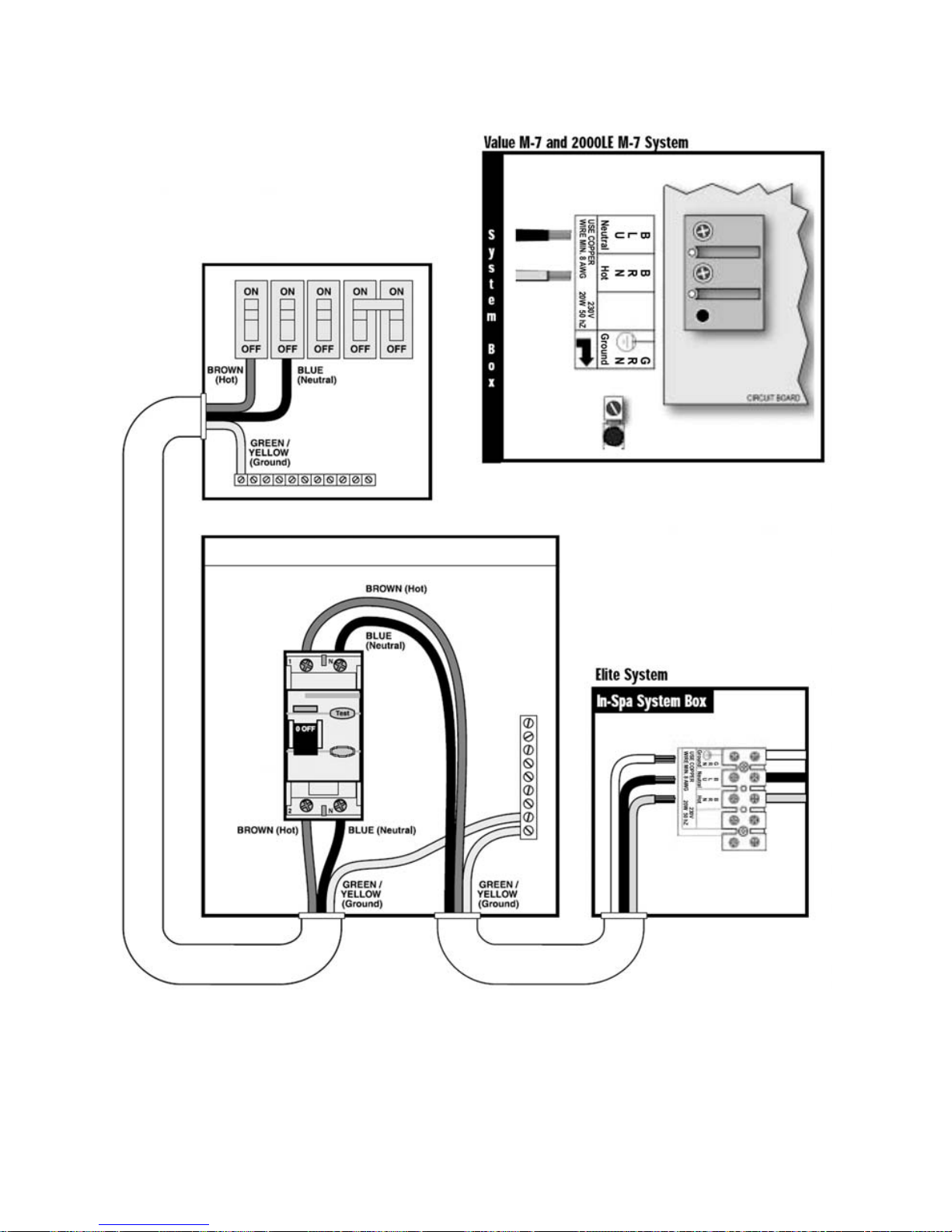

RCD Wiring Diagram

16
Installing the In-Ground Shell

17
Equipment Pack Plumbing
Connections (In-Ground Spas)
The example shown below is typical for a system with two pumps with
external heater and external lter.
Designer Spa Specications
DIJ401 – DIJ406:
Equipment pack weight = 250 lbs.
DIJ407:
Equipment pack weight = 300 lbs.
2.5 HP heat pump
4 HP swim pump
Note:
Equipment pack cannot exceed
15 feet from spa.

18
