INSTRUCTION MANUAL
DS-12CH
DS-18CH
Please read and retain these instructions for future reference
SPLIT TYPE
AIR CONDITIONER
With DIY Quick Connector

2
INDEX
•Index 2
•Specification 3
•Safety Information 4
•Parts 5
•Installation 6
•Installing the Indoor Unit 7
•Installing the Outdoor Unit 8
•Testing the Unit 9
•Operation 10
•Remote Control Operation 11
•Setting the Clock 12
•Timer Function 12
•Sleep Function 12
•Setting the Airflow Direction 13
•Maintenance 14
•Fault Check List 15

3
SPECIFICATION
Model DS-12CH DS-18CH
Power Supply (Ph, V~Hz) 1Ph, 220-240V,
50Hz 1Ph, 220-240V, 50Hz
Capacity (BTU/hr) 12,000 18,000
Power Consumption
(W) 1,100 1,650
Operating Current (A) 5.0 7.5
Cooling
EER (BTU/w.h) 3.2 3.2
Capacity (BTU/hr) 12,500 18,700
Power Consumption
(W) 1,080 1,610
Operating Current (A) 4.9 7.3
Heating
COP (BTU/w.h) 3.4 3.4
Airflow
Volume M
3
/hr 540 810
Dehumidifying
L/hr 1.0 1.8
Refrigerant g/R410a 780 1,400
Noise Level (db(A)) ≤36 ≤40
Dimensions WxHxD
(mm) 785x275x200 1010x320x210
Packing WxHxD (mm) 860x345x240 1060x366x285
Indoor Unit
Net/Gross Weight (kg) 11/13 21/26
Noise Level (db(A)) ≤50 ≤52
Dimensions WxHxD
(mm) 800x250x540 800x250x540
Packing WxHxD (mm) 888x344x590 888x344x590
Outdoor Unit
Net/Gross Weight (kg) 37/44 40/48
Suitable Area M
2
18-26 30-43
Please note:
1. Information may vary for technical reasons
2. Measuring condition for above is based on regulation EN14511

4
SAFETY INFORMATION
General Safety
•The air conditioner unit must be installed according to the instruction
manual
•NEVER use the air conditioner unit near flammable liquids/gases
•NEVER use the air conditioner in a confined space where other
heating/cooling appliances are being used unless there is adequate
ventilation
•Do not place objects on the unit or restrict the air inlet/outlet
•Always supervise children and pets when the unit is in use
•Always firmly fix the outdoor unit, ensuring the unit is horizontal
Electrical Safety
•Always switch the unit off and unplug when not in use
•Always use the remote control or emergency switch to turn the unit on/off.
NEVER use the mains power switch to operate the unit
•NEVER open the indoor nor outdoor unit
•Do not use in overly humid or wet environment
•Do not install near ovens/boilers or similar heat producing products
•If any leads/cables are damaged, they must be replaced immediately by a
qualified electrician
For Maximum Efficiency
•Do not exceed the recommended room size (details in the specification)
•Close all doors and windows in the room with the operating air conditioner
unit
•Keep curtains and blinds closed if the room is in direct sunlight
•Keep filters clean
•Once the room has reached the desired conditions, change the
temperature and ventilation settings as required

5

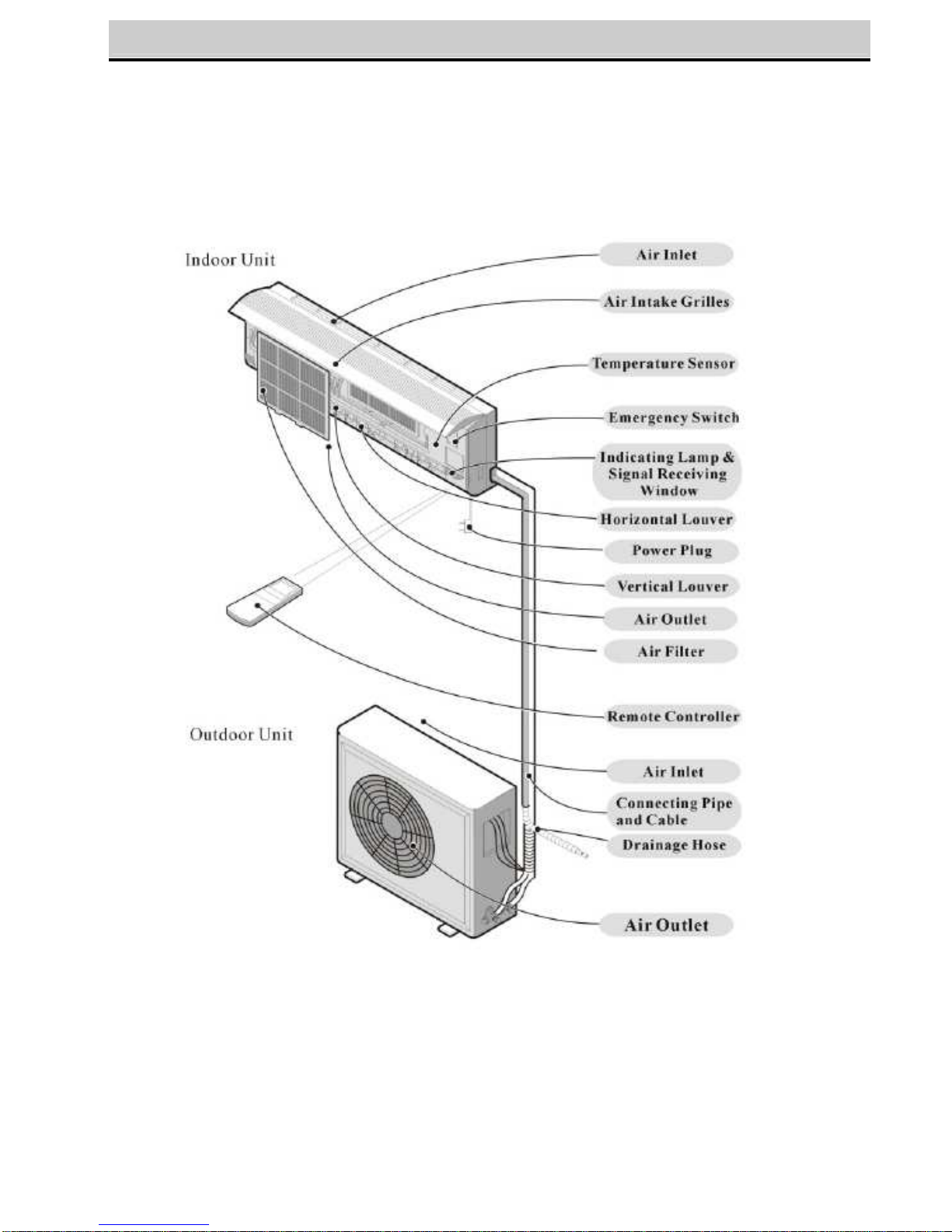

PARTS

6
INSTALLATION
This Split Type Air Conditioner is fitted with DIY quick connectors. For ease of
installation, please follow these instructions carefully, ensuring the below
measurements are adhered to

7
INSTALLATION
Installing the indoor unit
1. Ensure the machine is not connected to the mains electricity supply
before carrying out the installation
2. Unclip the mounting panel from the rear of the indoor unit using the two
catches in the bottom corners
3. Ensure the mounting panel is horizontal and fix into place using the self
tapping screws provided, at least 50mm for the ceiling, 100mm from each
side wall and 2000mm from the floor
4. Carefully drill a 60mm hole, angled downwards, slightly to the right of the
mounting panel. (The indoor unit should then cover this hole when hung)
5. Pass the piping through the hole and then mount the indoor unit. Hang the
top of the unit on the mounting panel and lightly press the base until it
‘clicks’ into place

8
INSTALLATION
Installing the outdoor unit
•The outdoor unit has two drainage holes on the base. Choose the most
convenient and connect the drainage elbow
•Ensure the unused drainage hole is filled with a grommet before the
outdoor unit is mounted in position
•Take care to mount the outdoor unit on a level surface at least 100mm
from the wall
•Securely fasten the outdoor unit to the base/floor
•If a mounting bracket is used (not included), ensure the outdoor unit is
securely fastened to the mounting bracket
•Ensure the outdoor unit is fitted below the indoor unit, so the water can
drain from the indoor unit

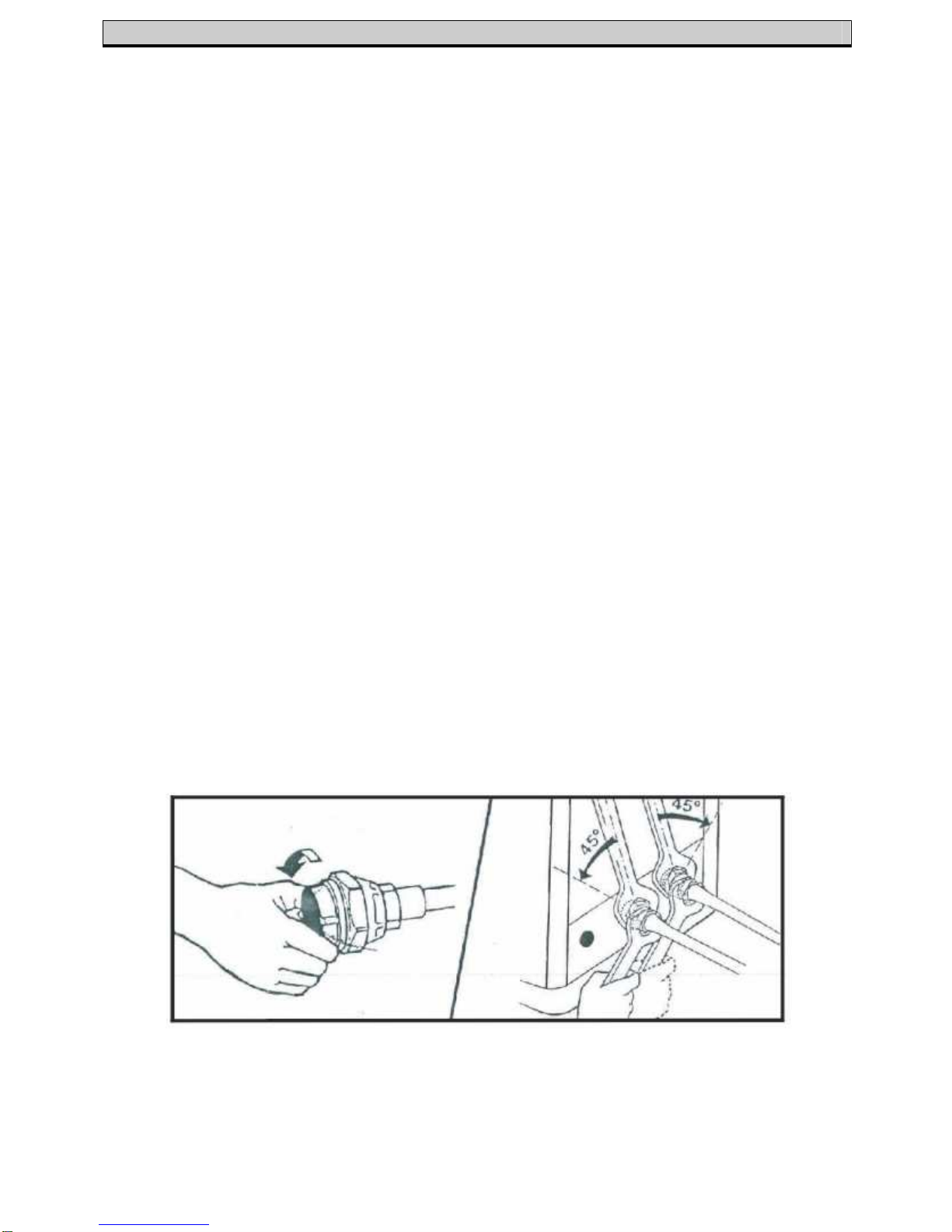

Connecting the air conditioner
WARNING – do not adjust any bolts except those that connect directly to
the outside unit. Adjusting these will cause the refrigerant to escape and
may cause serious injury
1. Ensure the machine is not connected to the mains electricity supplied
before carrying out the installation
2. Remove the protective covers from the two connecting pipes
3. Connect the two pipes from the indoor unit to the valves of the outdoor
unit using two spanners
4. Connect the wiring, ensuring the terminal numbers and wiring colours on
the outdoor unit match with the terminal numbers and wiring colours on
the indoor unit. If you are not confident in performing this, ask a qualified
electrician

9
INSTALLATION
Releasing the refrigerant to the unit
1. This air conditioning unit comes ready charged with refrigerant
2. Tighten the screws on the outdoor unit with a 24mm spanner
3. Remove the gas valve cover and open, using the hexagonal spanner
provided
4. Replace the gas valve cover
5. Repeat stages 2-4 for the second gas valve
Testing the unit
1. Connect the mains power
2. Locate the emergency power switch under
the cover of the indoor unit and turn the
power on
3. The unit will sound once, the indoor fan will
start and all the lights on the unit will
illuminate
4. After 2 seconds, the lights will turn off
5. After 6 seconds, the fans will stop and the unit is ready to use
After testing the unit, the emergency power switch should only be used
when the remote control is lost or defective
When using the emergency power switch, the unit will operate in ‘Auto’
function according to the room temperatures below and the louvers will
oscillate in the ‘Standard’ cycle
•Cooling function if the room temperature is greater than 25
o
C
•Fan Function if the room temperature is between 20
o
C and 25
o
C
•Heating Function if the room temperature is less than 20
o
C
Please Note – Using the emergency power switch will cancel the
‘Timer’/’Sleep’ functions

10
OPERATION
1. Power On
2. Required temperature reached
3. In Operation
4. Defrosting
a Heating Function
b Cooling Function
c Sleep Function
d Fast Cooling/Heating
e Status Bar
f Required Temperature
g Timer Function
h De-humidifying Function
i
Fan Function

11
OPERATION
The air conditioner unit should be operated and set using the remote control
provided. Each time a button is pressed the unit will sound to confirm the
signal has been received
•To change the function, press the ‘Mode’ button (4) repeatedly, until the
desired function is reached
AUTO COOL DE-HUMIDIFY FAN HEAT
•The required room temperature is adjusted using the ‘Up’ and ‘Down’
arrows (12&15)
•To change the fan speed, press the ‘Fan’ button (13) repeatedly, until the
desired function is reached
AUTO LOW MEDIUM HIGH
•The direction of the airflow can be adjusted using the ‘Swing’ button (7)
•The timer can be set/cancelled by pressing the ‘Timer’ button (5)
•The sleep mode can be set/cancelled by pressing the ‘Sleep’ button (14)
•The current time can be set using the ‘Hour’ (6) and ‘Min’ (16) buttons
•The unit can be switched on or off by using the ‘On/Off’ button (8)
Please Note – When the Required Temperature is less than 18
o
C or greater
than 30
o
C, ‘CONT’ will be displayed on the remote control and the unit will
operate continuously
1. Set Temperature display
2. Clock display
3. Mode(function) display
4. Mode(function) button
5. Timer button
6. Hour setting for timer/clock
7. Airflow direction (Swing)
button
8. Power button
9. Fan speed display
10.Airflow direction display
11.Sleep/Timer display
12.Temperature increase
13.Fan Speed
14.Sleep button (on/off)
15.Temperature decrease
16.Minute setting for timer/clock

12
OPERATION

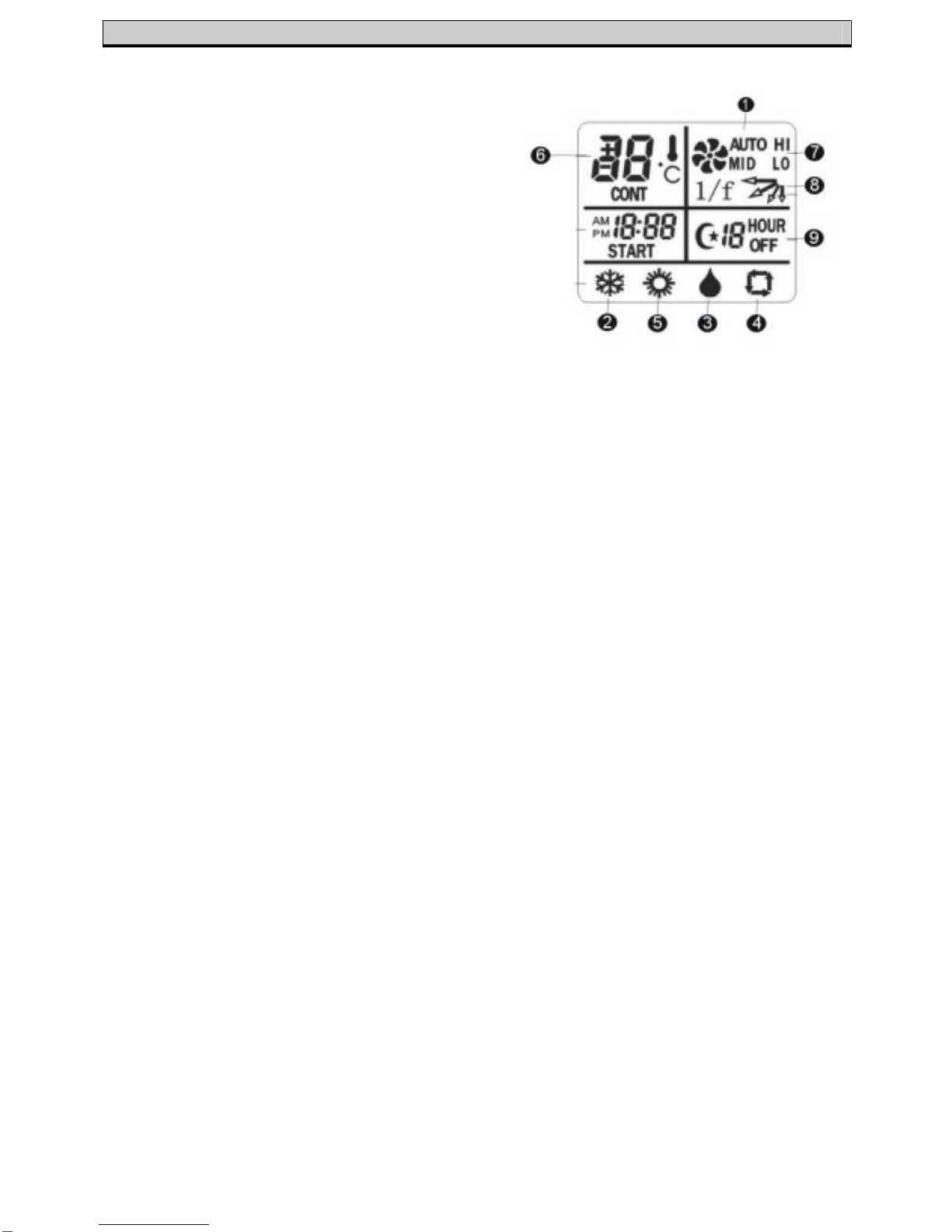

Remote Control Indications
1. Auto Function Selected
(the temperature will be set at 23
o
C)
2. Cooling Function Selected
3. De-humidifying Function Selected
4. Fan Function Selected
5. Heating Function Selected
6. Temperature Indicator
(press ‘Up’/’Down’ to show the set
temperature – the temperature
range is 16
o
C – 30
o
C)
7. Fan Speed Indicator
(Auto, Low, Medium, High)
8. Airflow Directional Indicator
9. Timer Indicator
Setting the Clock
The clock is set on the remote control by pressing the ‘Hour’ and ‘Min’ buttons
until the accurate time is reached
Timer Function
Please Note - In order for the timer to work, the clock must first be set on the
remote control
The timer can be set to control when the unit will start functioning within 24 hours
of the current time
•Set the clock to the correct time, following the method above
•Press the ‘Timer’ button so ‘HOUR’ is displayed
•Press the ‘Hour’/’Min’ buttons until the desired time before the unit
switches on is displayed on the remote control
•The unit will automatically check the temperature 1 hour before running
time and choose the appropriate Cool/Heat function
•Pressing the ‘Timer’ button again will cancel the timer function
Sleep Function
The air conditioner unit is also equipped with a Sleep function. This enables the
unit to switch off after 1, 2, 3, 5, 7 or 10 hours
•Press the ‘Sleep’ button so the moon logo is displayed on the remote
control
•Press the ‘Up’ arrow to set the required time
•Pressing the ‘Sleep’ button again will cancel the function

13
OPERATION
Setting the Airflow Direction (Swing)
The louvers on certain units can oscillate in three ways; Standard, Swing, Fixed
These can be selected by pressing the ‘Swing’ button
1. Standard
The louvers will move up and down through 120
o
and then stay open for 1
minute before repeating the process
2. Swing
The louvers will continuously move up and down through 120
o
3. Fixed
The louvers remain fixed in the direction set
Setting the Vertical Airflow Direction
The vertical louvers can be adjusted manually to the desired position
WARNING
•Never move the horizontal louvers manually
•During cooling/de-humidifying functions, the horizontal louvers
should not face downwards for a long time, nor should the vertical
louvers be fully turned to the right/left

14
MAINTENANCE
WARNING – Always unplug the air conditioner from the mains before
cleaning
To maximize the efficiency of the air conditioner, clean regularly
Cleaning the housing
Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals,
gasoline, detergents, chemically treated cloths or other cleansing solutions as
these could damage the unit
For serious stains, use a neutral detergent, diluted with water
Ensure all detergent is wiped off the unit
WARNING – Hot water (40
o
C+) may cause discolouring/deformation of the
unit

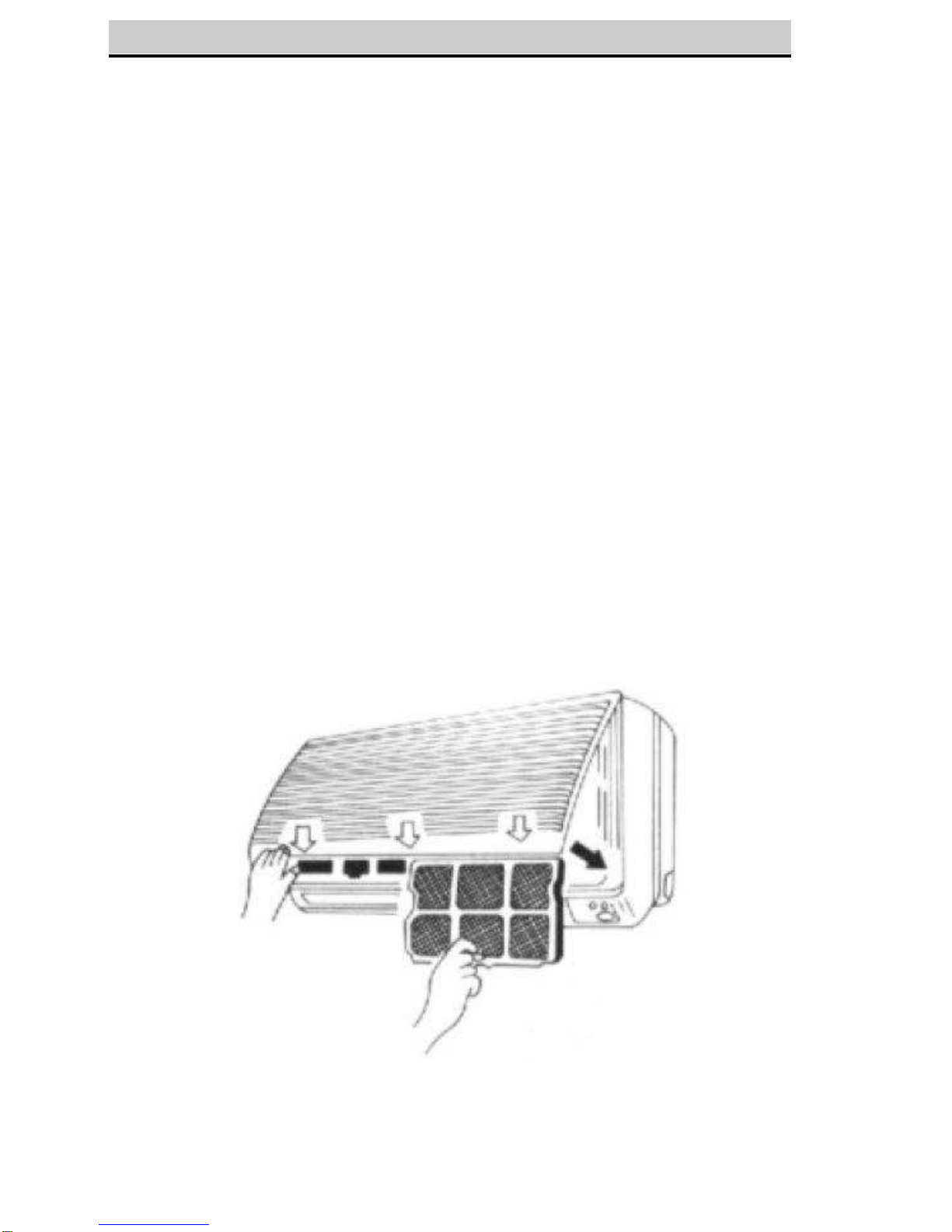

Cleaning the filter
WARNING – Never operate the unit without the filters in the correct position
•Open the inlet grill on the indoor unit by pulling the front cover forward
•Remove the filter by pushing the centre tab on the filter upwards and
pulling downwards
•Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt,
then rinse thoroughly under running water (no hotter than 40
o
C). Dry
thoroughly before replacing
•Re-attach the filter, ensuring the side marked ‘Front’ faces outward
•Close the front inlet grille

15
FAULT CHECK LIST
The air conditioner will not run:
 Is the air conditioner plugged in?
 Is there a power failure?
 Is the ambient temperature below the set
temperature?
 Are the valves on the outdoor unit open?
The machine seems to do little:
 Is there direct sunshine? (Please close
curtains)
 Are too many windows or doors open?
 Is there some
thing in the room producing a
lot of heat?
The machine seems to do
nothing:
 Is the filter dusty/contaminated?
 Is the air intake or output blocked up?
 Is there something blocking the outdoor
unit?
 Is the ambient temperature below your
selected temperature?
 Is the timer mode activated?
The machine is too noisy:
 Is the floor underneath the outdoor unit
uneven?
The compressor does not run:
 It is possible the overheat protection of the
compressor is on. (Wait for the
temperature to drop)
WARNING – Never try to repair or dismantle the unit yourself
