Desa BK3 User manual

Save for future reference.
For more information, visit www.desatech.com

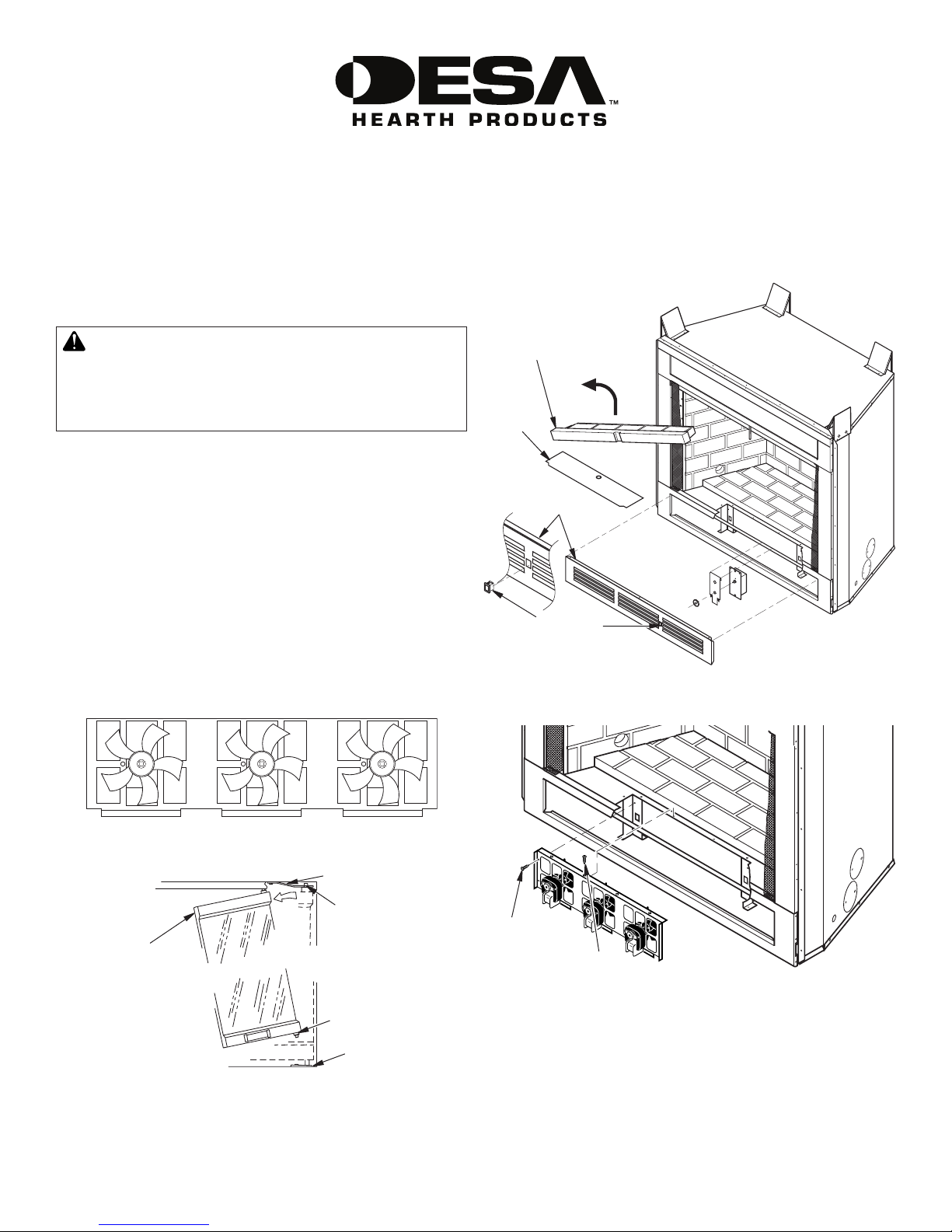

The model BK3 blower system (shown in gure 1) can be installed in any
existing circulating model wood burning or unvented rebox having a prewired
120 VAC duplex power receptacle.
CAUTION: Turn off gas supply, disconnect electric
circuit and allow appliance to fully cool down before
performing this installation. Glass and refractory panels
may be heavy for some individuals. If this is the case,
please request help.
ACCESSING BLOWER COMPARTMENT
1. Remove glass doors (if equipped) by following the instructions shown in
Figure 2.
2. Remove front refractory access panel by lifting up and angling out through
replace opening. See Figure 3.
3. Remove control cover panel.
4. Remove lower louver panel (if installed) by gently pushing out panel from
inside mounting frame.
5. Remove knockout plug from lower louver panel. See Figure 3.
6. Place fan assembly with blades pointing towards rear of replace and in
between two leg stands. See Figure 4.
7. Using 2 of the screws provided, fasten upper ange of blower bracket to
hearth pan. Fasten end anges to leg stands with remaining 4 screws.
See Figure 4.
NOTE: Wire assembly must be arranged in front and away from the fan
blades to reach power receptacle plug freely.
MODEL BK3 FAN KIT INSTALLATION INSTRUCTIONS
TRIPLE FAN BLOWER SYSTEM
FOR USE WITH DESA MODEL WOOD BURNING AND VENT FREE FIREBOXES
Figure 1 - BK3 Triple Fan Assembly
Fold Bi-Fold Door
After Releasing
Spring Clip to Slide
Door out of Upper
Track
Spring Clip
Press Spring Clip to
Release Pivot Pin
Remove Bottom Pin
from Pivot Plate While
Sliding Door Out of
Upper Track
Pivot Plate
Figure 3 - Accessing Blower Compartment
Refractory
Access Panel
Control
Cover
Louver Panel
Knockout Plug
Figure 2 - Removing Glass Doors
Figure 4 - Mounting Blower
Screws for
Leg Stands
Screws at
Upper Flange

MOUNTING AND CONNECTING SWITCH
1. Remove 2 connectors from ON/OFF rocker switch located on wiring
harness. See Figure 5.
2. Insert rocker switch into lower louver panel with switch lever pointing
outward.
3. Reconnect previously removed wire connectors onto switch terminals.
4. Insert supply plug into one of the available power receptacles at the right
side of compartment. See Figure 5.
IMPORTANT: Be sure to inspect components and wiring for damage before
restoring power to appliance. If damaged, contact an authorized dealer for
original replacement part(s) or call DESA Heating, LLC at 1-866-872-6040
for referral.
Power Receptacle
Figure 5 - Connecting Switch and Supply Plug
Blower Supply Plug
Wire Connectors
Blower Rocker Switch
COMPLETING INSTALLATION
1. Reinstall louver panel (if equipped) into framed opening with louvers
pointing upward.
2. Apply wiring diagram label (shown in Figure 6) to control cover and
replace cover back over compartment opening.
3. Reinstall front refractory panel and glass doors in reverse order shown
in Figure 2, page 1.
4. To operate, turn rocker switch to the ON position.
Figure 6 – Wiring Diagram
109690 01
DESA Heating, LLC
2701 Industrial Drive
Bowling Green, KY 42101
1-866-672-6040
www.desatech.com
109690-01
Rev. C
10/07
