Desa BCLP375 User manual

CANADIAN
PROPANE
CONSTRUCTION
HEATERS
IMPORTANT
Read and understand this manual before assembling, starting, or servicing
heater. Improper use of heater can cause serious injury. Keep this manual
for future reference.
OWNER’S MANUAL
For Models RCLP375 and BCLP375
LP-PFA/PV 008LP 375

2
100165
Safety Information.........................................................................3
Product Identification .................................................................... 4
Unpacking......................................................................................4
Theory of Operation ......................................................................5
Propane Supply..............................................................................6
Installation .....................................................................................6
Ventilation .....................................................................................8
Operation .......................................................................................8
Troubleshooting.............................................................................9
Maintenance ..................................................................................9
Storage ........................................................................................... 9
Service Procedure ..........................................................................10
Cleaning Fan ........................................................................... 10
Specifications ................................................................................ 12

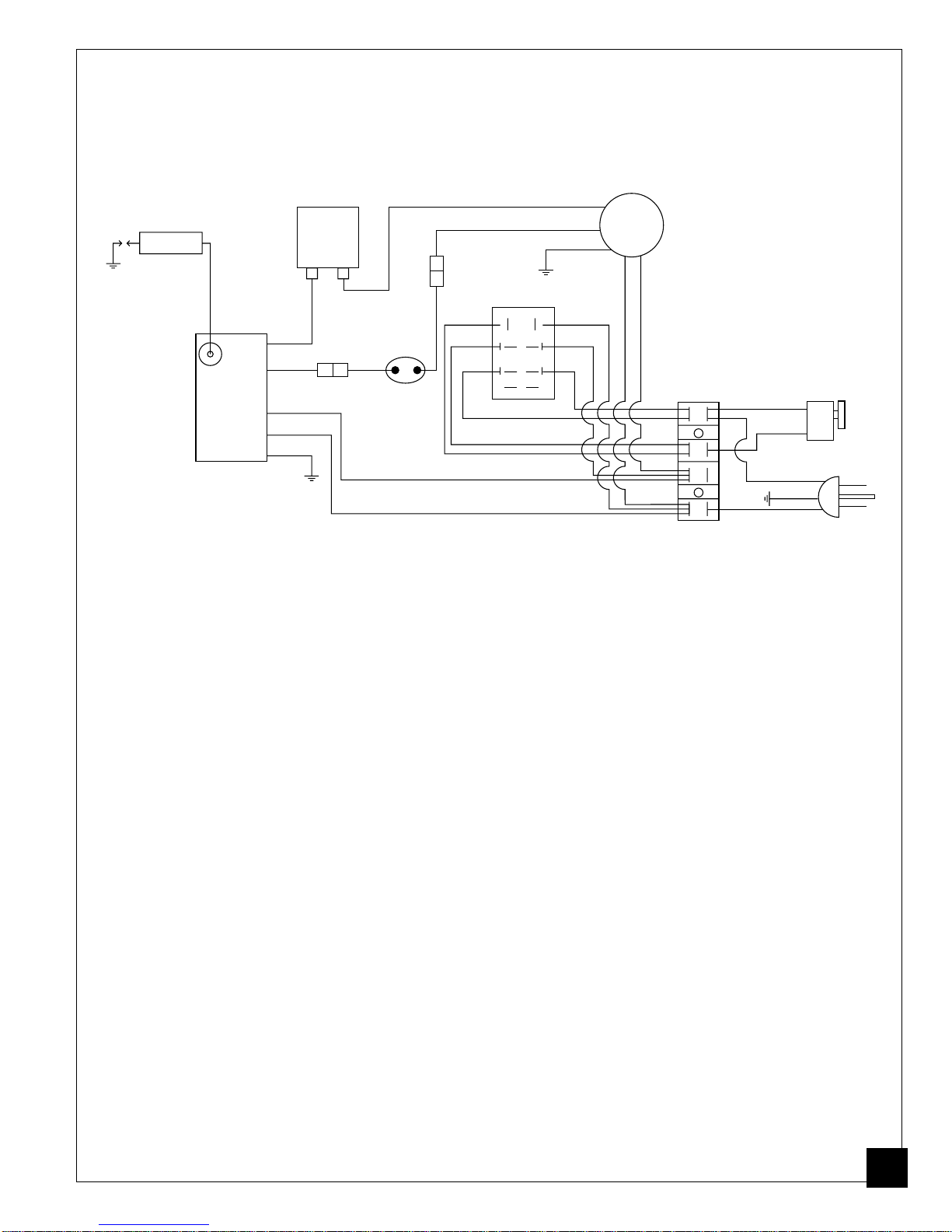

Wiring Diagrams ...........................................................................13
Accessories ....................................................................................14
Technical Service ..........................................................................14
Service Publications ......................................................................14
Replacement Parts .........................................................................14
Warranty and Repair Service.........................................................Back Cover
SECTION PAGE
CONTENTS
FOR YOUR SAFETY
Do not use this heater in a space where gasoline or other liquids
having flammable vapors are stored or used.

3
100165
SAFETY
INFORMATION IMPORTANT: Read this owner’s manual carefully and completely
before trying to assemble, operate, or service this heater. Improper
use of this heater can cause serious injury or death from burns, fire,
explosion, electrical shock, and carbon monoxide poisoning.
Carbon Monoxide Poisoning: Some people are more affected by carbon
monoxide than others. Early signs of carbon monoxide poisoning resemble the flu,
with headaches, dizziness, and/or nausea. If you have these signs, the heater may
not be working properly. Get fresh air at once! Have heater serviced.
PropaneGas:Propanegasisodorless.Anodor-makingagentisaddedtopropane
gas. The odor helps you detect a propane gas leak. However, the odor added to
propane gas can fade. Propane gas may be present even though no odor exists.
Makecertainyoureadandunderstandallwarnings.Keepthismanualforreference.
It is your guide to safe and proper operation of this heater.
• Do not use heater outdoors or in occupied dwellings. Only use for temporary
heating of buildings under construction, alteration, or repair.
• Install and use heater with care. Follow all local ordinances and codes. In the
absence of local ordinances and current codes, refer to CAN/CGA-B149.2
Installation Code for Propane. This instructs on the safe storage and handling
of propane gases.
• Check heater for damage before each use. Do not use a damaged heater.
• Use only propane gas set up for vapor withdrawal.
• Keep propane tank(s) below 38°C (100° F).
• Use only in well-vented areas. Provide at least a three-square-foot opening of
fresh, outside air for each 105.500 kJ/hr (100,000 BTU/Hr) of rating.
• Use only in places free of flammable vapors or high dust content.
• Keep heater away from strong drafts, water spray, rain, or dripping water.
• Use only the electrical voltage and frequency specified on model plate.
• Use only a three-prong, grounded extension cord.
• Use only the hose and factory regulator provided with the heater.
• Inspect hose assembly before each use of heater. If excessive abrasion or wear
is seen, or the hose is cut, replace before using heater. Use the replacement
hose assembly that is specified by the manufacturer.
• Keep heater at least six feet from propane tank(s). Do not point heater at
propane tank(s) within 6 m (20 feet).
• Minimum heater clearances from combustibles:
Front outlet: 3 m (10 Ft.) Sides: 0,61 m (2 Ft.)
Top: 2 m (6 Ft.) Rear: 0,61 m (2 Ft.)
• Locate heater on stable and level surface while it is hot or running.
• Keep children and animals away from heater.
• Unplug heater when not in use.
• Never use heater in living or sleeping quarters.
• Never block air inlet (rear) or air outlet (front) of heater.
• Never move, handle, or service a hot, operating, or plugged-in heater.
• Never attach duct work to front or rear of heater.
• Do not adjust regulator below 48 kPa (7 psig) or above 138 kPa (20 psig).
• Use only original replacement parts. This heater must use design-specific
parts. Do not substitute or use generic parts. Improper replacement parts
could cause serious or fatal injuries.
WARNING ICON G 001
WARNINGS

4
100165
PRODUCT
IDENTIFICATION
Inlet Connector
Handle

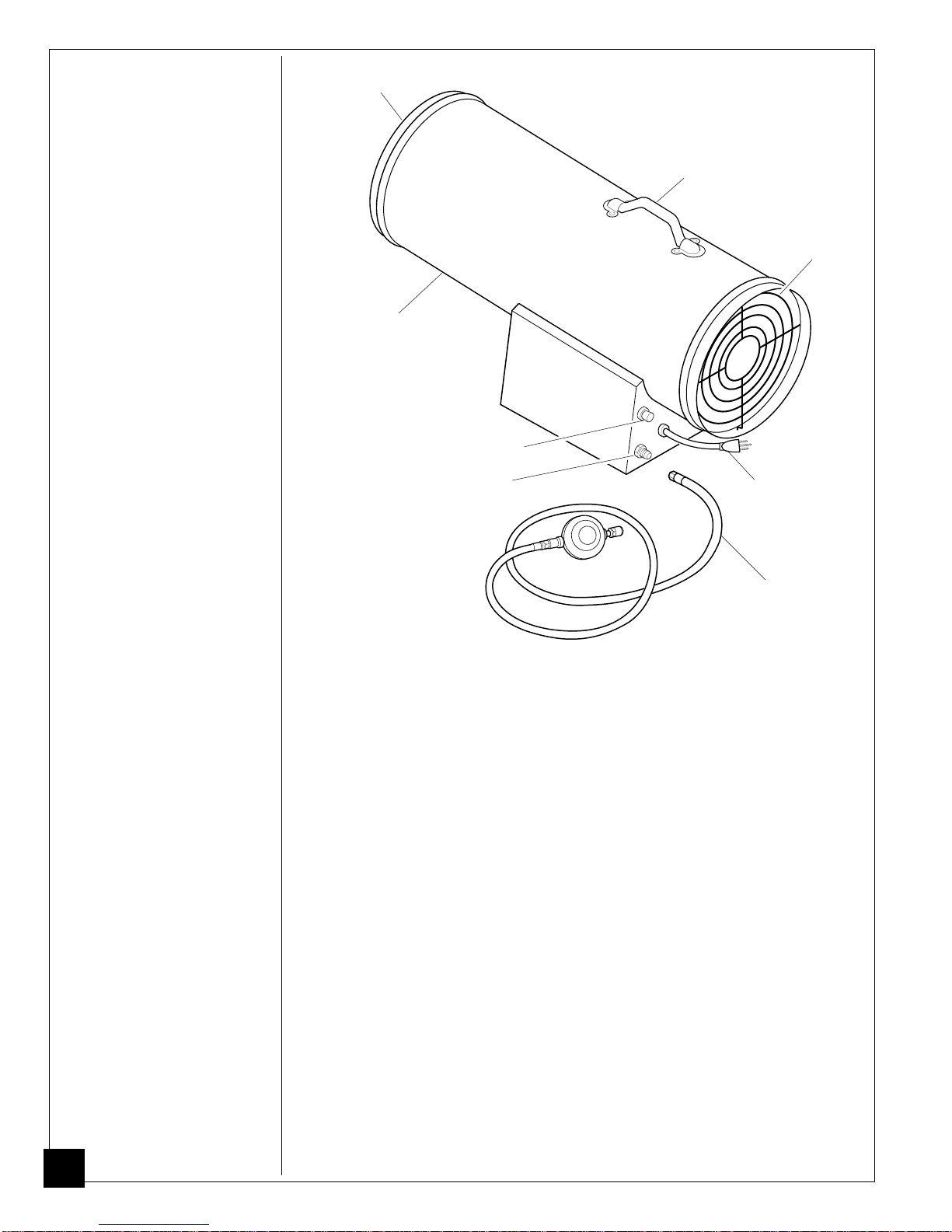

Figure 1 - RCLP375 and BCLP375 Models
Outer Shell
1. Remove all packing items applied to heater for shipment. Keep plastic cover
caps (attached to inlet connector and hose/regulator assembly) for storage.
2. Remove all items from carton.
3. Check all items for shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.
UNPACKING
Hot Air Outlet
(Front)
Fan
Guard
Start Switch
Hose /Regulator
Assembly
Power Cord

5
100165
Air For Combustion Air For Heating
THEORY OF
OPERATION
The Fuel System: The hose/regulator assembly attaches to the propane gas
supply. The propane gas moves through the solenoid valve and out the nozzle.
The Air System: The motor turns the fan. The fan pushes air into and around
the combustion chamber. This air is heated and provides a stream of clean, hot air.
The Ignition System: The burner control sends voltage to the ignitor. The
ignitor ignites the fuel and air mixture.
The Safety Control System: This system causes the heater to shut down if the
flame goes out. The motor will continue to run, but no heat is produced.
Motor
Clean
Heated
Air Out
(Front)
Hose/Regulator
Assembly
Figure 2 - Cross Section Operational View
Power
Cord
Cool Air In
(Back)
Ignitor
Fan
Burner Control
Combustion
Chamber
Nozzle Solenoid
Valve
High Limit

6
100165
PROPANE
SUPPLY
Propane gas and propane tank(s) are to be furnished by the user.
Use this heater only with a propane vapor withdrawal supply system.
The amount of propane gas ready for use from propane tanks varies. Two factors
decide this amount:
1. The amount of propane gas in tank(s)
2. The temperature of tank(s)
The chart below shows the number of 45-kg (100-pound) tanks needed to run this
heater. Do not operate this product with any tank smaller than 45-kg (100 pounds).
Less gas is vaporized at lower temperatures. You may need a larger tank in colder
weather. Your local propane gas dealer will help you select the proper supply
system.
INSTALLATION
Figure 3 - Regulator With Adjustment Knob Pointing Down
Propane
Tank
Supply
Valve Hose
Regulator
Adjustment
Knob
(pointing down)
1. Provide propane supply system (see Propane Supply above).
2. Connect POL fitting on hose/regulator assembly to propane tank(s). Turn POL
fitting counterclockwise into threads on tank. Tighten firmly using
2,22 cm (7/8 in.) wrench. IMPORTANT: Tighten regulator with black adjust-
ment knob pointing down. Pointing adjustment knob down protects regulator
from weather damage.
POL Fitting
WARNING ICON G 001
WARNING
Test all gas piping and connections for leaks after installa-
tion or servicing. Never use an open flame to check for a
leak. Apply a mixture of liquid soap and water to all joints.
Bubbles forming show a leak. Correct all leaks at once.
WARNING ICON G 001
WARNING
Review and understand the warnings in the Safety Information
Section, page 3. They are needed to safely operate this heater.
Follow all local codes when using this heater.
4,5 °C 0 °C -6.2 °C -17.7 °C -23.3 °C -28.9 °C
(40 °˚F) (32 °F) (20 °F) (0 °F) (-10 °F) (-20 °F)
Number of tanks 3 (Use larger tank below 4,5°C [40°F])
Temperature °C (°F) At Tank

7
100165
WARNING ICON G 001
WARNING
Never use an open flame to check for a leak. Apply a mixture
of liquid soap and water to all joints. Bubbles forming show a
leak. Correct all leaks at once.
WARNING ICON G 001
WARNING
Do not adjust regulator below 48 kPa (7 psig) or above 138
kPa (20 psig). Heater may not run properly.
Figure 4 - Hose and Inlet Connector
Hose
3. Connect hose to inlet connector. Tighten firmly using a wrench.
IMPORTANT: Use extra hose or piping if needed. Install extra hose or piping
between hose/regulator assembly and propane tank. You must use the regula-
tor supplied with heater.
7. Close propane supply valve.
6. Check all connections for leaks.
Figure 5 - Adjustable Regulator Set At 48 kPa (7 psig)
I
N
C
R
E
A
S
E
10
15
20
10
15
20
5
5
5
10
15
20
Regulator
4. Open propane supply valve on propane tank(s) slowly. Note: If not opened
slowly, excess-flow check valve on propane tank will stop gas flow. If this
happens, close propane supply valve and open again slowly.
5. Adjust regulator between 48 and 138 kPa (7 and 20 psig) (see Figure 5).
Note: Higher regulator setting will allow heater to produce more heat.
INSTALLATION
Continued
Inlet Connector

8
100165
VENTILATION
Provide at least a 0,28 m2 (three-square-foot) opening of fresh, outside air for each
105.500kJ/hr (100,000 BTU/Hr) of rating. This heater requires a fresh-air opening
of at least 1 m2(9.75 square feet). Provide extra fresh air if using more heaters.
WARNING ICON G 001
WARNING
Follow the minimum fresh, outside air ventilation
requirements. If proper fresh, outside air ventilation is not
provided, carbon monoxide poisoning can occur. Provide
proper fresh, outside air ventilation before running heater.
OPERATION
WARNING ICON G 001
WARNING
Review and understand the warnings in the Safety Information
Section, page 3. They are needed to safely operate this heater.
Follow all local codes when using this heater.
To Start Heater
1. Follow all installation, ventilation, and safety information.
2. Locate heater on stable and level surface. Make sure strong drafts do not blow
into front or rear of heater.
3. Plug power cord of heater into a three-prong, grounded extension cord. Exten-
sion cord must be at least 2 m (6 ft.) long, CSA listed, and of a proper size.
4. Plug extension cord into a 120 volt/60 hertz, three-hole, grounded outlet.
5. Open propane supply valve on propane tank(s) slowly. Note: If not opened
slowly, excess-flow check valve on propane tank will stop gas flow. If this
happens, close propane supply valve and open again slowly.
6. Make sure regulator is set between 48 and 138 kPa (7 and 20 psig).
Note: Higher regulator setting will allow heater to produce more heat.
7. Push start switch to start heater. Heater will start within six seconds.
Note: If heater does not start, unplug the heater. Wait ten seconds for safety
control to reset, then try again.
To Stop Heater
1. Tightly close propane supply valve on propane tank(s).
2. Wait a few seconds. Heater will burn gas left in supply hoses.
3. Unplug heater.
To Restart Heater
If safety control stops gas flow to heater, motor will continue to run.
To restart heater:
1. Unplug the heater. Wait ten seconds for safety control to reset.
2. Plug in heater. Push start switch.
WARNING ICON G 001
WARNING
Do not adjust regulator below 48 kPa (7 psig) or above 138
KPa (20 psig). Heater may not run properly.

9
100165
TROUBLE-
SHOOTING
If heater does not start or restart
• Check manual valves (if any) and supply valves (on propane tank). Make
sure they are open.
• Check fuel level in propane tank(s). If fuel level is too low, contact local
propane gas company.
If heater still does not start or restart, contact your local service center.
WARNING ICON G 001
WARNING
•Never service heater while it is plugged in, connected
to propane supply, operating, or hot. Severe burns and
electrical shock can occur.
•Keep heater clear and free from combustible materials,
gasoline, and other flammable vapors and liquids.
•Do not block the flow of combustion or ventilation air.
MAINTENANCE
1. Keep heater clean. Clean heater annually or as needed to remove dust and
debris. If heater is dirty or dusty, clean heater with a damp cloth. Use house-
hold cleaners on difficult spots.
2. Inspect heater before each use. Check connections for leaks. Apply mixture of
liquid soap and water to connections. Bubbles forming show a leak. Correct all
leaks at once.
3. Inspect hose/regulator assembly before each use. If hose is highly worn
or cut, replace.
4. Have heater inspected yearly by service person.
5. Keep inside of heater free from combustible and foreign objects.
1. Store propane tank(s) in safe manner. Follow all local codes.
2. Place plastic cover caps over brass fittings on inlet connector and
hose/regulator assembly.
3. Store in dry, clean, and safe place. Do not store hose/regulator assembly inside
heater combustion chamber.
4. When taking heater out of storage, always check inside of heater. Insects and
small animals may place foreign objects in heater. Keep inside of heater free
from combustible and foreign objects.
WARNING ICON G 001
CAUTION
Disconnect heater from propane supply tank(s).
STORAGE

10
100165
SERVICE
PROCEDURE
Cleaning fan
Clean fan every 500 hours of
operation or as needed.
1. Remove screws on side
cover using 7,8 mm (5/16
in.) nut-driver.
2. Remove side cover.
3. Detach the five motor wires
from parts under heater shell.
Be sure to detach only wires
coming from motor.
The five motor wires are:
• white wire—to terminal
board
• red wire—to terminal
board
• blue wire—to thermal
switch wire
• blue wire—to solenoid
valve
• green wire—to grounding
screw on shell
4. Remove fan guard from rear
of heater.
5. Reach into rear of heater
shell. Carefully pull motor
wires through hole in
bottom of shell.
Note: Pull
wires through hole one at a
time.
6. Remove nuts and mounting
bolts holding motor mount
to shell. Use 9,5 mm (3/8")
nut-driver and 11,1 mm
(7/16") wrench.
7. Carefully pull motor and fan
out of shell.
IMPORTANT: Be careful
not to damage fan. Do not
set motor and fan down
with the weight resting on
fan. This could damage fan
pitch.
8. Turn motor and fan around.
Place motor and fan into
shell backwards. Note:
Motor will go into shell first
(see Figure 8, page 11).

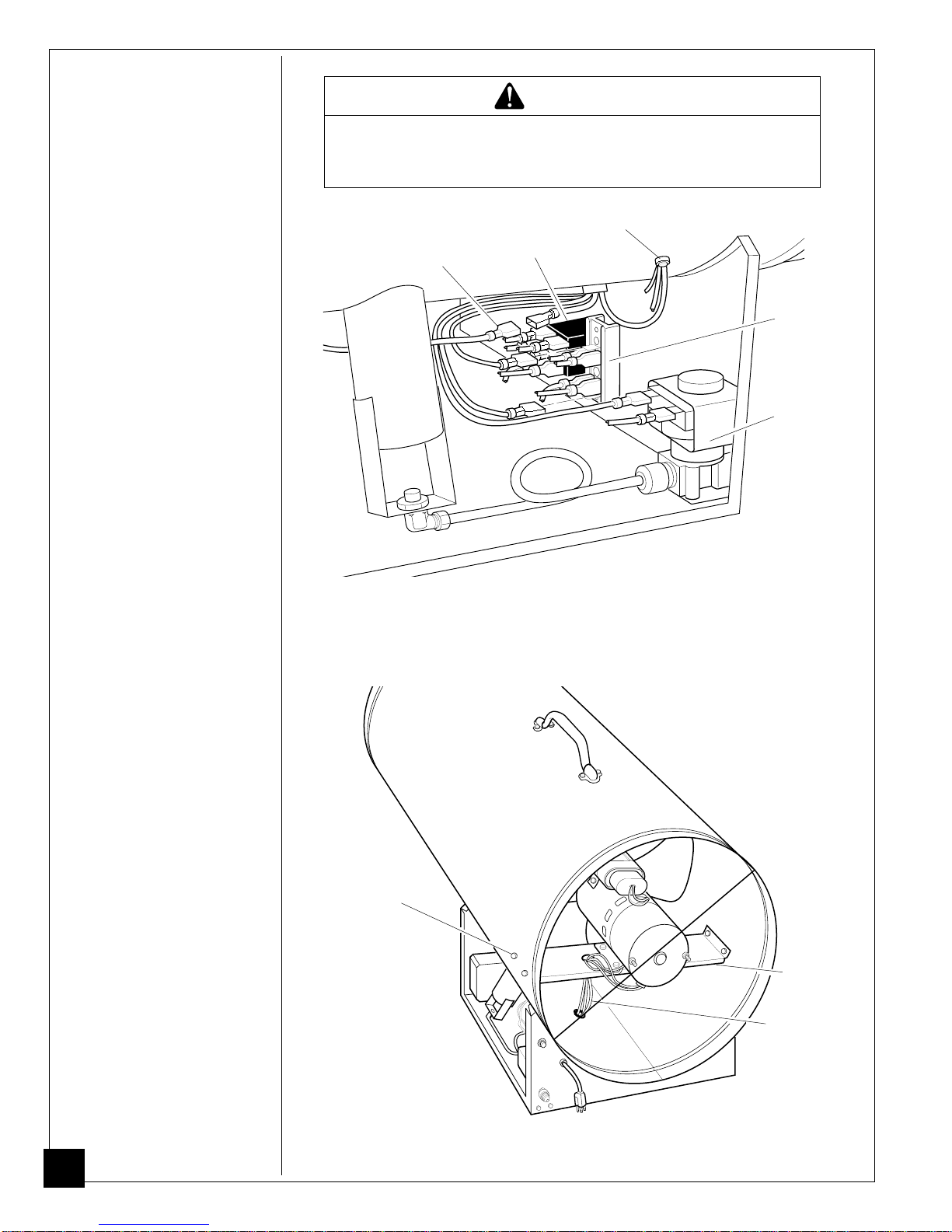

Figure 7 - Location of Fan and Motor
Motor
Wires
Mounting
Bolts
Motor
Mount
WARNING ICON G 001
WARNING
Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and
electrical shock can occur.
Figure 6 - Location of Motor Wires
Grounding Screw
Thermal
Switch Wire
Terminal
Board
Solenoid
Valve
Relay

11
100165
9. Line up rear mounting
holes in shell with first
hole on each side of motor
mount (see Figure 8).
Note: When holes are
lined up, fan should be
outside of shell.
10.Holding mounting bolt,
carefully reach through
fan blades into rear of
heater. Be careful not to
damage fan pitch. Insert
bolt through motor mount
and shell. With free hand,
attach nut finger tight.
Repeat process for other
mounting hole.
11.Use 3,1 mm (1/8") hex
wrench to loosen setscrew
which holds fan to motor
shaft (see Figure 9).
12.Slip fan off motor shaft.
13.Clean fan using soft cloth
moistened with kerosene
or solvent.
14.Dry fan thoroughly.
15.Replace fan on motor
shaft. Make sure setscrew
is touching back of flat
surface on motor shaft (see
Figure 10).
16.Place setscrew on flat of
shaft. Tighten setscrew
firmly (4,52-5,65 [40-50
inch-pounds]).
17.Remove two nuts and
bolts securing motor
mount to shell.
18.Pull motor and fan from
shell. Turn motor and fan
around. Carefully place
back in shell. Note: Fan
will go into shell first.
19.Line up mounting holes in
shell with holes on motor
mount. Replace four bolts
through shell and motor
mount. Insert bolts from
outside of heater. Tighten
nuts firmly.
20.Route motor wires through
hole in bottom of shell
(see Figure 7, page 10).
Fan
Motor shaft
Figure 9 - Fan, Motor Shaft, and Setscrew Locations
Setscrews
Hub
Figure 10 - Fan Cross Section
Figure 8 - Fan and Motor Turned Around
First
Hole
Continued
Fan
Motor Shaft
Setscrews
Rear Mounting
Hole

12
100165
SERVICE
PROCEDURE
Continued
21.Connect motor wires as
follows (see Figure 6,
page 10):
• white wire—to terminal
board.
Note: Attach to
empty connector on white
wire side of terminal
board.
• red wire—to terminal
board. Note: Attach to
empty connector on black
wire side of terminal
board.
• blue wire—to thermal
switch wire
• blue wire—to solenoid
valve
• green wire—to grounding
screw on shell
22.Replace side cover.
23.Replace fan guard.
Model
Input Rating (kJ/Hr) (BTU/Hr)
Fuel
Fuel Consumption
Gallons/Hour
Pounds/Hour
Supply Pressure To Regulator
Minimum (for purposes of
input adjustment)
Maximum
Regulator Outlet Pressure
Motor
Electric Input
Amperage
Weight
Heater
Shipping
Size - L x W x H
Heater
Carton
RCLP375 and BCLP375
168.800 to 332.325 (160,000 to 315,000)
Propane Vapor Only
6,8 l/h min./13,6 l/h max.
(1.8 Minimum/3.6 Maximum)
3,35kg/h min./ 6,85 kg/h max.
(7.4 Minimum/15.1 Maximum)
172 kPa (25 psig)
1379 kPa (200 psig )
48 - 138 kPa (7-20 psig)
1700 RPM
120 V/60 Hz
3.0
18, 1 kg (40 lbs.)
21,8 kg (48 lbs.)
89 cm x 33 cm x 51 cm (35 in. x 13 in. x 20 in.)
94 cm x 40,5 cm x 53,5 cm (37 in. x 16 in. x 21in.)
SPECIFICATIONS

13
100165
WIRING
DIAGRAM
Motor
Burner
Control
Solenoid
Valve
Ignitor
Green
Blue
Blue
White
Red
Terminal
Board Black
Yellow
Black
Green
White
Blue
T
Blue Green
Connector
Blue
Connector
Relay
Thermal
Switch
Start
Switch
Power
Cord
Yellow
Yellow
Black
White
Red
Black
White Red
43
21
65
87
Orange
Blue
Figure 11 - Wiring Diagram

14
100165
ACCESSORIES Purchase accessories and parts from your nearest dealer or service center. If your
dealer or service center can not supply an accessory or part, call DESA Industries’
Parts Department at 905-826-8010. You can also write to the address listed on the
back page of this manual.
You may have further questions about this heater. If so, contact DESA
International’s Technical Service Department at 1-800-323-5190.
TECHNICAL
SERVICE
Parts Under Warranty
Contactauthorizeddealersof this product. Iftheycannotsupplyoriginalreplacement
part(s), call DESA Industries at 1-905-826-8010. When calling DESA Industries,
have ready:
• your name
• your address
• model number of your heater
• how heater was malfunctioning
• purchase date
In most cases, we will ask you to return the defective part to the factory.
Parts Not Under Warranty
Contact authorized dealers of this product. If they cannot supply original replace-
ment part(s), call DESA Industries’ Parts Department at 905-826-8010. When
calling DESA Industries, have ready:
• model number of your heater
• the replacement part number
SERVICE
PUBLICATIONS
You can receive an Illustrated Parts List free of charge. Send your request and a
self-addressed, stamped envelope to DESA Industries (address on back page). Be
sure to include the heater model number. You can purchase a service manual for
$5. Make check payable to DESA Industries.
WARNING ICON G 001
WARNING
Use only original replacement parts. This heater must
use design-specific parts. Do not substitute or use ge-
neric parts. Improper replacement parts could cause
serious or fatal injuries. This will protect your warranty
coverage for parts replaced under warranty.
REPLACEMENT
PARTS
Hose: LPA1020
A 10 foot hose for locating heater further away from propane tank(s).
Regulator: LPA2020
Hose and Regulator Assembly: LPA3030
Fuel Gas Connector: LPA4020
A POL adapter with excess-flow check valve.

15
100165
NOTES

100165-01
Rev. B
10/93
Model
Serial No.
Date of Purchase
LIMITED WARRANTY
DESA Industries warrants this product and any parts
thereof, to be free from defects in materials and work-
manshipforsix(6)monthsfromthedateoffirstpurchase
when operated and maintained in accordance with in-
structions.This warranty isextended only totheoriginal
retail purchaser, when proof of purchase is provided.
This warranty covers only the cost of parts and labor
required to restore the product to proper operating con-
dition. Transportation and incidental costs associated
with warranty repairs are not reimbursable under this
warranty.
Warranty service is available only through authorized
dealers and service centers.
This warranty does not cover defects resulting from
misuse, abuse, negligence, accidents, lack of proper
maintenance, normal wear, alteration, modification,
tampering, contaminated fuels, repair using improper
parts,orrepairbyanyoneotherthananauthorizeddealer
or service center. Routine maintenance is the responsi-
bility of the owner.
THISEXPRESSWARRANTYISGIVENINLIEUOF
ANY OTHER WARRANTY EITHER EXPRESSED
OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PAR-
TICULAR PURPOSE.
DESA Industries assumes no responsibility for indirect,
incidentalorconsequentialdamages.Someprovincesdo
not allow the exclusion or limitation of incidental or
consequential damages. These limitations or exclusions
may not apply to you. This Limited Warranty gives you
specific legal rights and you may also have other rights
which vary from province to province.
(To be filled in by purchaser)
WARRANTY SERVICE
Should your heater require service, return it to your
nearest authorized service center. Proof of purchase must
be presented with the heater. The heater will be in-
spected. A defect may be caused by faulty materials or
workmanship. If so, DESA Industries will repair or
replace the heater without charge.
REPAIR SERVICE
Return the heater to your nearest authorized service
center. Repairs not covered by the warranty will be billed
at standard prices.
A service manual may be purchased from the address
listed below. Send a cheque for $5.00 payable to DESA
Industries.
Illustrated parts lists can be obtained free of charge. Send
a self-addressed stamped envelope to the address listed
below. List the heater model number and the date located
in the lower right corner of this page.
When writing for information regarding your heater, be
sure to include the model number and serial number as
shown on the model plate.
Each Service Center is independently owned and operated.
We reserve the right to amend these specifications at any
time without notice.
KEEP THIS WARRANTY
WARRANTY AND REPAIR SERVICE
DESA Industries of Canada, Inc.
2220 Argentia Road
Unit #4
Mississauga, Ontario
L5N 2K7
905-826-8010
FAX [phone]

APPAREILS DE
CHAUFFAGE
CANADIENS AU
PROPANE POUR LA
CONSTRUCTION
IMPORTANT
Veiller à lire et comprendre ce manuel avant de monter, de mettre en marche
ou d’effectuer l’entretien de cet appareil. Une mauvaise utilisation de cet
appareil peut causer des blessures graves. Conserver ce manuel pour s’y
reporter plus tard.
LP-PFA/PV 008LP 375
Modèles RCLP375 et BCLP375
MANUEL D’UTILISATION

2
100165
Notes sur la sécurité......................................................................2
Nomenclature des pièces ..............................................................4
Déballage ......................................................................................4
Principes de fonctionnement ........................................................5
Alimentation en propane ..............................................................6
Installation ....................................................................................6
Ventilation ....................................................................................9
Utilisation .....................................................................................9
Dépannage ....................................................................................10
Entretien .......................................................................................10
Remisage ......................................................................................11
Spécifications ...............................................................................11
Procédure d’entretien....................................................................12
Nettoyage du ventilateur ..........................................................12
Schéma électrique.........................................................................15
Accessoires ...................................................................................16
Service technique..........................................................................16
Publications techniques ................................................................16
Pièces de rechange........................................................................17
Service et réparations sous garantie..............................................Dos du manuel
SECTION PAGE
TABLE DES
MATIÈRES
PAR MESURE DE SÉCURITÉ
Ne pas utiliser cet appareil de chauffage dans un endroit où de
l’essenceoud’autresliquidesdégageantdesvapeursinflammables
sont entreposés ou utilisés.
WARNING ICON G 001
AVERTISSEMENTS
IMPORTANT : Veiller à lire ce manuel d’utilisation attentivement et
complètement avant de tenter de monter, d’utiliser ou d’effectuer
l’entretien de cet appareil. Une mauvaise utilisation de cet appareil de
chauffage peut causer des blessures graves voire la mort par
brûlures, incendie, explosion, électrocution ou intoxication par
l’oxyde de carbone.
Intoxication par l’oxyde de carbone : Certaines personnes sont plus
susceptibles que d’autres aux effets de l’oxyde de carbone. Les premiers signes
d’intoxication par l’oxyde de carbone ressemblent à ceux de la grippe : maux de
tête, vertiges et/ou nausée. Si l’on ressent ces symptômes, il se peut que l’appareil
de chauffage ne fonctionne pas correctement. Aller immédiatement respirer de
l’air frais. Faire réparer réparer l’appareil de chauffage.
Gaz propane : Le gaz propane est inodore. Un agent odorisant y est ajouté.
L’odeur aide à détecter les fuites, mais elle peut s’atténuer. Il peut donc y avoir du
gaz propane en l’absence de toute odeur.
NOTES SUR LA
SÉCURITÉ

3
100165
NOTES SUR LA
SÉCURITÉ
Suite
WARNING ICON G 001
AVERTISSEMENTS (Suite)
Veiller à lire et comprendre tous les avertissements. Conserver ce manuel pour
s’y reporter plus tard. C’est un guide pour l’utilisation correcte et sans danger de
cet appareil de chauffage.
• Ne pas utiliser cet appareil à l’extérieur ou dans des bâtiments habités. Il est
destiné seulement à chauffer temporairement des bâtiments en construction ou
faisant l’objet de modifications ou de réparations.
• Installeret utiliserl’appareildechauffageavecprécaution.Seconformeràtousles
règlements et codes locaux. S’il n’existe pas de règlements et codes locaux, se
référer au Code d’installation des appareils au propane CAN/CGA-B149.2. Ce
code indique comment entreposer et utiliser en toute sécurité du gaz propane.
• Vérifier avant chaque usage si l’appareil de chauffage est abîmé. Ne pas
employer un appareil de chauffage abîmé.
• N’utiliser du gaz propane que si l’élimination des vapeurs est assurée.
• Conserver le ou les réservoirs de gaz propane à une température inférieure à
38˚C (100 ˚F).
• N’utiliserl’appareilquedansunendroitbienaéré.Prévoiruneouvertured’aération
de 0,28 m2au moins pour chaque indice de 105.500 kJ/hr (100.000 BTU/hr).
• N’utiliser l’appareil que dans des endroits sans vapeurs inflammables et sans
poussière excessive.
• Garder l’appareil de chauffage à l’abri des courants d’air, de l’eau pulvérisée,
de la pluie ou de l’eau qui tombe goutte à goutte.
• N’utiliser que la tension et la fréquence de courant précisées sur la plaque
signalétique du modèle.
• N’utiliser qu’un cordon prolongateur à 3 broches mis à la masse.
• N’utiliser que le flexible et le régulateur fournis avec l’appareil de chauffage.
• Inspecter le flexible avant chaque usage. S’il est très usé, coupé ou abîmé, le
remplacer avant d’utiliser l’appareil de chauffage. Utiliser le flexible de
rechange indiqué dans ce manuel.
• Garder l’appareil de chauffage à au moins 2 m (6 ft) du ou des réservoirs de
propane. Ne pas diriger l’appareil de chauffage vers le ou les réservoirs de
propane à moins de 6 m (20 ft).
• Distances minimales entre l’appareil et tout matériau combustible :
Sortie : 3 m (10 ft) Côtés : 0,61 m (2 ft)
Dessus : 2 m (6 ft) Arrière : 0,61 m (2 ft)
• Placer l’appareil de chauffage sur une surface stable et horizontale lorsqu’il est
chaud ou en marche.
• Maintenir enfants et animaux éloignés de l’appareil de chauffage.
• Débrancherl’appareildechauffagedelaprisedecourantlorsqu’iln’estpasutilisé.
• Ne jamais utiliser l’appareil dans des pièces habitées ou des chambres à
coucher.
• Ne jamais bloquer l’entrée d’air (arrière) ou la sortie d’air (avant) de l’appareil.
• Ne jamais déplacer, manipuler ni effectuer l’entretien d’un appareil chaud, en
marche ou branché.
• Ne jamais fixer de canalisation de distribution d’air àl’avant ou à l’arrière de
l’appareil.
• Ne pas régler le régulateur pour une pression manométrique inférieure à 48 kPa
(7 psig) ou supérieure à 138 kPa (20 psig).
• Utiliser uniquement les pièces de rechange d’origine. Cet appareil de chauffage
doit utiliser des pièces spécifiques àsa conception. Ne faire aucune substitution
et ne pas utiliser de pièces génériques. Des pièces de rechange inadéquates
peuvent causer des blessures graves ou mortelles.

4
100165
Figure 1 - Modèles RCLP375 et BCLP375
1. Retirer tous les emballages de protection utilisés pour le transport. Conserver
les couvercles de plastique (fixés au connecteur d’entrée et à l’ensemble
flexible/régulateur) en vue du remisage de l’appareil.
2. Retirer tous les éléments contenus dans la boîte.
3. Vérifier s’ils ont été endommagés pendant le transport. Si l’appareil est
endommagé, avertir au plus tôt le concessionnaire qui l’a vendu.
DÉBALLAGE
Sortie d’air chaud
(avant)
Cordon
électrique
Cordon
électrique
NOMEN-
CLATURE DES
PIÈCES Poignée
Grille de
protection du
ventilateur
Couvercle
Interrupteur de
mise en marche
Connecteur d’entrée
