UNVENTED (VENT-FREE) GAS LOG HEATER
OWNER’S OPERATION AND INSTALLATION MANUAL
Not Used With Hand-Held Thermostat Remote
MODELS CGE3924NR
AND CGE3924PR
www.desatech.com 119638-01C2
SAFETy
TABLE OF CONTENTS
Safety .................................................................. 2
Product Identication........................................... 5
Local Codes......................................................... 5
Unpacking............................................................ 5
Air For Combustion and Ventilation..................... 6
Product Features................................................. 6
Installation ........................................................... 9
Operation........................................................... 21
Inspecting Burners............................................. 24
Cleaning and Maintenance................................ 25
Troubleshooting................................................. 26
Specications .................................................... 30
Service Hints ..................................................... 30
Technical Service............................................... 30
Replacement Parts............................................ 30
Wiring Diagram.................................................. 30
Accessories ....................................................... 31
Parts .................................................................. 32
Warranty ..............................................Back Cover
alteration, service or main-
to this manual for correct
-
-
tance or additional infor-
-
masonry or UL127 fac-
-
-
in accordance with ANSI
that includes instructions
-
WARNING: This is an
-
from the room in which
and ventilation air must
Air
for Combustion and Ven-
tilation
-
stalled in an aftermarket,*
-
www.desatech.com
119638-01C 3
-
known to the State of California
Early signs
of carbon monoxide poisoning resemble the
u, with headaches, dizziness or nausea. If
you have these signs, the heater may not be
working properly. Have
heater serviced. Some people are more af-
fected by carbon monoxide than others. These
include pregnant women, people with heart or
lung disease or anemia, those under the inu-
ence of alcohol and those at high altitudes.
Natural and
propane/LP gases are odorless. An odor-
making agent is added to the gas. The odor
helps you detect a gas leak. However, the
odor added to the gas can fade. Gas may be
present even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this heater.
this heater or its controls can
SAFETy
Continued
WARNING: Do not allow fans
-
will remain hot for a time after
-
dren when they are in the room
-
-
-
www.desatech.com 119638-01C4
SAFETy
Continued
1. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases.
2. Do not place propane/LP supply tank(s)
inside any structure. Locate propane/LP
supply tank(s) outdoors (propane/LP units
only).
3. To prevent performance problems, the
use of a propane/LP fuel tank of less
than 100 lb. capacity is not recommended
(propane/LP units only).
4. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions
• if you cannot reach your gas supplier,
call the re department
5. This heater shall not be installed in a
bedroom or bathroom unless installed as
a vented appliance (see Installing Damper
Clamp Accessory for Vented Operation,
page 13). This gas log set may not be
installed as a vented appliance in a bed-
room or bathroom in the Commonwealth
of Massachusetts.
6. Before installing in a solid fuel burning re-
place, the chimney ue and rebox must
be cleaned of soot, creosote, ashes and
loose paint by a qualied chimney cleaner.
Creosote will ignite if highly heated. A dirty
chimney ue may create and distribute
soot within the house. Inspect chimney
ue for damage. If damaged, repair ue
before operating heater.
7. Do not burn solid-fuel in a masonry or
UL127 factory-built replace in which a
vent-free room heater is installed.
8. If replace has glass doors, never operate
this heater with glass doors closed. If you
operate heater with doors closed, heat
buildup inside replace will cause glass to
burst. Make sure there are no obstructions
across openings of replace.
9. This log heater is designed to be smoke-
less. If logs ever appear to smoke, turn off
heater and call a qualied service person.
Note: During initial operation, slight smok-
ing may occur due to log curing and heater
burning manufacturing residues.
10. To prevent the creation of soot, follow the
instructions in Cleaning, page 25.
11. Before using furniture polish, wax, carpet
cleaner or similar products, turn heater
off. If heated, the vapors from these prod-
ucts may create a white powder residue
within burner box or on adjacent walls
or furniture.
12. This heater needs fresh, outside air ven-
tilation to run properly. This heater has an
Oxygen Depletion Sensing (ODS) safety
shutoff system. The ODS shuts down the
heater if not enough fresh air is available.
See Air for Combustion and Ventilation,
page 6. If heater keeps shutting off, see
Troubleshooting, page 26.
13. Do not run heater
• where ammable liquids or vapors are
used or stored
• under dusty conditions
14. Do not use this heater to cook food or burn
paper or other objects.
15. Do not use heater if any part has been ex-
posed to or under water. Immediately call
a qualied service technician to inspect
the room heater and to replace any part
of the control system and any gas control
which has been under water.
16. Do not operate heater if any log is broken.
Do not operate heater if a log is chipped
(dime-sized or larger).
17. Turn heater off and let cool before ser-
vicing, installing or repairing. Make sure
the remote selector switch is in the OFF
position. Only a qualied service person
should install, service or repair heater.
18. Make sure the remote selector switch is
in the OFF position when you are away
from home for long periods of time.
19. This heater must not be connected to any
external electrical source.
20. Operating heater above elevations of
4,500 feet may cause pilot outage.
21. Provide adequate clearances around air
openings.
www.desatech.com
119638-01C 5
PRODUCT IDENTIFICATION

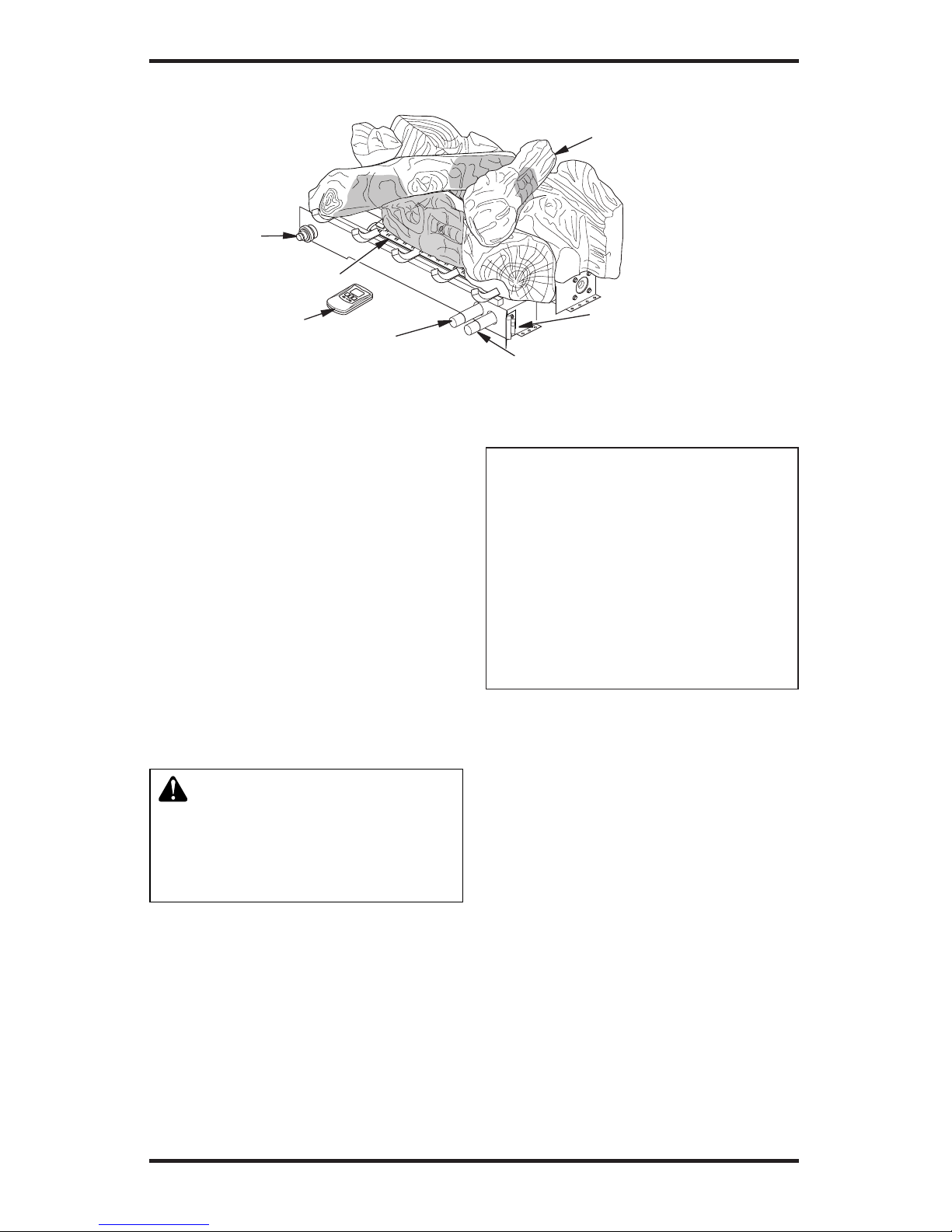

Figure 1 - Vent-Free Gas Log Heater
Remote Control
LOCAL CODES
Install and use heater with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel
Gas Code, ANSI Z223/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Note: Where listed vented decorative logs
are required, thermostat operation is not
permitted.
Electronic
Ignitor Button
Ember Bed Burner
Flame
Adjustment Knob Control Knob
5 Piece
Log Set
Remote Sensor
with Switch
State of Massachusetts: The installation
must be made by a licensed plumber
or gas fitter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural
gas-fired supplemental room heaters
shall provide to each purchaser a copy of
527 CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in
the Commonwealth of Massachusetts.
UNPACkING
CAUTION: Do not remove the
1. Remove logs and heater base assembly
from carton.
Note: Do not pick up heater base assem-
bly by back burner. This could damage
heater.
2. Remove all protective packaging applied
to logs and heater for shipment.
3. Check all items for any shipping damage.
If damaged, promptly inform dealer where
you bought heater.
www.desatech.com 119638-01C6
AIR FOR COMBUSTION AND VENTILATION
PRODUCT FEATURES
This heater is clean burning. It requires no
outside venting. There is no heat loss out a
vent or up a chimney. Heat is generated by
realistic dancing, yellow ames. This heater
is designed for vent-free operation with ue
damper closed. It has been tested and ap-
proved to ANSI Z21.11.2 standard for unvented
heaters. This heater may also be operated as
a vented decorative (ANSI Z21.60) product
by opening ue damper (only when used as a
manual control unit - thermostat remote can-
not be used).
ELECTRONIC IGNITION SYSTEM
This heater has an electronic ignitor. This
system requires no matches or other sources
to light heater.
This heater has a pilot with an Oxygen Deple-
tion Sensing (ODS) safety shutoff system. The
ODS/pilot is a required feature for vent-free
room heaters. The ODS/pilot shuts off the
heater if there is not enough fresh air.
THERMOSTAT REMOTE CONTROL
This heater includes a thermostat remote control
and receiver. When installed, this remote allows
your log set to be used as a thermostat unit. An
On/Off remote is available for purchase (see
Accessories, page 31).
WARNING: This heater shall
-
-
Today’s homes are built more energy efcient
than ever. New materials, increased insulation
and new construction methods help reduce
heat loss in homes. Home owners weather
strip and caulk around windows and doors
to keep the cold air out and the warm air in.
During heating months, home owners want
their homes as airtight as possible.
While it is good to make your home energy
efcient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning ap-
pliances need fresh air for proper combustion
and ventilation.
Exhaust fans, replaces, clothes dryers and
fuel burning appliances draw air from the
house to operate. You must provide adequate
fresh air for these appliances. This will insure
proper venting of vented fuel-burning appli-
ances.
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 6 through 8 will help
you classify your space and provide adequate
ventilation.
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
construction where:
-
-112
and
and
www.desatech.com
119638-01C 7
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
________ (volume of space) x 20 =
(Maximum Btu/Hr the space can support)
Example: 2,560 cu. ft. (volume of space) x
20 = 51,200 (maximum Btu/Hr the space can
support)
3. Add the Btu/Hr of all fuel burning appliances
in the space.
Vent-free replace __________ Btu/Hr
Gas water heater* __________ Btu/Hr
Gas furnace __________ Btu/Hr
Vented gas heater __________ Btu/Hr
Gas replace logs __________ Btu/Hr
Other gas appliances* + _________ Btu/Hr
Total = _________ Btu/Hr
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water heater __________ Btu/Hr
Vent-free replace + __________ Btu/Hr
Total = __________ Btu/Hr
4. Compare the maximum Btu/Hr the space
can support with the actual amount of Btu/Hr
used.
_______
Btu/Hr (maximum the space can
support)
_______
Btu/Hr (actual amount of Btu/Hr
used)
Example: 51,200 Btu/Hr (maximum the
space can support)
79,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the example is a conned space
because the actual Btu/Hr used is more than the
maximum Btu/Hr the space can support. You
must provide additional fresh air. Your options
are as follows:
A. Rework worksheet, adding the space of an
adjoining room. If the extra space provides an
unconned space, remove door to adjoining
room or add ventilation grills between rooms.
See Ventilation Air From Inside Building,
page 8.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors, page 8.
C. Install a lower Btu/Hr replace, if lower Btu/Hr
size makes room unconned.
If the actual Btu/Hr used is less than the maxi-
mum Btu/Hr the space can support, the space is
an unconned space. You will need no additional
fresh air ventilation.
If your home meets all of the three criteria
Ventilation Air From Outdoors,
If your home does not meet all of the three
Determining
Fresh-Air Flow For Heater Location
The National Fuel Gas Code, ANSI Z223.1/
NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per
1,000 Btu per hour (4.8 m3 per kw) of the ag-
gregate input rating of all appliances installed in
that space and an unconned space as a space
whose volume is not less than 50 cubic feet per
1,000 Btu per hour (4.8 m3 per kw) of the ag-
gregate input rating of all appliances installed in
that space. Rooms communicating directly with
the space in which the appliances are installed*,
through openings not furnished with doors, are
considered a part of the unconned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
DETERMINING FRESH-AIR FLOW
Use this work sheet to determine if you have
a conned or unconned space.
Includes the room in which you will
install replace plus any adjoining rooms with
doorless passageways or ventilation grills be-
tween the rooms.
1. Determine the volume of the space (length
x width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2,560 cu. ft.
(volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
40,000
39,000
79,000
AIR FOR COMBUSTION AND VENTILATION
Continued
www.desatech.com 119638-01C8
Figure 3 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
AIR FOR COMBUSTION AND VENTILATION
Continued
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
and one within 12" of the oor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a thermo-
stat-controlled power vent. Heated air entering
the attic will activate the power vent.
WARNING: If the area in
-
in the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 -
This fresh air would come from an adjoining
unconned space. When ventilating to an
adjoining unconned space, you must provide
two permanent openings: one within 12" of the
ceiling and one within 12" of the oor on the
wall connecting the two spaces (see options
1 and 2, Figure 2). You can also remove door
into adjoining room (see option 3, Figure 2).
Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
Figure 2 - Ventilation Air from Inside
Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
www.desatech.com
119638-01C 9
INSTALLATION
NOTICE: This heater is intended
-
NOTICE: Stateorlocalcodesmay
-
-
WARNING: If hand-held
-
stalled, make sure the selector
-
-
WARNING: Seal any fresh
air vents or ash clean-out doors
-
WARNING: Never install the
heater
unless installed as a vented
• in a recreational vehicle
• where curtains, furniture,
• in windy or drafty areas
CAUTION: This heater cre-
currents move heat to wall sur-
heater next to vinyl or cloth wall
-
the air exist, may discolor walls
IMPORTANT: Vent-free heaters add moisture
to the air. Although this is benecial, installing
heater in rooms without enough ventilation
air may cause mildew to form from too much
moisture. See Air for Combustion and Ventila-
tion, page 6.
www.desatech.com 119638-01C10
Use the correct gas type (natural or propane/
LP) for your unit. If your gas supply is not cor-
rect, do not install heater. Call dealer where
you bought heater for proper type heater.
INSTALLATION AND CLEARANCES
WARNING: Maintain the
-
: Side Wall 16", Ceiling 42"
: Height 17", Depth
13", Front Width 28", Rear Width 21"*
*Measured at 13" depth.
Carefully follow the instructions below. This
will ensure safe installation into a masonry,
UL127-listed manufactured replace or listed
vent-free rebox.
A. Clearances from the side of the replace
cabinet to any combustible material and
wall should follow diagram in Figure 4.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This com-
bustible material must be 4" from the side
of the replace opening (see Figure 4).
Note: When installing your gas logs into
a manufactured rebox, follow rebox
manufacturer’s instructions for minimum
clearances to combustible materials.
B. Clearances from the top of the replace
opening to the ceiling should not be less
than 42".
INSTALLATION
Continued
NOTICE: Manual control heaters
If so, you must always run heater
Go to Installing Damper Clamp
Accessory for Vented Operation,
Figure 4 - Minimum Clearance for Side
Combustible Material, Side Wall and
Ceiling
*Minimum 16" from Side Wall
*
Example
MATERIAL CLEARANCES
Note: If using a mantel, proceed to If Using
Mantel, page 11. If not using a mantel, follow
the information below.
You must have noncombustible material(s)
above the replace opening. Noncombustible
materials (such as slate, marble, tile, etc.)
must be at least 1/2" thick. With sheet metal,
you must have noncombustible material be-
hind it. Noncombustible material must extend
at least 8" up. If noncombustible material is
less than 12", you must install the replace
hood accessory. See Figure 5, page 11 for
minimum clearances.
IMPORTANT: If you cannot meet these mini-
mum clearances, you must operate heater
with chimney ue damper open. Go to Install-
ing Damper Clamp Accessory for Vented
Operation, page 13.
www.desatech.com
119638-01C 11
Heat Resistant
Material
(A)
Noncom-
Material
Distance
Installation
12" or
more
Noncombustible material
okay.
Between
8" and 12"
Install replace hood (GA6050,
GA6052 or GA6053, see Ac-
cessories, page 31).
Less than
8"
Noncombustible material must
be extended to at least 8". See
Between 8" and 12", above. If
you cannot extend material,
you must operate heater with
ue damper open.
Figure 5 - Heat Resistant Material (Slate,
Marble, Tile, etc.) Above Fireplace
INSTALLATION
Continued
You must have noncombustible material(s)
above the replace opening. Noncombustible
materials (such as slate, marble, tile, etc.) must
be at least 1/2" thick. With sheet metal, you
must have noncombustible material behind it.
Noncombustible material must extend at least
8" up. If noncombustible material is less than
12", you must install the replace hood acces-
sory. Even if noncombustible material is more
than 12", you may need the hood accessory to
deect heat away from your mantel shelf. See
Figure 5 and Figures 6 and 7 on page 12 for
minimum clearances.
IMPORTANT: If you cannot meet these mini-
mum clearances, you must operate heater
with chimney ue damper open. Go to Install-
ing Damper Clamp Accessory for Vented
Operation, page 13.
MANTEL CLEARANCES
In addition to meeting noncombustible mate-
rial clearances, you must also meet required
clearances between replace opening and
mantel shelf. If you do not meet the clearances
listed below, you will need a hood.
If you meet minimum clearance between man-
tel shelf and top of replace opening, a hood
is not required (see Figure 6, page 12).
If minimum clearances in Figure 6, page 12
are not met, you must have a hood. When
using a hood there are still certain minimum
mantel clearances required. Follow minimum
clearances shown in Figure 7, page 12 when
using hood.
-
-
Follow all minimum clearances
www.desatech.com 119638-01C12
NOTICE: If your installation does not meet the minimum clearances
INSTALLATION
Continued
Figure 6 - Minimum Mantel Clearances Without Using Hood
Figure 7 - Minimum Mantel Clearances When Using Hood
Minimum
Noncombustible
Material
Minimum
Noncombustible
Material Height
Distances to
Underside of
Mantel
Top of Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
12"
(A)
18" 20" 22" 24"
All minimum
distances are
in inches
Log Set
24" Models
2
1/2
"
6"
8"
10"
Minimum
Noncombustible
Material
8"
Min.
12" 15" 18"
All minimum
distances are
in inches
Log Set
24" Models
20"
2 1/2"
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood
(GA6050, GA6052
GA6053)
Top of Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
www.desatech.com
119638-01C 13
INSTALLATION
Continued
FLOOR CLEARANCES
A. If installing appliance on the oor level,
you must maintain the minimum distance
of 14" to combustibles (see Figure 8).
B. If combustible materials are less than 14"
to the replace, you must install appliance
at least 5" above the combustible ooring
(see Figure 9).
14"
Min.
Combustible
Material
Noncombustible Material
Hearth
5"
Min.
Combustible
Material
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Note: When used as a vented heater, ap-
pliance must be installed only in a solid-fuel
burning fireplace with a working flue and
constructed of noncombustible material.
For Massachusetts Residents Only: Instal-
lation of this gas log set as a vented appliance
in the Commonwealth of Massachusetts re-
quires the damper be permanently removed
or welded in the fully open position.
If you choose to use your heater as a manu-
ally-controlled model (no remote control
installed), you may use this heater as a vented
product. There are three reasons for operating
your heater in the vented mode.
6' to 15' 39 sq. inches
15' to 30' 29 sq. inches
1. The replace does not meet the clearance
to combustibles requirements for vent-
free operation.
2. State or local codes do not permit vent-
free operation.
3. You prefer vented operation.
If reasons number 1 or 2 above apply to you,
you must permanently open chimney ue
damper. You must install the damper clamp
accessory (to order, see Accessories, page
31). This will insure vented operation (see Fig-
ure 10). The damper clamp will keep damper
open. Installation instructions are included
with clamp accessory.
See chart below for minimum permanent ue
opening you must provide. Attach damper
clamp so the minimum permanent ue open-
ing will be maintained at all times.
Damper
Clamp
Damper
Manufactured
Damper
Figure 10 - Attaching Damper Clamp
Diameter Area
5" 20 sq. inches
6" 29 sq. inches
7" 39 sq. inches
8" 51 sq. inches
www.desatech.com 119638-01C14
CAUTION: Do not remove the
WARNING: You must secure
not, heater will move when you
-
-
-
IMPORTANT: Make sure the heater burners
are level. If heater is not level, heater will not
work properly.
Installation Items Needed
• hardware package (provided with heater)
• approved exible gas hose (not provided)
(if allowed by local codes)
• sealant resistant to propane/LP gas, not
provided
• electric drill with 3/16" masonry drill bit
Note: Install remote receiver and hand-held
remote kit included with this log set (see Ac-
cessories, page 31, for On/Off Remote option)
before installing gas log heater. See installa-
tion instructions included with the kit.
INSTALLATION
Continued
1. Apply pipe joint sealant lightly to male
threads of the tting to be threaded into
gas regulator. Connect approved exible
gas hose to gas regulator of heater (see
Figure 11).
2. Locate masonry screws in hardware
package.
3. Position heater base assembly in re-
place.
4. Place logs in their proper positions on
heater base.
5. Center heater base and logs front-to-back
and side-to-side in replace.
6. Carefully remove logs without moving
heater base.
7. Mark screw locations through holes in
mounting anges (see Figure 12). If in-
stalling in a brick-bottom replace, mark
screw locations in mortar joint of bricks.
8. Remove heater base from replace.
9. Drill holes at marked locations using 3/16"
masonry drill bit.
10. Attach base assembly to replace oor
using two masonry screws (in hardware
package) (see Figure 12).
11. Connect to gas supply. See Connecting
To Gas Supply, page 15.

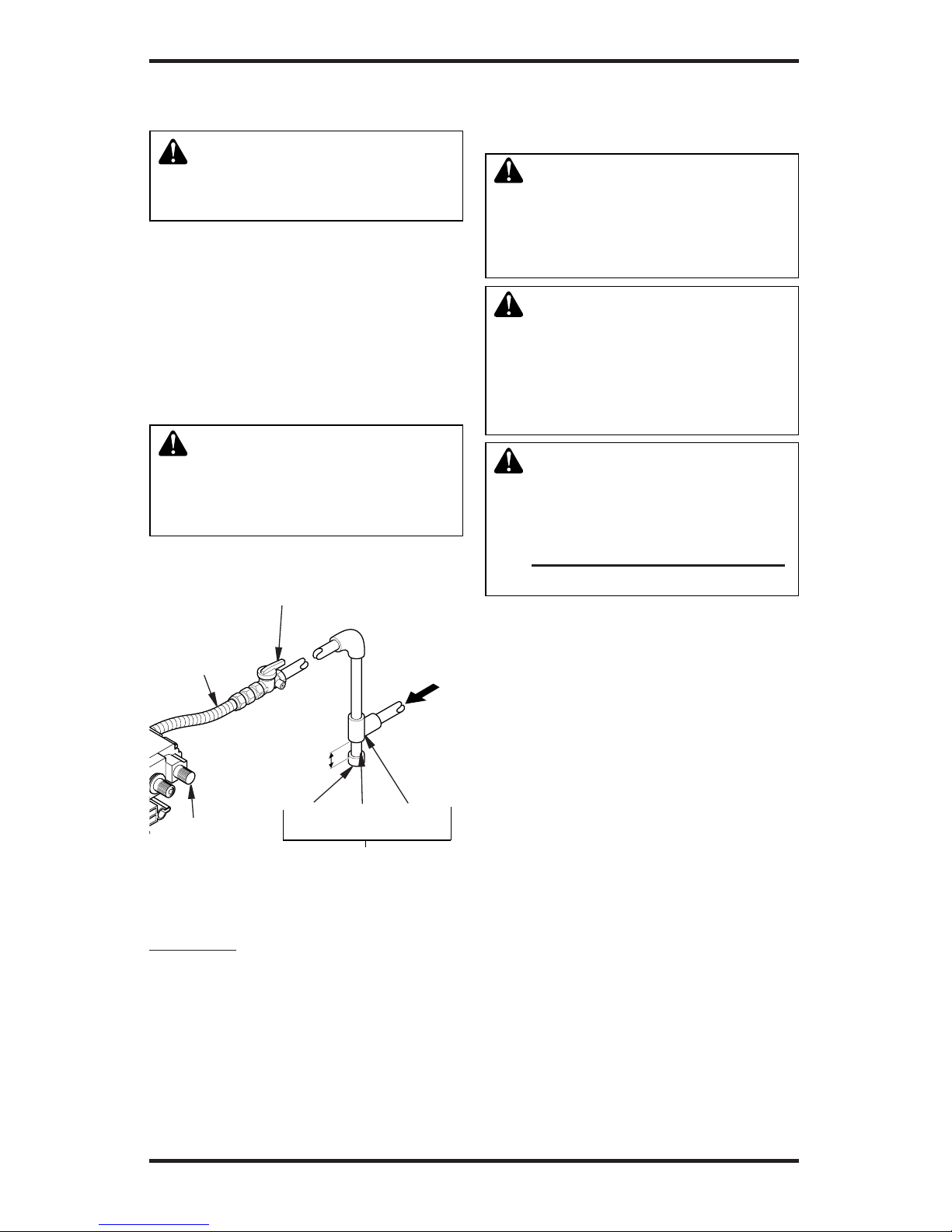

Figure 11 - Attaching Flexible Gas Hose
to Heater
Flexible Gas Hose
(if allowed by local
codes)
Fitting
Figure 12 - Attaching Base Assembly to
Fireplace Floor
Masonry
Screw
Mounting
Flanges
www.desatech.com
119638-01C 15
INSTALLATION
Continued
-
CAUTION: Never connect
-
WARNING: Never connect
-
Installation Items Needed
Before installing heater, make sure you have
the items listed below.
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
* A CSA design-certied equipment shutoff
valve with 1/8" NPT tap is an acceptable al-
ternative to test gauge connection. Purchase
the optional CSA design-certied equipment
shutoff valve from your dealer. See Acces-
sories, page 31.
For propane/LP units, the installer must
supply an external regulator. The external
regulator will reduce incoming gas pressure.
You must reduce incoming gas pressure to
between 11" and 14" of water. If you do not re-
duce incoming gas pressure, heater regulator
damage could occur. Install external regulator
with the vent pointing down as shown in Figure
13. Pointing the vent down protects it from
freezing rain or sleet.
CAUTION: Use only new,
-
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from heater (see
Figure 14, page 16).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment
shutoff valve is for turning on or shutting off
the gas to the appliance.
Check your building codes for any special
requirements for locating equipment shutoff
valve to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could
result in clogged heater valves.
Propane/LP
Supply Tank External
Regulator
with Vent
Pointing
Down
Figure 13 - External Regulator With Vent
Pointing Down
www.desatech.com 119638-01C16
We recommend that you install a sediment
trap in supply line as shown in Figure 14.
Locate sediment trap where it is within reach
for cleaning. Install in piping system between
fuel supply and heater. Locate sediment trap
where trapped matter is not likely to freeze.
A sediment trap traps moisture and contami-
nants. This keeps them from going into heater
controls. If sediment trap is not installed or is
installed wrong, heater may not run properly.
* Purchase the optional CSA design-certied
equipment shutoff valve from your dealer. See
Accessories, page 31.
** Minimum inlet pressure for purpose of input
adjustment.
Figure 14 - Gas Connection
INSTALLATION
Continued
Cap Pipe Tee
Nipple Joint
3" Minimum
Sediment Trap
Gas Control
From External
Regulator
(11" W.C.**
to 14" W.C.
Pressure)
CSA Design-Certied
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved
Flexible Gas
Hose (if allowed
by local codes)
CHECKING GAS CONNECTIONS
and connections, internal and
external to unit, for leaks after
WARNING: Never use an
-
CAUTION: Make sure exter-
-
der Connecting to Gas Supply,
1. Disconnect appliance with its appliance
main gas valve (control valve) and equip-
ment shutoff valve from gas supply piping
system. Pressures in excess of 1/2 psig
will damage heater regulator.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas or using compressed air.
4. Check all joints of gas supply piping sys-
tem. Apply noncorrosive leak detection
uid to gas joints. Bubbles forming show
a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff
valve to gas supply. Check reconnected
ttings for leaks.
www.desatech.com
119638-01C 17
INSTALLATION
Continued
Figure 15 - Equipment Shutoff Valve
Equipment
Shutoff Valve
Figure 16 - Checking Gas Joints
(Propane/LP Gas)
Propane/LP Tank
Equipment
Shutoff Valve
Valve Location
Figure 17 - Checking Gas Joints
(Natural Gas)
Gas Meter
Open
Closed
Equipment Shutoff Valve
Valve Location
1. Close equipment shutoff valve (see Fig-
ure 15).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas or using compressed air.
3. Check all joints from propane/LP sup-
ply tank to equipment shutoff valve for
propane/LP gas (see Figure 16) or from
gas meter to equipment shutoff valve for
natural gas (see Figure 17). Apply noncor-
rosive leak detection uid to gas joints.
Bubbles forming show a leak.
4. Correct all leaks at once.
Connections
1. Open equipment shutoff valve (see Fig-
ure 15).
2. Open propane/LP supply tank valve or
main gas valve located on or near gas
meter for natural gas.
3. Make sure control knob of heater is in OFF
position.
4. Check all joints from propane/LP sup-
ply tank to equipment shutoff valve for
propane/LP gas (see Figure 16) or from
gas meter to equipment shutoff valve for
natural gas (see Figure 17). Apply noncor-
rosive leak detection uid to gas joints.
Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operation, page 21).
7. Turn off heater (see To Turn Off Gas to
Appliance, page 22).
INSTALLING REMOTE ACCESSORY
This unit comes with an HRC200 Thermostat
Remote Control Kit for installation. See Acces-
sories, page 31, for On/Off Remote options.
1. If unit is already installed in replace,
continue with these instructions. If unit
has not been installed in replace, go to
step 6 and continue installation of remote
accessory.
WARNING: Turn off heater
2. Carefully remove logs and set aside.
3. Locate mounting screws on sides of heat-
er base assembly and remove screws. Set
screws aside for reinstallation.
4. Disconnect gas line from heater base as
shown in Figure 11, page 14.
-
www.desatech.com 119638-01C18
INSTALLATION
Continued
Figure 21 - Connecting Wires
Control
Valve
White Wire
From Receiver
Red Wire From
Receiver
Figure 20 - Installing Remote Receiver
Push
Button
Clips
Bracket
Battery
Clip
9-Volt
Battery
Terminal
Wires
Pad
CONTROL
Two 9-volt alkaline batteries (not included)
are required to operate this heater with the
wireless hand-held remote control set. One
battery must be installed in the receiver and
one in the hand-held remote control unit.
Note: Only use alkaline batteries.
1. Locate back of receiver behind receiver
bracket mounted on base assembly.
2. Locate the battery clip mounted on the
back of the receiver (see Figure 20).
3. Slide a 9-volt battery through the clip.
4. Attach the terminal wires to the battery.
5. Remove heater base from replace.
6. Install receiver bracket to base with phil-
lips screws provided in hardware kit as
shown in Figure 18.
7. Disconnect jumper wire from control valve at
TPTH and TH locations (see Figure 19).
8. Install remote receiver into receiver
bracket using pads and push button clips
provided with receiver (see Figure 20).
9. Connect wires to control valve at the
TPTH and TH locations as shown in
Figure 21.

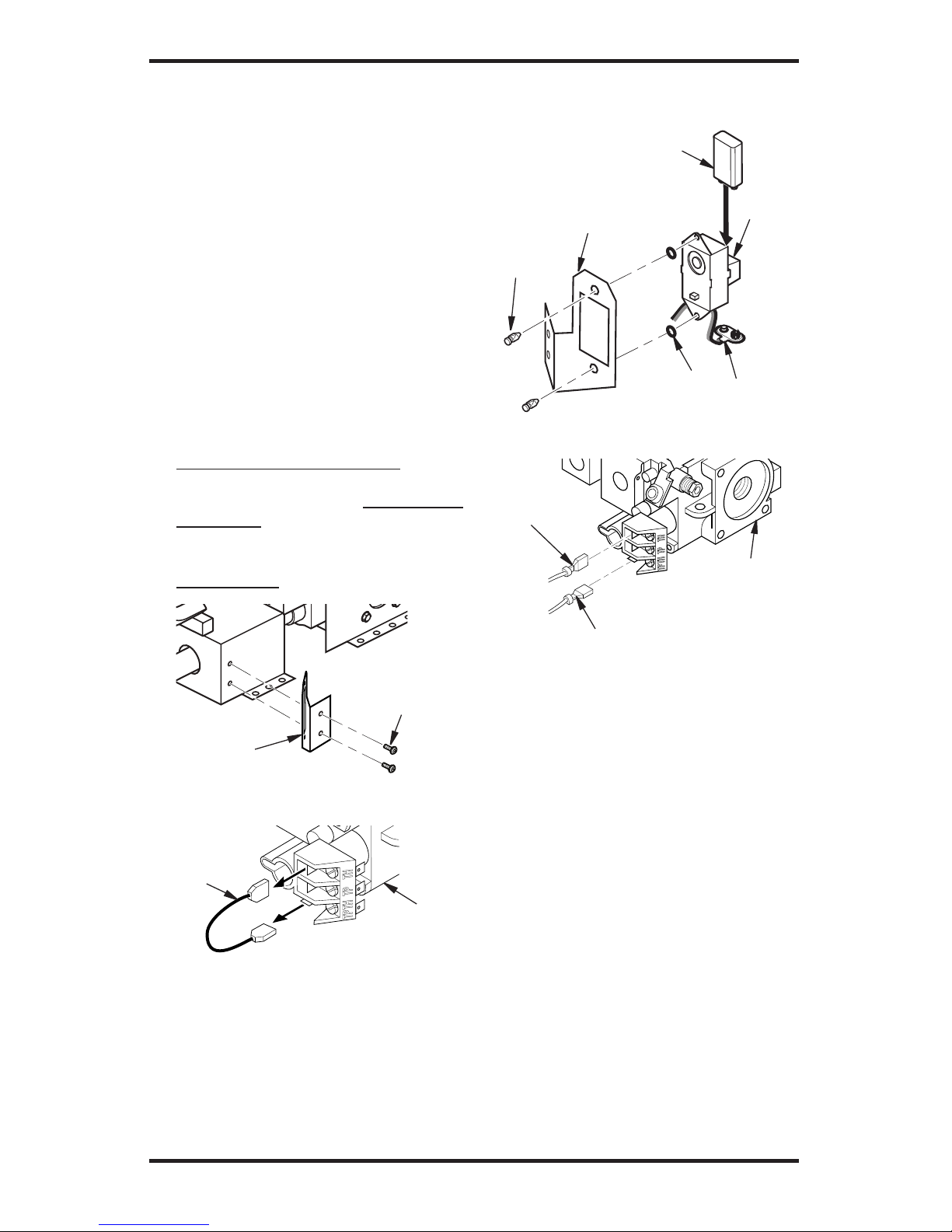

Note: Make sure excess wire does not
interfere with burner or pilot.
10.
If heater was removed from replace be-
fore installation of remote accessory, see
Installing Heater Base Assembly on page
14 to reinstall heater into replace. Test gas
connection for leaks (see Checking Gas
Connections, page 16).
11. If logs were removed from heater for in-
stall remote accessory, replace logs (see
Installing Logs, page 19).
Figure 19 - Disconnecting Jumper Wire
from Control Valve
Jumper
Wire
Control
Valve
Figure 18 - Installing Remote Receiver
Bracket
Remote
Receiver
Bracket
Phillips
Screws
www.desatech.com
119638-01C 19

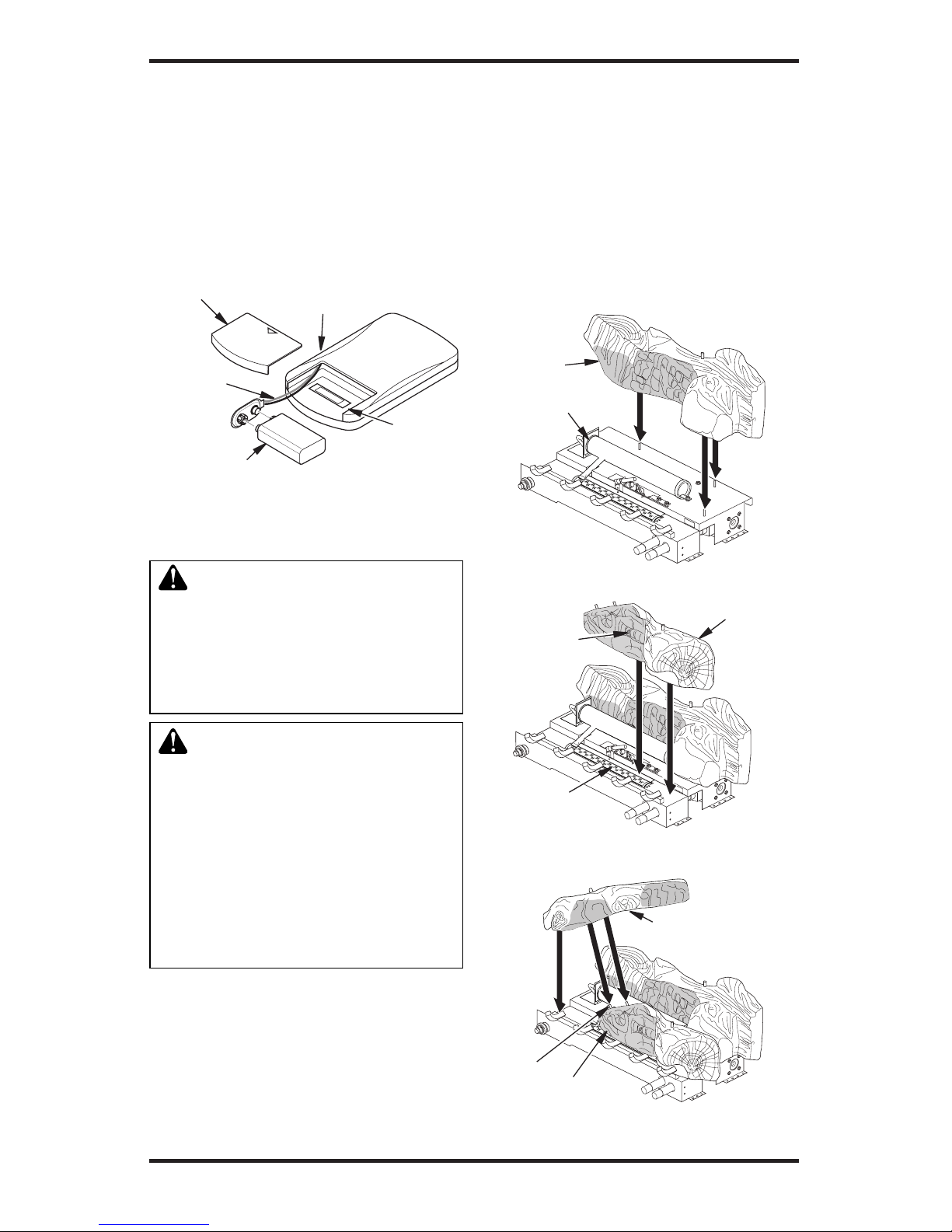

Figure 22 - Installing Battery in Hand-
Held Remote Control Unit
Battery
Cover
9-Volt
Battery
Terminal
Wires
Remote Control Unit
Battery
Housing
Hand-Held Remote Control Unit
1. Remove battery cover on back of re-
mote control unit (see Figure 22).
2. Attach terminal wires to the battery. Place
battery into the battery housing.
3. Replace battery cover onto remote con-
trol unit.

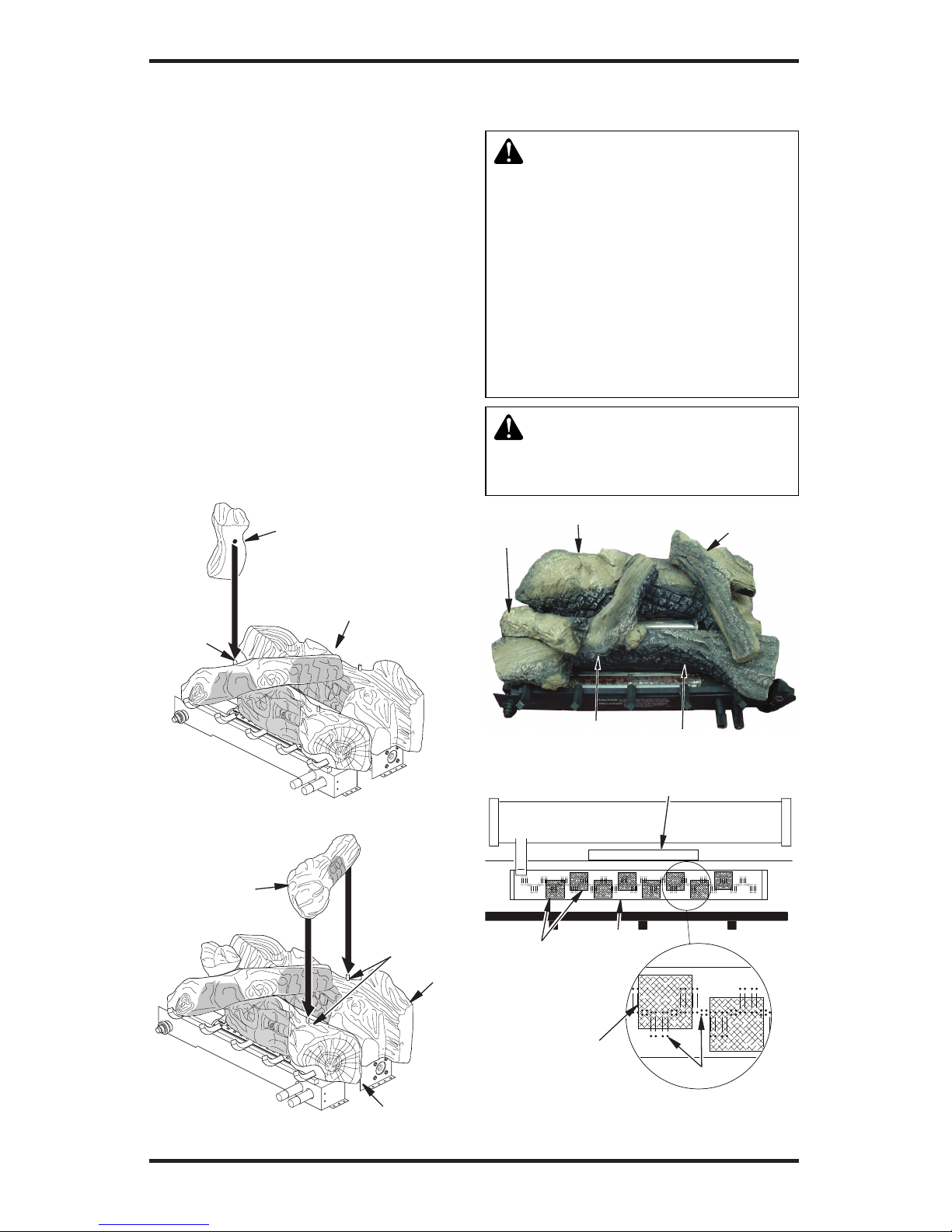

INSTALLING LOGS
CAUTION: After installa-
With the heater set to HI, check
-
1. Align three pins on base with three holes
in bottom of back log (#1). Place log on
pins (see Figure 23). Log #1 will wrap
around right end of rear burner.
2. Place right front log (#2) on base to right
of ember bed burner as shown Figure 24.
The front of log #2 sits behind the ember
bed burner. This log has a hole that is to be
used for viewing the pilot (see Figure 24).
INSTALLATION
Continued
3. Align hole in bottom of middle log (#3) with
pin on log #2 (see Figure 25). The end of
log #3 will rest on rst grate nger on left
(see Figure 25).
4. Align hole in bottom of top left log (#4)
with pin on log #3. Place log on pin (see
Figure 26, page 20). The other end of log
#4 will rest on left end of rear burner (see
Figure 23).
Figure 23 - Installing Log #1
Log #1
Figure 24 - Installing Log #2
Ember Bed
Burner
Log #2
Figure 25 - Installing Log #3
Log #3
Log #2
Pins
Rear Burner
Pilot
Viewing
Hole
www.desatech.com 119638-01C20
Ember
Material
Ember
Bed
Burner
Ports
Ember
Material
INSTALLATION
Continued
Figure 29 - Placement of Embers
Rear Burner
Pilot Location
Figure 26 - Installing Log #4
Log #4
Pin
Log #3
5. Align holes in bottom of top right log (#5)
with pins on top of right front log (#2) and
back log (#1). Place log on pins (see
Figure 27).
6. Add embers to front ember bed burner.
Gently remove embers from the bag us-
ing gloves or tweezers.
-
Separate pieces of ember material,
pull apart and place on surface of ember
bed burner as shown in Figure 28, page 19.
7. Add lava rock around base to heater if
desired. Do not place lava rock on logs
or burner.
Figure 27 - Installing Log #5
Log #5
Pins
Log #1
Log #2
material anywhere else on the
WARNING: Do not use rock
Figure 28 - Placement of Logs
Log #4
Log #1 Log #5
Log #3 Log #2
This manual suits for next models
1
Table of contents
Other Desa Gas Heater manuals
Desa
Desa LDL3930NRB Operation manual
Desa
Desa HDL18N Quick start guide
Desa
Desa CSG3924NRA Quick start guide
Desa
Desa GWRN10 Original instructions
Desa
Desa Comfort Glow CGP10TLA Quick start guide
Desa
Desa 40 User manual
Desa
Desa GWRN10 Original instructions
Desa
Desa FLAME-MAX FVFM27PR Quick start guide
Desa
Desa GWRP16B Original instructions
Desa
Desa Vanguard GVC35PA Quick start guide
Desa
Desa Comfort Glow CGR35PA Quick start guide
Desa
Desa Comfort Glow CGD3924PRA Quick start guide
Desa
Desa Comfort Glow RFN30TA Quick start guide
Desa
Desa BLP35E User manual
Desa
Desa Vanguard VVDR30 Quick start guide
Desa
Desa VANGUARD FVDA18M Quick start guide
Desa
Desa Vanguard VN10 Quick start guide
Desa
Desa A Quick start guide
Desa
Desa CDR3924PT Quick start guide
Desa
Desa 125-R User manual
Popular Gas Heater manuals by other brands
Procom
Procom WZN18HLA manual
ENERCORP
ENERCORP HEATSTAR HS35LP Operating instructions and owner's manual
Procom
Procom ML060HPA OWNER'S OPERATION AND INSTALLATION MANUAL
Focal Point
Focal Point F500079 installation instructions
Warmtech
Warmtech CC4201 Original instructions
Waterco
Waterco Turbotemp 125 Installation and user guide
Procom
Procom MDS30HGA manual
Vermont Castings
Vermont Castings SDDVT Series Homeowner's installation and operating manual
Rinnai
Rinnai Symmetry Premium Flat Installation
Mestek
Mestek TUBULAR GAS-FIRED BLOWER STYLE UNIT HEATER Installation instructions and parts identification
Warnock Hersey
Warnock Hersey 19TV installation manual
Clarke
Clarke Little Devil II (inc ss) Operation & maintenance instructions
Burley
Burley G4111 Installation, servicing & user instructions
Seeley
Seeley Braemar CTB-20845 Homeowner's manual
Chromalox
Chromalox PE433-3 nstallation Instructions and RENEWAL PARTS IDENTIFICATION
Rasmussen
Rasmussen Alterna VF AFB Series owner's manual
Majestic fireplaces
Majestic fireplaces UVHK23MP Installation and operating instructions
Baxi
Baxi Solo 2 30 PF Installation and servicing instructions
