Desa E32, VE36, VE32 User manual

ELECTRIC FIREPLACE
MODELS: E36(L)(B)(H), E32(L)(B)(H)
VE36(L)(B)(H) AND VE32(L)(B)(H)
INSTALLATION INSTRUCTIONS
AND HOMEOWNER’S MANUAL
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
INSTALLER AND CONSUMER
SAFETY INFORMATION
____________________________________
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE
____________________________________
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, AN ELECTRICAL SHOCK
OR FIRE MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
____________________________________
FOR YOUR SAFETY
Service must be performed by a
qualified service agency.
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
IMPORTANT INSTRUCTIONS - SAVE THESE INSTRUCTIONS
MODEL (V) E36LBH SHOWN
R
USC

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
TABLE OF CONTENTS:
SAFETY INFORMATION ……………………………..…… 2
LOCATING FIREPLACE HEATER ………………………. 3
INSTALLATION CLEARANCES ……….………………… 3
PRODUCT SPECIFICATIONS ……………………………. 4
FRAMING SPECIFICATIONS……………………….…….. 4
ELECTRICAL INSTALLATION .………………………….. 5
HEARTH ASSEMBLY ….………………………………….. 6
SAFETY INFORMATION
1. Read all instructions before using this appliance.
2. This heater is hot when in use. To avoid burns, do
not let bare skin touch hot surfaces. If provided,
use handles when accessing the heater controls.
Keep combustible materials, such as furniture,
pillows, bedding papers, clothes, and curtains at
least 3 feet from the front of this appliance.
3. Always place the main power switch in the off
position when not in use.
4. Do not operate the heater if any part has been
damaged or is malfunctioning.
5. Any repairs to this fireplace should be carried out
by a qualified service person.
PRODUCT FEATURES OPERATION ....…….………….. 6
INSTALLING OPTIONAL ACCESSORIES ...…………... 7
TROUBLE SHOOTING .………………………………….. 11
TECHNICAL SERVICE .………………………………….. 13
REPLACEMENT PARTS .........………………………….. 19
ILLUSTRATED PARTS LISTS ………………………….. 20
OPTIONAL ACCESSORIES …………………………….. 24
WARRANTY INFORMATION ……..……… BACK COVER
7. Under no circumstances should this fireplace be
modified. Parts having to be removed for servicing
must be replaced prior to operating this fireplace
again.
8. This heater is not intended for use in bathrooms,
laundry areas and similar locations were it would
be subject to excessive moisture.
9. This heater may not be installed outdoors or in an
unenclosed space where exposed to the elements.
10. To disconnect this appliance it must be turned off
at the branch circuit breaker.
11. This appliance, when installed must be electrically
grounded in accordance with local codes and the
National Electrical Code, ANSI/NFPA No. 70 or in
Canada with CSA C22.1 Canadian Electrical code.
12. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
an electrical shock, a fire or damage the appliance.
13. To prevent a possible fire, do not block air intakes
or exhaust in any manner.
14. This appliance has hot and arcing or sparking
parts inside. Do not use it in areas where gasoline,
paint or flammable liquids are used or stored. This
fireplace should not be used as a drying rack for
clothing nor should Christmas stockings or
decorations be hung in the area of it.
15. Use this appliance only as described in this
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or
injury to persons.
16. SAVE THESE INSTRUCTIONS.
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
WARNING: Electrical wiring must comply
with local building codes and other
applicable regulations to reduce the risk of
fire, electrical shock and injury to persons.
WARNING: Do not use this fireplace if any
part of it has been under water.
Immediately call a qualified service
technician to inspect the fireplace and
replace any part of the electrical system.
CAUTION: Extreme caution is necessary
when any heater is used by or near children
or invalids and whenever the heater is left
operating and unattended.
111076-01C
2

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
LOCATING THE FIREPLACE HEATER
Plan where to locate and frame the fireplace heater. This will
save time and money later when you install the fireplace. Before
installation consider the following:
1. Where the firebox is located must allow for wall and ceiling
clearances (see Installation Clearances).
2. Consider a location where the appliance screen will not be
exposed to direct sunlight from windows or doors.
3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper
ground must be available at the location. Preferably a
dedicated branch circuit should be provided to avoid circuit
breakers to trip or fuses to blow.
Flush installations are recommended where living space is
limited or at a premium. Since the space required to enclose the
appliance would be located beyond an outside wall, this
installation would require additional planning and construction.
Check local codes for any restrictions.
Projected installations can extend any distance into the
room. A projection may be ideal for a new addition on an
existing, finished wall.
Corner installations make use of space that may not normally
be used and provides wider and more efficient heat distribution.
Internal wall installations provide a discreet option for room
separation and can also be an ideal addition to an existing wall.
INSTALLATION CLEARANCES
Minimum clearances to combustible are:
• Top, Back and Sides of Recessed Cabinet ……… 0” Min.
• Drywall to Sides of Front Face …………………. 0” Min.
• Framing at Nailing Flanges ...…………………… 0” Min.
• Ceiling to Opening ……………………………… 36” Min.
• Floor ………………………………………………. 0” Min.
• Front …………………………………………….. 36” Min.
• Perpendicular Side Wall …………………………10” Min.
• Mantle Clearances …………………….. See Figures 2 and 3
3
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
12"
10 1/2" MIN.
REF.
16 5/8"
OF CABINET
TOP
FACING MATERIAL MAY
BE NON-CUMBUSTIBLE
REF.
MANTELS AND TRIMS
COMBUSTIBLE WOOD
9 5/8" REF.
NOTE: ALL MANTEL CLEARANCES
ARE MEASURED FROM TOP
FRAMING
OF FIREPLACE OPENING
MAY EXTEND ABOVE
THE PROFILE SHOWN
WALL TREATMENTS OR
COMBUSTIBLE WOOD.
MATERIAL
WHEN MAINTAINED
WITHIN THE 30 DEGREE
PARAMETER SHOWN

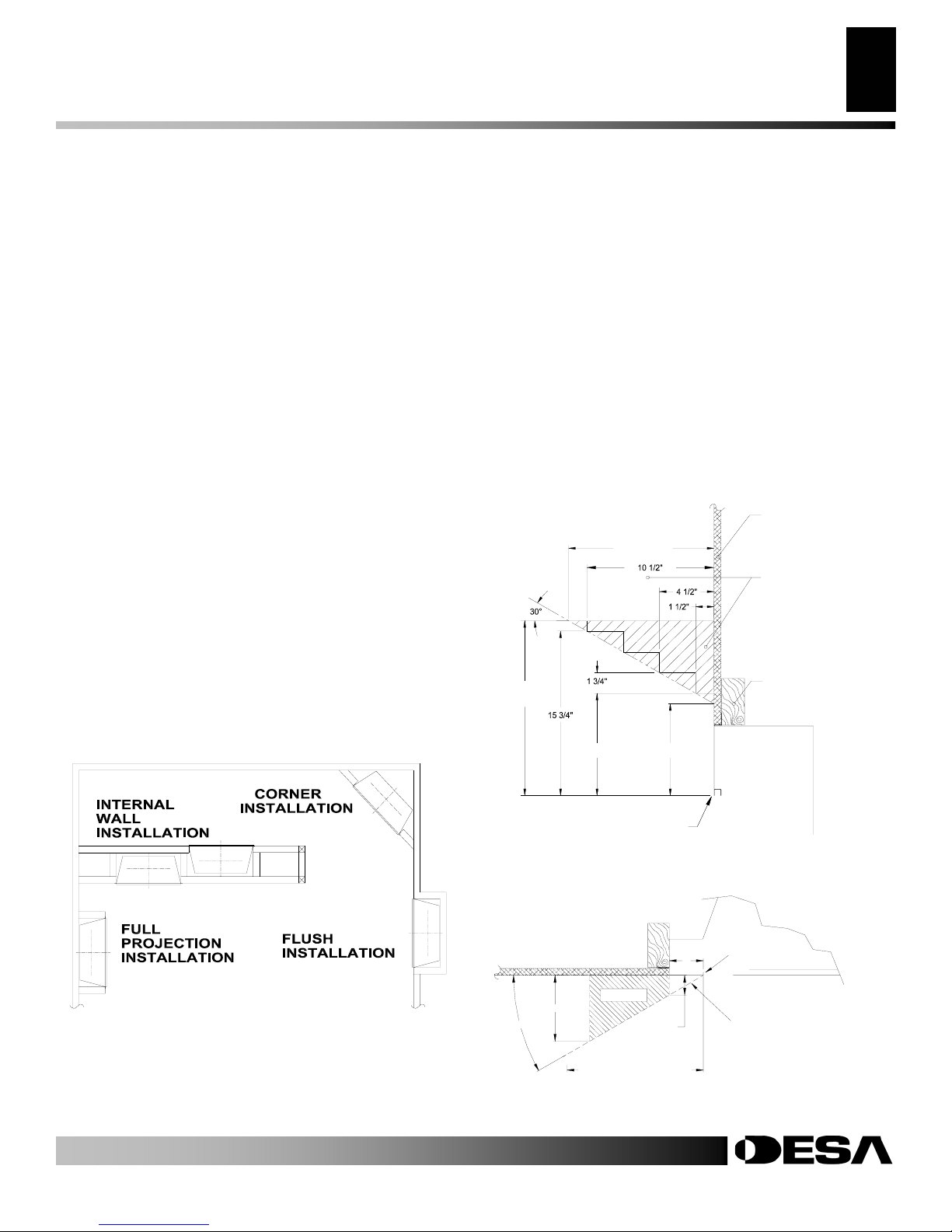

Figure 2 – Mantel Clearances
Figure 1 - Possible Locations for Installation
EDGE OF FIREBOX
1 3/4" MAX.
3"
MINIMUM 10" FROM
PERPENDICULAR SIDE WALL
OPENING
30°
TOP VIEW OF FIREPLACE
5"
SAFE ZONE
MUST NOT OVERLAP
COMBUSTIBLE MATERIAL
FRONT FACE
Figure 3 - Mantel Side Clearance
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH

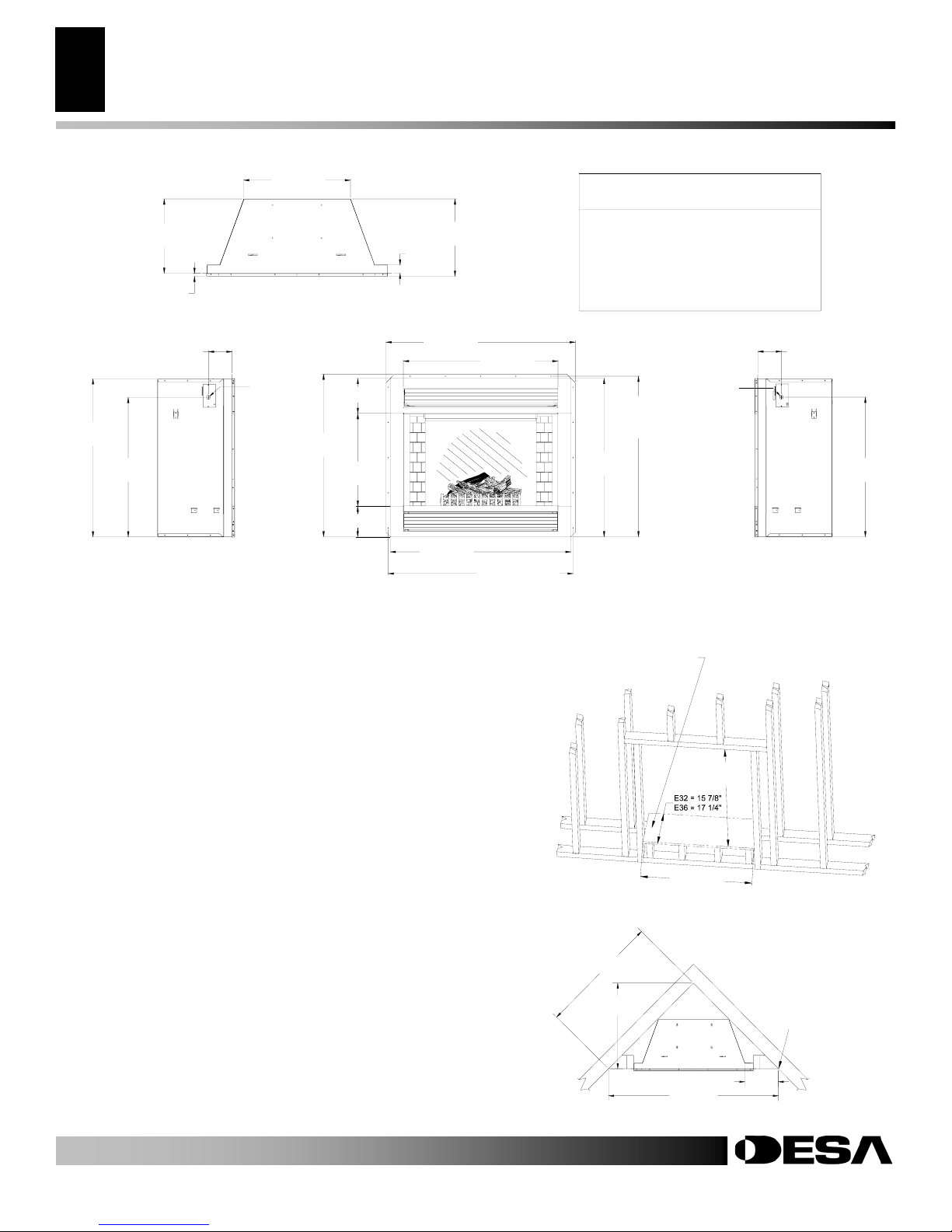

PRODUCT SPECIFICATIONS
HEARTH DIMENSIONS
Although not mandatory, a hearth extension is suggested for
aesthetic purposes. The appliance may be raised on a wood or
non-combustible platform supporting its entire width and depth
and extending in front of the appliance as long as the louvers are
not obstructed.
NOTE: In cold climates, when installing the appliance against a
non-insulated exterior wall, outer wall must be fully insulated in
accordance with local building code.
FRAMING DIMENSIONS
Built-in installations require a framed-in enclosure constructed of
2 x 4 or heavier lumber and sized in accordance with Figure 5.
This allows the unit to slide into the opening and be nailed to the
stud space at the sides and top nailing flanges. These flanges
accept 5/8” drywall or plywood board to finish the unit flush to
the face. Optional trim accessories are available that will extend
½” over rough edge of the wall opening (see Accessories, page
21).
IMPORTANT: If installing a perimeter trim kit, you must install
shoulder screws before inserting firebox into opening. See
instructions included with the trim kit. If installing a mantel above
the firebox, you must follow clearance instructions (see
Installation Clearances, page 3).
4
7.0"
E32 = 7.0"
E36 = 8.0"
E32 = 18 3/8"
E36 = 21"
E32 = 35 3/8"
E36 = 42"
TO NAIL LOCATION
E32 = 34 5/8"
E36 = 41 1/4"
5/8"
E32 = 28 3/8"
E36 = 31 3/4"
E32 = 6 1/2"
E36 = 5 1/4"
E32 = 16 1/4"
E36 = 17 5/8"
E32 = 22 1/4"
E36 = 24 1/4"
E32 = 28 3/8"
E36 = 31 3/4"
E32 = 32 5/8"
E36 = 36 1/4"
Location
Electrical
Conduit E32 = 32 7/8"
E36 = 36 1/2"
TO NAIL
LOCATION
E32 = 32 1/8"
E36 = 36 1/8"
E32 = 15 5/8"
E36 = 17"
1 7/8"
TOP
LEFT SIDE RIGHT SIDEFRONT
Location
Electrical
Conduit
E32 = 8"
E36 = 5 1/4"
E32 = 36 3/8"
E36 = 43"
E32 = 33 3/8"
E36 = 37"
E32 = 29 3/8"
E36 = 35"
ELECTRICAL
SPECIFICATIONS
Voltage:
Total Amps:
Total Watts:
Heater Rating:
Max. Bulb Rating:
Use only on 15 ampere branch circuit
120VAC, 60Hz
12.5 Amps
1500 Watts
1100 Watts
100 Watts
Figure 4 – Unit Dimensions
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
E32 = 34 5/8"
E36 = 41 1/4"
E32 = 32 5/8"
E36 = 36 1/4"
PLATEFORM/SUBFLOORING
Figure 5 - Framing Dimensions
E32 = 52 3/4"
E36 = 58 1/4"
E32 = 26 5/8"
E36 = 29 3/8"
E32 = 37 5/8"
E36 = 41 3/8"
11 5/8"
FOR 11 - 5/8" OF CLEARANCE
TO THE SIDE WALL
OF THE FIREPLACE
IS ALSO PERMITTED TO
HOWEVER, 10" CLEARANCE
PERPENDICULAR SIDE WALLS
THESE DIMENSIONS ALLOW
Figure 6 - Corner Dimensions
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH

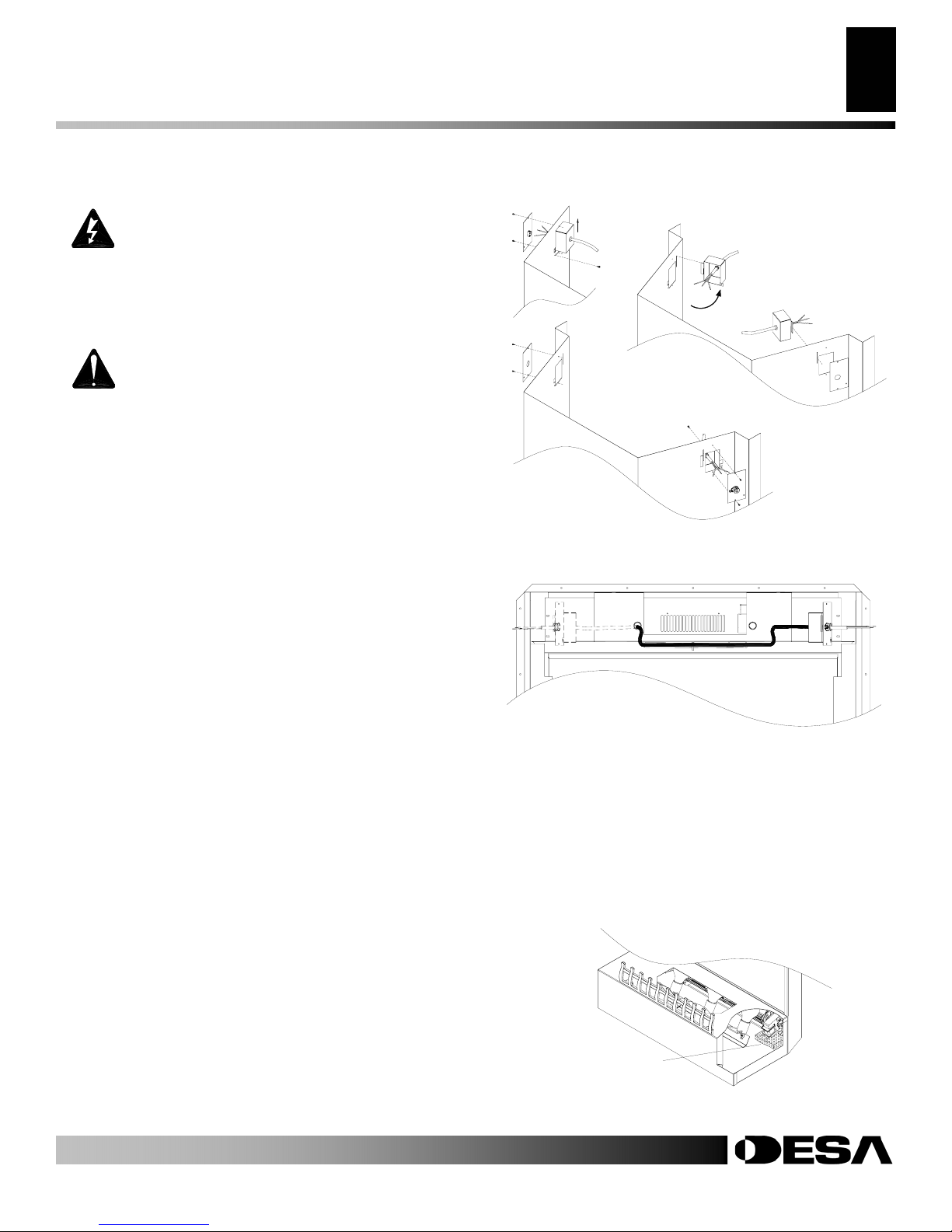

ELECTRICAL INSTALLATION

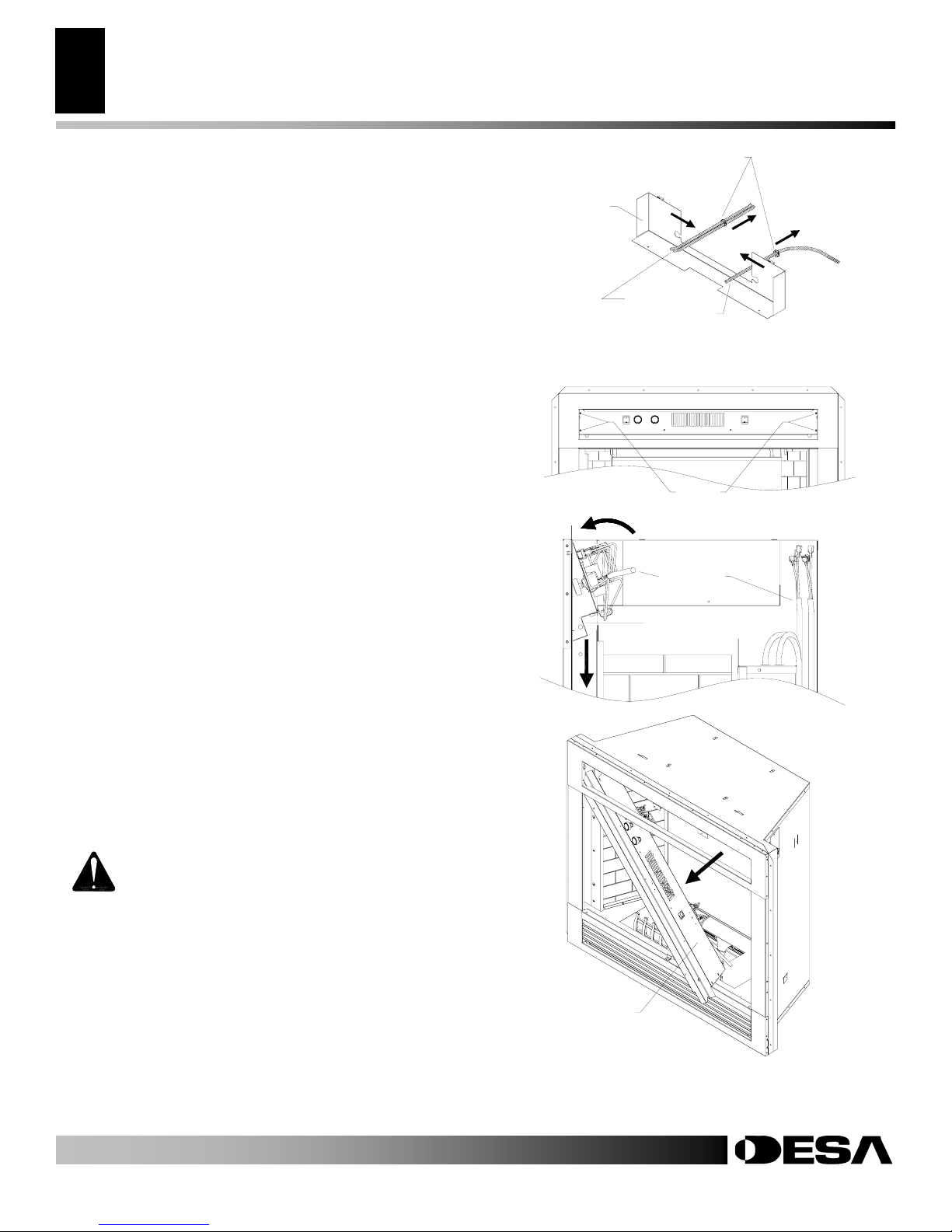

A junction box with universal strain adaptor is provided to hard
wire the unit to a 15 AMP, 120Volt, 60 Hz grounded branch circuit
from the right side. If necessary the junction box may be relocated
to route supply to the left side by following these instructions:
1. Remove the 2 screws and outer cover on the right side (see
Figure 7).
2. Remove the inner screw retaining the junction box.
3. Slide the junction box up until the screw mounting tab is lined
up to the notch in the outer cabinet.
4. Swing the box out and slip the retaining flange out through the
slot in the outer cabinet.
5. Remove the 2 screws and outer cover on the left side and
reattach now on the right side of the outer cabinet.
6. Swing the junction box with harness to the left side while
pulling sufficient length of harness out through the control
panel cover to reach the mounting location on the left side (see
Figure 8).
7. Reinsert the retaining flange through the slot and swing the
screw mounting tab back through the notch as before.
8. Slide the junction box down till the mounting holes line up and
replace the inner retaining screw.
9. Pull end of 3-wire Romex supply line through the universal
strain relief bushing in the remaining cover.
10.Strip back the outer Romex to about 4” and connect the black,
white and green wires accordingly using approved connectors.
11.Tuck the tailing wires into the junction box and replace the
cover using the 2 remaining screws.
12.Tighten down the strain adjustment on the universal bushing
until the Romex sheathing is secured.
The electrical connection is now complete.
IMPORTANT: Be sure to inspect the components and wiring
for damage before connecting power to the unit. If any
components are found damaged, contact an authorized dealer
for original DESA replacement part(s) or call DESA at 1-866-
872-6040 for referral.
IMPORTANT: Prior to operation remove the foam shipping
brace located under the motor mount (see Figure 9).
5
Figure 7 – Relocating Junction Box to Left Side
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
WARNING: Any electrical re-wiring of this
appliance must be done by a qualified
electrician. This wiring must be done in
accordance with local codes and/or in the
U.S.A. with the current, National Electrical
Code ANSI/NFPA No 70 and in Canada with
CSA C22.1 Canadian Electric code.
This fireplace should be connected to a
dedicated 15 Amp, branch circuit as other
appliances may cause the circuit breaker
to trip or the fuse to blow when the heater
is in operation.
Figure 8 - Rerouting Harness to Left Side
FOAM
SHIPPING BRACE
Figure 9 - Removing Shipping Brace
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
HEARTH ASSEMBLY
Before operating the appliance the lamp bulbs must be inspected and lava
rock treatments, if desired, may be added as follows:

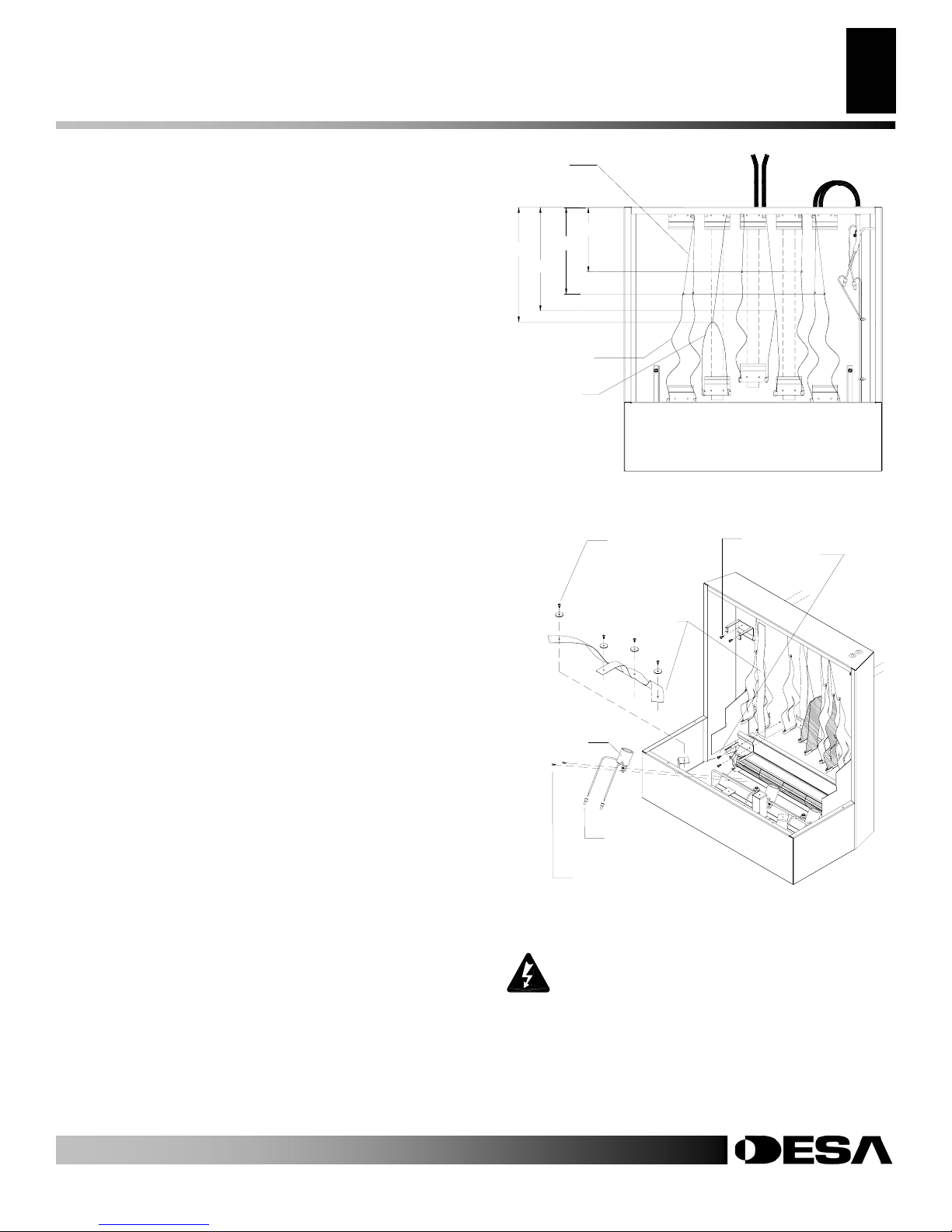

1. Lift the log bed off the hearth base to gain access to the lamp fixtures,
(the log bed is attached with contact magnets only).
2. Turn the power on to the light circuit and check that all bulbs are
operating. The Red bulb is placed in the left most fixture and the Yellow
and Orange follow in that order. See Figure 10.
NOTE: If any bulbs need replacing, see Replacing Light Bulbs, page 13. Be
careful not to tear or damage the reflective strips. If they have come loose,
the ends can be easily reattached or replaced at the support brackets. See -
Replacing Reflecting Ribbons, page 18.
4. Center the log bed over the opening and in between the screen and grate.
5. Cover the remaining hearth area with a ¼” layer of lava rock provided.
PRODUCT FEATURES AND CONTROL OPERATION
Models (V)E36/32L series electronic fireplaces feature a random flame
effect, and realistic log bed with glistening embers that can be adjusted for
flame speed and light intensity.
Models (V)E36/32LH have an added circulating heater, rated at 1100 W.
In addition to a heater, the models E36/32LB and E36/32LBH include a
hand detailed, textured red-brick lining (Models VE36/32LB and
VE36/32LBH come standard with natural white brick).
The controls can be accessed by pulling on the top outer edges of the
uppermost louver until the panel releases from the magnetic catches on each
side and swings down to the open position. See Figure 11.
Figure 12 shows the control layout for heater equipped models with the
main power switch to the flame controls and the heater power switch (when
equipped) to the heating unit. This allows independent and efficient
operation of both features.
Once main power is turned on, flame speed and brightness may be turned
on and adjusted independently.
A slow flame speed creates a soothing appearance of a romantic fire while a
high flame speed invites the presence of a warm roaring fire.
The flame brightness may be adjusted to accommodate a particular mood or
lighting situation within the room.
6
FLAME SPEED
HI- OFF LOW OFF HI- LOW
FLAME BRIGHTNESS
VITESSE D'FLAMME LUMINOSITÉD'FLAMME
HAUT- ARRÊT BAS BASARRÊT HAUT-
COURANT
PRINCIPAL CHAUFLAGE
MAIN
POWER HEATER
Fi
g
ure 1
2
-
Control Panel O
p
eration
RED
YELLOW
ORANGE
LOG BED

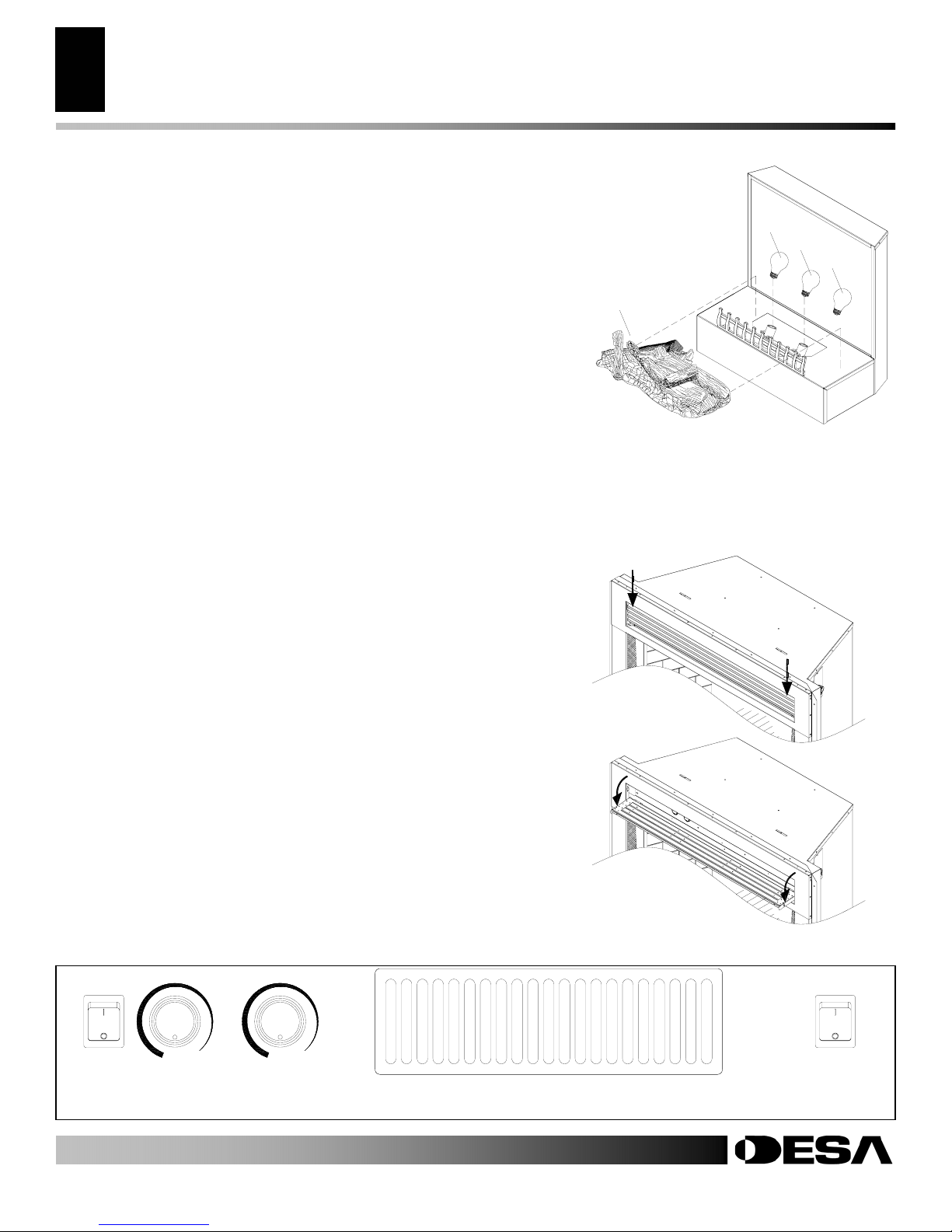

Figure 10 - Hearth Assembly
Figure 11 - Accessing Controls
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
INSTALLING OPTIONAL ACCESSORIES
OPTIONAL GLASS DOORS
Models E36L, E32L, VE36L and VE32L may accept bi-fold glass
doors that are fully operable or a fixed panel door that limit access
to the fireplace, (see Accessories page 24).
Installing BD36/32 Series Bi-Fold Glass Doors
Follow these steps to install left and right operable panels:
1. With the handle down, completely fold the panel on its hinges.
2. With handle facing the center of the firebox opening, insert the
lower pivot pin on the door panel into the hole in the bottom
outer edge of the fireplace opening. See Figure 13.
3. Keep the folded door tilted and slide the upper two pins into the
guide track below the upper facial edge of the firebox opening.
4. Tilt the glass assembly fully vertical until the outer pivot pin
snaps into the mounting hole in the upper spring clip.
5. Once the top and bottom pins are secured, unfold the door into
the closed position.
6. Repeat steps 1 through 5 for the opposite door assembly.
7. To adjust the doors, slide them partially open. Using a Phillips
screwdriver, loosen the hold-down screws on the spring clips
(see Figure 14).
8. Close both doors until evenly joined at the middle and note the
gap as measured to the outer edges of the front face.
9. Reopen each door one at a time and retighten the hold-down
screw while preserving the noted gap at each edge.
10.Repeat the process until both doors are evenly joined, spaced
and working freely.

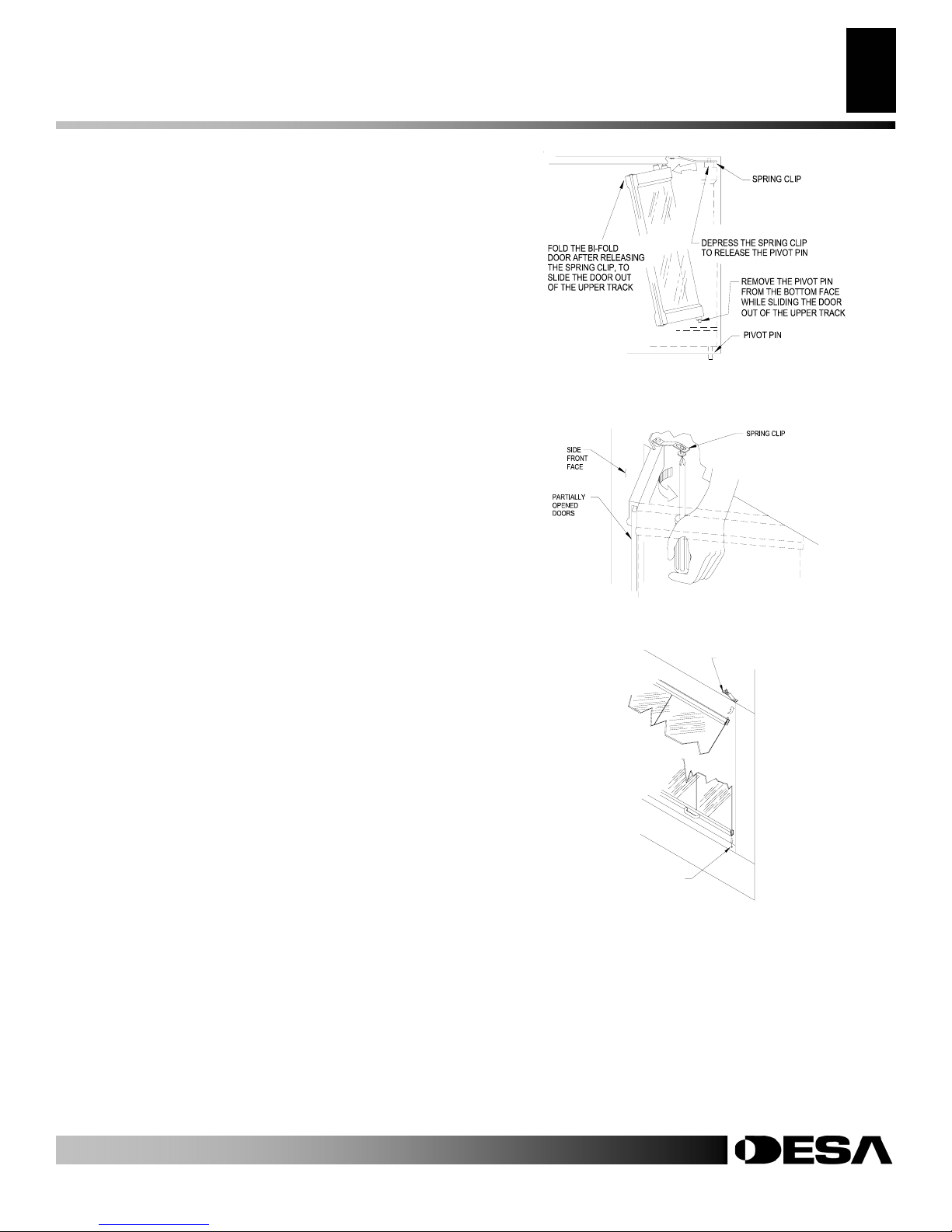

Removing Bi-Fold Glass Doors
Bi-fold doors may be removed for replacing or cleaning as follows:
1. Partially open each door and press up on the upper spring clip
with a screw driver until the outer top pivot pin is free of the
clip.
2. Fully fold the frame assembly and slide the upper edge towards
the center of the firebox opening until the guide pins are free of
the frame rail (see Figure 13).
Installing/Removing FD36/32 Series Fixed Glass Doors
Fixed glass doors may be installed as folows:
1. Hold the glass door firmly at both handles and insert top pins
into the clips located below the upper facial edge of the firebox
opening. Make sure the top pins snap securely into the holes on
the spring clips (see Figure 15).
2. As you push up on the glass against the tension of the
spring clips, swing the lower door in toward the face until
the bottom pins clear the bottom rail and seat into the
locating holes on each end. (see Figure 13).
Note: If the pins do not align into the spring clips, slightly
loosen the retaining screw on each clip (see Figure 14).
Reinsert the panel into each spring clip and align the panel
into the lower locating holes. Remove the panel, finish tighten
the retaining screws in place and then reinsert the panel again.
7

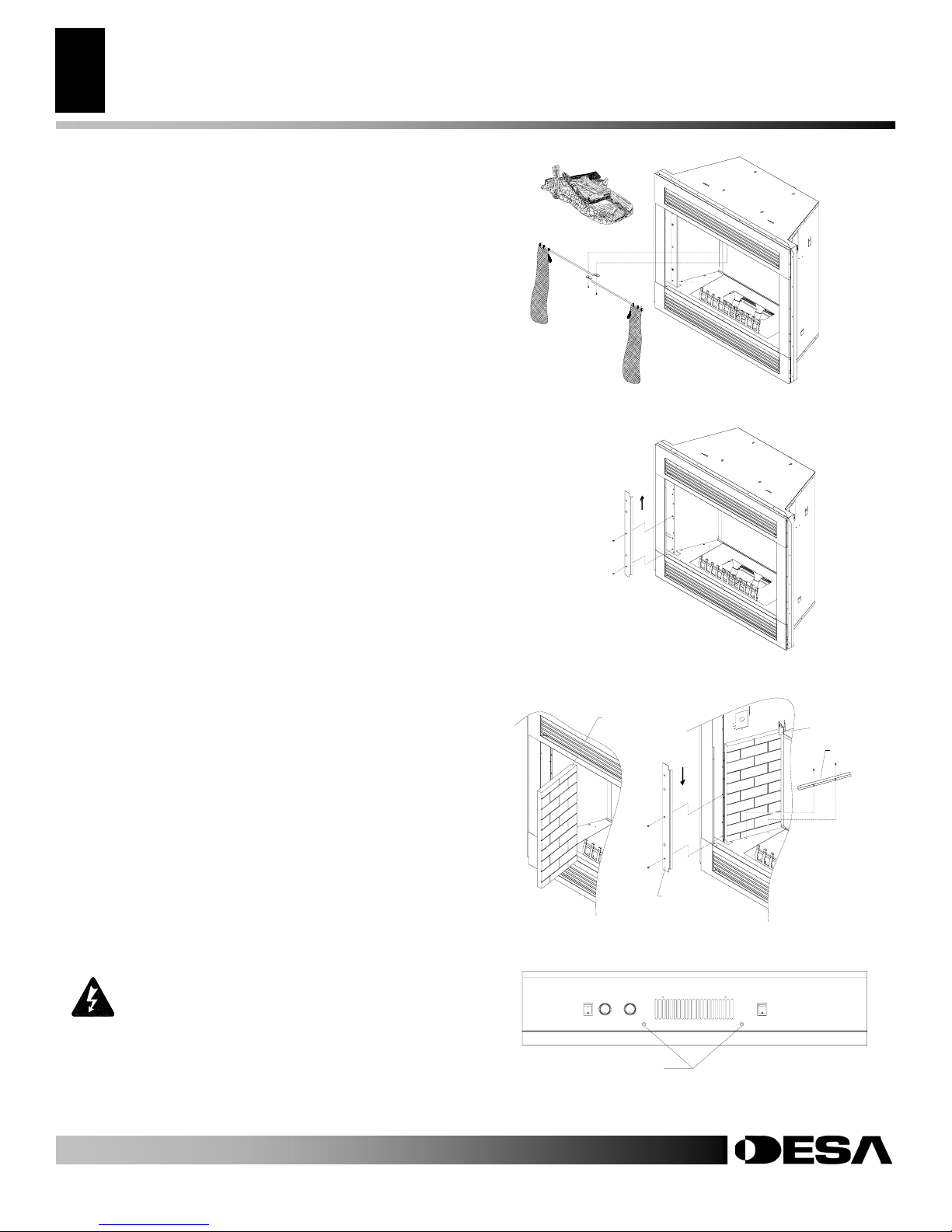

Figure 13 - Installing/Removing Glass Doors
Figure 14 - Adjusting Glass Doors
LOCATING HOLE
SPRING CLIP
Figure 15 - Installing Fixed Glass Doors
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
OPTIONAL BRICK LINERS
Installing/Removing BL36/32E(W) Brick Liner Kits
Models (V)E36/32(L)(H) may accept optional BL36/32E(W)
brick liner kits (see Accessories, page 24). The brick panels may be
installed anytime after the fireplace installation is complete.
Follow these steps to install left and right panels:
1. Remove the glass doors (if equipped) follow the instructions
under - Optional Glass Doors, page 7.
2. Remove each retaining screw holding the screen rods and pull
entire screen and rod assembly out from the locating hole on the
inside top of each screen pocket (see Figure 16).

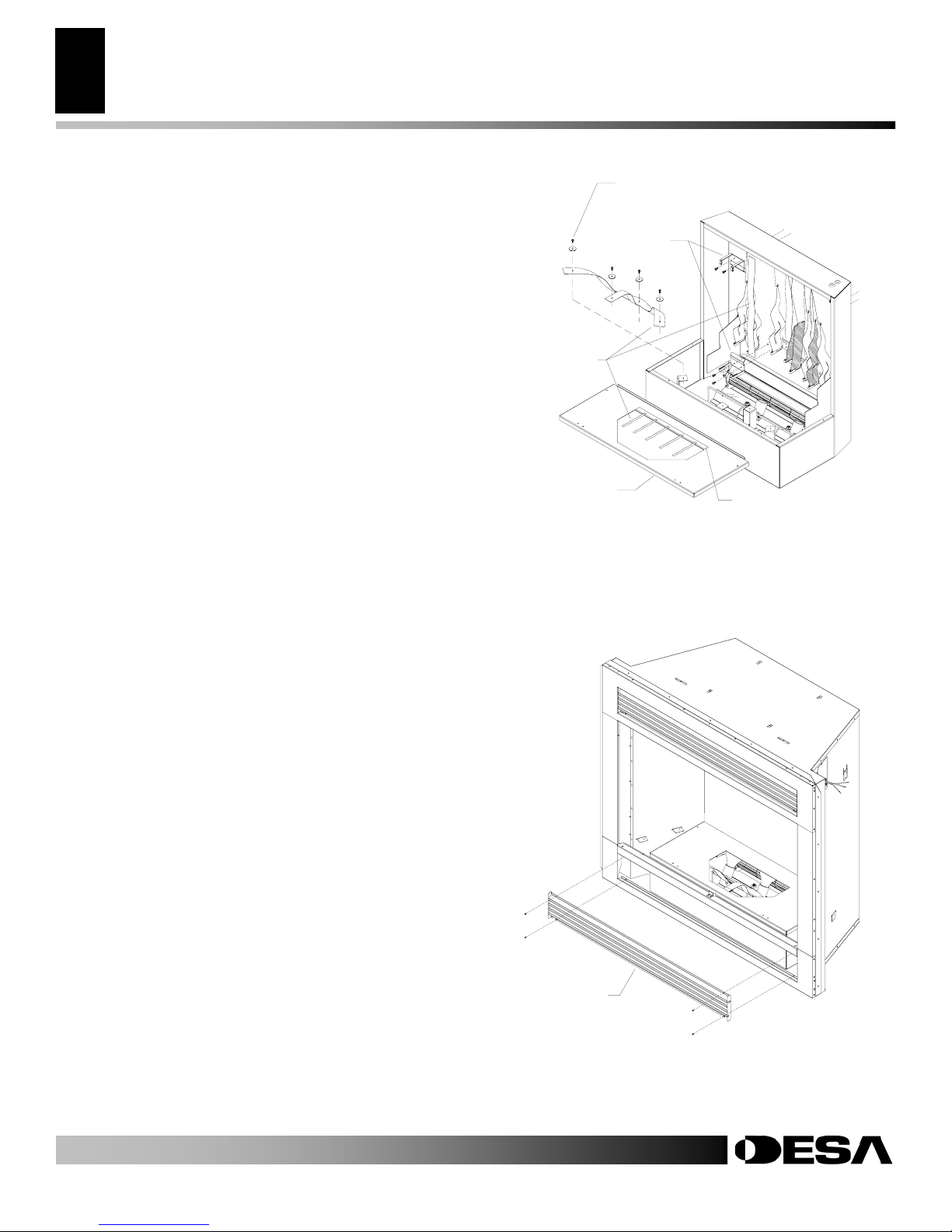

3. Remove log bed from hearth pan and place in a safe area. The
log bed is attached with contact magnets only.
4. Remove the two screws holding each face extension to the
firebox. Then pull up and lift out of the positioning slot at the
bottom of the hearth pan (see Figure 17).

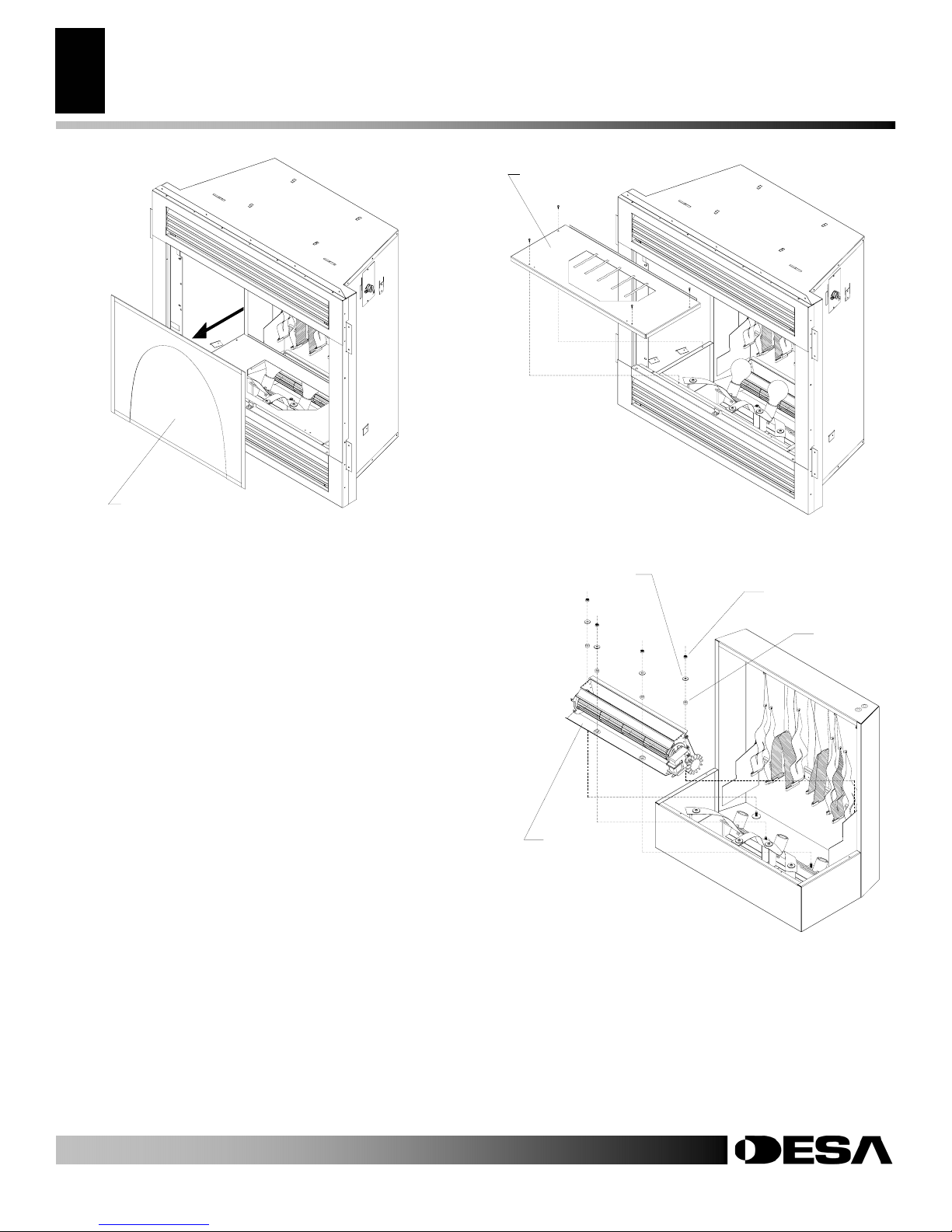

5. Insert the brick panel, with the beveled edge first, through the
firebox opening. Then tilt and angle the top edge into the brick
retainer until the bevel edge contacts the imager and the panel is
flat against the firebox (see Figure 18).
6. Align the heart extension over the holes near the lower edge of
the brick panel and secure with 2 pan screws provided.
7. Replace the face extension using the 2 screws removed prior.
8. Repeat steps 5 through 7 for the opposite panel assembly.
9. Replace each screen assembly by positioning the screen rod
into locating holes at the very top of each screen pocket and
securing with the 2 Phillips screws removed prior.
Note: The rods may have to be angled into the locating holes which
are exposed through a knockout at the top of each screen pocket.
Once inserted, pull the free end of the rod forward until it lines up
over the farthest mounting hole respectively so both rods overlap.

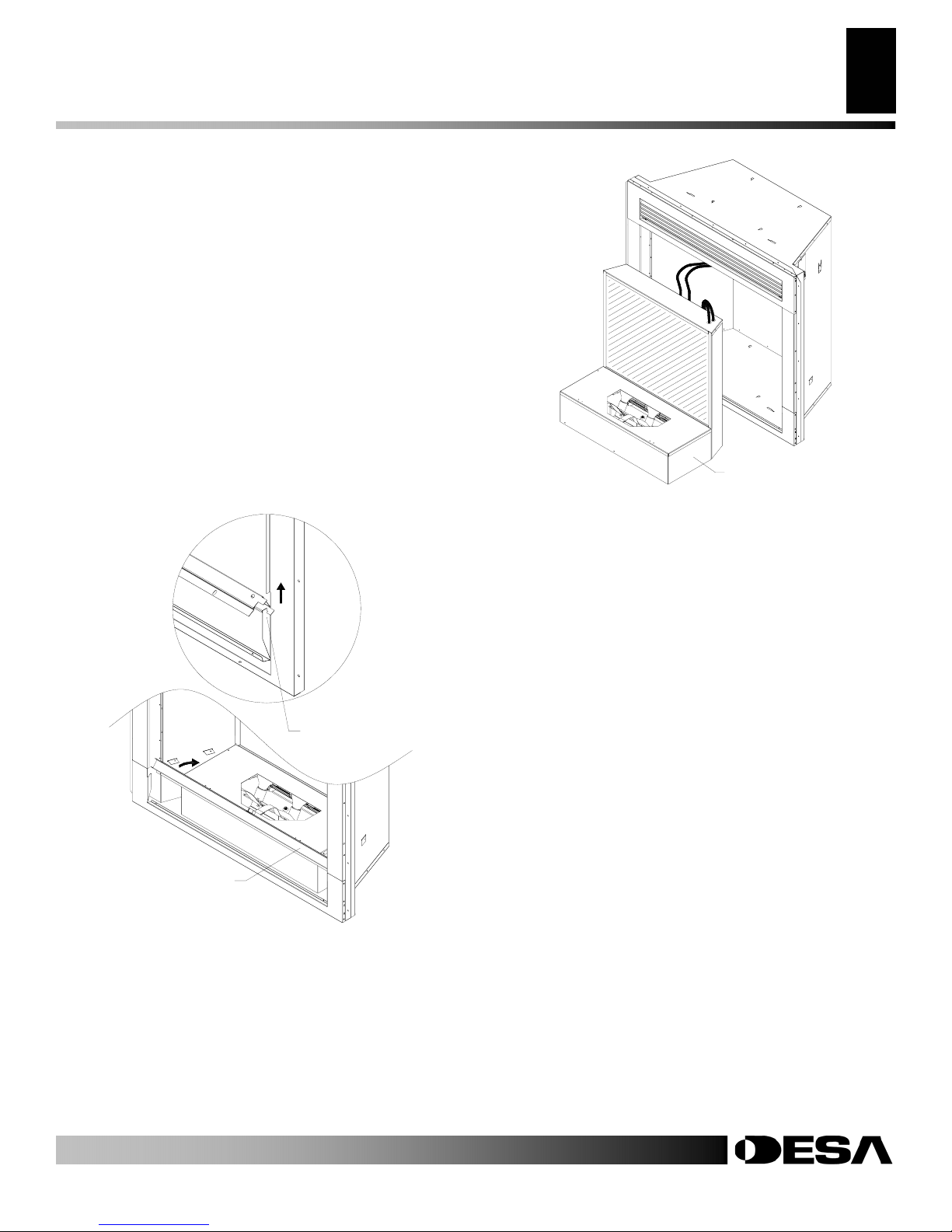

10.Replace the log bed over the hearth opening and center between
the grate and the viewing screen.
11.Replace glass doors if removed. See Optional Glass Doors.
OPTIONAL HEATER ACCESSORY
The models (V)E36/32L and (V)E36/32LB will accept the model
BHKE blower/heater kit. Either of 2 types of blower/heater
assemblies can be installed as follows on page 9:
8

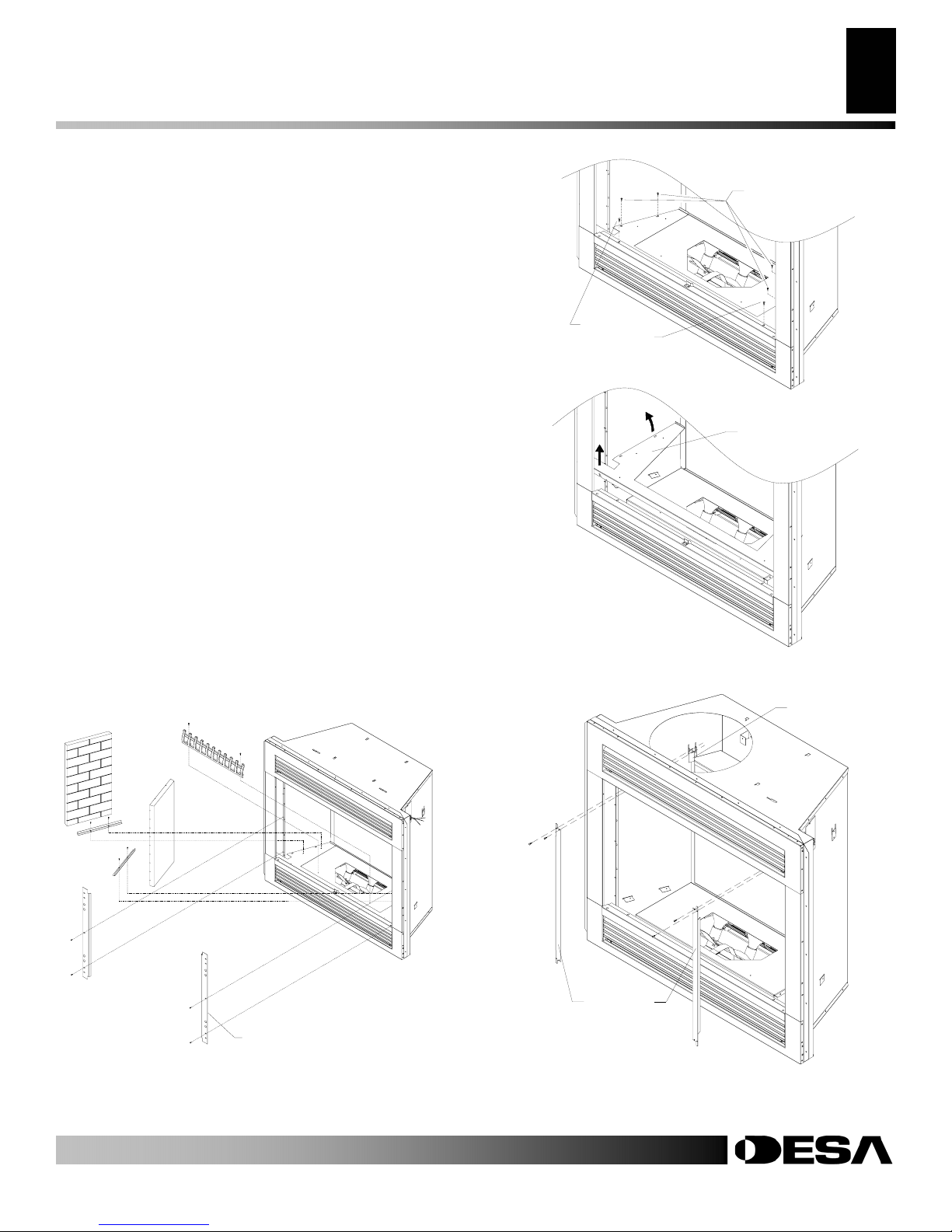

Figure 16 - Removing Screens/Rod Assemblies
Figure 17 - Removing Face Extensions
BRICK RETAINER
HEARTH
EXTENSION
FACE
EXTENSION
BRICK PANEL
(BEVELED EDGE)
Figure 18 - Installing Brick Panels and Brackets
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
PANEL SCREWS
Figure 19 -Locating Front Panel Screws

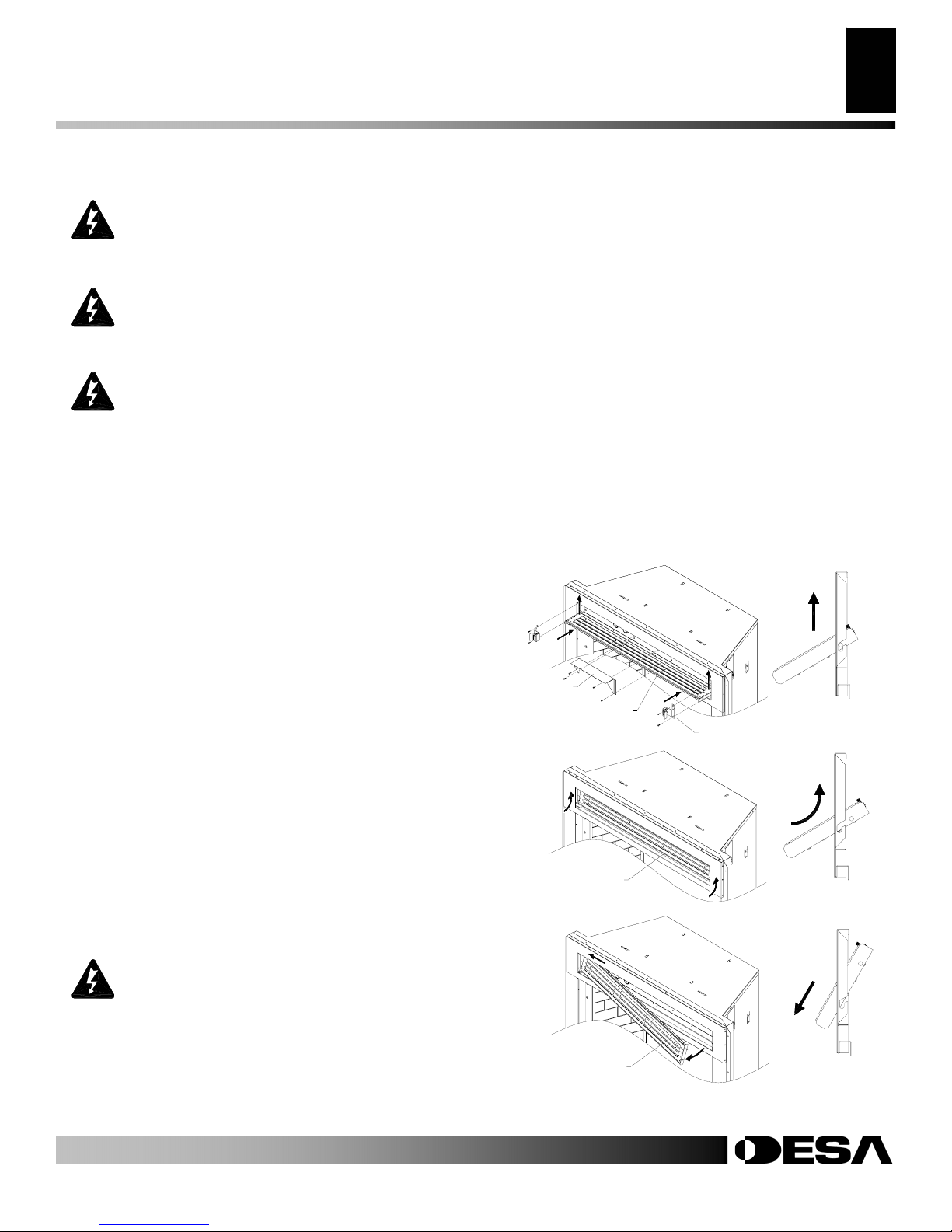

Disconnect power before attempting any
maintenance or cleaning to reduce the risk
of fire, electrical shock or personal injury.
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH

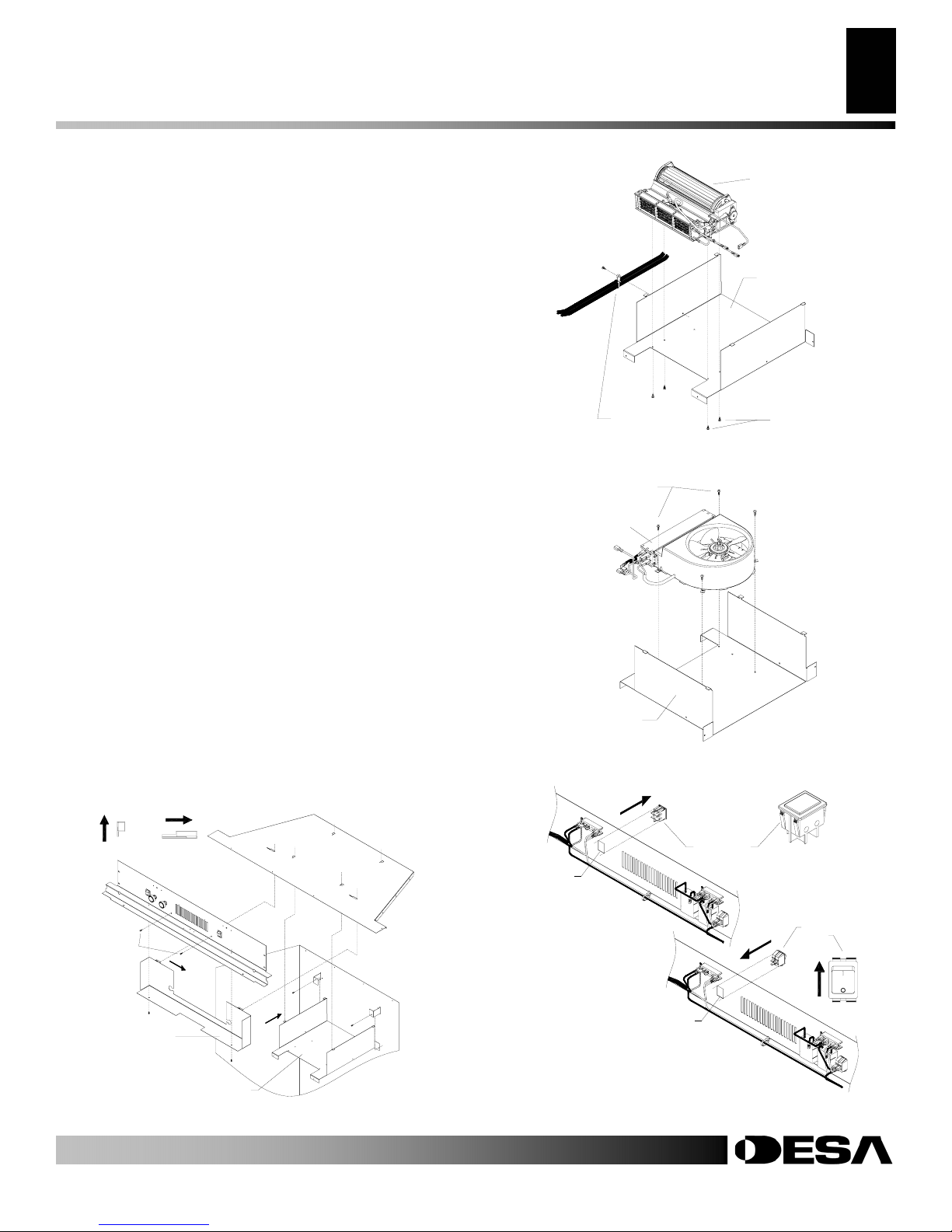

OPTIONAL HEATER ACCESSORY Continued
1. Open the upper control door (see Figure 11, on page 6) and
remove the 2 Phillips screws below heater grill. See Figure 19.
2. Remove 2 Phillips screws holding the control cover to the
control panel inside the firebox (see Figure 20).
3. Slide the control cover to the right and swing out the locking
tabs from the notched openings on top. See detail on Figure 20.
4. Let the control cover hang down off the harnesses. Be careful
not to damage any wiring. If necessary you can unscrew the
harness strap at the blower mount to gain slack. See Figure 21.
5. Remove the 2 Hex screws at rear blower mount. See Figure 20.
6. Slide the blower mount towards the rear firebox until the
locking tabs line up with the notched openings and lower the
mount down and away. See detail Figure 20.

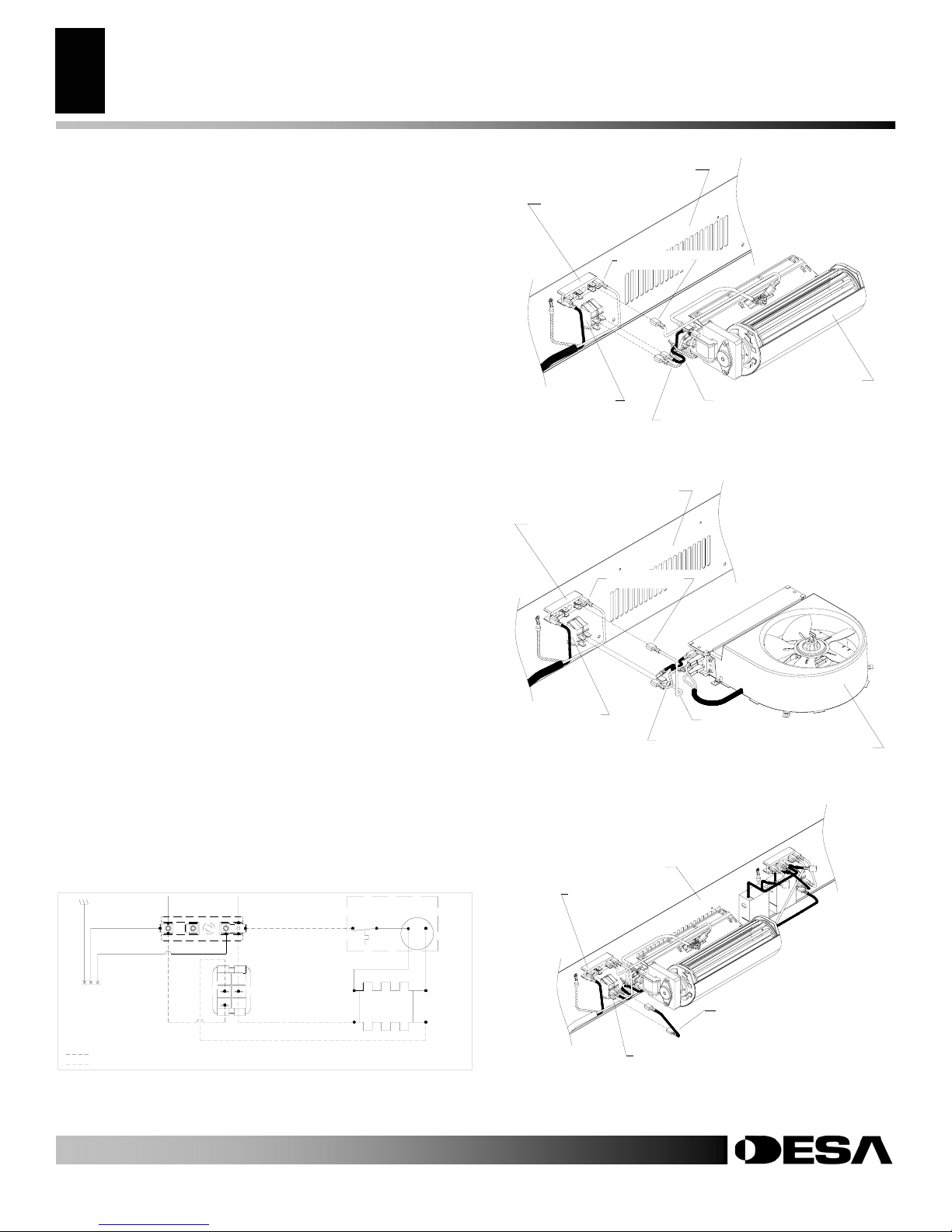

7. Remove the blower/heater assembly with 4 screws from the
packaging. The blower is pre-wired for convenience.
8. Align blower assembly over hole pattern on blower mount and
attach with 4 pan head screws provided. See Figures 21 or 22.
9. With the discharge pointing towards you, guide the assembled
blower mount into the firebox and center the rear mounting
flanges between the standoff brackets against the rear firebox.
10.Lift the blower mount up and position the 4 locking tabs
through the notched openings in the firebox top, then slide the
assembly forward until locked into position.
11.Remove the control panel knockout plug located in the heater
switch position by depressing the locking tabs and pushing the
plug out through the front of the panel. See Figure 23.
12.Firmly insert the red power switch, provided, into the open
mount location with the “ON” ( I ) indicator positioned on top.
9
MOUNTING
SCREWS
BLOWER MOUNT
HEATER/BLOWER.
ASSEMBLY
HARNESS
STRAP
Figure 21 - Mounting Heater/Blower
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C
MOUNTING
SCREWS
BLOWER MOUNT
HEATER/BLOWER.
ASSEMBLY
Figure 22 – Mounting Alternate Blower/Heater
BLOWER MOUNT
CONTROL COVER
PANEL
SCREWS
TAB RELEASE
Figure 20 – Disassembling Blower Mount
KNOCKOUT PLUG
POWER
MOUNT LOCATION
MOUNT LOCATION
CONTROL PANEL
CONTROL PANEL
SWITCH
Figure 23 - Installing Heater Power Switch

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
OPTIONAL HEATER ACCESSORY Continued
13.Connect White heater wire to neutral connection marked ‘B’ or
‘A’ on terminal block. See partial wiring diagram, Figure 24.
14.Connect Black heater wire to terminal marked ‘N-1’ on the
heater power, switch (see Figure 25).
Note: On alternate style heaters the White and Black wires are
connected common at terminal ‘N-1’ (see Figure 26).
15.Connect Red heater wire to terminal marked ‘L-4’ on heater
power switch. See partial wiring diagram, Figure 25 or 26.
16.Connect one end of the Black jumper lead, provided in the kit,
to the power connection marked ‘D’ on the terminal block and
the other end to switch terminal marked ‘L-5’ (see Figure 27).
17.Replace the 2 Hex screws on rear flanges of the blower mount.
18.Remount the harness strap to the blower mount, if removed.
19.Make sure all wires are clear of the heater discharge area, line
up the mounting holes on the front blower mount to the holes in
the control panel and replace the 2 black pan head screws.
20.Raise the control cover up and position the 2 locking tabs
through the notched openings in the firebox top, then slide to
the left until locked into position. See Figure 20, page 9.
21.Tuck any excess slack in harnesses into control cover, swing
cover down to line-up mounting holes on control panel and
replace the 2 Phillips screws removed prior.
22.Restore power to the unit and check operation of the heater.
IMPORTANT: Be sure to inspect the components and wiring for
damage before connecting power to the unit. If any components
are found damaged, contact an authorized dealer for original
DESA replacement part(s) or call DESA at 1-866-872-6040 for
referral.
10
CONTROL PANEL
WHITE (A-B)
HEATER/BLOWER
TERMINAL BLOCK
RED (L-4)
BLACK (N-1)
ROCKER
SWITCH
Figure 25 - Connecting Heater Wires
(NOIR)
(NOIR)
BLK
BLK
TERMINAL
WHT (BLANC)
BLK (NOIR)
GRN (VERTE)
BLK (NOIR)
DC
(ROUGE)
D'ALIMENTATION
CONNECTION
CONNEXION
SUPPLY
RED
(ROUGE)
RED
N 14 L
5 L RADIATEUR
HEATER COIL
AB
L'CHAUFFAGE
COURANT DE
HEATER POWER
(BLANC) MOTEUR
MOTOR
(BLANC)
WHT
CIRCUIT
COUPE-
CUTOUT
WHT
WHT (BLANC)
FILS À CIRCUIT D'CHAUFFAGE
WIRES TO HEATER CIRCUIT
WHT - ALTERNATE
(BLANC - ALTERNATIF)
BLK
(NOIR)
HARNESS 4" BLK
CABLAGE (10 cm) NOIR
Figure 24 - Heater Circuit Connection Diagram
TERMINAL BLOCK
CONTROL PANEL
ROCKER
SWITCH RED (L-4)
WHITE (N-1)
HEATER/BLOWER
WHITE (A-B)
Figure 26 - Connecting Alternate Heater Wires
CONTROL PANEL
JUMPER LEAD
SWITCH
TERMINAL (L-5)
TERMINAL (D)
Figure 27 - Connecting Jumper Lead
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
TROUBLESHOOTING
Note: Before trouble shooting the system, make sure the power
to the circuit from the breaker or fuse panel is turned ON.
The three most common causes of a malfunctioning heater are:
1. Tripped circuit breaker or blown fuse.
2. Loose or burned out light bulb.
3. Obstructed or clogged fan blower.
OBSERVED PROBLEM
No operation or indicator light at
power/ heater switch.
Poor flame motion; flame pattern is
sporadic or devoid in viewing area.
Dull flame appearance or inactive
ember bed effect.
No heat or intermittent heat output.
(If equipped with a heater)
POSSIBLE CAUSE
1. No power to appliance.
2. Defector switch lamp.
3. Defective wiring.
1. Tangled or loose flame pennants.
2. Obstructed or clogged fan blower.
3. Damaged or dislodged fan blower wheel.
1. Burned out or loose light bulb.
2. Broken lamp fixture.
3. Loose or missing reflective ribbons.
1. Obstructed heater blower.
2. Burned out heat element or blower fan.
3. Defective heater switch or wiring.
REMEDY
1. Check circuit breaker or fuse.
2. Replace defective switch. See Servicing
Control Panel, page 14.
3. Check connections from main power
harnesses to terminals on control panel.
See Servicing Control Panel, page 14.
1. Inspect flame pennants untangle or
replace if necessary. See Servicing Flame
Pennants, page 17.
2. Check fan blower for debris; vacuum
areas around blower wheel and remove
any obstructions. See Maintaining
Motors, page 13.
3. Remove and inspect fan blower housing
See Servicing Fan Blower, page 16.
1. Inspect light bulbs; tighten or replace
light bulbs as necessary. See Replacing
Light Bulbs, page 13.
2. Remove and replace broken lamp fixture.
See Replacing Lamp Fixtures, page 17.
3. Inspect reflective ribbons; Reattach or
replace as necessary. See Replacing
Reflective Ribbons, page 18.
1. Clear heater fan of debris or blockage;
vacuum area around blower intake and
remove any obstructions in the discharge
area. See Maintaining Motors, page 13.
2. Remove and replace blower heater
assembly. To access and remove see
Optional Heater Accessory, page 8.
3. Inspect wiring connections from switch
to blower. Replace switch if defective.
See Servicing Control Panel, page 14.
11
Note: For additional help, visit DESA Technical Service web
s
it
e
at
www.des
at
ec
h
.co
m
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
WIRING DIAGRAM
YELLOW LAMP
WHT
HARNESS 4" BLK
HEATER POWER
FRONT HARNESS TO LAMP CIRCUIT
RED LAMP
SPLICE CONNECTION (L'CONNEXION ÉPISSURE)
MALE CONNECTION (L'CONNEXION MÂLE)
FEMALE CONNECTION (L'CONNEXION FEMELLE)
GRN (VERTE)
BLK (NOIR)
WHT (BLANC)
BLK (NOIR)
SUPPLY
ORANGE LAMP FAN MOTOR
FLAME PROJECTOR - ELECTRICAL DIAGRAM
WHT (BLANC)
BLK (NOIR)
CONTROL PANEL - ELECTRICAL DIAGRAM
BLK
HARNESS 24"
WHT BLK
GRNGRN
WHT
FLAME
CONTROL
TERMINAL
CD AB
BLK
5 L
4 L N 1
BLK
GRN
BLK
FAN
CONTROL
CD B
TERMINAL
HARNESS 4" BLK
REAR HARNESS TO MOTOR CIRCUIT
BLK (NOIR)
BLK (NOIR)
BLK
CABLAGE
(BLANC)
A
WHT (BLANC)
5 L
BLK
BLK 4 L N 1
MAIN
HEATER ASSEMBLY - ELECTRICAL DIAGRAM
HEATER COIL
RED
RED
BLK
BLK
MOTOR CUTOUT
WHT
CAUTION: USE SUPPLY WIRES SUITABLE FOR 105°C OR EQUIVALENT
ATTENTION: EMPLOYER DES FILS D'ALIMENTATION ADÉQUATS POUR 105°C OU ÉQUIVALENT
CAUTION: DISCONNECT APPLIANCE FROM THE ELECTRICAL SUPPLY
BEFORE REMOVING THIS COVER
ATTENTION: DÉCONNECTER L'APPAREIL DU CIRCUIT D'ALIMENTATION
ÉLECTRIQUE AVANT D'ENLEVER CE COUVERCLE
ASSEMBLAGE D'CHAUFFAGE - DIAGRAMME D'ÉLECTRIQUE
PANNEAU D'CONTRÔLE - DIAGRAMME D'ÉLECTRIQUE
PROJECTEUR D'FLAMME - DIAGRAMME D'ÉLECTRIQUE
COURANT
POWER
PRINCIPAL
COURANT DE
L'CHAUFFAGE
RADIATEUR
MOTEUR COUPE-
CIRCUIT
CONNEXION
CONNECTION
D'ALIMENTATION
CABLAGE (10 cm) NOIR
CABLAGE (10cm) NOIR HARNESS 4" WHT
(10cm) BLANC
L'CONTRÔLE
FLAMME L'CONTRÔLE VENTILATEUR
(VERTE)
(NOIR) BLK (NOIR)
(BLANC) (BLANC)(NOIR) (NOIR)
(VERTE) (VERTE)
WHT (BLANC)
BLK (NOIR)
CABLAGE DE DERRIÈRECABLAGE EN DEVANT À CIRCUIT D'LUMINAIRE
L'AMPOULE L'AMPOULE L'AMPOULE
ROUGE JAUNE ORANGE L'MOTEUR D'VENTILATEUR
À CIRCUIT D'MOTEUR
(NOIR)
(NOIR)
CABLAGE (61cm)
WHT
(NOIR)
(NOIR)
(BLANC)
(BLANC)
(NOIR)
(NOIR)
(ROUGE)
(ROUGE)
WHT - ALTERNATE
(BLANC - ALTERNATIF)

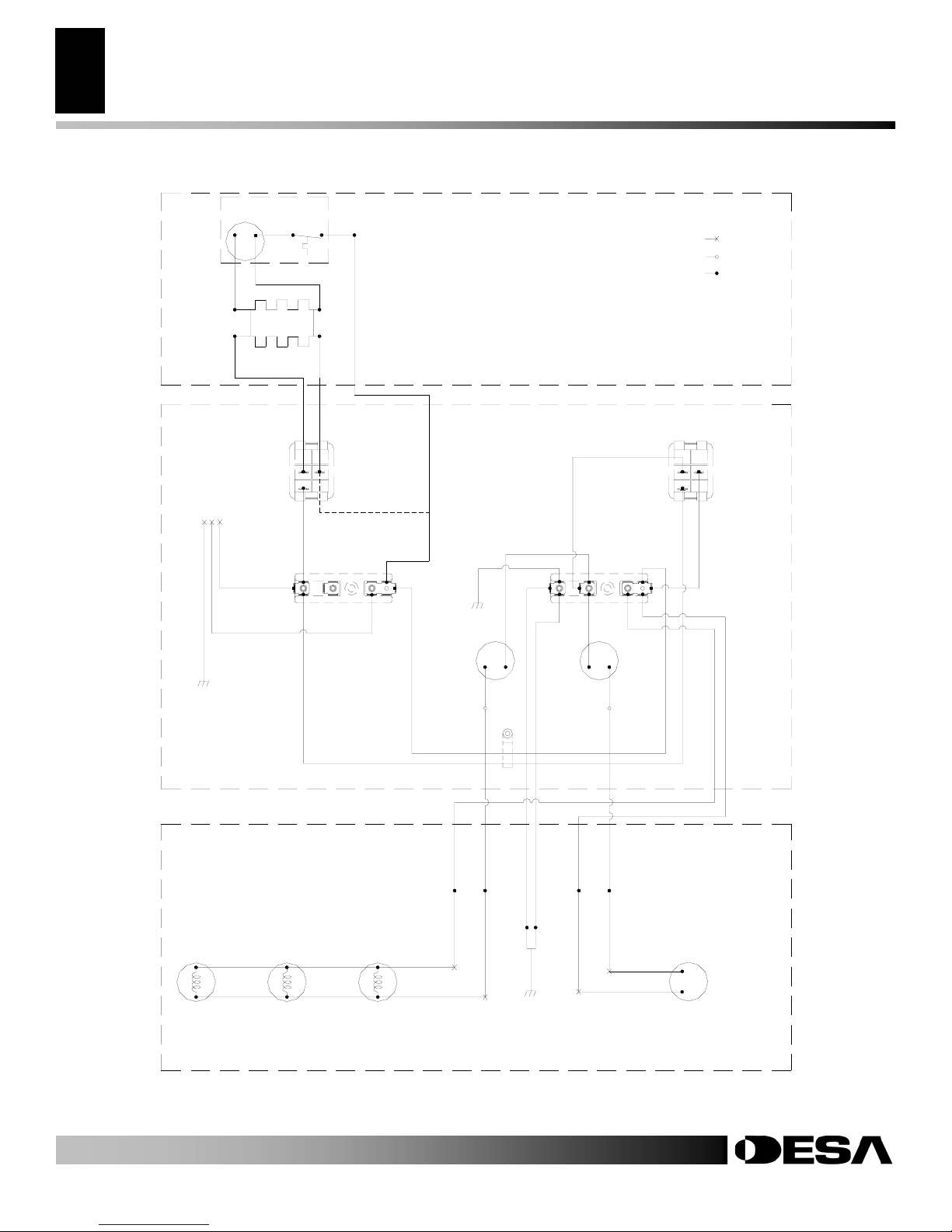

Figure 28 - Wiring Diagram
12
111076-01C
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
TECHNICAL SERVICE
Replacing Light Bulbs
There are (3) colored lamps rated at 120V, 100 Watts, for use in a
medium sized socket. These bulbs are located under the log bed
and can be replaced as follows:
1. If you are unsure which bulb need replacement, defective bulbs
may be visually located as any of 3 bulbs colored – Red,
Yellow and Orange starting from the left (see Figure 10, page
6). Defective bulbs can be replaced individually or for
convenience you may want to replace all the light bulbs even if
only one is defective.
2. Disconnect power to the unit at the main breaker or fuse panel.
3. Lift the log bed off the hearth base to gain access to the lamp
fixtures; log bed is attached with contact magnets only.
4. Remove each defective bulb from its socket, and replace with
the appropriate color and size bulb.
NOTE: be careful not to tear or damage the reflective ribbon. If
they have come loose, they can be easily reattached or replaced at
the support brackets. See – Replacing Reflective Ribbons, page 18.
5. Return power to the circuit and turn main power switch and
lamp power on to check the operation of the bulbs before
replacing the log set.
6. If all the bulbs are working properly replace the log bed over
the center opening in between the rear screen and front grate.
Maintaining Motors
Motors used on the fan and heater assembly are permanently
lubricated do not require lubrication. Annual cleaning and/or
vacuuming around the heater and fan unit is recommended.
Removing/Replacing Control Door
The upper control door may be removed for service or
replacement when necessary:
1. Open the upper control door. See Figure 11, page 6.
2. Remove 4 Phillips screws above the heater grill and angle
the deflector shield out the opening. See Figure 29.
3. Remove the 4 Phillips screws with magnet assemblies.
4. Lift up on the inner control door and push in each end until
the pivot pins are free of the notches located on each side
of the access opening. See Figure 29.
5. Rotate the control door up into the control compartment
and slide one end into the side of the compartment.
6. Tilt out one end first then pull the remaining door assembly
through the opening.
7. Replace the door, by starting with door upside down and
pins facing the unit. Follow steps 1 through 5 in reverse.
8. Replace the discharge deflector and magnet assemblies.
13
Disconnect power before attempting any
maintenance or cleaning to reduce the risk
of fire, electrical shock or personal injury.
Any electrical repairs or rewiring of this
unit should be carried out by a licensed
electrician in accordance with national
and local codes.
Do not exceed 100 Watts per bulb when
replacing bulbs. Use of higher-rated bulbs
may result in fire, causing property
dama
g
e
,
p
ersonal in
j
ur
y,
or loss of life.
Make sure the power is turned off at the
supply prior to disassembling this unit.
MAGNET
ASSEMBLY
END VIEW
END VIEW
LOUVER
DOOR
DOOR
LOUVER
DISCHARGE
DEFLECTOR
END VIEW
LOUVER
DOOR
Figure 29 – Removing/Replacing Control Door
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
Servicing Control Panel
The control panel can be serviced from inside the unit by removing
the control cover on the inside of the firebox, follow steps 3
through 5 under Optional Heater Accessory, page 9.
If the control assembly needs complete replacement, proceed to
remove as follows:
1. Remove the glass doors (if equipped). See Optional Glass
Doors, on page 7.
2. Remove retaining screws holding the screen rods and pull
screen assemblies out from the locating hole on the inside top
of each screen pocket (see Figure 16, page 8).
3. Remove 2 Phillips screws holding the control cover to the
control panel inside the firebox (see Figure 20,page 9).
4. Slide the control cover to the right and swing out the locking
tabs from the notched openings on top. See detail on Figure 20,
page 9.
5. Pop out the bushings on the control cover and slip the power
harnesses free from the control cover. See Figure 30.
6. Remove the magnet assemblies, discharge deflector and control
door. See Removing/Replacing Control Door, page 13.
7. Tilt entire control assembly forward until lower flange clears
the upper door rail then slide assembly down the space between
the front face and the firebox mount (see detail Figure 31).
8. Angle control panel out through the opening (see Figure 31).
9. Follow these instructions in reverse order to reassemble the
control panel.
Note: Be certain that all wires, harnesses and bushings are returned
to their normal position and free of damage before reconnecting
the supply power to the appliance.
CAUTION: Note the location of all wires prior
to disconnecting. Be sure to reconnect wires
to their proper locations. If you are unsure
about the proper wire locations, follow the
wiring diagram Figure 28, on page 12.
CONTROL
PANEL
PANEL
SCREWS
POWER
HARNESSES
CONTROL
PANEL
Figure 31 –Removing Control Panel
POWER
HARNESSES
BUSHINGS
CONTROL
COVER
Figure 30 - Detaching Power Harnesses
14
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
Accessing Imaging Unit
The imaging unit can be accessed from inside the firebox for
servicing as follows:
1. Remove the glass doors (if equipped). See Optional Glass
Doors, page 7.
2. Remove the screens, grate and brick liners. See Figure 32 and
instructions under Optional Brick Liners, page 8).
3. Remove 4 Phillips screws holding the hearth pan to the firebox
and 2 located at the lower frame rail (see Figure 33).
4. Lift the rear ends of the hearth pan up until the front edge clears
the lower frame rail then slide up on one end and angle out of
the firebox opening. See Figure 33.
5. Remove the 4 Phillips screws holding the face extensions at the
top refractory clips. See Figure 34.
6. Remove the viewing screen from the cabinet face. The viewing
screen is attached by magnets. See Figure 35, page 16.
Note: Do not scratch the viewing screen. Place it on a nonabrasive
surface away from work area. When replacing the viewing screen
the painted side must face inside of cabinet with pattern facing up.
7. Remove 4 Phillips screws on base cover and lift the cover off
the cabinet base. See Figure 36, page 16.
15
REFRACTORY BRACKET
Figure 32 - Accessing Imaging Unit
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
LOWER RAIL
2 SCREWS @
4 SCREWS @
HEARTH PANEL
HEARTH PANEL
Figure 33 - Removing Hearth Pan
111076-01C
FACE
REFRACTORY
CLIP
EXTENSION
Figure 34 - Removing Face Extensions

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
Servicing Fan Blower
If the fan blower requires service, it may be removed as follows:
1. Remove the 3 light bulbs from the lamp fixtures (see Replacing
Light Bulbs, page 13).
2. Disconnect the two 1/4" blade connectors at the motor unit.
3. Remove 4 hex nuts and washers located on the blower mount at
the base of the cabinet. See Figure 37.
4. Lift entire fan assembly off its mounts and tilt it out of the unit.
5. Remove the 4 nut and bolt combinations from the fan housing.
6. Remount the new fan to the blower mount in reverse order.
7. Slide the blower assembly with spacers over the mounting lugs
and replace the washer and nut at each lug. Do not over tighten.
Note: The wire connectors for the fan motor are non-polarized and
may be connected to either of the 2 terminals for proper operation.
16
VIEWING SCREEN
Figure 35 - Removing Viewing Screen
SPACER
SLEEVE
WASHER
ASSEMBLY
FAN
M6 HEX NUT
Figure 37 - Removing Fan Assembly
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C
BASE COVER
Figure 36 – Removing Base Cover

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
Servicing Flame Pennants
If the flame pennants should become tangled or detached they may
be reattaching or replacing as follows:
1. Locate the affected flame pennant and slip the hem at the base
of the flame pennant over the proper hanger bracket position.
See Figure 38 for proper location.
2. Pull the flame cord up to the proper hook location, use a slip
knot to adjust the cord length and attach the cord to the hook.
See Figure 38 for proper cord length.
3. Tie another knot over the slip knot and trim away access cord.
Note: The flame pennant should not be twisted or tangled and
should hang slightly loose to allow free movement. If the cord is
too short or the pennant is torn you must obtain a replacement
flame assembly, See Replacement Parts, page 19.
4. After connecting and adjusting the flame cords, soak each knot
with a drop of white wood glue or clear nail polish to prevent
them from unraveling.
Replacing Lamp Fixtures
Lamp fixtures may be replaced as follows:
1. Turn off all power to the appliance at the circuit breaker or fuse.
2. Locate any of 3 defective lamp fixtures and trace the wiring to
the crimp connections. See Figure 39.
3. Remove the 2 crimp connectors in the harness and disconnect
the white and black wires on the defective fixture. See Wiring
Diagram, Figure 28, page 12 for proper locations.
4. Remove the 2 Phillips screws at the base of the defective fixture
(see Figure 39).
5. Remove the old fixture and remount the new fixture with the 2
Phillips screws removed prior.
6. Twist the bare ends of the white and black wires to the
corresponding wires in the main harness and secure them with
the 2 crimp connectors provided.
Note: There should be no exposed bare wire at any connection.
Wiring should be secured with wire ties, as short as possible and
kept away from the fan blades. If additional parts are required, see
Replacement Parts, page 19.
6. Replace each light bulb with the proper color, see Replacing
Light Bulbs, page 13.
7. Restore power and check the lamp circuit operation, before
reassembling the imaging unit.
8. Reassemble the imager. See Accessing Imaging Unit, page 15.
IMPORTANT: Be sure to inspect the components and wiring
for damage before connecting power to the unit. If any
components are found damaged, contact an authorized dealer
for original DESA replacement part(s) or call DESA at 1-866-
872-6040 for referral.
3 1/2"
CORD
FLAME
PENNANT
FLAME
8" 7"
1 1/2"
SPACER
FLAME
Figure 38 - Locating the Flame Pennants
17
RIBBON
REFLECTIVE
HANGER
SCREWS
LAMP
FIXTURE
(2) SCREWS
CRIMP
CONNECTORS
SCREWS &
WASHERS
Figure 39 - Replacing Fixtures
Make sure the power is turned off at the
supply prior to disassembling this unit.
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
Replacing Reflective Ribbons
If reflective ribbons become damaged or loose they may be
replaced as follows:
1. Turn off all power to the appliance at the circuit breaker or fuse.
2. Locate defective ribbons; there are 3 strips mounted on the rear
cabinet and 3 mounted in the base. See Figure 39, page 17.
3. If the upper rear ribbons need replacing, remove the 4 Phillips
screws holding the corresponding bottom and top hanger
brackets. See Figure 34, page 17.
4. Remove any loose or damaged ribbon material.
5. Cut an 18” strip of reflective ribbon and position the top end
about an inch above the top bracket position. See Figure 40.
Note: The ribbon material should be applied with the reflective
side up, should not be twisted or tangled and should hang slightly
loose to allow free movement. If additional parts are required, see
Replacement Parts, page 19.
6. Replace the top hanger bracket using 2 Phillips screws removed
prior and tighten until the reflective ribbon is held in place.
7. Replace the bottom hanger bracket with the 2 remaining
Phillips screws to secure the lower end of the reflective ribbon.
8. If replacing the reflective ribbons located in the base, remove
the screws and washers at the damaged ends of the ribbon.
9 Cut a 9 inch long strip of ribbon and apply across each ribbon
support bracket with the shiny side facing up. See Figure 40.
10.Secure the ribbon to the brackets by replacing each washer at
the end of the ribbon and rethreading the screws through the
ribbon into each hole located on the support brackets.
11.If replacing the top, reflective ribbons on the base cover, cut a 3
inch section of ribbon and split down the middle. Then with the
shiny side up, attach with cellophane tape onto the rear edge of
the base cover opening. See Figure 40.
12.Readjust the flame pennants (if removed). See Servicing Flame
Pennants, page 17.
13.Reassemble the imager. See Accessing Imaging Unit, page 15.
14.Replace log set and lava rock, See Hearth Assembly, page 6.
Cleaning Viewing Screen
Clean the viewing screen with an alcohol based, non-abrasive,
residue free cleaner (pre-moistened hand wipe are ideal). Do not
use glass cleaners with ammonium, abrasive scrubs or degreaser
solvents of any kind.
18
HANGER
BRACKETS
BASE
CELLOPHANE
TAPE
COVER
WASHERS
SCREWS &
REFLECTIVE
RIBBON
Figure 40 - Replacing Reflective Ribbons
PANEL
LOUVER
Figure 41 - Removing Lower Louver Panel
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C

ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH
Further Accessing Imaging Unit For Replacement
The imaging unit can be removed from inside the firebox for
servicing as follows:
1. Remove 4 Hex screws on the lower louver panel and detach the
louver assembly from the front face. See Figure 41, page 18.
2. Rotate the top edge of lower frame rail inward and lift upward
until locking tabs detach from the front face (see Figure 42).
3. Slide the entire imaging forward and lift out through the front
opening (see Figure 43).
Note: An additional 3 feet of harness is tucked behind the imager
to permit removal without disconnecting any control wiring.
Note: If full replacement of the imager is necessary, the wiring
harnesses must be disconnected and the new harnesses reconnected
at the control panel. For proper connection, follow the wiring
diagram show in Figure 28, on page 12.
Further Technical Service
You may have further questions about installation, operation or
troubleshooting. If so, contact DESA Technical Service
Department at 1-866-672-6040. When calling, please have your
model and serial numbers of your fireplace ready.
You can also visit DESA technical service’s web site at
www.desatech.com.
REPLACEMENT PARTS
Note: Use only original replacement parts. This will protect
your warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply
original replacement part(s), call DESA Technical Service
Department at 1-866-672-6040.
When calling DESA, have ready:
●your name
●your address
●model and serial numbers of your fireplace
●how fireplace was malfunctioning
●type of accessories
●purchase date
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply
original replacement part(s), call DESA Technical Service
Department at 1-866-672-6040.
When calling DESA, have ready:
●your name
●your address
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C
19
UPPER RAIL
LOCKING TAB
Figure 42 - Removing Lower Frame Rail
IMAGING UNIT
Figure 43 - Removing Imaging Unit

6
2
7
17
7
22
17
7
17
22
37 38
39
23
19
5
6
27
26
7
41
40
42
12
34
10
11
20
29
1
24
16
3
21
32
14
14
30
8
31
33
4
9
18
18
15
22 36
28
25
7
7
7
35
13
20
7
ELECTRIC FIREPLACE
INSTALLATION INSTRUCTIONS
Models: (V)E32L, (V)E32LB, (V)E32LH, (V)E32LBH
(V)E36L, (V)E36LB, (V)E36LH and (V)E36LBH

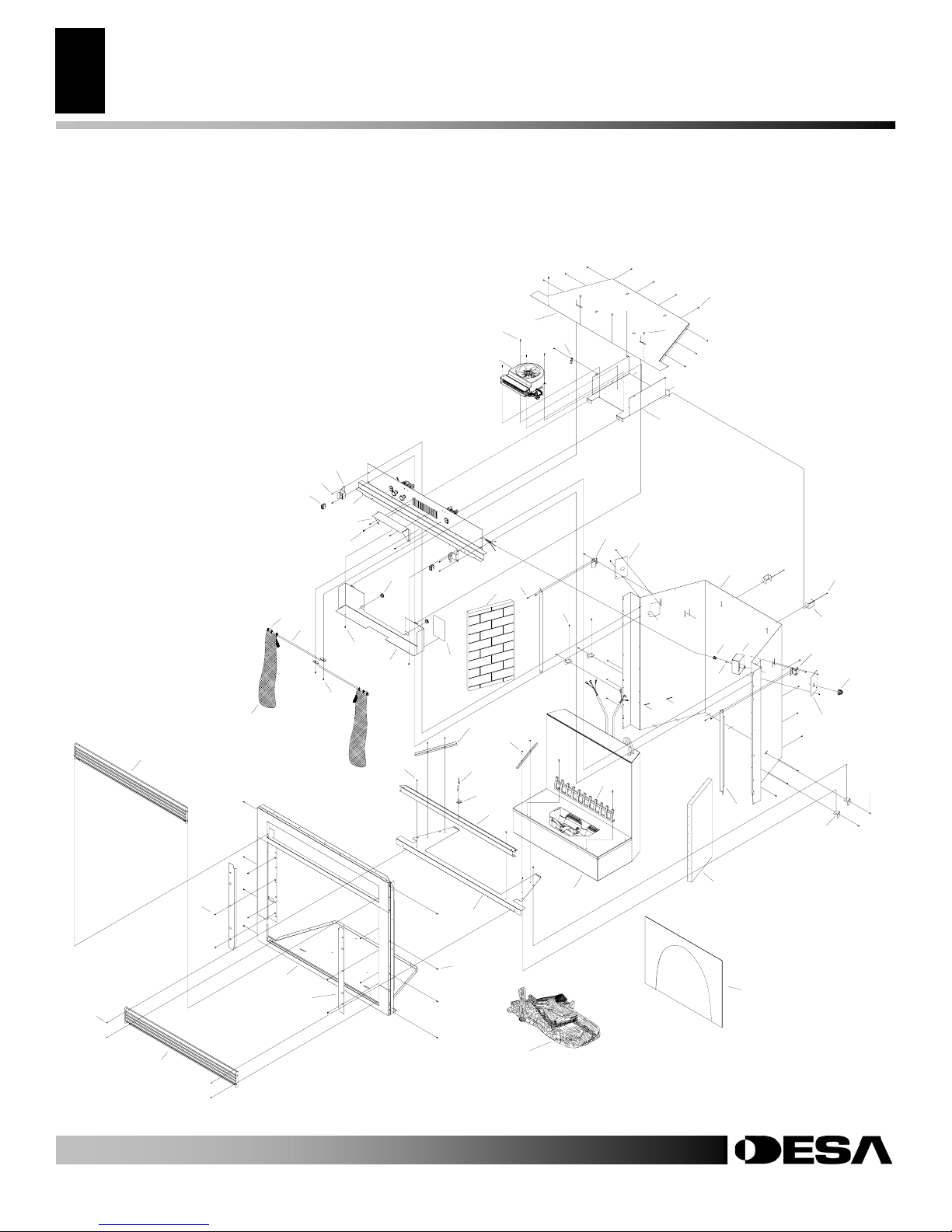

ILLUSTRATED PARTS
BREAKDOWN
Models: E36L, E36LB, E36LH and E36LBH
E32L, E32LB, E32LH and E32LBH
VE36L, VE36LB, VE36LH and VE36LBH
VE32L, VE32LB, VE32LH and VE32LBH
FIREPLACE
ASSEMBLY
20
F
Fo or r m mo or re e i in nf fo or rm ma at ti io on n, , v vi is si it t w ww ww w. .d de es sa at te ec ch h. .c co om m
111076-01C
