Desa PowerFast 34310 User manual

ELECTRIC STAPLE GUN
Model 34310
OPERATING
INSTRUCTIONS


Safety Information
!
WARNING ICON G 001
WARNING: Follow all safety precautions outlined in these operat-
ing instructions. Improper use of this tool can cause severe injury or
death from fire, electrical shock, or firing staple into body.
Before Operating Tool
1. Read and understand these operating instructions before operating tool.
2. Only well-instructed adults should operate tool. Never allow children to
operate tool.
3. Do not operate tool
•where highly flammable liquids or gases are present
•while under the influence of alcohol, medication, or drugs
•if exposed to rain or in damp or wet areas
•while tired or in a hurry
•if tool is damaged
•if trigger does not turn tool on and off. Have faulty switch replaced
by factory service center.
4. Toreducetheriskofelectricshock,thistoolhasapolarizedplug(oneblade
is wider than the other). This plug will fit in a polarized outlet only one way.
If the plug will not fit fully in the outlet, reverse the plug. If it still will not fit,
contactaqualified electriciantoinstalltheproperoutlet.Donotchangethe
plug in any way.
5. Use only extension cords marked for outdoor use.
6. Never use this tool
•where heavy-duty tool is needed
•where not intended - for example - don’t use tool on concrete, metal, or
glass
7. Wear snug-fitting clothing when operating tool. Do not wear loose clothing
or jewelry. They can get caught in moving parts
8. Wear the following safety gear when operating tool:
•rubber gloves (outdoors)
•footwear with non-skid soles (outdoors)
•eye protection such as safety glasses or goggles
•hair covering to contain long hair
9. Keep work area well lit.
10. Move trigger lock to the OFF position and unplug tool
•when loading tool
•when not in use
•when moving from one place to another
•before maintenance
•when changing accessories
11. Donotalterthistoolinanyway.Onlyuseaccessoriesdesignedforthistool.

During Operation of Tool
1. Keep all parts of body away from staple exit on tool.
2. Never point tool at anyone.
3. Keepchildren,animals,andbystandersawayfromtoolandextensioncord
at all times. Only tool user should be in work area.
4. Stay alert. Use common sense while operating tool.
5. KeeptriggerlockintheOFFpositionandfingerofftriggeruntilreadytodrive
staple.
6. Keep work area clean. Cluttered work areas invite injuries.
7. Secure work before using tool. Use both hands to operate tool.
8. Donottouchanymetalpartoftoolwhenstaplingintoareaswhereelectrical
wiring may be present. These areas include walls, floors, and ceilings. If
staple contacts electrical wire, electric shock may occur.
9. Avoidbodycontactwithgroundedobjectssuchaspipes,fences,andmetal
posts.
10. Do not force tool. Use tool at rate for which it was designed.
11. Do not overreach. Keep proper footing and balance at all times.
12. Carry tool from one place to another
•with tool unplugged
•with trigger lock in the OFF position
•with finger off the trigger
General
1. Inspect tool before and after each use. Check tool closely if it has been
damaged. Check for any damage that may affect operation of tool. Check
for alignment or binding of moving parts. Check for broken or damaged
parts. Do not use tool if damage affects operation. Have damage repaired
by factory service center.
2. When servicing, use only identical replacement parts.
3. Maintain tool with care.
•Never fire tool when empty of staples. This may damage tool.
•Keep tool clean.
•Keep handles dry, clean, and free of oil and grease.
•Inspect power cord often. If damaged, have repaired by factory service
center.
•Never carry tool by power cord.
•Never yank power cord to unplug it.
•Keep power cord away from heat, oil, and sharp edges.
•Inspect extension cords often and replace if damaged.
•Never oil or grease any part of tool.
4. Always store tool
•with staples removed from chamber
•out of children’s reach
•in a high or locked place that is dry
Keep these operating instructions for reference. It is your guide to safe and
proper operation of this tool.

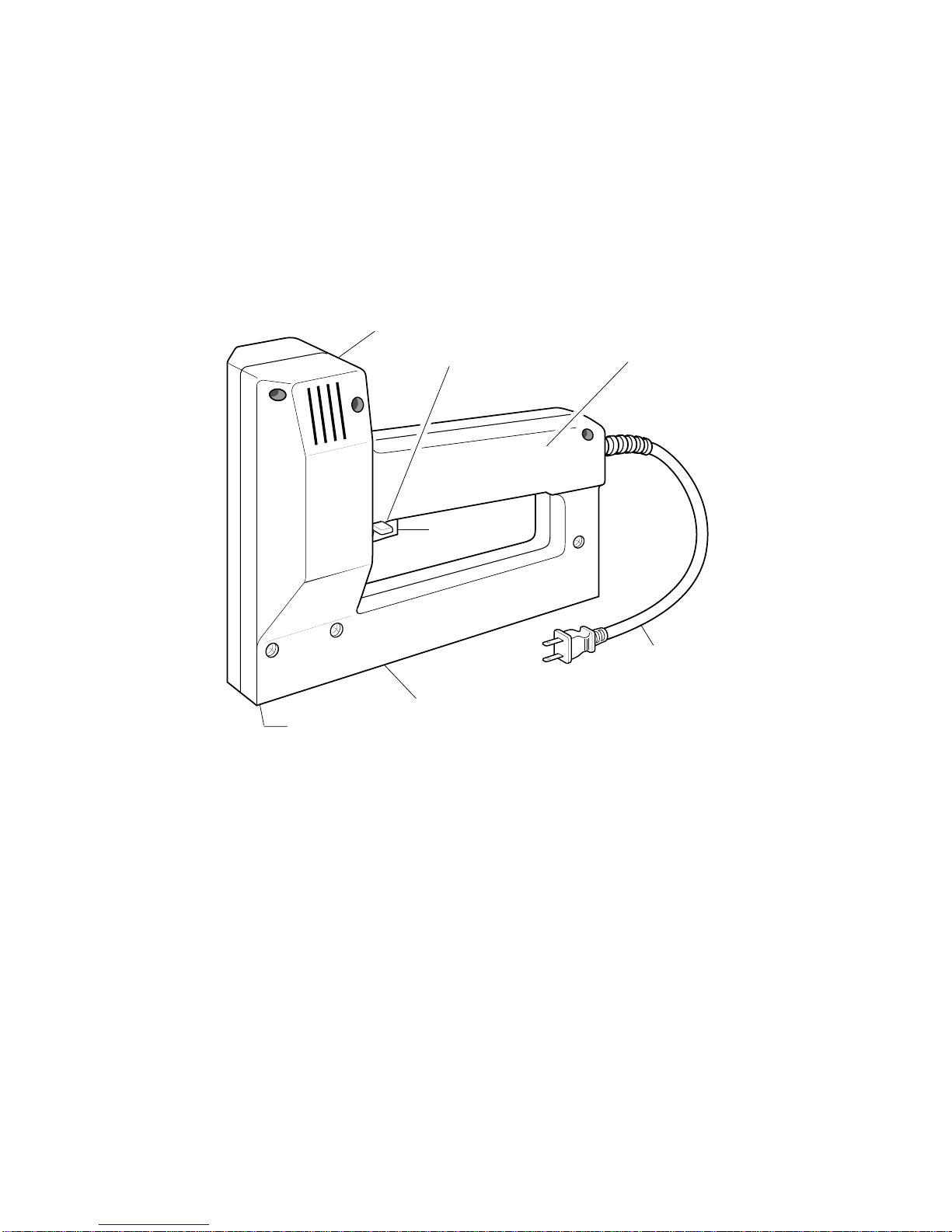

Product Identification
Power
Cord
Staple Chamber
Cover (underneath)
On/Off Trigger
Lock
Staple Exit
Trigger
Hand Grip
Head
Product Features
ThePowerFastElectricStapleGunisamulti-purposetool.Thistoolisdesigned
for home and workshop. It performs basic fastening jobs from installing
insulation, porch screening, and ceiling tiles to repairing upholstery.
Trigger This tool has an easy squeeze trigger. The trigger is located under-
neath the hand grip. Each squeeze of the trigger fires one staple. Make sure
your finger is not on the trigger when connecting or loading the tool.
ON/OFFTriggerLock ThistoolisequippedwithaslidingON/OFFtriggerlock.
The trigger lock is located at the front of the hand grip, just above the trigger.
This safety feature helps prevent accidental firing. Make sure the trigger lock
readsOFFwhenplugginginorloadingthetool.Also,makesurethetriggerlock
readsOFFwhentoolisnotinuse.Torelease,slidethetriggerlocktoreadON.

Be sure to use the right size extension cord. If cord size is wrong, tool may be
damaged. Tool performance may also be affected.
Extension Cord Size Requirement
1 to 25 feet, use 16 AWG rated cord
26 to 50 feet, use 14 AWG rated cord
Inspect extension cord often. Replace cord if worn or damaged.
Extension Cords

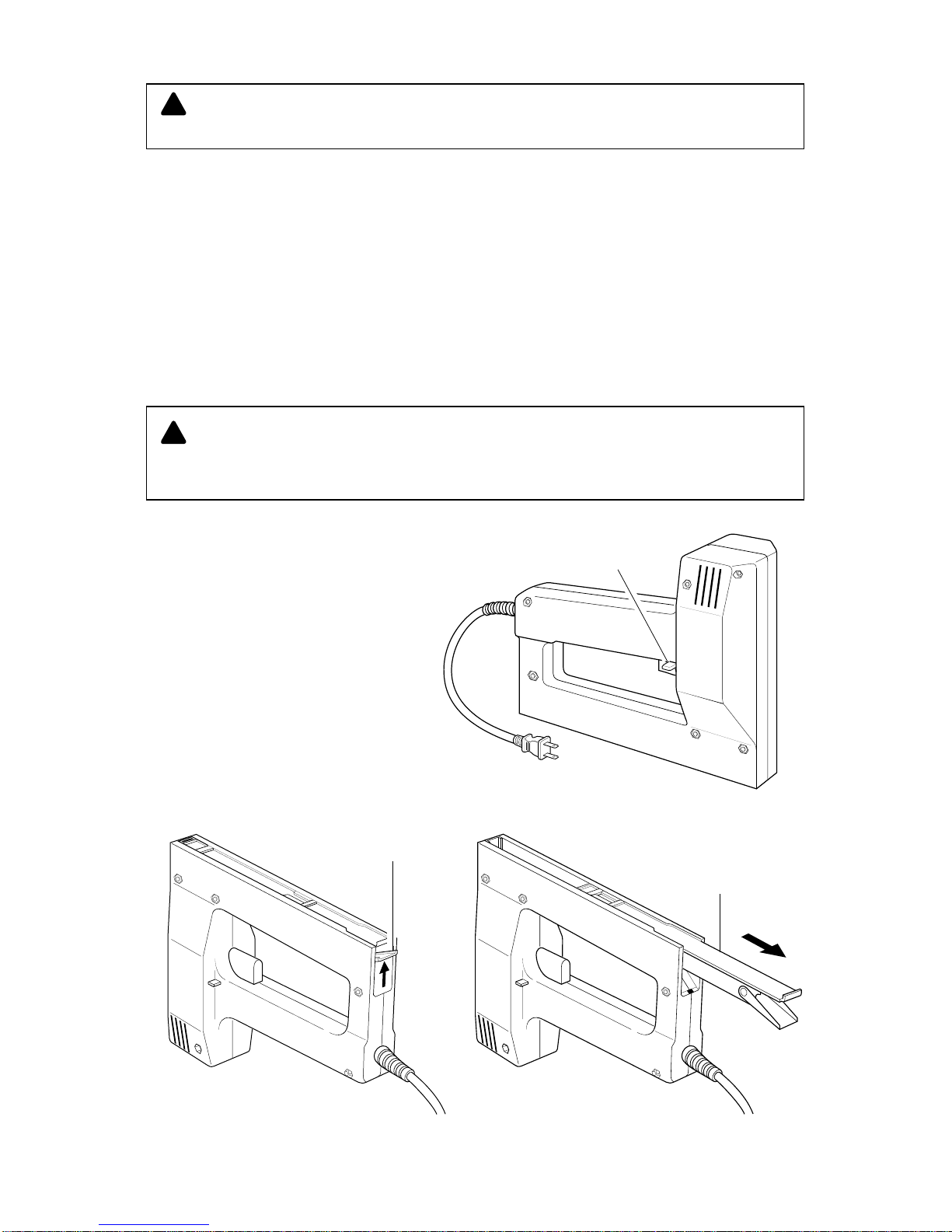

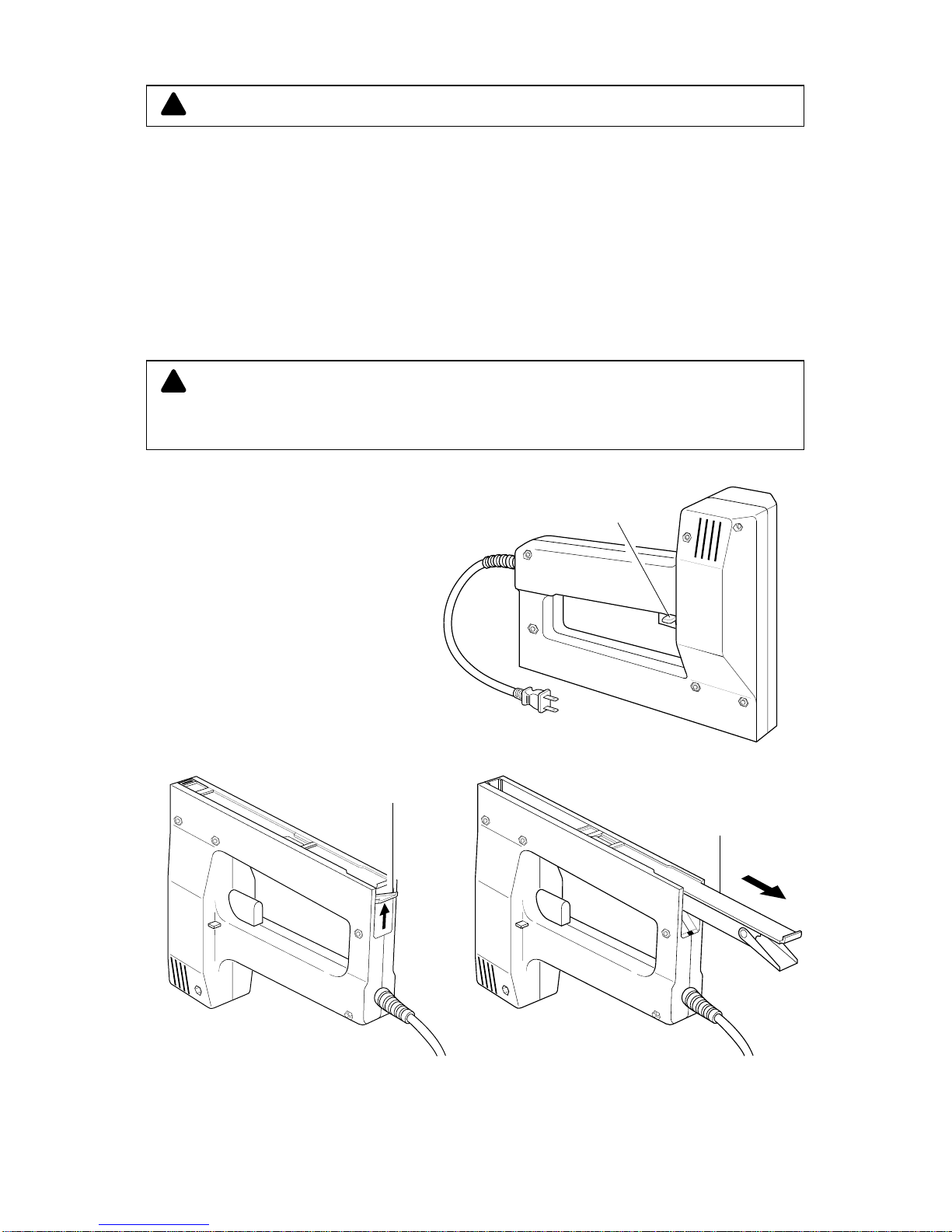

Loading Tool
Figure 2 Figure 3
Figure 1
Trigger Lock In
Off Position
1. Move trigger lock to the OFF
position (see Figure 1) and
unplug tool.
2. Turn tool upside down.
3. Press in latch lock and slide
staple chamber cover back
untilfullyopen(seeFigures2
and 3).
Staple
Chamber
Cover
Latch
Lock
!
WARNING ICON G 001
WARNING: Never load tool while it is plugged in. Accidental
discharge may occur. Before loading, move trigger lock to the OFF
position and unplug tool.
!
WARNING ICON G 001
CAUTION: Use only extension cords marked for outdoor use.
Continued

4. Drop staples in channel (see Figure 4).
Note: We recommend that you only use PowerFast or Swingline heavy-
duty staples in this tool.
Wrong staples can cause jamming.
5 Slide staple chamber cover closed. Make sure cover locks into place.
Figure 4
Staples
1. Make sure trigger lock is in the
OFF position.
2. Plug tool into a 115 Volt/60
Hertz outlet.
3. Grip tool firmly.
4. Slide trigger lock to the ON
position.
Operating Tool
Trigger
Lock
Figure 5
!
WARNING ICON G 001
WARNING: Keep trigger lock in the OFF position and finger off
trigger until ready to drive staple.
!
WARNING ICON G 001
WARNING: Keep all body parts away from staple exit on tool.

5. Squeeze trigger to fire.
6. IMPORTANT: Do not fire this tool
when empty of staples. This may
damage tool.

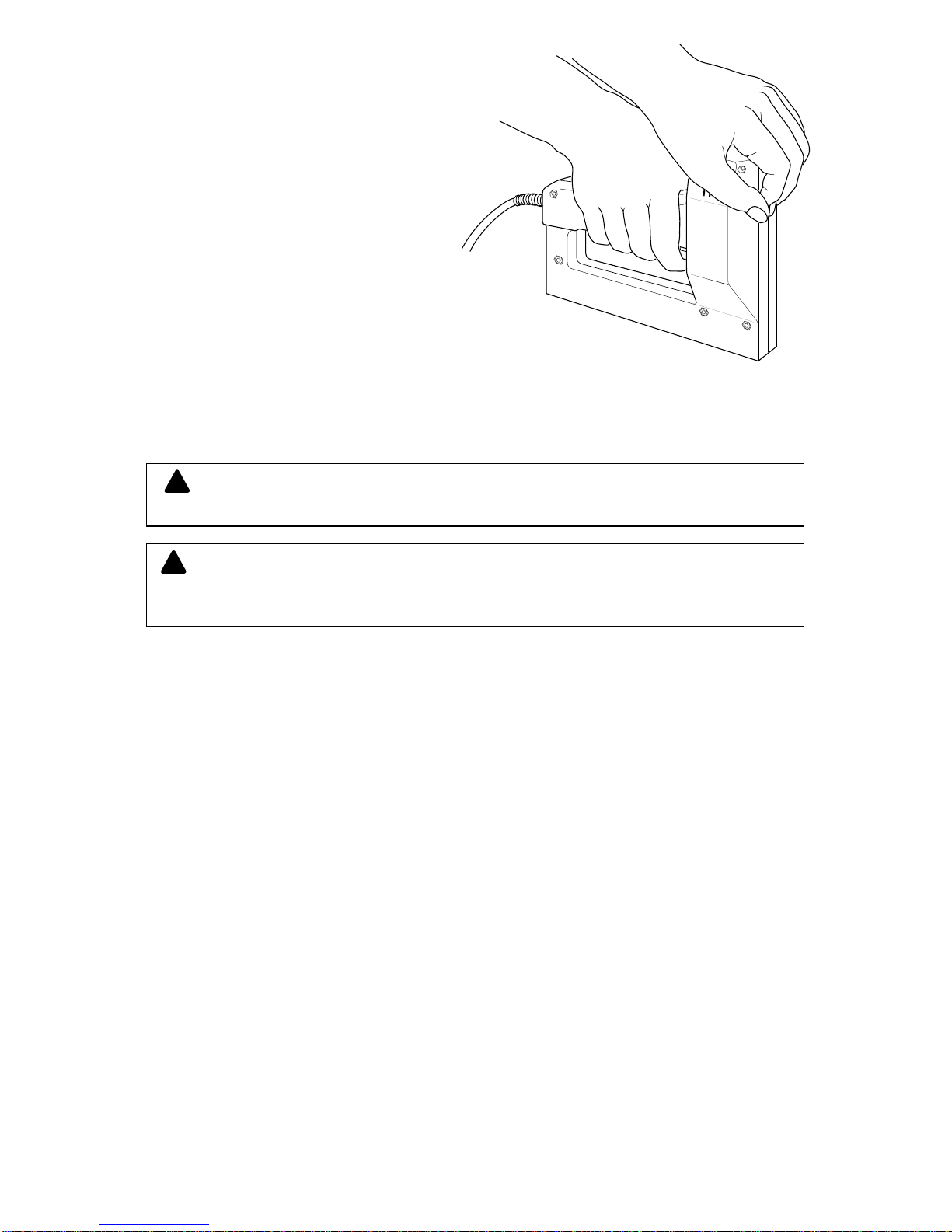

Note: In difficult fastening jobs, press
down on head of tool with palm of
free hand (see Figure 6). This will
improve staple driving.
Tool Jam
1. If tool jams, move trigger lock to the OFF position and unplug tool.
2. Turn tool upside down.
3. Press in latch lock and slide staple chamber cover back until fully open.
4. Remove unused staples.
5. Remove staple(s) causing jam.
6. Reload tool (see Loading Tool, page 5).
Cleaning
Use a clean cloth to remove dirt from tool. Do not use solvents when cleaning
plastic parts.
Lubrication
Do not oil or grease any part of tool. This may damage tool.
IMPORTANT: Do not attempt to repair tool or replace broken parts. Any
servicing,exceptwhatislistedabove,shouldbedonebyanourfactoryservice
center.
Figure 6
Maintenance
!
WARNING ICON G 001
WARNING: Do not alter this tool in any way. Only use accessories
designed for this tool.
!
WARNING ICON G 001
WARNING: Never perform steps listed below while tool is plugged
in. Accidental discharge may occur. Move trigger lock to the OFF
position and unplug tool.

Staples
Werecommendthatyou onlyusePowerFastorSwingline heavy-dutystaples.
Thesestaplesareavailable in six lengths. PowerFast or Swingline heavy-duty
staples can be found where you purchased your staple gun.
Part
Number Length
36804 (800-4) 1/4"
36805 (800-5) 5/16"
36806 (800-6) 3/8"
36808 (800-8) 1/2"
36810 (800-9LT) 9/16"
LIMITED ONE YEAR WARRANTY
DESA Industries warrants this product for a period of one year from date of
purchaseagainstoriginaldefectsinmaterialsorworkmanship.Ifthisproduct
fails to perform for either of those reasons, DESA Industries will repair or
replace with an equivalent product at no charge within 45 days of receipt of
the defective product.
Thiswarrantygivesyouspecificlegalrights.Youmayalsohaveotherrights,
which vary from state to state.
To obtain the benefits of this warranty if the product fails due to defects in
materials or workmanship, contact:
DESA Industries of Canada, Inc.
Unit #4
2220 Argentia Road
Mississauga, Ontario
L5N2K7
Swingline is a registered trademark of ACCO World Corporation.

PISTOLET AGRAFEUR ÉLECTRIQUE
Modèle 34310
GUIDE
D’UTILISATION


2
Consignes de sécurité
!
WARNING ICON G 001
AVERTISSEMENT : Respectez toutes les consignes de sécurité
décrites dans le présent guide. Une utilisation inappropriée de cet outil
peutcauserdes blessures graves oumêmelamort,étantdonnélerisque
d’incendie,dechocélectriqueoudedécharged’uneagrafedanslecorps.
Avant l’utilisation de l’outil
1. Lisez et comprenez les présentes instructions.
2. Seulslesadultesbieninformésdevraientutilisercetoutil.Nelaissezjamais
un enfant l’utiliser.
3. Évitez d’utiliser l’outil :
•en présence de liquides ou de gaz hautement inflammables
•sous l’influence de l’alcool, de drogues ou de médicaments
•sous la pluie ou dans des zones humides ou détrempées
•si vous êtes fatigué ou devez vous dépêcher
•si l’outil est endommagé
•silagâchetten’allumeetn’éteintpasl’outil.Faitesremplacerl’interrupteur
défectueux par le centre de service en usine.
4. Afin que les risques d’électrocution soient minimes, cet appareil a été
pourvu d’une fiche polarisée (une branche plus large que l’autre). Elle ne
pourraentrerdansuneprised’alimentationpolariséequedansunsens.Si
la fiche n’entre pas, retournez-la et essayez de nouveau. Si elle refuse
toujoursd’entrer,demandezàunélectriciend’installerunepriseconforme.
Ne modifiez la fiche d’aucune façon.
5. N’utilisez que des rallongesélectriquesconçuespourl’utilisation à l’extérieur.
6. N’utilisez jamais cet outil :
•si des appareils à service intense sont requis
•oùilnedoitpasl’être.Parexemple,évitezd’utilisersurdubéton,dumétal
ou du verre.
7. Portez des vêtements ajustés durant l’utilisation de cet outil. Évitez les
vêtements amples et les bijoux. Ils pourraient se prendre dans les pièces
mobiles de l’outil.
8. Portez l’équipement de sécurité suivant durant l’utilisation de l’outil :
•gants de caoutchouc (extérieur)
•chaussures à semelles antidérapantes (extérieur)
•protection pour les yeux
•couverture des cheveux, pour retenir les cheveux longs
9. Gardez la zone de travail bien éclairée.
10. PlacezleverrouàgâchetteàlapositionOFFpuisdébranchezl’outillorsque :
•vous chargez l’outil
•l’outil n’est pas utilisé
•vous vous dirigez vers une autre pièce
•vous êtes sur le point de faire l’entretien de l’outil
•vous changez les accessoires
11. Nemodifiezl’outild’aucunefaçon.N’utilisezque lesaccessoiresspéciale-
ment conçus pour cet outil.
