Designers Fountain 52ST3L5-BN User manual

READ AND SAVE THESE INSTRUCTIONS
FOR CEILING FAN PARTS AND SERVICE,
CALL 1-877-902-5588
FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552MP2
MODEL: 52ST3L5-BN
52ST3L5-WM
CEILING FAN OWNER'S MANUAL
Distinctive Lighting and Ceiling Fans

1. To reduce the risk of electric shock,
insure electricity has been turned off
at the circuit breaker or fuse box
before beginning.
2. All wiring must be in accordance with
the National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. NOTE: Suitable for use with solid-state
speed controls.
4. WARNING: To reduce the risk of
personal injury, use only the two steel
screws (and lock washers) provided
with the outlet box for mounting to
the outlet box. Most outlet boxes
commonly used for the support of
lighting fixtures are not acceptable for
fan support and may need to be
replaced, consult a qualified electrician
if in doubt.
5. The outlet box and support structure
must be securely mounted and
capable of reliably supporting a
minimum of 50 pounds. Use only UL
Listed outlet boxes marked "FOR FAN
SUPPORT".
6. The fan must be mounted with a
minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the
fan is running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to
the fan and other items, be cautious
when working around or cleaning the
fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth
will be suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor
and the equipment-grounding
conductor on one side of the outlet
box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the
fan must be UL Listed and marked
suitable for use with the model fan you
are installing. Switches must be UL
General Use Switches. Refer to the
Instructions packaged with the light
kits and switches for proper assembly.
1
1. SAFETY RULES
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX
MARKED"ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR
AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE
BLADES.

3. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items:
a. Blade set (5)
b. Hanger bracket assembly
c. Ball/downrod assembly (1)
& extra downrod (1)
d. Coupling cover
e. Fan motor assembly
f. Blade bracket set (5)
g. Mounting plate
h. Light kit assembly
i. Glass shades (3)
j. Receiver+6 wire nuts
k. Transmitter+holder+2mounting screws
l. 9 Volt battery
m. Extra switch housing
n. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3),
wood screws (2), washers (2)
2) Blade attachment hardware:
screws (16), fiber washers (16)
3) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2
2. TOOLS AND MATERIALS
REQUIRED
b
a
c
d
e
f
g
h
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.
i
j
k
m
n
l

4. MOUNTING OPTIONS
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses
orturningoffcircuitbreakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able to
fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet
boxes.

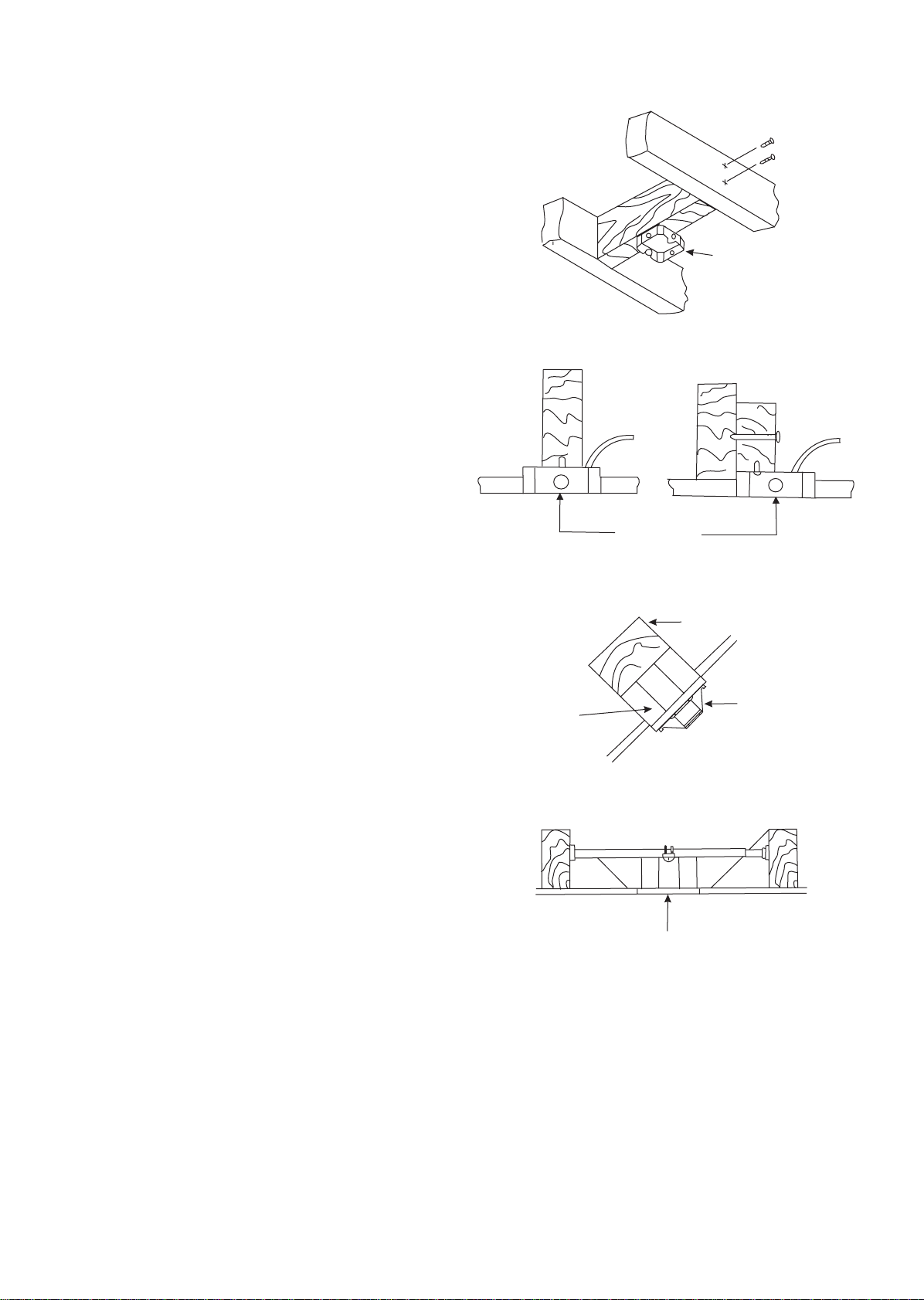

Figures 1,2 and 3 are examples of different
waystomounttheoutletbox.
Note: You may need a longer downrod to
maintain proper blade clearance when
installingonasteep,slopedceiling.(Fig.3)
Tohang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar as shown in
Figure4.
Outlet box
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
Provide strong
support
Recessed
outlet box
Ceiling
hanger
bracket
* Angled ceiling
maximum
27° angle

REMEMBER to turn off the power. Follow
the steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning
the cover counter clockwise.(Fig. 5)
Step 2. Remove the hanger bracket from
the canopy by loosening the two screws
on the bottom of the hanging bracket a
half turn from the screw head and turning
the canopy counter clockwise.(Fig, 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hitch pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top
of the fan motor through the coupling
cover, canopy cover, canopy and then
through the ball / downrod. (Fig. 7)
NOTE: Do not install the coupling cover if
you plan to use the 4" downrod.
Step 7. Align the holes at the bottom of
the downrod with the holes in the collar
on top of the motor housing (Fig.7).
Carefully insert the hitch pin through the
holes in the collar and downrod. Be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole near the end
of the hitch pin until it snaps into its
locked position, as noted in the circle inset
of Fig. 7.
Step 8. Tighten two set screws on top of
the fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. HANGING THE FAN
4
Figure 5
Ceiling
canopy
Canopy
cover
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
UL Listed
electrial
box
Figure 6
Figure 7
Figure 8
120V Wires
Washers
Registration slot
Downrod
Canopy
Set screws
Hitch pin Lock pin
Canopy cover
Hanger bracket
Coupling cover
*Omit coupling
cover when using
the minimum-length
downrod

5
6.MAKETHEELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at
themainfuseboxbeforewiring.
NOTE: This remote control unit is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency
switches on your receiver and transmitter
have been preset at the factory. Please
recheck to make sure the switches on
transmitter and receiver are set to the
same position, any combination of settings
will operate the fan as long as the
transmitter and receiver are set to the
sameposition.(Fig.10)
Step 1. (Fig. 11) Insert the receiver into the
mounting bracket with the flat side of the
receiverfacingtheceiling.
Step 2. (Fig. 12) Motor to Receiver Electrical
Connections: Connect the Black wire from
the fan to Black wire marked "TO MOTOR
L". Connect the White wire from the fan to
theWhite wire marked "TO MOTORN" from
the receiver. Connect the Blue wire from
the fan to the Blue wire marked "For
bottom Light" from the receiver. Connect
the Orange wire from fan to the Orange
wire from receiver marked "For Upper
Light". Secure wire connections with the
plasticwirenutsprovided.
Figure 10
Figure 9
Figure 11
Code switch
Receiver
Hanger
bracket
ON
ON
CHANGINGTHEDOWNROD (OPTIONAL)
NOTE: Your fan comes with a 6" downrod
attached to the hanger ball. In addition
you have been provided with a 4"
downrod to use if desired. If you choose to
usethe4"downrod, performthefollowing
steps:
1. Remove the hanger ball from the 6"
downrod by loosening the set screw at the
top of the downrod which holds the
hangerballtothedownrod.(fig.9)
2. Slide the hanger ball down the downrod
andremovethesupportpin.(fig.9)
3. Insert the support pin in the holes at the
top of the 4" downrod and slide the
hanger ball up the 4" downrod. Make sure
the support pin is properly seated in the
groovesinthetopofthehangerball.
4.Tightenthesetscrewfirmly.
Downrod
Cross pin
Hanger
ball Set screw

6
Step 3. (Fig. 12) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the
black wire marked "AC in L" from the
receiver. Connect the white (neutral) wire
from the ceiling to the white wire marked
"AC in N" from the Receiver. Secure the
wire connections with the plastic wire nuts
provided.
Step 4. (Fig. 12) If your outlet box has a
ground wire (green or bare copper)
connect it to the fan ground wires;
otherwise connect the hanging bracket
ground wire to the mounting bracket.
Secure the wire connection with a plastic
nut provided. After connecting the wires,
spread them apart so that the green and
white wires are on one side of the outlet
box and black and blue wires are on the
other side. Carefully tuck the wire
connectionsupintotheoutletbox.
Note: Fan must be installed at a maximum
distance of 30 feet from the transmitting
unit for proper signal transmission
between the transmitting unit and the
fan'sreceivingunit.
7. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into
ceiling outlet box.
Step 2. Slide the canopy up to ceiling
and over the two screws on hanger
bracket. Rotate canopy clockwise, next,
while holding the canopy with one hand,
slide the canopy cover over the screws
and rotate clockwise until tight. Note:
adjust the canopy screws as necessary
until the canopy and canopy cover are
snug. (Fig.13)
Warning: Make sure tab at bottom of
hanger bracket is properly seated in
groove of hanger ball before attaching
canopy to bracket. Failure to properly seat
tab in groove could cause damage to
electrical wiring.
Figure 12
Figure 13
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green) (Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for bottom light)
Orange (for upper light)
Blue (for bottom light)
Black (motor)
Orange (for upper light)

7

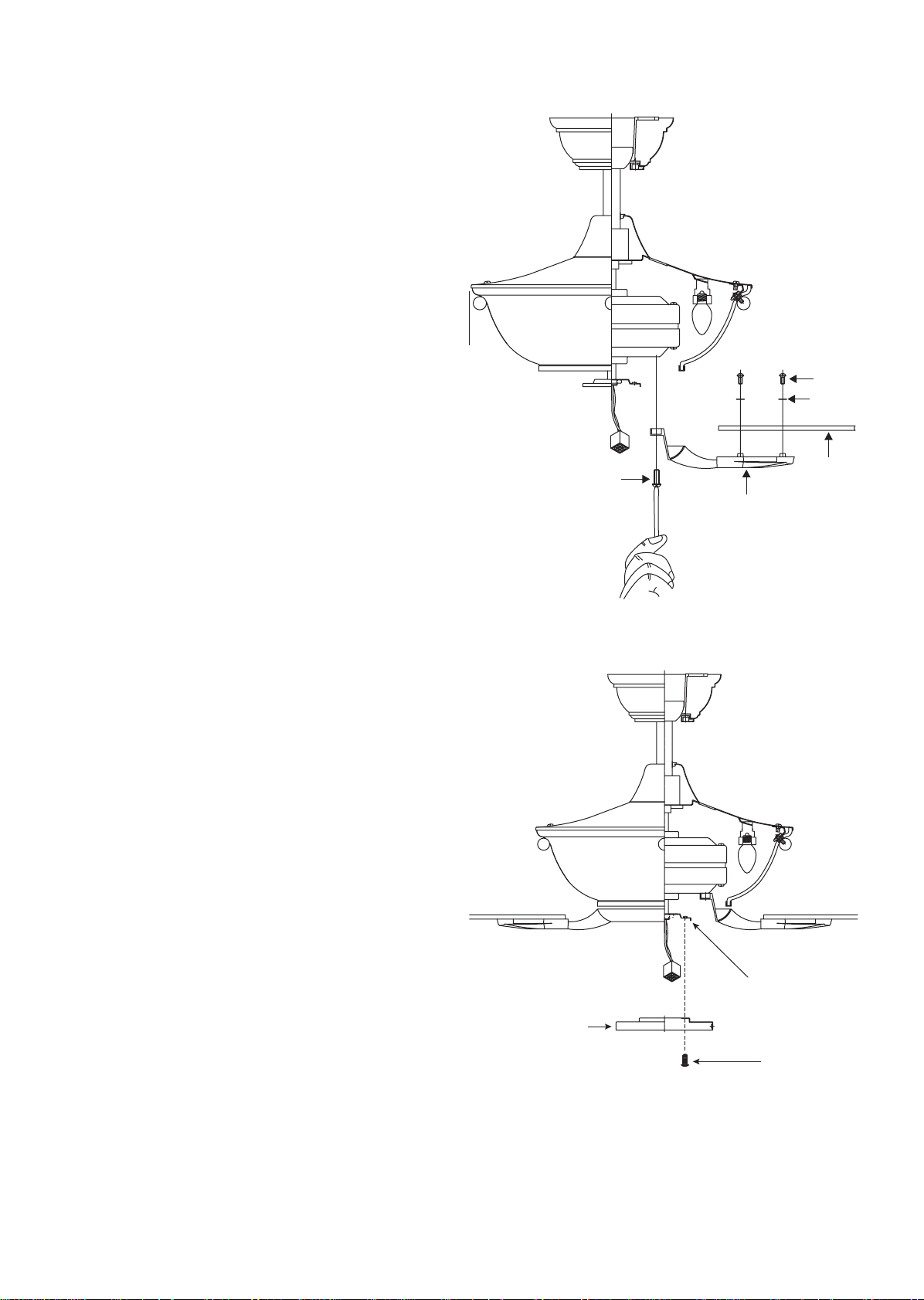

8. ATTACHING THE FAN
BLADES
Step 1 Attach the blade to the blade
bracket using the screws and fiber washers
as shown in Figure 14. Start screw into
bracket. Repeat for the two remaining
screws.
Step 2 Tighten each screw. Make sure the
blade is straight.
Step 3 Fasten blade assembly to motor
using the screws supplied. (Fig. 14)
Figure 14
Figure 15
9.INSTALLINGTHE
MOUNTINGPLATE
1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2
screws. (Do not remove)
2. Place the key holes on the mounting
plate over the 2 screws previously
loosened from the mounting ring, turn
mounting plate until it locks in place at
the narrow section of the key holes.
Secure by tightening the 2 screws
previously loosened and the one
previously removed. (Fig. 15)
Screws
Screws
Fiber
washers
Blade bracket
Blade
Mounting
plate
Mounting ring
Screws

8
Figure 16
Figure 17
10. INSTALLING THE
LIGHT KIT
NOTE: Before starting installation,
disconnect the power by turning off
the circuit breaker or removing the
fuse at fuse box. Turning power off
using the fan switch is not sufficient to
prevent electric shock.
1. While holding the light kit assembly
under your fan, snap together the
wire connection plugs .
2. Carefully push all wires back into the
switch housing, then install the light
kit assembly onto the mounting
plate with 3 screws provided. Be
sure to tighten all screws. (Fig. 16)
11. INSTALLING THE
LIGHT BULBS & GLASS
SHADES
1. Remove the lock ring from the socket
by turning the lock ring counter-
clockwise Until it unlocks. Insert the
glass into the glass holder and turn
the lock ring clockwise to tighten the
glass. Repeat for the remaining glass.
(Fig. 17)
2. Install 3 x 40W candelabra bulbs (not
included). (Fig. 17)
3. Restore power and your light kit is
ready for operation.
Connection plugs
Light kit
assembly
Screws
Mounting
plate
Bulbs
Glass shade
Lock ring

9
Figure 20
Figure 19
Figure 18
13. FAN WITHOUT LIGHT
KIT (OPTIONAL)
Your fan is designed with light kit, we
also prepare a empty switch box for
your choice in case you intend to install
the fan without light kit. Proceed the
followings for switch box assembly:
1. Disassemble the wire harness from
the light fixture by loosing the two
plug-in wire connectors, you can
keep the light fixture for future use.
2. Install the wire harness into the
empty switch box by placing the
reverse module and capacitor
inside the empty switch box with
self adhesive tape. (Fig. 19)
3. Tuck the wire harness into the switch
box.
4. Remove the screws from the mounting
plate under the fan motor. Raise the
switch box to the mounting plate until
the holes in switch box and mounting
plate line up. Reinsert the screws to
secure in place. (Fig. 20)
Plug-in
wire connector
Capacitor
Reverse Module
Wire harness
empty
switch box
12. INTERIOR BULB
REPLACEMENT
REMEMBER to turn off the power
Step 1.Remove the 2 screws from the
light cover from the top decorative
housing as shown in Figure 18.
Step 2.Replace the defective bulb
(15W, 120V AC CANDELABRA base).
Step 3. Place the light cover back to
the top decorative housing and secure
the screws in position.
Screws
Bulbs
Light cover
Screws
Mounting plate
Wire connection
plugs
Switch housing

10
Figure 21
Figure 22
15. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation.
A. HI, MED, and LOW buttons:
These three buttons are used to set
the fan speed as follows:
HI= high speed
Med= medium speed
Low= low speed
B. OFF button:
This button turns the fan off.
C. The" "buttonturnstheupperlight
ON or OFF and also controls the
brightness setting. The " " button
turns the bottom light ON or OFF and
also controls the brightness setting.
Press and release the button to turn
the light ON or OFF. Press and hold
the button to set the desired
brightness. The light button has an
auto-resume, it will stay at the same
brightness as the last time it was
turned off.
D.The"REV" button isusedtoset thefan
forward or reverse, press the button
forward (for warm weather) or reverse
(for cool weather).
LOW
OFF
HI
MED
REV
14. INSTALLING THE
BATTERY
Install 9 volt battery (included), to prevent
damage to transmitter, remove the
battery if not used for long periods. (Fig.
21)
9 Volt
Battery

11
Figure 24
Figure 23
Speed settings for warm or cool
weather depend on factors such as the
room size. Ceiling height, number of
fans and so on.
NOTE: To operate the reverse function
on this fan, press the reverse button
while the fan is running.
Warm weather - (Forward) A downward
airflow creates a cooling effect as
shown in Fig. 23. This allows you to
set your air conditioner on a warmer
setting without affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling
area as shown in Fig. 24. This allows you
to set your heating unit on a cooler
setting without affecting your comfort.

12
16. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds
noisy.
Fan wobble.
Remote control
malfunction:
Solution
1.Checkcircuitfuses or breakers.
2. Check line wire connections to the fan and switch wire connections in
theswitchhousing.
CAUTION:Makesuremain power isoff.
3. Check to make sure the dip switches from the transmitter and receiver
aresettothe same frequency.
1.Makesureall motor housingscrewsaresnug.
2. Make sure the screws that attach the fan blade bracket to the motor
hubistight.
3. Make sure wire nut connections are not rubbing against each other or
theinteriorwallof the switchhousing.
CAUTION:Makesuremain power isoff.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
newfandisappearduring this time.
5. If using an optional light kit, make sure the screws securing the
glasswarearetight.Check that thelightbulbisalso secure.
6.Donotconnect the fanwithawall mountedvariable speed control(s)
7. Make sure the upper canopy is a short distance from the ceiling. It
shouldnottouchthe ceiling.
1.Checkthatall blade andbladearmscrewsare secure.
2. Most fan wobbling problems are caused when blade levels are
unequal. Check this level by selecting a point on the ceiling above the
tip of one of the blades. Measure this distance. Rotate the fan until the
next blade is positioned for measurement. Repeat for each blade. The
distancedeviationshouldbe equal within1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side
by side) blades can redistribute the weight and possibly result in
smootheroperation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATINGFANBLADES.
1.Donotconnect the fanwithawall mountedvariable speed control(s).
2.Makesurethe dip switchesaresetcorrectly.
