Develop ineo+ 258 User manual

Product Guide
ineo+ 258/308/368
Product GuiC258/C308/C368

2
2
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
Revision
Description
23.07.2015
Initial version
28.08.2015
Article Number change for UK-211
10.09.2015
LRI article numbers corrected/added (page 35)
Since changes in technical features may occur, please note that the technical data provided in this product guide was
issued in July 2015. We reserve the right to make changes to the technical design. Specifications refer to maximum
performance under standard conditions. No guarantee is provided in relation to any of the data supplied.

3
3
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368

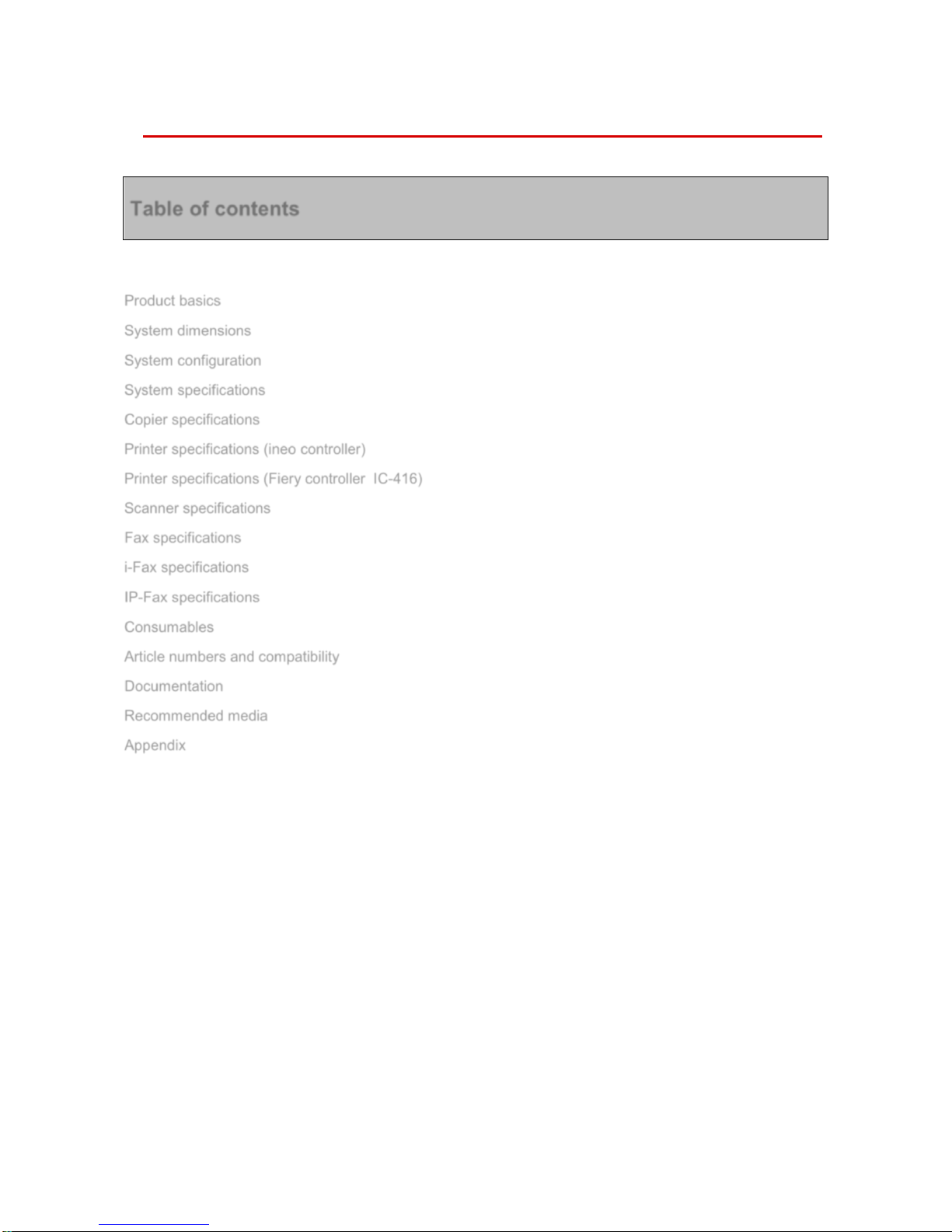

Table of contents
Product basics .................................................................................................................................... 4
System dimensions............................................................................................................................. 5
System configuration.......................................................................................................................... 7
System specifications......................................................................................................................... 8
Copier specifications.........................................................................................................................17
Printer specifications (ineo controller) ..............................................................................................20
Printer specifications (Fiery controller IC-416) ................................................................................23
Scanner specifications......................................................................................................................26
Fax specifications .............................................................................................................................27
i-Fax specifications ........................................................................................................................... 28
IP-Fax specifications......................................................................................................................... 28
Consumables.................................................................................................................................... 29
Article numbers and compatibility..................................................................................................... 31
Documentation..................................................................................................................................34
Recommended media.......................................................................................................................37
Appendix........................................................................................................................................... 38

4
4
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
Product basics
MODEL DEVELOPMENT
CODE
Zeus S Z
Zeus S X
Zeus S 0
Zeus S 1
Zeus S 2
Zeus S 2.5
MODEL NAME
ineo+
658
ineo+
558
ineo+
458
ineo+
368
ineo+
308
ineo+
258
SUCCESSOR MODEL FOR
ineo+
654e
ineo+
554e
ineo+
454e
ineo+
364e
ineo+
284e
ineo+
224e
ALSO AVAILABLE AS
KM bizhub
C658
KM bizhub
C558
KM bizhub
C458
KM bizhub
C368
KM bizhub
C308
KM bizhub
C258
Olivetti
d-Color
Olivetti
d-Color
Olivetti
d-Color
Olivetti
d-Color
MF364
Olivetti
d-Color
MF304
Olivetti
d-Color
MF254
ESTIMATED SALES
START
08/2016
09/2015
01/2016
INFOSOURCE SEGMENT
Col IV
Col IV
Col III
AVERAGE MONTHLY
PAGE VOLUMES
(exp. colour ratio: 30%)
25k
16k
13k
MAX MONTHLY PAGE
VOLUMES
(KMI specified)
125k
100k
80k
(If the maximum volume is reached within a period of one year, then a maintenance cycle must
be performed!)
MACHINE LIFE
1500k or 5
years
1000k or 5
years
800k or 5
years
MCBF (Mean
Copies Between
Failure)
Total
Colour
Mono
63,5k
53,1k
69,3k
55,1k
46,0k
60,1k
48,0k
40,2k
52,4k
MCBJ (Mean Copies
Between Jam)
10k with standard paper
STANDARD COPY MODE
(MONO & COLOUR)
4 pages/
job
3 pages/
job
3 pages/
job
STANDARD ORIGINAL
DENSITY
5 % Mono & Colour
SAFETY & ENVIRONMENT
Available on CSES
PLEASE NOTICE
Standard paper weight for systems is 80 g/m2for monochrome machines. Since using these standards result in optimum system
performance, all specifications on performance, reliability, maintenance and replacement based on those standard papers. Using thick
papers, labels, transfer and polyester films continuously can increase the wear and tear on replacement parts and consumables –meaning
your servicing costs will go up. Use the bypass or the lower tray from the paper feed unit when working with materials having such
characteristics as polyester films, textile transfer films and labels. Otherwise, you may be faced with double feeding or a higher number of
feeding jams. If possible use subtray when working with materials having such characteristics as polyester films, textile transfer films and
labels. Rollermarks on the copy or print may appear or increased jams can occur. Standard paper weights yield the best possible copy and
print results. Using higher grammatures may influence the quality of the output. Using standard paper weights also guarantees that double
sided copies and prints are made reliably. Different characters of films as well as thick, thin and coated papers may increase the jam rate for
double sided copies and prints.

5
5
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368

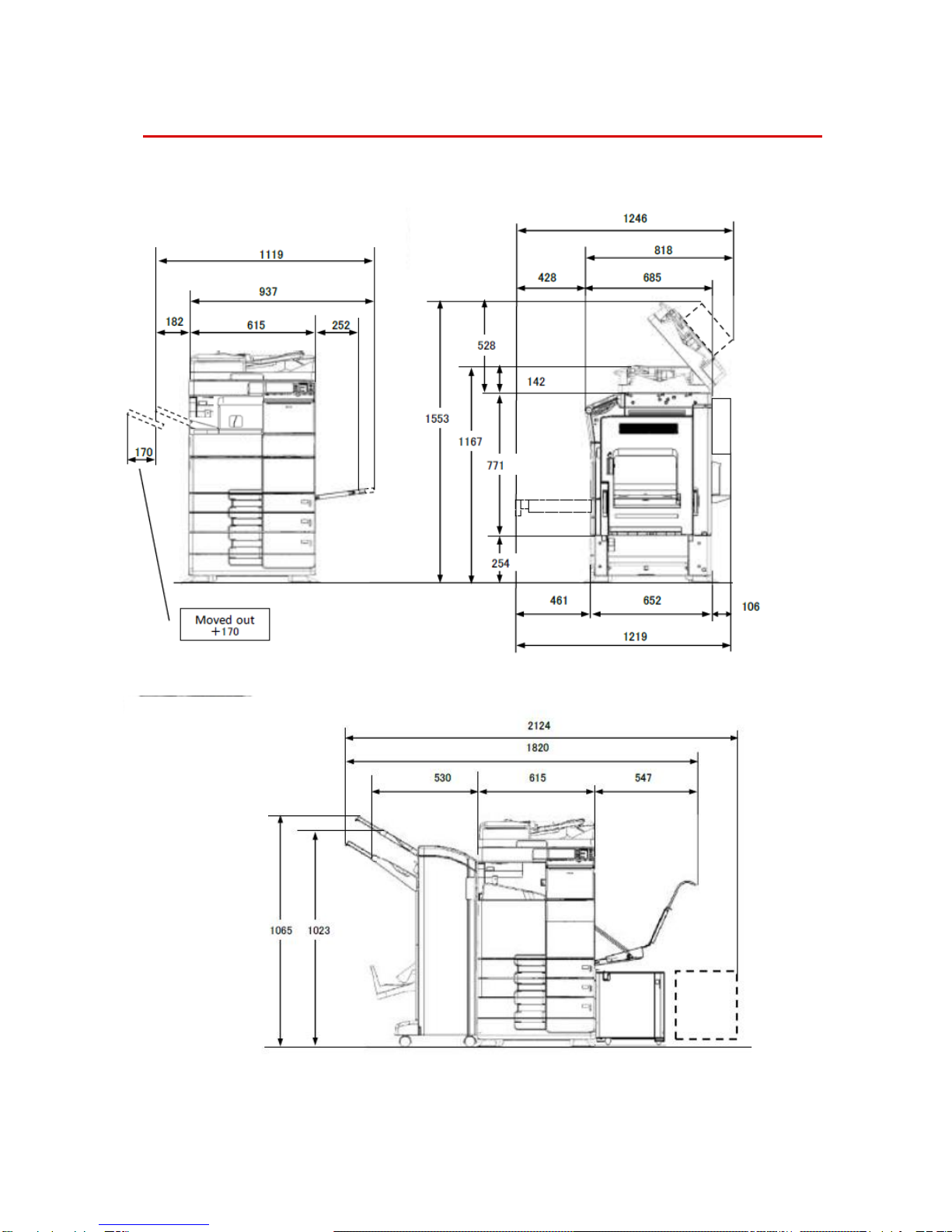

System dimensions
ineo+ 368/308/258 + PC-210 (PC-110/PC-410/DK-510) + DF-629

6
6
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
ineo+ 368/308/258 + DF-704 + PC-210 (PC-110/PC-410/DK-510) + FS-533 + CU-101
ineo+ 368/308/258 + PC-210 (PC-110/PC-410/DK-510) + DF-629+MK-730 + FS-534SD + LU-302

7
7
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
System configuration
Configuration ineo+ 308/368

8
8
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
System specifications
DF-629 Duplex type automatic
document feeder
OPTION for ineo+ 258/308/368
Original size
A6 / max. A3
Original weights
35 - 128 g/m² (simplex)
50 - 128 g/m² (duplex/mix mode)
Tray capacity
100 sheets (80g/m², A4)
Feeding type
First page system
Feeding speed
Simplex mode:
Copy: 55 originals/min. (600 dpi) [mono & colour]
Scan: 80 originals/min. (300 dpi) [mono & colour]
Duplex mode:
Copy: 26 originals/min. (600 dpi) [mono & colour]
Scan: 37 originals/min. (300 dpi) [mono & colour]
Scanner life
1000k or 5 years (whichever comes first)
Dimensions (W x D x H)
611.2 x 503.6 x 130 mm
Weight
9.0 kg
DF-704 Dual scan document
feeder
OPTION for ineo+ 258/308/368
Original size
A6 / max. A3
Original weights
35 - 163 g/m² (simplex)
50 - 163 g/m² (duplex)
50 - 128 g/m² (mixed mode)
Tray capacity
100 sheets (80g/m², A4)
Feeding type
First page system, dual scan
Feeding speed
Simplex mode:
Copy: 55 originals/min. (600 dpi) [mono & colour]
Scan: 80 originals/min. (300 dpi) [mono & colour]
Duplex mode:
Copy: 110 images/min. (600 dpi) [mono & colour]
Scan: 160 images/min. (300 dpi) [mono & colour]
Scanner life
1000k or 5 years (whichever comes first)
Dimensions (W x D x H)
611.2 x 503.6 x 130 mm
Weight
12 kg
OC-511 Original cover
OPTION for ineo+ 258/308/368
Remark
Required if no document feeder is attached.

9
9
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
Standard paper cassettes
STANDARD
Capacity
1 tray: 500 sheets (universal)
2 tray: 500 sheets (universal)
Paper formats
1 tray: A5 crosswise - A3
2 tray: A5 crosswise- SRA3 (320 x 450 mm)
Paper weights
1 - 2 tray: 52 - 256 gsm
PC-110 Paper cassette
OPTION for ineo+ 258/308/368
Capacity
1 x 500 sheets (80 gsm)
Paper formats
A5 –A3
Paper weights
52 - 256 gsm
Media type
Plain paper
Dimensions (W x D x H)
615 x 652 x 246 mm
Weight
22 kg
PC-210 Paper cassette
OPTION for ineo+ 258/308/368
Capacity
2 x 500 sheets (80 gsm)
Paper formats
A5 –A3
Paper weights
52 - 256 gsm
Media type
Plain paper
Dimensions (W x D x H)
615 x 652 x 246 mm
Weight
24 kg
PC-410 Paper cassettes
OPTION for ineo+ 258/308/368
Capacity
2,500 sheets (80 gsm)
Paper formats
A4 crosswise
Paper weights
52 - 256 gsm
Media type
Plain paper
Dimensions (W x D x H)
615 x 652 x 246 mm
Weight
23 kg

10
10
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
LU-302 Large capacity tray
OPTION for ineo+ 258/308/368
Capacity
3,000 sheets (80 gsm)
1,300 sheets (256 gsm)
Paper formats
A4 crosswise
Paper weights
52 - 256 gsm
Dimensions (W x D x H)
367 x 528 x 405 mm
Weight
18 kg
Remark
Cannot be installed together with DK-510.
DK-510 Copy desk
OPTION for ineo+ 258/308/368
Type
Rigid, metal with plastic door
Dimensions (W x D x H)
615 x 653 x 252 mm
Weight
11.9 kg
Manual bypass tray
STANDARD
Capacity
150 sheets
Paper weight
60 - 300 gsm (OHP, labels, banner paper, etc.)
Paper format
A6 lengthwise - SRA3
Width: 90 to 320 mm x Length: 139.7 to 1,200 mm
Duplex
STANDARD
Capacity
Stackless
Paper weight
52 - 256 gsm
Paper format
A5 - SRA3

11
11
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
FS-533 Inner finisher
OPTION
Functionality
Stacking, stapling, offset group/sort
Paper formats
A6 - SRA3, banner
Paper weights
52 –300 gsm
Stack capacity
500 sheets A4 (52 –90 gsm)
250 sheets A3 (52 –90 gsm)
Stapling modes
Corner front/back, 2-point
Stapling capacity
50 sheets A4 (52 - 90 gsm), 30 sheets A3 (52 - 90 gsm),
2 sheets (91 - 209 gsm for cover pages)
Staples
SK-602
Dimensions (W x D x H)
472.5 x 583.5 x 194.7 mm
Weight
12 kg
Remark
One staple cartridge is packed to the finisher.
Additional options for FS-533
PK-519
PK-519 Punch kit
(Europe/Sweden)
OPTION for FS-533
Punch method
On-line, page by page, 2 or 4 holes for Europe, 4 holes for Sweden
Hole diameter
6.5 mm ± 0,5 mm
Paper formats
A3, B4, A4 L, B5 L (200 mm x 330 mm)
Paper weights
52 - 157 gsm
Dimensions (W x D x H)
110.2 x 483.5 x 203.2 mm
Weight
3.2 kg

12
12
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
FS-534 Staple finisher (50 sheets)
FS-534SD Booklet finisher
OPTION
Functionality
Non-sort, sort, group, staple, punch (additional option), fold (additional
option), offset group/sort
Tray capacity
100/200/3,000 sheets A4 (FS-534)
100/200/2,000 sheets A4 (FS-534SD)
100/200/1,500 sheets A3
Paper formats
A6 - SRA3, banner
Paper weights
52 –300 gsm
Stack capacity
500 sheets A4 (52 –90 gsm)
250 sheets A3 (52 –90 gsm)
Stapling modes
Corner (front/back), centre 2-points, saddle stitch (additional option)
Stapling capacity
50 sheets (52 - 90 gsm), 30 sheets (91 - 120 gsm), 15 sheets (121 - 209
gsm)
Stapling format
A3 - A5 lengthwise
Staples
SK-602
Remark
One staple cartridge is packed to the finisher.
Job separator function
Yes (finisher bridge unit is used for stacking)
Paper size for job separation function
A6 - SRA3
Capacity job separation function
Up to 100 sheets 52 –90 gsm
Up to 20 sheets > 90 gsm
Remark job separation function
This function is only available with Zeus/ZeusMLK /ZeusBK series. It does
not apply for all Minerva series.
Dimensions (W x D x H)
528 x 641 x 1,023 mm
Weight (FS-534/FS-534SD)
40 kg/64kg (incl. RU-513)
Additional options for FS-534/FS-543SD
PK-520
Standard for FS-534SD
SD-511
Remark
FS-534/SD always requires RU-513
RU-513 Relay Unit for FS-534/SD
OPTION FOR FS-534/SD
Functionality
Relay Unit for FS-534/FS-534SD
Remark
RU-513 is always required for FS-534/FS-534SD

13
13
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
PK-520 Punch kit
(Europe/Sweden)
OPTION for FS-534/SD
Punch method
On-line, page by page, 2 or 4 holes for Europe, 4 holes for Sweden
Hole diameter
6.5 mm ± 0,5 mm
Paper formats
A3, B4, A4 L, B5 L (200 mm x 330 mm)
Paper weights
52 - 300 gsm
Dimensions (W x D x H)
61 x 492 x 142 mm
Weight
1.8 kg
SD-511 Saddle kit unit
STANDARD for FS-534SD
Paper formats
A4 lengthwise / A3+ (311 x 457 mm)
Paper weights
Centre staple: 52 - 90 gsm
Half-fold: 52 - 209 gsm
(more than 91 gsm sheets can be used only as cover sheet)
Tri-fold: 52 - 90 gsm
Tray capacity
20 sets (1-3 pages), 5 sets (11-20 pages)
Tri-fold: 30 sets with 1 page, 10 sets with 2 or 3 pages
Stapling modes
Centre parallel 2-points (booklet staple)
Stapling capacity for centre stapling
20 sheets (52 - 90 gsm), 19 sheets + cover sheet (19 sheets 90 gsm + 1
sheet 209 gsm
Staples
SK-602
Dimensions (W x D x H)
210 x 556 x 547 mm
Weight
24 kg
Remark
One staple cartridge is packed to the saddle kit unit.
JS-506 Inner job separator
OPTION
Paper formats
Tray 1/2: A6 - SRA3
Banner and long length tray 2 only
Paper weights
52 - 300 gsm
Tray capacity
Tray 1: 100 sheets (90 gsm)
Tray 2: 150 sheets (90 gsm)
Dimensions (W x D x H)
491.9 x 469.5 x 226.5 mm
Weight
2.5 kg
Remark
Can’t be installed together with FS-533/534/SD.
Supports offset group/sort.

14
14
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
KP-101 10-key-pad
OPTION
Functionality
Hardware 10 key pad for number entry instead of touch panel
WT-506 Working table
OPTION
Functionality
To place authentication unit.
FK-514 Fax board
OPTION
Specifications
Please refer to the chapter “Fax specifications”
Remark
For a second fax line a second FK-514 is required.
IC-416 Fiery controller
OPTION
Specifications
Please refer to the chapter “Fiery specifications”
Remark
VI-508 is required in addition.
VI-508 Video interface kit
OPTION
Remark
Required for installing IC-416
KH-102 Keyboard holder
OPTION
Functionality
To place the optional USB keyboard (keyboard is procured locally by
countries).
EK-608 USB host board
OPTION
Functionality
USB interface for connection of USB keyboard.
EK-609 USB host board and
Bluetooth
OPTION
Functionality
USB interface for connection of USB keyboard. Included Bluetooth
technology for connection to mobile devices. Includes also speakers.
IC card authentication unit
OPTION
Functionality
Authentication by contact less IC card
Remark
For details on available card technologies please refer to the price list. MK-
735 is required for inside installation, WT-506 is recommended for outside
placement.
MK-735 Mount kit
OPTION
Functionality
Installation kit for ID card reader (device integrated behind front cover).

15
15
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
AU-102 Biometric authentication
unit
OPTION
Functionality
Authentication by finger vein scanner. WT-506 is recommended for
placement.
SC-508 Security kit
OPTION
Functionality
Copy Guard and Password copy functionality (security pattern search)
Remark
2 x required if DF-704 is installed.
BT-C1e Banner tray
OPTION
Function
To support multi banner feeding through manual bypass.
UK-211 2 GB memory upgrade
OPTION
Capacity
2 GB
Functionality
Required in order to activate i-Options. Also required for overlay function in
copy mode and to have full device functionality if Web Browser/IWS is
activated
LK-102v3 i-Option license
OPTION
Functionality
PDF encryption function, PDF/A 1b support, Meta data
Remark
UK-211 is required in addition.
LK-105v4 i-Option license
OPTION
Functionality
OCR for searchable PDF, PPTX
PDF/A 1a (LK-102v3 needed in addition for PDF/A 1a)
Remark
UK-214 is required in addition.
LK-106 i-Option license
OPTION
Functionality
Printing of Barcode fonts
Remark
UK-211 is required in addition.
LK-107 i-Option license
OPTION
Functionality
Printing of Unicode fonts
Remark
UK-211 is required in addition.

16
16
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
LK-108 i-Option license
OPTION
Functionality
Printing of OCR fonts
Remark
UK-211 is required in addition.
LK-110v2 i-Option license
OPTION
Functionality
Generation of various file formats (incl. DOCX, XLSX and PDF/A)
Remark
UK-211 is required in addition. Included functionality of LK-102v3 and LK-
105v4.
LK-111 i-Option license
OPTION
Functionality
Native ThinPrint client
Remark
UK-211 is not required for LK-111.
LK-115v2 i-Option license
OPTION
Functionality
Enables Trusted Platform Module (TPM) to enhance security level
Remark
UK-211 is not required for LK-115
UK-212 Wireless LAN
OPTION
Functionality
Wifi model for both bizhub Remote Access and normal Wifi connection
Remark
Required for ineo Remote Access on Android and iOS and for wireless LAN
Access Point Mode.
HD-524 Hard Disc Mirroring
OPTION
Functionality
Back-up HDD to ensure data availability
SX-BR-4600 Wireless LAN
OPTION
Functionality
External LAN to Wifi box.
SP-501 Stamp unit
OPTION for DF-629/DF-704
Functionality
Attached to DF-629/DF-704. Marks every fax original which is scanned for
transmission.
Spare TX marker stamp 2
OPTION for SP-501
Functionality
Spare stamp for SP-501

17
17
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
Copier specifications
ineo+ 658
ineo+ 558
ineo+ 458
ineo+ 368
ineo+ 308
ineo+
258
WARM-UP TIME
Main switch ON
20 sec. or less
FIRST COPY
Colour (sec or less)
6.9
7.3
7.5
B/W (sec or less)
5.3
5.6
6.1
COPY SPEED
A4 crosswise mono/colour plain paper
(simplex/duplex)
36 ppm
30 ppm
25 ppm
A4 crosswise mono/colour thick paper
(simplex/duplex)
18 ppm
A4 crosswise mono/colour from bypass
(simplex/duplex)
35 ppm
30 ppm
25 ppm
A3 mono/colour (simplex/duplex)
18 ppm
15 ppm
15 ppm
SCAN RESOLUTION
600 x 600 dpi
PRINT RESOLUTION
1200 x 1200 dpi
MEMORY
2 GB std.
4 GB max.
HDD
250 GB
GRADATION
256
ZOOM
25 - 400 %, adjustable in 0,1% steps
MULTI COPY
1 - 9999, count up, interruption capability
DENSITY ADJUSTMENT
Automatic, manual (9 steps)
IMAGE LOSS
Leading edge: 4.2 mm or less
Trailing edge: 3 mm or less
Both sides: 3 mm or less
Max. print area for SRA3 paper size: 307.1 x 437.1 mm;
for 311.1 x 457.2 mm paper size: 302.7 x 448,7 mm
POWER REQUIREMENT
220 - 240 V / 50/60 Hz
MAX. POWER CONSUMPTION
< 1.5 kW

18
18
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
COPIER DIMENSIONS (W x D x H)
615 x 685 x 779 mm
(w/o OC-511)
COPIER WEIGHT
Approx. 85 kg
COPY FUNCTIONS
2in1/4in1/8in1
yes
AMS/APS
yes
Book copy
yes
Booklet creation
yes
Chapter insertion
yes
Continuous number stamping
yes
Cover mode
yes
X/Y independent zoom
yes
Distribution numbering
yes
Edge / Frame / Fold line erase
yes
Image insertion
yes
Image repeat
yes
Image shift
yes
Image rotation
yes
Program job
yes
Non-image area erase
yes
OHP interleaving
yes
Overlay
yes (UK-211 required)
Page insertion
yes
Positive-negative-mode
yes
Date stamp / Page stamp
yes / yes
Electronic print / Rotation print out /
Criss-cross sorting
yes / yes / yes

19
19
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
Program memory
yes (30)
Proof copy
yes
Separate scanning
yes
Stamp
yes
Watermark
yes
Gloss copy
yes
Enlarge display
yes
Account track / Department control
Yes (1,000)
User authentication
yes
Copy protection
yes

20
20
Product Guide
ineo+ 258/C308/C368
Product Guide ineo+ 258/308/368
Printer specifications
(ineo controller)
ineo+ 658
ineo+ 558
ineo+ 458
ineo+ 368
ineo+ 308
ineo+ 258
CPU
1.2 GHz (ARM Coretex Dual Core)
PRINT SPEED
A4 crosswise mono/colour
(simplex/duplex)
36 ppm
30 ppm
25 ppm
A3 mono/colour (simplex/duplex)
18 ppm
15 ppm
15 ppm
PRINT RESOLUTION
1800 x 600 dpi equivalent / 1200 x 1200 dpi
PDL
PCL6 (Ver. 3.0) Emulation, PCL5e/c Emulation,
PostScript 3 Emulation (3016), XPS Ver. 1.0
PRINT RAM
2 GB (shared among all MFP functions)
PRINT HDD
250 GB (shared among all MFP functions)
FONTS
PCL
80 x PCL AgfaMicro type
PostScript3
137 x PS3: AgfaMicro typ
INTERFACES
10BaseT/100BaseT/1000 BaseT
yes (standard)
USB 2.0
yes (standard)
USB Host
yes (standard, for USB direct printing)
NETWORK PROTOCOLS
TCP/IP (IPv4, IPv6)
yes
IPX/SPX (ND support)
yes
SMB (NetBEUI)
yes
LPD
yes
IPP 1.1
yes
