ENGLISH
2
ROTARY DRILL
DW130V
Congratulations!
You have chosen a DeWALT tool. Years of
experience, thorough product development and
innovation make DeWALT one of the most reliable
partners for professional power tool users.
Technical Data
DW130V
Voltage V 110
Power input W 900
No load speed min-1 0-550
Chuck size mm 13
Weight kg 3.4
Definitions: Safety Guidelines
The definitions below describe the level of severity
for each signal word. Please read the manual and
pay attention to these symbols.
DANGER: Indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
NOTICE: Indicates a practice not
related to personal injury which, if
not avoided, may result in property
damage.
Denotes risk of electric shock.
Denotes risk of fire.
WARNING: To reduce the risk of injury,
read the instruction manual.
General Power Tool Safety Warnings
WARNING! Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result
in electric shock, fire and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric
shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and
use common sense when operating a

ENGLISH
3
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger
on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce
dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it
was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power
tool repaired before use. Many accidents
are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
g) Use the power tool, accessories and
tool bits etc., in accordance with these
instructions taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by
a qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
Drill safety warnings
− Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
− Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal
injury.
− Hold power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual before use.

ENGLISH
4
DATE CODE POSITION
The Date Code, which also includes the year of
manufacture, is printed into the housing surface that
forms the mounting joint between tool and battery.
Example:
2014 XX XX
Year of Manufacture
Package Contents
The package contains:
1 Rotary drill
1 Side handle
1 spade handle
1 Instruction manual
• Check for damage to the tool, parts or
accessories which may have occurred during
transport.
• Take the time to thoroughly read and
understand this manual prior to operation.
Description
Your professional DEWALT rotary drill DW130V has
been designed for heavy duty rotary drilling, thread
tapping and mixing.
1 On/off-switch
2. Forward/reverse slider
3. Keyed chuck
4. Side handle
5. spade handle
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
Motor
Be sure your power supply agrees with the
nameplate marking. Voltage decrease of more than
10% will cause loss of power and overheating.
DeWALT tools are factory tested; if this tool does not
operate, check power supply.
Assembly and adjustments
WARNING: To reduce the risk of
injury, turn unit off and disconnect
it from power source before
installing and removing accessories,
before adjusting or when making
repairs. An accidental start-up can
cause injury.

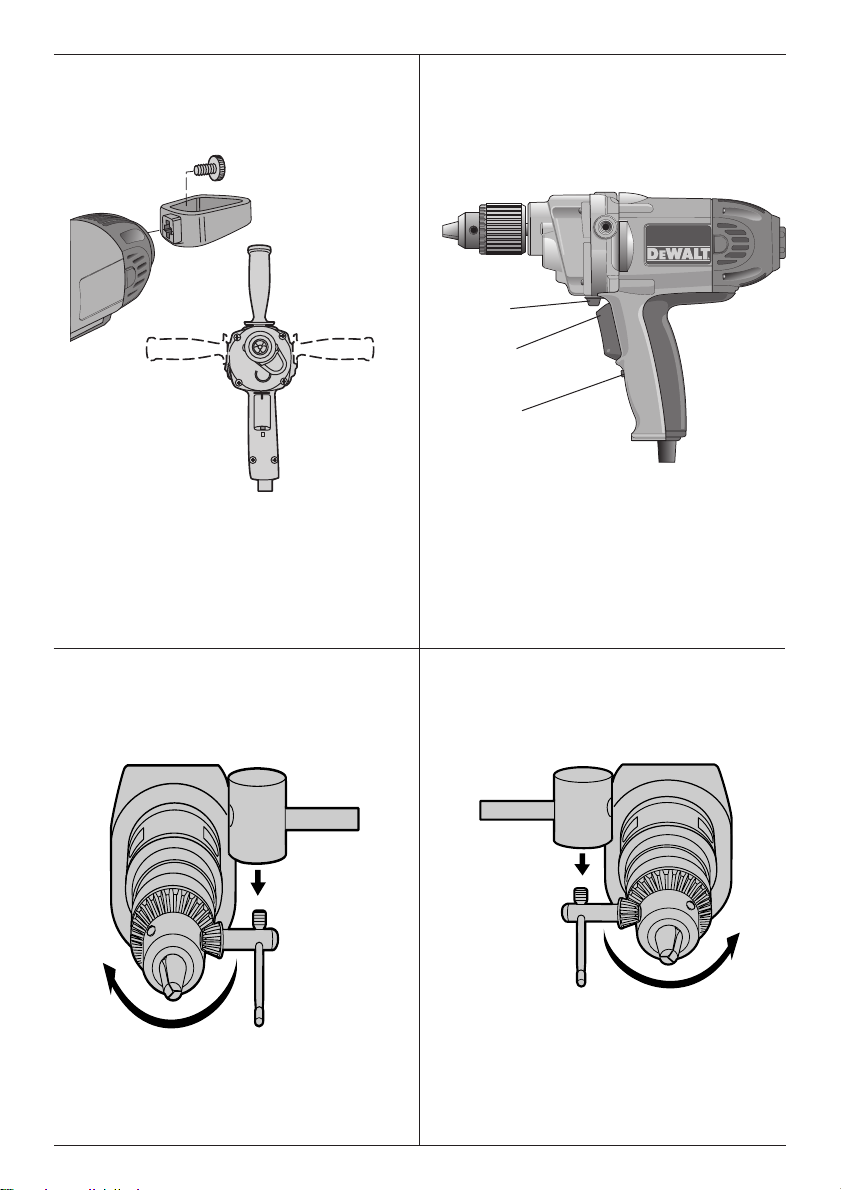

Spade Handle Assembly (Fig. 1)
This spade handle can be attached either
horizontally or vertically. Place the handle into the
locating boss on the back of the drill and assemble
with holding knob.
Side Handle (Fig. 1)
WARNING: To reduce the risk of
personal injury, always operate the tool
with the side handle properly installed.
Failure to do so may result in the side
handle slipping during tool operation
and subsequent loss of control. Hold
tool with both hands to maximize
control.
The side handle can be placed in either side of
the drill or the top of the drill according to operator
preference and available working clearance. The
spade handle can be temporarily removed if working
clearance at rear of tool is limited. Always replace
spade handle when possible.
Switch (Fig. 2)
To start the drill, depress the trigger switch; to stop
the drill, release the trigger.
A variable speed trigger switch (A) permits speed
control—the farther the trigger is depressed, the
higher the speed of the drill.
NOTE: Use lower speeds for starting holes without
a center punch, drilling in metal or plastics, driving
screws or drilling ceramics. Higher speeds are better
for drilling wood and composition boards and using
abrasive and polishing accessories.
The reversing lever (B) is used for withdrawing bits
from tight holes and removing screws. It is located
above the trigger switch. To reverse the motor,
release the trigger switch FIRST and then push the
lever to the right. After any reversing operations,
return lever to forward position.
The locking feature (C) is for use when the drill is
mounted in a drill stand or otherwise firmly held…
NOT BY HAND.
Do not lock the switch “ON” when drilling by hand
so that you can instantly release the trigger switch if
the bit binds in the hole.
Be sure to release the switch locking button
before disconnecting the plug from the power

ENGLISH
5
supply. Failure to do so will cause the tool to start
immediately the next time it is plugged in. Damage
or injury could result.
Chuck
To insert bit, open chuck jaws by turning collar with
fingers and insert shank of bit about 3/4” (19mm)
into chuck. Tighten chuck collar by hand. Place
chuck key in each of the three holes and tighten in
clockwise direction. It’s important to tighten chuck
with all three holes.
To release bit, turn chuck key counterclockwise in
just one hole, then loosen the chuck by hand.
Chuck Removal (Fig. 3, 4)
1. Place chuck key in chuck as shown in Figure
3. Using a wooden mallet or similar object,
strike key sharply in a CLOCKWISE direction.
This willloosen screw inside chuck.
2. Open chuck jaws fully. Insert screwdriver into
front of chuck between jaws to engage screw
head. Remove screw by turning clockwise (left-
hand thread).
3. Place key in chuck as shown in Figure 4. Using
a wooden mallet or similar object, strike key
sharply in a COUNTERCLOCKWISE direction.
This will loosen chuck so that it can be
unscrewed by hand.
OPERATION
WARNING: To reduce the risk of
injury, turn unit off and disconnect
it from power source before
installing and removing accessories,
before adjusting or when making
repairs. An accidental start-up can
cause injury.
Drilling
1. Use sharp drill bits only. For WOOD, use twist
drill bits, spade bits, power auger bits, or hole
saws. For METAL, use high-speed steel twist
drill bits or hole saws. For MASONRY, such as
brick, cement, cinder block etc., use carbide-
tipped bits.
2. Be sure the material to be drilled is anchored
or clamped firmly. If drilling thin material, use
a wood “back-up” block to prevent damage to
the material.
3. Always apply pressure in a straight line with the
bit. Use enough pressure to keep drill biting,
but do not push hard enough to stall the motor
or deflect the bit.
4. Hold drill firmly to control the twisting action of
the drill. Use side handle.
CAUTION: Drill may stall if overloaded
causing a sudden twist. Always expect
the stall. Grip the drill firmly to control
the twisting action and avoid injury.
5. If drill stalls, it is usually because it is
being overloaded or improperly used. Release
trigger immediately, remove drill bit from work,
and determine cause of stalling. Do not click
trigger off and on in an attempt to start a
stalled drill- this can dammge the drill.
6. To minimize stalling on breaking through the
material, reduce pressure on drill and ease the
bit through the last fractional part of the hole.
7. Keep the motor running when pulling the bit
back out of a drilled hole. This will help prevent
amming.
Drilling in Wood
Holes in wood can be made with the same twist
drills used for metal. These bits may overheat unless
pulled out frequently to clear chips from the flutes.
For larger holes, use spade bits, power auger bits,
or hole saws. Work that is likely to splinter should be
backed up with a block of wood.
Drilling in Metals
Use a cutting lubricant when drilling metals. The
exceptions are cast iron and brass which should be
drilled dry. The cutting lubricants that work best are
sulphurised cutting oil or lard oil; bacon grease will
also serve the purpose.
Drilling in Masonry
Use carbide tipped masonry bits at low speeds.
Keep even force on the drill but not so much that
you crack the brittle materials. A smooth, even flow
of dust indicates the proper drilling rate
MAINTENANCE
Your DeWALT power tool has been designed to
operate over a long period of time with a minimum
of maintenance. Continuous satisfactory operation
depends upon proper tool care and regular cleaning.

ENGLISH
6
WARNING: To reduce the risk
of serious personal injury, place
the forward/reverse button in
the lock-off position or turn tool
off and disconnect battery pack
before making any adjustments or
removing/installing attachments or
accessories. An accidental start-up
can cause injury.
The charger and battery pack are not serviceable.
There are no serviceable parts inside.
Lubrication
Your power tool requires no additional lubrication.
Cleaning
WARNING: Blow dirt and dust out of
the main housing with dry air as often as
dirt is seen collecting in and around the
air vents. Wear approved eye protection
and approved dust mask when
performing this procedure.
WARNING: Never use solvents or
other harsh chemicals for cleaning the
non-metallic parts of the tool. These
chemicals may weaken the materials
used in these parts. Use a cloth
dampened only with water and mild
soap. Never let any liquid get inside the
tool; never immerse any part of the tool
into a liquid.
CHARGER CLEANING INSTRUCTIONS
WARNING: Shock hazard. Disconnect
the charger from the AC outlet before
cleaning. Dirt and grease may be
removed from the exterior of the charger
using a cloth or soft non-metallic brush.
Do not use water or any cleaning
solutions.
Optional Accessories
WARNING: Since accessories, other
than those offered by DeWALT,have
not been tested with this product, use
of such accessories with this tool could
be hazardous. To reduce the risk of
injury, only DeWALT recommended
accessories should be used with this
product.
WARNING: To reduce the risk of
injury, only use DeWALT impact-ready
accessories.
WARNING: Use only impact
accessories. Non-impact accessories
may break and cause a hazardous
condition. Inspect accessories prior
to use to ensure that they contain no
cracks.
Consult your dealer for further information on the
appropriate accessories.
Protecting the Environment
Separate collection. This product must
not be disposed of with normal
household waste.
Should you find one day that your DeWALT product
needs replacement, or if it is of no further use to you,
do not dispose of it with household waste. Make this
product available for separate collection.
Separate collection of used products
and packaging allows materials to be
recycled and used again. Re-use of
recycled materials helps prevent
environmental pollution and reduces
the demand for raw materials.
Local regulations may provide for separate collection
of electrical products from the household, at
municipal waste sites or by the retailer when you
purchase a new product.
DeWALT provides a facility for the collection and
recycling of DeWALT products once they have
reached the end of their working life. To take
advantage of this service please return your product
to any authorised repair agent who will collect them
on our behalf.
You can check the location of your nearest
authorised repair agent by contacting your local
DeWALT office at the address indicated in this
manual. Alternatively, a list of authorised DeWALT
repair agents and full details of our after-sales
service and contacts are available on the Internet at:
www.2helpU.com.

繁體中文
7
電鑽
DW130V
恭喜閣下！
感謝您選購 DEWALT 工具。憑藉多年的產品開發和
創新經驗，DEWALT 已成為專業電動工具使用者最
信賴的夥伴之一。
請注意！各地區上市產品配件不盡相同，請依台
灣繁體說明書的內容為主。
技術資料
DW130V
電壓 V 110
輸入功率 W 900
空載轉速 min-1 0-550
夾頭尺寸 mm 13
重量 kg 3.4
定義：安全指南
以下定義描述了每一個詞彙的嚴重程度。請閱讀本
手冊並注意這些符號。
危險：表示緊急危險情況，若未能避
免，將導致死亡或嚴重傷害。
警告：表示潛在危險情況，若未能避
免，可能導致死亡或嚴重傷害。
小心：表示潛在危險情況，若未能避
免，可能導致輕微或中度傷害。
注意：表示一種非人身傷害的行為，若
未能避免，可能導致財產損失。
表示觸電危險。
表示火災危險。
警告：為了降低受傷的風險，必須仔細
閱讀使用手冊。
電動工具一般安全警告
警告！請閱讀所有安全警告及使用指
示。不遵循這些警告和指示可能會導致
觸電、火災及/或嚴重傷害。
請妥善保存所有的警告和使用手冊
以備將來查閱
警告中的名詞「電動工具」是指電源驅動（插電）
電動工具，或者電池驅動（充電）電動工具。
1) 工作場地安全
a) 保持工作場地清潔和明亮。混亂或黑暗的場
地會引發事故。
b) 不要在易爆環境，如有易燃液體、氣體或塵
埃的環境中操作電動工具。 電動工具產生的
火花會點燃塵埃或氣體。
c) 請等待兒童和旁觀者離開之後才操縱電動工
具。分心會導致您疏於控制。
2) 電氣安全
a) 電動工具插頭必須與插座相符。切勿以任何
方式改裝插頭。需接地的電動工具不能使用
任何配接器插頭。未經改裝的插頭和相符的
插座可以減少觸電危險。
b) 避免人體接觸接地表面，如管道、散熱片、
爐灶和冰箱。若您的身體接地，可增加觸電
危險。
c) 不得將電動工具暴露在雨中或潮濕環境中。
水進入電動工具會增加觸電危險。
d) 切勿濫用電線。請勿使用電線來搬運、拉動
電動工具或拔出插頭。讓電線遠離熱、油、
銳邊和活動部件。受損或纏繞的電線會增加
觸電危險。
e) 若要在戶外使用電動工具，請使用適合戶外
使用的延長電纜。使用適合戶外使用的電線
可減少觸電危險。
f) 若必須在潮濕場合使用電動工具，請使用漏
電保護器 (RCD)。使用漏電保護器可降低觸
電危險。
3) 人身安全
a) 保持警覺。在操作電動工具時，請留意所執
行的操作並按照一般的常識執行。切勿在疲
倦，或受到藥物、酒精或治療的影響下操作
電動工具。操作電動工具期間注意力分散會
導致嚴重人身傷害。
b) 使用個人防護裝置。始終佩戴護目裝備。防
護裝置，例如在適當條件下可使用的防塵面
具、防滑安全鞋、安全帽或聽力保護等裝置
可減少人身傷害。
c) 避免意外啟動。連接電源及/或電池組、舉
抬或搬運電動工具之前，請確定開關處於關
閉位置。搬運電動工具時若將手指放在開關
上，或是在接通開關電源時插入插頭都會引
發危險。
d) 接通電動工具之前，請卸下所有的調整鑰匙
或扳手。遺留在電動工具旋轉部件上的扳手
或鑰匙會導致人身傷害。
e) 不要過度伸張雙手。時刻注意腳下和身體的
平衡。如此即可在發生意外的情況下更好地
控制電動工具。
f) 適當穿著。不要穿寬鬆衣服或佩戴飾品。讓
您的頭髮、衣服和手套遠離活動部件。寬鬆
衣服、佩飾和長髮可能會捲入活動部件。

繁體中文
8
g) 若配備用於連接排屑裝置、集塵設備的裝
置，請確定正確連接和使用這些裝置。使用
集塵設備可減少與塵埃有關的危險。
4) 電動工具的使用與維護
a) 不要超負荷使用電動工具。根據您的用途使
用適當的電動工具。使用適當的電動工具在
其設計可負荷的應用內，會讓您更有效、更
安全地執行工作。
b) 若開關不能開啟或關閉電源，切勿使用該電
動工具。不能用開關來控制的電動工具將存
在危險，必須進行維修。
c) 在執行任何調整、更換配件或儲存電動工具
之前，請從電源上拔掉插頭及/或卸下電池
組。這類防護性措施可降低電動工具意外啟
動的風險。
d) 將閒置的電動工具儲存在兒童無法接觸的地
方，並且不要讓不熟悉電動工具或對這些使
用指示不瞭解的人員操作電動工具。電動工
具在未經培訓的使用者手中會發生危險。
e) 維護電動工具。檢查活動部件是否對準或卡
住、破損情況以及是否存在影響電動工具運
行的其他情況。若有損毀，必須在使用之前
修理電動工具。許多事故都是由於電動工具
欠缺維護所導致。
f) 保持刀具鋒利和清潔。妥善維護、切削鋒利
的切割工具不會輕易卡住並可更輕鬆控制。
g) 遵循使用指示以及工作條件和所要執行的工
作使用電動工具、配件和工具刀頭等。不按
照設計目使用電動工具將會導致危險。
5) 檢修
a) 本電動工具必須由合格的維修人員並只採用
相同的原廠部件來執行檢修。這將確保電動
工具的安全性。
電鑽之安全警告
• 請在使用震動電鑽時佩戴聽力保護器。噪音
會使聽力受損。
• 請使用工具隨附的輔助手柄。工具失控會導
致人身傷害。
• 若在執行操作時切割配件可能會接觸隱藏的
電線或它本身的電線， 則只能從絕緣手柄
表面握住電動工具。若切削配件接觸到「帶
電」導線，電動工具金屬部件表面就會「帶
電」，從而導致操作人員觸電。
工具上的標誌
工具上會附帶下列圖示：
使用前請閱讀使用手冊。
日期代碼位置
日期代碼也包括 製造年份，已經印刷在工具外殼上
電池安裝接口的表面上。
範例：
2014 XX XX
製造年份
套裝內的物件
本套裝包括：
電鑽 1 台
側手柄 1 把
鍬柄 1 把
使用手冊 1 本
• 檢查工具、部件或配件有否在運送途中損壞。
• 操作前，請抽空徹底地閱讀和掌握本手冊的內
容。
說明
DEWALT電鑽DW130V是專用於重型旋轉鑽孔、螺紋攻絲和
攪拌作業的專業工具。
1 電源開關
2. 正/反轉開關
3. 帶鑰匙夾頭
4. 側手柄
5. 鍬柄
請保存這些安全指示
以備將來查閱
電機
請確保您的電源供應器與銘牌上標注的內容一致。
電壓降低超過10%將導致功率損失以及過熱。
DEWALT 工具已進行出廠檢驗；若此工具無法運
作，請檢查電源。
裝配與調整
警告：若要降低傷害危險，請在安裝
和移除配件、調整或進行修理時關閉工
具並斷開電源。意外啟動工具會造成傷
害。
鍬柄元件（圖 1）
可以在水平或垂直方向連接此鍬柄。將鍬柄放入電
鑽後的定位凸座中，並與握持旋鈕裝配好。
側手柄（圖 1）
警告：為減低受傷風險，務必在已正確
地安裝側手柄的情況下操作本工具。否
則可能會導致側手柄在操作時鬆脫並失
控。使用雙手操作本工具避免失控。

繁體中文
9
側邊手柄可以根據操作人員的使用習慣及作業的可
用空間，放在電鑽的兩側或頂部。如果工具後部的
作業空間有限，可以臨時拆下鍬柄。但拆下後，請
儘量將鍬柄裝回原位。
開關（圖 2）
若要啟動電鑽，請按壓觸發開關；若要停止電鑽，
請釋放觸發開關。
變速觸發開關(A)允許對速度進行控制 —愈用力擠
壓觸發開關，鑽頭便會以愈快的速度運轉。
註：在金屬、塑料上鑽孔、旋入螺絲或在陶瓷上鑽
孔且不使用中心衝時，鑽孔開始階段適用較低的速
度。在木材和複合板上鑽孔、使用研磨和拋光配件
時，適用較高的速度。
反向桿(B)用於從緊小的孔中拔出鑽頭並移除螺絲。
它位於觸發開關的上方。要反向運轉電機，首先釋
放觸發開關，然後將反向桿撥向右。完成所有反轉
操作後，把反向桿回復到正轉位置。
鎖定功能(C)在電鑽安裝在鑽架上或用其他方式固定
的情況下使用。 切勿用手鎖定開關。
進行鑽孔作業時，切勿用手將開關鎖定在「ON」
的位置，這樣，若出現鑽頭卡在孔中的情況，您可
以立即釋放觸發開關。
從電源上斷開插頭連接前，請確保已釋放開關鎖定
按鈕。否則將導致下次插入插頭時工具立即啟動，
並可能導致損壞或人身傷害。
夾頭
要插入鑽頭，用手轉動調整環打開夾頭爪，然後插
入鑽頭軸約 3/4”(19 mm) 深。用手擰緊夾頭調整
環。將夾頭鑰匙放入三個孔中，順時針方向擰緊。
在所有三個孔中確保擰緊夾頭的操作非常重要。
要釋放鑽頭，只需在一個孔中逆時針轉動夾頭鑰
匙，然後用手鬆開夾頭。
取下夾頭（圖 3、4）
1. 如圖 3 所示，將夾頭鑰匙放入夾頭中，使用木
槌或類似物體，沿順時針方向急速敲打鑰匙。
如此操作後會在夾頭內部鬆動螺絲。
2. 全部打開夾頭爪。將螺絲起子插入爪間的夾頭
前部以與螺絲頭嚙合。順時鐘方向旋轉拆下螺
絲（左旋螺紋）。
3.如圖 4 所示，將鑰匙放入夾頭中。使用木槌或
類似物體，沿逆時針方向急速敲打鑰匙。如此
操作後將會鬆動夾頭，這樣便可以用手旋出夾
頭。
操作
警告：若要降低傷害危險，請在安裝
和移除配件、調整或進行修理時關閉工
具並斷開電源。意外啟動工具會造成傷
害。
鑽孔
1. 請僅使用鋒利的鑽頭。對於木材，應使用麻花
鑽頭、扁鑽頭、機械螺旋鑽頭或孔鋸。對於金
屬，應使用高速鋼麻花鑽頭或孔鋸。對於磚
石，如石磚、水泥、空心磚等，使用硬質合金
鑽頭。
2. 確保要鑽孔的材料已穩固地固定或夾住。若是
在較薄的材料上鑽孔，請使用一塊「墊背」木
塊以防止損壞材料。
3. 始終以與鑽頭方向成一直線的方式施加壓力。
施加足夠的壓力以保持鑽頭刺穿，但不要過度
用力以免電機失速，或使鑽頭偏斜。
4. 緊握電鑽以控制電鑽的旋轉動作。使用側手
柄。
小心：如果過載，電鑽可能會失速，導
致突然旋轉。請保持警覺，並隨時有失
速的心理準備。緊握電鑽以控制旋轉動
作，避免傷害。
5. 電鑽失速通常是由於過載或使用不當所致。請
立即鬆開觸發器，從工件上退出鑽頭，並查找
失速的原因。請勿鬆開又按下觸發器以試圖啟
動失速的電鑽，這會損壞電鑽。
6.為儘量減少失速故障或避免鑽頭在材料中折
斷，請降低對電鑽施加的壓力，並減少鑽頭在
孔的最後部分承受的壓力。
7. 將鑽頭從已鑽好的孔拔出時，讓電機保持運
轉。這有助於防止卡死。
在木材上鑽孔
木材鑽孔可以使用和鋼材鑽孔一樣的麻花鑽頭。如
果不經常拔出鑽頭來清理鑽屑，這些鑽頭可能會過
熱。鑽較大的孔時，應使用扁鑽頭、機械螺旋鑽頭
或孔鋸。易碎裂材料應墊上木塊。
在金屬上鑽孔
在金屬上鑽孔時使用切割潤滑劑。鑄鐵和黃銅是例
外，它們應保持乾燥而直接鑽孔。效果最佳的切割
潤滑劑是硫化切割油或豬油；培根油脂也能達到同
樣目的。
在磚石上鑽孔
請使用硬合金鑽頭磚石鑽頭並以低速鑽孔。在電鑽
上均勻施力，但在脆性材料上鑽孔時不要施力過
大，以防其破裂。如果鑽屑平滑、均勻地流出，則
表明鑽孔速度適當。
維護
DEWALT 電動工具採用卓越的設計，能夠長時間使
用，並且只需最少的維護。若要持續獲得滿意的操
作效果，需進行正確的工具維護和定期的清潔。
警告：為了減低造成嚴重人身傷害的風
險，在進行任何調整或卸下/安裝附件

繁體中文
10
或配件之前，切記將正/反轉按鈕置於
鎖止位置，或關掉工具的電源並取出電
池組。意外啟動工具可能會造成傷害。
充電器和電池組是不可檢修的裝置。充電器和電池
組內不含可檢修的部件。
潤滑
本電動工具毋需額外潤滑。
清潔
警告：一旦通風口及其周圍積聚可見的
塵埃，請立即使用乾燥的壓縮空氣吹掉
主機外殼內的塵埃和灰塵。執行此步驟
時，請佩戴經認可的護目裝備和防塵面
罩。
警告：切勿使用溶劑或其他刺激性化學
品來清潔工具的非金屬部件。這些化學
品可能會削弱零件中使用的材料。只能
使用抹布蘸中性肥皂水進行清潔。不要
讓任何液體進入工具；不要讓工具的任
何部分浸入液體中。
充電器清潔指示
警告：觸電危險。在清潔之前，請將充
電器的插頭從電源插座上拔掉。使用軟
布或非金屬軟刷，去除充電器外部的污
垢和油脂。請勿使用水或任何清潔劑。
選購配件
警告：由於非 DEWALT 所提供的配件
未在本產品上進行過使用測試，在本產
品上使用這些配件可能會導致危險。為
降低傷害危險，在本產品上只應使用
DEWALT 所推薦的配件。
警告：為了降低受傷的風險，只可以使
用DEWALT 衝擊型配件。
警告：僅可以使用衝擊配件。非衝擊
配件可能會爆裂，導致危險。使用配件
前，請檢查配件，確保沒有裂縫。
如需進一步瞭解適用配件的相關資訊，請洽詢當地
代理商。
保護環境
分類收集。本產品必須與一般家庭廢物
分開處置。
若您發現您的 DEWALT 產品需要進行替換，或您已
經不再需要使用這些產品，請不要將它們與家庭廢
物一起處置。務必將本產品送往分類收集處。
分類收集用過的產品和包裝允許材料循
環再生利用。重新使用循環利用的材料
有助於防止環境污染，並減少原始材料
的需求。
當地法規可能要求由市政廢物回收點，或由向您出
售新產品的經銷商來提供將電子產品與家庭廢物分
類收集的服務。
DEWALT 提供設施收集和回收使用壽命結束的
DEWALT 產品。若要享受此項服務，請將產品送回
任一授權維修中心，由其代表我們進行收集。
請根據本手冊上所提供地址與當地 DEWALT 辦事處
聯絡，查詢離您最近的授權維修中心所在位置。
您亦可瀏覽網站查詢DEWA LT授權維修中心清
單和售後服務及聯絡資料之詳細資訊，網址
是：www.2helpU.com。
進口商:新加坡商百得電動工具(股)公司台灣分公司
地址:台北市士林區德行西路33號2樓
電話:[phone]
總經銷商:永安實業股份有限公司
地址:新北市三重區新北大道二段137號
電話:[phone]
N529141 04/2017
