DeWalt DXGSE User manual

Operator's Manual
Manuel de l'utilisateur
Manual del operador
DXGSE
2-Cycle Lawn Edger
Coupe-bordures de pelouse á 2 temps
Bordeadora de césped de 2 tiempos
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-855-971-1123

2
English (original instructions) 3
Français (traduction des instructions d’origine) 33
Español (traducción de las instrucciones originales) 65
WARNING:This product can expose you to chemicals including engine
exhaust, which is known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth defects or
other reproductive harm. For more information go to www.P65Warnings.ca.gov.
AVERTISSEMENT :Ce produit peut vous exposer à des produits
chimiques, notamment les gaz d'échappement du moteur reconnus par l'État de
Californie comme étant cancérogène, et le monoxyde de carbone, reconnu par
de l'État de Californie comme provoquant des malformations congénitales ou
d'autres problèmes de reproduction. Pour en savoir plus, consultez le site
www.P65Warnings.ca.gov.
ADVERTENCIA:Este producto puede exponerlo a productos químicos,
incluidos gases de escape del motor, indicados por el estado de California como
causantes de cáncer, y monóxido de carbono, indicado por el estado de California
como causante de defectos de nacimiento u otros daños reproductivos. Para
obtener más información, visite: www.P65Warnings.ca.gov.

3
All information, illustrations, and specications in
this manual are based on the latest product
information available at the time of printing. We
reserve the right to make changes at any time
without notice.
The product may vary slightly from the
illustrations contained in this manual.
SERVICE
DO NOT RETURN THIS UNIT TO THE
RETAILER. PROOF OF PURCHASE
WILL BE REQUIRED FOR WARRANTY
SERVICE.
For assistance regarding the assembly, operation
or maintenance of the unit, please call 1-855-
971-1123.
Warranty service is available through an
authorized service center. To locate a service
center in your area, please visit our website or
call the number listed above. Service on this
unit, both within and after the warranty period,
should only be performed by an authorized and
approved service center. When servicing, use
only identical replacement parts.
Be sure to register your product at
www.DEWALT.com/Register to receive
important product information, special
promotions and oers, and more.
ENGLISH

4
SAFETY
SPARK ARRESTOR NOTE
NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and
Washington. All U.S. Forest Land and the state of California (Public Resources Codes
4442 and 4443), Oregon and Washington require, by law that certain internal
combustion engines operated on forest brush and/or grass-covered areas be
equipped with a spark arrestor, maintained in eective working order, or the engine
be constructed, equipped and maintained for the prevention of re. Check with
your state or local authorities for regulations pertaining to these requirements.
Failure to follow these requirements could subject you to liability or a ne. This
unit is factory equipped with a spark arrestor. If it requires replacement, contact
your local service dealer to install the appropriate muer assembly.
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols, and their explanations, deserve your careful attention and understanding. The
safety warnings do not by themselves eliminate any danger. The instructions or warnings
they give are not substitutes for proper accident prevention measures.
NOTE: Advises you of information or instructions vital to the operation or maintenance of
the equipment.
ENGLISH
WARNING:Read the operator’s manual and follow all warnings and
safety instructions. Failure to do so can result in serious injury to the
operator and/or bystanders.
SYMBOL MEANING
DANGER:Signals an EXTREME hazard.
Failure to obey a safety DANGER symbol WILL result in serious injury or
death to yourself or to others.
WARNING:Signals a SERIOUS hazard.
Failure to obey a safety WARNING symbol CAN result in serious injury to
yourself or to others.
CAUTION:Signals a MODERATE hazard.
Failure to obey a safety CAUTION symbol MAY result in property damage
or injury to yourself or to others.

5
IMPORTANT
SAFETY
INSTRUCTIONS
READ ALL INSTRUCTIONS
BEFORE OPERATING
• Read the instructions carefully. Be
familiar with the controls and proper
use of the unit. Know how to stop the
unit and disengage the controls quickly.
• Stay alert. Do not operate this unit
when tired, ill or under the inuence of
alcohol, drugs or medication.
• Never allow children to operate the
unit. Teens must be trained,
accompanied and supervised by an
adult. Never allow adults to operate the
unit without proper instruction.
• All guards and safety attachments
must be installed properly before
operating the unit.
• Inspect the unit before use. Check for
damaged parts. Check for fuel leaks.
Make sure all parts operate properly.
Make sure all fasteners are in place and
secure. Make sure all moving parts are
properly aligned and are not bound.
ENGLISH
WARNING:When using
the unit, all safety instructions
must be followed. Please read
these instructions before
operating the unit in order to
ensure the safety of the operator
and any bystanders. Please keep
these instructions for later use.
Replace parts that are cracked,
chipped, or damaged in any way. Have
all damaged or improperly working
parts repaired or replaced by an
authorized service center. Do not
operate the unit with loose or
damaged parts.
• Be aware of risk of injury to the head,
hands and feet.
• Carefully inspect the area before
starting the unit. Remove rocks, broken
glass, nails, wire, string and other
objects that may be thrown or become
entangled with the unit.
• Clear the area of children, bystanders
and pets; keep them outside a 50-foot
(15 m) radius, at a minimum. Even then,
they are still at risk from thrown
objects. Encourage bystanders to wear
eye protection. If you are approached,
stop the unit immediately.
• Squeeze the throttle control and check
that it returns automatically to the idle
position. Make all adjustments or
repairs before using the unit.
• Do not change the engine governor
settings or overspeed the engine.
SAFETY - Continued
SAFETY WARNINGS FOR GAS
UNITS
• Store fuel only in containers specically
designed and approved for the storage
of such materials.
WARNING:Gasoline is
highly ammable and its vapors
can explode if ignited. Take the
following precautions:

6
ENGLISH
SAFETY - Continued
• Always stop the engine and allow it to
cool before lling the tank. Never
remove the fuel tank cap or add fuel
when the engine is hot. Always loosen
the fuel tank cap slowly to relieve any
pressure in the tank before fueling.
•Always mix and add fuel in a clean, well-
ventilated outdoor area where there are
no sparks or ames. DO NOT smoke.
• Never operate the unit without the fuel
cap securely in place.
• Avoid creating a source of ignition for
spilled fuel. Wipe up any spilled fuel
from the unit immediately, before
starting the unit. Move the unit at least
30 ft. (9.1 m) from the fueling source
and site before starting the engine. DO
NOT smoke.
• Never start or run the unit inside a
closed room or building. Breathing
exhaust fumes can kill. Operate this unit
only in a well-ventilated outdoor area.
WHILE OPERATING
• Wear safety glasses or goggles that
meet current ANSI / ISEA Z87.1
standards and are marked as such.
Wear ear/hearing protection when
operating this unit. Wear a face mask or
dust mask if the operation is dusty.
• Wear heavy long pants, boots, gloves
and a long sleeve shirt. Do not wear
loose clothing, jewelry, short pants,
sandals or go barefoot. Secure hair
above shoulder level.
• Adjust the handle to provide the best
grip, if applicable.
• Use the unit only in daylight or good
articial light.
•Avoid accidental starting. Be in the
starting position whenever pulling the
starter rope. The operator and unit must
be in a stable position while starting.
Refer to Starting and Stopping.
• Use the right tool. Only use this tool for
its intended purpose. Only use the unit
as described in this manual.
• Always hold the unit with both hands
when operating. Keep a rm grip on
both handles or grips.
• Do not overreach. Always keep proper
footing and balance. Take extra care
when working on stairs, steep slopes or
inclines. To avoid serious injury, do not
operate the unit while on a ladder or a
roof.
• Keep hands, face, and feet away from
all moving parts. Do not touch or try to
stop moving parts.
• Do not touch the engine, gear housing
or muer. These parts get extremely
hot from operation, even after the unit
is turned o.
• To prevent serious personal injury,
avoid arm contact with the engine
while operating the unit. The engine
may be extremely hot.
•Do not operate the unit faster than the
speed needed to do the job. Do not run
the unit at high speed when not in use.
• Do not force the unit. It will do a better,
safer job when used at the intended rate.
• Always turn the unit o when
operation is delayed or when carrying
the unit from one location to another.
Make sure all moving parts come to a
complete stop.
• Before setting the unit down, always
make sure the engine is o and all
moving parts have stopped.

7
ENGLISH
SAFETY - Continued
•If the unit strikes or becomes entangled
with a foreign object, stop the unit
immediately. Check for damage. If
damaged, do not restart or operate the
unit until it is repaired. Do not operate
the unit with loose or damaged parts.
• Turn the engine o and disconnect the
spark plug for maintenance or repair.
• Use only original equipment
manufacturer (OEM) replacement parts
and accessories for this unit. These are
available from your authorized service
dealer. Use of any other parts or
accessories could lead to serious injury
to the user, or damage to the unit, and
void the warranty.
• Keep the unit clean. Carefully remove
vegetation and other debris that could
block moving parts.
• To reduce re hazard, replace a faulty
muer and spark arrestor. Keep the
engine and muer free from grass,
leaves, excessive grease or carbon
build up.
• If the unit starts to vibrate abnormally,
stop the unit immediately. Inspect the
unit for the cause of the vibration.
Vibration is generally an indicator of
trouble.
EDGER SAFETY
• Make sure the blade is not in contact
with anything before starting the unit.
• The blade should remain stationary
when the engine idles. If it does not,
refer to Adjusting the Idle Speed.
• Use extreme caution when reversing or
pulling the unit towards you.
• Blade thrust may occur when the
spinning blade contacts an object that
it does not immediately cut. Blade
thrust can be violent enough to propel
the unit and/or operator in any
direction, possibly causing a loss of
control. Blade thrust can occur without
warning if the blade snags, stalls or
binds. This is more likely to occur in
areas where it is dicult to see the
material being cut.
• The blade will continue to spin after
the unit is turned o. A coasting blade
can cause serious injury. Maintain
control of the unit until all moving
parts have stopped.
• Do not operate the unit with a bent,
cracked or dull blade. Replace bent,
cracked or dull blades.
• The blade may become very sharp
from use. Always wear heavy gloves
when handling, replacing or cleaning
the blade.
OTHER SAFETY WARNINGS
• Maintain the unit with care. Follow all
maintenance instructions in this manual.
•Do not perform maintenance
procedures other than those described
in this manual. All service, other than
the maintenance procedures described
in this manual, should be performed by
an authorized service dealer.
• Never remove, modify or make
inoperative any safety device furnished
with the unit.

8
ENGLISH
• Before inspecting, maintaining,
cleaning, storing, transporting or
replacing any parts on the unit:
1. Stop the unit. Refer to Starting and
Stopping.
2. Make sure all moving parts have
stopped.
3. Allow the unit to cool.
4. Disconnect the spark plug wire.
• Secure the unit while transporting.
• Never store the unit with fuel in the
tank, inside a building where fumes
may reach an open ame (pilot lights,
etc.) or sparks (switches, electrical
motors, etc.).
• Store the unit in a dry place, secured or
at a height to prevent unauthorized
use or damage. Keep the unit out of
the reach of children.
• Never douse or squirt the unit with
water or any other liquid. Keep handles
dry and clean (free from debris, oil and
grease). Clean the unit after each use.
Refer to Cleaning and Storage. Do not
use solvents or strong detergents.
• Keep these instructions. Refer to them
often and use them to instruct other
users. If you loan this unit to others,
also loan them these instructions.
SAVE THESE
INSTRUCTIONS
SAFETY - Continued
SAFETY & INTERNATIONAL
SYMBOLS
This operator's manual describes safety
and international symbols and pictographs
that may appear on this product. Read the
operator's manual for complete safety,
assembly, operating and maintenance and
repair information.
SYMBOL MEANING
SAFETY ALERT
SYMBOL
Indicates danger, warning or
caution. May be used in
conjunction with other
symbols or pictographs.
READ OPERATOR'S
MANUAL
WARNING:Read the
operator’s manual(s) and
follow all warnings and
safety instructions. Failure to
do so can result in serious
injury to the operator and/or
bystanders.

9
ENGLISH
SAFETY - Continued
WEAR EYE AND
HEARING
PROTECTION
WARNING:Thrown
objects and loud noise can
cause severe eye injury and
hearing loss. Wear eye
protection meeting current
ANSI / ISEA Z87.1 standards
and ear protection when
operating this unit. Use a full
face shield when needed.
WEAR FOOT
PROTECTION
Always wear heavy-duty,
non-slip footwear when
operating this unit.
WEAR HAND
PROTECTION
Always wear heavy-duty,
non-slip gloves when
handling this unit.
HANDLE POSITION
Make sure the handle is
positioned beyond the end
of the safety label.
UNLEADED FUEL
Always use clean, fresh
unleaded fuel.
OIL
Refer to operator’s manual
for the proper type of oil.
DO NOT USE E85
FUEL IN THIS UNIT
CAUTION:It has been
proven that fuel containing
greater than 10% ethanol will
likely damage this engine
and void the warranty.
ON / OFF STOP
CONTROL
ON / START / RUN
ON / OFF STOP
CONTROL
OFF or STOP
PRIMER BULB
Push primer bulb, fully and
slowly, 10 times.
THROWN OBJECTS
CAN CAUSE SEVERE
INJURY
WARNING:Small
objects can be propelled at
high speed, causing injury.

10
ENGLISH
SAFETY - Continued
ROTATING BLADE
CAN CAUSE SEVERE
INJURY
WARNING:Stop the
unit and allow the blade to
stop before replacing the
blade, cleaning or performing
any maintenance. Keep
hands and feet away from
moving parts.

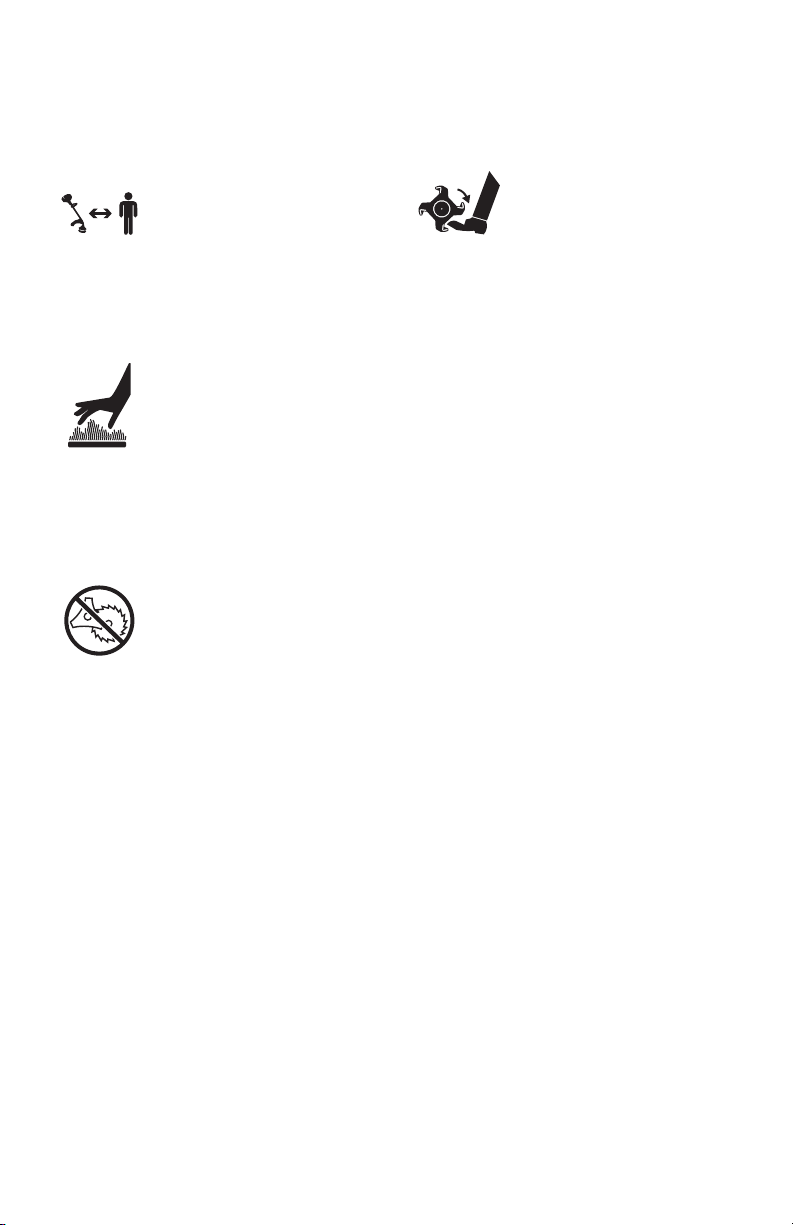

Min. 50 ft
15 m
KEEP BYSTANDERS
AWAY
WARNING:Keep all
bystanders, especially
children and pets, at least 50
feet (15 m) from the
operating area.
HOT SURFACE
WARNING:Do not
touch a hot muer or
cylinder. You may get burned.
These parts get extremely hot
from operation. When turned
o, they remain hot for a
short time.
DO NOT REPLACE
CUTTING HEADS
WITH BLADES*
WARNING:When
using a trimmer, to prevent
serious injury, do not replace
the cutting head with rigid
or metal blades.
*This warning does not apply to
units equipped with blades,
such as edgers and brush
cutters.

11
ENGLISH

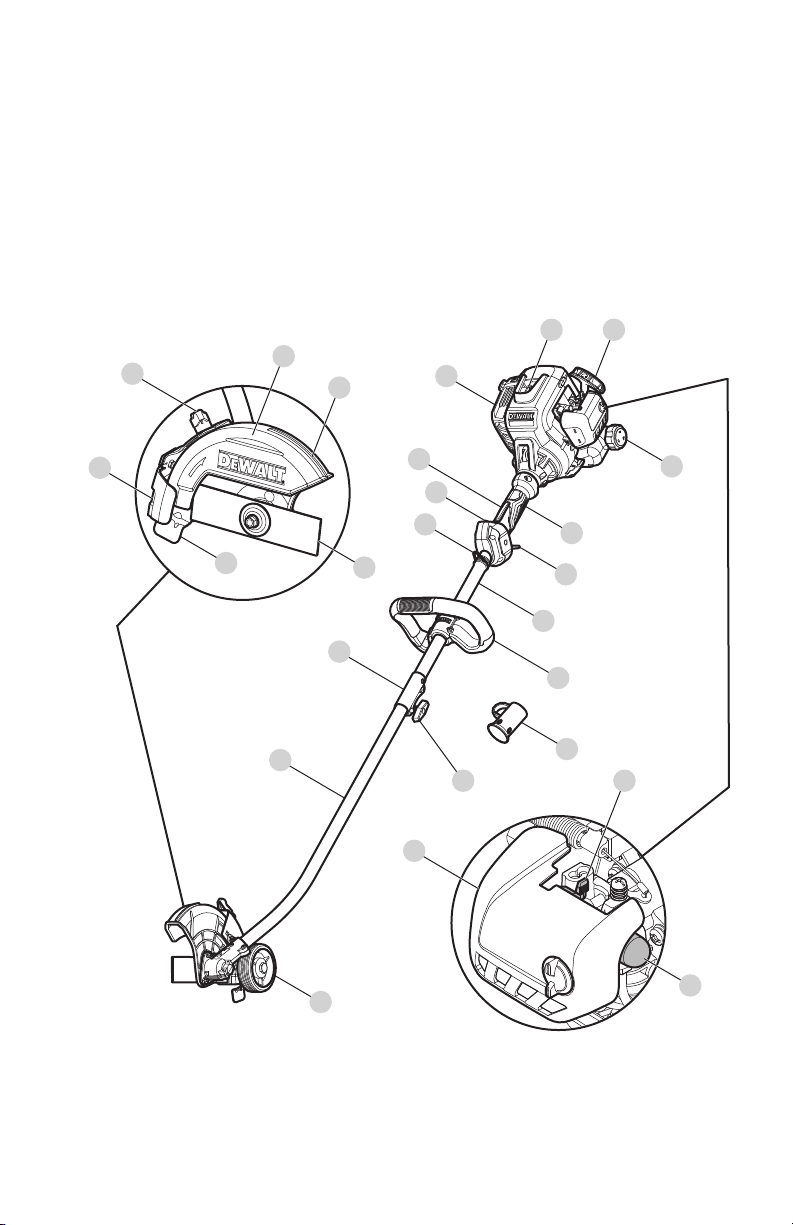

KNOW YOUR UNIT
Applications (as an Edger)*
•Edging along paths, driveways, rockeries, etc.
*Other optional attachments may be used with
this unit.
Assembly Tools Required
• 5/32-inch (4 mm) Allen wrench (included)
1
2
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
24
21
22
23
20
25
3

12
ENGLISH
Lower Shaft Housing
Coupler
Coupler Knob
Handle
Upper Shaft Housing
Shoulder Strap / Harness Loop
On/O Switch
Throttle Lockout
Muer
Spark Plug
Starter Rope Grip
Fuel Cap
Shaft Grip
1
2
3
4
5
6
7
8
9
10
11
12
Throttle Control
Choke Lever
Air Filter Cover
Primer Bulb
Hanger Cap
Wheel
Depth Adjustment Knob
Blade Shield
Alignment Guide
Edger Blade
Edger Guide
Mud Flap
14
15
16
17
18
19
20
21
22
23
24
25
SPECIFICATIONS*
* All specications are based on the latest
product information available at the time of
printing. We reserve the right to make changes
at any time without notice.
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 2-Cycle
Displacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 cc (1.64 cu. in.)
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025 in. (0.635 mm)
Spark Plug (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Champion® RDJ7J or equivalent plug
Spark Plug (Canada). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Champion® QDJ7J or equivalent plug
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture
Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50:1
Fuel Tank Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.5 . oz. (399 ml)
Approximate Unit Weight (No fuel). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.5 - 14.5 lbs. (6.1 - 6.6 kg)
Cutting Depth (maximum) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 in. (6.3 cm)
Canada: This spark ignition system complies
with Canadian ICES-002.
13
KNOW YOUR UNIT - Continued

13
ENGLISH
5. Push the attachment straight into the
coupler (Fig. 2) until the release button
snaps rmly into the primary hole (Fig. 3).
6. Turn the knob clockwise to tighten the
coupler (Fig. 1).
Removing the Attachment
1. Set the unit on a at, level surface.
2. Turn the knob counterclockwise to loosen
the coupler (Fig. 1).
3. Press and hold the release button (Fig. 3).
4. Pull the attachment straight out of the
coupler (Fig. 2).
Fig. 1
Knob
Tighten
Loosen
ASSEMBLY
Installing and Removing the
Attachment
The coupler enables the use of various optional
attachments.
Installing the Attachment
1. Remove the hanger cap from the
attachment. Keep the hanger cap for use
when storing the attachment. If present,
remove the gray spacer from the coupler.
2. Set the unit on a at, level surface.
3. Turn the knob counterclockwise to loosen
the coupler (Fig. 1).
4. Align the release button with the guide
recess (Fig. 3).
WARNING: Before using any
attachment, read and understand
the manual that came with the
attachment. Follow all safety
information contained within.
WARNING: To avoid serious
personal injury and damage to the
unit, shut the unit o before
removing or installing an attachment.
WARNING: Before operating the
unit, make sure the release button is
fully snapped into the primary hole
and the knob is securely tightened.
WARNING: Unless specied
otherwise, the release button should
be snapped into the primary hole
only. Using the wrong hole could
lead to personal injury or damage to
the unit.

14
Fig. 2
Coupler Attachment
Fig. 3
Release Button
Guide Recess
Primary Hole
ENGLISH

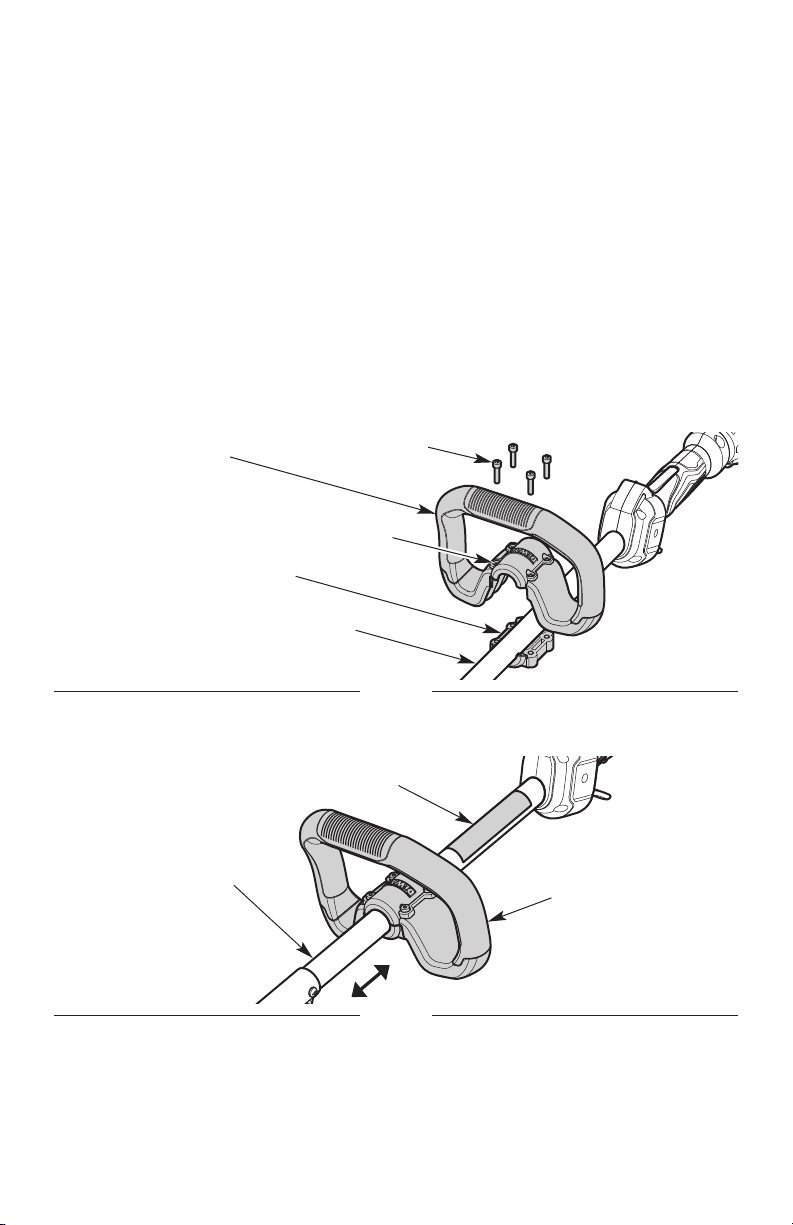

Installing and Adjusting the
Handle
Installing the Handle
1. Press and hold the handle base against the
underside of the upper shaft housing (Fig. 4).
2. Press the handle top onto the handle base
until they snap together (Fig. 4).
3. Insert the bolts (x4) into the holes (x4) (Fig. 4).
4. Tighten the bolts, but do not tighten them
completely. Use a 5/32-inch (4 mm) Allen
wrench.
5. Hold the unit in the operating position (Fig. 13).
Move the handle up or down the upper shaft
housing to a comfortable location (Fig. 5).
Make sure the handle is positioned beyond
the end of the safety label (Fig. 5).
6. Tighten the bolts until the handle is secure.
ASSEMBLY - Continued

15
ENGLISH
ASSEMBLY - Continued
Adjusting the Handle
If the handle requires adjustment:
1. Loosen the bolts slightly (Fig. 4). Use a 5/32-
inch (4 mm) Allen wrench.
2. Hold the unit in the operating position (Fig.
13). Move the handle up or down the upper
shaft housing to a comfortable location (Fig.
5). Make sure the handle is positioned
beyond the end of the safety label (Fig. 5).
3. Tighten the bolts until the handle is secure.
Fig. 4
Fig. 5
Hole (x4)
Handle Top
Upper Shaft Housing
Bolt (x4)
Handle Base
Handle
Upper Shaft Housing
Safety Label

16
ENGLISH

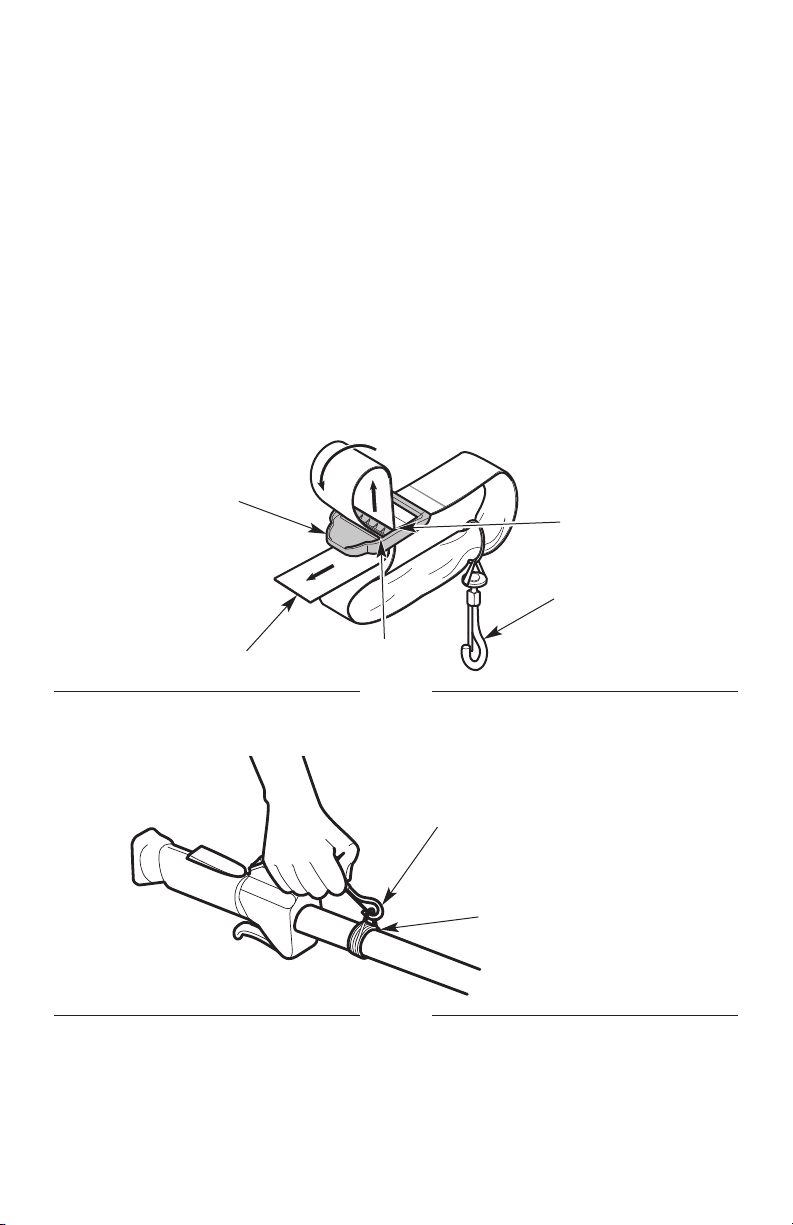

Assembling and Using the
Shoulder Strap
Assembling the Shoulder Strap
1. Push the strap up through the center slot in
the buckle (Fig. 6).
2. Bend the strap over and push it down
through the lower slot in the buckle (Fig. 6).

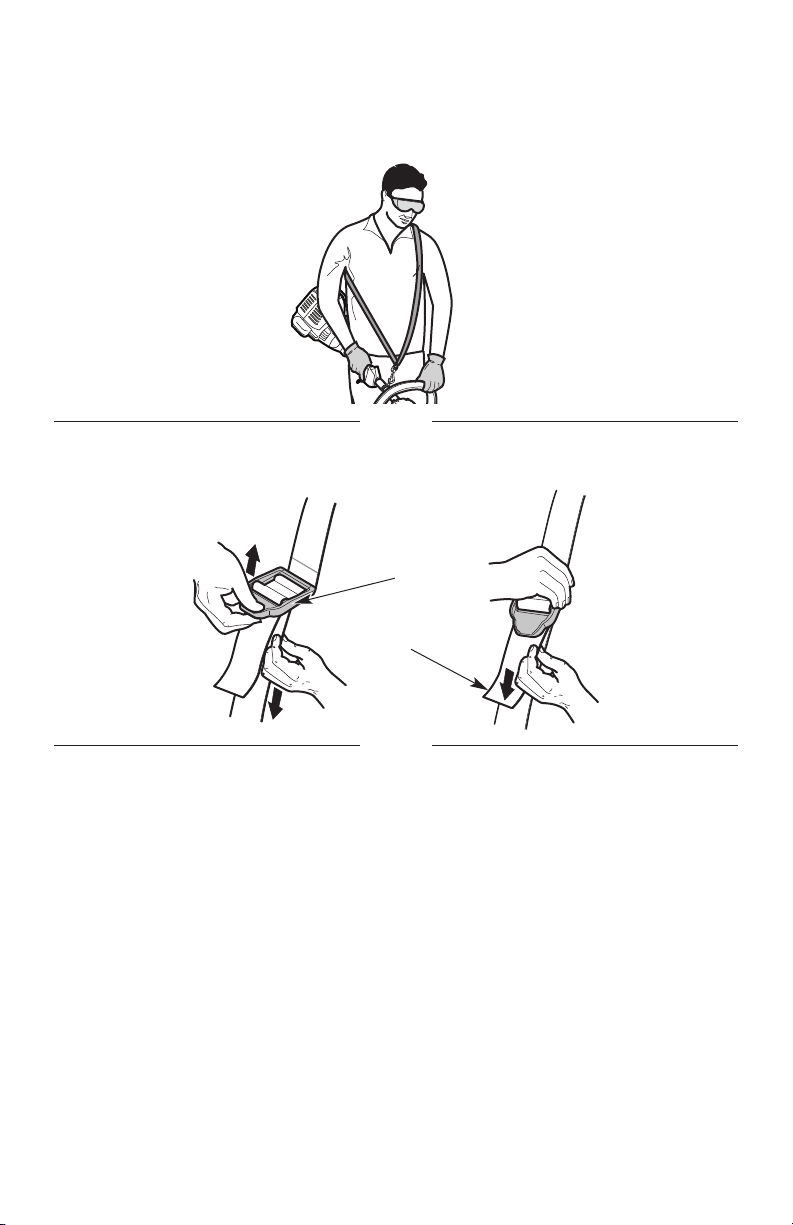

Using the Shoulder Strap
1. Put the shoulder strap over the operator’s
head and onto the left shoulder (Fig. 8).
2. Start the unit. Refer to Starting and Stopping.
3. Snap the clip onto the shoulder strap /
harness loop (Fig. 7).
4. Adjust the shoulder strap to t the operator
(Fig. 9). Pull the buckle up to loosen the
shoulder strap. Pull the strap down to
tighten the shoulder strap.
Fig. 6
Fig. 7
Strap
Buckle
Clip
Center Slot
Lower Slot
Shoulder Strap / Harness Loop
Clip
ASSEMBLY - Continued

17
ENGLISH
Fig. 8
Fig. 9
Strap
Buckle
ASSEMBLY - Continued
OIL AND FUEL
Oil and Fuel Mixing
Instructions
The use of old and/or improperly mixed fuel is
the most common cause of performance
problems. Use only fresh, clean unleaded
gasoline. Follow the instructions carefully for the
proper gasoline/oil mixture.
Denition of Blended Fuels
Today's fuels are often a blend of gasoline and
oxygenates such as ethanol, methanol or MTBE
(ether). Alcohol-blended fuel absorbs water. As
little as 1% water in the fuel can make fuel and
oil separate, forming acids when stored. ALWAYS
use fresh fuel (less than 30 days old).
NOTE: Dispose of old fuel according to federal,
state and local regulations.

18
Using Fuel Additives
The container of 2-cycle oil provided with this
unit includes a fuel additive to help inhibit
corrosion and minimize gum deposits. Always
use the brand of 2-cycle oil that came with this
unit. If this is unavailable, use a 2-cycle oil
designed for air-cooled engines and mix it with
a fuel additive. Add 0.8 oz. (23 ml) of fuel
additive per gallon of fuel, according to the
instructions on the container. NEVER add fuel
additives directly to the unit's fuel tank.
Mixing the Fuel
NOTE: This unit comes with a 2.6 oz. (77 ml)
container of 2-cycle oil. To obtain the
correct fuel mixture described below,
pour the entire container into one
gallon of unleaded gasoline.
Using Blended Fuels
If using a blended fuel:
• Always use the fresh fuel mix explained in
this operator's manual
• Use a fuel additive
• Always agitate the fuel mix before fueling
the unit
CAUTION: DO NOT USE E85
FUEL IN THIS UNIT.
It has been proven that fuel
containing greater than 10% ethanol
will likely damage this engine and
void the warranty.
CAUTION: For proper engine
operation and maximum reliability,
pay strict attention to the gasoline and
oil mixing instructions on the 2-cycle
oil container. Using improperly mixed
fuel can severely damage the engine.
Unleaded gasoline 2-cycle oil
1 gallon U.S.
(3.8 liters)
2.6 . oz.
(77 ml)
1 liter 20 ml
MIXING RATIO - 50:1
Fueling the Unit
WARNING: Gasoline is extremely
ammable. Ignited vapors may
explode. Always stop the engine and
allow it to cool before lling the fuel
tank. Do not smoke while lling the
tank. Keep sparks and open ames at
a distance from the area.
WARNING: Remove the fuel cap
slowly to avoid injury from fuel spray.
Never operate the unit without the
fuel cap securely in place.
WARNING: Add fuel in a clean,
well-ventilated outdoor area. Wipe
up any spilled fuel immediately.
Avoid creating a source of ignition
for spilled fuel. Do not start the
engine until fuel vapors dissipate.
1. Position the unit with the fuel cap facing up.
2. Slowly remove the fuel cap.
3. Place the fuel container spout into the fuel
tank ll hole and ll the tank.
NOTE: Do not overll the tank.
4. Wipe up any fuel that may have spilled.
5. Reinstall the fuel cap.
6. Move the unit at least 30 ft. (9.1 m) from the
fuel container and the fueling site before
starting the engine.
Thoroughly mix the proper ratio of unleaded
gasoline with 2-cycle engine oil. Do not mix
them directly in the unit’s fuel tank. Use a
separate fuel can. Use a 50:1 gasoline/oil ratio.
See the table below for specic gasoline and oil
mixing ratios.
ENGLISH
OIL AND FUEL - Continued

19
ENGLISH
STARTING AND STOPPING
WARNING: Operate this unit only
in a well-ventilated outdoor area.
Carbon monoxide exhaust fumes can
be lethal in a conned area.
WARNING: Avoid accidentally
starting the unit. To avoid serious
injury, the operator and the unit
must be in a stable position when
pulling the starter rope (Fig. 12).
Starting Instructions
NOTE: To prevent the throttle control from
being squeezed accidentally, this unit
has a throttle lockout. The throttle
control cannot be squeezed unless the
throttle lockout is also engaged.
NOTE: There is no need to turn the unit on. The
On/O switch is in the On ( I ) position at
all times (Fig. 10).
Before Starting the Unit
1. Mix gasoline with oil. Refer to Oil and Fuel
Mixing Instructions.
2. Fill the fuel tank. Refer to Fueling the Unit.
3. Put the shoulder strap over the operator’s
head and onto the left shoulder (Fig. 8).
Starting the Unit
1. Slowly press and release the primer bulb 10
times (Fig. 11).
2. Move the choke lever to Position A (Fig. 11).
3. Crouch in the starting position (Fig. 12).
4. Press and hold the throttle lockout. Squeeze
and hold the throttle control (Fig. 10).
NOTE: Continue to SQUEEZE and HOLD the
throttle lockout and the throttle
control for ALL further steps.
5. Pull the starter rope with a controlled and
steady motion 5 times (Fig. 12).
6. Move the choke lever to Position B (Fig. 11).
7. Pull the starter rope with a controlled and
steady motion 5 times to start the engine
(Fig. 12).
8. Allow the engine to warm up for 60 seconds.
The unit may be used during this time.
NOTE: The engine is properly warmed up when
it accelerates without hesitation.
IF... the engine does not start, begin the starting
procedure with step 2.
IF... the engine is already warm, begin the
starting procedure with step 6.
After Starting the Unit
1. Snap the shoulder strap clip onto the
shoulder strap / harness loop. Adjust the
shoulder strap to t the operator. Refer to
Assembling and Using the Shoulder Strap.
Stopping Instructions
1. Release the throttle control and allow the
engine to idle.
2. Press and hold the On/O switch in the O
(O) position until the engine comes to a
complete stop (Fig. 10).

20
Fig. 10
Throttle Control
Throttle
Lockout
On/O Switch
(I = On / O = O)
Fig. 11
Fig. 12
Primer Bulb
Position B
Position A
Choke Lever
Starting
Position
Throttle Control
Starter Rope Grip
Shoulder Strap
ENGLISH
STARTING AND STOPPING - Continued
