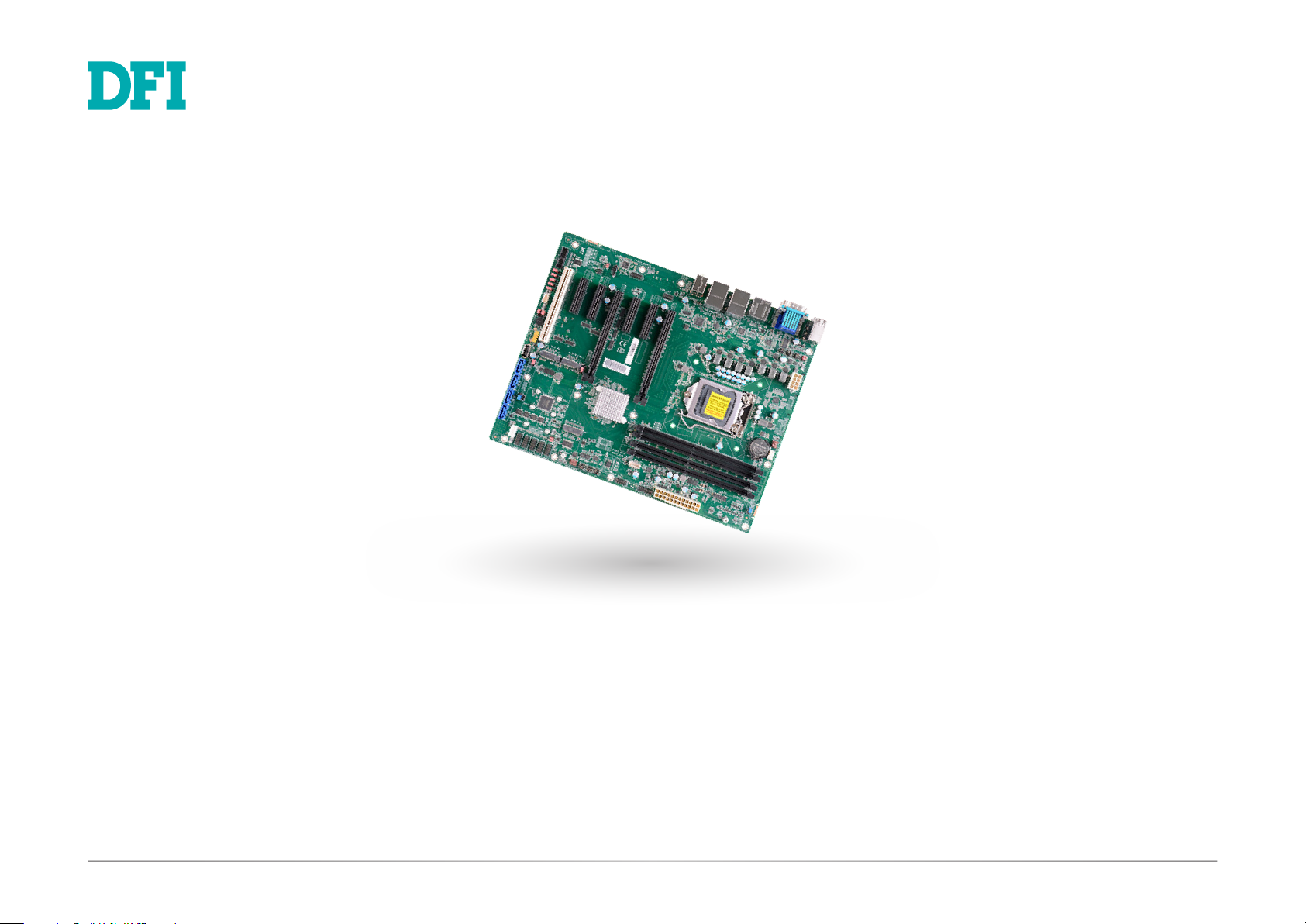

DFI CMS632-W480E User manual

CMS632-W480E/Q470E
ATX Industrial Motherboard
User’s Manual

2User's Manual | CMS632-W480E/Q470E
Copyright
This publication contains information that is protected by copyright. No part of it may be repro-
duced in any form or by any means or used to make any transformation/adaptation without the
prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions or
changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2023. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3User's Manual | CMS632-W480E/Q470E
Table of Contents
Chapter 1 - Introduction................................................................................................................6
Specifications ......................................................................................................................... 6
Features ..................................................................................................................................8
Block Diagram ........................................................................................................................ 9
Chapter 2 - Hardware Installation..............................................................................................10

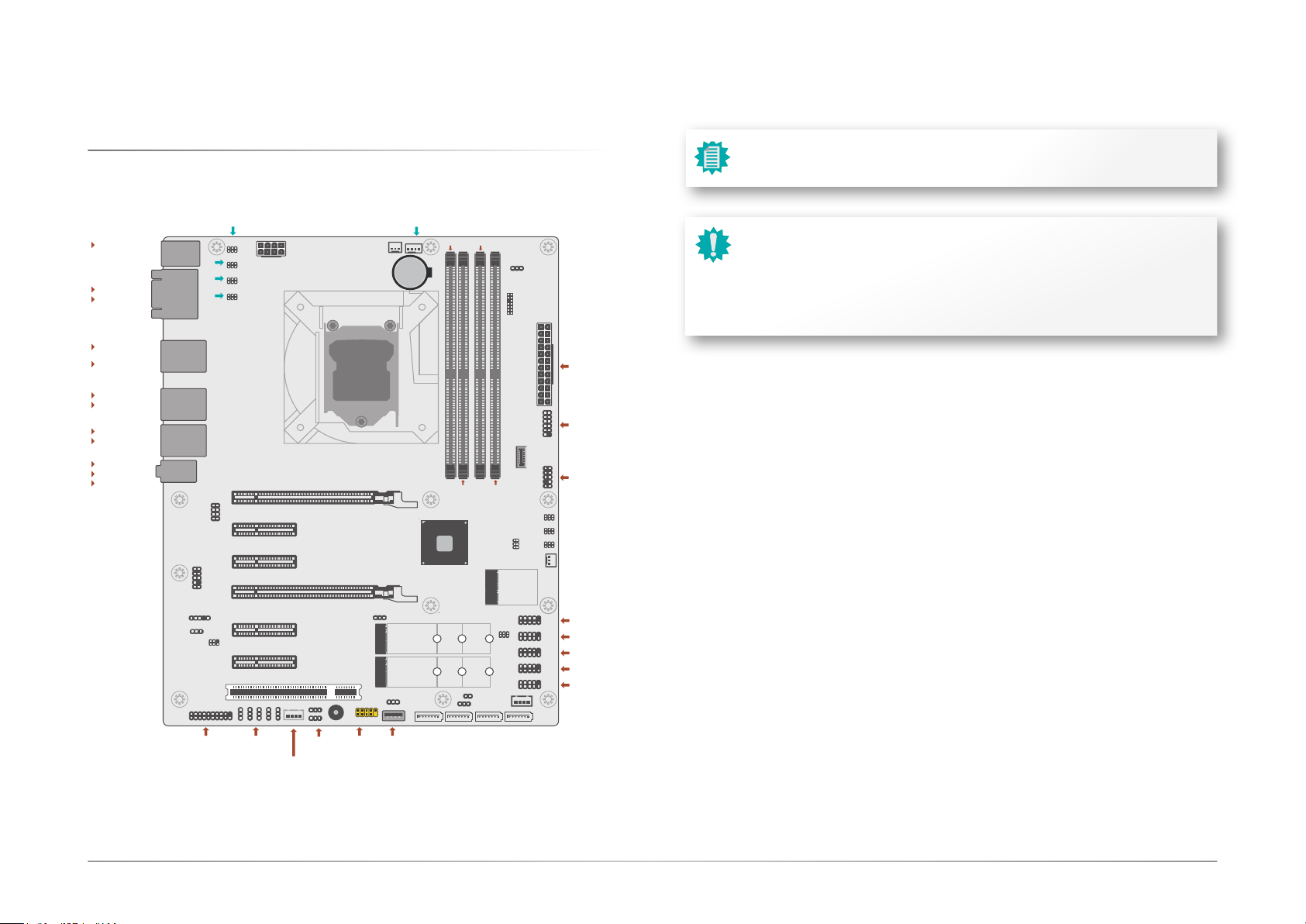

Board Layout.........................................................................................................................10
System Memory ...................................................................................................................11

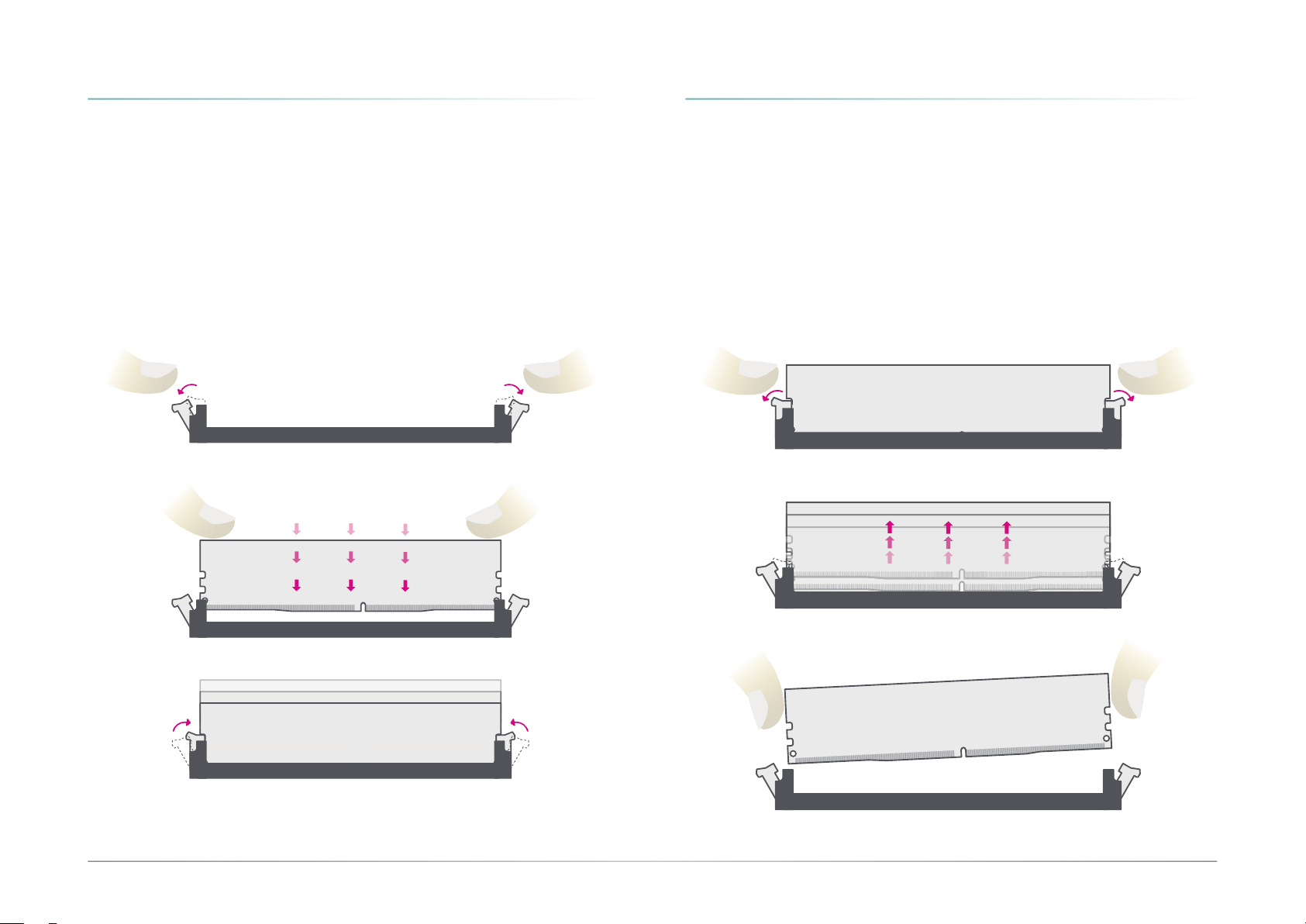

Installing the DIMM Module .........................................................................................11
Removing the DIMM Module........................................................................................12
CPU........................................................................................................................................13
Installing the CPU Fan and Heat Sink..........................................................................13

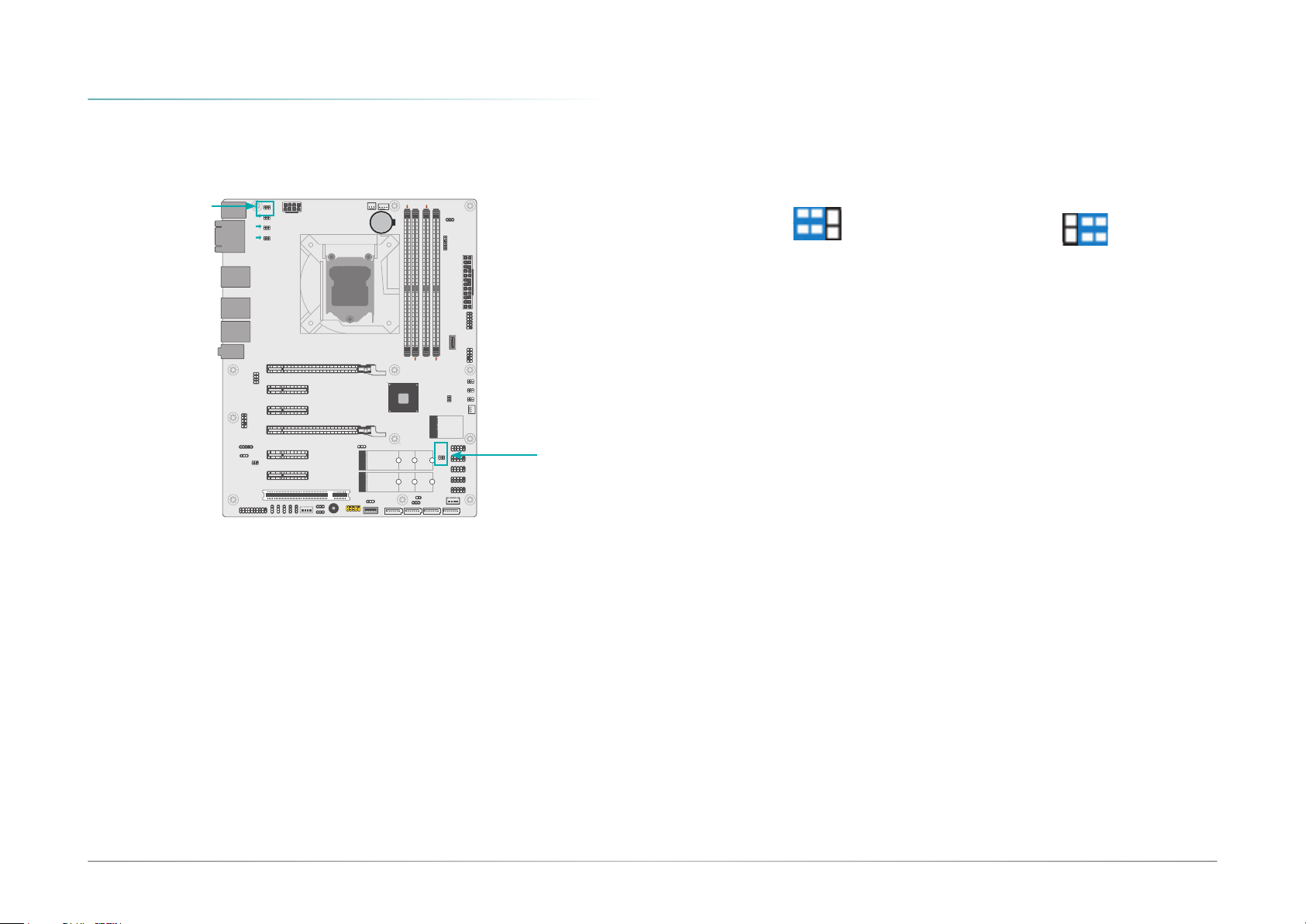

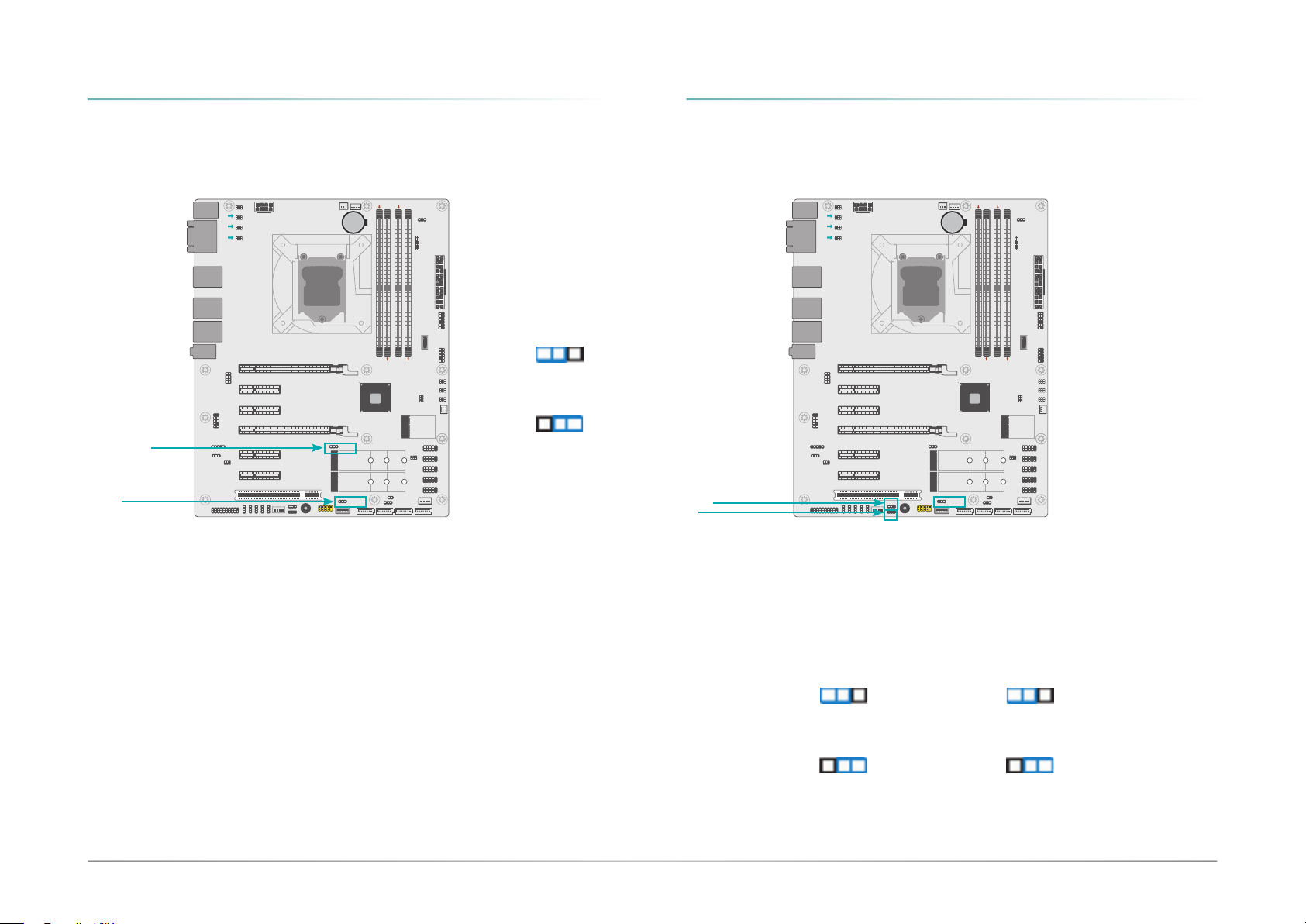

Jumper Settings ...................................................................................................................14

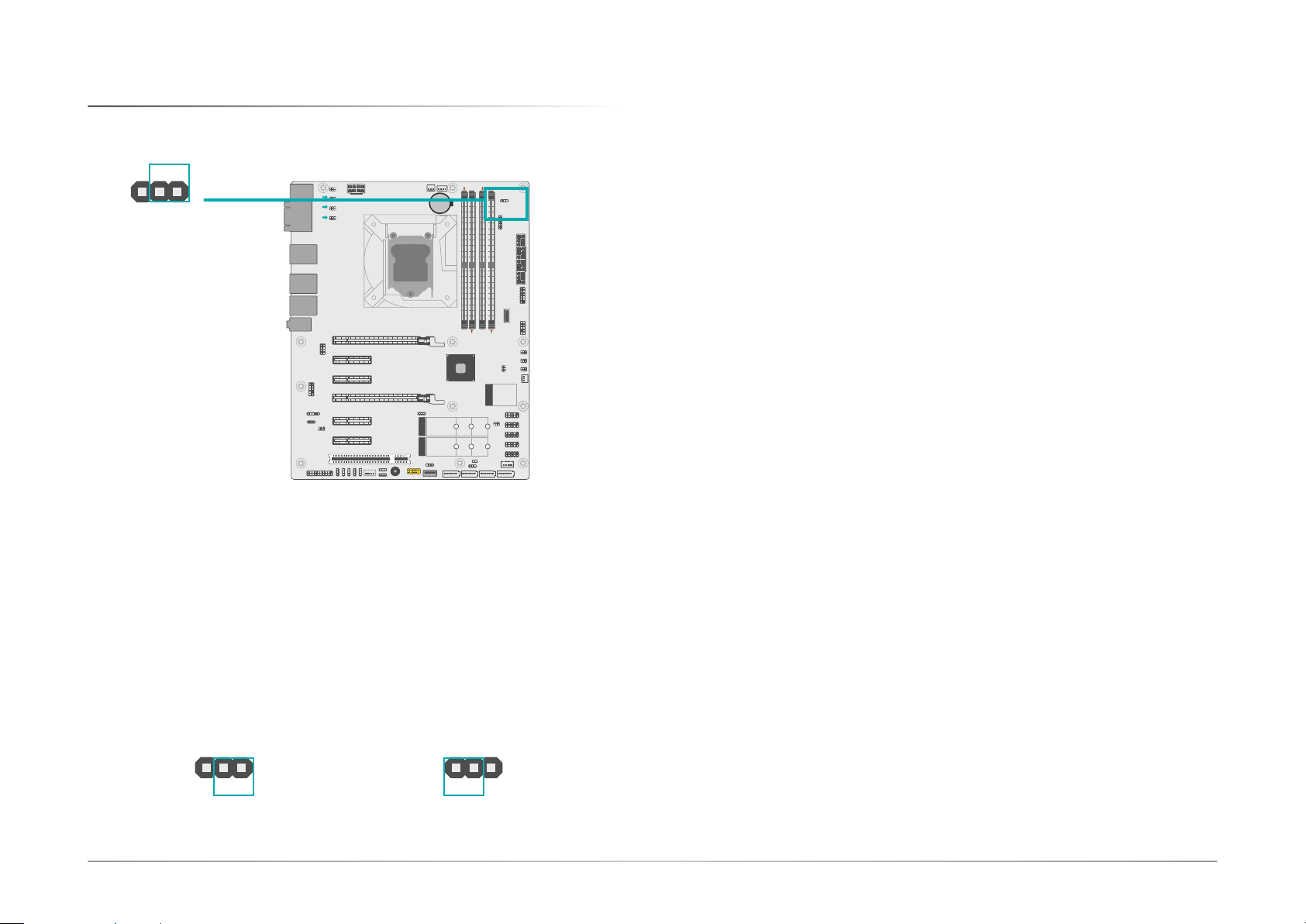

CLEAR CMOS Data ........................................................................................................14

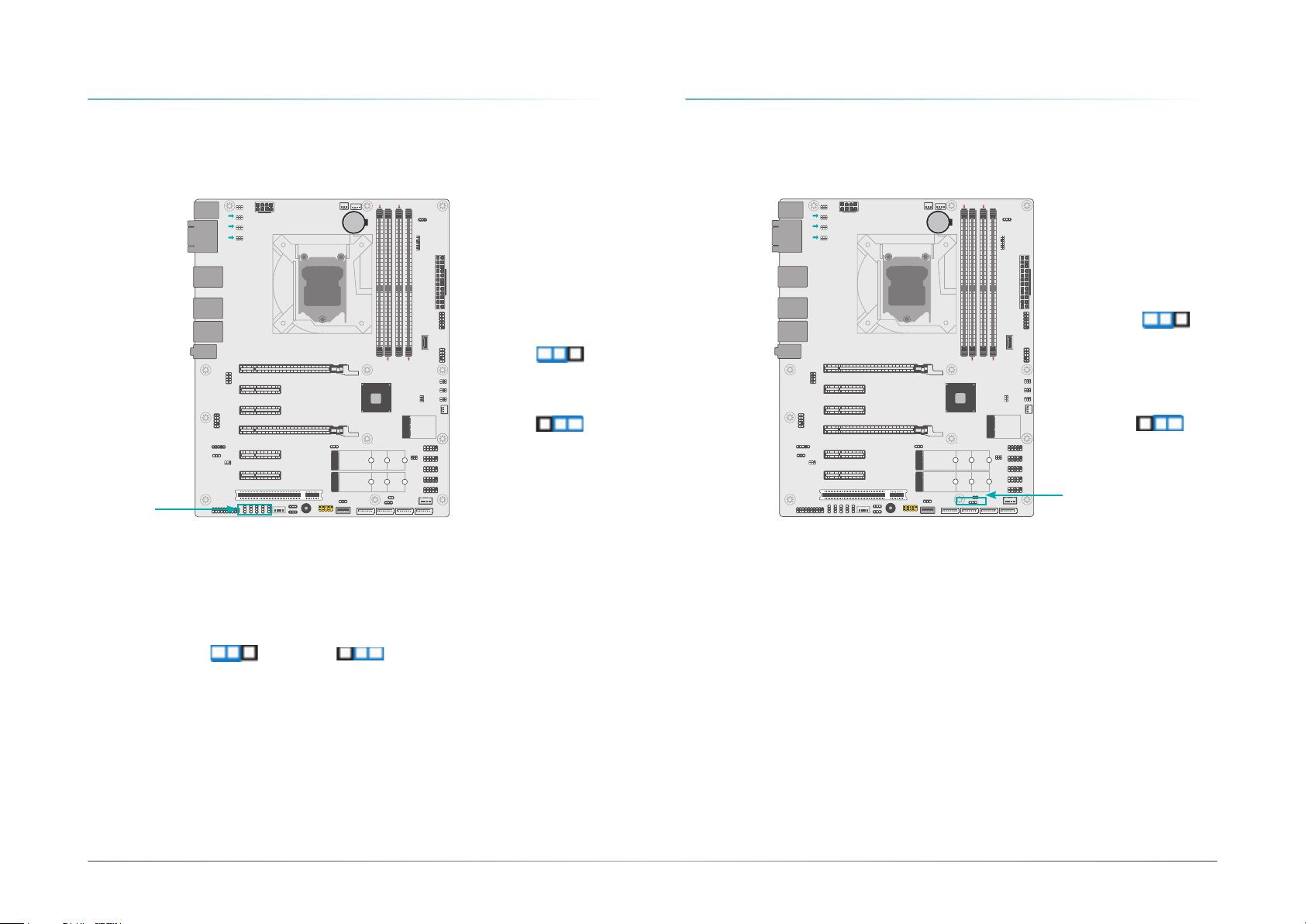

COM1/COM2 RS232/422/485 Select ..........................................................................15
COM1/COM2 RS232 Power Select ..............................................................................16
DIO Power & Voltage - JP11/12/13/14/15..................................................................17
AT/ATX Mode - JP26.....................................................................................................17
PWM Control - JP23......................................................................................................18
InnoAGE HDR1...............................................................................................................18
M.2 Connector Power Control - M2JP1 / M2JP2.......................................................19
M.2 Connector Signal Switch - M2JP3 / M2JP4........................................................19

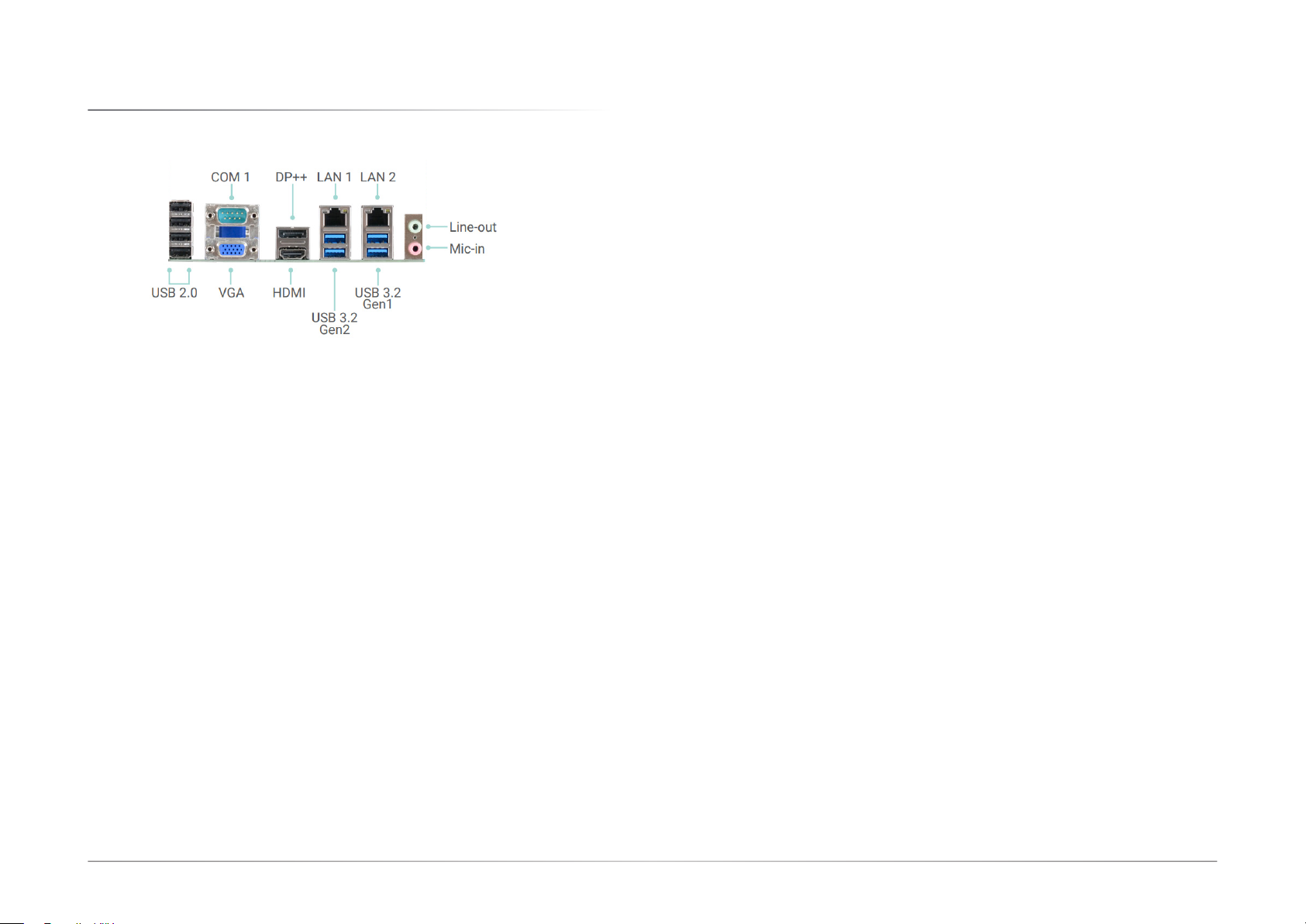

Rear I/O Ports.......................................................................................................................20
USB Ports .......................................................................................................................21
Graphics Interfaces .......................................................................................................22
COM1..............................................................................................................................22
RJ45 LAN Ports .............................................................................................................23
Audio .............................................................................................................................23
Internal I/O Connectors .......................................................................................................24
SATA (Serial ATA) ..........................................................................................................24
Digital I/O Connector.....................................................................................................24
COM (Serial) ports.........................................................................................................25
Cooling Fan Connectors................................................................................................26
Power Connector...........................................................................................................26
Front Panel.....................................................................................................................27
S/PDIF Connector..........................................................................................................27
LPC Connector...............................................................................................................28
PS2..................................................................................................................................28
Innoage HDD Power ......................................................................................................29
Expansion Slots .............................................................................................................30
Installing the M.2 Module .............................................................................................30
Battery ............................................................................................................................31
Chapter 3 - BIOS Settings...........................................................................................................32
Overview ...............................................................................................................................32
Main.......................................................................................................................................33
Advanced .............................................................................................................................33
RC ACPI Configuration..................................................................................................34
CPU Configuration.........................................................................................................34
Power & Performance ...................................................................................................35
PCH-FW Configuration ..................................................................................................35
Trusted Computing........................................................................................................38
NCT6126D Super IO Configuration ..............................................................................39
Serial Port Console Redirection ...................................................................................41
USB Configuration .........................................................................................................42
CSM Configuration ........................................................................................................43
Network Stack Configuration........................................................................................44
USB Power Control........................................................................................................44
Chipset ..................................................................................................................................45
Graphics Configuration .................................................................................................45
PEG Port Configuration.................................................................................................46
PCH-IO Configuration....................................................................................................47
PCI Express Configuration............................................................................................47
SATA And RST Configuration .......................................................................................48
HD Audio Configuration ................................................................................................48
Security .................................................................................................................................49
Secure Boot....................................................................................................................49
Boot .......................................................................................................................................50
Save & Exit ............................................................................................................................50
Updating the BIOS................................................................................................................51
Notice: BIOS SPI ROM..........................................................................................................51
Chapter 4 - RAID..........................................................................................................................52
RAID Levels Explanation......................................................................................................52
Setup Procedure...................................................................................................................52

4User's Manual | CMS632-W480E/Q470E
About this Manual
This manual can be downloaded from the website.
The manual is subject to change and update without notice, and may be based on editions that
do not resemble your actual products. Please visit our website or contact our sales representa-
tives for the latest editions.
Warranty
1. Warranty does not cover damages or failures that occur from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper in-
stallation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in
or out of warranty. It must be returned to the purchase point, factory or authorized ser-
vice agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you
are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, con-
tacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Safety Measures
• To avoid damage to the system, use the correct AC input voltage range.
• To reduce the risk of electric shock, unplug the power cord before removing the sys-
tem chassis cover for installation or servicing. After installation or servicing, cover the
system chassis before plugging the power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.

5User's Manual | CMS632-W480E/Q470E
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
Before Using the System Board
When installing the system board in a new system, you will need at least the following internal
components.
• Memory module
• Storage device such as a hard disk drive.
• Power supply
External system peripherals may also be required for navigation and display, including at least
a keyboard, a mouse and a video display monitor.
www.dfi.com
PACKING LIST OPTIONAL ITEMS
ORDERING INFORMATION
Model Name P/N Memory GbE RS-
232/422/485
USB 3.2
Gen2
USB 3.2
Gen1
USB
2.0 TPM 2.0 Power Thermal Temp.
CMS632-W480ECRM 770-CMS6321-000G 4 UDIMM 2 2 4 2 7 - 24-pin ATX/
8-pin ATX 12V Active -5 to
65°C
CMS632-Q470ECRM 770-CMS6321-100G 4 UDIMM 2 2 4 2 7 - 24-pin ATX/
8-pin ATX 12V Active -5 to
65°C
1 CMS632 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-CMS630-000G
1 M.2 screw/standoff A32-112016-041G
USB 2.0 port cable (Length: 350/398mm) A81-001066-016G
USB 3.2 Gen2 port cable (Length: 300mm) A81-001075-017G
COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
Serial ATA data cable (Length: 500mm, W/LOCK) 332-553001-005G
Serial ATA data cable (Length: 500mm, W/LOCK, 90D) A81-002128-017G
Thermal solution (For 35W, Height: 37.3mm) A71-101107-000G
Thermal solution (For 65W, Height: 72.8mm) 552-200049-000G
Thermal solution (For 95W, Height: 69.3mm) 761-103001-000G
DP to HDMI Dongle 612-D2H13M-000G
PS2 KB/MS Cable (Length: 400mm) 332-353016-009G
EXT-RS232 (4 ports RS-232 LPC module) 770-EXTRS1-000G
EXT-RS485 (4 ports RS-485 LPC module) 770-EXTRS1-100G
M.2-COM4 (M.2 serial port module) 770-M2COM1-000G
M.2-2LAN (M.2 LAN port module) 770-M22LN2-000G
M.2-2PSE (M.2 PSE module) 770-M22PS1-000G
OS SUPPORT Microsoft Windows 10 IoT Enterprise 64-bit
Windows Server 2019 (opt. only support Intel®i210)
Linux Linux
ENVIRONMENT Temperature Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF 492,929 hrs @ 25°C ; 274,924 hrs @ 45°C ; 171,243 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
MECHANISM Dimensions ATX Form Factor
305mm (12") x 244mm (9.6")
Height PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm
CERTIFICATIONS Certications CE, FCC Class B, RoHS, UKCA
DFI reserves the right to change the specifications at any time prior to the product's release. Changes thereafter will be based on the product's revision. Please contact your
sales representative for the exact revision offered in your area. All product names mentioned are trademarks of their respective companies. © September 28, 2022 DFI Inc.
SPECIFICATION

6
Chapter 1
INTRODUCTION
User's Manual | CMS632-W480E/Q470E
Chapter 1 - Introduction
X Specifications
SYSTEM
Processor
10th Generation Intel®LGA 1200 Socket Processors, TDP support up to 125W
Intel®Xeon®W-1290E (10 Cores, 20M Cache, up to 4.8 GHz); 95W (ECC support on W480E SKU only)
Intel®Xeon®W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (ECC support on W480E SKU only)
Intel®Xeon®W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W (ECC support on W480E SKU only)
Intel®Xeon®W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (ECC support on W480E SKU only)
Intel®Xeon®W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W (ECC support on W480E SKU only)
Intel®Xeon®W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (ECC support on W480E SKU only)
Intel®Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel®Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel®Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel®Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel®Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel®Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel®Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz,); 65W (ECC support on SKU W480E only)
Intel®Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (ECC support on SKU W480E only)
Intel®Pentium®G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W (Not support on W480E SKU)
Intel®Celeron®G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W (Not support on W480E SKU)
Intel
®
Celeron
®
G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W (Not support on W480E SKU)
Chipset
Intel®W480E/Q470E Chipset
Memory
Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC)
Dual Channel DDR4 2400/2666/2933MHz (ECC support: W480E only)
BIOS
AMI SPI 128Mbit
GRAPHICS
Controller
Intel®HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
VGA: resolution up to 1920x1200 @ 60Hz
1 x DP++
DP++: resolution up to 4096x2160 @ 60Hz
1 x HDMI 1.4b
HDMI: resolution up to 4096x2160 @ 24Hz
Triple Displays
VGA + DP++ + HDMI
EXPANSION
Interface
2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signal)
4 x PCIe x4 (Gen 3) (2 PCIe x4 co-lay M.2 M Key)
1 x PCI
1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/co-lay PCIe x4 slot/SATA/Intel®RST support)
1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/co-lay PCIe x4 slot/Intel®RST support)
1 x M.2 2230 E Key (USB 2.0/PCIe x1) (opt.)
AUDIO
Audio Codec
Realtek ALC888
ETHERNET
Controller
1 x Intel®I211AT PCIe (10/100/1000Mbps)
1 x Intel®I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i9/ i7/i5 supports iAMT)

7
Chapter 1
INTRODUCTION
User's Manual | CMS632-W480E/Q470E
REAR I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
4 x USB 2.0
Display
1 x VGA
1 x DP++
1 x HDMI
Audio
1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
INTERNAL I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB
2 x USB 3.2 Gen 2 (Key B 20-pin)
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 Vertical Type A
Audio
1 x Front Audio Header
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s, SATA 3)
RAID 0/1/5/10
PS/2
1 x PS/2 (mini-DIN-6)
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
DIO
1 x 16-bit DIO
SMBus
1 x SMBus
WATCHDOG
TIMER
Output &
Interval
System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY
TPM
NUVOTON TPM2.0 (opt., MOQ required)
POWER
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i9-10900K: 3.3V @ 0.17A (0.56W); 5V @ 0.74A (3.7W); 12V @ 0.41A (4.92W)
Max.: i9-10900K:3.3V @ 0.21A (0.69W); 5V @ 1.73A (8.65W); 12V @ 12.48A (149.76W)
RTC Battery
CR2032 Coin Cell
OS SUPPORT
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows Server 2019 (opt. only support Intel
®
i210)
Linux
Linux
ENVIRONMENT
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 95% RH
MECHANISM
Dimensions
ATX Form Factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm
CERTIFICATIONS
Certifications
CE, FCC Class B, RoHS, UKCA

8
Chapter 1
INTRODUCTION
User's Manual | CMS632-W480E/Q470E
X Features
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so that
your system will continue to operate.
DDR4
DDR4 delivers increased system bandwidth and improves performance. The advantages of
DDR4 provide an extended battery life and improve the performance at a lower power than
DDR3/DDR2.
Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s.
Gigabit LAN
Two Intel®Gigabit LAN controllers support up to 1Gbps data transmission.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on the
system only through an IRQ or DMA interrupt.
Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per
second (2 directions). The PCI Express architecture also supports high performance graphics
infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth (8GB/s in
each direction).
ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows®without having to go
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
USB
The system board supports the new USB 3.2 Gen 2. It is capable of running at a maximum
transmission speed of up to 10 Gbit/s (1250 MB/s), and is faster than USB 2.0 (480 Mbit/s,
or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.2 reduces the time required for data transmission,
reduces power consumption, and is backward compatible with USB 2.0. It is a marked improve-
ment in device transfer speeds between your computer and a wide range of simultaneously ac-
cessible external Plug and Play peripherals.
RTC Timer
The Real Time Clock (RTC) installed on the system board allows your system to automatically
power-on on the set date and time.

9
Chapter 1
INTRODUCTION
User's Manual | CMS632-W480E/Q470E
X Block Diagram
www.dfi.com
MECHANICAL DRAWING
227.33
154.94
22.86
0.00
233.68
227.33
154.94
0.00
10.16
0.00
16.51
124.46
78.74
143.71
165.21
189.71
214.06
248.83 278.36 288.29
BLOCK DIAGRAM
W480E/
Q470E
Channel A
SMBus
DDI
HDA
LPC
S/PDIF
Front Audio
Audio Jack
(Line-out, Mic-in, Line-in (opt.))
RS232/422/485 2x
RS232 4x
DDR4 2400/2666/2933MHz UDIMM
M.2 E key 1x (opt.)
TCA6416
SMBus
VGA
Realtek
ALC888
Super IO
with WDT
Fan Control
H/W Monitor
Case Open
DMI 3.0
LGA 1200
GbE
LAN 2
USB 3.2 Gen1 2x
GLAN I211AT
MDI
USB 2.0 USB 2.0 1x
Vertical Type A
LPC
LPC Header
SPI
SPI BIOS
Channel A DDR4 2400/2666/2933MHz UDIMM
Channel B DDR4 2400/2666/2933MHz UDIMM
Channel B DDR4 2400/2666/2933MHz UDIMM
PTN3355
DDI
DP++
HDMI
PCIe x4 PCIe x4 2x
PCIe x1
TPM 2.0 (opt.)
USB 2.0
USB 3.2 Gen1
PCIe x1
LAN 1
USB 3.2 Gen2 2x
GLAN I219LM
MDI
USB 2.0
USB 3.2 Gen2/Gen1
USB 3.2 Gen2/Gen1 USB 3.2 Gen2 2x
(Key B 20-pin)
USB 2.0
USB 2.0
USB 2.0 4x
PS/2 KB/MS
PCIe x16 PCIe x16 2x (1 x16 or 2 x8 signal)
PCIe x1 IT8893E PCI PCI 1x
DDI
ASM1442K
USB 2.0 2x
Colay vertical Type A
USB 2.0
DIO 16-bit
PCIe x4/SATA M.2 M Key 1x / PCIe x4 1x
PCIe x4 M.2 M key 1x / PCIe x4 1x
SATA 3.0 SATA 4x
USB 2.0

10
Chapter 2
HARDWARE INSTALLATION
User's Manual | CMS632-W480E/Q470E
Chapter 2 - Hardware Installation
X Board Layout
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives,
add-in boards, and other components. Perform installation procedures at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.
Note:
Some components are optional and only available upon request.
1
M.2 E Key
2230
(opt.)
DDR4_1
DDR4_2
DDR4_3
DDR4_4
Socket LGA1200
+12V Power
4
8
1
5
1
Battery
(opt.)PCIe 2 (PCIe x4)
PCI 1
62
6
2
6
5
1
6
5
2
1
JP1
JP2
2
JP3
1
S/PDIF
2
910
1
Front Audio
1 9
2
Buzzer 1
210
1 2
7 8
113
12 24
12
11
LAN LED
PCIe 1 (PCIe x16)
1
System
Fan 1
20
110
11
Intel
W480E/Q470E
LPC
14
2
13
1
5
1
51
PCIe 4 (PCIe x16)
PCIe 3 (PCIe x4)
PCIe 5 (PCIe x4)
1
JP23
6
5
2
1
J12
1111 1
6
5
2
1
6
5
2
1
6
5
2
1
1
JP5
(Clear CMOS)
2
910
1
1
11
20
10
USB
1
6
5
2
1
JP27
1 9
2
1 9
2
1 9
2
1 9
2
6
5
2
1
JP7
CN37
1111
1
1
JP26
SOJ2
1M2JP2
M2JP1
1
M2JP3
M2JP4
PCIe 6 (PCIe x4)
1
1
1
DIO
Power
Mic-in
Line-out
Line-in (opt.)
COM1
VGA
DP++
HDMI
LAN 1
USB3_1/2
USB2_1/2
LAN 2
USB3_3/4
USB2_3/4
USB2_7/8/9/10
CPU FANJP4
JP8
JP10
JP6
COM3
COM2
ATX Power
Front
Panel
System Fan 2
PS2
COM4
COM5
COM6
JP11/12/13/14/15 USB2_11/12 Digital I/O
USB2_14
SATA0 SATA1 SATA2 SATA3
