DFI ED700-EHL22I User manual

ED700-EHL22I
Fanless Embedded System
User’s Manual
© September 25, 2023 DFI Inc.

2
User's Manual | ED700-EHL22I
Copyright
This publication contains information that is protected by copyright. No part of it may be repro-
duced in any form or by any means or used to make any transformation/adaptation without the
prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions or
changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2023. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class A
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
User's Manual | ED700-EHL22I
Table of Contents
Chapter 1 - Introduction................................................................................................................6
Overview - ED700-EHL221..................................................................................................... 6
Front View ........................................................................................................................ 6
Side View ......................................................................................................................... 6
Dimensions ............................................................................................................................. 7
3 x LAN............................................................................................................................. 7
4 x LAN............................................................................................................................. 7
Key Features ........................................................................................................................... 7
Specifications ......................................................................................................................... 8
Chapter 2 - Hardware Installations............................................................................................10

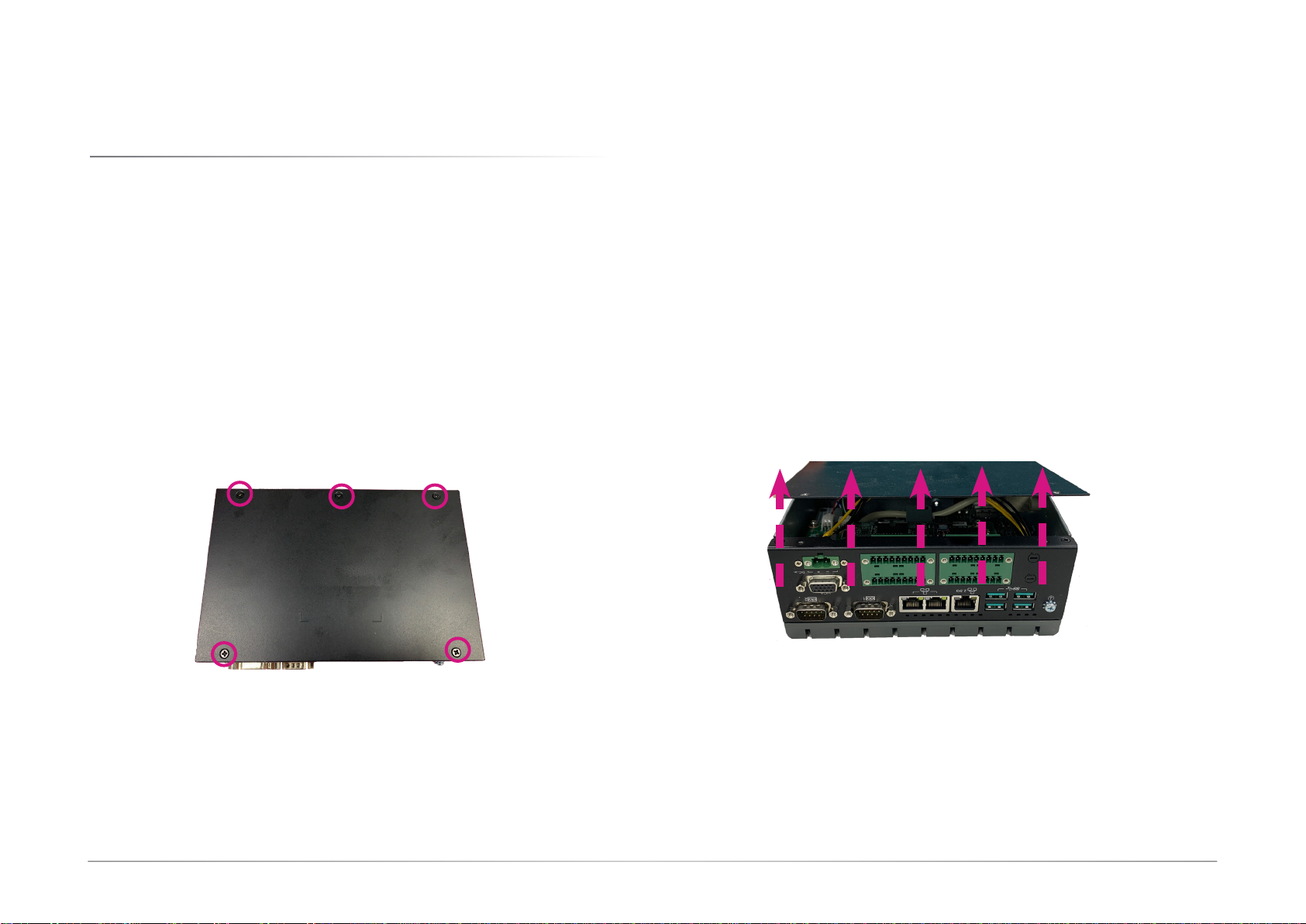

Removing the Chassis Cover ..............................................................................................10

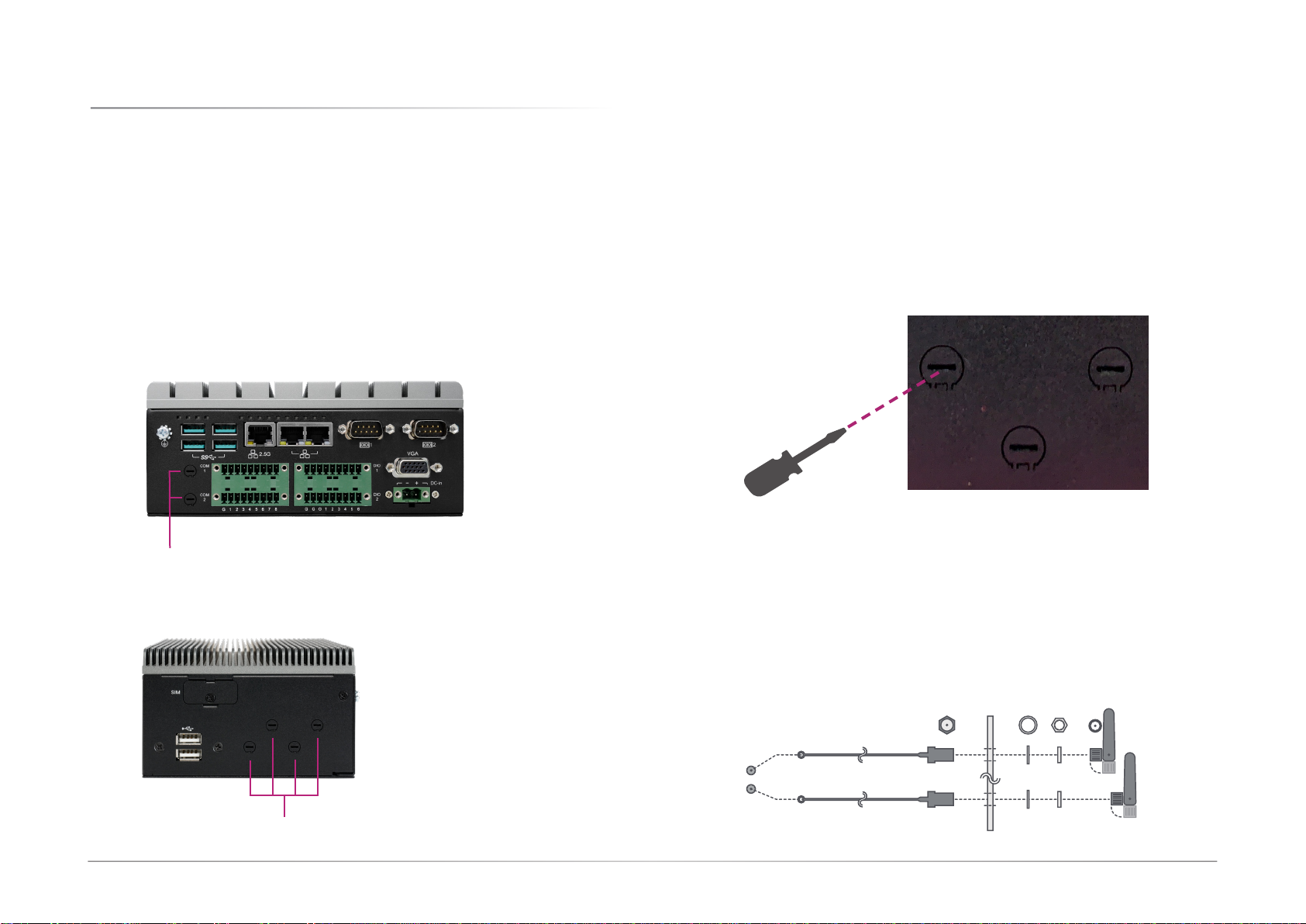

Installing an Antenna ...........................................................................................................11
Expansion Slots....................................................................................................................12

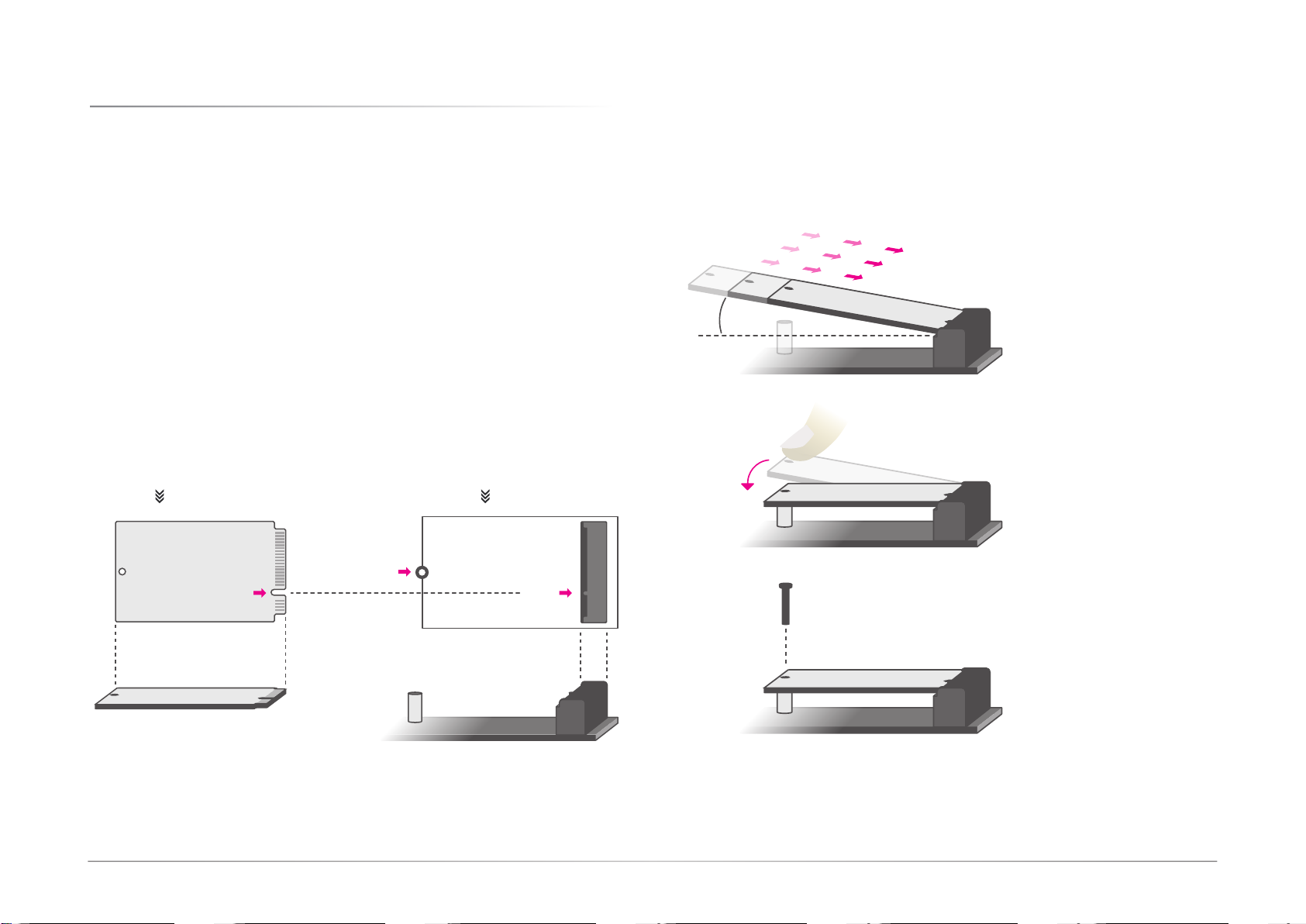

Installing the M.2 Module .............................................................................................12
Installing the SO-DIMM Module ...................................................................................13
Mounting Options.................................................................................................................14
Chapter 3 - System Settings ......................................................................................................15
Pin Assignment ....................................................................................................................15
DC-in ...............................................................................................................................15

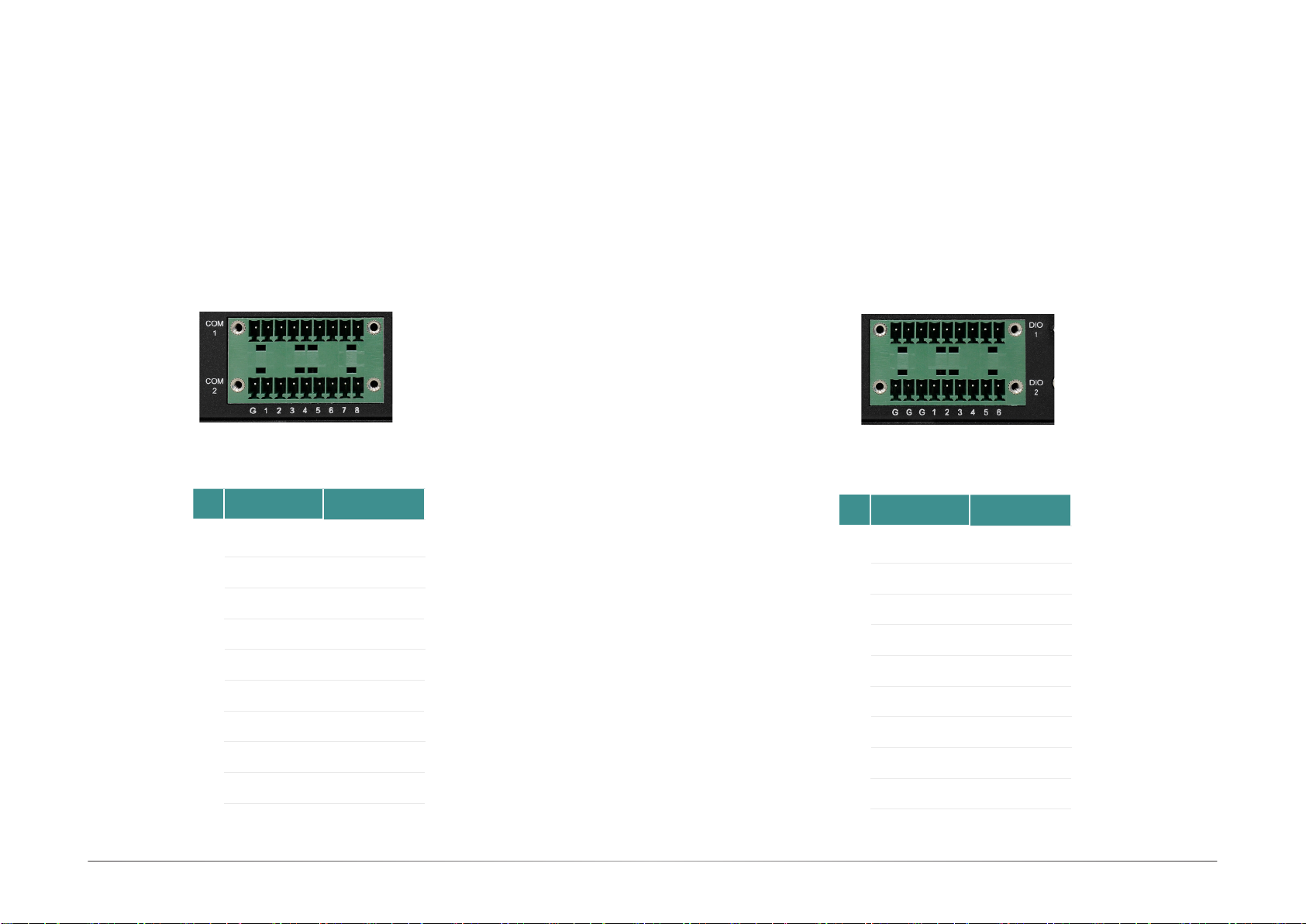

COM1 & COM2...............................................................................................................15
Isolation COM1 & COM2...............................................................................................16
Isolation DIO1 & DIO2 ...................................................................................................16

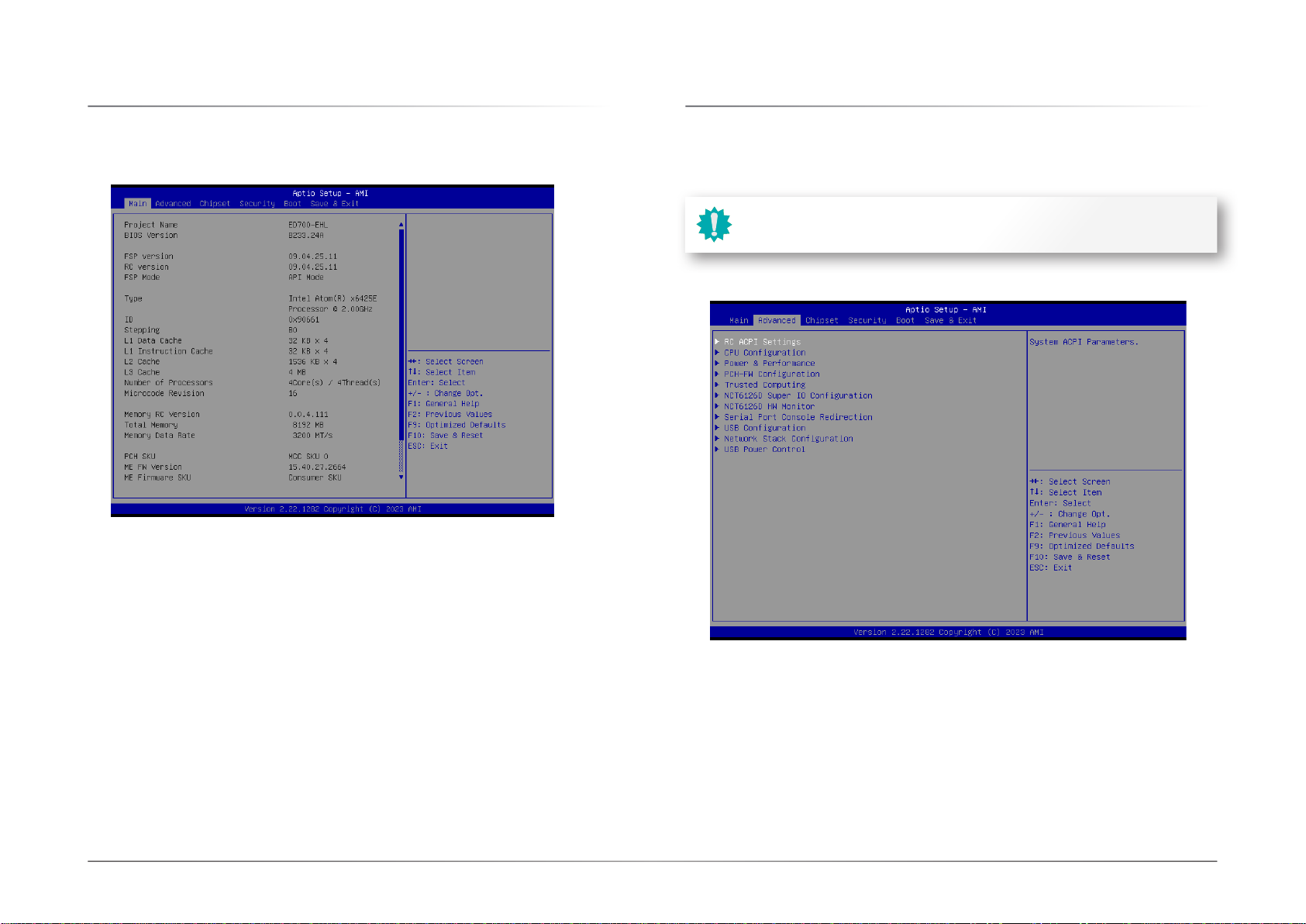

Chapter 4 - BIOS Settings...........................................................................................................17
Overview ...............................................................................................................................17
Main.......................................................................................................................................18
Advanced .............................................................................................................................18

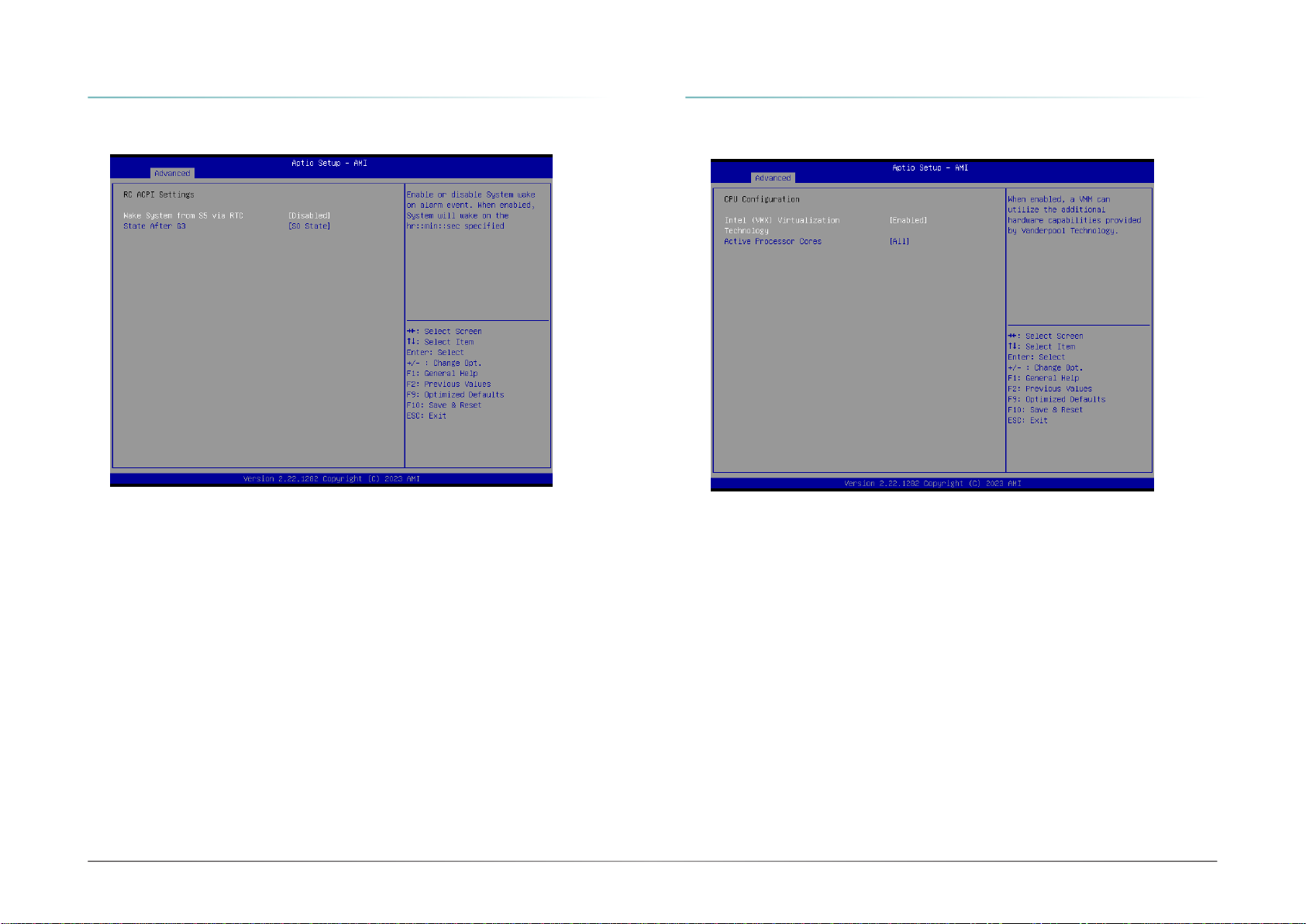

RC ACPI Configuration..................................................................................................19
CPU Configuration.........................................................................................................19
Power & Performance ...................................................................................................20
PCH-FW Configuration ..................................................................................................20
Trusted Computing........................................................................................................21
NCT6126D Super IO Configuration ..............................................................................21
NCT6126D Super IO Configuration ►Serial Port 1,2 Configuration ...................22
NCT6126D Super IO Configuration ►Serial Port 3,4 Configuration ...................22
NCT6126D HW Monitor ................................................................................................23
NCT5525D HW Monitor ►Smart FAN Function .................................................23
Serial Port Console Redirection ...................................................................................24
Serial Port Console Redirection ►Console Redirection Settings........................24
USB Configuration .........................................................................................................25
Network Stack Configuration........................................................................................25
USB Power Control........................................................................................................26
Chipset ..................................................................................................................................27
Graphics Configuration .................................................................................................27
PCH-IO Configuration ....................................................................................................28
PCH-IO Configuration ►PCI Express Configuration...........................................28
PCH-IO Configuration ►SATA Configuration.....................................................29
PCH-IO Configuration ► Audio Configuration ....................................................29
Security .................................................................................................................................30
Secure Boot....................................................................................................................30
Boot .......................................................................................................................................31
Save & Exit ............................................................................................................................31
Updating the BIOS................................................................................................................32
Notice: BIOS SPI ROM..........................................................................................................32

4
User's Manual | ED700-EHL22I
About this Manual
This manual can be retrieved from the website.
The manual is subject to change and update without notice, and may be based on editions that
do not resemble your actual products. Please visit our website or contact our sales representa-
tives for the latest editions.
Warranty
1. Warranty does not cover damages or failures that arises from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper
installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether
in or out of warranty. It must be returned to the purchase point, factory or authorized
service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
About this Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 ED700-EHL22I System Unit
• Wall Mount Bracket
• Quick Installation Guide
Note: The items are subject to change in the developing stage.Note: The items are subject to change in the developing stage.
The product and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.

5
User's Manual | ED700-EHL22I
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you
are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, con-
tacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Safety Precautions
• Use the correct DC / AC input voltage range.
• Unplug the power cord before removing the system chassis cover for installation or
servicing. After installation or servicing, cover the system chassis before plugging in
the power cord.
• There is danger of explosion if battery incorrectly replaced.
• Replace only with the same or equivalent specifications of batteries recommend by
the manufacturer.
• Dispose of used batteries according to local ordinance.
• Keep this system away from humid environments.
• Make sure the system is placed or mounted correctly and stably to prevent the chance
of dropping or falling may cause damage.
• The openings on the system shall not be blocked and shall be kept in distance from
other objects to make sure of proper air ventilation to protect the system from over-
heating.
• Dress the cables, especially the power cord, so they will not be stepped on, in contact
with high temperature surfaces, or cause any tripping hazards.
• Do not place anything on top of the power cord. Use a power cord that has been ap-
proved for use with the system and is compliant with the voltage and current ranges
required by the system’s electrical specifications.
• If the system is to be unused or stored for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
• If one of the following occurs, consult a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated the system.
- The system has been exposed to moisture.
- The system is not working properly.
- The system is physically damaged.
• The unit uses a three-wire ground cable which is equipped with a third pin to ground
the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet
does not support this kind of plug, contact your electrician to replace the outlet.
• Disconnect the system from the electricity outlet before cleaning. Use a damp cloth
for cleaning the surface. Do not use liquid or spray detergents for cleaning.
• Before connecting, make sure that the power supply voltage is correct. The device is
connected to a power outlet which should be grounded connection.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.
The system may burn fingers while running.
Wait for 30 minutes to handle electronic parts after power off.

6
Chapter 1
INTRODUCTION
User's Manual | ED700-EHL22I

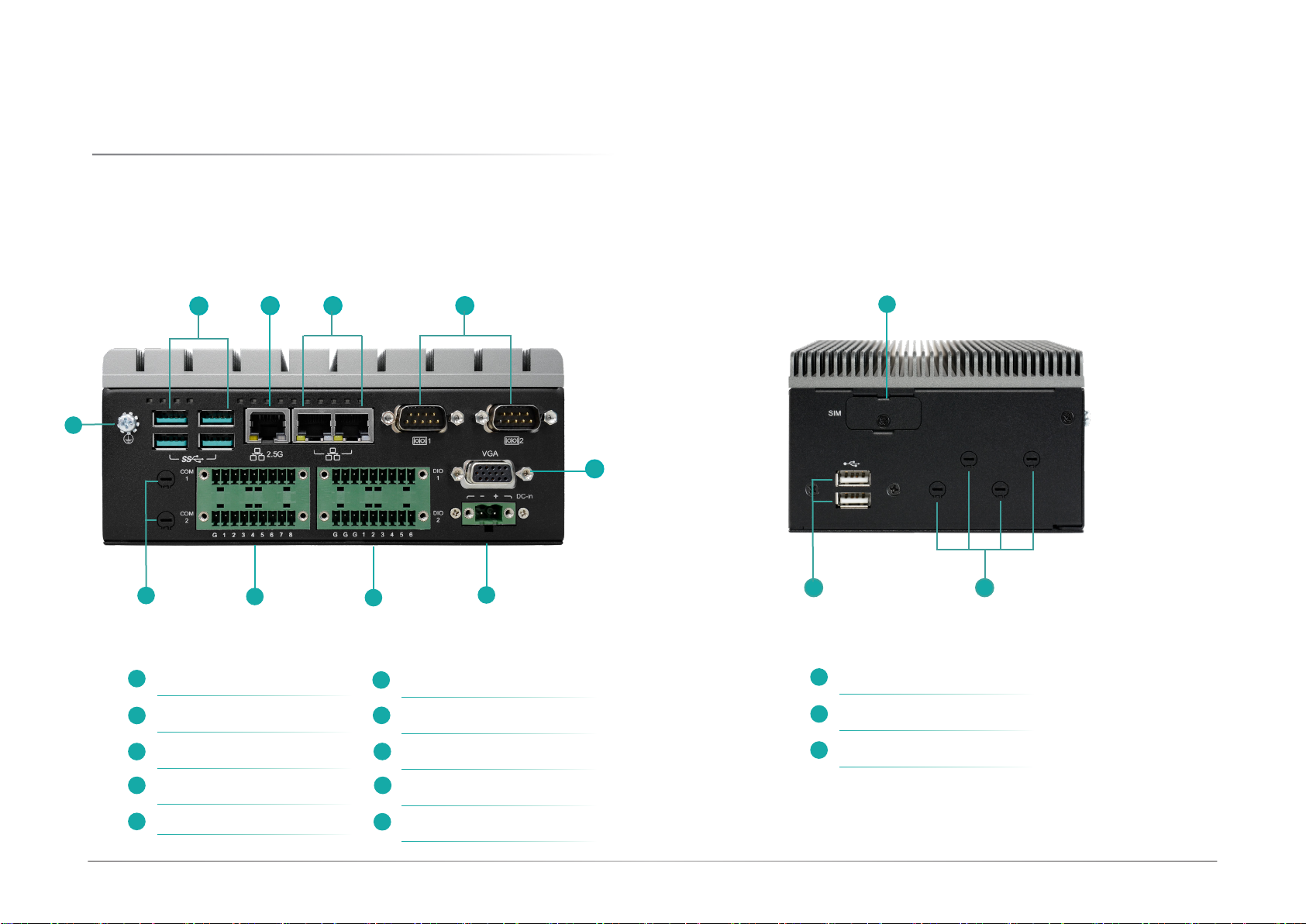

Front View Side View
Chapter 1 - Introduction
X Overview
1
2
3
4
5
USB 3.0
LAN (2.5G)
LAN
COM 1 & 2
Grounding
6
7
8
9
10
Antenna Holes
Isolated COM1 & COM2 (support 2KV)
Isolated 6bit DI & 6bit DO (support 2KV)
DC-In (9~36V)
VGA
9
78
1
3
4
10
2
1
2
3
SIM Slot
USB 2.0
Antenna Holes
3
1
2
5
6

7
Chapter 1
INTRODUCTION
User's Manual | ED700-EHL22I
X Dimensions X Key Features
5G Connectivity:
Support 5G Sub-6 module
WiFi 6 Connectivity:
Support WiFi 6 module
2.5GbE TSN:
Support 1 x 2.5GbE TSN , 3 x GbE LAN
Wide Operating Temperature:
Operating temperature:
0 to 60°C
-40 to 60°C (Supported by Intel®Embedded Series )
Isolated COM & DIO
Support isolated COM & DIO
4 x LAN
3 x LAN

8
Chapter 1
INTRODUCTION
User's Manual | ED700-EHL22I
X Specifications
SYSTEM Processor Intel®Atom®Processors X Series, BGA 1493,
Intel PC Client Series
Intel®Celeron®J6412 4 cores, 2.0 to 2.6 GHz, TDP 10W
Intel®Celeron®J6413 4 cores, 1.8 to 3.0 GHz, TDP 10W
Intel®Embedded Series
Intel®Atom®x6211E 2 cores, 1.3 to 3.0 GHz, TDP 6.5W
Intel®Atom®x6413E 4 cores, 1.5 to 3.0 GHz, TDP 9W
Intel®Atom®x6425E 4 cores, 2.0 to 3.0 GHz, TDP 12W
Intel®Atom®x6425RE 4 cores, 1.9 GHz, TDP 12W
Memory 4GB/8GB DDR4 Memory onboard
Total Memory up to 32GB
One 260 pin DDR4 SODIMM up to 3200MHz
(in-band ECC support in embedded/industrial SKU)
BIOS AMI SPI 256Mbit (supports UEFI boot only)
GRAPHICS Controller Intel®UHD Graphics for 10th Gen Intel®Processors
Feature OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9
Display 1 x VGA
VGA: resolution up to 2560x1600@60Hz
STORAGE Internal 1 x M.2 2280 (SATA)
eMMC eMMC 16GB/32GB
EXPANSION Interface 1 x M.2 2230 (USB/PCIe)
1 x M.2 3042/3052 (USB 3.0/PCIe) with dual SIM
AUDIO Audio Codec ALC262
ETHERNET Controller 2 or 3 x Intel®Ethernet Controller I210/I211 GigE LAN
1 x Intel®Ethernet 2.5GigE LAN
LED Indicators 1 x Power LED
1 x HDD LED
1 x WiFi LED
1 x 4G/5G LED
2 x COM LED
8 x DIO LED

9
Chapter 1
INTRODUCTION
User's Manual | ED700-EHL22I
TOP I/O USB 2 x USB 2.0
Antenna Hole 4 x antenna opening for 4G/5G/GPS
SIM slot Dual SIM
FRONT I/O Ethernet 2 or 3 x GbE (RJ-45) (configuration options)
1 x 2.5GbE TSN RJ45
1 x Allxon OOB Enabler (by request)
Serial 2 x RS232/422/485
2 x Isolated COM and 1x 6bit DI & 1x 6bit DO
USB 2 or 4 x USB 3.1 (configuration options)
Display 1 x VGA
DIO 8-bit DIO (jumper switch to COM)
12-bit isolated DIO
Antenna Hole 2 x antenna opening for WiFi
WATCHDOG TIMER Output & Interval System reset, programmable via software from 1 to 255 seconds
SECURITY TPM TPM 2.0 (configuration options)
POWER Type Wide range 9~36V
RTC Battery RTC battery CR2032
Connector 3-pole terminal block 2-pin power extension switch onnector
OS SUPPORT Microsoft Windows 10 IoT Enterprise 64 Bit
Linux Ubuntu 20.04
ENVIRONMENT Operating Temperature 0 to 60°C
-40 to 60°C (Supported by Intel®Embedded Series )
Storage Temperature -40 to 85°C
Relative Humidity 10 to 90% RH (non-condensing)
MECHANICAL Construction Aluminum + Metal
Mounting Wall/DIN rail mount
Dimensions (W x H x D) 72 x 172 x 118.2 (mm)
Weight 1.6 kg
STANDARDS AND
CERTIFICATIONS Shock Operating: 3G, 11ms Non-Operating: 5G, 11ms
Vibration Operating: Random 5~500Hz, IEC68-2-64 (3G)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G)
Certifciation CE, FCC, RoHS

10
Chapter 2
HARDWARE INSTALLATION
User's Manual | ED700-EHL22I
Chapter 2 - Hardware Installations
X Removing the Chassis Cover
Please observe the following guidelines and follow the instructions to open the system.
1. Make sure the system and all other peripheral devices connected to it have been
powered off.
2. Disconnect all power cords and cables.
Step 1:
The 5 screws on the bottom of the system are used to secure the cover to the chassis. Remove
the screws and put them in a safe place for later use.
Step 2:
Lift the cover to open the system.
The board can be easily accessed after the chassis cover is removed.

11
Chapter 2
HARDWARE INSTALLATION
User's Manual | ED700-EHL22I
X Installing an Antenna
Before installing the antenna, please make sure that the following safety cautions are wellat-
tended.
1. Make sure the PC and all other peripheral devices connected to it has been
powered down.
2. Disconnect all power cords and cables.
Step 1:
There are antenna holes reserved on the front and left side of the system and covered by six
knockout tabs. Please remove a knockout tab prior to installing an antenna.
Antenna ConnectorCableModule Connector NutWasher
Chassis Wall Antenna
Knockout tabs for antenna holes
Knockout tabs for antenna holes
Step 2:
Use a flathead screwdriver and apply a little extra force to detach a knockout tab until it
breaks off from the system.
Once the knockout tab is mostly detached, it will pretty quickly snap off, leaving you a nice
hole for installing an antenna.
Step 3:
Connect the internal cable to the board's antenna connector, screw the antenna connector
through the antenna hole with washers and nuts, and screw on the antenna as illustrated below.

12
Chapter 2
HARDWARE INSTALLATION
User's Manual | ED700-EHL22I
X Expansion Slots
Installing the M.2 Module
Before installing the M.2 module into the M.2 socket, please make sure that the following
safety cautions are well-attended.
1. Make sure the PC and all other peripheral devices connected to it has been powered
down.
2. Disconnect all power cords and cables.
3. Locate the M.2 socket on the system board
4. Make sure the notch on card is aligned to the key on the socket.
5. Make sure the standoff screw is removed from the standoff.
M.2 Module M.2 Socket
Key
Stand-off
Notch
Please follow the steps below to install the card into the socket.
Step 2:
Press the end of the card far
from the socket down until
against the stand-off.
Step 3:
Screw tight the card onto the
stand-off with a screw driver
and a stand-off screw until
the gap between the card and
the stand-off closes up. The
card should be lying parallel to
the board when it’s correctly
mounted.
Step 1:
Insert the card into the socket
at an angle while making sure
the notch and key are perfectly
aligned.
M.2 Module M.2 Socket
Key
Stand-off
Notch

13
Chapter 2
HARDWARE INSTALLATION
User's Manual | ED700-EHL22I
Installing the SO-DIMM Module
Before installing the memory module, please make sure that the following safety cautions are
well-attended.
1. Make sure the PC and all other peripheral devices connected to it has been powered
down.
2. Disconnect all power cords and cables.
3. Locate the SO-DIMM socket on the system board
4. Make sure the notch on memory card is aligned to the key on the socket.
Notch
Retention Notch
Key
Socket Top View
DDR4 SO-DIMM
Retention Clip
45°
Step 1
Step 2
Step 3
Notch
Retention Notch
Key
Socket Top View
DDR4 SO-DIMM
Retention Clip
45°
Step 1
Step 2
Step 3
Please follow the steps below to install the memory card into the socket.
Step 1:
Insert the memory card into the slot while
making sure 1) the notch and the key are
aligned, and 2) the non-connector end
rises approximately 45 degrees horizon-
tally. Press the card firmly into the socket
while applying and maintaining even pres-
sure on both ends.
Step 2:
Press the end of the card far from the
socket down while making sure the reten-
tion notch and the clip align as indicated
by the dotted line in the illustration. If the
retention notch and the clip do not align,
please remove the card and re-insert it.
Press the card all the way down.
Step 3:
The clips snap automatically and abruptly
to the retention notches of the card
sounding a distinctive click, and lock the
card in place. Inspect that the clip sits
in the notch. If not, please pull the clips
outward, release and remove the card, and
mount it again.

14
Chapter 2
HARDWARE INSTALLATION
User's Manual | ED700-EHL22I
X Mounting Options
The system features DIN-rail mount chassis that facilitates fast installation of the system to
a DIN rail.
The DIN Rail mount kit includes the following:
• Din-rail mount bracket
• 2 screws
Step 1:
Use the provided mounting screws to attach the din-rail mount bracket to the rear side of
the system.
Step 2:
Install the sytem onto the rail.

15
Chapter 3
SYSTEM SETTINGS
User's Manual | ED700-EHL22I
Chapter 3 - System Settings
X Pin Assignment
1 4
5 9 9
1 2
1 4
5
Pin Assignment
1-
2+
Pin COM
(RS232)
COM
(RS422/Half)
COM
(RS422/Full)
COM
(RS485)
1RI --- --- ---
2CTS --- --- ---
3RTS --- --- ---
4DSR --- --- ---
5GND GND GND GND
6DTR --- TX- ---
7TX --- TX+ ---
8RX RX- RX- DATA-
9DCD RX+ RX+ DATA+
DC-in COM1 & COM2

16
Chapter 3
SYSTEM SETTINGS
User's Manual | ED700-EHL22I
Pin DIO 1 DIO 2
GGND GND
GGND GND
GGND GND
1GPO1 GPI1
2GPO2 GPI2
3GPO3 GPI3
4GPO4 GPI4
5GPO5 GPI5
6GPO6 GPI6
Pin COM 1 COM 2
GGND GND
1DCD2# DCD1#
2SIN2 SIN1
3SO2 SO1
4DTR2# DTR1#
5DSR2# DSR1#
6RTS2# RTS1#
7CTS2# CTS1#
8RI2# RI1#
Isolation COM1 & COM2 Isolation DIO1 & DIO2

17
Chapter 4
BIOS SETTINGS
User's Manual | ED700-EHL22I
Chapter 4 - BIOS Settings
Legends
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more avail-
able fields not shown on the screen. Use the up and down arrow keys to scroll through all the
available fields.
Submenu
When “X” appears on the left of a particular field, it indicates that a submenu which contains
additional options are available for that field. To display the submenu, move the highlight to
that field and press <Enter>.
Keys Function
Right / Left arrow Move the highlight left or right to select a menu
Up / Down arrow Move the highlight up or down between submenus or fields
<Enter> Enter the highlighted submenu
+ (plus key)/F6 Scroll forward through the values or options of the highlighted field
- (minus key)/F5 Scroll backward through the values or options of the highlighted field
<F1> Display general help
<F2> Display previous values
<F7> Popup Boot Device List
<F9> Optimized defaults
<F10> Save and Exit
<Esc> Return to previous menu
X Overview
The BIOS is a program that takes care of the basic level of communication between the CPU
and peripherals. It contains codes for various advanced features found in this system board.
The BIOS allows you to configure the system and save the configuration in a battery-backed
CMOS so that the data retains even when the power is off. In general, the information stored
in the CMOS RAM of the EEPROM will stay unchanged unless a configuration change has been
made such as a hard drive replaced or a device added.
It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need
to install a new CMOS battery and reconfigure the BIOS settings.
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults
settings which are stored in the BIOS or are automatically detected and configured without re-
quiring any actions. There are a few settings that you may need to change depending on your
system configuration.
Entering the BIOS Setup Utility
The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard
commands. The commands are available at the right side of each setup screen.
The BIOS Setup Utility does not require an operating system to run. After you power up the
system, the BIOS message appears on the screen and the memory count begins. After the
memory test, the message “Press DEL to run setup” will appear on the screen. If the message
disappears before you respond, restart the system or press the “Reset” button. You may also
restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.
Note:
The BIOS is constantly updated to improve the performance of the system board;
therefore the BIOS screens in this chapter may not appear the same as the actual
one. These screens are for reference purpose only.

18
Chapter 4
BIOS SETTINGS
User's Manual | ED700-EHL22I 18
X Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
System Date
The date format is <month>, <date>, <year>. Press "Tab" to switch to the next field and press "-"
or "+" to modify the value.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time
clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min-
utes from 00 to 59. Second displays seconds from 00 to 59.
X Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are
defaults required by the system board, while others, if enabled, will improve the performance
of your system or let you set some features according to your preference.
Important:
Setting incorrect field values may cause the system to malfunction.

19
Chapter 4
BIOS SETTINGS
User's Manual | ED700-EHL22I 19
RC ACPI Configuration
Wake system from S5 via RTC
When Enabled, the system will automatically power up at a designated time every day. Once it’s
switched to [Enabled], please set up the time of day — hour, minute, and second — for the
system to wake up.
State After G3
Select between S0 State, and S5 State. This field is used to specify what state the system is
set to return to when power is re-applied after a power failure (G3 state).
S0 State The system automatically powers on after power failure.
S5 State The system enter soft-off state after power failure. Power-on signal input is
required to power up the system.
Last State The system returns to the last state right before power failure.
Advanced
CPU Configuration
Advanced
Intel (VMX) Virtualization Technology
When this field is set to Enabled, the VMM can utilize the additional hardware capabilities pro-
vided by Vanderpool Technology.
Active Processor Cores
Select number of cores to enable in each processor package: all or 1.

20
Chapter 4
BIOS SETTINGS
User's Manual | ED700-EHL22I 20
Power & Performance
Advanced
PCH-FW Configuration
Advanced
Intel (R) SpeedStep(tm)
This field is used to enable or disable the Intel SpeedStep® Technology, which helps optimize
the balance between system’s power consumption and performance. After it is enabled in the
BIOS, EIST features can then be enabled via the operating system’s power management.
Turbo Mode
Enable or disable turbo mode of the processor. This field will only be displayed when EIST is
enabled.
C states
Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and
nothing is executing.
ME FW Image Re-Flash
Enable/Disable Me FW Image Re-Flash function.
