di-GPS Eco ProSumer PS10-M User manual

di-GPS®
Eco ProSumer PS10-M
digital images GPS receiver
Users Guide
Ver 1.02
Please visit our website www.di-gps.com for the latest version of the user guide

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
1
CONTENTS
CONTENTS .........................................................................................................................................1
INTRODUCTION .................................................................................................................................2
WARNING / PRECAUTION FOR USE....................................................................................................3
WARNING / PRECAUTION FOR USE....................................................................................................4
PART NAMES OF ECO PS10-M GPS.....................................................................................................5
CONNECTING ECO PS10-M GPS TO CAMERA......................................................................................6
RECORDING GPS DATA (1) .................................................................................................................7
RECORDING GPS DATA (2) ...............................................................................................................10

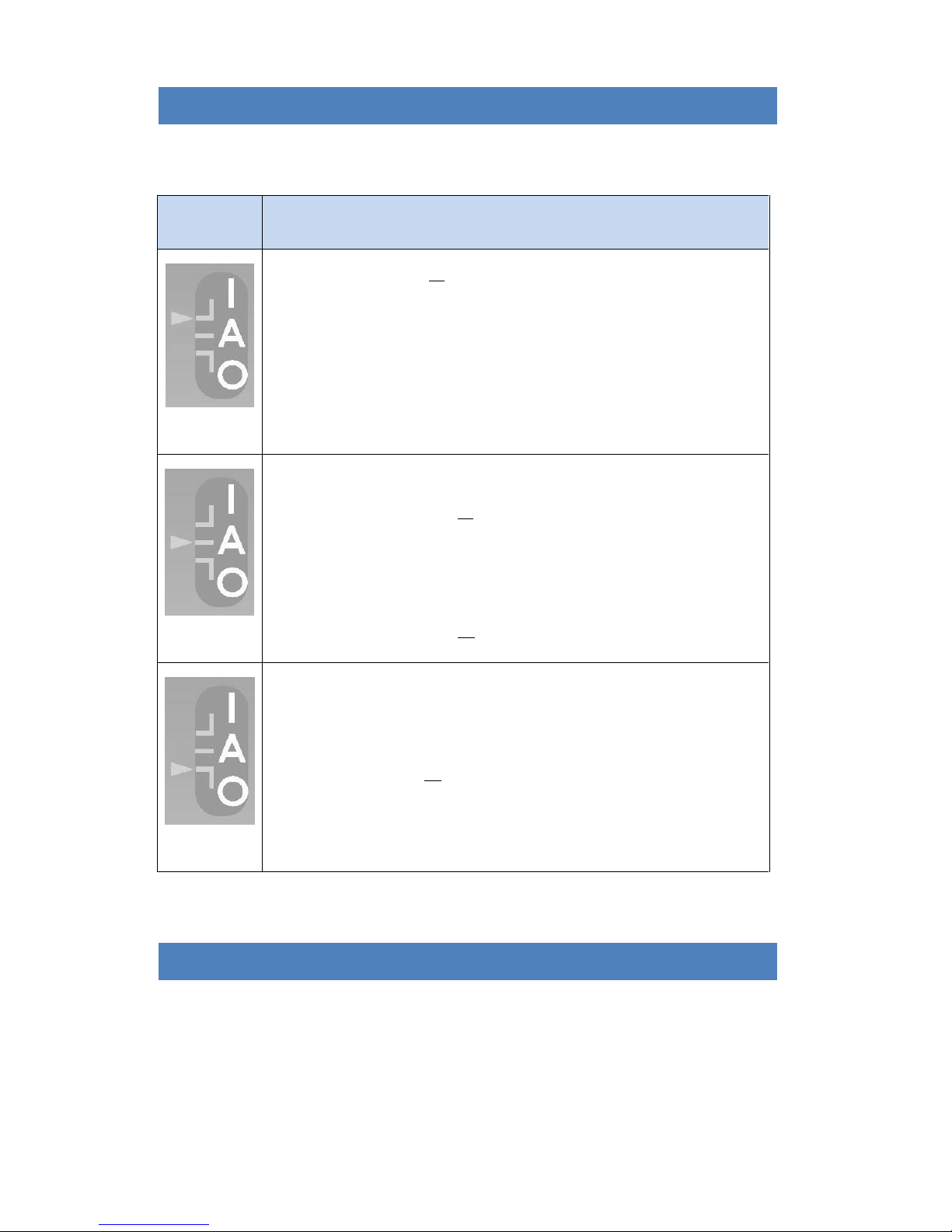

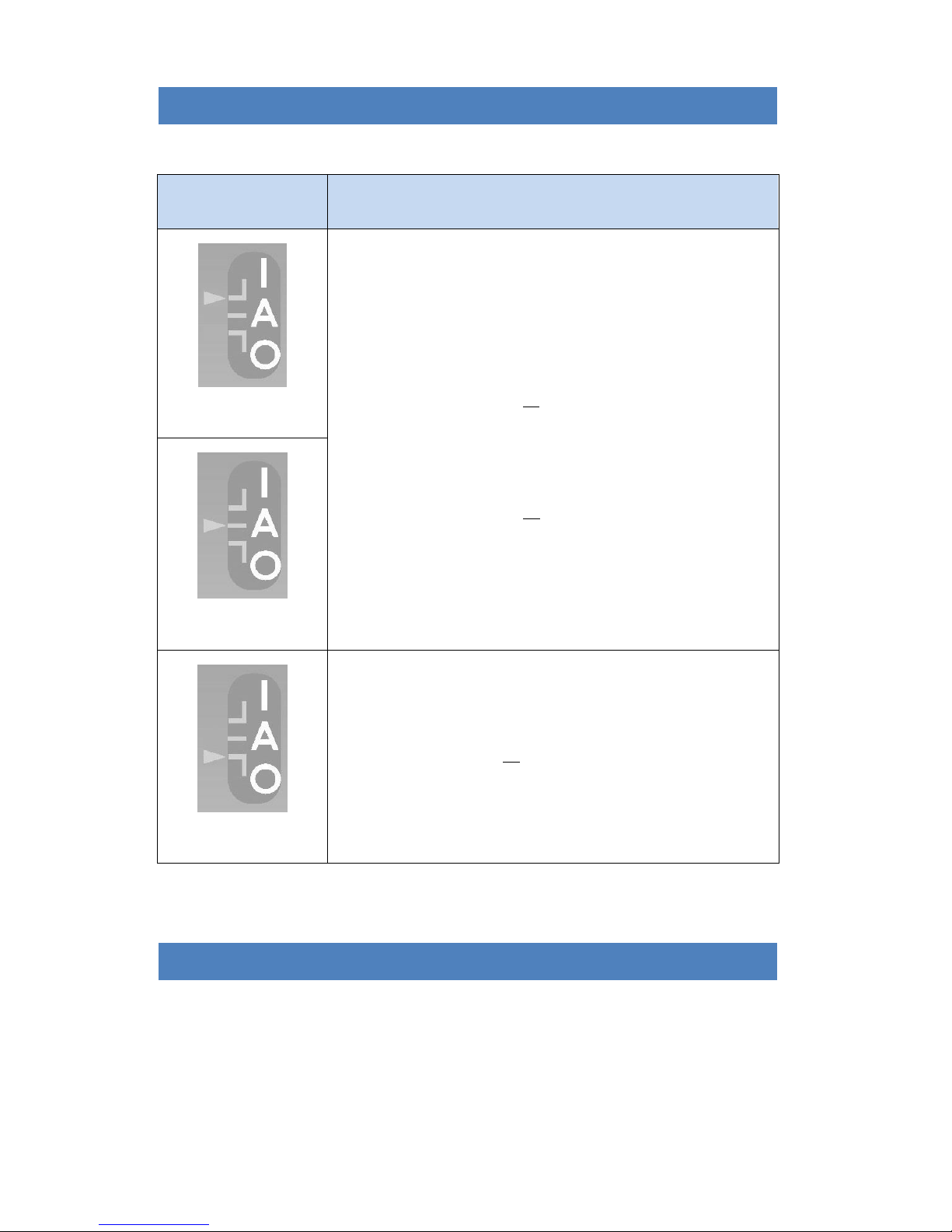

POWER MODE SWITCH (1) ...............................................................................................................11
POWER MODE SWITCH (2) ...............................................................................................................12
GPS STATUS LED INDICATOR FOR ECO PS10-M GPS FIX (1) ........... ERROR! BOOKMARK NOT DEFINED.
GPS STATUS LED INDICATOR FOR ECO PS10-M GPS FIX (2) ........... ERROR! BOOKMARK NOT DEFINED.
LAST POSITION MEMORY (“LPM”) ...................................................................................................13
SPECIFICATIONS...............................................................................................................................14
WARRANTY......................................................................................................................................15

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
2
INTRODUCTION
Thank you for purchasing di-GPS® Eco ProSumer PS10-M series GPS receiver (digital images GPS).
di-GPS® Eco ProSumer PS10-M series GPS receiver (thereafter “Eco PS10-M GPS”) is specially
designed for a DSLR (Digital Single-lens Reflex) camera. It provides real time position (latitude,
longitude, elevation) and the precise time (UTC time) information to your DSLR camera. It records
the locations to each digital image file so that you will never forget the exact location where you took
the pictures.
Eco PS10-M GPS has built with the latest third generation MTK MT3339 ultra low power consumption
GPS engine. It supports up to 66 channels of satellite tracking with -165dBm sensitivity. Eco PS10-M
GPS repeats the last fixed position(1) when no GPS signal is available or the unit is out of GPS coverage
with real UTC date/time.
Eco PS10-M GPS allows you to save your present location data to your digital image file. Its State-Of-
The-Art technology provides extremely fast TTFF (Time-To-First-Fix), unrivaled high sensitivity and
superior performance in virtually any outdoor environment. Eco PS10-M GPS receiver can work in a
place where GPS was not possible before: in the woods, under very heavy foliage, canyons, terrain
obstructions, in cities with densely populated high-rise buildings and even inside a train or a car, with
no external antenna required. It is designed to meet the rigorous demands of today's digital
photographers.
Note (1) : Not applicable to Nikon Coolpix P7700

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
3
WARNING / PRECAUTION FOR USE (I)
Keep out of reach of children. This device contains small parts that may pose a choking hazard.
Consult a physician immediately if a child swallows any part of this device.
Under no circumstances should you attempt to disassemble the product and repair it yourself.
Doing so may result in electric shock or product malfunction. Should the product break open as
the result of a fall or other accident, send the unit to Dawn Technology Limited for inspection.
For more information, please visit our web site at www.di-gps.com.
Do not handle with wet hands or immerse in or expose to water or rain. Failure to observe this
precaution could result in fire or electric shock.
Do not use in the presence of flammable gas. Failure to observe this precaution could result in
explosion or fire.
Do not expose to flame or excessive heat.
Do not expose to high temperatures.
Do not leave the device in a closed vehicle under the sun or in other areas subject to extremely
high temperatures. Failure to observe this precaution could result in fire or in damage to the
casing or internal parts.
Turn off immediately in the event of malfunction. Should you notice smoke or an unusual smell
coming from this device, remove the 10 pins connector immediately and send the unit to Dawn
Technology Limited for inspection. For more information, please visit our web site at www.di-
gps.com.
En

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
4
WARNING / PRECAUTION FOR USE (II)
Important WARNING
Do not put the camera to the bag with the GPS at the bottom (as shown in the picture below). Failure
to do so may cause permanent damage to the GPS unit and/or the camera’s terminal.

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
5
PART NAMES OF ECO PS10-M GPS
A –Power Mode Switch
B –Status LED
C –Connector to DSLR camera
D –Shutter release socket (2.5mm)

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
6
CONNECTING ECO PS10-M GPS TO CAMERA
Direct connect Eco PS10-M GPS to
the accessory terminal of the
DSLR camera body.
How the strip
be attached
A supplied remote control
accessory can be connected
to the 2.5mm remote
terminal of Eco PS10-M GPS
for remote shutter release.
NOTE
Eco PS10-M GPS cannot be turned on when the camera is not connected.
Please refer to user guide of your DSLR for more information on taking photographs with a GPS receiver.
Be sure to turn off your camera before disconnecting Eco PS10-M GPS. Do not connect or disconnect Eco PS10-M GPS
while the camera is on. Failure to observe this precaution could cause a malfunction of the camera.
Do not carry the camera by Eco PS10-M GPS or subject the camera or the unit to physical shocks while the unit is
connected. Failure to observe this precaution could result in physical damage of the unit or the camera’s GPS terminals.
Re-place the caps on the camera when the terminals are not in use.

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
7
CONNECTING ECO PS10-M GPS TO CAMERA
Connect the DSLR camera and Eco PS10-M GPS as described below.
1. Turn off the camera.
2. Remove the cap from the accessory terminal on the camera body.
3. Attach the Eco PS10-M GPS directly to the accessory terminal on camera. Do not use any
extension cord.
4. Switch the power mode to “On” or “Auto”.
5. Turn the camera on.
6. If Eco PS10-M GPS is properly connected, the camera will display a blinking icon on the top
control panel / LCD monitor of DSLR camera. It means Eco PS10-M GPS is searching for a
signal. The icon will stop blinking once signal has been established and Eco PS10-M GPS is
ready for supplying the current position.
7. Eco PS10-M GPS will automatically detect the connection of the camera. It cannot be turned
on when the camera is not connected whatever the power mode switch is set to "On" or
"Auto". Both "On" and "Auto" mode only function when the camera is properly connected.

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
8
RECORDING GPS DATA (I)
When Eco PS10-M GPS connects to Nikon D600, D90, D3100, D3200, D5000, D5100, D5200, D7000
and D7100 :-
STATUS LED
(on Eco PS10-M)
GPS ICON
(on camera)
DESCRIPTION
Flashing
Flashing Icon
No fix, Signal searching
No Last Position Memory Output
No GPS data will be recorded in the photos.
Flashing
Icon Steady
No fix, Signal searching
Last Position Memory output with current UTC
date/time to the camera until new fix available
Last fixed GPS position will be recorded to the
photos.
Steady On
Icon Steady
Fix available
Eco PS10-M GPS continuously sends the current GPS
position to the camera.
NOTE
LED on Eco PS10-M GPS only represents the status of Eco PS10-M GPS, but not the reception of
GPS data to the DSLR camera.
GPS data are only recorded when GPS icon displayed on the LCD panel / LCD monitor of DSLR
camera. Please make sure that GPS icon is displayed before shooting.

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
9
RECORDING GPS DATA (II)
When Eco PS10-M GPS connects to Nikon Coolpix P7700 :-
STATUS LED
(on Eco PS10-
M)
GPS ICON
(on camera)
DESCRIPTION
Flashing
Icon in Red colour
No fix, Signal searching
No Last Position Memory Output
No GPS data will be recorded in the photos.
Steady On
or
Icon in white
colour
Fix available
Eco PS10-M GPS continuously sends the current GPS
position to the camera.
NOTE
LED on Eco PS10-M GPS only represents the status of Eco PS10-M GPS, but not the reception of
GPS data to the camera.
GPS data are only recorded when , or icon displayed on shooting screen of
camera. Please make sure that , or icon is displayed before shooting.

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
10
RECORDING GPS DATA (III)
Each satellite broadcasts a digital message that contains two types of information. One type is
ephemeris data, which includes the assigned serial number of the satellite, the status of the satellite
(healthy or faulty), current date and time. The second type is almanac data which includes precise
orbital position of every satellite in the system.
At the initial stage, ECO PS10-M GPS needs all these data for the position fixed. It usually takes a
minute to few minutes to receive all data. An open sky outdoor environment will enable faster
acquisition process. It will take a longer time at a weak signal environment. Once Eco PS10-M GPS
locks to the satellites, it will take a few seconds for reacquisition even at weak signal environment.
The EASY™ function is Embedded Assist System for quick positioning. Eco PS10-M GPS will calculate
and predict automatically the single emperies (Max. up to 3 days) when power on, and save the
predict information into the memory, Eco PS10-M GPS will use these information for positioning if no
enough information from satellites, this function will be helpful for positioning weak signal
environment.
Before the EASY™ function works properly, Eco PS10-M GPS needs to collect enough information
from satellites. The GPS usually needs 1-2 minutes to collect all information from satellites after the
first fix. Please let the GPS turn on for 1-2 minutes after the first fix for the first time of use.
Eco PS10-M GPS has a memory backup capacitor inside. The capacitor can provide about two
minutes power to the internal memory after disconnect from the camera of changing battery. To
avoid the lost of ephemeris data in the internal memory, Eco PS10-M GPS should be connected to the
camera all the time. The internal memory only consumes a very small amount of energy, it will not
affect the battery life of the camera. As the ephemeris data only be good for 3 days maximum, Eco
PS10-M GPS should be disconnected from the camera if the camera will not be used for a long period
of time.

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
11
POWER MODE SWITCH (I)
When Eco PS10-M GPS connects to Nikon D600, D90, D3100, D3200, D5000, D5100, D5200, D7000
and D7100:-
POWER MODE
DESCRIPTION
ON
Eco PS10-M GPS is “on”, no matter the camera is on or off.
It sends current GPS location to the camera when locked to satellites.
Last Position Retention (“LPR”) function enabled.
AUTO
When metering system active:
Eco PS10-M GPS turns on automatically.
It sends current GPS location to the camera when locked to satellites.
When metering system inactive:
Eco PS10-M GPS turns off automatically.
OFF
Eco PS10-M GPS in off state.

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
12
POWER MODE SWITCH (II)
When Eco PS10-M GPS connects to Nikon Coolpix P7700 :-
POWER MODE
DESCRIPTION
ON
When P7700 is ON:
Eco PS10-M GPS turns on automatically.
It sends current GPS location to the camera when locked to
satellites.
When P7700 is OFF:
Eco PS10-M GPS turns off automatically.
AUTO
OFF
Eco PS10-M GPS in off state.

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
13
LAST POSITION RETENTION (“LPM”)
Eco PS10-M GPS is able to provide the last known GPS position with current UTC date / time (1) to
the DSLR camera even if there is the GPS signal is lost or the unit is out of the GPS coverage.
No fix will be reported when no GPS position. The camera’s GPS icon will flash and no GPS
data will be recorded.
A first fix is needed during initialization before the LPR works properly.
Current GPS position will immediately be reported to the camera once the new fix available.
Last known GPS position with current UTC date / time will be continuously reported when
the GPS signal is lost, the unit is out of GPS coverage, until there is a good position fix.
The last known position will be saved to internal memory every 5 seconds. The GPS unit has
a built-in power backup capacitor. The capacitor provides about two minutes power to the
internal memory / internal clock running after disconnecting from the camera. When the
power of internal capacitor exhausted, the GPS unit will report no GPS position. The
camera’s GPS icon will flash and no GPS data will be recorded.
Note (1) : Not applicable to Nikon Coolpix P7700

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
14
SPECIFICATIONS
General
Chipset MTK MT3339
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channels 66 channels all-in-view tracking
Sensitivity
Acquisition -148dBm (Cold Start), -165 dBm tracking
Accuracy (Open Sky)
Position 10 meters, 2D RMS
5 meters, 2D RMS, WAAS enabled
Velocity 0.1 m/s
Time 1us synchronized to GPS time
Datum
WGS-84
Acquisition Time (Open sky,
stationary requirements)
Reacquisition Less than 1 sec., average
Hot start 1 sec., average
Warm start 33 sec., average
Cold start 35 sec., average
(No. of SVs>4, C/N>40dB, PDop<1.5)
Dynamic Conditions
Altitude: Maximum 18,000m
Velocity: Maximum 515m/s
Acceleration: Maximum 4G
Power Source
Powered from DSLR camera via 10 pin connector
Current consumption: 21mA acquisition, 19mA tracking
Protocol
Baud rate 4,800 bps
Output message NMEA 0183
Interface
Nikon rectangle 10 pin connector direct connect to Nikon DSLR
cameras
Physical Characteristics
Dimension 53mm*23mm*14mm
Weight: 18g
Operating Temperature -10°C to +45°C
Operating Humidity: 5% to 90%, No Condensing

DI-GPS® IS A REGISTERED TRADEMARK OR A TRADEMARK OF DAWN TECHNOLOGY LIMITED.
NIKON D2HS, D2X, D2XS, D200, D3, D3S, D3X, D300, D300S, D600, D700, D800, D90, D3100, D3200, D5000,
D5100, D7000, D7100 AND P7700 ARE REGISTERED TRADEMARK OR A TRADEMARK OF NIKON
CORPORATION IN THE UNITED STATES AND/OR OTHER COUNTRIES.
FUJIFILM AND S5 PRO ARE REGISTERED TRADEMARK OR A TRADEMARK OF FUJIFILM U.S.A., INC. IN THE
UNITED STATES AND/OR OTHER COUNTRIES.
V1.02
15
WARRANTY
Dawn Technology Limited guarantees its product, which is determined to be defective or
faulty materials and workmanship, for a period of one year after the date of purchase.
During the one-year warranty, Dawn Technology will repair or replace the product free of
charges. Please keep your original invoice as proof of purchase.
Customers who have products covered under the warranty are required to contact Dawn
Technology Limited by e-mail for troubleshooting issues before returning product.
Customer should responsible for shipping and insurance charges for returning the product to
Dawn Technology Limited.
Charges will be imposed for repair product, which is out of warranty coverage or invalid
warranty.
The guarantee is not valid if defect is due to damage caused by incorrect use, poor
maintenance or if alterations or repairs have been carried out by persons not authorized by
Dawn Technology Limited.
For the device to be used correctly, the user should strictly adhere to all instructions
included in the user guide and should abstain from any actions or uses that are described as
undesired or which are warned against in the user guide.
Information in this document is subject to change without notice. Dawn Technology Limited reserves
the right to change or improve their products and to make changes in the content without obligation
to notify any person or organization of such changes or improvements.
