Diago Powerstation User manual

POWERSTATION
M A N U A L
E F F E C T S P E D A L P O W E R S Y S T E M

Thank you for purchasing the Diago Powerstation effects pedal power
system. It’s a great little piece of kit, and we really do hope you love it.
The Diago Powerstation is the best solution for powering almost all
effects pedals, and it will power from 1 to over 30 pedals reliably
without noise or hum - or your money back.
It uses digital switch mode technology with advanced filtering, making
it quiet, light, efficient and small. It takes care of powering your pedals
so you can concentrate on making music.
The Powerstation and Deluxe Daisy Chain follow the Boss convention
of 9V DC, centre negative, on a 2.1mm barrel plug, which is suitable
to power most pedals by Boss, Danelectro, Dunlop, Digitech, Electro
Harmonix, Ibanez, Korg, Morley, MXR and Zoom.
It automatically supplies the required amount of current, up to a
massive 3,000mA, so you don't have to worry about overloading it
with too many pedals.
Our colour coded adaptors allow you to use the Powerstation with
almost all pedals that don’t follow the Boss convention.
See the next page for examples of how to use your Powerstation, and
visit the Diago website (www.diago.co.uk) for more details, a FAQ
section and a comprehensive list of pedals that do (and don’t) work
with the Powerstation, and if you need any adaptors.
We don’t expect you to be an Electronics Engineer just so that you
can power your effects pedals. We do the hard work, so that you
don’t have to.
Will my pedals work with the Powerstation?
Contents
Useful Info
You should have the following items in your Powerstation box:
1) 1 x Diago Powerstation base unit
2) 1 x Diago Deluxe Daisy Chain with 6 x Right Angled 2.1mm plugs
3) 1 x 2m long AC mains cable for your country
4) 1 x Strip of 25mm wide adhesive backed Velcro
5) This manual....
Multiple Deluxe Daisy Chains can be connected together to power as
many pedals as you need. Each Daisy Chain has 6 plugs, but
remember that when you join two Daisy Chains together, one is used
in the connection. The first Daisy Chain will power up to 6 pedals, and
then each additional daisy chain will allow you to power 5 more.
There is 30cm (1ft) of cable between each right angled plug, to enable
you to reach all your pedals, while keeping everything neat and tidy on
your pedal board. We use extra long barrel plugs on the Daisy Chain
so that the plugs will reach inside pedals with recessed power sockets
like the Dunlop Crybaby.
The Diago Powerstation works anywhere in the world, by auto-sensing
input AC voltage and frequency. If you wish to use it internationally,
just use the appropriate travel adaptor, or standard C7 (also known as
Figure 8) mains cable with the correct wall plug.
The Diago Powerstation has in-built short circuit and overload
protection. If one of your pedals malfunctions, or you accidentally plug
it in to a pedal with the wrong polarity, it will not damage itself or your
pedals. Instead, it shuts down, and the little green LED will go off or
flash until the problem is fixed or removed from the connection. As
soon as the problem is rectified, the Powerstation will power up again.
POWERSTATION

1
1
2
4 5 6 7

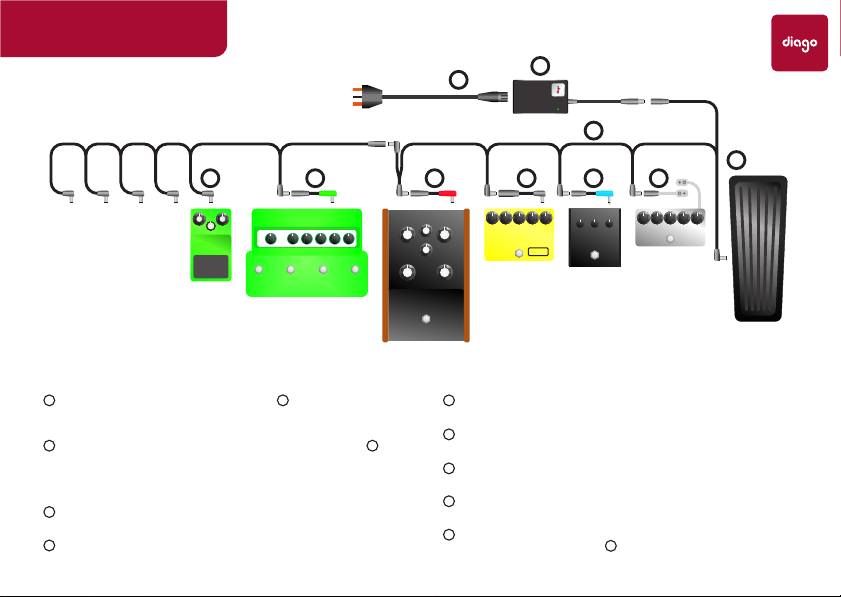

Connect the AC Mains cable to the Powerstation . You can use the
Powerstation The cable is a standard C7 (also known
as figure 8) detachable type.
Connect the Powerstation to the socket of Deluxe Daisy Chain Cable .
You can connect any number of daisy chains together to give as many pedal
connections as you need. You do not need to use each consecutive plug, and
you don’t have to use them all. Unused barrel plugs should be taped up, so that
they do not cause a short circuit.
Pedals that follow the Boss convention of 9V DC on a centre negative, 2.1mm
barrel plug can be powered directly from the daisy chain plugs.
Line 6 Stompbox Modeler pedals (AM4, DL4, DM4, FM4 & MM4) can be
powered using a Diago Green Adaptor.
anywhere in the world.
Pedals that require 9V DC on a centre positive, 2.1mm barrel plug can be
powered using a Diago Red Adaptor.
Pedals that require 18V DC on a centre negative, 2.1mm barrel plug can be
powered using a Diago 18V Adaptor.
Pedals that require 9V DC on a positive tip, 3.5mm mini jack plug can be
powered using a Diago Blue Adaptor.
Pedals that don't have an external power socket, but that use a 9V battery,
can be powered using a Diago White Adaptor.
Pedals that are large, or are in difficult to reach positions, can easily be powered
using the Diago Deluxe Daisy Chain , which has 30cm (1ft) of cable between each
of the 6 x compact right angled plugs.
POWERSTATION
LINE6
BOSS
moog
MXR
2
2 3
6
7
8
3
8 9
10
RAT ZVEX
EFFECTS
3
4
5
9
10

POWERSTATION
D E S I G N E D B Y D I A G O I N T H E U K
M A D E I N C H I N A
w w w . d i a g o . c o . u k
Warranty
Safety
Specifications
For our current warranty terms and conditions, please refer to our
website at www.diago.co.uk.
Do not use near water, or install near heat sources. Use only
authorised attachments/accessories. Do not service this product
yourself. Contact our qualified servicing personnel for servicing or
repairs.
Output: 9V DC @ 3,000 mA (25W)
Input: 90-264VAC @ 50-60Hz
Efficiency: ~80%
Line Regulation: ±0.5% max
Load Regulation: ±1% max
Mains Cable Inlet: 2m Figure 8 Lead IEC320-C8
Output Barrel: 2.1 x 5.5 x 12mm female barrel, centre -ve
Dimensions: 93mm(L) x 58mm(W) x 33mm(D)
Protection: Short circuit and overload protection
Operating Temperature: 0°C to +40°C
Storage Temperature: -40°C to +85°C
Approval: CE, UL, TUV, CB, BSMI, RoHS and WEEE
Technical specifications and appearance subject to change without
notice. The information contained herein is correct at the time of
printing.
The names of companies, institutions, and publications pictured or
mentioned and their respective logos are registered trademarks of
their respective owners. Their use neither constitutes a claim of the
trademarks by Diago nor affiliation of the trademark owners with
Diago.
Diago accepts no liability for any loss which may be suffered by any
person who relies wholly or in part upon any description, photograph
or statement contained herein.
Colours and specification may vary slightly from product. Products
sold are through our authorised dealers only. Distributors and dealers
are not agents of Diago, and have absolutely no authority to bind
Diago by any express or implied undertaking or representation.
No part of this manual may be reproduced or transmitted in any form
or by any means, electronic or mechanical, including photocopying
and recording of any kind, for any purpose, without express written
permission of Diago Ltd.
Copyright 2009 Diago Ltd. All rights reserved.©
