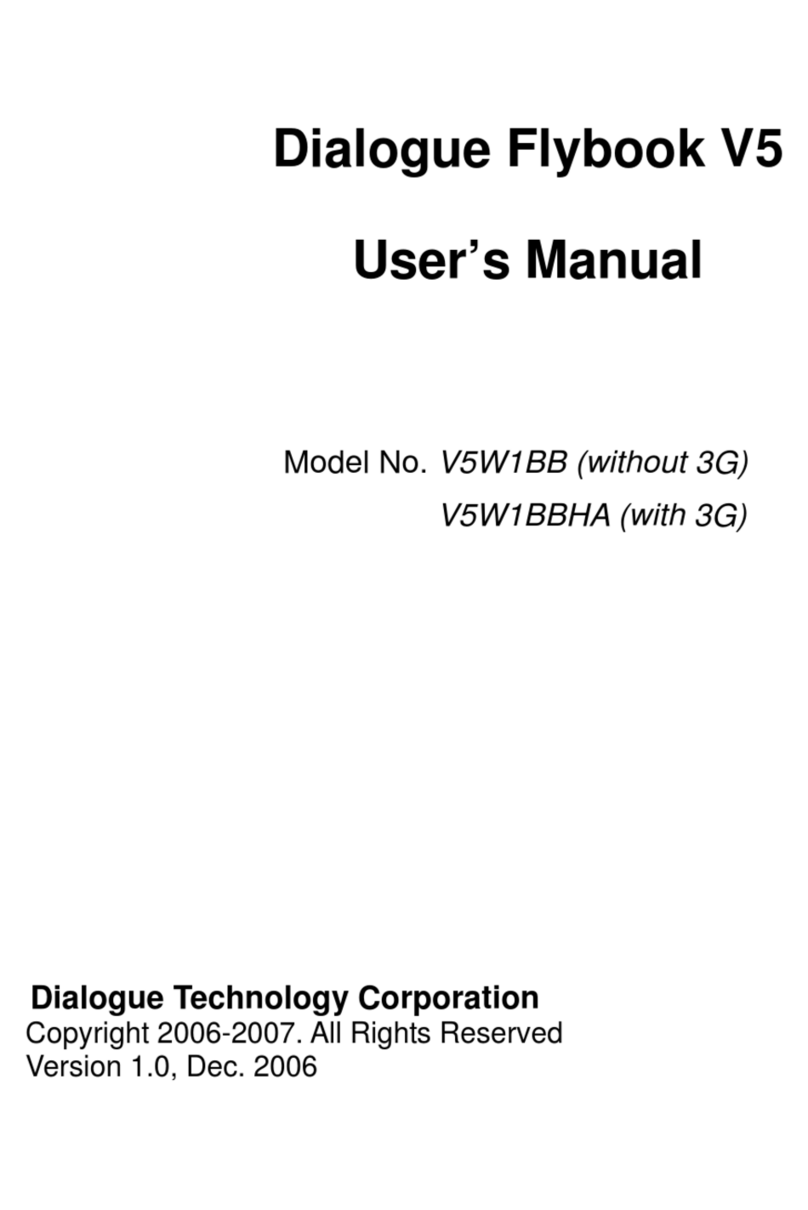

Dialogue Flybook V5 V5W1BB (without 3G) User manual

Flybook V5 User’s Manual
V5W1BB (without 3G)
V5W1BBHA (with 3G)
Dialogue Technology Corporation
Version 1.0, Jan.. 2007
Flybook V5_User's Guide_V1.0.book Page i Thursday, February 8, 2007 3:44 PM

Flybook V5_User's Guide_V1.0.book Page ii Thursday, February 8, 2007 3:44 PM

Copyright and Safety Notices
Please read this section before using your computer.
Retain this manual for future reference.
Copyright
This publication, including all photographs, illustrations and
software, is protected under international copyright laws,
with all rights reserved. Neither this manual, nor any of the
material contained herein, may be reproduced without writ-
ten consent of the manufacturer.
Disclaimer
The information in this document is subject to change with-
out notice. The manufacturer makes no representations or
warranties with respect to the contents hereof and specifi-
cally disclaims any implied warranties of merchantability or
fitness for any particular purpose. The manufacturer
reserves the right to revise this publication and to make
changes from time to time in the content hereof without
obligation of the manufacturer to notify any person of such
revision or changes.
Preface
Flybook V5_User's Guide_V1.0.book Page i Thursday, February 8, 2007 3:44 PM

ii
Preface
Trademark Recognition
Bluetooth is a trademark of the Bluetooth SIG, Inc. (Special
Interest Group). The Bluetooth trademark is owned by Blue-
tooth SIG, Inc. USA. BlueSoleil is a trademark of IVT Cor-
poration. Dialogue Technology Corporation is a registered
trademark. FlyBook is a trademark of the Dialogue Technol-
ogy Corporation. Windows is a registered trademark or
trademark of Microsoft Corporation in the United States
and/or other countries. All other product names used in this
manual are the properties of their respective owners and
are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harm-
ful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the
receiver.
•Connect the equipment onto an outlet on a circuit differ-
ent from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV techni-
cian for help.
Flybook V5_User's Guide_V1.0.book Page ii Thursday, February 8, 2007 3:44 PM

iii
Preface
Shielded interconnect cables and a shielded AC power
cable must be employed with this equipment to ensure
compliance with the pertinent RF emission limits governing
this device. Changes or modifications not expressly
approved by the system's manufacturer could void the
user's authority to operate the equipment.
Declaration of Conformity
This device complies with part 15 of the FCC rules. Opera-
tion is subject to the following conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received,
including interference that may cause undesired opera-
tion.
FCC Caution
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate this equipment.
The antenna(s) used for this transmitter must not be co-
located or operating in conjunction with any other antenna
or transmitter.
Enabling wireless LAN and wireless WAN simultaneously in
one computer is not allowed . While one is in use, the other
will be turned off.
Running wireless devices in the aircraft is prohibited. Make
sure all wireless devices in your computer are turned off
during the flight.
Flybook V5_User's Guide_V1.0.book Page iii Thursday, February 8, 2007 3:44 PM

iv
Preface
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure lim-
its set forth for an uncontrolled environment. This equip-
ment should be installed and operated with a minimum
distance of 20 cm (8 inches) between the radiator and your
body.
FCC Wireless Regulation
Due to the FCC regulations, wireless LAN and wireless
WAN modules shall not work in a machine simultaneously.
If these two modules are installed in the V5, while one is in
use, the other will be off automatically by the system.
Battery Caution
Danger of explosion if battery is incorrectly replaced. Replace only
with same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instruc-
tions.
About This Manual
This User’s Manual provides information to help you oper-
ate and get the most from your Flybook V5. Read the Quick
Start Guide to quickly set up and begin using your com-
puter.
Please read “Copyright and Safety Notices” on page i
before using your computer.
Taking Care of the Flybook V5
After you unpack your computer, store the packing materi-
als in case you want to ship the computer or if you have to
return it for servicing.
Flybook V5_User's Guide_V1.0.book Page iv Thursday, February 8, 2007 3:44 PM

v
Preface
Your notebook computer is a precision instrument that
should be handled with care. Use common sense and fol-
low the guidelines below, and your computer will last you
for many years.
Do’s and Don’ts with the Flybook V5
•Do not twist the display counterclockwise.
•Do not place heavy objects such as books on the com-
puter.
•Do not use the Flybook V5 near water or a heat source
such as a radiator.
•Do not expose the computer to temperatures above 50°
C or below 0° C.
•Keep the computer away from direct sunlight or heat
sources.
•Do not expose the computer to rain or moisture.
•Do not spill water or any other liquid on the computer.
•Do not place the computer near magnetic fields.
•Avoid subjecting your computer to heavy shocks or
vibrations.
•Do not expose the computer to dusty or dirty environ-
ments.
•Do not place the computer on uneven surfaces.
•Do not cover the air vents around the computer.
•Only use the AC adapter that is provided with your com-
puter.
Safety Information
The Flybook V5 has been designed and tested to meet the
most recent standards of safety in notebook technology
equipment. To ensure safe use of the Flybook V5, refer to
the following safety instructions and any caution or warning
messages on the equipment or in the user manual.
Flybook V5_User's Guide_V1.0.book Page v Thursday, February 8, 2007 3:44 PM

vi
Preface
•Read and follow all instructions marked on the
Flybook V5 and in the user manual before operating the
V5. Store all safety information in a secure place for
future reference.
•Always set the Flybook V5 on a stable surface.
•Only operate the Flybook V5 from the type of power
source indicated on the rating label on the AC adapter.
•Ensure all ventilation openings are not blocked or cov-
ered. Keep an adequate space (around 6 inches or 15
cm) around the Flybook V5. Never insert objects of any
kind into the ventilation openings.
•When using an extension cord with the Flybook V5,
ensure that the total ampere rating on the equipment
connected to the cord does not exceed the extension
cord ampere rating maximum value.
•Only use the supplied power cord. Do not place any-
thing on the power cord. Place the power cord where it
will not be in the way of foot traffic.
•Always unplug any modem, LAN, or power cables from
the Flybook V5 before you clean it.
Flybook V5_User's Guide_V1.0.book Page vi Thursday, February 8, 2007 3:44 PM

vii
Preface
Warning! The
safety strap is only
to prevent dropping
the V5. It is not
designed for carry-
ing the V5.
•When using the Flybook V5 in tablet mode, use the
safety strap to avoid dropping the Flybook V5.
Contacting Service
Disconnect the Flybook V5 from power and contact quali-
fied service personnel if any of the following occurs:
•The power cord or adapter is damaged.
•Liquid has been spilled on the Flybook V5
•The Flybook V5 does not operate correctly when oper-
ating instructions are followed.
•The Flybook V5 has been dropped, or the case is bro-
ken open.
•Flybook V5 performance is seriously degraded.
If service is required, contact a sales representative or a
local service center, or go to http://www.dialogue.com.tw for
service information.
2
1
Flybook V5_User's Guide_V1.0.book Page vii Thursday, February 8, 2007 3:44 PM

viii
Preface
Warning! Before
cleaning the com-
puter, turn it off,
unplug the AC
adapter, and then
remove the battery.
Cleaning the Flybook V5
Follow these instructions when cleaning the Flybook V5.
•Wipe the display with a clean soft cloth.
•If you use a mild glass cleaner to clean the display,
spray a little on the cloth and then wipe the display. Do
not spray cleaner directly onto the display.
•Clean the outside of the computer case with a soft cloth.
You can moisten the cloth with a non-alkaline detergent.
Caution: Do not
wipe the keyboard,
pointing device,
pointing device
buttons, or
fingerprint reader
with a damp cloth.
•Use a vacuum cleaner to clean dust from the keyboard.
Flybook V5_User's Guide_V1.0.book Page viii Thursday, February 8, 2007 3:44 PM

Preface..................................................................................................................... i
Copyright and Safety Notices ........................................................................... i
About This Manual ............................................................................................. iv
Taking Care of the Flybook V5........................................................................ iv
Introducing the Flybook V5 ....................................................................... 1
Taking a Tour of the Flybook V5 ............................................................ 3
Front-Left View ..................................................................................................... 3
Rear View ............................................................................................................... 7
Using the V5 in Clamshell Mode and Tablet Mode ..................... 9
Using the V5 in Clamshell Mode...................................................................... 9
Using the V5 in Tablet Mode........................................................................... 10
Getting Started with the Flybook V5.................................................. 13
Battery Installation ............................................................................................ 13
Connecting the AC Adapter ............................................................................ 16
Powering on the V5 for the First Time ......................................................... 16
LED Descriptions ........................................................................................... 17
Using the Fingerprint Reader................................................................. 19
Using Flybook V5 Input Devices .......................................................... 21
Using the Pointing Devices............................................................................. 22
Using the Stylus................................................................................................. 23
Using the Keyboard .......................................................................................... 24
Using Flybook Control
Center.................................................................................................................... 29
Table of Contents
Flybook V5_User's Guide_V1.0.book Page ix Thursday, February 8, 2007 3:44 PM

x
Opening the Control Center ........................................................................... 30
Using the Control Center................................................................................. 31
Customizing the V5 Display.................................................................... 35
Connecting Devices..................................................................................... 37
Connecting Audio Devices ............................................................................. 37
Connecting USB Devices ................................................................................ 39
Connecting an External Display.................................................................... 40
Connecting to a TV ........................................................................................... 41
Using an ExpressCard ..................................................................................... 42
Securing Your V5........................................................................................... 45
Before You Go Online ...................................................................................... 45
Installing a Firewall ........................................................................................... 45
Installing a Spyware Blocker.......................................................................... 46
Connecting Local Area
Networks ............................................................................................................. 47
Connecting a LAN ............................................................................................. 47
Connecting a Wireless LAN (WLAN)............................................................ 48
Using the Built-in Modem......................................................................... 49
Making a Dial-up Connection ......................................................................... 49
Sending and Receiving a Fax......................................................................... 51
Using the Built-in
WWAN Module................................................................................................. 53
Installing the SIM Card..................................................................................... 54
Connecting the V5 to a Wireless WAN ........................................................ 55
Using GPS.......................................................................................................... 59
Using the Built-in Webcam...................................................................... 61
Enabling the Webcam ...................................................................................... 61
Adjusting the Webcam Orientation .............................................................. 62
Managing System Power .......................................................................... 63
Flybook V5_User's Guide_V1.0.book Page x Thursday, February 8, 2007 3:44 PM

xi
Customizing the System BIOS.............................................................. 65
Accessing the BIOS Setup.............................................................................. 65
Updating the BIOS Firmware.......................................................................... 66
Troubleshooting............................................................................................. 67
Identifying Problems ........................................................................................ 67
General Hardware Problems ......................................................................... 68
Having the V5 Serviced.................................................................................... 71
Specifications .................................................................................................. 73
Index ...................................................................................................................... 77
Flybook V5_User's Guide_V1.0.book Page xi Thursday, February 8, 2007 3:44 PM

Flybook V5_User's Guide_V1.0.book Page xii Thursday, February 8, 2007 3:44 PM

1
Congratulations on
purchasing the
Flybook V5! The
Flybook V5 sup-
ports both Win-
dows XP and the
newest member of
the Windows oper-
ating system fam-
ily, Windows Vista.
The V5 is a power-
ful mobile computer
which performs
dual duty as a note-
book or tablet computer. Advanced networking features
include WLAN, WWAN, Bluetooth, and even an internal
modem.
1
Introducing the Flybook V5
Flybook V5_User's Guide_V1.0.book Page 1 Thursday, February 8, 2007 3:44 PM

2
Introducing the Flybook V5
1
The Flybook V5 uses a pointing device with mouse buttons
on both sides of the unit and a clickable scroll bar for added
convenience. The LCD monitor can be rotated and laid flat
to enable you to use the Flybook V5 as a tablet computer.
Using the stylus, you can write text and draw on the tablet
as you would on conventional paper.
The built-in webcam enables you to be seen by contacts
using Windows MSN or other messaging software. The
camera can be rotated 225 degrees for maximum flexibility.
The powerful Li-ion rechargeable battery provides more
than 3 hours of mobility, making the Flybook V5 the best
choice for people on the go.
Flybook V5_User's Guide_V1.0.book Page 2 Thursday, February 8, 2007 3:44 PM

2
This section describes the major components of your new
Flybook V5.
Front-Left View
2
Taking a Tour of the
Flybook V5
58 9
10
7
11
6
2
1
3
4
12
15
58 9
10
7
11
6
2
1
3
4
12
13
13
15
14
14
Flybook V5_User's Guide_V1.0.book Page 3 Thursday, February 8, 2007 3:44 PM

4
Taking a Tour of the Flybook V5
2
1. Status LEDs
– These LEDs display when the AC adapter is con-
nected, when the HDD is being accessed, or when
the WWAN, WLAN, or Bluetooth is activated.
2. Pointing device buttons (right)
– These pointing device buttons emulate mouse right
and left buttons. The top button corresponds to a
mouse right button. The lower button corresponds to
a mouse left button. Refer to “Using Flybook V5
Input Devices” on page 21 for more information.
3. Scroll bar
– This bar enables you to scroll up and down in web
pages or word processing software. Refer to “Using
Flybook V5 Input Devices” on page 21 for more
information.
4. Stick pointer device
– The Stick Pointer moves the cursor in the direction of
the pressure you apply with your finger.
5. RF kill switch
– Wireless transmission uses power. Use this button to
disable the wireless feature of your computer to save
power or when instructed to do so, for example on
an aircraft.
6. Fingerprint reader
– When you set up fingerprint authentication, you can
use the fingerprint reader to turn on the computer. In
addition to logging in to the computer, the fingerprint
can control access to some applications.
Flybook V5_User's Guide_V1.0.book Page 4 Thursday, February 8, 2007 3:44 PM

5
Taking a Tour of the Flybook V5 2
7. Power button
– Press and hold the power button for two seconds to
turn on the computer.
8. Left speaker
– Stereo speakers are built into the computer. The
right speaker is on the opposite side of the V5.
9. Pointing device buttons (left)
– These pointing device buttons emulate mouse right
and left buttons. The right button corresponds to a
mouse right button. The left button corresponds to a
mouse left button. Refer to “Using Flybook V5 Input
Devices” on page 21 for more information.
10. AC power connector
– Connect the AC adapter to this connector.
11. Middle mouse button
– This button corresponds to the center button on a
conventional mouse.
12. Stereo Microphones
– Use the built-in stereo microphones for recording
sound or video conferencing with friends.
13. Webcam and webcam LED
– Use the built-in webcam for video conferencing with
friends. The LED indicates when the camera is
active
Flybook V5_User's Guide_V1.0.book Page 5 Thursday, February 8, 2007 3:44 PM

6
Taking a Tour of the Flybook V5
2
14. Ambient light sensor
– This sensor detects ambient light and reduces
screen brightness to adjust for optimum display qual-
ity.
15. Stylus slot
– Use the stylus in place of the mouse to interact with
the Flybook V5.
Flybook V5_User's Guide_V1.0.book Page 6 Thursday, February 8, 2007 3:44 PM
