Monster TULPAR T5 V21.4 User manual

01
EN
T5 V21.4
USER MANUAL
KULLANIM KILAVUZU
BENUTZERHANDBUCH

EN
T5 V21.4
USER
MANUAL
TABLE OF CONTENT
CHAPTER 1 - Preface ...................................................... 02
1.1 Regulations Information..................................................02
FCC Information........................................................................03
RF Exposure Information(SAR).............................................04
1.2 Safety Information ............................................................05
1.3 Conventions For This Manual..........................................06
CHAPTER 2 - Getting To Know The Basics ..................... 06
2.1 Product Specifcation........................................................06
2.2 Preparing your Computer ................................................08
2.3 Product Overview...............................................................09
CHAPTER 3 - Getting Started ......................................... 14
3.1 AC Adapter...........................................................................14
3.2 Knowing The Keyboard .....................................................15
3.2.1 For Keyboard Users........................................................15
3.3 Using the touchpad / clickpad........................................17
3.3.1 Touchpad Usage .............................................................18
CHAPTER 4 - Bios Setup ................................................. 18
4.1 About Bios Setup ...............................................................18
4.1.1 When To Use Bios Setup? ............................................18
4.1.2 How to Run BIOS Setup ?.............................................19
4.2 BIOS Setup Menu ...............................................................19
4.2.1 Main Menu........................................................................20
4.2.2 Advanced Menu...............................................................21
4.2.3 Security Menu .................................................................22
4.2.4 Boot Menu........................................................................23
4.2.5 Exit Menu..........................................................................23

02
EN
The information in this user’s manual is protected by copyright laws, all parts of
this manual, including the products and software described in it, can not be
reproduced, transmitted, transcribed, stored in a retrieval system, nor
translated into any language.
THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR
OMISSIONS CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE FOR ANY
CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE PERFORMANCE OR
USE OF THIS MANUAL.
The illustrations in this user’s manual are for reference only. Actual product
specifcations may vary with territories. The information in this user’s manual is
subject to change without notice.
CHAPTER 1
1.1 Regulations Information
NOTICE
Preface
•CE compliance
This device is classed as a technical information equipment (ITE) in class B
and is intended for use in living room and ofce. The CE-mark approves the
conformity by the EU-guidelines:
- EMC Directive 2014/30/EU,
- Low Voltage Directive 2014/35/EU(equals A2 : 2013),
- RF Directive 2014/53/ EU
The unit can be operated at an ambient temperature of max. 35°C (95°F). Do
not subject it to temperatures below 5°C (41°F) or above 40°C (104 °F).
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
PREVENTION OF HEARING LOSS
CAUTION: Listening to music at high volume levels and for extended durations
can damage one’s hearing. In order to reduce the risk of damage to hearing,
one should lower the volume to a safe, comfortable level, and reduce the
amount of time listening at high levels. Headsets should comply with EN
50332-2 requirements.

03
EN
FCC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved
by the grantee of this device could void the user’s
authority to operate the equipment.
CAUTION:

04
ENDE
04
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to
radio waves. This device is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6
W/kg. Tests for SAR are conducted using standard operating positions
accepted by the FCC with the EUT transmitting at the specified power
level in different channels.
The FCC has granted an Equipment Authorization for this device with
all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this device is on file with the
FCC and can be found under the Display Grant section of www.fcc.gov/
eot/ea/fccid after searching on FCC ID: 2AKHFAX201NG .
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved
by the grantee of this device could void the user’s
authority to operate the equipment.
CAUTION:

05
ENDE
05

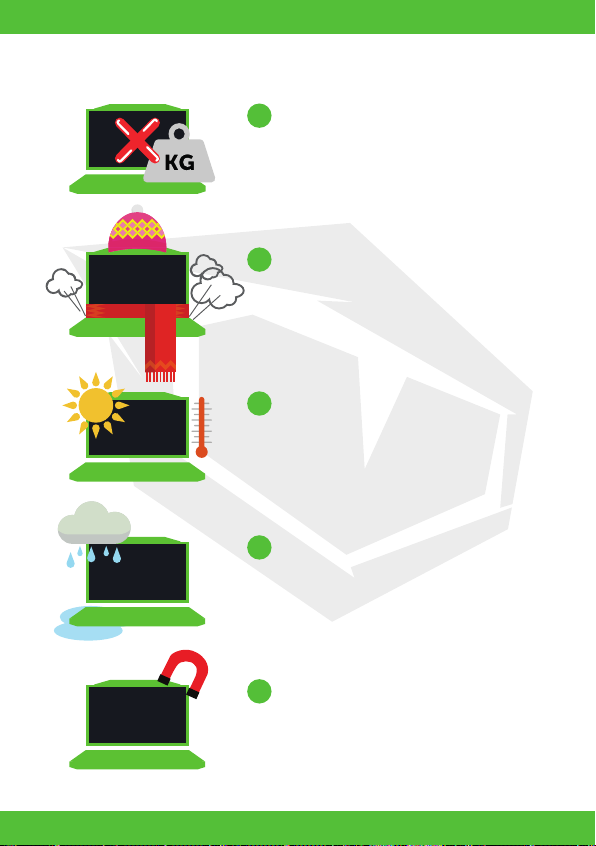

1.2 Safety Information
Do not apply heavy pressure to the computer
or subject it to any form of strong impact as
this can damage the computer’s components
or otherwise cause it to malfunction.
1
Never cover or block the air vents including
those located at the base of the computer.
Never cover your computer or AC adaptor with
any object.
2
Do NOT expose to or use near liquid, rain, or
moisture.
Do NOT use the modem during electrical
storms.
4
Do not use or expose this device around
magnetic felds as magnetic interference may
affect the performance of the device.
5
To keep your computer in prime operating
condition, protect your work area from direct
sunlight.
3

06
EN
1.3 Conventions For This Manual
2.1 Product Specification
This message contains important information
that must be followed for safe operation.
CAUTION:
NOTE: This message contains information for special situations.
CHAPTER 2
Getting To Know The Basics
This User’s Manual provides technical information of instructions and illustra-
tions on how to operate this notebook for the customer. Please read this manu-
al carefully before using this notebook.
Physical Characteristic
Processor - CPU
Graphic Card - GPU
Storage
Webcam
Dimension 355.5*236.7*18.2~19.7mm
Support Processor 10. Generation i7 10875H
Graphic Card 6 GB nVIDIA® GeForce® RTX 3060 Max-P
SSD 2 Slot (NVMe)
M2 2280
Slot 1: NVMe/PCIEX4
Slot 2: NVMe/PCIEX4
RAID 0/1 Support
Webcam IR webcam with D-MIC*2
Weight 1,7 kg +/- 5%
DDR4 DDR4 2933MHz
Memory

07
EN
MODEL IS DESIGNED TO USE WITH THE
DC INPUT: 19.5V/11.8A
CAUTION:
Please use the match adapter basing on the rating of BIOS, to avoid over-
heat and abnormal of adapter.
NOTE
I/O Port
Audio
Input
Display
Communication Port
Power
DC-In x1
USB x2 USB 3.1 Type A (Gen1)
x1 USB 3.1 Type A (Gen2)
x1 USB 3.1 Type C (Gen2)+DP
RJ45 x1
Card Reader x1 (SD/SDHC/SDXC)
HDMI x1
Audio Out x1
Microphone In x1
Audio Codec Realtek ALC274CG / AMP: Realtek ALC1306-CGT
Azalia standard support, D3 mode support, Smart AMP support
Speaker Build-in 2 speakers (2W / Each), THX
Microphone Digital Microphone Support
Keyboard Membrane KB(333X104mm) travel=1.4mm backlight = 4zone RGB
Pointing Device TDA1470 114.5x70x0.8mm
LCD 15.6” QHD, sRGB 100% 165hz
Lan RTL8125BG Supports 10/100/1000/2500 Mb/Sec, PCI-E interface,
DSM (Deep sleep mode) support
Wireless Lan M.2 2230 w/ CNVI interface (Intel WiFi6 AX series)
IEEE802.11AX mode support,
AC Adapter Automatics Voltage adjustment between 100 and 240V AC
50/60Hz, 230 Watts (19.5V/11.8A)
Battery Li- polymer Battery, SW Gas Gauge IC, soft pack,
4 cells (4S1P 4100mAh) 62.32 Wh

08
EN
2.2 Preparing your Computer
AConnect the AC adaptor’s DC output plug to the DC IN jack.
BThe display panel can be opened to a wide range of angles for optimalviewing.
CPress the power button to turn on your notebook computer.

09
EN

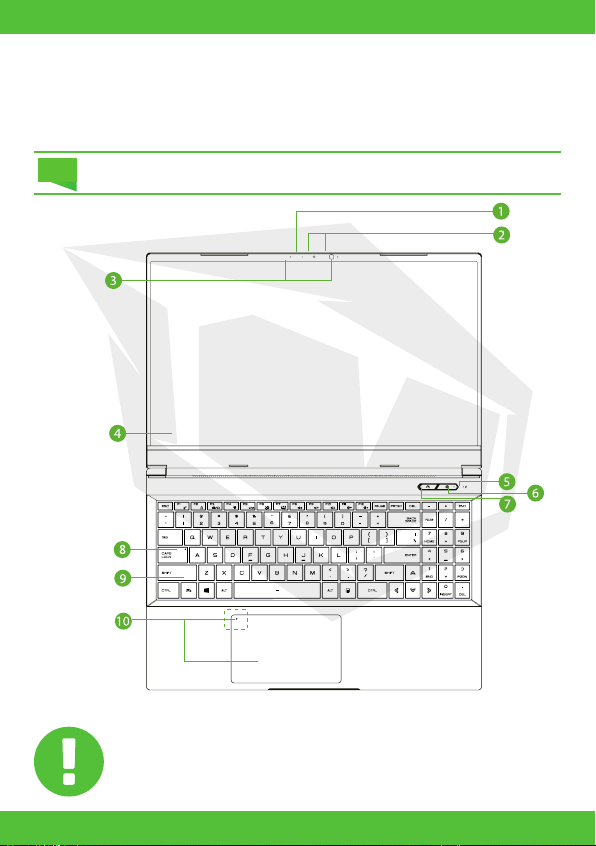

2.3 Product Overview
Please become familiar with each component before you operate the computer.
Top-Open View
The product’s color/ LED color, I/O port, indicator location, and
specification will depend upon the actually shipping product.
NOTE
When you are not using the computer, keep the
LCDscreen closed to protect it from dust.
CAUTION:

10
EN
1Camera Status LED
The Camera Status LED shows the Camera status.
2Webcam
A device that allows you to record video or take photographs with your
computer.
Infrared capability for facial reconition camera
can be used to identify and authenticate user to unlock notebook,
conduct payment and other security functions.
3Microphone
Built-in microphone. IR CCD MIC*2
4LCD Screen
Displays of your notebook computer.
6Power Button
Press this button to turn the computer’s power on or off.
Power ON: White Power Off: OFF
Suspend: White, Slow / Smooth, Blinking White (3Sec/Cycle)
7Turbo / Game / Office Mode Switch
On screen display.
Turbo mode: Both White (All lights)
Game mode: White (Bottom light) Office mode : OFF(default)
8Caps Lock Status LED
Default: ON (White)
9Keyboard
The keyboard provides keys with comfortable travel
(The keyboard legend will depend on the spec / region)
10 Touchpad LED indicator/ Touchpad switch
11 Touchpad/Click pad
Touch-sensitive pointing device which functions like the mouse.
5Charging & Battery indicator
Charging(Power ON): White Slow / Smooth, Blinking White (3Sec/Cycle)
Charging(Power Off): White, Slow / Smooth, Blinking White (3Sec/Cycle)
Battery Low (<6%): Amber(3 Sec/Cycle) Charging finish: White

11
EN

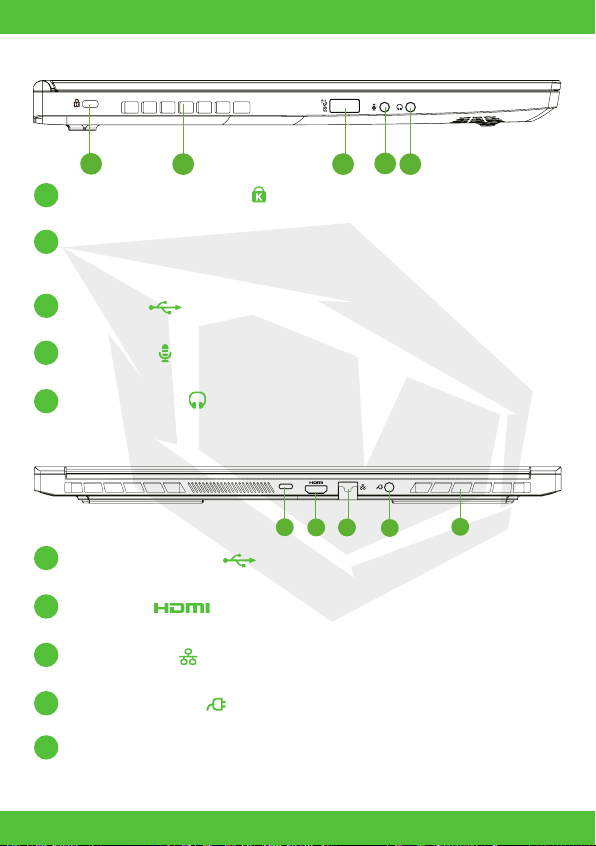

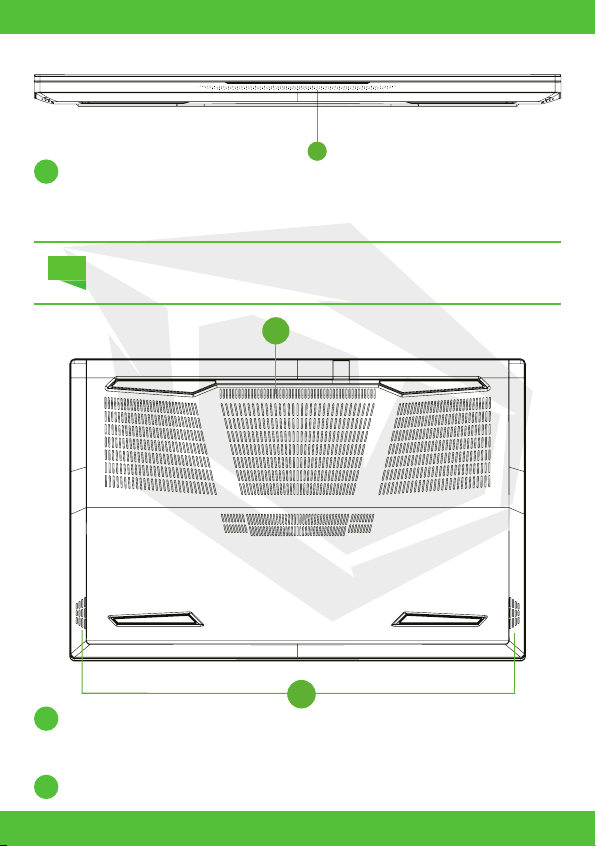

Bottom Side View
Front Side Vtiew
The product’s thermal vent will depend upon the actually shipping
product.
NOTE
1
Speakers
2
1
Vents
The thermal vents are designed to cool the internal components and
avoid overheating.
Light Bar
Smart lighting color control of Light Bar.
1
1
2

12
EN

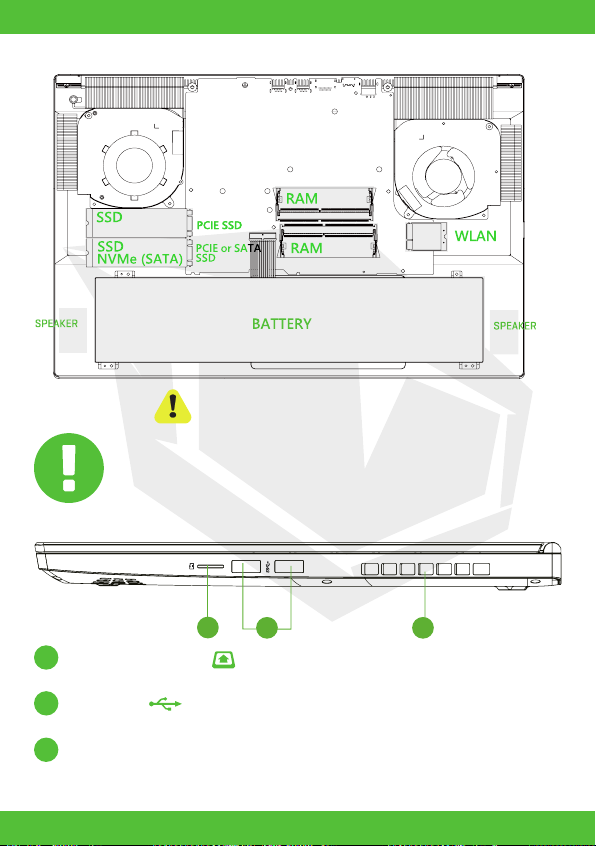

RAM / SSD / WLAN Compartment View
Right Side View
12 in 1 Card Reader
Insert memory card.
2USB Ports
Connects an USB device.
3Vents
The thermal vents are designed to cool the internal components and
avoid overheating.
NVMe
23
1
Warranty will void if cooling module is disassembled. If need
to upgrade SATA SSD to PCIE SSD, Please contact technical
support and after-sales service .
To reduce the possibility of heat-related injuries or of
overheating the computer, Do not place the computer
directly on your lap or obstruct the computer air vents.
Use the computer only on a hard, flat surface.
CAUTION:

13
EN
Left Side View
Back Side View
345
2
1
234
15
1Kensington® Lock Port
To be secured using Kensington® Lock Port security products.
5Vents
The thermal vents are designed to cool the internal components and
avoid overheating.
2
1USB Type C/DP Port
Connects an USB device into this jack. With charging function.
3USB Ports
Connects an USB device.
Vents
The thermal vents are designed to cool the internal components and
avoid overheating.
2HDMI Port
Connected to the screen, or home theater system.
4Mic In Jack
Connects amplified speakers, headphones or microphone into this jack.
3Network Jack
This jack lets you connect to a LAN.
5Audio Out Jack
Connects amplified speakers, headphones or microphone into this jack.
4Power Connector
Connects the AC adapter into this connector.

14
EN
CHAPTER 3
Getting Started
3.1 AC Adapter
Please be noted that it is strongly recommended to connect the AC adapter
and use the AC power while using this notebook for the frst time. When the AC
adapter is connected, the battery is being charged immediately. Attach the AC
adaptor when you need to charge the battery or you want to operate from AC
power. It is also the fastest way to get started, because the battery pack will
need to be charged before you can operate from battery power.
Note that the AC adapter included in the package is approved for your notebook;
using other adapter model may damage either the notebook or other devices
attached to it.
The power adapter may become warm to hot when in use. Be sure not
to cover the adapter and keep it away from your body. Your adapter
might look different depend on your region.
NOTE
The use of inferior extension cords may result in damage to
your notebook. Your notebook comes with its own authorized
AC adapter. Use of a different AC adapter or cable extension
which is not authorized for use will void warranty protection if
damage to hardware is found in association to said adapter or
extension cable.
CAUTION:
DC IN
1
2 3

15
EN
3.2 Knowing The Keyboard
3.2.1 For Keyboard Users
The following defnes the colored hot keys on the Keyboard. The colored
commands can only be accessed by frst pressing and holding the function
key while pressing a key with a colored command.
To activate these functions, press the hot key associated with the desired
function as below:
The number of keys available on your keyboard will depend on which
country/region your computer is confgured for.
NOTE
Suspend: Press this key combination (Fn+F1) to enter
sleep mode.
Press this key combination (Fn+F2) to turn
Windows Lock/On .
Press this key combination (Fn+F3)
to enable Display Mode.
Press this key combination (Fn+F4) to turn
all radios on or off.
Press this key combination (Fn+F5) to On/
Off Touch pad mode
Windows Lock/On:
Display Mode:
RADIO On/Off:
Touch pad On/Off:
Keypad Function Description

16
EN
Keyboard Brightness down: Press this key combination (Fn+F6) to
decrease brightness of Keyboard.
Press this key combination (Fn+F7) to
increase brightness of Keyboard.
Press this key combination (Fn+F8) to enter
MUTE mode.
Press this key combination (Fn+F9) to enter
Volume down mode.
Press this key combination (Fn+F10) to
enter Volume up mode.
Press this key combination (Fn+F11) to
decrease brightness of LCD display.
Press this key combination (Fn+F12) to
increase brightness of LCD display.
Press this key combination (Windows logo
key+Q) to open the search charm and search
apps.
Press this key combination (Windows logo
key+I) to open the settings charm.
Press this key combination (Windows logo
key+H) to open the share charm.
Press this key combination (Windows logo
key+K) to open the devices charm.
Keyboard Brightness up:
MUTE:
Volume down:
Volume up:
Brightness down:
Brightness up:
Search Charm:
Settings Charm
Share Charm :
Devices Charm:
Keypad Function Description

17
EN

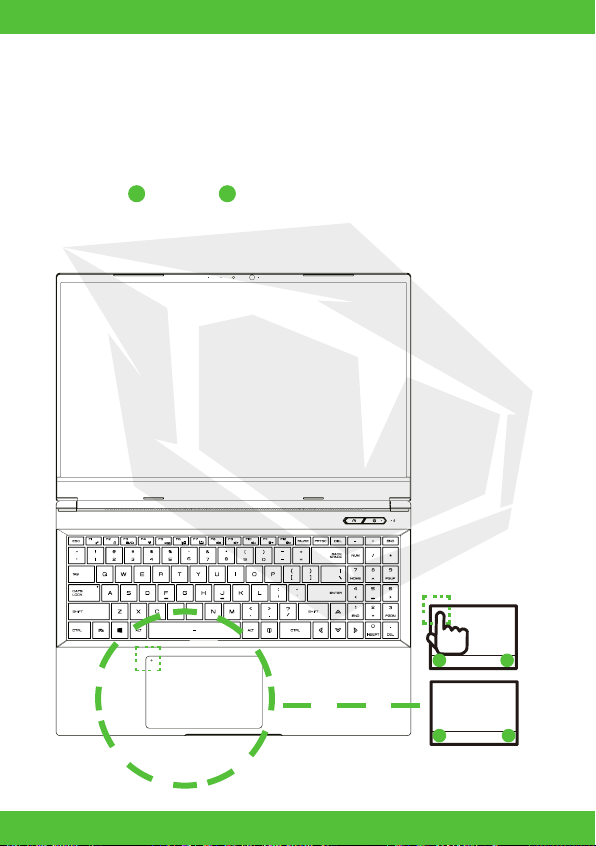

3.3 Using the touchpad / clickpad
The touchpad / clickpad is a rectangular electronic panel located just below
your keyboard. You can use the static-sensitive panel of the touchpad /
clickpad and slide it to move the cursor. You can use the buttons below the
touchpad as left and right mouse buttons.
Press the left and right buttons located on the edge of the touchpad /
clickpad to make selections and run functions. These two buttons are similar
to the left and right buttons on a mouse. Tapping on the touchpad / clickpad
produces similar results.
1 2
Click twice will open or
close (Green light)
touchpad functionality
1
1
2
2

18
EN

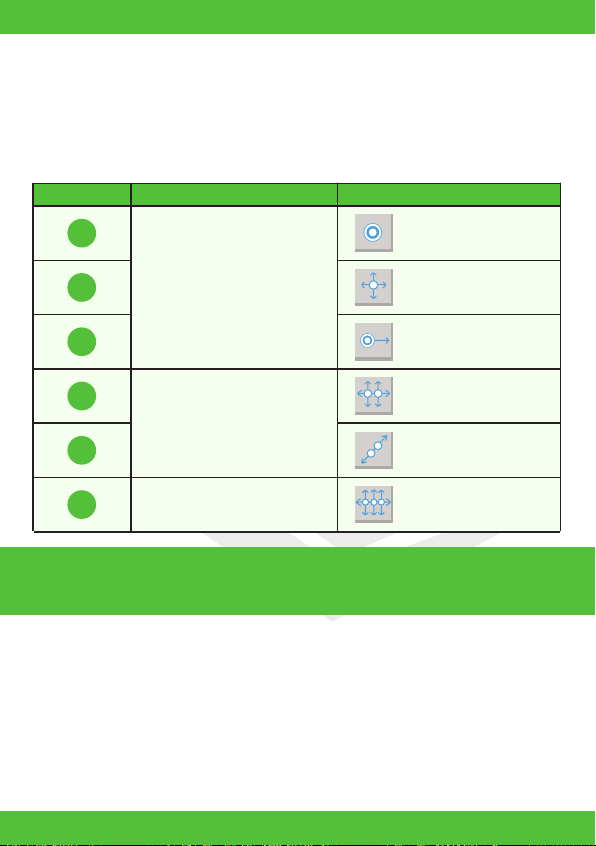

3.3.1 Touchpad Usage
Touch Pad Gesture
Modern touchpad gesture:
A modern touchpad should support the core touch gestures described in the
following table.
Gesture Name
Item Gesture
1
2
3
4
5
6
One Finger
Left Click -
Double Click
Move Cursor
Tap + Slide
Scroll / Pan
Pinch - Zoom
Multitasking
Gesture
Two Finger
Three Finger
CHAPTER 4
Bios Setup
4.1 About Bios Setup
4.1.1 When To Use Bios Setup?
You may need to run the BIOS Setup when:
•An error message appears on the screen during the system booting up and is
requested to run SETUP.
•You want to change the default settings for customized features.
•You want to reload the default BIOS settings.

19
EN
4.2 BIOS Setup Menu
4.1.2 How to Run BIOS Setup?
To run the BIOS Setup Utility, turn on the notebook and press the [Del] key
during the POST procedure.
If the message disappears before you respond and you still wish to enter Setup,
either restart the system by turning it OFF and ON, or simultaneously pressing
[Ctrl]+[Alt]+[Del] keys to restart.
Be noted that the screen snaps and setting options in this chapter are for your
references only.The actual setting screens and options on your Notebook may
be different because of BIOS update.
The setup function only can be invoked by pressing [Del] or [F2] key during
POST that provide a approach to change some setting and confguration the
user prefer, and the changed values will save in the NVRAM and will take effect
after the system rebooted. The setup uses a menu interface to allow the user to
confgure their system and the features are briefly listed as follow.
Press [F7] key for Boot Menu.
Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen.
Select the tags to enter the other menus.
Main Menu Show system overview about memory size and setting of
system time and date.
Advanced Menu To select the XD feature enable or disable XD
feature only work with Intel platform + Windows.
Security Menu Install or clear the password settings for
supervisor and user.
Boot Menu Confgure Settings during System Boot.
EXIT Menu Save or discard the changes before leaving the
BIOS Setup Menu.
The drivers, BIOS and utilities bundled in the support DVD may vary by
models and are subject to change without notice.
NOTE
