Diamond Audio Technology VSP4BMW User manual
ABOUT THE DIAMOND AUDIO EXPERIENCE
Diamond Audio Technologies.
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.)
Seperate Optimized Tweeter Crossover Module
4 Ohm Speaker load perfect for the Stock BMW ampliifer
THE COMPLETE LISTING OF ALL BMW AND MINIS THAT THE
4 INCH COMPONENT SPEAKER FITS IS ON PAGES 7, 8 AND 9

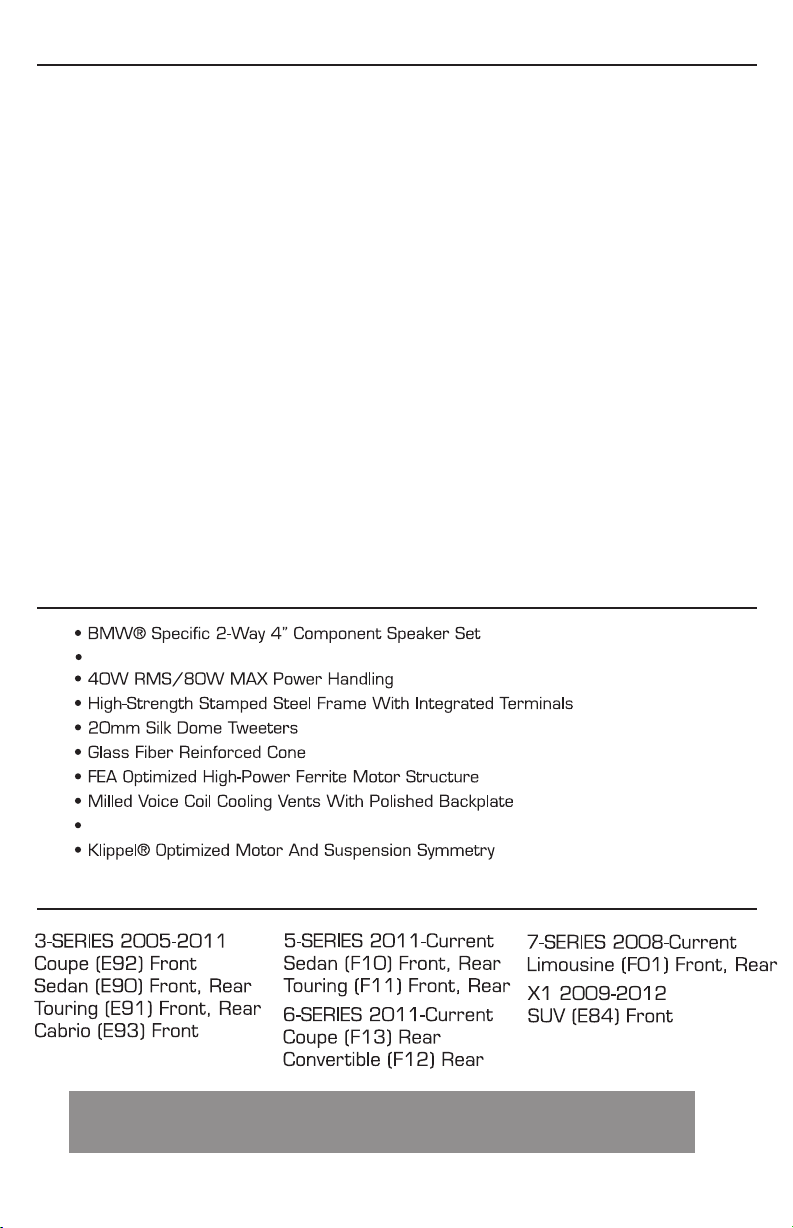

FEATURES
4 " BMW Component Vehicle Compatibilty List - By Series
Congratulations, you have just purchased the finest mobile audio products on the market to
date. At Diamond Audio, our products represent the latest advances in acoustic technology in
sound reproduction for your vehicle. Diamond Audio products are designed, developed, and
engineered using the latest innovative materials and components to provide the finest sound
reproduction possible. Every Diamond Audio product has been Klippel verified and tested to
ensure the best sounding and most reliable product on the market, if installed properly,
Diamond Audio products will provide many years of the ultimate listening experience.
Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause
permanent hearing loss. Using Diamond Audio products can exceed that level so please
exercise restraint in its operation in order to preserve your ability to enjoy its high fidelity sound
for many years to come.
Diamond Audio recommends our products be professionally installed by an authorized
Diamond Audio dealer to achieve the best possible system recommendation and installation.
This will ensure a true Diamond Audio listening experience and sound you would expect from
Diamond Audio products. In doing this you will extend your warranty from one year to two
years.
Go ahead, Hear the Music
2
DIMENSIONS AND SPECIFICATIONS
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.)
(B)
3
Model Version Chassis From year To year 8"subwoofer 4 inch component
1 series 3-Door E81 2007 2012 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Coupé E82 2007 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series 5-Door E87 2004 2011 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Cabrio E88 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
1 series 5-Door F20 2011 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series 3-Door F21 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series Sedan F52 2015 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
2 series Coupé F22 2014 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
2 series Cabrio F23 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
2 series Active F45 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series Gran F46 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series M2 F87 2015 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
3 series Limo/ E90 2005 2011 underseat Front: BMW-B
Sedan Rear: BMW-C
Center: BMW-C
3 series Touring E91 2005 2012 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Coupé E92 2006 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
3 series Cabrio E93 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Sedan F30 2012 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Touring F31 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
3 series GT F34 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Limo F35 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series M3 F80 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Coupé F32 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Cabrio F33 2013 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series Gran F36 2014 Current underseat Front: BMW-A
Coupé Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series M4 F82 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series M4 F83 2014 Current underseat Front: BMW-A
Cabrio Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
5 series Limo E60 2004 2010 underseat Front: BMW-C
/Sedan Rear: BMW-C
Center: BMW-C
5 series Touring E61 2004 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series GT F07 2009 2017 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series Sedan F10 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Touring F11 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo F18 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo G30 2017 Current underseat Front: BMW-B
/ Sedan Rear: BMW-C
Center: BMW-C
5 series Touring G31 2017 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
6 series Coupé E63 2003 2010 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
6 series Gran E64 2003 2010 underseat Front: BMW-B
Coupé Rear: BMW-B
Center: BMW-C
6 series Gran F06 2011 Current underseat Front: N/A
Coupé Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Cabrio F12 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Coupé F13 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Gran F14 2011 Current underseat Front: BMW-A
Coupé M Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
7 series Sedan F01 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo F02 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Security F03 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Hybrid F04 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Sedan G11 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo G12 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
Mini Clubman F54 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 5-door Hatch F55 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 3-door Hatch F56 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Clubman R55 2006 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini 3-door Hatch R56 2006 2013 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Cabrio R57 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Coupé R58 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Roadster R59 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man R60 2010 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Paceman R61 2012 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man F60 2017 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Cabrio F57 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X1 SUV E84 2010 2015 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
X1 SUV F48 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X1 SUV F49 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X3 SUV E83 2003 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X3 SUV F25 2011 2017 underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
X4 SUV F26 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X5 SUV E70 2007 2013 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X5 SUV F15 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X5 X5 M F85 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 SUV E71 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 Hybrid E72 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 SUV F16 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 X6 M F86 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
Z4 Roadster E89 2009 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A"

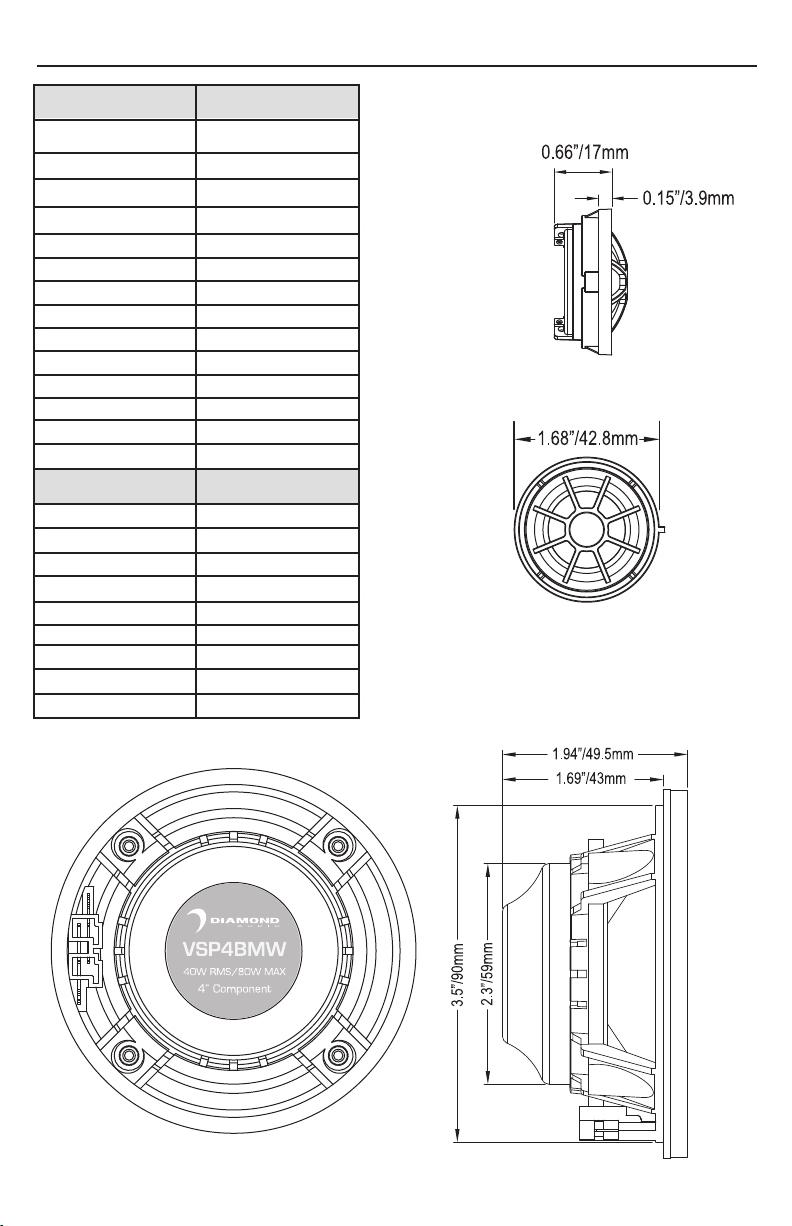

Specifications:
Total Diameter (A)
Mounting Depth (B)
Impedance
Frequency response
SPL 1W/1M
Power Watt RMS
Power Watt Maximum
RE
SPL
FS
QMS
QES
QTS
VAS
4 Ohm
80 –20 KHz
85.6dB
40
80
3.2 Ohm
85.6 dB
98 Hz
6 .66
0 .67
0.60
1.65L / 0 .56 cu.ft
VSP4BMW
3.75inch/95mm
1.32inch/33.5mm
Specifications:
TWEETER
otal Diameter
Mounting Depth
Impedance
Frequency response
SPL 1W/1M
Power Watt RMS
Power Watt Maximum
RE
4 Ohm
85.6dB
40
80
3.2 Ohm
3.75inch/95mm
1.32inch/33.5mm
Total Diameter (A)
FS
1280–20 KHz
1280
Hz
0.59inch/13mm
Mounting Depth
Impedance
Frequency response
SPL 1W/1M
Power Watt RMS
Power Watt Maximum
RE
4 Ohm
92 dB
40
80
3.2 Ohm
1.68inch/42.8mm
GENERAL SPEAKER INSTALLATION
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.)
General instructions for Diamond Audio BMW specific components. We ask that you read this
manual in its entirety to prevent damage to the speakers and possible damage to your BMW.
Read this manual carefully and follow all installation instructions. This product has been checked
for proper function prior to shipping and is guaranteed against manufacturing defects.For a proper
performance and to ensure full warranty coverage, we strongly recommend to get this product
installed by an authorized Diamond Audio dealer. This will also incrrease your warranty from 1
year to 2 years.

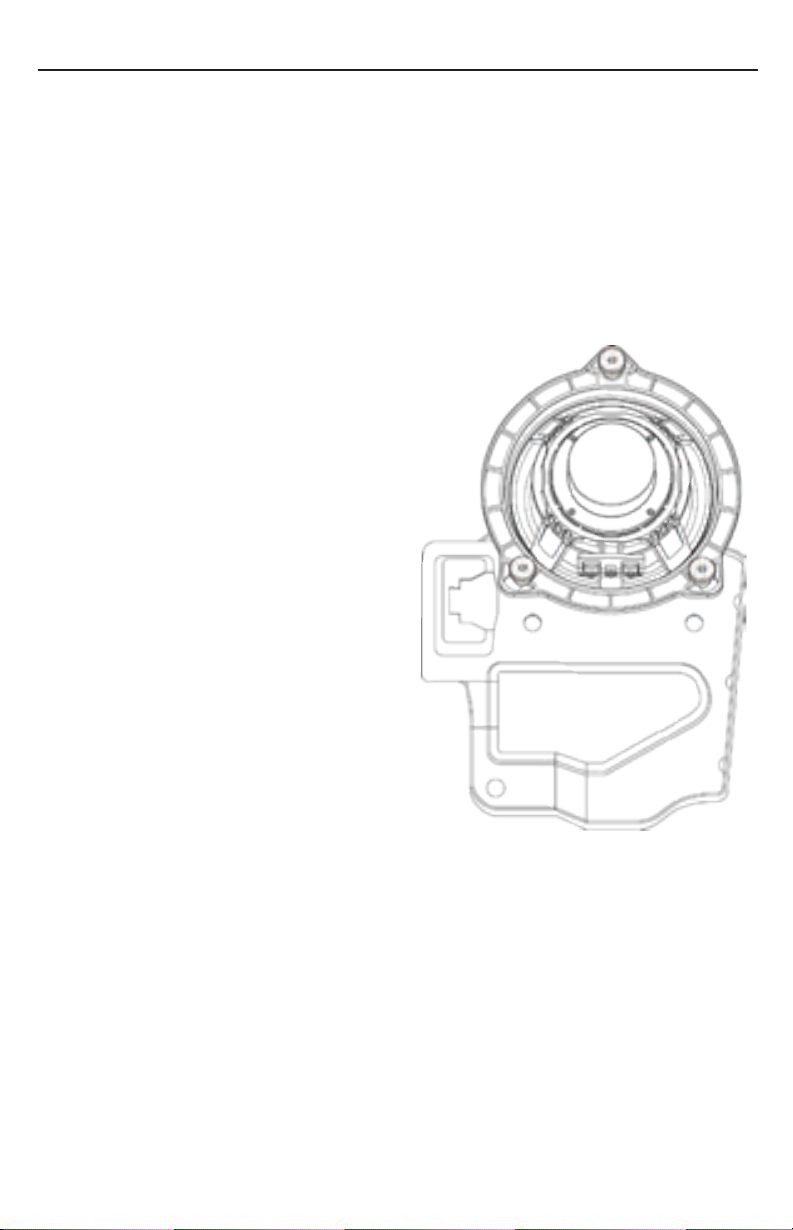

General instruction for installing Diamond Audio BMW specific speaker systems. The method of
installation chosen and level of execution will effect the overall performance of the speaker
system. Treat each installation step with a high degree of attention. We strongly recommend that
you do a “Pre-Check” of the wiring and speakers This will allow a trial listening test before
securing the loudspeakers into their mounting locations.
Install the speaj
ker wiring in a manner which precludes any danger of the leads being exposed to tearing or
crushing forces. If there are sharp edges in the vicinity (e.g. holes in the bodywork) all cables
should be put thru a “grommet” to protect and prevent fraying. Make sure that all speaker wires
easily reach the speaker terminals without stress on the wire or connectors. Once you have
tested the complete speaker the audio system off and prepare the loudspeaker for final instaltion

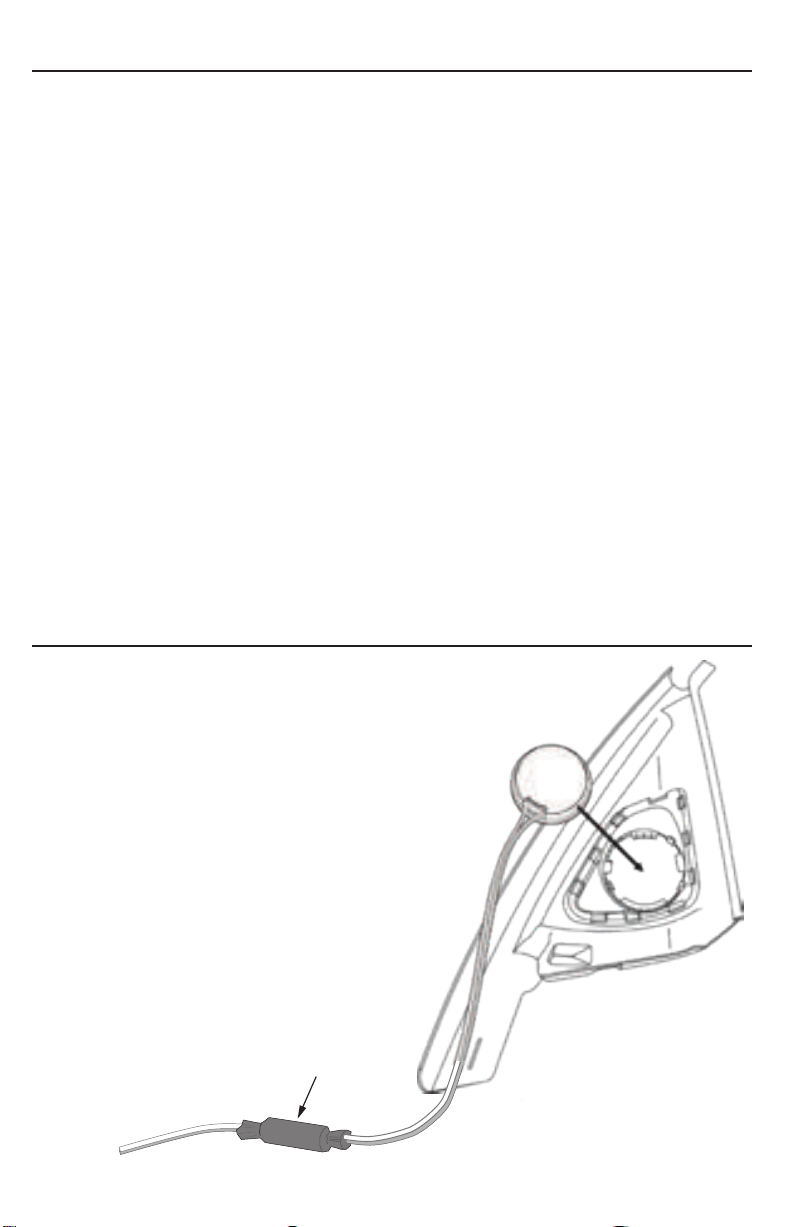

For the installation of the tweeters you have to
re-move the mirror triangles that incorporated
the original tweeters. Remove the original
tweeters from the triangles and replace them
with the new Diamond Audio tweeters. If you
own a car that hasn’t any tweeters installed ,
you have to buy the appropriate mirror triangles
as spare parts from your BMW dealer. After
the installation of the midwoofers and the
tweeters you have to connect them to the
crossover network using the included cable
harness. Please note that all wires from
speaker to crossover net-work are already
pre-assembled with cable shoes

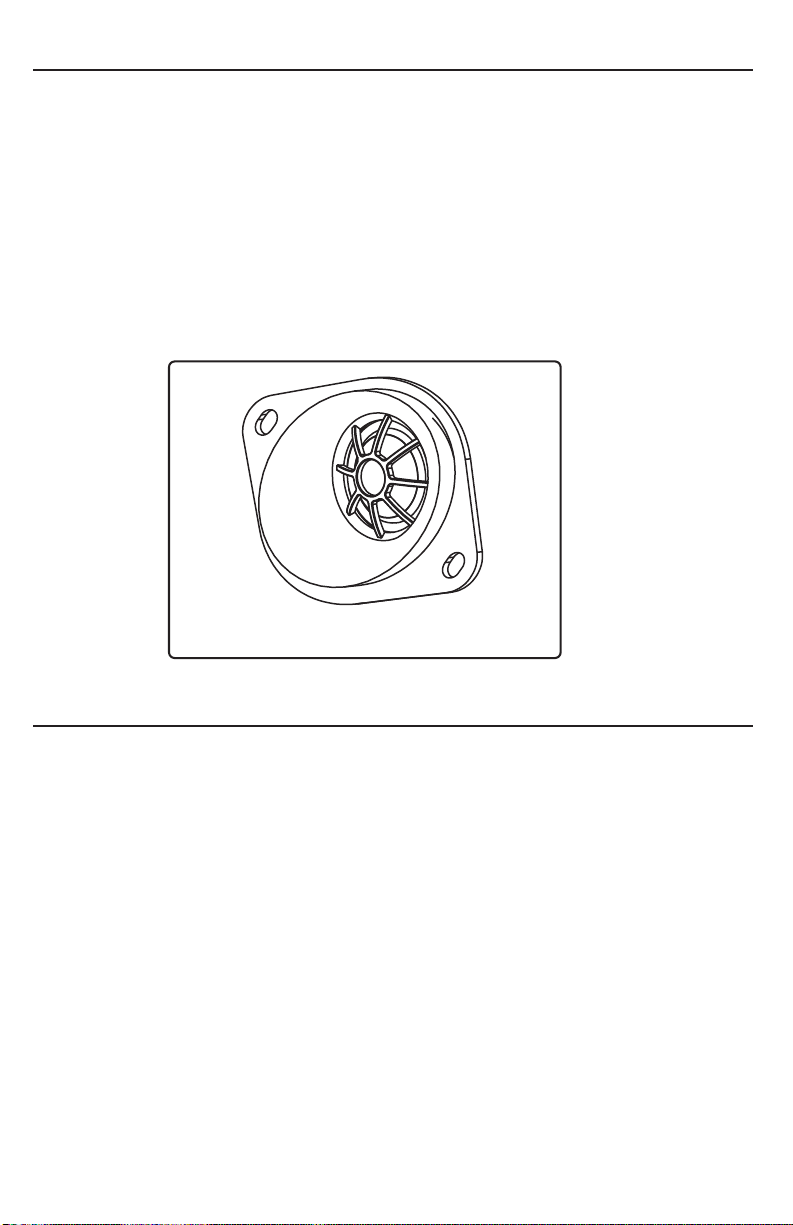

TWEETER INSTALLATION
Tweeter Crossover
4
After the installation of the midwoofers make sure the tweeters are connected to the crossover
network using the included cable harness. Please note that all wires from speaker to cross-
over network are already pre-assembled with cable push on connectors that can simply be
installed. You should also carefully check for the right polarity of each connection for each left
and right. You may want to usesome strong, double-sided adhesive tape or hot glue to
“semi-permanently” mount the crossovers. Make sure that you choose an appropriate recess in
the door panel as a position for the crossover network itself, so that it does not interfere with
any other part of the door panels when you reassemble the door
Removal of the door panel
In order to install the VPSBMW4 speakers in the
original mounting positions it is mandatory to
remove the door panels.If you are uncertain how
to remove the panels, please either ask your local
BMW dealer or an experienced car audio dealer
for assistance.
In either case follow the instructions of the car
manufacturer.
Here are some important hints:
1. The door panel is fastened with several hidden
screws to the metal sheet of the door. Make sure
that you have loosened all screws before you try to
remove the door panel.
2. Additionally the door panel is fixed by numerous plastic clips, which may be damaged during the
disassembly , especially if it cold (below 50 degrees F) . Always pull the door panel horizontally to
loosen the clips – never apply any vertical force.
.
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.)
SPEAKER INSTALLATION
5
Model Version Chassis From year To year 8"subwoofer 4 inch component
1 series 3-Door E81 2007 2012 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Coupé E82 2007 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series 5-Door E87 2004 2011 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Cabrio E88 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
1 series 5-Door F20 2011 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series 3-Door F21 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series Sedan F52 2015 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
2 series Coupé F22 2014 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
2 series Cabrio F23 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
2 series Active F45 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series Gran F46 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series M2 F87 2015 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
3 series Limo/ E90 2005 2011 underseat Front: BMW-B
Sedan Rear: BMW-C
Center: BMW-C
3 series Touring E91 2005 2012 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Coupé E92 2006 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
3 series Cabrio E93 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Sedan F30 2012 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Touring F31 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
3 series GT F34 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Limo F35 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series M3 F80 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Coupé F32 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Cabrio F33 2013 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series Gran F36 2014 Current underseat Front: BMW-A
Coupé Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series M4 F82 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series M4 F83 2014 Current underseat Front: BMW-A
Cabrio Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
5 series Limo E60 2004 2010 underseat Front: BMW-C
/Sedan Rear: BMW-C
Center: BMW-C
5 series Touring E61 2004 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series GT F07 2009 2017 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series Sedan F10 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Touring F11 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo F18 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo G30 2017 Current underseat Front: BMW-B
/ Sedan Rear: BMW-C
Center: BMW-C
5 series Touring G31 2017 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
6 series Coupé E63 2003 2010 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
6 series Gran E64 2003 2010 underseat Front: BMW-B
Coupé Rear: BMW-B
Center: BMW-C
6 series Gran F06 2011 Current underseat Front: N/A
Coupé Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Cabrio F12 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Coupé F13 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Gran F14 2011 Current underseat Front: BMW-A
Coupé M Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
7 series Sedan F01 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo F02 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Security F03 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Hybrid F04 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Sedan G11 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo G12 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
Mini Clubman F54 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 5-door Hatch F55 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 3-door Hatch F56 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Clubman R55 2006 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini 3-door Hatch R56 2006 2013 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Cabrio R57 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Coupé R58 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Roadster R59 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man R60 2010 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Paceman R61 2012 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man F60 2017 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Cabrio F57 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X1 SUV E84 2010 2015 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
X1 SUV F48 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X1 SUV F49 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X3 SUV E83 2003 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X3 SUV F25 2011 2017 underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
X4 SUV F26 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X5 SUV E70 2007 2013 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X5 SUV F15 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X5 X5 M F85 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 SUV E71 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 Hybrid E72 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 SUV F16 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 X6 M F86 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
Z4 Roadster E89 2009 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A"
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.) 6
SPEAKER INSTALLATION - Continued
3. Double check to make sure that you hav connected to the original speaker cable to the
input of the Diamond Audio Crossover network. This requires cutting off the original OEM BMW
connector with diagonal cutters. Never cut the cables directly behind the connector itself if you
would like to reconnect them at a later date. The original speaker cables have to be
equipped with the crimp terminals. These crimp terminals stick in one of the pre-as-
sembled cables. If you don’t have a dedicated crimping tool you can use the orginal cables
as well. Installation of the Diamond Audio VSP4BMW component speakers
Assuming that you are “reto” fitting your BMW with our Diamond Audio BMW specific speakers
AND utilizing the stock “OEM” amplification there will be no need for any adjustments as the
factory system is pre adjusted already.
BUT......If you decide to use aftermarket amplification, make sure that they have an integrated,
active crossover, and we recommend a high pass filter set at approx.100 Hz.
SYSTEM SETUP
Note that ANY broken plastic clips MUST be replaced before reinstalling
the door panel in order to avoid undesired rattles and noise.
OPTIONAL MOUNT INCLUDED
Model Version Chassis From year To year 8"subwoofer 4 inch component
1 series 3-Door E81 2007 2012 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Coupé E82 2007 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series 5-Door E87 2004 2011 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Cabrio E88 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
1 series 5-Door F20 2011 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series 3-Door F21 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series Sedan F52 2015 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
2 series Coupé F22 2014 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
2 series Cabrio F23 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
2 series Active F45 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series Gran F46 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series M2 F87 2015 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
3 series Limo/ E90 2005 2011 underseat Front: BMW-B
Sedan Rear: BMW-C
Center: BMW-C
3 series Touring E91 2005 2012 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Coupé E92 2006 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
3 series Cabrio E93 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Sedan F30 2012 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Touring F31 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
3 series GT F34 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Limo F35 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series M3 F80 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Coupé F32 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Cabrio F33 2013 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series Gran F36 2014 Current underseat Front: BMW-A
Coupé Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series M4 F82 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series M4 F83 2014 Current underseat Front: BMW-A
Cabrio Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
5 series Limo E60 2004 2010 underseat Front: BMW-C
/Sedan Rear: BMW-C
Center: BMW-C
5 series Touring E61 2004 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series GT F07 2009 2017 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series Sedan F10 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Touring F11 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo F18 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo G30 2017 Current underseat Front: BMW-B
/ Sedan Rear: BMW-C
Center: BMW-C
5 series Touring G31 2017 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
6 series Coupé E63 2003 2010 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
6 series Gran E64 2003 2010 underseat Front: BMW-B
Coupé Rear: BMW-B
Center: BMW-C
6 series Gran F06 2011 Current underseat Front: N/A
Coupé Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Cabrio F12 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Coupé F13 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Gran F14 2011 Current underseat Front: BMW-A
Coupé M Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
7 series Sedan F01 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo F02 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Security F03 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Hybrid F04 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Sedan G11 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo G12 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
Mini Clubman F54 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 5-door Hatch F55 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 3-door Hatch F56 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Clubman R55 2006 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini 3-door Hatch R56 2006 2013 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Cabrio R57 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Coupé R58 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Roadster R59 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man R60 2010 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Paceman R61 2012 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man F60 2017 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Cabrio F57 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X1 SUV E84 2010 2015 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
X1 SUV F48 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X1 SUV F49 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X3 SUV E83 2003 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X3 SUV F25 2011 2017 underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
X4 SUV F26 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X5 SUV E70 2007 2013 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X5 SUV F15 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X5 X5 M F85 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 SUV E71 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 Hybrid E72 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 SUV F16 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 X6 M F86 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
Z4 Roadster E89 2009 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A"
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.)
SPEAKER INSTALLATION - ADAPTERS NEEDED FOR EACH SERIES OF BMW (MINI too)
7
Model Version Chassis From year To year 8"subwoofer 4 inch component
1 series 3-Door E81 2007 2012 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Coupé E82 2007 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series 5-Door E87 2004 2011 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Cabrio E88 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
1 series 5-Door F20 2011 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series 3-Door F21 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series Sedan F52 2015 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
2 series Coupé F22 2014 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
2 series Cabrio F23 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
2 series Active F45 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series Gran F46 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series M2 F87 2015 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
3 series Limo/ E90 2005 2011 underseat Front: BMW-B
Sedan Rear: BMW-C
Center: BMW-C
3 series Touring E91 2005 2012 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Coupé E92 2006 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
3 series Cabrio E93 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Sedan F30 2012 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Touring F31 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
3 series GT F34 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Limo F35 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series M3 F80 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Coupé F32 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Cabrio F33 2013 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series Gran F36 2014 Current underseat Front: BMW-A
Coupé Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series M4 F82 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series M4 F83 2014 Current underseat Front: BMW-A
Cabrio Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
5 series Limo E60 2004 2010 underseat Front: BMW-C
/Sedan Rear: BMW-C
Center: BMW-C
5 series Touring E61 2004 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series GT F07 2009 2017 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series Sedan F10 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Touring F11 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo F18 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo G30 2017 Current underseat Front: BMW-B
/ Sedan Rear: BMW-C
Center: BMW-C
5 series Touring G31 2017 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
6 series Coupé E63 2003 2010 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
6 series Gran E64 2003 2010 underseat Front: BMW-B
Coupé Rear: BMW-B
Center: BMW-C
6 series Gran F06 2011 Current underseat Front: N/A
Coupé Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Cabrio F12 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Coupé F13 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Gran F14 2011 Current underseat Front: BMW-A
Coupé M Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
7 series Sedan F01 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo F02 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Security F03 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Hybrid F04 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Sedan G11 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo G12 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
Mini Clubman F54 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 5-door Hatch F55 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 3-door Hatch F56 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Clubman R55 2006 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini 3-door Hatch R56 2006 2013 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Cabrio R57 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Coupé R58 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Roadster R59 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man R60 2010 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Paceman R61 2012 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man F60 2017 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Cabrio F57 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X1 SUV E84 2010 2015 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
X1 SUV F48 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X1 SUV F49 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X3 SUV E83 2003 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X3 SUV F25 2011 2017 underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
X4 SUV F26 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X5 SUV E70 2007 2013 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X5 SUV F15 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X5 X5 M F85 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 SUV E71 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 Hybrid E72 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 SUV F16 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 X6 M F86 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
Z4 Roadster E89 2009 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A"
Model Version Chassis From year To year 8"subwoofer 4 inch component
BMW SERIES 4 THRU 7
MOUNTING HARDWARE CHART
The following 3 pages of charts indicate which mountiing adapters need to be used for your
SPECIFIC BMW or MINI for the Diamond Audio 4 inch component speakers
BMW ADAPTER CHARTS
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.) 8
Model Version Chassis From year To year 8"subwoofer 4 inch component
1 series 3-Door E81 2007 2012 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Coupé E82 2007 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series 5-Door E87 2004 2011 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Cabrio E88 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
1 series 5-Door F20 2011 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series 3-Door F21 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series Sedan F52 2015 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
2 series Coupé F22 2014 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
2 series Cabrio F23 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
2 series Active F45 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series Gran F46 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series M2 F87 2015 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
3 series Limo/ E90 2005 2011 underseat Front: BMW-B
Sedan Rear: BMW-C
Center: BMW-C
3 series Touring E91 2005 2012 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Coupé E92 2006 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
3 series Cabrio E93 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Sedan F30 2012 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Touring F31 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
3 series GT F34 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Limo F35 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series M3 F80 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Coupé F32 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Cabrio F33 2013 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series Gran F36 2014 Current underseat Front: BMW-A
Coupé Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series M4 F82 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series M4 F83 2014 Current underseat Front: BMW-A
Cabrio Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
5 series Limo E60 2004 2010 underseat Front: BMW-C
/Sedan Rear: BMW-C
Center: BMW-C
5 series Touring E61 2004 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series GT F07 2009 2017 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series Sedan F10 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Touring F11 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo F18 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo G30 2017 Current underseat Front: BMW-B
/ Sedan Rear: BMW-C
Center: BMW-C
5 series Touring G31 2017 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
6 series Coupé E63 2003 2010 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
6 series Gran E64 2003 2010 underseat Front: BMW-B
Coupé Rear: BMW-B
Center: BMW-C
6 series Gran F06 2011 Current underseat Front: N/A
Coupé Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Cabrio F12 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Coupé F13 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Gran F14 2011 Current underseat Front: BMW-A
Coupé M Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
7 series Sedan F01 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo F02 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Security F03 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Hybrid F04 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Sedan G11 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo G12 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
Mini Clubman F54 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 5-door Hatch F55 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 3-door Hatch F56 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Clubman R55 2006 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini 3-door Hatch R56 2006 2013 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Cabrio R57 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Coupé R58 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Roadster R59 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man R60 2010 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Paceman R61 2012 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man F60 2017 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Cabrio F57 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X1 SUV E84 2010 2015 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
X1 SUV F48 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X1 SUV F49 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X3 SUV E83 2003 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X3 SUV F25 2011 2017 underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
X4 SUV F26 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X5 SUV E70 2007 2013 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X5 SUV F15 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X5 X5 M F85 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 SUV E71 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 Hybrid E72 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 SUV F16 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 X6 M F86 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
Z4 Roadster E89 2009 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A"
BMW SERIES 1 THRU 4
MOUNTING HARDWARE CHART
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.)
BMW ADAPTER CHARTS (AND MINI)
9
Model Version Chassis From year To year 8"subwoofer 4 inch component
1 series 3-Door E81 2007 2012 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Coupé E82 2007 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series 5-Door E87 2004 2011 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
1 series Cabrio E88 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
1 series 5-Door F20 2011 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series 3-Door F21 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
1 series Sedan F52 2015 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
2 series Coupé F22 2014 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
2 series Cabrio F23 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
2 series Active F45 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series Gran F46 2015 Current underseat Front: BMW-A
Tourer Rear: BMW-A
Center: BMW-C
2 series M2 F87 2015 Current underseat Front: BMW-A
Rear: BMW-C
Center: BMW-C
3 series Limo/ E90 2005 2011 underseat Front: BMW-B
Sedan Rear: BMW-C
Center: BMW-C
3 series Touring E91 2005 2012 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Coupé E92 2006 2013 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
3 series Cabrio E93 2007 2013 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
3 series Sedan F30 2012 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Touring F31 2012 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
3 series GT F34 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series Limo F35 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
3 series M3 F80 2014 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Coupé F32 2013 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series Cabrio F33 2013 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series Gran F36 2014 Current underseat Front: BMW-A
Coupé Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
4 series M4 F82 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
4 series M4 F83 2014 Current underseat Front: BMW-A
Cabrio Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
5 series Limo E60 2004 2010 underseat Front: BMW-C
/Sedan Rear: BMW-C
Center: BMW-C
5 series Touring E61 2004 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series GT F07 2009 2017 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
5 series Sedan F10 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Touring F11 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo F18 2010 2016 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
5 series Limo G30 2017 Current underseat Front: BMW-B
/ Sedan Rear: BMW-C
Center: BMW-C
5 series Touring G31 2017 Current underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
6 series Coupé E63 2003 2010 underseat Front: BMW-B
Rear: BMW-B
Center: BMW-C
6 series Gran E64 2003 2010 underseat Front: BMW-B
Coupé Rear: BMW-B
Center: BMW-C
6 series Gran F06 2011 Current underseat Front: N/A
Coupé Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Cabrio F12 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Coupé F13 2011 Current underseat Front: BMW-A
Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
6 series Gran F14 2011 Current underseat Front: BMW-A
Coupé M Rear: BMW-B (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
7 series Sedan F01 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo F02 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Security F03 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Hybrid F04 2008 2015 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Sedan G11 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
7 series Limo G12 2016 Current underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
Mini Clubman F54 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 5-door Hatch F55 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini 3-door Hatch F56 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Clubman R55 2006 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini 3-door Hatch R56 2006 2013 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Cabrio R57 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Coupé R58 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Roadster R59 2011 2015 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man R60 2010 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Paceman R61 2012 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A
Mini Country- man F60 2017 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
Mini Cabrio F57 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X1 SUV E84 2010 2015 underseat Front: BMW-B
Rear: BMW-C
Center: BMW-C
X1 SUV F48 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X1 SUV F49 2016 Current underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: N/A
X3 SUV E83 2003 2010 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X3 SUV F25 2011 2017 underseat Front: BMW-A
Rear: BMW-A (Rear door)
BMW-C (Rear shelf）
Center: BMW-C
X4 SUV F26 2014 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
X5 SUV E70 2007 2013 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X5 SUV F15 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X5 X5 M F85 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 SUV E71 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 Hybrid E72 2008 2014 underseat Front: BMW-C
Rear: BMW-C
Center: BMW-C
X6 SUV F16 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
X6 X6 M F86 2014 Current underseat Front: N/A
Rear: BMW-C(D-pillar)
Center: BMW-C
Z4 Roadster E89 2009 2016 underseat Front: BMW-C
Rear: BMW-C
Center: N/A"
Mini Clubman F54 2015 Current underseat Front: BMW-A
Rear: BMW-A
Center: BMW-C
BMW SUV
MOUNTING HARDWARE CHART
MINI
MOUNTING HARDWARE CHART
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.) 10
BMW-A
(Variant A) 13MM Foam Ring
4MM Gasket
BMW-B
(Variant B)
4MM Gasket
Rubber Gasket
BMW-C
(Variant C)
4MM Gasket
LIMITED SPEAKER WARRANTY STATEMENT
©2019 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, Inc.)
Diamond Audio Technologies, (CV & DA HOLDINGS INC.) warrants this product to be free from defects in material and
workmanship for a period of one (1) year from the original date of purchase provided it was purchased from an authorized
DAT retailer within the United States. Product warranty period starts at date of purchase or one year past manufacture date
whichever is first. However, upon purchase, completion of the online registration and installation by an authorized DAT dealer
your warranty period will be extended to two (2) years. This warranty extension offer will only be recognized upon completion
of the online registration of your product within 30 days of the date of purchase.
THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER OF THIS PRODUCT
IN ITS ORIGINAL INSTALLATION. Original purchaser must reside in the United States and be able to provide proof of
purchase and installation with the sales receipt and completion of online regoistration from the authorized DAT retailer that
sold and installed the product.
Should a manufacturing defect occur during above said warranty period, DAT will replace or repair the defective product
with a product of the same or equivalent value and performance.
Damage or failure caused by any of the following is not covered under this warranty policy: negligence, improper use,
abuse, product modification, unauthorized repair attempts, accident, acts of God, misrepresentations by DAT retailers, and
improper/inadequate packaging during return shipping.
Warranty is void if serial numbers have been removed, altered or defaced.
HOW TO OBTAIN WARRANTY SERVICE
In the event a DAT product should require service, you should visit the authorized DAT retailer you purchased the product
from and they can expedite your claim. All claims must fall into the guidelines listed above and be accompanied by a copy of
the original sales and installation receipt from that authorized DAT retailer.
Product returned for warranty service must be freight-prepaid, properly packaged and clearly marked with the Return
Authorization (RA) number issued by DAT. Any product returned to DAT that is improperly packaged, does not have a
RA number clearly marked on the package, or never received a RA number may be refused upon delivery. DAT does not
assume responsibility for lost or misdirected product.
Repair or replacement under this warranty is the exclusive remedy of the consumer. DAT shall not be liable for any
incidental or consequential damages for breach of any expressed or implied warranty on this product. Some states do not
allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may
also have other rights that may vary from state to state.
Customers outside the United States should contact their local sales office to obtain information on pricing, exchange unit
availability, instructions, service and warranty/non-warranty replacement or repair.
Diamond Audio Technologies
3761 S. HILL ST
LOS ANGELES,CA 90007
Tel: 213-261-4161
Fax: 213-947-4767
Web: diamondaudio.com
Service/Tech Support:
213-261-4161
Tech Support Email
11
www.DiamondAudio.com
(a division of CV & DA Holdings, Inc.)
®
3761 S. Hill St.
Los Angeles, CA. 90007
Table of contents
Other Diamond Audio Technology Car Speakers manuals
Diamond Audio Technology
Diamond Audio Technology D652 User manual
Diamond Audio Technology
Diamond Audio Technology MOTORSPORT M5 Series User manual
Diamond Audio Technology
Diamond Audio Technology HEX S400 User manual
Diamond Audio Technology
Diamond Audio Technology D6 Series Quick start guide
Diamond Audio Technology
Diamond Audio Technology CM341 User manual
Diamond Audio Technology
Diamond Audio Technology HEX Series User manual
Diamond Audio Technology
Diamond Audio Technology M541 User manual
Diamond Audio Technology
Diamond Audio Technology Motorsport M245i User manual
Diamond Audio Technology
Diamond Audio Technology M541 User manual
