DIAMOND MOTION MEMO2GO User manual

MEMO2GO Handling Instructions Level 0 V 1.5 13-04-2018 1
MEMO2GO Handling Instructions Level 0
The following steps are recommended to achieve an effective and trouble-free installation and operation of your
DIAMOND[E]MOTION system:

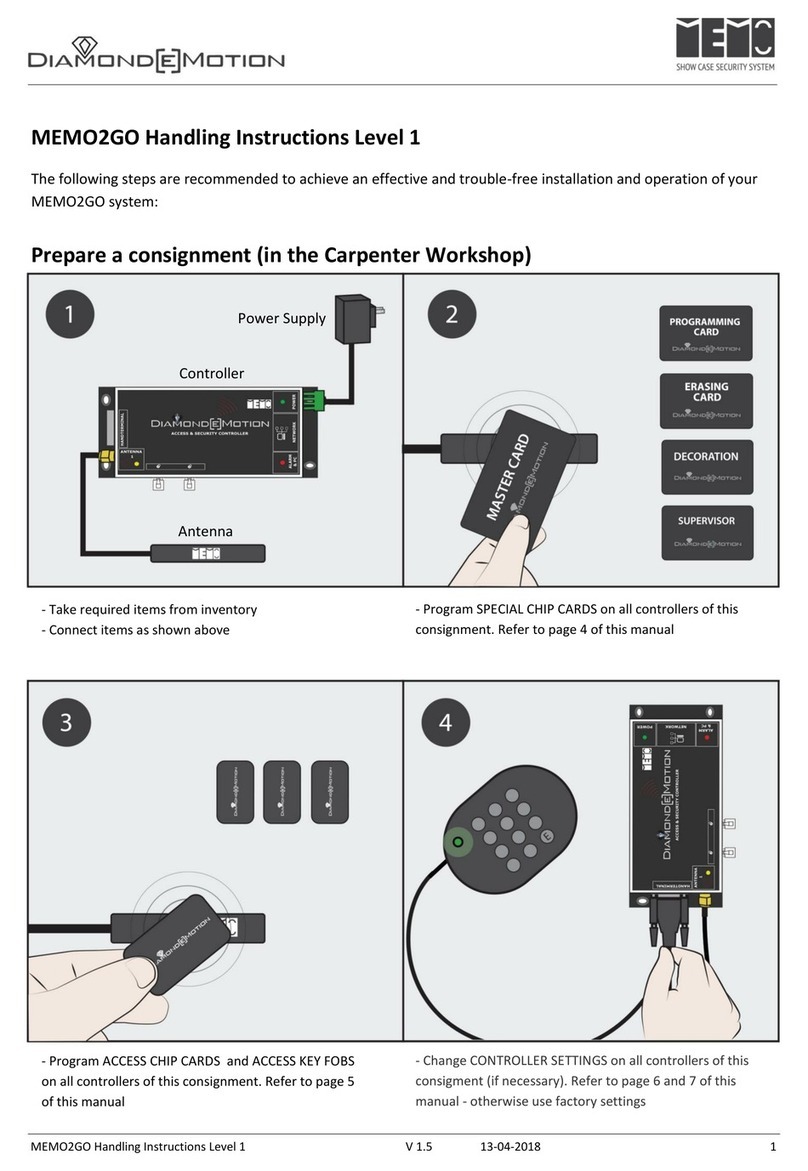

Prepare a consignment (in the Carpenter Workshop)
- Take required items from inventory
- Connect items as shown above
- Program SPECIAL CHIP CARDS on all controllers of this
consignment. Refer to page 4 of this manual
- Program ACCESS CHIP CARDS and ACCESS KEY FOBS
on all controllers of this consignment. Refer to page 5
of this manual
- Change CONTROLLER SETTINGS on all controllers of this
consigment (if necessary). Refer to page 6 and 7 of this
manual - otherwise use factory settings
Power Supply
Controller
Antenna

MEMO2GO Handling Instructions Level 0 V 1.5 13-04-2018 2
Install the Items
- Follow the INSTALLATION GUIDELINES carefully. If you
don’t have the guidelines for Antennas, Controllers, Locks
etc. please request them from MEMO
- Take care that the controllers are accessible for
maintenance
- Take care that the antennas have a good reading range
to the front side
A. Check that the lock can’t be manipulated from the outside.
B. Take care that the Locks are catching the door safe, re-lock
correct if door was not opened
FRONT PANEL OR DOOR
Antenna-Space Milled down
to 5mm (max. 10mm)
How can we help?

MEMO2GO Handling Instructions Level 0 V 1.5 13-04-2018 3
Handover to Shop Managers
- Mark the MASTER CARDS of each Controller
with the FURNITURE NAME/NUMBER
- Hand over ALL MASTER CARDS of ALL Controllers to Shop Managers
- Hand over ALL SPECIAL CHIP CARDS and ACCESS CHIP CARDS / KEY
FOBS to Shop Managers
- Handover the MEMO2GO Handling Instructions to the
Shop Managers
- Make the Shop Managers aware that the MASTER
CARDS are required to PROGRAM NEW and ERASE
LOST CHIP CARDS / KEY FOBS
! IMPORTANT !
LOSING a MASTER CARD leads to INCAPABILITY of programming new CARDS and KEY FOBS
once the ERASE CARD is used!
SPECIAL
CARDS
CHIP
KEYS

MEMO2GO Handling Instructions Level 0 V 1.5 13-04-2018 4
Special Function Cards Programming
Power Supply
Master Card
Programming Card
Erasing Card
Antenna
within 10 sec.
within 10 sec.
Short Beep
Double Short Beep
Long Beep
Tri-Tone Beep
Present the Master
Card twice at the
Antenna
Present the
Programming Card
at the Antenna
Present the Erasing
Card at the
Antenna
Ready for
Normal
Operation
- Connect the above items
- Prepare the above CHIP Keys
Between steps 2 and 3 if the Card is not presented within 10 seconds and the next Beep-tone sounds, it is
too late. The programming on the particular card will be skipped
Controller

MEMO2GO Handling Instructions Level 0 V 1.5 13-04-2018 5
Programming Keys
Erasing Keys
within 3 sec.
within 3 sec.
3 sec. per key
within 3 sec.
Double Short Beep
Double Short Beep
Double Short Beep
Double Short
Beep
Tri-Tone Beep
Present the
Programming Card
at the Antenna
Present the First
Key Fob at the
Antenna
Present the Second
Key Fob at the
Antenna
Present the Last
Key Fob at the
Antenna
Ready for
Normal
Operation
Continue with
subsequent keys
Tri-Tone Beep
Long Beep
Present the Erasing
Card at the Antenna
Ready for Normal
Operation
All Access Keys
are Erased

MEMO2GO Handling Instructions Level 0 V 1.5 13-04-2018 6
Controller Configuration
Controller Configuration with Code
Power Supply
12-Button Hand Terminal
Prepare the following items:
•Ready and powered system
consisting of Controller,
Antenna and Power Supply
•Master Card
•12-Button Hand Terminal
Connected to the Controller
Antenna
Press
Press
Press
Press
Short Beep
Long Beep
Long Beep
Press
Present the Master
Card at the Antenna
Press
Press
Ready for Normal
Operation
Example Configuration with 12-Button Hand Terminal
Type Code: E 2 1 E 1 0 E
To change configuration: Lock Activation 10 seconds
Master Card
Controller

MEMO2GO Handling Instructions Level 0 V 1.5 13-04-2018 7
FUNCTION
FACTORY SETTING
CODE
Factory Settings
ON
E250EE
Lock Activation Duration (1 - 250 seconds)
5 seconds
E21E005E
Lock Opening Delay (0 - 250 seconds)
0 seconds
E41E000E
One Door Only Mode ON
-
E138E1E
One Door Only Mode OFF
OFF
E138E0E
Key Opening Mode ON
-
E81E1E
Key Opening Mode OFF
OFF
E81E0E
Separated Antennas ON *
-
E202E1E
Separated Antennas OFF *
OFF
E202E0E
* if applicable
Controller Configuration
List of Feature Settings
