Diamond DFN175/33A User manual

Mod: DFN175/33A
Production code: FI 1750/33-(NOMEX)
04/2012

E031002C 10/04/09
2
SOMMARIO
1. INTRODUCTION ........................................................................................................................... 3
2. SAFETY RULES............................................................................................................................ 3
3. MANUFACTURARE LIABILITY..................................................................................................... 5
4. TRANSPORT AND UNPACKING ................................................................................................. 6
5. MACHINE IDENTIFICATION......................................................................................................... 7
6. INSTALLATION PREMISES AND POSITIONING ........................................................................ 7
7. NOISE............................................................................................................................................ 8
8. EXHAUST (only Gas heated ironers) AND HUMID AIR CONDUCTION...................................... 8
9. ELECTRIC CONNECTION............................................................................................................ 8
10. GAS CONNECTION (only gas heated ironers) ............................................................................. 9
11. PROOF (only for gas heated ironer)............................................................................................ 10
12. THE DRYING IRONER................................................................................................................ 10
13. WORKING CYCLE ...................................................................................................................... 11
14. HOW TO REACT IN CASE OF ENTRAPMENT ......................................................................... 12
15. HOW TO REACT IN CASE OF BLACK OUT.............................................................................. 12
16. WORKING: SAFETY DEVICES CONTROL................................................................................ 13
17. IRONING...................................................................................................................................... 13
18. HOW TO CHANGE THE IRONING TEMPERATURE ................................................................ 14
19. HOW TO CHANGE THE IRONING SPEED................................................................................ 15

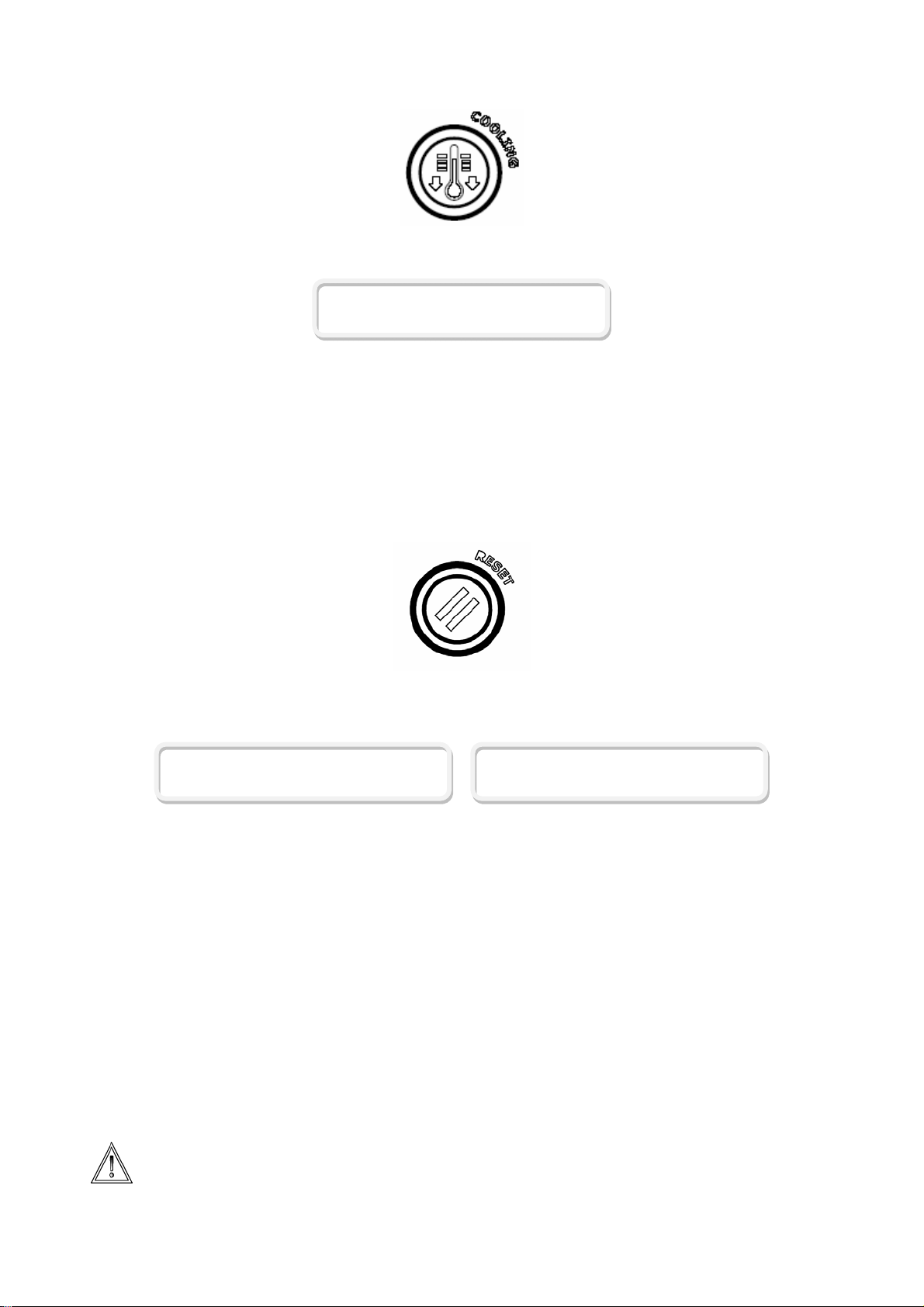

20. THE “COOLING”.......................................................................................................................... 15
21. RESET KEY ON THE KEYPAD .................................................................................................. 16
22. HOURS - COUNTER MANAGAMENT...................................................................................... 16
23. WORKING: CYCLE END............................................................................................................. 16
24. MALFUNCTION: TROUBLE SHOOTING - USER ...................................................................... 17
25. DRYING IRONER MAINTENANCE ............................................................................................ 20
26. HOW TO CLEAN THE BURNER (gas heated ironer)................................................................. 22
27. WHAT TO DO IF THE MACHINE STOPS FOR A LONG TIME ................................................. 22
28. EXPLODED VIEW AND SPARE PARTS .................................................................................... 22
29. SCRAPPING................................................................................................................................ 22
30. WARRANTY CONDITION ........................................................................................................... 22

E031002C 10/04/09
3
1. INTRODUCTION
This manual refer to the installation, use and maintenance of industrial drying ironers. This document is
written in compliance with EU Directives. The following information are addressed to installer and user, who
must be sure to understand them deeply before to work with the ironer. This manual must be always
available to be consulted. Should it have been lost, please ask to the manufacturer for a new one. The
manufacturer is not responsible for accidental damage due to a wrong use of the machine because of the
missing or a not complete reading of this manual. The manufacturer reserves the right to modify the here
described machine features or the characteristics of each machine. Some components pictures in this
manual may defer from the one mounted on the machine. Drawing and technical data may be modify without
any notice.
This manual, as well as its annex (electric diagram and technical data shee), must be consider part of the
machine, and it must be kept and follow the machine also when the machine is sold.
Manual Annex and exploded view can be retrieved also in the manufacturer web site. To retrieve the
technical document from the web site, the serial number is necessary.
2. SAFETY RULES
Not respecting the following instruction, may cause damages to people, things and animals.
Installation and maintenance of the here described machines must be trained by authorised personnel,
which knows the product and respecting the European Rules in matter of industrial machines installation.
Reparation made in a not correct way may seriously compromise the user safety.
Instruction must be read with high attention before to make the machine work. Instruction must be available
to all the people working with the dryer.
Here described drying ironers must be used to professionally drying clothes and linen: any other use is
forbidden, if not before authorized by the manufacturer.
Do not introduce in the machine any other different object from the one to be ironed; do not iron linen, which
entered in contact with dangerous stuff like explosives, detonating explosives or inflammables. Linen entered
in contact with this substances, need to be rinsed or aired before to be dried.
It is forbidden the ironing of linen which has been soaked in substances dangerous for the operator health,
like poison or cancerogenic stuff.
To avoid risks of fire or explosion, do not approach to the machine with combustible or inflammable
substances.
Always stick to the drying instruction written on linen label.
The use of this machine is forbidden to people under 16 years of age.
External supplementary connection to the machine release the manufacturer from any responsibility if they
are not properly done.
IMPORTANT NOTES
Working with the side panels open is forbidden!
In case of drying ironer gas heated, the exhausted gas must be blew out complying the rules on this
matter.
The ironer must be used only by trained personnel and always if another person in present in the
room!

E031002C 10/04/09
4
CRUSHING DANGER
Introducing the linen in the ironer, the hand must not go under hand safe protection. The linen must
be smoothed on the introducing table, where wrinkles and folds must be flatted, then it must be
driven on the introduction belts, which will bring it between the roller and the ironing belts.
It is forbidden to iron folded linen or more fabrics one up the other.
On the hand safe bar it is stuck the below picture; should this sticker be removed or damaged,
please ask for a new one to replace it.
In order to avoid burn or crushing of the limbs, it is forbidden to remove, even if temporarily, the
protection sides and the safety systems!
It is forbidden bar, plate or metallic objects between the ironing bands and the roller. In case of
emergency, please, follow strictly the procedure described in the opportune paragraph.
Each time the machine is switch on, please, check always the safety systems following the
procedure written in the relative paragraph.
It is compulsory to know the machine and the safety system work! It is compulsory to understand the
emergency stop button working!
READ CAREFULLY AND INFORM EACH OPERATOR ABOUT THE INTERVENTION SYSTEMS IN CASE
OF BLACK OUT OR IN CASE OF ENTRAPMENT: CHECK THE UNLOCK SYSTEM POSITION!
BURNING DANGER
This machine, as per the kind of work it is constructed for, can present the danger of burn.
Burn can be caused by:
- The linen coming out from the machine;
- The heating roller during the maintenance in case it is hot;
- The linen blocked between the roller and the bands, when it is free.
On the machine are stuck the following pictures, in case they are damaged or removed, please ask
for a new one to replace them.
At the ironed linen exit
Above the hand bar; where the user can easily see it.
Pay attention to the residual thermal danger of the machine and the just ironed linen.

E031002C 10/04/09
5
ELECTROCUTION DANGER
Any operation on the electric pats must be operated only by qualified technician and only after any
supply, especially electric, to the machine has been cut.
Power and control circuit my be modified only by manufacturer technician, on the contrary the
warranty condition will automatically expire.
On the electric board and on the elements with risk of electrocution, the here below warning picture
is stuck. Should it be damaged or removed, please ask for a new one to replace it.
ATTENTION! Even if the main switch is in the position “0”, wires arriving to it have tension!
USER PSYCHOPHISICAL CONDITION
People working on the machine must be in perfect psychophysical condition; while people work a vertical
posture in front of the machine must be kept. Sudden or not controlled movement must be avoided, for
example during the introduction or collecting of the linen, in order to avoid dangerous impact with the
machine structure.
Other people in the room must not destruct people working on the machine.
People working on the machine must not be destructed by TV, radio, etc nor be object of any other source of
distraction.
ILLUMINATION
The room where the machine is installed needs an illumination with an intensity of 300-500 lux; Annoying
flash must be avoided.
The above advices are not covering all the possible risks. The user must use the machine
paying high attention and in the respect of the safety rules.
3. MANUFACTURARE LIABILITY
The instruction here written are not replacing but only completing the dues for the respect of the in force
normative on safety and accident prevention.
Referring to what is written in this manual, the manufacturer is not responsible for:
- Use of the machine not respecting the in force normative on safety an accident prevention matter.
- Not correct machine installation.
- Missing of periodical and programmed maintenance operations.
- Not respect of this manual instruction.
- Defect in the tension and supply net.
- Not authorized machine modifications.
- Use of the machine by not authorized personnel.
- Use of the machine different from the instruction on the linen.

E031002C 10/04/09
6
4. TRANSPORT AND UNPACKING
Please control the machine at the receipt moment and signal to the forwarder any damaged due to the
transport both on the external structure and the internal parts.
The machine must be moved only using a forklift truck introducing the forks only and exclusively in the
apposite room.
To move the machine use a forklift truck that can bear the weight to be lift: check with
care the data on the technical sheet. Any up/down movement must be very slow.
The forklift truck must be used only by qualified and expert personnel.
Once the installation place has been reached, the machine must be completely unpacked, making it free
from the packaging material. Open the two side doors using the appropriate key and take off the bolts fixing
the machine to the pallet. The bolts are on the base of the machine side.
To take down the drying ironer from the pallet, use two steel bars with a minimum diameter of 20 mm and at
least 800 mm long, introducing them through the two apposite holes. Sling the machine and lift it in a
perfectly vertical position.
Lift the machine using the trolley and take away the pallet, than lay down the machine in the final position.

E031002C 10/04/09
7
The packing material must not be spread on the environment, but must be collect in the appropriate
collecting place in compliance with the country rules in force.
Remove the transport clamps following with care the instruction inside the
machine side. Pallet and clamps must be stored in case the ironer should be moved in the
future. NOTE: The machine must not be left on the pallet.
Once the machine positioning is completed, the following parts must be mounted on the apposite supports:
Above collecting slide (all the machines)
- Above collecting slide
- Below collecting slide
5. MACHINE IDENTIFICATION
The drying ironer is identified by a label with serial number, model, power and technical characteristics. In
order to order spare parts or request technical assistance the correct machine identification is necessary.
If this label has been modified, damaged or removed the machine cannot be correctly identified, so any
installation or maintenance operation is difficult and the warranty automatically expire.
6. INSTALLATION PREMISES AND POSITIONING
Installation must be operate by qualified personnel. The machine must be positioned in a flat surface
horizontally and in a very steady way, using the adjustable feet on the ironer side base.
To check the correct position of the ironer using a 1 mt long water level.
For a correct use, working and maintenance, leave at least 500 mm free behind the machine.
For a correct operation of ordinary and extraordinary maintenance, leave on both the
machine side a space equal to the ironer length.
The surface where the machine is position must bear at least 500 kg/m2: the machine load can be
considered static. The machine must be positioned in a good aired room (as per the normative in force) and
the room temperature must be between +10°C and +35°C. In the room must be granted an air recycle
proportional to the air used by the machine.
The ironer must be vented directly from outside in an environment free from pollution. The ventilation must
be guaranteed by permanent opening on the room walls, which are looking on outside. The net free total
section must comply with local rules on matter.

E031002C 10/04/09
8
7. NOISE
The air noise produced by the ironer causes an continue and weighted A level acoustic pressure which is
lower then 70 dB.
8. EXHAUST (only Gas heated ironers) AND HUMID AIR CONDUCTION
The exhaust conduction (for gas heated ironer) must comply with the rule on matter in force. In case of gas
heated ironer the chimney must be adequately far from easily inflammable or combustible materials (at least
500 mm). Contact with this material must be avoided using air space or insulators. In case the distance
cannot be respected, please use an adequate protection against heat.
The exhaust conduction can be 15 mt long (diameter 100 mm) and must be insulated or predisposed in a
way to collect the eventual condenses. In case the length need to be more than 15 mt the installer must
contact the manufacturer. The exhaust conduction, the connection to the chimney flue and the chimney flue
must be realized complying with national and local rules in force. Use of rigid ducts is compulsory;
connections between elements must be tight and all the elements must be resistant to heat, condenses and
mechanical solicitation. Chimney flue not adequately dimensioned or not correctly shaped amplifies burning
noises and gives condenses problems; they may alter burning parameter making easier soot and scales. In
order to avoid burned gas exit and noise, connections must be tight; use material (filler, rubber solution,
silicones) heat resistant.
In case of connection to existing exhaust collectors, the connection must never be at “T” way, but always at
“Y” with 45° connection.
The user must be well aware and trained about the dangerousness connected with the
tampering with conductions and/or modification, obstructions or ructions about the
installation room ventilation openings.
Refer to the here attached technical data sheet for dimensions and quote about gas and humid air exhaust.
9. ELECTRIC CONNECTION
Electric connection must be carried out by qualified technicians and must comply with local and national
rules in force.
Check the supply tension, it must comply with the label data on the ironer back. To connect the machine,
please use a cable H05 VV – F or more. The cable must be dimensioned following the here below section
chart:
1500 1800 2100
Electric connection 5x10mm25x10mm25x10mm2
Gas connection 5x2,5mm25x2,5mm25x2,5mm2
Before the ironer power supply line install a device for disconnection (i.e.: magneto thermal differential unit)
with a contact opening which allows the complete disconnection in case of the conditions of III category over
tension are verified, complying with the rules in force.
Be sure the main switch is in position “0”.

E031002C 10/04/09
9
Take off the door paying attention that already connected cables are not pulled out.
Pass the cable through the cable holder on the ironer left side.
Electric supply must be done connecting the cable to the terminals mounted on the ironer:
Ξ: ground
L1, L2, L3: phase
N: neutral
As soon as the electric connection is made, check the suction fan correct working. In
case the suction fan are supplied with a 3-phase system, please check that the motor sense
of rotation is correct and that the direction is the one of the air exhaust. In case the motor fan
are turning in the wrong direction, please change round two supply phases.
In case the machine is gas heated, please check the correct position of phase and
neutral in case of 1 phase machines. The wrong connection cause the missing survey of the
ionization sensor.
Ironer must be connected to a efficient ground system: the manufacturer decline any responsibility in case
this connection would not be complying with rules on matter.
Before any maintenance operation cut the electric supply to the machine: for maintenance refer to the ironer
electric diagram available in the pocket on the side door.
WARNING! Even if the main switch is on “0”, cables before it have tension!
10. GAS CONNECTION (only gas heated ironers)
Gas connection must be made by qualified technicians and in compliance with national and local rules in
force. Please check the supplied gas, it must correspond to the one indicated on the technical data labels
stuck on the machine back.

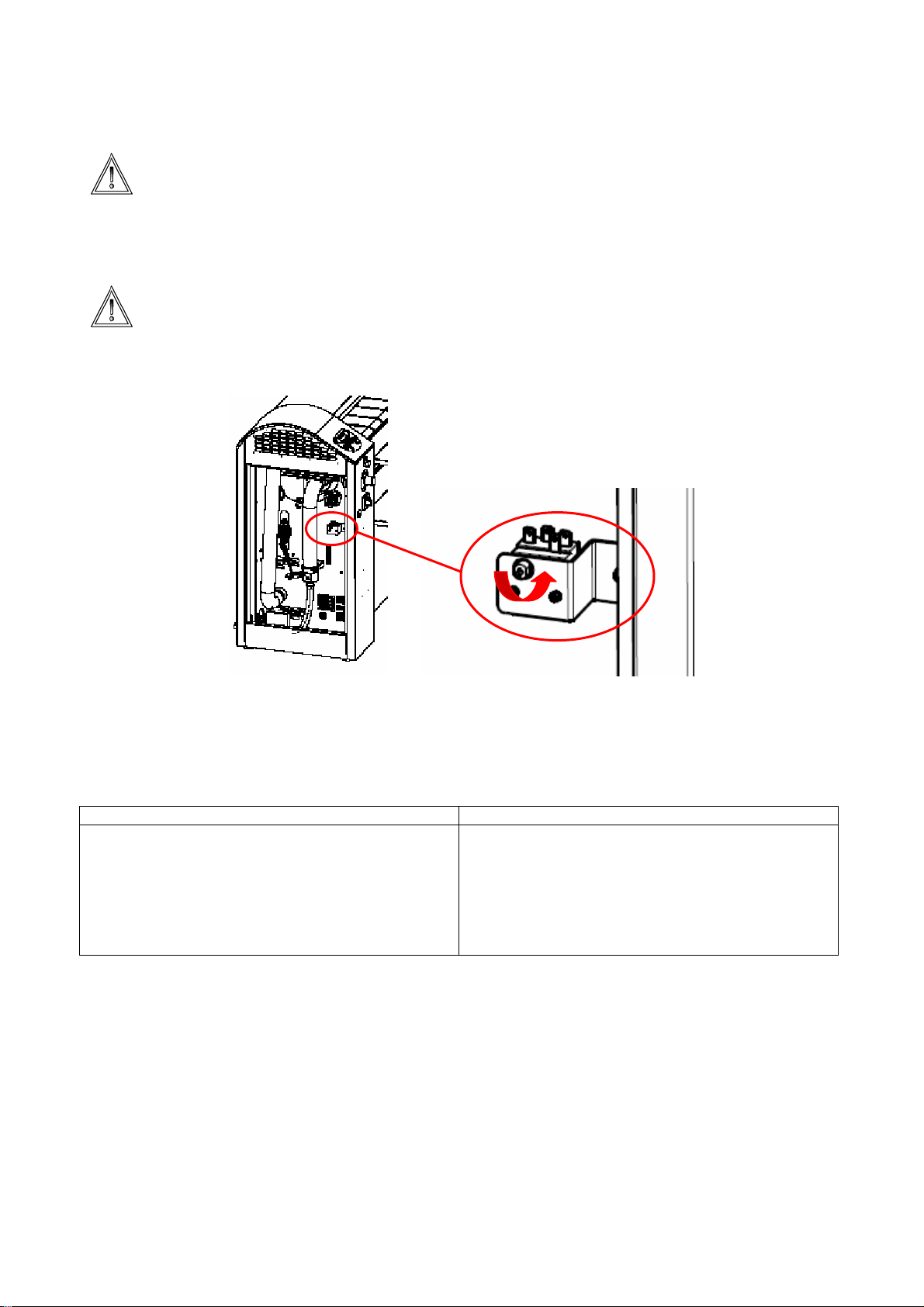

Please check the correct position of the regulation ring (if existing). After that, close the side panels if still
open, start the machine and test the pressure on the nozzle: use the following tables.

E031002C 10/04/09
10
1500
Code Gas kind Pressure at noozle Noozle Air intake position
O G20 2E e 2H 7,5 440 pos. C: 20 mm
P G20 2E+ 18,8 350 pos. C: 20 mm
Q G25 2L e 2LL 11 440 pos. D: 15 mm
R G30 e GPL 3+ e 3B/P 27,7 235 pos. B: 25 mm
1800
Code Gas kind Pressure at noozle Noozle Air intake position
O G20 2E e 2H 8,5 440 pos. A: 30 mm
P G20 2E+ 18,9 365 pos. B: 25 mm
Q G25 2L e 2LL 12,6 440 pos. B: 25 mm
R G30 e GPL 3+ e 3B/P 28,1 245 no
2100
Code Gas kind Pressure at noozle Noozle Air intake position
O G20 2E e 2H 7,5 480 pos. B: 25 mm
P G20 2E+ 18,6 380 pos. B: 25 mm
Q G25 2L e 2LL 11 480 pos. C: 20 mm
R G30 e GPL 3+ e 3B/P 27,9 255 pos. B: 25 mm
For the supply system, please use an approved pipe: in case of a rigid pipe, it must be equipped with an
expansion ring
For the gas supplying pipe dimensions, please refer to the attached technical data sheet: the external pipe
system must be adequate to the used kind of gas and in compliance with the rules of the country where the
ironer is going to be installed. Install a pressure reducer correctly dimensioned on the gas supply system and
equipped the line with a valve with manual closure system.
ATTENTION! Gas valve are dimensioned for a pressure up to 55mbar. If the pressure
is above this value, the valve membranes could be broken. For this reason a careful control
of the pressure on the system before the machine installation is compulsory.
11. PROOF (only for gas heated ironer)
All system and equipment connection must be proofed. We suggest you to use an adequate spay identifying
leaks; otherwise you can spread some foamy not corroding substances. In any case no bubbles must form.
In case there are some leaks, please repair them.
DANGEROUS! Do not use free flames to proof gas leaks!

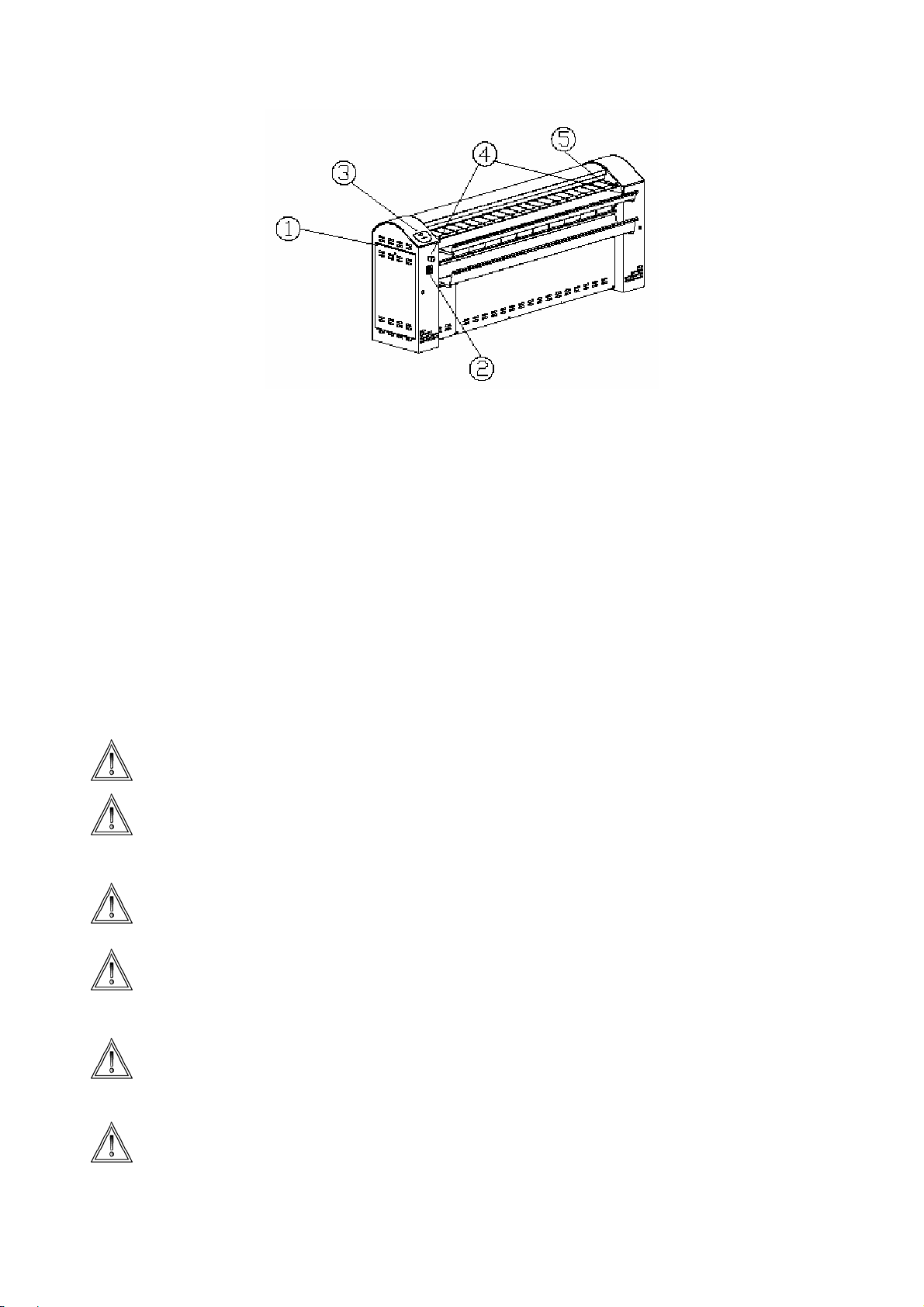

12. THE DRYING IRONER
The drying ironer is caracterized by some elements, which must be know from the beginning.
