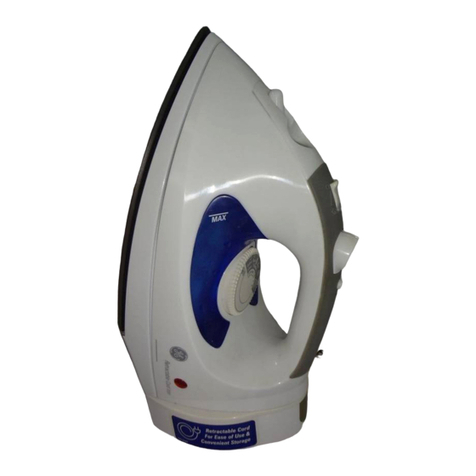

GE 169061 User manual

DIGITAL IRON
Item Stock Number
169061
UPC : 681131690614
For Customer Assistance, call Customer Service at
1- 77-207-0923 (US) or 1- 77-556-0973 (Canada)

2
IMPORTANT SAFEGUARDS
When using electrical appliances especially when children are present, basic safety
precautions should always be followed to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
READ A INSTRUCTIONS BEFORE USING THIS IRON
1. Use iron only for its intended use.
2. To protect against electrical shock, do not place cord, plug or iron in water or
other liquids.
3. The iron should always be turned to “OFF” before plugging or unplugging from
the outlet. Never yank the cord to disconnect from outlet, grasp plug and pull to
disconnect.
4. Do not allow cord to touch hot surfaces. et iron cool completely before putting
away. oop cord loosely around the iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying
and when not in use.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Call our toll-free
customer service number for information on examination, repair or adjustment.
7. To avoid the risk of electrical shock, do not disassemble the iron. Incorrect
reassembly can cause a risk of electric shock when the iron is used.
8. Close supervision is necessary for any appliance being used by or near children.
9. Do not leave iron unattended while connected or on an ironing board.
10. Burns can occur from touching hot metal parts, hot water or steam. Use
caution when you turn a steam iron upside down – there may be hot water in
the reservoir.
11. Your iron is designed to rest on the heel rest. Do not leave the iron unattended.
Do not set the iron on an unprotected surface, even if it is on its heel rest.
12. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
SAVE THESE INSTRUCTIONS!
SPECIAL INSTRUCTIONS
1. To avoid an overloaded circuit, do not operate another high wattage
appliance on the same electric circuit.
2. If an extension cord is absolutely necessary, a 13-amperage cord should be
used. Cords rated for less amperage may overheat. Care should be taken to
arrange the cord so that it cannot be pulled or tripped over.

3
This appliance is for HOUSEHOLD USE ONLY. It may be plugged into an AC electrical
outlet (ordinary household current). Do not use any other electrical outlet.
CORD PLUG
This appliance has a polarized plug (one blade is wider than the other). To reduce the
risk of electric shock, this plug is intended to fit into a polarized outlet only one way; if
the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician. Do not attempt to defeat this safety feature.
LINE CORD SAFETY TIPS
1. Never pull or yank on cord or the appliance.
2. To insert plug, grasp it firmly and guide it into outlet.
3. To disconnect appliance, grasp plug and remove it from outlet.
4. Before each use, inspect the line cord for cuts and/or abrasion marks. If any are
found, this indicates that the appliance should be serviced and the line cord replaced.
5. Never wrap the cord tightly around the appliance, as this could place undo
stress on the cord where it enters the appliance and cause it to fray and break.
DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE, OR IF
APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
PARTS
1. Water Tank
2. Heel Rest
3. Soleplate
4. Self Clean Button
5. Spray Nozzle
6. Water Reservoir Cover
7. Burst of Steam Button
8. Spray Button
9. Variable Steam Dial
10. Fabric Selector Button
11. CD Display
12. Dual ight: Power-Red
Sleep Mode-Blue
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
6.
7.
8.
9.
10.
11.

4
FEATURES
SPRAY
At any temperature, press the Spray button to dampen the fabric to aid in removing
wrinkles from heavy fabrics and for setting creases.
SHOT OF STEAM
1. Set the iron to the COTTON or INEN setting
2. By pressing the Shot of Steam Button, an intense shot of steam is emitted from
the soleplate.
3. This can be very useful when removing stubborn creases. The Shot of Steam can
be used only while ironing with higher ironing temperatures.
VERTICAL STEAM
1. Set the iron to the INEN setting. The CD background will be solid green and the
word INEN will blink.
2. Stand the iron on its heel rest.
3. When the iron reaches the proper temperature, there will be two audible beeps
and the word INEN will stop blinking.
4. Hold the iron vertically and press the Shot of Steam Button to emit an intense
vertical steam from the soleplate.
SELF CLEAN (AUTO CLEAN SYSTEM)
1. To prolong the life of your iron, we recommend that this should be carried out at
regular intervals (once or twice a month).
2. Set the Continuous Rotary Knob to position “X”.
3. Fill the water tank to “MAX”.
4. Stand the iron on its heel rest.
5. Insert the plug into the wall socket.
6. Press the set button to select INEN setting.
7. Unplug the iron and keep it horizontally over a sink.
8. Press the Self-Clean Button
9. Boiling water and steam will now be ejected from the steam vents in the
soleplate.
10. Impurities and scale are washed away with the water.
11. Move the iron forward and backwards while this happens.
12. Release Self-Clean Button after one minute or when the Water Tank has become
empty.
13. Stand the iron on its heel rest.
14. Insert the plug in to the wall socket and let the iron heat up again.
15. Move the iron over an old piece of cloth in order to let the remaining water
vaporize.
16. Remove the plug from the wall outlet and wait for the soleplate to cool
completely.
17. Make sure that the soleplate is completely dry before storing the iron.

5
STEAM IRON MODEL
Model No. Rated voltage Rated power Water Tank Dimensions Weight
169061 120V 1400W 400ml 11.75 x 5.25 x 5.75 (in) 4 BS
OPERATING INSTRUCTIONS
USING THE WATER RESERVOIR:
•This iron can be used with normal tap water.
•If the water in your area is particularly hard, it is advisable to use distilled or de-
mineralized water to prevent scale from forming.
•Do not use water that has passed through a home water softening system. This
type of water contains minerals that will decrease the performance and shorten
the life of your iron.
Filling:
1. Ensure that the iron is disconnected from the power supply before filling. Turn the
Continuous Steam Rotary Knob to “X” position, slide the Water Reservoir Cover
down.
2. Fill water into the reservoir.
3. Close the Water Reservoir Cover.
Note:
•Do not fill higher than indication “MAX” of the water tank in order to avoid spilling
out of water.
•Do not fill with anything but water. If you have to refill while ironing, remove the
main plug from the wall socket before filling.
•Pour any remaining water out after use.
USING THE IRON:
Ironing temperature:
Always check first to see whether a label with ironing instructions is attached to the
article to be ironed. Follow these instructions in all cases. If ironing instructions are
missing but you do know the kind of fabric, then the table below may help you.

6
Setting the temperature
•When pressing the Fabric Selector, the temperature setting will cycle in the
following sequence:
STAND BY→ RAYON → SI K → WOO → COTTON → INEN→STAND BY
Setting Temp. Range LCD display action
Full display at
initial stage
Power lamp will light and
the system resets with
CD background ON and
flashing once. Then the
buzzer beeps once and it
goes to the stand by
condition with the Sleep
Indication amp flashing
blue.
Stand by
condition
Hold Button for 3 Seconds
to turn to Stand by.
Background lamp turns
off; the CD will read
“STAND BY” and Sleep
Indication amp will flash
blue. Under this
condition, the relay has
no output. If pressing on
setting button, the system
now goes to the ready
operation status.
RAYON 195 – 250ºF Push button once: RAYON
blinks until heat is
reached and is ready to
iron.
SI K 250-285ºF Push button twice: SI K
blinks until heat is
reached and is ready to
iron
WOO 285-320ºF Push button 3 times:
WOO blinks until heat is
reached and is ready to
iron
COTTON 320-355ºF Push button 4 times:
COTTON blinks until heat
is reached and is ready to
iron.
INEN 355-410ºF Push button 5 times:
INEN blinks until heat is
reached and is ready to
iron

7
Dry Ironing
1. Plug the cord into a 120-volt AC outlet.
2. Make sure that the Continuous Steam Rotary Knob is in position “X”.
3. By pressing the Fabric Selector button, select the setting best suited for the fabric
to be ironed.
Steam Ironing
1. Follow the instructions for filling the water reservoir.
2. Stand the iron on its heel rest.
3. Plug the cord into a 120-volt AC outlet.
4. Press the Fabric Selector button to reach the desired fabric setting.
5. Wait a few minutes for the indicator light to go out and come back on again. Set
the Continuous Steam Rotary Knob to the required position, then the steam will
emerge from the vents in the soleplate.
NOTE: It is recommended that the Burst of Steam button only be used when the fabric
setting being used is COTTON or INEN.
SAFETY FEATURES:
NOTE: the iron will go into AUTO OFF mode if it is left unattended and will read
“STAND BY” until the iron is moved again, or it automatically shuts off.
•Sleep condition: If the iron is left immobile for 30 seconds or in vertical position
for 15 minutes, the CD background will turn off and will flash “STAND BY” in ½
second intervals. Under this condition, the relay has no output and the buzzer will
continuously beep for 2 seconds, then the iron will enter the sleep condition with
the Sleep Indication amp (blue lamp) flashing.
•Abnormal alarm: If the sensor gets short-circuited or open circuited, or senses an
abnormal temperature rise, it will alarm after 8 seconds with intermittent beeps in
3 second intervals. After alarm sounds, the CD will have no display and the Sleep
Indication lamp will flash blue. The buzzer will continue to beep until the
abnormal situation is eliminated.
CARING FOR YOUR IRON
CLEANING:
•Before cleaning the iron, ensure that it is disconnected from the power supply and
has completely cooled down.
•Deposits and other residues on the soleplate can be removed with a rough cloth
soaked in a vinegar/water solution.
•The plastic casing may be wiped with a damp cloth and then polished with a dry
one.
•Do not use abrasives on the soleplate.
STORAGE:
•Set the Continuous Rotary Knob to position “X”.
•Disconnect the plug from the wall socket.

8
•Stand the iron upright on its heel rest and allow to cool completely.
•Pour any remaining water out of the water tank.
•oosely loop the power cord together and store the iron on its heel rest.
IRONING TIPS:
•Always read garment labels and follow the manufacturer’s ironing instructions.
•Sort the articles to be ironed according to the type of fabric.
•You should first iron garments requiring low temperatures to avoid damaging
them with an iron that is too hot.
•If you are unsure of the fabric content of the garment, test a small area, such as a
seam or facing, before ironing a visible area. Start with a low temperature and
gradually increase the heat to find the best setting.
•When changing the temperature from a high setting to a low setting, allow
approximately 5 minutes for the lower temperature to be reached.
•When steam ironing, use long, slow passes over the fabric. This will allow the
steam to penetrate the fabric while allowing the heat of the soleplate to dry out
the moisture.
•To iron linens, turn garment inside out. Be careful not to use an iron that is too
hot because the lining may melt or stick to the soleplate.
•Never iron over zippers, pins, snaps, or anything metal as this may scratch or
damage the soleplate.

9
What does your warranty cover?
•Any defect in material or workmanship.
For how long after the original purchase?
•Two years.
What will we do?
•Provide you with a new one!
•For those items still under warranty but no
longer available, WA -MART reserves the
right to replace with a similar GE branded
product of equal or greater value.
How do you make a warranty claim?
•Save your receipt.
•Properly pack your unit. We recommend
using the original carton and packing
materials.
•Return the product to your nearest WA -
MART store or call Customer Assistance at
1-877-207-0923 (US) or 1-877-556-0973
(Canada)
What does your warranty not cover?
•Parts subject to wear, including, without
limitation, glass parts, glass containers,
cutter/strainer, blades, seals, gaskets,
clutches, motor brushes, and/or agitators,
etc.
•Commercial use or any other use not found in
printed directions.
•Damage from misuse, abuse, or neglect,
including failure to clean product regularly in
accordance with manufacturer’s instructions.
How does state law r
elate to this warranty?
•This warranty gives you specific legal
rights, and you may also have other rights
which vary from state to state or province to
province.
•THIS WARRANTY IS IN IEU OF ANY OTHER
WARRANTY OR CONDITION, WHETHER EXPRESS
OR IMP IED, WRITTEN OR ORA , INC UDING,
WITHOUT IMITATION, ANY STATUTORY
WARRANTY OR CONDITION OF
MERCHANTABI ITY OR FITNESS FOR A
PARTICU AR PURPOSE.
•WA -MART, GE AND THE PRODUCT
MANUFACTURER EXPRESS Y DISC AIM A
RESPONSIBI ITY FOR SPECIA , INCIDENTA AND
CONSEQUENTIA DAMAGES OR OSSES CAUSED
BY USE OF THIS APP IANCE. ANY IABI ITY IS
EXPRESS Y IMITED TO AN AMOUNT EQUA TO
THE PURCHASE PRICE PAID WHETHER A C AIM,
HOWEVER INSTITUTED, IS BASED ON
CONTRACT, INDEMNITY, WARRANTY, TORT
(INC UDING NEG IGENCE), STRICT IABI ITY OR
OTHERWISE. SOME STATES OR PROVINCES DO
NOT A OW THIS EXC USION OR IMITATION OF
INCIDENTA OR CONSEQUENTIA OSSES SO
THE FOREGOING DISC AIMER MAY NOT APP Y
TO YOU.
What if you encounter a problem with this
product while using it outside the country of
purchase?"
•The warranty is valid only in the country of
purchase and you follow the warranty claim
procedure as noted.
is a trademark of General Electric Company
and is used under the license by
Wal-Mart Stores Inc., Bentonville, AR 72716
CUSTOMER ASSISTANCE
If you have a claim under this warranty, please call our Customer Assistance Number.
For faster service, please have the model, type and series numbers ready for the operator
to assist you. These numbers can be found on the bottom of your appliance.
MODE :________________ TYPE :__________________ SERIES :__________________
Customer Assistance Number 1-877-207-0923 (US) or 1-877-556-0973 (Canada)
Keep these numbers for future reference!
For more information, please visit us at www.walmart.com
TWO- YEAR LIMITED WARRANTY
Marketed in Canada by:
Wal-Mart Canada Corp.
1940 Argentia Road, Mississauga, Ontario 5N1P9
