INSTRUCTION MANUAL
Oakton®Temp-340 Thermistor
Datalogging Thermometer
Instruction Manual
Single-Input Data Logging
Thermistor Thermometer
(Model 91428-06)
68X001353 Rev0 0717 1065DGMAN_91428-06
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

T
A BLE OF CONTENTS
1. INTRODUCTION ....................................1
2. SAFETY PRECAUTIONS........................ 2
3. SPECIFICATIONS..................................3
4. BATTERY INSTALLATION AND
REPLACEMENT.....................................6
5. INSERTING AND REMOVING
OPTIONAL RUBBER ARMOR.................8
6. ASSEMBLING OPTIONAL
HANDS-FREE ACCESORIES .................9
7. CONNECTING A THERMISTOR ........... 10
8. KEY FUNCTIONS.................................11
9. DISPLAY OVERVIEW........................... 12
10. MEASUREMENT MODE....................... 14
11. HOLD FUNCTON ................................. 15
12. MIN, MAX, and AVG FUNCTION...........15
13. DATA LOGGING ..................................15
14. SETUP MODE...................................... 16
15. GENERAL SETUP SCREEN.................17
16. CALIBRATION SCREEN....................... 19
17. ALARMS SCREEN ............................... 21
18. DATA LOGGING SCREEN.................... 24
19. CALIBRATION REPORT SCREEN........27
20. CLEAR / RESET SCREEN.................... 28
21. MAINTENANCE....................................29
22. CLEANING...........................................29
23. BATTERIES ......................................... 29
24. TROUBLESHOOTING .......................... 30
25. ACCESSORIES....................................31
26. WARRANTY......................................... 32
27. PRODUCT RETURN............................. 32
28. INNOCAL®CALIBRATION AND
REPAIR SERVICES.............................. 33
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 1 -
1. INTRODUCTION
T
his versatile handheld
in strument provides highly
accu rate te mperature
measurements
. T he
instrument
is designed
for
easy oper ation and
includes
the follo wing
features:
•Menu driven setup and operation
•Data logging for up to 2000 points
•USB output
•Operator selection of Celsius or
Fahrenheit scale
•Resolution of up to 0.01°C/°F
•Large backlit LED and dot-matrix
graphic LCD display
•Hold feature for temporarily retain
a reading
•Displays minimum and maximum
and average readings
•Field calibration capability
•Disabling of auto-off function
•Low-battery warning
•Bayonet connector input
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 2 -
2. SAFETY PRECAUTIONS
WARNING:
1. This instrument is designed to
accept low level signals supplied
by standard thermistors. Under
NO circumstances should the input
voltage exceed the specified
50V RMS.
2. To prevent ignition of a hazardous
atmosphere, batteries must only be
changed in an area known to be
nonhazardous.
CAUTION:
1. Do not use or store this instrument
in microwave ovens or any
abnormally hot or cold areas.
2. Weak batteries should not be left in
the instrument. Dead batteries can
leak and cause damage to unit.
DANGER:
1. Voltages present at the thermistor
may also be present at the battery
terminals. Always disconnect the
thermistor when changing batteries.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 3 -
3. SPECIFICATIONS
Thermistor Thermometers
Type
Temperature range
400 series
–40 to 150°C
(–40 to 302°F)
Out-of-range display: OPEN
Resolution:
0.01 or 0.1 °F/°C; auto-ranging to 0.1°
above +99.99°
Accuracy:
From –40.00 to 99.99°F (–40.00 to
99.99°C): ±0.06°F (±0.03°C)
From 100.0 to 257.0°F (100.0 to 125.0°C):
±0.1°F (±0.1°C)
From 257.0 to 302.0°F (125.0 to 150.0°C):
±0.9°F (±0.5°C)
Display:
Backlit dot matrix, 50mm x 37.2mm
Data logging:
2000 points
Logging interval:
2 sec to 60 min
Min/Max/Avg function:
Yes
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 4 -
Auto off (adjustable time):
Enable/disable option available
Stability criteria:
Yes, upon stability of 5 seconds
Display update rate:
0.6 second per update
Input:
One bayonet connector
Input protection:
50V rms
Storage temperature:
–40°C to 65°C (–40°F to 149°F)
Humidity:
10% to 90% RH (noncondensing)
Battery life:
Size: Three AA, 1.5V; alkaline
Life: 400 hours continuous, typical,
(without backlighting)
Dimensions:
Without armor:
175mm (L) x 97mm (W) x 42mm (H)
With armor:
180mm (L) x 102mm (W) x 52mm (H)
Weight with batteries:
Without armor: 267g
With armor: 362g
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 5 -
Ingress protection:
Meets IEC-529 IP-54 for dust and water
resistant enclosures (probe attached)
CE Compliance:
EN61326-1/A1: 1998 (EU EMC Directive)
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 6 -
4. BATTERY INSTALLATION AND
REPLACEMENT
The total battery life without backlighting
is about 400 hours. Remaining battery
power is indicated but the battery life
indicator.
Indicator
Voltage
Cell + 3 bars
More than 4.1 V
Cell + 2 bars More than 3.6 V
Cell + 1 bars More than 3.0 V
Cell + empty
bars flashing
More than 2.85 V
Adaptor power
supply
Main power supply
connected
USB power
supply
USB power connected
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 7 -
Selected settings are stored in memory
and will remain in memory even after
power is turned off, or while batteries
are being replaced.
1. Before changing battery, turn
instrument off and disconnect
thermistor.
2. Loosen screw and lift battery cover
off back of case.
3. Remove the three AA batteries.
4. Insert three new batteries observing
polarity.
5. Install cover and tighten screw.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 8 -
5. INSERTING AND REMOVING
RUBBER ARMOR
1. To insert thermometer into the
optional rubber armor, slide in from
the top of meter before pushing the
bottom edges of meter down to set
it into position. Lift up the stand at
the back of meter for bench top
applications if necessary.
2. To remove thermometer from armor,
push out from the bottom edges of
meter until it is completely out of
boot.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 9 -
6. ASSEMBLING OPTIONAL
HANDS-FREE ACCESORIES
You can use the optional magnets and
strap in the Hands-Free Kit accessories
for hands-free operations.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 10 -

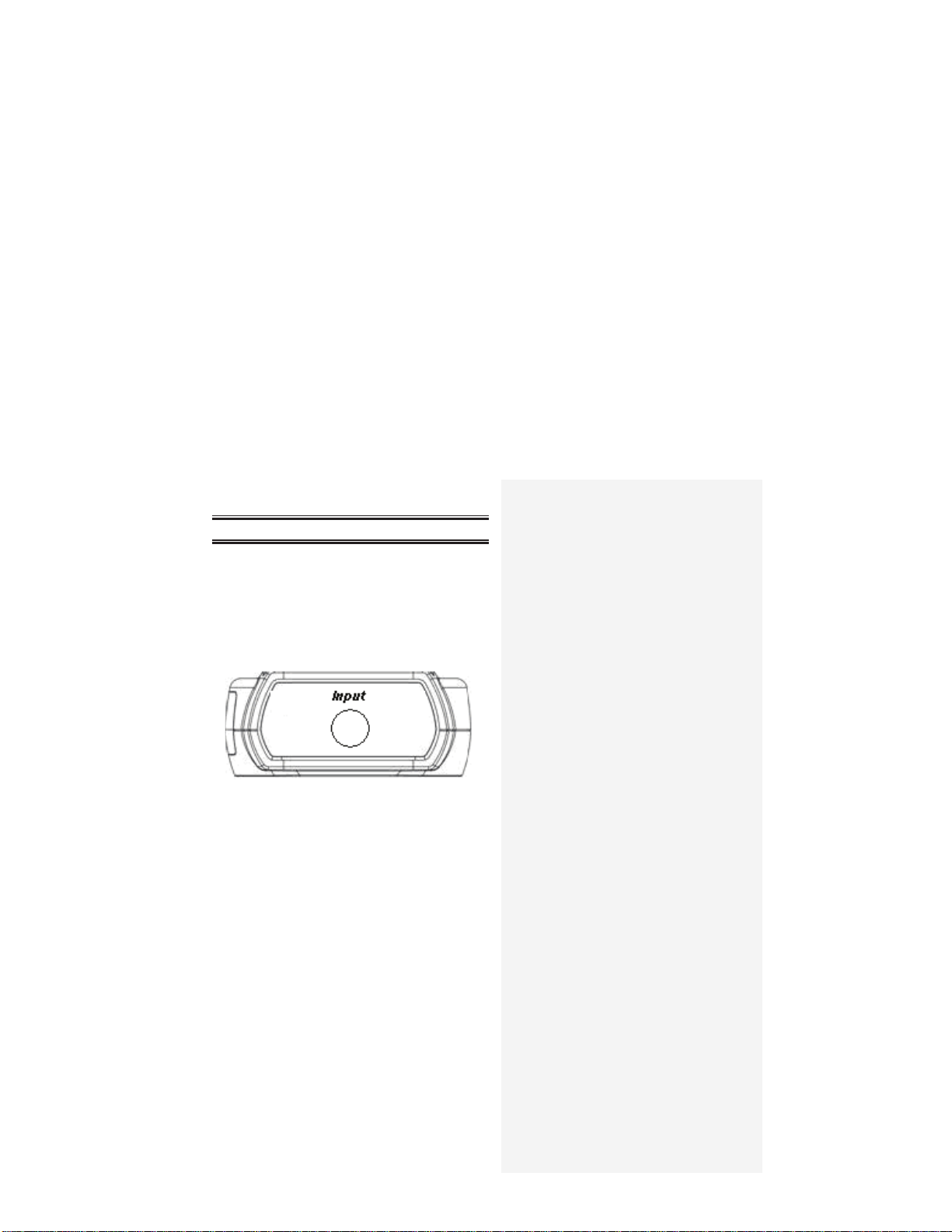

7. CONNECTING A THERMISTOR
Use the correct 400 series thermistor
for your instrument. Using an incorrect
probe type will result in erroneous
readings. Insert the bayonet plug
into the mating connector on the top
of the instrument.
If no probe is connected the display
will read “open”.
Thermistors are sensitive at the tip or
sensing element. When taking
measurements, allow time for the
reading to stabilize. Multiplying the time
constant of the probe by 5 will give you
the approximate time required.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 11 -
8. KEY FUNCTIONS
Note: Function keys change in setup
mode to provide advanced operation
flexibility. Text above key will indicate
function.
F1
Step through Min, Max and Avg
readings.
F2
Toggle between F and C
display
F3
Toggle between menu and
measure mode
hold
Freeze display
on/off
light
Turns meter on and off (press
and hold for 3 seconds to turn
off)
Press momentarily to turn on
backlight
recall▲
Recalls and steps through
stored readings
log▼
Stores current measured value
to memory
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 12 -
9. DISPLAY OVERVIEW
The dot matrix display features a large
primary display, smaller secondary
displays for channel info or min/max/avg,
and helpful annunciators for added
measurement data.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 13 -
1
Power supply indicator
(Battery/Main adapter/USB)
2
Date (format of mmm –dd)
3
Time (hour:min)
4
Time format (am/pm/hrs)
5
Measurement mode
6
Hold function indicator
7
Stable indicator
8
Data logging indicator
9
PC data logging indicator
10
Main reading display
11
Current reading unit indicator
12
Min/Max/Avg elapsed time
13
Current Min/Max/Avg reading
indicator
14
Meter logging memory location
15
Measurement alarm active
indicator
16
Countdown time indicator with
countdown time
17
Min/Max/Avg display
18
Min/Max/Avg unit indicator
19
Function keys
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 14 -
10. MEASUREMENT MODE
On initial start-up, the meter will display
the measured value for in the primary
display.
Pressing the F2 key will toggle reading
between F and C display.
Pressing the F1 key initiates and toggles
through Minimum, Maximum, and
Average reading modes.
Pressing F3 enter accesses Setup
mode.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 15 -
11. HOLD FUNCTON
Press the hold key to retain the reading
on the display. Press the hold key again
for normal operation.
12. MIN, MAX, and AVE FUNCTION
Press the F1 key to toggle between the
minimum, maximum, and average
readings. The minimum and maximum
reading function is ideal for monitoring
unattended operations while continually
displaying every temperature change
that occurs. The minimum and maximum
values are sensed and automatically
stored.
To exit and clear this function, press the
F3 to access the Menu functions.
See the Clear Reset menu section for
more details.
13. DATA LOGGING
Press the log ▼key to store the current
reading to memory. The memory
indicator M = 1234 shows the memory
location for the next stored reading.
Press the recall ▲key to review stored
readings.
See section on Data Logging for timed
logging, and logging to a computer.
See section on Clear/Reset for
information on clearing stored readings.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 16 -

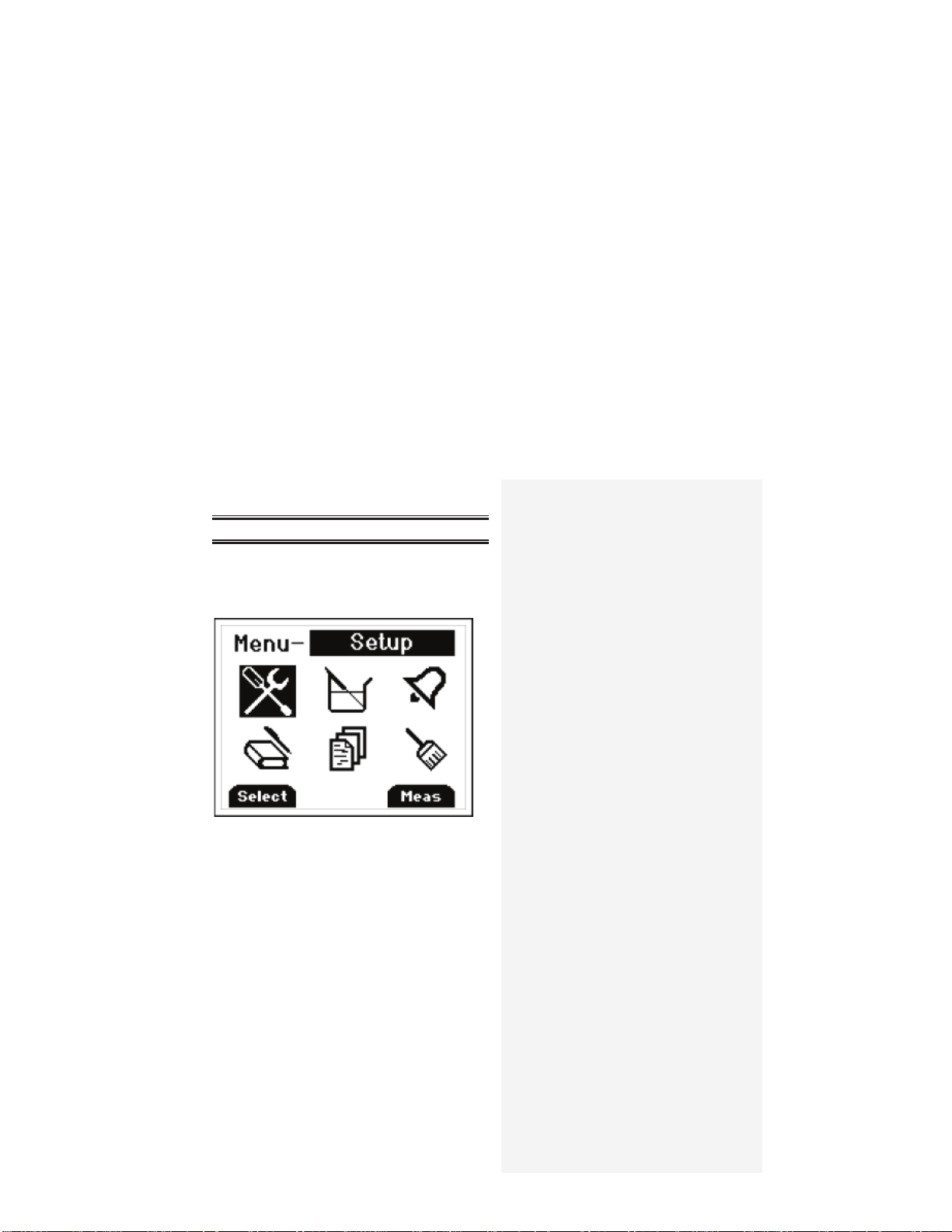

14. SETUP MODE
To access the setup mode from
measurement mode, press the F3 key
(Menu).
Press ▲▼ keys on the meter key pad
to scroll through options.
To enter a setup screen, press
Select F1 key.
To return to measurement mode, press
Meas F3 key. Following menu options
are listed
1. General Setup
2. User field calibration
3. Alarm settings
4. Data logging settings
5. View user calibration report
6. Clear/Reset options
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 17 -
15. GENERAL SETUP SCREEN
The first page of the General Setup
screens let you set Resolution, auto-off
time, and password.
Press F1 to indicate you want to change
the setting of the current parameter or
recall▲or log▼to move to the next
parameter.
Press recall▲or log▼to change the
options.
Press F2 to choose the next setting.
Whenever set the options, press F1 for
accepting the choice.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

- 18 -
This screen below is used to reset/change
password. In the event if uses forget
his/her password, 5586 can be used to
reset to a new value.
On the second page, you can set time
and date.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
