S A F E TY F I RS T

This product must be installed

by a qualified electrician.

P L E AS E N O TE !

Please only use suitable wires

for each terminal, high voltage -

1.5mm², control - 0.5mm².

Remember maximum load is

1400W (6A).

L O A D

Compatible with different type of

load: Incandescent, Halogen

230V and 12V globs, CFL

globes, all LED lights, as well as

electric motors and some

electric home appliances.

DHS Z-Wave In-Wall Single Switch

DHS-ZW-SWIW-03

1. Wiring the device

1.1 Refer to the wiring diagram, connect the mains wires and

control wires with single button as shown.

1.2 When the DHS-ZW-SWIW-03 is wired correctly and has

power check for operation, press the button which you

connected early, check if the light goes ON and OFF.

2. Configuring the device

Note: Before including the product to your Z-Wave network it is advised to perform a removal procedure to reset the device’s

network settings.

2.1 Log in to your system, type the IP of your Vera in your browser. Alternatively, if you have internet connection you can

go to https://findvera.com/ and follow the instructions.

Digital Home Systems Pty Ltd

Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5)

PO Box 353

Rosanna, Victoria

3084

Australia

PO Box 353

Rosanna, Victoria

3084

Australia

2.2 Exclusion from Z-Wave home network

2.2.1Press the Z-Wave button on the Vera for at least 7 sec and release, the Z-Wave LED will start to flash fast, check the

system interface for the following message:

2.2.2 Press the button wired to the DHS-ZW-SWIW-03, the Z-Wave LED on Vera will flash quickly for a couple seconds,

the following message will appear in the system interface:

2.3 Inclusion to Z-Wave home network

2.3.1 Press the Z-Wave button on the Vera, the Z-Wave LED on the Vera will flash slowly, the following message will

appear on the system interface:

2.3.2 Press the button wired to the DHS-ZW-SWIW-03, the Z-Wave LED on the Vera will flash quickly for a couple

seconds, the following message will appear on the system interface:

2.3.3 Press the Z-Wave button on the Vera to exit the inclusion mode, the Vera will process Z-Wave reconfiguration.

Please note that the Node and Device number in the above screen are only examples

2.4 After the Vera finishes Z-Wave reconfiguration and the Z-Wave LED is on, in the system go to ‘Devices/All’, you will find

DHS-ZW-SWIW-03 as ‘_Appliance Module’ under no room.

Digital Home Systems Pty Ltd

Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5)

2.5 Associate the device to a room and rename it

2.5.1 Go to ‘Setup/Rooms’, and add rooms. Click the ‘SAVE’ button on the main screen after making any changes.

2.5.2 Go to ‘Devices/All’, click on the wrench key and choose preferable room from the drop-down list on the right.

2.5.3 In the ‘Advanced’ tab you can change the name of the device, at the left hand side you can find the device ID which

is useful for future automation scenes. You can also set up more configurations under the ‘Setting’ tab, such as

polling time, stress test, etc.

PO Box 353

Rosanna, Victoria

3084

Australia

Digital Home Systems Pty Ltd

Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5)

Note: After adding a new device go to ‘Setup/Z Wave Settings’, choose ‘Repair’, set preferable settings and press ’Go’.

This action will check and build a mash communication system between all new and old devices.

PO Box 353

Rosanna, Victoria

3084

Australia

2.6 How to build a scene

2.6.1Go to ‘AUTOMATION/New scene’, you will get a screen with all your devices. Choose which device will be triggered

and what it’s state should change to when the scene is on (for example the ‘Corner Light’ will go ON).

2.6.2 Go to ‘TRIGGERS’, Give a name for the scene and choose from the list which device will act as the trigger (for

example the name is ‘door_1’and the ‘door/window sensor’ is the trigger).

Digital Home Systems Pty Ltd

Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5)

PO Box 353

Rosanna, Victoria

3084

Australia

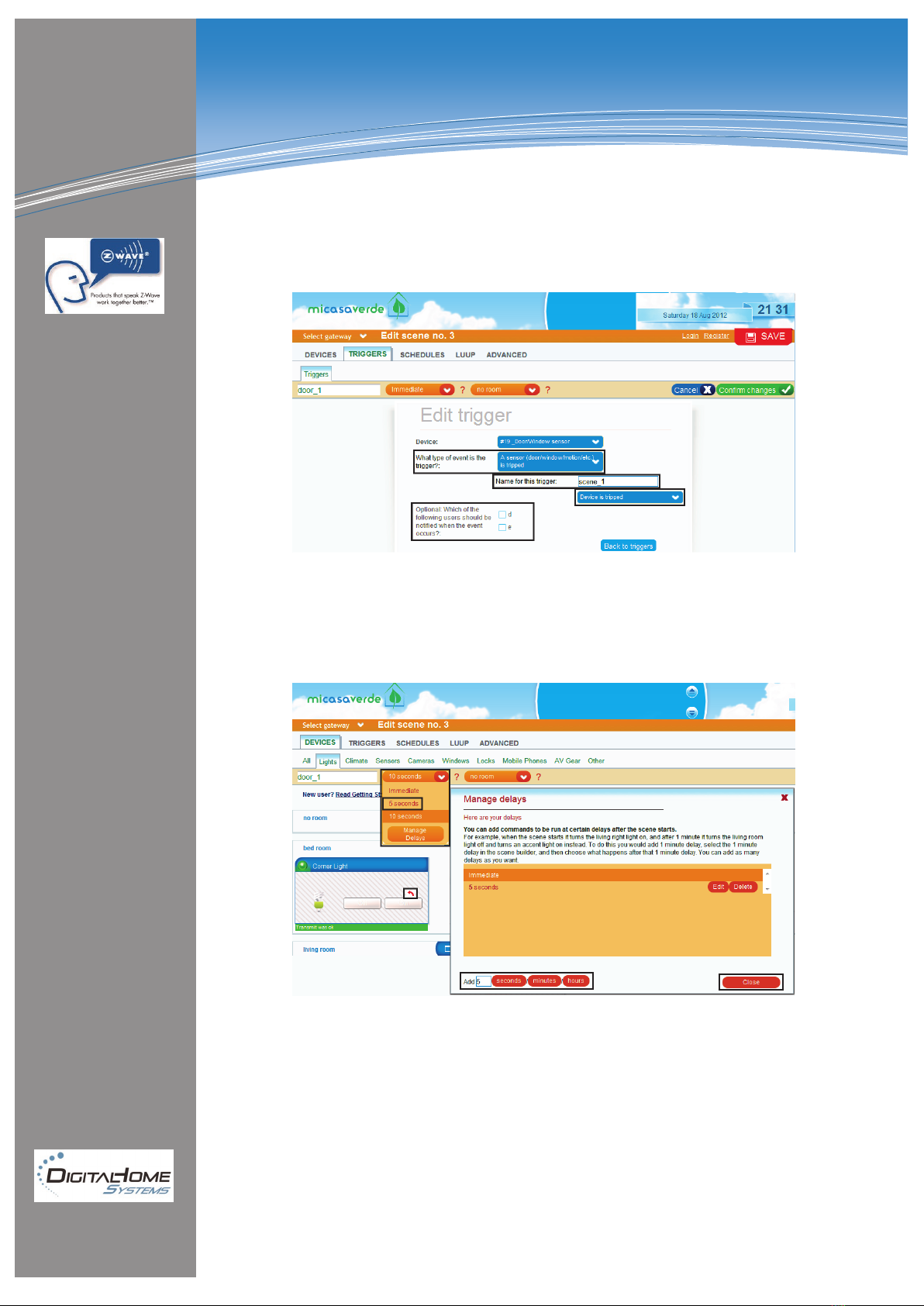

2.6.3 Choose ‘What type of event will act as the trigger?’ (for example ‘A sensor door/window is triggered’)

Choose a name for the trigger (for example ‘scene_1’)

Choose the current state of the device (for example ‘Device is tripped’)

You can also choose to receive a notification about the scene.

2.6.4 Delay, (for example to switch on the light for 5 seconds). Go to ’Manage Delays’, add 5 Seconds and press ‘Close’,

then choose the 5 seconds from the list, an arrow will appear above all the ON/OFF buttons of the devices, press on

the arrow to turn it red. Now when the ‘door/window sensor’ is tripped the ‘light corner’ will switch ON for 5

seconds.

Digital Home Systems Pty Ltd

Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5)

Specification are subject to change without further notice
