Digital Projection RIGGING FRAME User manual

Rev B March 2015
115-918B
HIGHlite 660 / 740 / 8000 Series
HIGHlite Laser 3D Series
M-Vision 930 Series
Titan LED / 800 / 930 / Quad Series
RIGGING FRAME INSTALLATION GUIDE
4

page i
Digital Projection
Rigging Frame Installation Guide
Rev B March 2015
About This Document
Follow the instructions in this manual carefully to ensure safe and long-lasting use of the rigging frame.
Symbols used in this manual
Many pages in this document have a dedicated area for notes. The information in that area is accompanied by the following symbols:
WARNING: this symbol indicates that there is a danger of physical injury to yourself and/or damage to the equipment unless
the instructions are closely followed.
ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely
followed.
NOTE: this symbol indicates that there is some important information that you should read.
Product revision
Because we at Digital Projection continually strive to improve our products, we may change specications and designs, and add new features
without prior notice.
Legal notice
Trademarks and trade names mentioned in this document remain the property of their respective owners.
Digital Projection disclaims any proprietary interest in trademarks and trade names other than its own.
Copyright © 2015 Digital Projection Ltd. All rights reserved.
Notes

page ii
Digital Projection
Rigging Frame Installation Guide
Rev B March 2015
Safety Information
Please follow the instructions in this document carefully to ensure a safe installation.
Please consider keeping the original box and packing materials in case you ever need to ship the frame.
Safety warnings
INTENDED USE
Thisriggingframeisintendedforusebyfullyqualied,trainedandcompetentpersonsasanaidtoprovidesafeandsecure
transportation,installationandadjustmentofprojectors.
Onlyusetheframeindoors,wherethereisnowind.
This frame is intended for use only with the projectors listed in Which Products Are Compatible With This Frame? further in
thismanual.Anyattempttousetheframewithotherprojectorsmayresultinsevereinjuryordamage.
MAINTENANCE AND INSPECTION
TheRiggingFrameisamaintenancefreeproduct.However,beforecarryingoutaninstallationitisessentialtoensurethat:
• No screws are missing and all screws are in the right position.
• Noscrews,adjustmentwheelsorothercomponentsaredamaged.
• Noplates,squarepipesorothercomponentsarebentorbroken.
Use a suitable tool to test each screw and make sure that none are loose.
Afteraninstallation,ensurethatallscrews,washersandinsulationsarepresentandpositionedcorrectly.
Notes

page iii
Digital Projection
Rigging Frame Installation Guide
Rev B March 2015
INSTALLATION AND MOUNTING
Installation errors may lead to serious accidents.
Installationshouldonlybecarriedoutbyqualiedpersonnel.
Installation should be carried out by a minimum of two persons.
Donotplacetheprojectoronslopedorunstablesurfacesasitmayfallortipover,resultingininjuryordamage.Makesure
the surface can support a weight of 210 kg (462.97 lb).
Donotexceedthemaximumweightloadsforceilingmounts.Forsuspendedinstallations,useonlydesignatedhanging
accessories such as the truss mount and the 750 kg Doughty clamp for a maximum weight load of 138 kg (304.23 lb).
Whenstackingprojectors,makesureallfourthreadedrodsaretightenedwithatorqueof5Nm.
Donotpositiontheframeinamannerwhichmayimpedeprojectorventilation.Poorventilationmayresultinare.Ensure
thatthereisatleast30cm(12in)ofspacebetweentheventilationoutletsandanywall,and10cm(4in)onallothersides.
Preventpropertydamageandpersonalinjurycausedbyincorrectinstallation.Ensuretheframeisingoodcondition,the
installationhasbeencarriedoutproperlyandtheloadcapacityofthesupportingstructureissufcienttocarrytheweightof
theentireinstallation,upto150kg(330.69lb)incl.lenses,cabling,etc.
Do not operate the projector in humid or dusty places or in places where the projector may come into contact with oily
smokeorsteam.Usingtheprojectorinsuchconditionsmayresultinre,electricshocksorplasticdeterioration.
Notes

page iv
Digital Projection
Rigging Frame Installation Guide
Rev B March 2015
SAFE HANDLING
Avoidinjuryfromfallingobjectsduringassemblyanddisassemblyoftheframe.Wearprotectiveshoes,glovesandhelmet.
Theframeisheavy.Usesafehandlingtechniqueswhenliftingtheframe.
Wearsafetyglovestopreventngersbeingcaughtbetweentheouterringsandtheplates.Whenadjustingtheimage,keep
your hands on the adjustment wheels at all times as shown below. Do not lean on the frame.
Notes

page v
Digital Projection
Rigging Frame Installation Guide
Rev B March 2015
Which Products Are Compatible With The Rigging Frame?
The rigging frame can be used with the following projectors:
Products Badges
• HIGHlite Laser 3D
HIGHlite
3D
LASER
• HIGHlite 660 and 740 2D
• HIGHlite 660 3D
• HIGHlite 8000
HIGHlite
2D
660
740
HIGHlite
3D
660
HIGHlite
2D
8000
• M-Vision 930 3D
M-Vision
3D
930
• Titan LED
LED
3D
• Titan 800 and Titan 930
2D
800
3D
800
2D
930
3D
930
• Titan Quad Series:
• Titan Quad
• Titan Super Quad / Quad 2000
2D
Quad
3D
Quad
2D
Quad
Super
3D
Quad
Super
2D
Quad
2000
3D
Quad
2000
Notes
Any attempt to use the frame with
other projectors may result in
severeinjuryordamage.

Digital Projection
Rigging Frame Installation Guide
Rev B March 2015
IN THIS GUIDE
What’s In The Box?............................................................................................. 1
Fitting HIGHlite Laser In The Frame ............................................................ 2
Required parts.............................................................................................................2
Setup ............................................................................................................................2
Order of components in assembly with HIGHlite Laser ..........................................6
Fitting M-Vision 930 In The Frame ................................................................ 7
Required parts.............................................................................................................7
Setup ............................................................................................................................7
Order of components in assembly with M-Vision 930...........................................11
Fitting Titan In The Frame ............................................................................. 12
Required parts...........................................................................................................12
Setup ..........................................................................................................................13
Order of components in assembly with Titan ........................................................16
Fitting HIGHlite In The Frame....................................................................... 17
Required parts...........................................................................................................17
Setup ..........................................................................................................................17
Order of components in assembly with HIGHlite...................................................21
Adjustment Options.......................................................................................... 22
Roll .............................................................................................................................22
Pitch ...........................................................................................................................22
Yaw .............................................................................................................................22
Stacking Projectors ......................................................................................... 23
Ceiling Installation ........................................................................................... 24
Ceiling installation using 750 kg / 1650 lb Doughty clamps .................................24
Safe tting areas - bottom...............................................................................................25
Safe tting areas - top.....................................................................................................26
Ceiling installation using the truss mount (optional accessory) .........................27
Adjusting ceiling installations with the truss mount.............................................28
Maximum Weight Loads.................................................................................. 29
Truss mount installations.........................................................................................29
Ceiling installation using 750 kg / 1650 lb Doughty clamps .................................30
Table mounts .............................................................................................................31
Dimensions.......................................................................................................... 32
Rigging frame ............................................................................................................32
Truss mount...............................................................................................................33

page 1
Digital Projection
Rigging Frame Installation Guide
WHAT’S IN THE BOX?
Rev B March 2015
What’s In The Box? Notes
Make sure your box contains
everything listed. If any pieces are
missing, contact your dealer.
You should save the original box
and packing materials, in case you
ever need to ship the rigging frame.
The frame is shipped with all
components listed here. However,
some projectors do not use all
screws, sleeves and washers
supplied. To nd out which parts you
need for your installation, refer to the
relevant projector section:
• Fitting HIGHlite Laser In The
Frame
• Fitting M-Vision 930 In The
Frame
• Fitting Titan In The Frame
• Fitting HIGHlite In The Frame
1 x rigging frame
115-919
4 x M10x25 low prole
socket head screws
115-921
4 x ø10 insulation washers
115-922
4 x ø10 insulation sleeves
115-923
6 x M6x20 button head screws
115-924
12 x ø6.2 insulation sleeves
115-925
4 x square to round adaptors
115-920
Rigging Frame Installation Guide
115-918
4 x ø10.5 insulation spacers
115-994
6 x ø6 spring lock washers
116-226

page 2
Digital Projection
Rigging Frame Installation Guide
FITTING HIGHLITE LASER IN THE FRAME
Rev B March 2015
Fitting HIGHlite Laser In The Frame
HIGHlite
3D
LASER
Required parts
Part Quantity
Rigging frame 1
M10x25 low prole socket head screws 4
ø10 insulation washers 4
ø10 insulation sleeves 4
M6x20 button head screws 6
ø6 spring lock washers 6
ø6.2 insulation sleeves 12
Setup
1. Remove the lens hood.
2. Place the projector upside down on a suitable at surface and remove
the four adjustable feet 1.
3. Place the ø10 insulation washers over each M10 screw hole 2.
Notes
This procedure requires two
persons.
It is important to use the washers
astheyprovidegalvanicisolation.
1
1
1
1
2
2
2
2

page 3
Digital Projection
Rigging Frame Installation Guide
FITTING HIGHLITE LASER IN THE FRAME
Rev B March 2015
Setup (continued)
4. Insert six of the ø6.2 insulation sleeves in the M6 screw holes 3on the inside of the frame.
Notes
This procedure requires two
persons.
.
Itisimportanttousethesleeves
astheyprovidegalvanicisolation.
3
3
3
3
3
3

page 4
Digital Projection
Rigging Frame Installation Guide
FITTING HIGHLITE LASER IN THE FRAME
Rev B March 2015
Setup (continued)
5. Position the rigging frame over the projector so that the adjustment screws 4are at the back, aligning the M10 5and
M6 screw holes 6.
Ensure that the projector plate 7 is at against the body of the projector.
This can be achieved by placing the projector on a surface which is smaller than
the frame, allowing full contact between the plate and the projector.
Notes
This procedure requires two
persons.
.
4
4
6
5
5
6
6
5
5
6
6 6
7

page 5
Digital Projection
Rigging Frame Installation Guide
FITTING HIGHLITE LASER IN THE FRAME
Rev B March 2015
Setup (continued)
6. Place the ø10 insulation sleeves over each M10 hole. Secure the four M10x25 low prole socket head screws 8into each hole.
Ensure each screw runs through the corresponding sleeve and washer and catches into the corresponding M10 hole in the projector
surface.
7. Place the other six ø6.2 insulation sleeves over each M6 screw hole. Place a ø6 spring lock washer over each ø6.2 insulation sleeve.
Secure the six M6x20 button head screws 9into each hole. Ensure each screw runs through the sleeve and washer and catches into
the corresponding M6 hole in the projector surface.
Notes
This procedure requires two
persons.
Itisimportanttousethesleeves
andwashersastheyprovide
galvanicisolation.
Torque: 4±0.5 N m.
8
9
8
9
9
8
8
9
9
9

page 6
Digital Projection
Rigging Frame Installation Guide
FITTING HIGHLITE LASER IN THE FRAME
Rev B March 2015

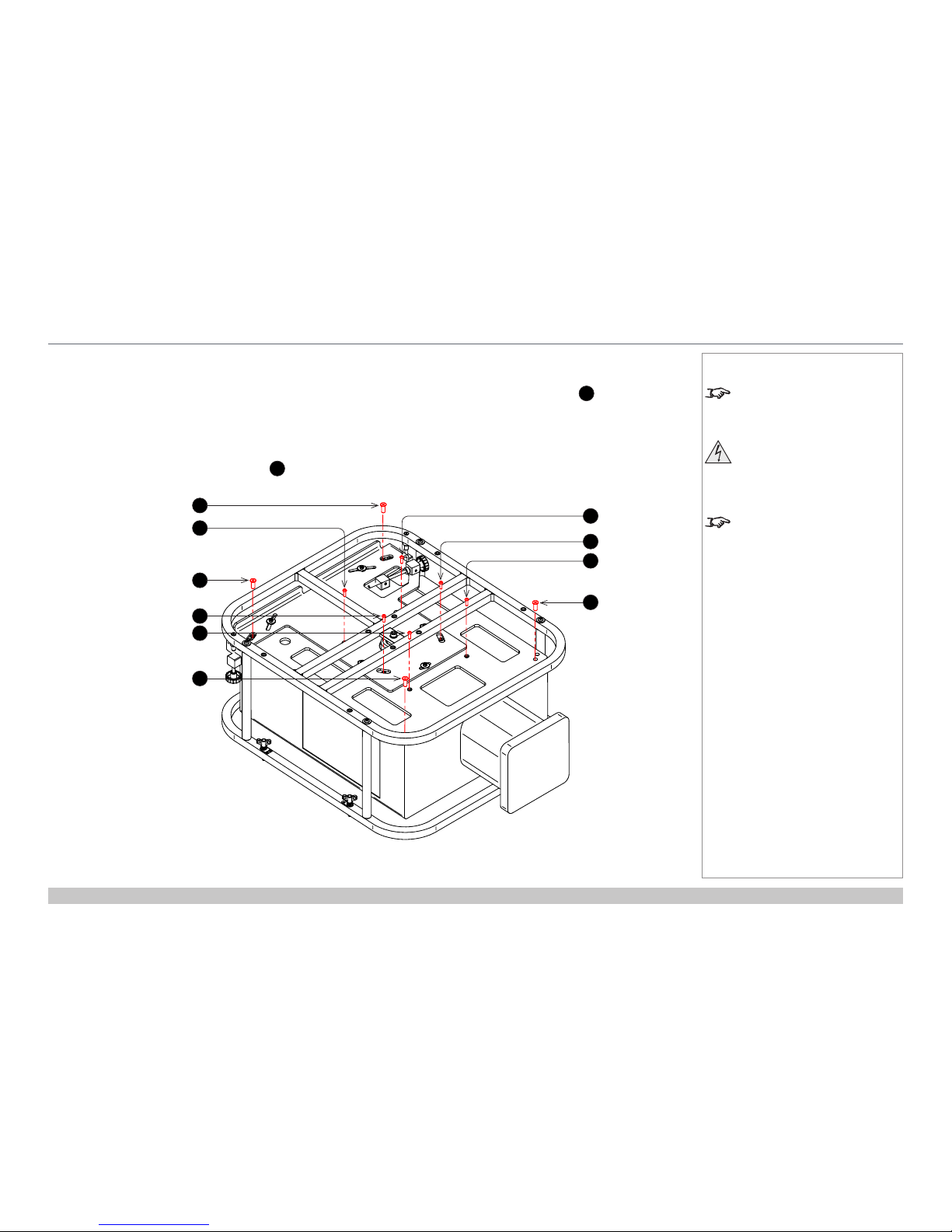

Order of components in assembly with HIGHlite Laser
1 M10x25lowprolesocketheadscrew
2 ø10insulationsleeve
3Projector plate
4ø10 insulation washer
5M6x20 button head screw
6ø6 spring lock washer
7 ø6.2insulationsleeve
Notes
1
2
3
4
5
6
3
7
7
Notes
This procedure requires two
persons.
Itisimportanttousethesleeves
andwashersastheyprovide
galvanicisolation.
Torque: 4±0.5 N m.

page 7
Digital Projection
Rigging Frame Installation Guide
FITTING M-VISION 930 IN THE FRAME
Rev B March 2015
Fitting M-Vision 930 In The Frame
M-Vision
3D
930
Required parts
Part Quantity
Rigging frame 1
M6x20 button head screws 6
ø6 spring lock washers 6
ø6.2 insulation sleeves 12
Setup
1. Place the projector upside down on a suitable at surface and remove
the four adjustable feet 1.
Notes
This procedure requires two
persons.
It is important to use the washers
astheyprovidegalvanicisolation.
1
1
1
1

page 8
Digital Projection
Rigging Frame Installation Guide
FITTING M-VISION 930 IN THE FRAME
Rev B March 2015
Setup (continued)
2. Insert six of the ø6.2 insulation sleeves in the M6 screw holes 2on the inside of the frame.
Notes
This procedure requires two
persons.
.
Itisimportanttousethesleeves
astheyprovidegalvanicisolation.
2
2
2
2
2
2

page 9
Digital Projection
Rigging Frame Installation Guide
FITTING M-VISION 930 IN THE FRAME
Rev B March 2015
Setup (continued)
3. Position the rigging frame over the projector so that the adjustment screws 3are at the back, aligning the M6 screw holes 4.
Ensure that the projector plate 5 is at against the body of the projector.
This can be achieved by placing the projector on a surface which is smaller than
the frame, allowing full contact between the plate and the projector.
Notes
This procedure requires two
persons.
3
3
4
4
4
4
4 4
5

page 10
Digital Projection
Rigging Frame Installation Guide
FITTING M-VISION 930 IN THE FRAME
Rev B March 2015
Setup (continued)
4. Place the other six ø6.2 insulation sleeves over each M6 screw hole. Place a ø6 spring lock washer over each ø6.2 insulation sleeve.
Secure the six M6x20 button head screws 6into each hole. Ensure each screw runs through the sleeves and catches into the
corresponding M6 hole in the projector surface.
Notes
This procedure requires two
persons.
It is important to use the washers
astheyprovidegalvanicisolation.
Torque: 4±0.5 N m.
6
66
6
6
6

page 11
Digital Projection
Rigging Frame Installation Guide
FITTING M-VISION 930 IN THE FRAME
Rev B March 2015
Order of components in assembly with M-Vision 930
1M6x20 button head screw
2ø6 spring lock washer
3 ø6.2insulationsleeve
4Projector plate
1
2
4
3
3
Notes
This procedure requires two
persons.
It is important to use the washers
astheyprovidegalvanicisolation.
Torque: 4±0.5 N m.

page 12
Digital Projection
Rigging Frame Installation Guide
FITTING TITAN IN THE FRAME
Rev B March 2015
Fitting Titan In The Frame
LED
3D
2D
800
3D
800
2D
930
3D
930
2D
Quad
3D
Quad
2D
Quad
Super
3D
Quad
Super
2D
Quad
2000
3D
Quad
2000
Required parts
Part Quantity
Rigging frame 1
M10x25 low prole socket head screws 4
ø10 insulation sleeves 4
ø10.5 insulation spacers 4
Notes
This procedure requires two
persons.

page 13
Digital Projection
Rigging Frame Installation Guide
FITTING TITAN IN THE FRAME
Rev B March 2015
Setup
1. Place the projector upside down on a suitable at surface and remove the four adjustable feet 1.
2. Place the ø10.5 insulation spacers over each M10 screw hole 2.
Notes
This procedure requires two
persons.
It is important to use the washers
astheyprovidegalvanicisolation.
1 1 1 2 2 21 2
