Digital Zone S5 Series User manual

Korean

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug, A
polarized plug has two blades with one wider than the other. Agrounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety, If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used. Use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when
unused for long periods of time
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.

3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERTANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON
THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
ClassⅠconstruction
An apparatus with CLASSⅠconstruction shall be connected to a MAINS socket
outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like.

4
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a
repair man in your location.
When used outside of the U.S., it may be used HAR
code with fittings of an approved agency is
employed.
CAUTION
These servicing instructions are for use by qualified service personnel only. To reduce
the risk of electric shock do not perform any servicing other than that contained in the
operating instructions unless you are qualified to do so
Apparatus shall not be exposed to dripping or splashing and no objects filled
with liquids, such as vases, shall not be placed on the apparatus.
Where theMAIN plug oran appliance couplerisusedasthedisconnectdevice,
The disconnect device shall remain readily operable.
Listing of manufacturers and models of the relevant power supplies.
1. Dee Van Electronics(Longchan) Co., Ltd
2. DSA-42D-12 3 120300
※DigitalZone will not be responsible
for any problems caused by using any
other adopter we don't provide.

User’s Manual
5
FCC Information (for U.S.A)
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment under FCC rules.
NOTE ON RECYCLING (for EUROPE)
This product’s packaging materials are recyclable and can be
reused. Please dispose of any materials in accordance with the local
recycling regulations.
When discarding the unit, comply with local rules or regulations.
Batteries should never be thrown away or incinerated but disposed of
in accordance with the local regulations concerning chemical waste.
This product and the accessories packed together constitute the
applicable product according to the WEEE directive except batteries

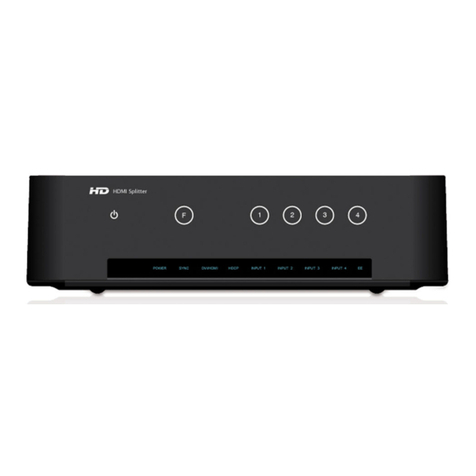

HDMI Splitter
6
안전을 위한 주의사항
신체적 위험이나 재산상의 피해를 막기 위한 내용으로 반드시 지켜주시기 바랍니다.
평평한 곳에 설치해주세요.
햇빛이 직접 비치거나 추운 곳에서
사용하지 마세요.
먼지나 물등이 들어가지 않도록 하세요.
분해하거나 수리, 개조하지 마세요.
제품 위에 물컵 등을 얹어 놓지 마세요.
진동이 심한 곳이나 자석류가 있는 곳에서
멀리 놓아주세요.
통풍이 잘되는 곳에 놓아주세요.
제품 위에 물건을 올려 놓지 마세요.
© Copyright 2014, ㈜디지털존. All rights reserved.
- 사용설명서의 내용 중일부 또는 전부를 무단 복제하는 것은 금지되어 있습니다.
- 제품의 사양은 기능 향상을 위하여 예고 없이 변경될 수있습니다.
- 디지털존 로고는 ㈜디지털존의 등록상표입니다.
- 기타 명칭이나 상표는 각소유자의 등록상표입니다.
- 이기기는 업무용(A 급)으로 전자파적합등록을 한기기이오니 판매자 또는 사용자는
이점을 주의하시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
- A/S 접수: 02-6330-2343

User’s Manual
7
Contents
안전을 위한 주의사항 ······································································ 6
목차 ······························································································ 7
각부분의 이름 ··············································································· 8
제품 구성물··················································································· 10
리모컨 버튼의 이름과 기능······························································ 11
리모컨 건전지 삽입하기 ·································································· 11
연결하기 ······················································································· 12
HDMI Splitter 사용법 ······································································· 13
문제해결하기 ················································································· 14
USB (펌웨어 업그레이드) & RS-232 (외부 컨트롤) ······························· 14
EDID Emulation Mode 선택 방법 ······················································ 15
1. Dynamic mode ······································································· 15
2. Static mode ············································································ 16
고장신고 전확인 사항···································································· 17
제품 규격······················································································ 18
Important Safety Instruction ····························································· 20
Control & Connection options ···························································· 21
Packages and accessories ······························································ 23
Remote control Unit ······································································· 24
Insert battery·················································································· 24
Connection ···················································································· 25
How to use HDMI Splitter·································································· 26
Troubleshooting for no power ···························································· 26
USB (Firmware upgrade) & RS-232 (Remote Control)·························· 26
How to use EDID Emulation Mode······················································ 27
Dynamic mode ············································································ 27
Static mode ················································································ 28
Troubleshooting Guide for Splitters····················································· 29
Specification ·················································································· 30

HDMI Splitter
8
각부분의 이름
앞면
뒷면 (HVS-5204)
뒷면 (HVS-5208)

User’s Manual
9
뒷면 (HVS-5412)
뒷면 (HVS-5416)

HDMI Splitter
10
제품 구성물
사용 전에 내용물이 빠짐없이 들어있는지 확인하세요.
※제품구성은 사전에 공지 없이 변경될 수있습니다.
※당사에서 제공하는 아답터를 반드시 사용하시기 바랍니다.
다른 아답터를 사용하여 발생되는 문제점에 대해서는 당사가 책임을 지지
않습니다.
※구성물 이외에 추가 물품은 별도로 구매 하시려면 제조사 또는 구매처에 문의 하시기
바랍니다. (전화 02-6330-2338)

User’s Manual
11
리모컨 버튼의 이름과 기능
※리모컨은 본체에서 3~5M 거리에 좌우상하 60도에서 작동합니다
※본체와 리모컨의 거리가 멀거나 다른 물체에 가려 사용이 불가능 할경우 외부 리모컨
수신부를 이용하여 작동 시킬 수있습니다.
- “외부 리모컨 수신부” 삽입전에는 본체의 전원을 꺼주세요.
리모컨 건전지 삽입하기
1. 건전지 삽입부를
당겨 뺍니다.
2. "+"극이 위로 향하게
삽입하세요.
3. 삽입부를
밀어넣으세요.

HDMI Splitter
12
연결하기
HDMI 케이블로 연결하는 방법입니다.
(ex. 입력: Blu-ray Player, FHD/UHD Stream Generator, 출력: FHD/UHD TV)
※2160p/30Hz, 1080p/50~60Hz, 720p/1080i/50~60Hz/Deep Color,
720p/1080i/1080p/100~120Hz(High Refresh Rate) 를지원하기 위해서는 High speed HDMI
Cable을반드시 사용하시기 바랍니다.
※영상의 분배를 위해 별도의 케이블이 필요하시면 제조사 또는 구매처에 문의하시기
바랍니다.

User’s Manual
13
HDMI Splitter 사용법
1. HDMI Splitter의전원 스위치를 켭니다.
2. 사용 하려는 영상입력기기(Blu-ray Player or FHD/UHD Set-top box, etc.)의전원을
켭니다.
3. 디스플레이 기기(FHD/UHD TV etc)의전원을 켭니다.
4. 사용 하려는 영상출력 기기와 연결된 입력 번호를 선택합니다.
HDMI Splitter 전면부의 “Input1~Input4”버튼을 누르면 됩니다.
4K(2160p)급의 고화질 영상 출력장비(Blu-ray Player)를연결하여 사용하는 경우 Output
단자와 연결된 디스플레이 기기는 UHD급고화질 TV의UHD급입력 단자 이어야
합니다.

HDMI Splitter
14
문제해결하기
1. HDMI 전면부의 LED가켜져 있는지 확인 하시기 바랍니다.
2. HDMI와연결된 기기들의 전원 케이블이 제대로 연결되어 있는지 확인 합니다.
좀더자세한 사항은 www.digitalzone.co.kr 에서 확인 하시기 바랍니다.
USB (펌웨어 업그레이드)& RS-232 (외부 컨트롤)
USB : 펌웨어 업그레이드가 있다면, USB 를통하여 손쉽게
업그레이드가 가능합니다.
(USB 파일 시스템은 FAT32 만가능합니다.)
RS-232 : 당사의 컨트롤 프로토콜이 제공하는 시리얼 포트를
통해 외부 컨트롤이 가능합니다.
SDK 는당사 홈페이지 www.digitalzone.co.kr 을통해 출시될 예정입니다.
다운로드와 사용법에 대한 좀더자세한 정보를 원하시면
www.digitalzone.co.kr 을확인해 주시기 바랍니다.

User’s Manual
15
EDID Emulation Mode 선택 방법
1. Dynamic mode
Function
Number
Mode
Summary
Description
F1
Normal
Safety
configuration
모든 출력 장치의 교집합을 취함
F2
MaxAudio
Max audio
모든 출력 장치 중Audio부분은 최대값
을취함
F3
Copy
1st HDMI Port
첫번째 출력장치의 EDID를사용함
F4
MaxAll
Max all capability
모든 출력장치의 합집합을 취함.
설정 방법
1. 전면부의 F키를 2초이상 누릅니다.
2. FE2~FE3 LED가깜박입니다.
3. 1~4번중선택합니다.
4. 선택한 Function Number(FE1~FE4)LED가켜지며 설정이 됩니다.

HDMI Splitter
16
2. Static mode
Function
Number
Mode
Summary
Description
F5
720P
Force 720p
Audio : 2Ch, PCM
Video : 720p/50,60Hz
F6
1080i
Force 1080i
Audio : 2Ch, PCM
Video : 1080i/50,60Hz
F7
1080p
Force 1080p
Audio : 2Ch, PCM
Video : 1080p/50,60Hz
F8
4K
Force 4K
Audio : 2Ch, PCM
Video : 2160p/30Hz
설정 방법
1. 전면부의 F키를 더블클릭 합니다
2. FE1,FE4 LED가깜박입니다.
3. 1~4번중선택합니다.
4. 1번->F5번2번->F6번3번->F7번4번->F8번으로 선택 됩니다.
5. 선택한 Function Number(FE1~FE4)LED가깜박이며 설정이 됩니다.
1. 각모드 선택 시전면의 FE1~FE4 LED가ON됩니다.
2. 리모컨 사용시에는 F키를 누르고 F1~F8 Mode 중에서 선택합니다.

User’s Manual
17
고장신고 전확인 사항(Splitter Trouble Shooting Guide)
- 서비스를 의뢰 하기 전에 아래 내용을 확인 부탁 드립니다.
상태 : TV화면이 보이지 않거나, TV화면이 깜박일 때
확인사항
조치사항
제품과 HDMI Cable이
연결 되어 있습니까?
1) Cable을재연결 하세요.
2) Cable을교체하여 연결 하세요.
제품 앞면에 “POWER,
SYNC, HDCP, INPUT, FE
LED”LED 불이 꺼져있거
나, 깜박 입니까?
1) 전원 어뎁터가 연결 되어있는지 확인 하세요.
2) 제품 전면에 있는 “Power”버튼을 눌러 주세요.
3) AC전원이 연결 되었는지 확인 하세요.
4) 아답터를 교체하세요.
당사가 지급한 어뎁터 입
니까?
1) 당사가 지급한 어뎁터만 사용하세요.
영상소스장비(Generator
Blu-Ray)가켜져 있습니까?
1)영상소스장비(Generator, Blu-Ray)와TV을직접 연
결하여 정상 동작하는지 확인하세요.
Input 번호가 정확하게
선택 되어 있습니까?
1) 소스영상이 1개라면 “Input1”에 연결하세요.
2) 소스영상이 “Input2”에 연결 할경우, “,Input2”버
튼을 강제 선택 하세요.
UHD, FHD, HDTV을혼합하
여데모 하고 계십니까?
1) EDID Emulation Mode에서 F1을사용하거나 아니
면정해진 해상도를 선택 하세요.(Static Mode 참고)
※Splitter 제품에 TV의추가 연결 또는 연결 제거 시, EDID 초기화로 인해 TV화면에서 깜
박임 발생 후동작합니다. (깜박임이 발생 하여도 정상동작임)

HDMI Splitter
18
제품 규격
입력 (Input)
2조(Model: HVS-5204 / HVS-5208)
4조(Model: HVS-5412 / HVS-5416)
출력 (Output)
4조(Model: HVS-5204), / 8조(Model: HVS-5208)
12조(Model: HVS-5412) , 16조(Model: HVS-5416)
사용자
인터페이스
(User Interface)
리모컨
IR
RS232
Remote PC/ Device
LED 표시등
POWER (전원) : On / Off 표시
SYNC : 입력 신호 유무 표시
HDCP : HDCP 사용 유무 표시
FE : Function 선택 상태 표시
Input : Input 선택 상태 표시
버튼 (Buttons)
터치 센서 사용
전원 (POWER)
입력/기능(1 ~ 4) 선택 가능
기능(F) 선택후 1~4로가능
전원
+12V 3A
DC Jack
Firmware
Upgrade
지원
USB memory stick (FAT32)
HDMI Version
1.4 지원
Deep Color
Higher refresh rate (~120hz)
Colorimetry RGB / YCbCr / xvYCC
4K
CEC
지원
Auto switching(자동 입력 소스 선택 기능)
Fast Switching
Supporting faster input selection(빠른입력 선택지원)
EDID Emulation
EDID Emulation mode 지원

User’s Manual
19
for the troubleshooting
English

HDMI Splitter
20
Important Safety Instructions
Please read following recommended safety instructions carefully.
Do not place this product on an uneven
surface.
Do not install on a surface where exposed to
direct sunlight, near heating .equipment or
heavy cold area.
Prevent water or dust from the product.
Do not attempt to repair this product yourself.
Do not place glass contained of liquid
on the product.
Do not install this product near
any magnetic source.
Placetheproductatproperventilationarea.
Do not place heavy items on the product.
© Copyright 2014, Digitalzone Co., Ltd. All rights reserved.
Read these operating instructions carefully before using the product.
Follow the safety instructions on the unit and the safety precautions listed in the
manual. Keep this manual handy for future reference.
