Digital Zone HDMI 208L User manual

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug, A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety, If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus. When
a cart is used. Use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when
unused for long periods of time
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT
THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE
EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of “dangerous voltage” within
the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
ClassⅠconstruction
An apparatus with CLASSⅠconstruction shall be connected to a MAINS socket outlet
with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like.

4
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a repair
man in your location.
When used outside of the U.S., it may be used HAR
code with fittings of an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only. To reduce the
risk of electric shock do not perform any servicing other than that contained in the
operating instructions unless you are qualified to do so
Apparatus shall not be exposed to dripping or splashing and no objects filled
with liquids, such as vases, shall not be placed on the apparatus.
Where the MAIN plug or an appliance coupler is used as the disconnect device,
The disconnect device shall remain readily operable.
※ DigitalZone will not be responsible
for any problems caused by using
any other adopter we don't provide.

User’s Manual
5
FCC Information (for U.S.A)
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment under FCC rules.
NOTE ON RECYCLING (for EUROPE)
This product’s packaging materials are recyclable and can be reused.
Please dispose of any materials in accordance with the local recycling
regulations.
When discarding the unit, comply with local rules or regulations.
Batteries should never be thrown away or incinerated but disposed of in
accordance with the local regulations concerning chemical waste.
This product and the accessories packed together constitute the
applicable product according to the WEEE directive except batteries

NEXD HDMI Splitter
6
안전을 위한 주의사항
신체적 위험이나 재산상의 피해를 막기 위한 내용으로 반드시 지켜주시기 바랍니다.
평평한 곳에 설치해주세요. 햇빛이 직접 비치거나 추운 곳에서 사용하지 마세요.
먼지나 물 등이 들어가지 않도록 하세요. 분해하거나 수리, 개조하지 마세요.
제품 위에 물컵 등을 얹어 놓지 마세요. 진동이 심한 곳이나 자석류가 있는 곳에서 멀리 놓아주세요.
통풍이 잘 되는 곳에 놓아주세요. 제품 위에 물건을 올려 놓지 마세요.
© Copyright 2011, ㈜디지털존. All rights reserved.
- 사용설명서의 내용 중 일부 또는 전부를 무단 복제하는 것은 금지되어 있습니다.
- 제품의 사양은 기능 향상을 위하여 예고 없이 변경될 수 있습니다.
- 디지털존 로고와 NEXD 는 ㈜디지털존의 등록상표입니다.
- 기타 명칭이나 상표는 각 소유자의 등록상표입니다.
- 이 기기는 업무용(A 급)으로 전자파적합등록을 한 기기이오니 판매자 또는 사용자는
이 점을 주의하시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
- A/S 접수: 02-6330-2343

User’s Manual
7
Contents
안전을 위한 주의사항····························································································· 6
목차·························································································································· 7
각부분의 이름········································································································ 8
제품 구성물 ············································································································· 9
리모컨 버튼의 이름과 기능 ·················································································· 10
리모컨 건전지 삽입하기 ······················································································· 10
연결하기 ················································································································ 11
NEXD HDMI Splitter 사용법 ·················································································· 12
문제해결하기 ········································································································· 12
CEC, USB (펌웨어 업그레이드) & RS-232 (외부 컨트롤)····································· 13
EDID Emulation Mode 선택 방법 ········································································· 13
1. Dynamic mode ······························································································ 13
2. Static mode ·································································································· 14
고장신고 전확인 사항 ························································································· 15
제품 규격··············································································································· 16
Important Safety Instruction ················································································· 18
Control & Connection options ················································································ 19
Packages and accessories ·················································································· 20
Remote control Unit ····························································································· 21
Insert battery·········································································································· 21
Connection············································································································· 22
How to use NEXD HDMI Splitter············································································ 23
Troubleshooting for no power ················································································ 23
CEC, USB (Fi r mwar e upgrade) & RS-232 (Remote Control) ····························· 23
How to use EDID Emulation Mode ········································································ 24
Dynamic mode ··································································································· 24
Static mode ········································································································ 24
Troubleshooting Guide for Splitters ······································································· 25
Specification ·········································································································· 26
Troubleshooting for no power ················································································ 26
Chinese ················································································································ 27
Japanese ············································································································· 34

NEXD HDMI Splitter
8

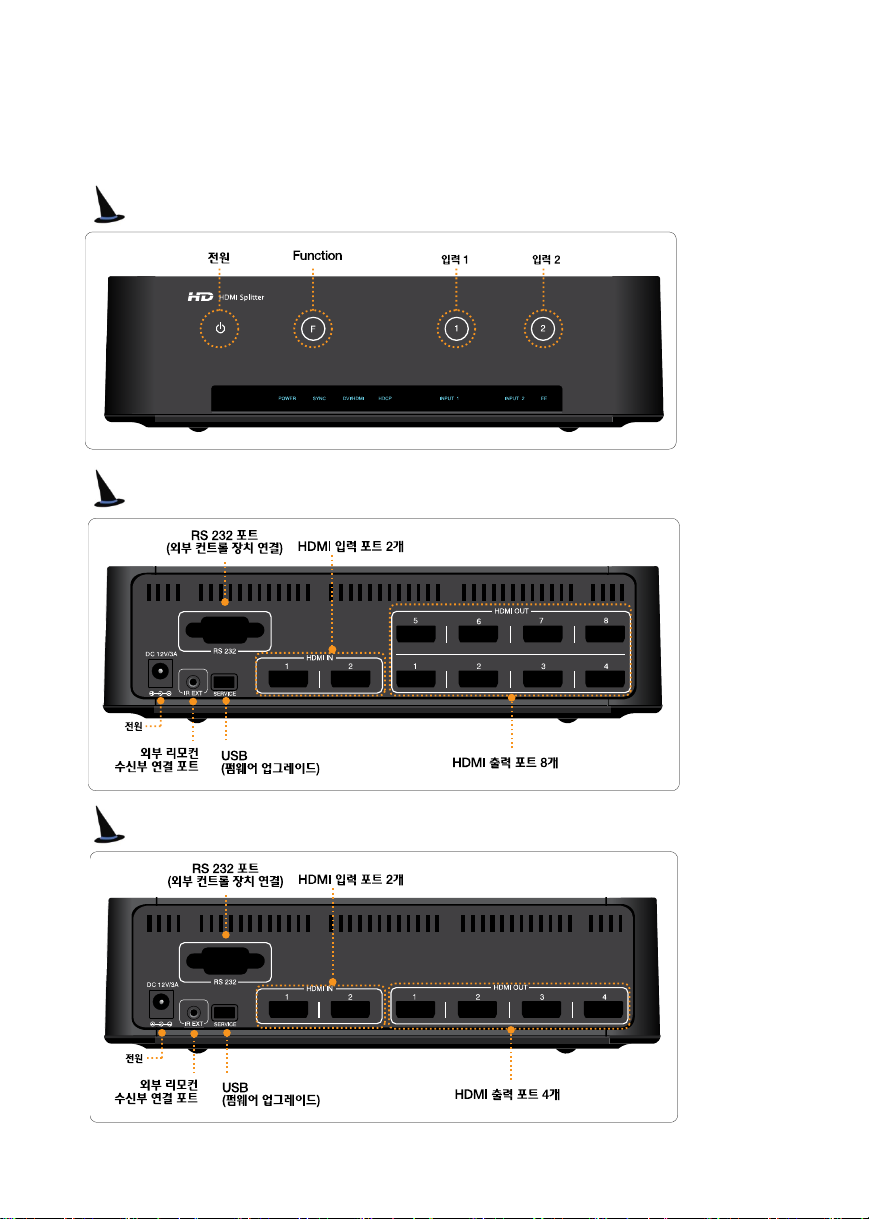

각 부분의 이름
앞면
뒷면 (208L)
뒷면 (204L)

User’s Manual
9
제품 구성물
사용 전에 내용물이 빠짐없이 들어있는지 확인하세요.
※ 제품구성은 사전에 공지 없이 변경될 수 있습니다.
※ 당사에서 제공하는 아답터를 반드시 사용하시기 바랍니다. 다른 아답터를
사용하여 발생되는 문제점에 대해서는 당사가 책임을 지지 않습니다.
※ 이 기기는 업무용(A 급)으로 전자파적합등록을 한 기기이오니 판매자 또는 사용자는
이 점을 주의하시기 바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다.
※ 구성물 이외에 추가 물품은 별도로 구매 하시려면 제조사 또는 구매처에 문의 하시기
바랍니다. (전화 02-6330-2343)

NEXD HDMI Splitter
1
0
리모컨 버튼의 이름과 기능(옵션)
※ 리모컨은 본체에서 3~5M 거리에 좌우상하 60도에서 작동합니다
※ 본체와 리모컨의 거리가 멀거나 다른 물체에 가려 사용이 불가능 할 경우 외부 리모컨
수신부를 이용하여 작동 시킬 수 있습니다.
- “외부 리모컨 수신부” 삽입전에는 본체의 전원을 꺼 주세요.
리모컨 건전지 삽입하기
1. 건전지 삽입부를 당겨 뺍니다. 2. "+"극이 위로 향하게 삽입하세요. 3. 삽입부를 밀어
넣으세요.

User’s Manual
11

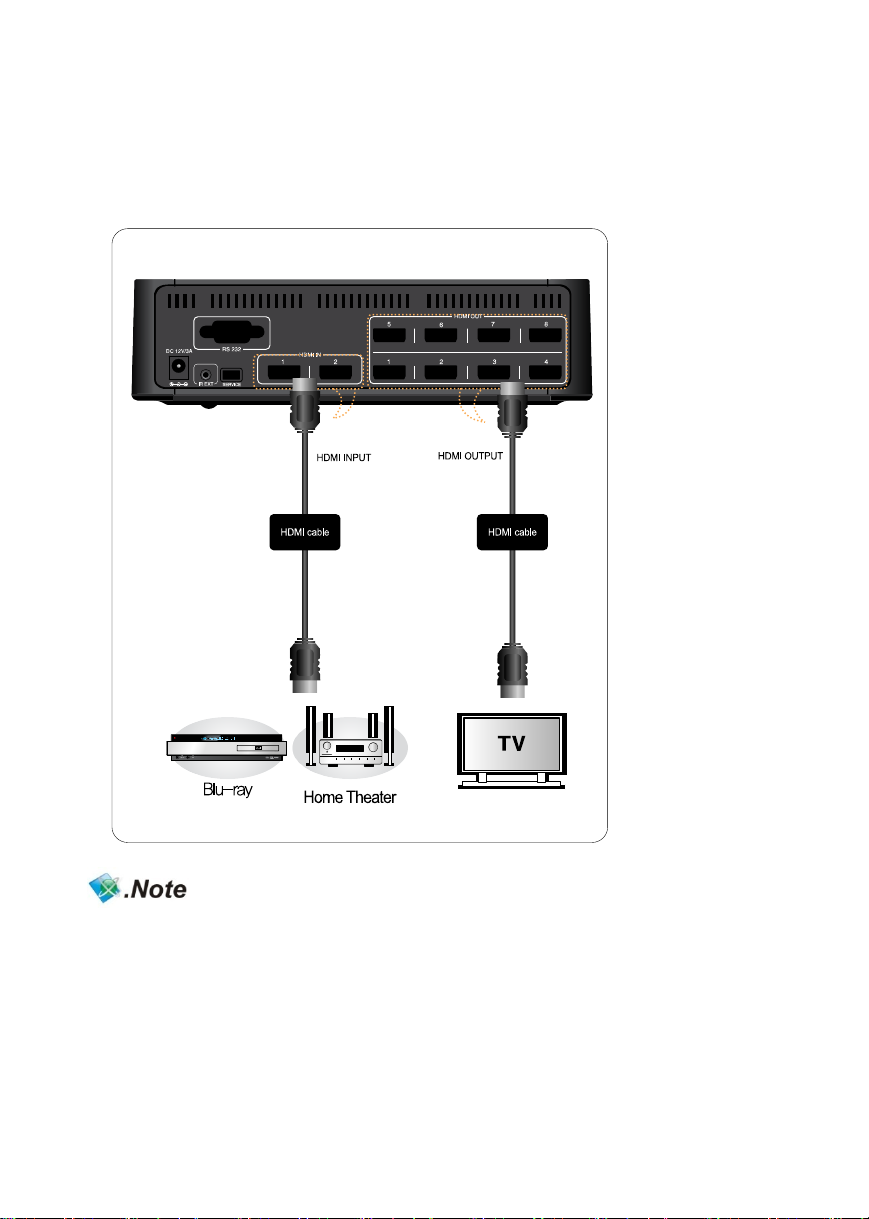

연결하기
HDMI 케이블로 연결하는 방법입니다.
(ex. 입력: Blu-ray Player, HD Stream Generator, 출력: PDP, LCD TV)
※ 1080p/50~60Hz 이상의 해상도, 720p/1080i/50~60Hz/Deep Color,
720p/1080i/1080p/100~120Hz(High Refresh Rate) 를 지원하기 위해서는 High
speed HDMI Cable(Version 1.3)을 반드시 사용하시기 바랍니다.
※ 영상의 분배를 위해 별도의 케이블이 필요하시면 제조사 또는 구매처에 문의하시기
바랍니다.

NEXD HDMI Splitter
1
2
NEXD HDMI Splitter 사용법
1. NEXD Splitter의 전원 스위치를 켭니다.
2. 사용 하려는 영상입력기기(Blu-ray Player or HD Set-top box, etc.)의 전원을
켭니다.
3. 디스플레이 기기(LCD TV, PDP TV etc)의 전원을 켭니다.
4. 사용 하려는 영상출력 기기와 연결된 입력 번호를 선택합니다.
NEXD HDMI Splitter 전면부의 “Input1~Input2” 버튼을 누르면 됩니다.
HD(1080p)급의 고화질 영상 출력장비(Blu-ray Player, HD set-top box)를 연결하여
사용하는 경우 Output 단자와 연결된 디스플레이 기기는 HD급 고화질 TV의 HD급
입력 단자 이어야 합니다.
문제해결하기
1. NEXD HDMI 전면부의 LED 가 켜져 있는지 확인 하시기 바랍니다.
2. NEXD HDMI 와 연결된 기기들의 전원 케이블이 제대로 연결되어 있는지 확인
합니다. 좀 더 자세한 사항은 www.digitalzone.co.kr 에서 확인 하시기 바랍니다.

User’s Manual
1
3
CEC, USB (펌웨어 업그레이드) & RS-232 (외부 컨트롤)
1. CEC : CEC 기능의 자세한 사항은 www.digitalzone.co.kr
에서 확인하시기 바랍니다.
2. USB : 펌웨어 업그레이드가 있다면, USB 를 통하여 손쉽게
업그레이드가 가능합니다.
3. RS-232 : 당사의 컨트롤 프로토콜이 제공하는 시리얼 포트를
통해 외부 컨트롤이 가능합니다.
SDK 는 당사 홈페이지 www.digitalzone.co.kr 을 통해 출시될
예정입니다. 다운로드와 사용법에 대한 좀 더 자세한 정보를
원하시면 www.digitalzone.co.kr 을 확인해 주시기 바랍니다.
EDID Emulation Mode 선택 방법
1. Dynamic mode
Function
Number Mode Summary Description
F1 Normal Safety
configuration 모든 출력 장치의 교집합을 취함
F2 Copy 1st HDMI Port 첫번째 출력장치의 EDID를사용함
설정 방법
1.전면부의 F키를 2초 이상 누릅니다.
2.기존에 설정된 모드가 깜박인 후 input1~2까지 전체가 깜박입니다.
3.1~2번 중 선택합니다.
4.1번->F1번 2번->F2번 Mode로 선택 됩니다.
5.선택한 Function Number(input1~input2)LED가 깜박이며 설정이 됩니다.

NEXD HDMI Splitter
1
4
2. Static mode
Function
Number Mode Summary Description
F3 1080i Force 1080i
Audio : 2Ch, PCM
Video : 1080i/50,60Hz
F4 1080p Force 1080p
Audio : 2Ch, PCM
Video : 1080p/50,60Hz
설정 방법
1.전면부의 F키를 더블클릭 합니다
2.기존에 설정된 모드가 깜박인 후 input1~2까지 전체가 깜박입니다.
3.1~2번 중 선택합니다.
4.1번->F3번 2번->F4번으로 선택 됩니다.
5.선택한 Function Number(input1~input2)LED가 깜박이며 설정이 됩니다.
1. F1이외의 모드 선택 시 전면의 “EE” LED가 On됩니다.
2. 리모컨 사용시에는 F키를 누르고 F1~F4 Mode 중에서 선택합니다.

User’s Manual
1
5
고장신고 전 확인 사항 (Splitter Trouble Shooting Guide)
-서비스를 의뢰 하기 전에 아래 내용을 확인 부탁 드립니다.
상태 : TV화면이 보이지 않거나, TV화면이 깜박일 때.
확인사항 조치사항
제품과 HDMI Cable이 연결
되어 있습니까?
1) Cable을 재 연결 하세요.
2) Cable을 교체하여 연결 하세요.
제품 앞면에 “POWER,
SYNC, DVI/HDMI, INPUT,
EE LED” LED 불이 꺼져있
거나, 깜박 입니까?
1) 전원 아답터가 연결 되어있는지 확인 하세요.
2) 제품 전면에 있는 “Power”버튼을 눌러 주세요.
3) AC전원이 연결 되었는지 확인 하세요.
4) 아답터를 교체하세요.
당사가 지급한 아답터 입니
까?
1) 당사가 지급한 아답터만 사용하세요.
영상소스장비(Generator
Blu-Ray)가 켜져 있습니
까?
1)영상소스장비(Generator, Blu-Ray)와 TV을 직접 연결하
여 정상 동작하는지 확인하세요.
Input 번호가 정확하게 선
택 되어 있습니까?
1) 소스영상이 1개라면 “Input1”에 연결하세요.
2) 소스영상이 “Input2”에 연결 할 경우, “,Input2”버튼을
강제 선택 하세요.
Full HD TV, HD TV을 혼합
하여 데모 하고 계십니까?
1) 소스장비(Generator, Blu-ray)의 해상도를 낮춰 주세요.
2) Splitter 장비의 F Mode를 “F1” 로 변경 해 주세요.
※ Spliiter 제품에 TV의 추가 연결 또는 연결 제거 시, EDID 초기화로 인해 TV화면에서
깜박임 발생 후 동작합니다.(깜박임이 발생 하여도 정상동작임)

NEXD HDMI Splitter
1
6
제품 규격
입력 (Input) 2조HDMI Type A
출력 (Output) 8조Default (Model: HDMI 208L)
4조Optional (Model: HDMI 204L)
사용자
인터페이스(User
Interface)
리모컨 IR (옵션)
RS232 Remote PC/ Device
LED 표시등 POWER (전원) : On / Off 표시
SYNC : 입력 신호 유무 표시
HDMI : HDMI 혹은 DVI 입력 신호 유무 표시
HDCP : HDCP 사용 유무 표시
EE : EDID Emulation 사용 유무 표시
버튼
(Buttons)
터치 센서 사용
전원 (POWER)
입력(Input 1 ~ input 2) 선택 가능
기능(F1~F4) 선택 가능

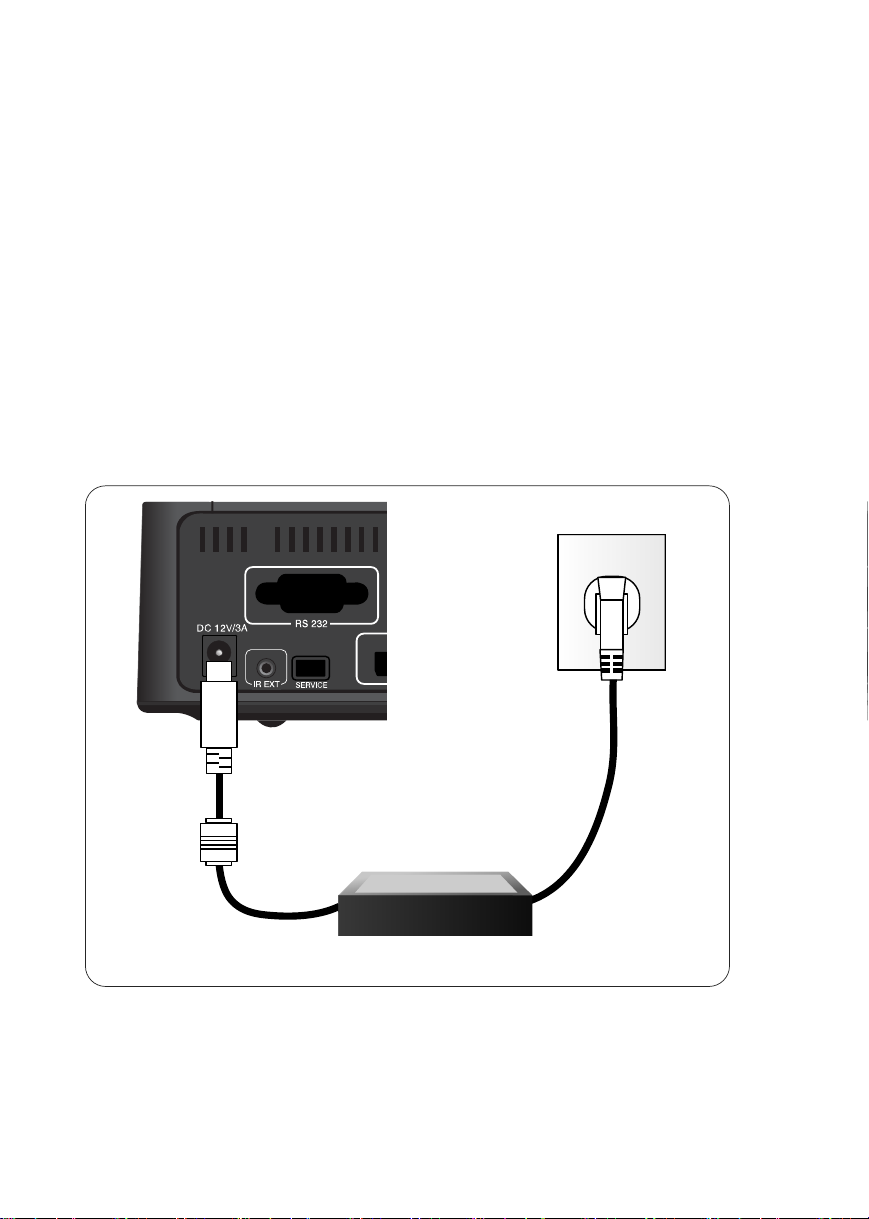

전원 +12V/ 3A DC Jack
Firmware
Upgrade
지원 Mini-USB B type connector
HDMI Version 1.3 지원 Deep Color
Higher refresh rate (~120hz)
Colorimetry RGB / YCbCr / xvYCC
CEC 지원 Auto switching (자동 입력 소스 선택 기능)
EDID Emulation EDID Emulation mode supporting

User’s Manual
1
7
English

NEXD HDMI Splitter
1
8
Important Safety Instructions
Please read following recommended safety instructions carefully.
Do not place this product on an uneven
surface.
Do not install on a surface where exposed to
direct sunlight, near heating .equipment or
heavy cold area.
Prevent water or dust from the product. Do not attempt to repair this product yourself.
Do not place glass contained of liquid
on the product.
Do not install this product near
any magnetic source.
Place the product at proper ventilation
area.
Do not place heavy items on the product.
© Copyright 2011, DigitalZone Co., Ltd. All rights reserved.
Read these operating instructions carefully before using the product.
Follow the safety instructions on the unit and the safety precautions listed in the
manual. Keep this manual handy for future reference.

User’s Manual
1
9
Controls & Connection Options
Front
Rear (208L)
Rear (204L)

NEXD HDMI Splitter
2
0
Packages and accessories
.
※Contents are subject to change without prior notice.
※Distributors and users should keep in mind that the device is for commercial
use (Grade A), which acquired EMC (Electronicmagnetic Capability), and it is
intended to be used in areas, except for a domestic purpose.
※DigitalZone will not be responsible for any problems caused by using any
other adopter we don't provide.
※Additional accessories should be purchased separately.
※HDMI cable is optional accessories.
