digitall world TFT-4000E User manual

OOWWNNEERR’’SSMMAANNUUAALL
TFT-4000E
Digital Terrestrial Receiver
Standard Definition
Thanks for buying a DIGITALL WORLD. Read this manual carefully
to get the best performance from this Digital Receiver.
CAUTION:
Use of controls, adjustments or procedures other than
those specified herein, may void your warranty.
CAUTION : To reduce the risk of electrical shock, do not
remove the cover. No user serviceable parts inside.
Refer any servicing to qualified Service personnel.
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute an electric shock to a person
The exclamation point with an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance (Digital Receiver)
WARNING : TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
This product has a serial number, Please record
the serial number and retain it for your records.

PLEASE READ THIS FIRST!
Is Digital TV reception available in your home?
Generally speaking; if this receiver was on display (demonstration) by your retailer and
you live within the same area/town/city, then it should work within your home.
If you experience break-up of picture or poor performance, it is recommended that you
contact your local TV antenna installer first. They may need to check your signal quality
for digital reception. The antenna installer may advise you to upgrade your TV antenna
to a newer digital ready antenna, and install newer cabling such as RG6 quad shield
cable.
For more information on installations, visit the Digital Broadcast Australia website found at
http://www.dba.org.au.
I don’t seem to have Digital TV reception in my home,
what shall I do?
Digital TV is relatively new to Australia and it will take time for it to be available everywhere
around Australia. If Digital TV reception is not available to you, simply place together all
packaging and supplied cables back into the box neatly. Have your receipt (proof of
purchase) ready and contact your place of purchase for further details on what you
should do.

Connect your antenna lead directly into the antenna connection on the rear of the box.
Be sure to select AV or EXT input on your television by using the television remote
control.
Switch on the set-top box. If all connections are right, you will see the AUTO SEARCH
screen appears on the television.
Simply press the RED button (SUB.T) to start tuning process.
Please read the user-manual thoroughly
to enjoy this product.
How do I connect this box to my TV?
Using the supplied cable, connect the plug (called RCA) onto the rear of the
Set-top box labelled“Video-L Audio R”. The other end of the cable connect to your
television’s Video in and Audio in. Any televisions that have mono sound (not stereo) will not
require the red plug.
1
2
3
4
5

DEFINITION Throughout the manual, you will find the letters STB.
This stands for Set-Top Box.
MAIN SUPPLY AC 90 ~ 250V 50 / 60Hz 15W Max
CABLE Use standard certified cables to prevent any malfunction of
the STB.
LOCATION 1. Keep the STB indoors and away from potential hazards, such
as houseplants, rain and direct sunlight.
2. Do not put any thing over the STB.
CLEANING 1. Always disconnect the STB power cord from the wall socket
before cleaning it.
2. Use a light damp cloth(no solvents)to clean the case.
OVERLOADING Do not overload wall outlets, extension cords or adapters.
These can cause fire or electrical shock.
VENTILATION 1. Do not block ventilation slots of STB.
2. Do not place the STB on soft furnishings or carpets.
3. Ensure that a free airflow is maintained around the STB.
4. Do not allow the STB to be exposed to direct sunlight or a
heater.
5. Do not stack other electronic equipment on top of the STB.
LIQUIDS Keep liquids away from the STB.
Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the
apparatus.
LIGHTNING 1. The Manufacture's instructions for safe guarding other
equipment connect to the STB, such as a television set,
must be followed during lightning conditions.
2. Ensure lightning protection devices for the terrestrial
antenna, and mains are installed.
Safety Instructions
This STB has been manufactured to meet CE safety standards.
Please read the following safety instructions carefully before you handle the STB.

For best satisfaction of customer, we do our best for each product and services.
Also we will support our customer through our local sales, service network and
internet server system.
We support you via its homepage with useful information and new software of the STB.
When you have a question about this product or when you need for software upgrade,
please refer to the following homepage.
Homepage : http://www.digitallworld.com
E-mail : [email protected]
To provide you with the convenience of usage, DigitAll World has the right to make changes
and improvements to the products including the user manual without any notice in advance.
Copyright 2004 DigitAll World Co., Ltd.
Throughout this manual the letters STB are constantly used. This stands for "Set-Top Box"
and refers to your TFT-4000E.
Support & Copyright

Understanding the Remote Control Unit ..........................................8 ~ 9
Connecting Your Equipment ..................................................................10
Front Panel ......................................................................................................10
Rear Panel .......................................................................................................11
Connection ......................................................................................................12 ~ 13
Setting Up Your System ...........................................................................14

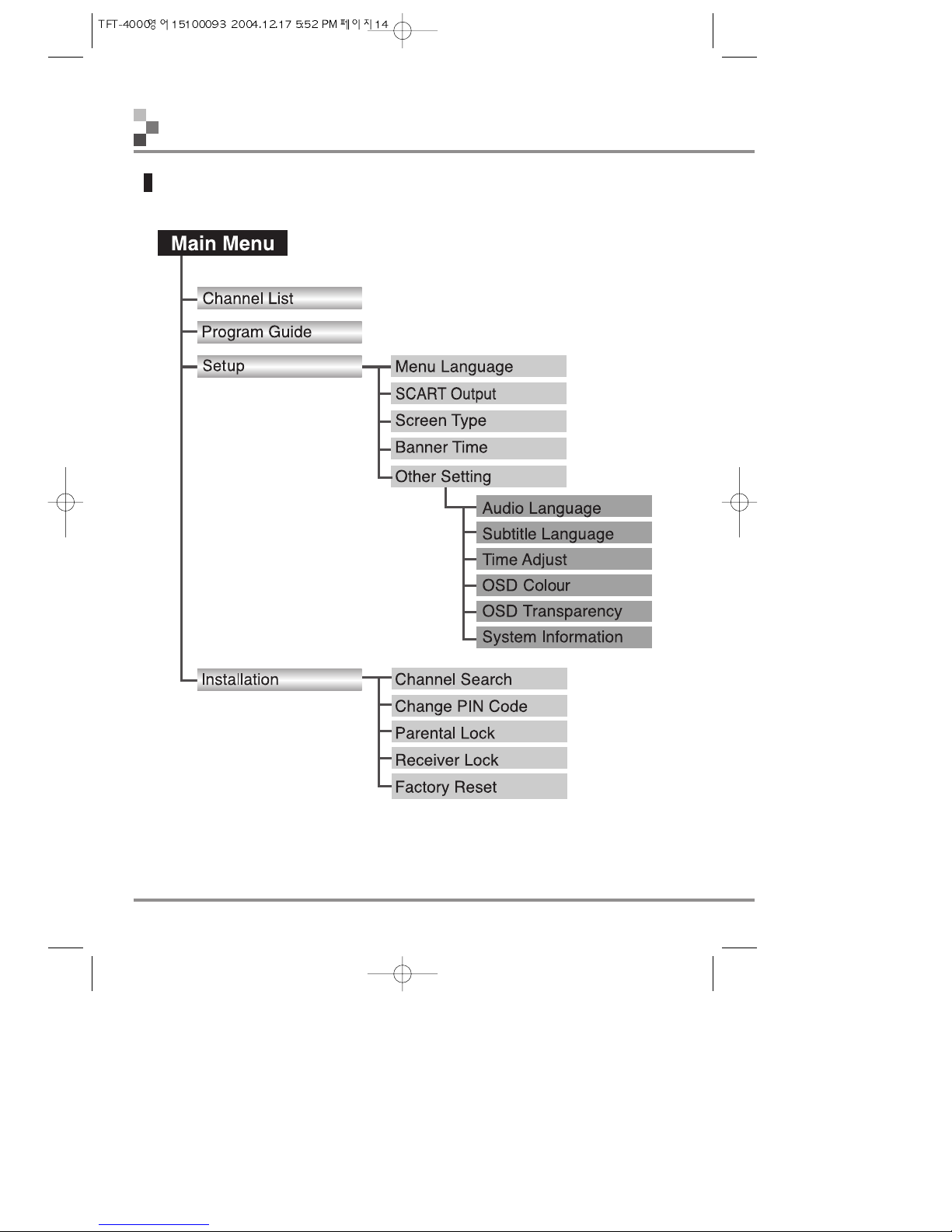

Menu Tree ........................................................................................................14
Automatic Channel Search for Television Services....................................15
Manual Channel Search .................................................................................15
Basic Function ................................................................................................16 ~ 17
Menu Operation ...........................................................................................18
Main Menu .......................................................................................................18 ~ 19
Channel List ....................................................................................................19
Channel Information .......................................................................................20
Channel Sorting..............................................................................................20 ~ 22
Channel Editing ..............................................................................................22 ~ 26
1. Delete Channels ..................................................................................23
2. Lock Channels.....................................................................................23
3. Edit Favorite Channels ........................................................................24
4. Organize Channel Categories .............................................................24
5. Move the Position of Channels............................................................25
6. Rename Channels...............................................................................26

Program Guide................................................................................................27
Now/Next EPG ...............................................................................................27
WEEKLY EPG ................................................................................................28
Setup ................................................................................................................29
Menu Language..............................................................................................30
SCART Output................................................................................................30
Screen Type ...................................................................................................31
Banner Time ...................................................................................................31
Other Setting ..................................................................................................31 ~ 34
Installation .......................................................................................................35
Channel Search..............................................................................................35 ~ 37
Change PIN Code ..........................................................................................38
Parental Lock..................................................................................................38
Receiver Lock.................................................................................................39
Factory Reset .................................................................................................39
TELETEXT Navigation ....................................................................................40
Troubleshooting ..........................................................................................41
Technical Specifications ..........................................................................42 ~ 43
Frequently Asked Questions..................................................................44 ~ 46

- 8 -
TFT-4000E Digital Terrestrial Receiver
Understanding the Remote Control Unit
Remote Control Unit
TELETEXT
FAV.
EXIT
17 MENU
19 SLEEP
18 TV/RADIO
16 CHANNEL
UP/DOWN
14 INFORMATION
15 PRE-CHANNEL
13 EPG
12 NUMERIC
BUTTONS
11 MUTE
STANDBY
TV/STB
SOUND
SUBTITLE
PAGE UP/DOWN
VOLUME UP/DOWN
OK
1
2
3
4
5
7
8
10
9
6

- 9 -
TFT-4000E Digital Terrestrial Receiver
Understanding the Remote Control Unit
STANDBY
To switch between Operation and
Standby mode.
TV/STB
Not used
SUBTITLE (Red)
To select closed caption.
Note that closed caption may not always
work as the broadcaster may not provide
this service.
PAGE UP/DOWN
To move up or down a page in the
channel list.
SOUND (Yellow)
To select the sound track list in the current
channel.
VOLUME UP/DOWN
To increase or decrease the volume.
OK
To confirm your choice.
EXIT
To return to the normal viewing mode from
a menu.
TELETEXT
To navigate teletext pages.
FAVORITE
To move among the favorite lists.
MUTE
To enable or disable the audio.
NUMERIC BUTTONS
To select the channel and enter the
channel information and PIN Code.
EPG
To display the TV/Radio program guide.
INFORMATION (Green)
To display the program information box on
the screen.
PRE-CHANNEL (Blue)
To return to the previous channel.
CHANNEL UP/DOWN
To change channels up and down.
MENU
To display the Main Menu on the screen or
return to the previous menu.
TV/RADIO
To switch between TV and RADIO Program
mode.
SLEEP
To select a presel time interval for
automatic shut down.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

- 10 -
TFT-4000E Digital Terrestrial Receiver
Connecting Your Equipment
Front Panel
STAND-BY To Switch between Operation and Standby mode.
CHANNEL- To change channels down.
To move down highlight marked cursor.
CHANNEL+ To change channels up.
To move up highlight marked cursor.
RED LED Stand by condition
GREEN LED Operating
IR SENSOR Point remote controller toward front on the TFT-4000E
12 3 4
3
4
1
2
5
5

1
2
3
4
5
6
- 11 -
TFT-4000E Digital Terrestrial Receiver
6
Connecting Your Equipment
TV Composite video, RGB, S-Video & Components is available.
Different cables are required.
VIDEO & AUDIO L/R To connect Video & Audio R/L to a TV, Audio Amp or Hi-Fi
system.
ANT IN To connect the antenna here.
LOOP THROUGH Used to connect a RF signal from the STB to either the RF input
jack (antenna) on your VCR or to the antenna input of your TV.
OPTICAL To connect S/PDIF cable for digital audio.
RS-232 To connect to a personal computer for software upgrade.
UPGRADE
Rear Panel
125
4
3

How to connect your STB to various systems
There are several ways of connecting the STB to your TV and Hi-Fi System. Consult
your local supplier for assistance in setting-up your system best suited to your
requirements.
1. STB to a TV
Simple connection to the television set. There are 2 methods.
(a) Connect STB to a 3RCA connector(supplied cable)
The 3RCA connections will connect to your television AV input. Be sure to select
'AV' key on your TV remote control.
(b) Connect STB via SCART to SCART connector (cable optional)
Simply connect the SCART lead from TV (on STB) to the SCART connector(cable
optional) usually found on the rear of your television. Select Component on menu
for best performance.
- 12 -
TFT-4000E Digital Terrestrial Receiver
Connection
Connecting Your Equipment
STB to a TV Set

- 13 -
TFT-4000E Digital Terrestrial Receiver
Connecting Your Equipment
2. Connection with VCR
Note : RF cable from set top box to VCR is not included. You ’ ll need to purchase this
separately.
Instructions
(1) Connect antenna cable directly to set top box. Using another RF cable connect“Loop
Through”to the antenna input on the VCR.
(2) Connect another RF cable from VCR RF out to TV antenna input(Usually this connection
was already made).
* This connection allows VCR to record Analogue TV and watch videos on the TV.

- 14 -
TFT-4000E Digital Terrestrial Receiver
Setting up Your System
Menu Tree

- 15 -
TFT-4000E Digital Terrestrial Receiver
Automatic Channel Search for Television Services(1st Step)
You can automatically detect and save all channels as follows:
➞➞➞
• Connect STB as per pages 10 to 12 (as applicable).
• Turn on the power of STB and other devices
connected to the STB.
• Press RED (SUB.T) button and the STB will
automatically search all channels and save them
into the channel list. Once finished, your box is
ready to be used.
• Select Channel Search in the Installation Menu.
• Enter the PIN Code. (Factory PIN code is ‘0000’)
• Select the television service you want to search by
pressing the UP/DOWN buttons and the OK button.
Atick will be shown beside your selection. You may
select more than one television service to manual
tune.
• Press GREEN (Manual) button and the STB will
begin to search all channels you have chosen and
save them into the channel list.
Manual Channel Search
You can automatically search and save all channels as follows :
Setting up Your System
Power On
Main Menu/Installation
Channel Search / Manual
System Connection

- 16 -
TFT-4000E Digital Terrestrial Receiver
Basic Function
Information Screen
After the television channels have been programmed, you will see the information(banner)
box each time you switch channels.
Setting up Your System
Channel (Service) Change
1. Press the numeric buttons (0~9) on the remote control to select the channel no.
you want.
2. Press the OK button on the Remote Control Unit and select the channel you want from
the Channel List.
3. Press the CH+/CH- buttons on the Remote Control Unit to select the channel you want.
Logical Channel Number
Channel Name Network Name Parental Rating
Signal Quality Category Day/Time
Indicator
Sound SubtitleTeletext
Signal Quality
Banner 1
Banner 2

- 17 -
TFT-4000E Digital Terrestrial Receiver
Setting up Your System
Sound Track
• When you want to change the Audio output (stereo, mono, right, left), press the
SOUND( ) button.
• Use the CH+/CH- buttons on the Remote Control Unit to select the audio language
you want.
• Use the LEFT/RIGHT buttons on the Remote Control Unit to select the sound type
(Stereo, Mono, Left, Right).
EXIT button : Exit this menu
•
Dolby digital AC3 may be available. When selected no sound may be heard on the TV. This
feature in only avialable with fibre-optic cable from set top box to Dolby digital amplifier.
Note : Broadcasters may/may not have Dolby audio availble
Volume Control / Mute
•
Press the VOL+/VOL- buttons to control the volume.
• To temporarily stop the volume, press the MUTE button.
• To cancel mute, press the MUTE button again or press the VOL+/VOL- buttons.
Eng STEREO
Eng AC3 STEREO

- 18 -
TFT-4000E Digital Terrestrial Receiver
3. You can move into the desired submenu using UP/DOWN ()buttons.
4. Press the OK button to confirm your selection.
5. Press the MENU button to return to the previous menu or press the EXIT button to quit
the Menu system completely.
Note :
Press the OK button when there is no Menu
Window on the screen, and the simple
channel list will appear on the screen.
Main Menu
1. Turn on TV and your STB, after you have connected all peripheral devices to it.
2. Press the MENU button on the Remote Control Unit. You will see the Main Menu on the
TV screen as follow:
Menu Operation

- 19 -
TFT-4000E Digital Terrestrial Receiver
Channel List
This menu consist of All Channel List, Channel Information & Skip Channel.
Select Channel List in the Main Menu. Then you will get a Channel List as follows ;
The colour buttons correspond to the following
channel function.
Red button : All Channel Lists
Green button : Channel Information
Yellow button : Skip Channel
• This menu helps you to easily select the channel that you want to watch.
• You can get information of channel number and the channel name.
• Users can use the channel list to select which services to skip.
To watch a specific channel, first select the specific channel that you wish to watch by using
the UP / DOWN / LEFT / RIGHT buttons, and then press OK button on the Remote Control
Unit. Also use the PAGEUP/PAGEDN ()buttons.
Main menu shows the following information.
Channel List
This menu consist of All Channel List, Channel Information, channel
Sorting and Channel Editing.
Yellow button : Channel Sorting
Blue button : Channel Editing
Shows the information of Now, Next and WEEKLY Programs.
Sets Menu Language, SCART Output, Screen Type, Banner Time,
and Other Setting.
Sets Channel Search, Change PIN Code, Parental Lock, Receiver
Lock and Factory Reset.
Setup
Installation
Program Guide
Menu Operation

- 20 -
TFT-4000E Digital Terrestrial Receiver
Channel Information
This mode helps you to watch the detailed information of a specific channel.
To watch a detailed information of a specific channel:
• Press the Green button in the Channel List menu, and Channel Information window will be
displayed.
• Press the CH+/CH- buttons to select the channel information you want.
The detailed information will appear on the right display window.
It consists of the following items: Category, Sound, Subtitle(STT), Teletext(TTX),
PID(Video, Audio and PCR) and Scrambling symbol.
Subtitle, Teletext, Scrambling symbol: These are automatically displayed when the
broadcasting station provides appropriate information.
Menu Operation
Channel Sorting
This mode displays channels according to the respective classifications desired by the
user through its function of sorting diverse information that each channel is furnished with.
Select the Yellow button in the Channel List menu, and the cursor toggles between
channel and channel sorting menu.
