Globo GLOBO 7010CR User manual

Digital Satellite Receiver
Digital Satellite ReceiverDigital Satellite Receiver
Digital Satellite Receiver
User’s Manual
GLOBO 7010CR
OPTICUM 7000CR
OPTICUM 7100CR
OPTICUM 4000TS
OPTICUM 4100TS
OPTICUM 4000TSCR
OPTICUM 4100TSCR

CONTENTS
1. SAFETY ..........................................................................................................................3
2. ENVIRONMENT PROTECTION......................................................................................3
I NFORMATION ON D ISPOSAL FOR U SERS ( PRIVATE HOUSEHOLDS ) IN THE E UROPEAN U NION ..........4
DECLARATION OF CONFORMITY..................................................................................................4
3. REMOTE CONTROL.......................................................................................................5
4. SUPPORT & COPYRIGHT..............................................................................................6
5. ACCESSORIES...............................................................................................................6
6. FRONT PANEL...............................................................................................................7
7. REAR PANEL .................................................................................................................7
8. CONNECTING YOUR SYSTEM......................................................................................8
H OW TO CONNECT YOUR STB TO VARIOUS SYSTEMS ...............................................................................8
9. GETTING STARTED.......................................................................................................9

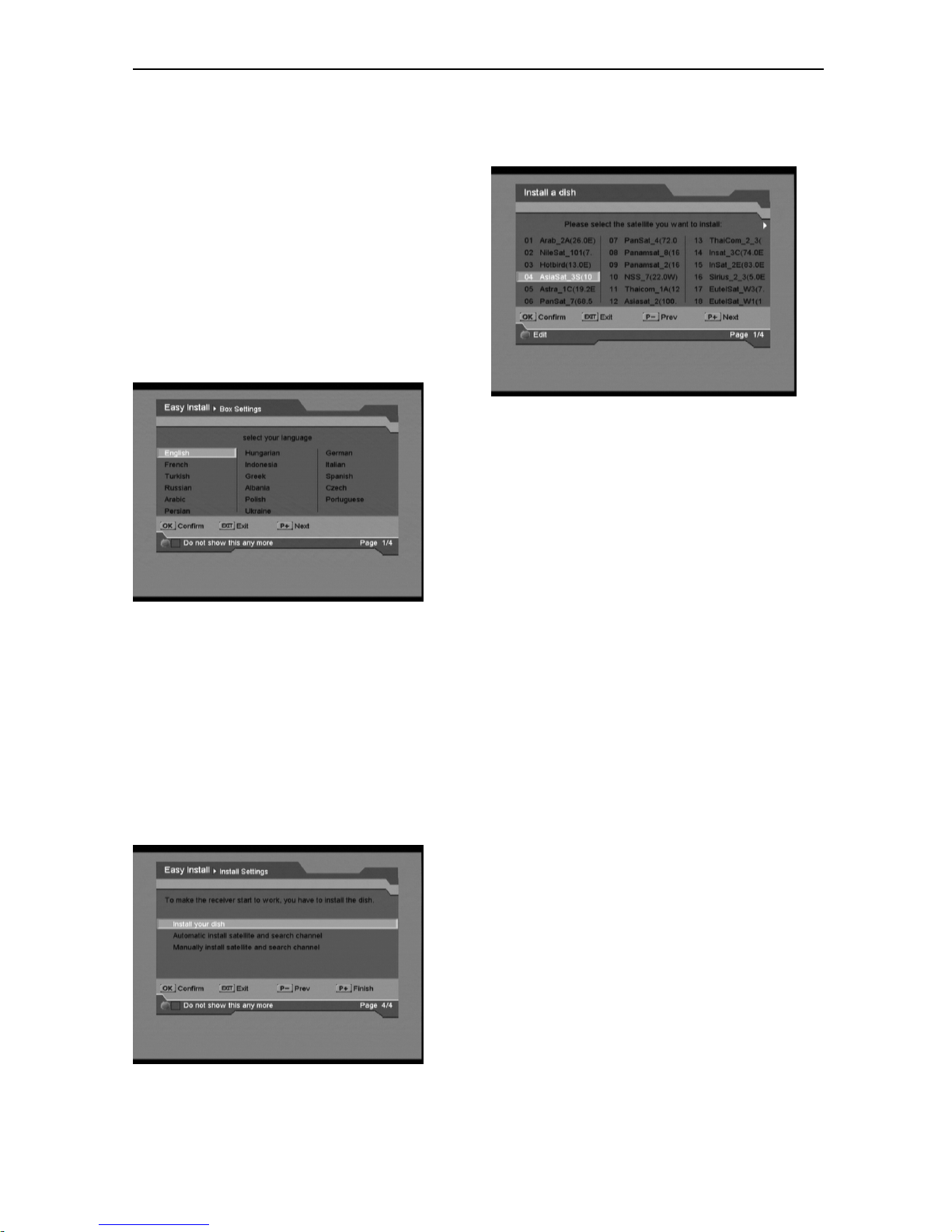

E ASY I NSTALL ............................................................................................................................................9
B OX S ETTING .............................................................................................................................................9
L ANGUAGE .................................................................................................................................................9
T IME S ETTING ............................................................................................................................................9
P ARENTAL C ONTROL .................................................................................................................................9
I NSTALL S ETTING .......................................................................................................................................9
I NSTALL YOUR DISH ...................................................................................................................................9
A UTOMATIC INSTALL SATELLITE AND SEARCH CHANNEL .......................................................................10
M ANUALLY INSTALL SATELLITE AND SEARCH CHANNEL ........................................................................10
10. MENU OPERATIONS....................................................................................................11
S ERVICES ..................................................................................................................................................11

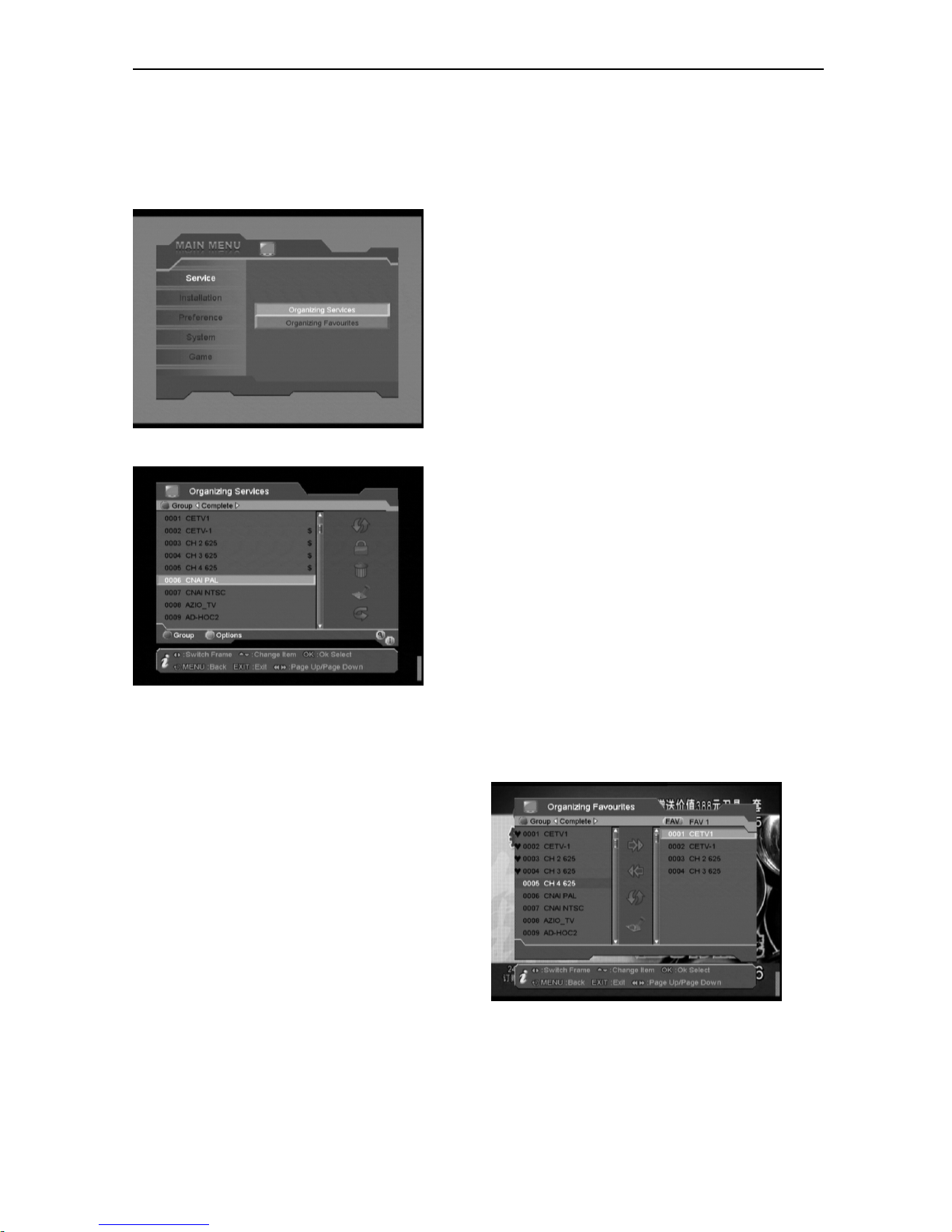

O RGANIZING S ERVICES ............................................................................................................................11
O RGANIZING F AVOURITES .......................................................................................................................11
11. INSTALLATION ............................................................................................................13
S ATELLITE I NSTALLATION .......................................................................................................................13
M ANUAL I NSTALLATION ..........................................................................................................................13
M AIN WINDOW .........................................................................................................................................13

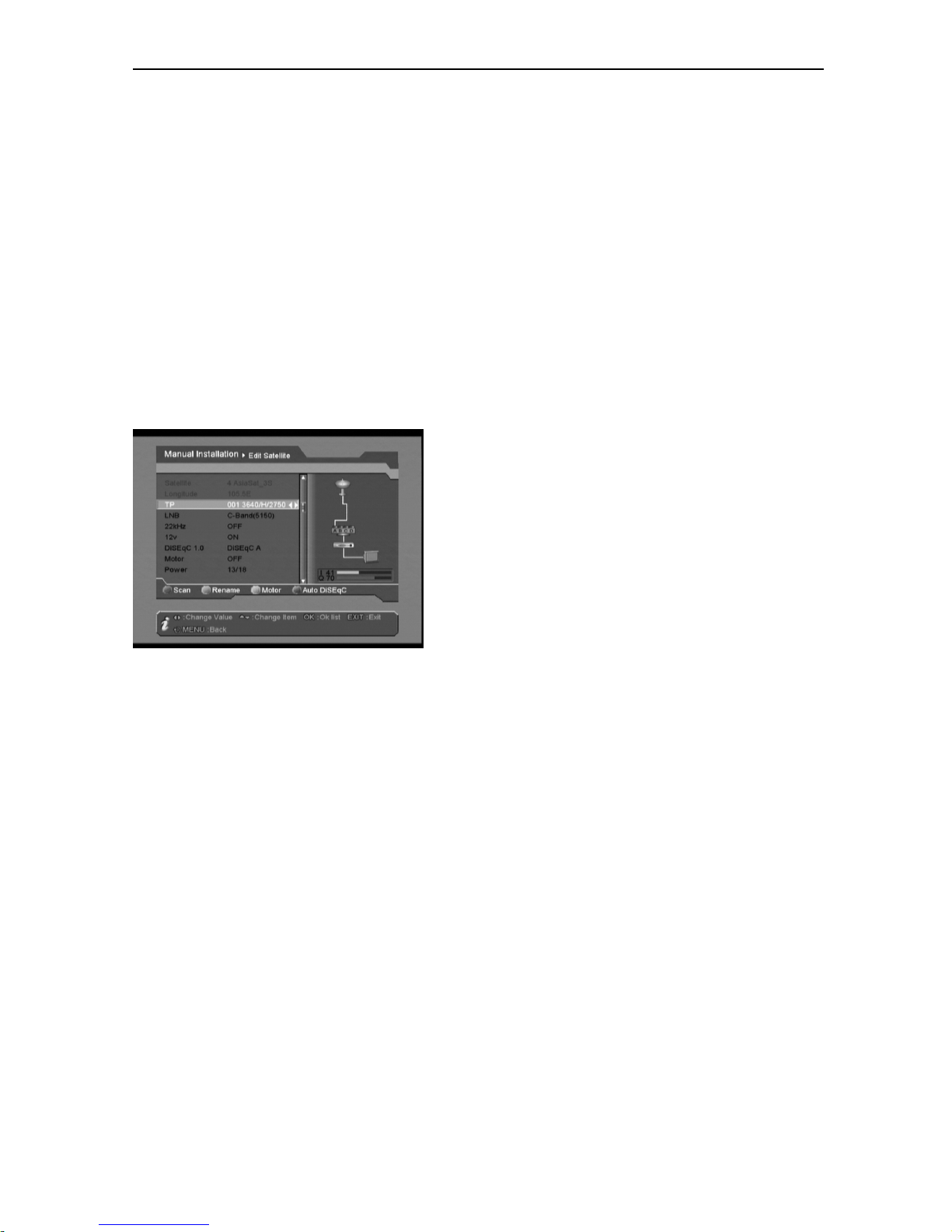

E DIT S ATELLITE .......................................................................................................................................14
D I SE Q C1.2...............................................................................................................................................15

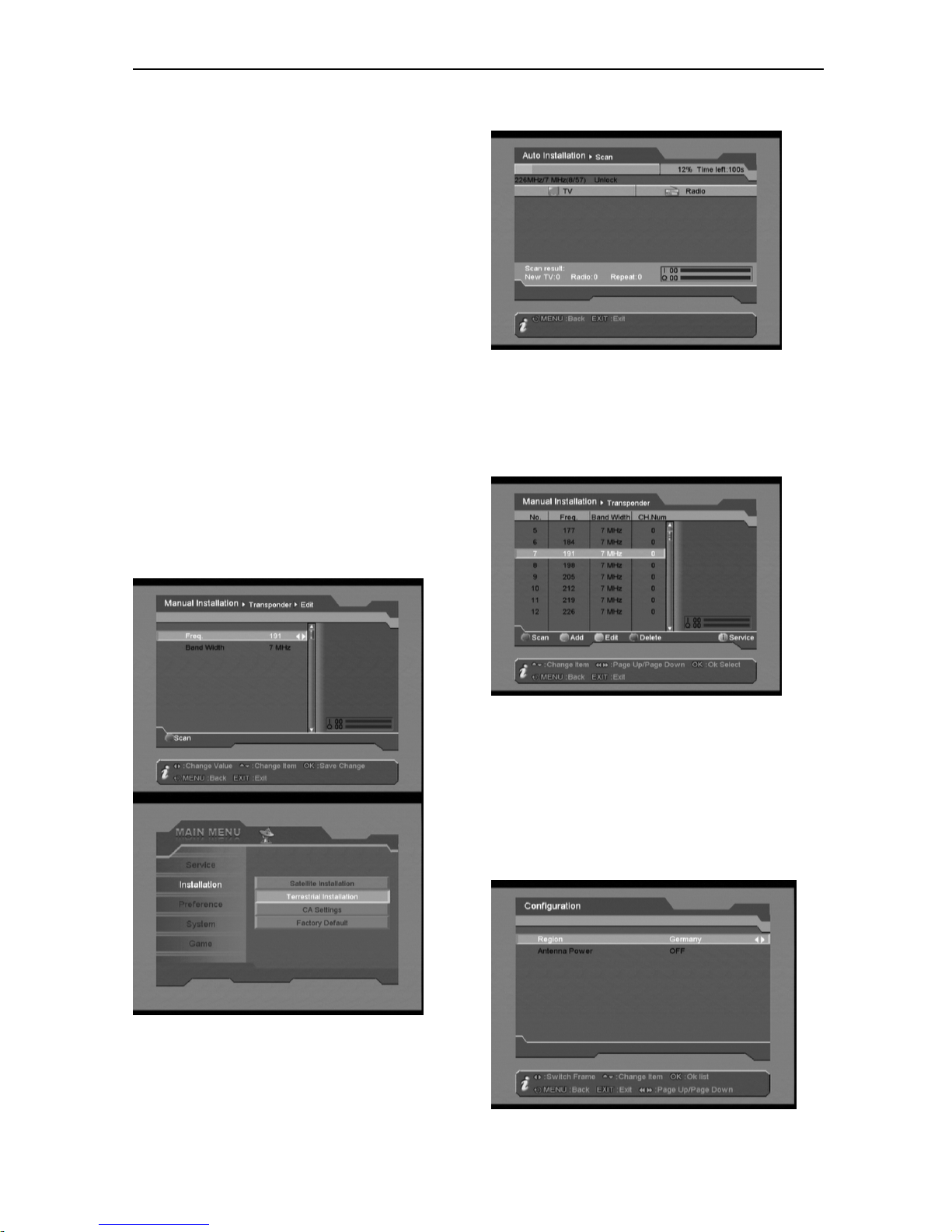

T ERRESTRIAL I NSTALLATION (OPTIONAL)........................................................................................... 17
A UTO S CAN ..............................................................................................................................................17
M ANUAL S CAN ........................................................................................................................................17
A NT C ONFIG .............................................................................................................................................17
CA S ETTINGS (OPTIONAL)....................................................................................................................18
F ACTORY D EFAULT ..................................................................................................................................18
F ACTORY DEFAULT ..................................................................................................................................18
F ACTORY RESET .......................................................................................................................................18
12. PREFERENCE..............................................................................................................20
L ANGUAGE ...............................................................................................................................................20
P ARENTAL C ONTROL ...............................................................................................................................20
T IME S ETTING ..........................................................................................................................................20
Automatic Update....................................................................................................................................................................20
Current Date &Time................................................................................................................................................................20
GMT Offset..............................................................................................................................................................................20
Daylight Time..........................................................................................................................................................................21
Wake Up ..................................................................................................................................................................................21
Wake Up Time .........................................................................................................................................................................21

2
Sleep ........................................................................................................................................................................................21
Sleep Time ...............................................................................................................................................................................21
A/V C ONTROL ..........................................................................................................................................21
TV-SCART ...............................................................................................................................................................................21
VCR-SCART ............................................................................................................................................................................21
Screen Ratio.............................................................................................................................................................................21
TV Standard.............................................................................................................................................................................21
Video Brightness......................................................................................................................................................................21
Video Contrast.........................................................................................................................................................................21
Video Saturation......................................................................................................................................................................21
UHF S ETTING ..........................................................................................................................................21
M ISCELLANEOUS S ETTINGS .....................................................................................................................22
13. SYSTEM........................................................................................................................23
S YSTEM I NFORMATION ............................................................................................................................23
U PGRADE RS232......................................................................................................................................23
S OKOBAN .................................................................................................................................................24
14. TROUBLE SHOOTING .................................................................................................25
Symptom..............................................................................................................................................................................25
15. SPECIFICATIONS.........................................................................................................26
S ATELLITE SPECIFICATION .......................................................................................................................26
A/V M ODE ...............................................................................................................................................26
M ICROPROCESSOR & M EMORIES .............................................................................................................26
P OWER & E NVIRONMENT C ONDITION .....................................................................................................26
P HYSICAL S PECIFICATION ........................................................................................................................26
C ONNECTION ............................................................................................................................................26

3
1.SAFETY
This STB has been manufactured to satisfy the international safety standards. Please
read the following safety precautions carefully.
MAINS SUPPLY: 100 - 250V AC 50/60Hz
OVERLOADING: Do not overload wall outlet, extension cord or adapter as this may
result in fire or electric shock.
LIQUIDS: Keep liquids away from the STB. The apparatus shall not be exposed to
dripping or splashing and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
CLEANING: Disconnect the STB from the wall outlet before cleaning .Use a light damp
cloth (no solvents) to dust the STB.
VENTILATION: The slots on top of the STB must be left uncovered to allow proper
airflow to the unit. Do not stand the STB on soft furnishings or carpets. Do not expose
the STB to direct sunlight or do not place it near a heater. Do not stack electronic
equipments on top of the STB.
ATTACHMENTS: Do not use any attachments that are not recommended as these may
cause hazard or damage the STB.
CONNECTION TO THE SATELLITE DISH LNB: Disconnect the STB from the mains
before connecting or disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE LNB.
CONNECTION TO THE TV: Disconnect the STB from the mains before connecting or
disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE TV.
EARTHING: The LNB cable MUST BE EARTHED to the system earth for the satellite
dish.
LOCATION: Place the STB indoor in order not to expose to lightening, rain or sunlight.
2. Environment protection
Attention!
Your product Is marked with this symbol. It means that used electrical and electronic products should
not be mixed with general household waste. There is a separate collection system for these
products.

4
Information on Disposal for Users (private households) in the European Union
Used electrical and electronic equipment must be treated separately and In accordance with
legislation that requires proper treatment, recovery and recycling of used electrical and electronic
equipment.
Following the implementation by member states, private households within the EU states may return
their used electrical and electronic equipment to designated collection facilities free of charge*. In
some countries* your local retailer may also take back your old product free of charge if you
purchase a similar new one. *) Please contact your local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please dispose of these
separately beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the necessary
treatment, recovery and recycling and thus prevent potential negative effects on the environment and
human health which could otherwise arise due to inappropriate waste handling.
Information on Disposal for Business Users
In the European Union
If the product is used for business purposes and you want to discard It:
Please contact your GLOBO POLSKA dealer who will inform you about the take-back of the product.
You might be charged for the costs arising from take-back and recycling Small products (and small
amounts) might be taken back by your local collection facilities,
In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask for the correct
method of disposal.
DECLARATION OF CONFORMITY
The manufacturer herewith declares the conformity of that product with the following directives
and standards:
Low Voltage Directive 73/23/EC
EN 60065:2002
EMC Directive 89/336/EC:
EN 55013:2001+A1:2003
EN 55020:2002
EN 61000-3-2:2000
EN 61000-3-3 :1995 + A1:2001
Model: Digital Satellite Receiver DVB-S

5
3.Remote Control
POWER Button
Switch the STB between Operation and Standby mode.
UFH Button
Alter the UHF setting.
MUTE Button
Enable / Disable the Audio.
Numeric Buttons
Select the TV or Radio services and menu options.
“0/ ” 0&ZOOM Button
After other Numeric buttons, it’s used for 0 button. Other
ways it’s used to enable the zoom function.
“ ” PAUSE Button
Pause or play video.
“ ” PRE Button
Select the previously viewed service.
Return to the previous menu.
“ ” INFO Button
Display the service information box on the Screen.
Display the extended event or service information in
menu.
EPG Button
Display EPG menu.
MENU Button
Display the Main Menu on the screen.
Return to the previous menu.
EXIT Button
Cancel the user selection and return to the Screen.
LEFT/V- 、
、、
、 RIGHT/V+ Buttons
Adjust the volume (Increase / Decrease).
Change the value of the selected item in menu.
Move cursor left or right in the menu.
UP/CH+ 、
、、
、DOWN/CH- Buttons
Service up or down through the available services.
Move the selection bar in menu.
OK Button
Display Service List on screen.
Select an item in menu.
“ ” TV/RADIO Button
Select the TV/Radio mode.
“ ” FIND Button
Find service by name in Service List, Organizing Services,
Organizing Favourites and EPG menu.
P-/P+ Buttons
Press to move up or down pages on the menus.
FAV Button
Display Organizing Favourites menu.
10. SAT Button
Display Organizing Satellites menu.
P/N Button

6
Switch the TV Standard on the Screen.
TV/SAT Button
Switch the TV or AV mode on the Screen.
F1 Button
Enter Organizing Services menu direct on the Screen.
F2 Button
Enter Manual Installation menu direct on the Screen.
“ ” WHITE(SUBTITLE) Button
Setup the Subtitle and watch on the Screen.
“ ” RED(AUDIO) Button
Perform RED button function in menu.
Select Sound Track and Multilingual on the Screen.
GREEN(Multi-picture) Button
Perform GREEN button function in menu.
Display Multi-Picture menu on the Screen.
YELLOW(SLEEP) Button
Perform YELLOW button function in menu.
Set Standby time on the Screen .
BLUE(TELETEXT) Button
Perform BLUE button function in menu.
Setup the Teletext and watch on the Screen.
4.Support & Copyright
To better satisfy our customers, we give our best to each product and service. Also we support our
customer through our local sales, service network and electronic server system of us.
Moreover, we maintain very close working relationships with our customers. We take a highly
disciplined engineering approach to product design, manufacture, testing, acceptance and to
technical and maintenance support.
We conduct comprehensive testing of the units, provide complete documentation support and
consistently deliver the highest quality products on time, every time. We supports you via its
homepage with useful information and new software.
To provide you the convenience of usage, We has the right to make changes and improvements to
any of the products described in this manual and the manual of the products without notice.
5.Accessories
Check the following accessories when you open the box
User’s Manual Remoter Control Unit
The device, packaging material and batteries must never be disposed of with household.
Please obtain appropriate information about regulations in your community, and dispose of all in
accordance with regulations at the separate locations provided.

7
6.Front panel
POWER KEY: To switch the receiver power on/stand by
v ,^ KEY : To change channels, or to move cursor up or down in the menu
POWER Led: Lights up while the receiver is power on
Remote Sensor: Detects infrared signal from remote control unit
Display(4-Digit/7-Segment): Indicates operating status of receiver
Signal Led: When receiving signal is strong, the signal led is lighted.
VOL<,> KEY (optional): To adjust volume level, or to move cursor left or right in the menu
MENU KEY (optional): To enter into the main menu
OK KEY (optional): To see TV/Radio channel list, or to confirm in the menu
Exit (optional): Cancel the user selection and return to the viewing mode from a menu.
7. Rear Panel
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and
checked.
GLOBO 7010CR, OPTICUM 7000CR, OPTICUM 7100CR:
Opticum 4000TS, Opticum 4100TS, Opticum 4000TSCR, Opticum 4100TSCR:
AERIAL OUT (optional): This enables the connection of another receiver.
AERIAL IN (optional): This port is to connect the coaxial cable from terrestrial antenna.
LOOP OUT: This enables the connection of another receiver.
13/18V 500mA MAX LNB IN: This port is to connect the coaxial cable from LNB of your Dish.
VIDEO: This RCA connector is used to connect any external video.
0-12V: This is used to Connect 12V to an external 0V/12V switch.
AUDIO R/L: These RCA connectors are used to connect any external audio amp or system.
RS 232C SERIAL PORT: This is used to connect your receiver to a computer through

8
a serial cable.
TV: This is used to connect your TV through SCART cable.
SPDIF: Digital Audio interface, connect to AV amplifier SPDIF (optical) input terminal.
ANT IN (optional): Connect to Analog TV antenna.
TV OUT (optional): This is used to connect your TV through RF cable.
8.Connecting Your System
How to connect your STB to various systems
There are several ways of connecting the STB to your TV, VCR and/or Hi-Fi SYSTEM. Consult your
local supplier for assistance in setting-up your system that is best suited to your requirements.
Connect STB to a TV set
Connect your STB to a TV set with SCART, if your TV set is equipped for it. Alternatively you can
use A/V, TV out (UHF) or S/Video jacks.
Connect STB to a VCR
Connect the SCART jack from the VCR to the back of your STB. Alternatively you can use A/V, TV
out (UHF) or S/Video jacks.
Connect STB to a Hi-Fi System
Connect a RCA stereo cable from the AUDIO L/R jacks, S/PDIF on your STB to the LINE, AUX,
SPARE or EXTRA input jacks on your Hi-Fi System.
Connect STB to a Digital Audio System
If you have a DAC with S/PDIF coaxial cable input, you can connect the STB with it to enjoy higher
quality sound. Connect S/PDIF coaxial cable to a digital amplifier.
Loop Through
If you have another analogue or digital STB and you wish to use the same LNB then you can
connect it via the loop through. Connect one end of the coaxial cable to the Loop Through on the
STB and connect the other end to the LNB IN on your second STB.
TV with Motorized System (DiSEqC 1.2)

9
9.GETTING STARTED
Easy Install
Press the POWER button to operate the
receiver from “Standby” mode. If you did not
install it before, the “Easy Install” Menu will be
displayed automatically to guide you to install
your box and dish.
*Notice: There are two parts, Box Setting and
Install Setting. Please follow the indication in
this menu one step by one.
Box Setting
Language
Choose Menu Language. Go to next.
Time Setting
Set Current Time. Go to next.
Parental Control
Set Password, Receiver Lock and Censorship
Classification. Go to next to enter in Install
Setting.
Install Setting
Choo
se one from the following items: “Install your
dish”, “Automatic install satellite and search
channel” and “Manually install satellite and
search channel”.
Install your dish
a. Install one satellite, Press RED button to
edit it. In edit menu you can check signal.
This function is very useful for installing
your dish. It will automatically calculate the
elevation and azimuth for certain satellite
according to the local longitude and latitude
you entered. Set the longitude and latitude
by pressing 0~9 and LEFT /RIGHT button,
and you get the elevation and azimuth
information from the menu. Then go to next.
b. Adjust your dish depend on the intensity
and quality. Press RED button to edit
satellite as above, press OK button to select
TP. Go to next.
c. Adjust your dish depend on the SNR and
BER. Press RED button to edit satellite as
above, press OK button to select TP. Go to
next.
d. Choose one from the following items:
“Install another satellite” and “Complete
installing dish and search channels”. For
“Install another satellite”, you need to install
another satellite the above step by step. For
“Complete installing dish and search
channels”, you need to set the Scan Mode
and Network, then press OK button to do
scan.
