HD/SD-SDI to HDMI adaptor board

HD-3000

Manual

Specifications subject to change without notice

2 of 15

Table of Contents

Introduction

3

Connectors, Pin outs &

Ju pers

5

Board Di ensions

10

Signal Support Mode

Table

11

Specification

12

Warranty, Caution &

Li itation of Liability,

Trade arks

13

Contact details

14

Revision History

15

Specifications subject to change without notice

3 of 15

1. Introduction

The HD-3000 converts SD/HD-SDI (SD, HD and 3G) signa to HDMI for driving HDMI monitors. The HD-3000 provides re-c ocked oop

through outputs for “daisy chaining” mu tip e monitors or other equipments to the same HD-SDI source. It a so supports embedded

audio.

Fu y comp iant with the SMPTE 259M-C, SMPTE 292M, SMPTE 424M, 425M standards.

HD-3000 Key Features

a. Supports 1.5Gbits & 3Gbits bit rate input signal support.

The mode support is isted in page 11.

b. Dual channels input port supported.

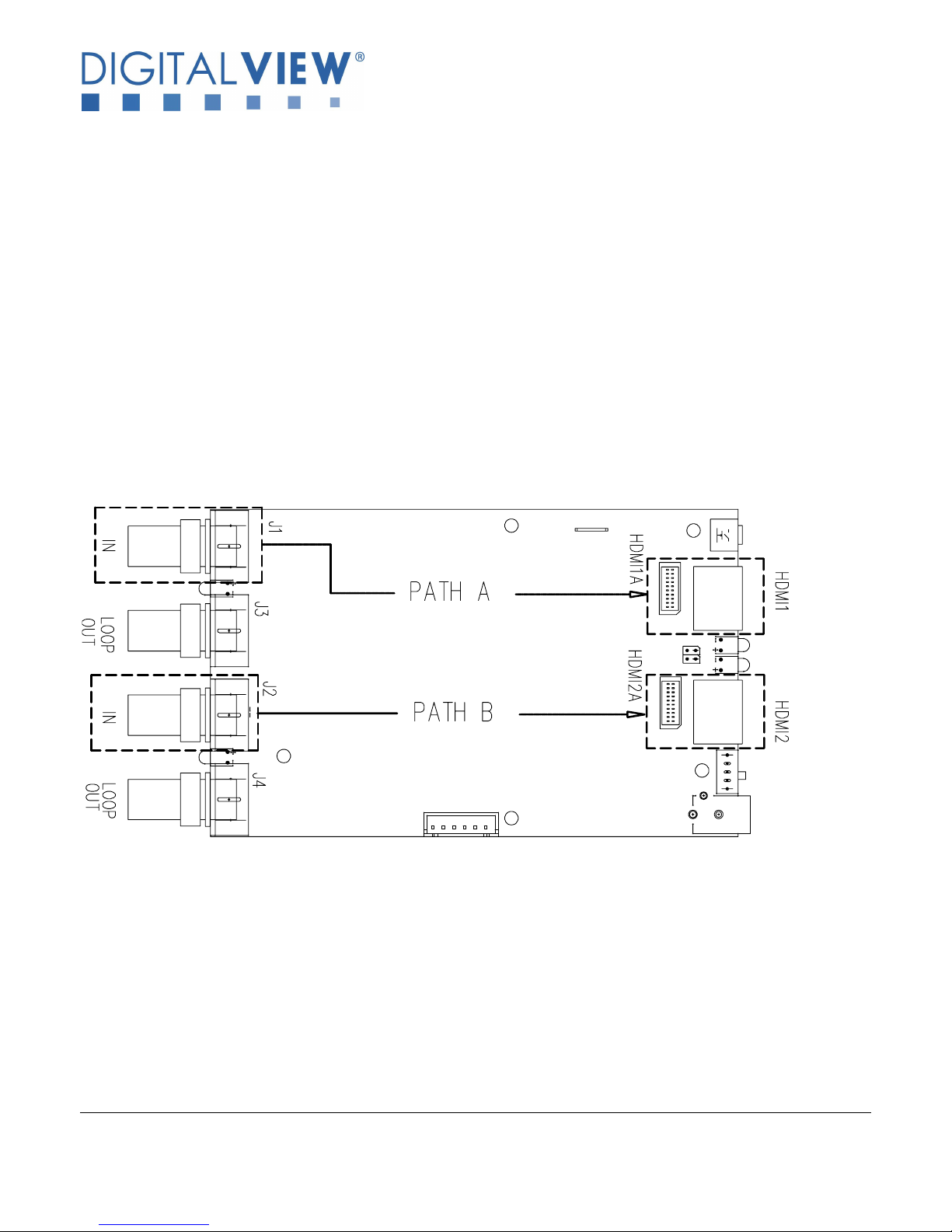

HD-3000 supports Path A (HD-SDI input from J1 port convert to output HDMI at HDMI1/HDMI1A port) and Path B (HD-SDI input

from J2 port convert to output HDMI at HDMI2/HDMI2A port). See Figure be ow :

c. HD-SDI re-clock loop through output.

J1 HD-SDI input and re-c ock oop through to J3 HD-SDI output. J2 HD-SDI input and re-c ock oop through to J4 HD-SDI output.

d. HDMI (v1.3) x 2 output port.

Two HDMI output ports are HDMI1/HDMI1A, HDMI2/HDMI2A.

e. Stereo e bedded audio support

f. On-board power on/off switch – The power on/off switch is insta ed on SW1.

Specifications subject to change without notice

4 of 15

g. Status LEDs on board :

The definition of the LED1, LED2, LED3, LED4 are :

Ref Description

LED1 / LED2 Green LED on : Signa detected

Green LED B inking : No signa detected

LED3 / LED 4 Green LED on : Signa output

Green LED off : No signa output

Specifications subject to change without notice

5 of 15

2. CONNECTORS, PINOUTS & JUMPERS

The various connectors are:

Su ary: Connectors

Ref Description Type / Use

J1 SD/HD-SDI 1 Input BNC connector

J2 SD/HD-SDI 2 Input BNC connector

J3 SD/HD-SDI 1 re-c ock oop through output BNC connector

J4 SD/HD-SDI 2 re-c ock oop through output BNC connector

CN1 RS-232 & I

2

C contro connector JST 6-way, B6B-XH-A (Matching type : XHP-6)

CN2 Reserved for programming use Reserved

CN3 Reserved for programming use Reserved

CN4 Externa I/O connector Hirose DF13-6P-1.25DSA

(Matching type : Hirose DF13-8S-1.25C)

CN5 Reserved for programming use Reserved

HDMI1 HDMI 1 Output HDMI connector

Specifications subject to change without notice

6 of 15

Ref Description Type / Use

HDMI2 HDMI 2 Output HDMI connector

HDMI1A A ternate HDMI 1 Output JST BM20B-SRDS (Matching type : JST SHDR-20V-S-B)

HDMI2A A ternate HDMI 2 Output JST BM20B-SRDS (Matching type : JST SHDR-20V-S-B)

PP1 Power Input (A ternate) Mo ex 43650-0200 compatib e

(Matching connector type : Mo ex 43645-

0200 compatib e)

(Matching power cab e : P/N 426013800-3)

PP3 Power Input DC power jack, 2.5mm contact pin diameter positive

S1 A ternate power on/off switch connector JST B2B-XH-A (Matching type : XHP-2)

SW1 Power on/off s ide switch S ide switch

SW3 No function Reserved

Su ary: Ju per settings :

Ref Purpose Note

JA1 On board +5V ogic power enab e 1-2 & 3-4 c osed, factory set, do not remove

LED1A Externa LED connection Refer to pin assignment in page 7

LED2A Externa LED connection Refer to pin assignment in page 7

LED3A Externa LED connection Refer to pin assignment in page 7

LED4A Externa LED connection Refer to pin assignment in page 7

JP1-12 No function No function

JP13 Reserved for programming use Reserved

JP14 Reserved for programming use Reserved

SW2 No function No function

Specifications subject to change without notice

7 of 15

Su ary : PinOuts :

CN1 – RS-232 & I

2

C control : JST B6B-XH-A (Matching type : XHP-6)

PIN SYMBOL DESCRIPTION

1 SCLK I2C_SCLK

2 SDATA I2C_SDATA

3 VCC +5V

4 TXD RS-232 Tx data

5 GND Ground

6 RXD RS-232 Rx data

CN4 – External I/O connector : Hirose DF13-6P-1.25DSA (Matching type : Hirose DF13-8S-1.25C)

PIN SYMBOL DESCRIPTION

1 3V3 3.3V output

2 LED3 LED3 Anode

3 LED4 LED4 Anode

4

EXT_IP_0

Reserved

5

EXT_IP_1

Reserved

6 LED1 LED1 Anode

7 LED2 LED2 Anode

8 GND LED Cathode

LED1A, LED2A, LED3A, LED4A – External LED connection

PIN SYMBOL DESCRIPTION

1 + LED Anode

2 - LED Cathode

HDMI1A – Alternate HDMI connector: JST BM20B-SRDS (Matching type : JST SHDR-20V-S-B)

PIN SYMBOL DESCRIPTION

1 GND Ground

2

GND

Ground

3 RXC+ TMDS Data C+

Specifications subject to change without notice

8 of 15

PIN SYMBOL DESCRIPTION

4 RXC- TMDS Data C-

5 RX0+ TMDS Data 0+

6 RX0- TMDS Data 0-

7 RX1+ TMDS Data 1+

8 RX1- TMDS Data 1-

9 RX2+ TMDS Data 2+

10 RX2- TMDS Data 2-

11

GND

Ground

12 GND Ground

13 MSTR2_SCL Reserved

14 MSTR2_SDA Reserved

15 DDC_5V +5V power supp y for DDC (optiona )

16 HPD Hot p ug detection

17 DDC_SCL DDC seria c ock

18 DDC_SDA DDC Data

19 VCC1 VCC 5V output

20 VCC2 VCC 5V output

HDMI2A – Alternate HDMI connector: JST BM20B-SRDS (Matching type : JST SHDR-20V-S-B)

PIN SYMBOL DESCRIPTION

1 GND Ground

2 GND Ground

3 RXC+ TMDS Data C+

4 RXC- TMDS Data C-

5 RX0+ TMDS Data 0+

6 RX0- TMDS Data 0-

7 RX1+ TMDS Data 1+

8 RX1- TMDS Data 1-

9 RX2+ TMDS Data 2+

Specifications subject to change without notice

9 of 15

PIN SYMBOL DESCRIPTION

10 RX2- TMDS Data 2-

11 GND Ground

12 GND Ground

13 MSTR2_SCL Reserved

14 MSTR2_SDA Reserved

15 DDC_5V +5V power supp y for DDC (optiona )

16 HPD Hot p ug detection

17

DDC_SCL

DDC seria c ock

18 DDC_SDA DDC Data

19 VCC1 VCC 5V output

20 VCC2 VCC 5V output

S1 – Alternate power on/off switch connector (Matching type : XHP-2)

PIN SYMBOL DESCRIPTION

1 12V_IN +12V INPUT

2

12V_OUT

+12V OUTPUT

PP1 – Alternate 12VDC power supply

PIN DESCRIPTION

1 +12VDC in

2 Ground

PP3 - 12VDC power supply

PIN DESCRIPTION

1 +12VDC in

2

Ground

Specifications subject to change without notice

10 of 15

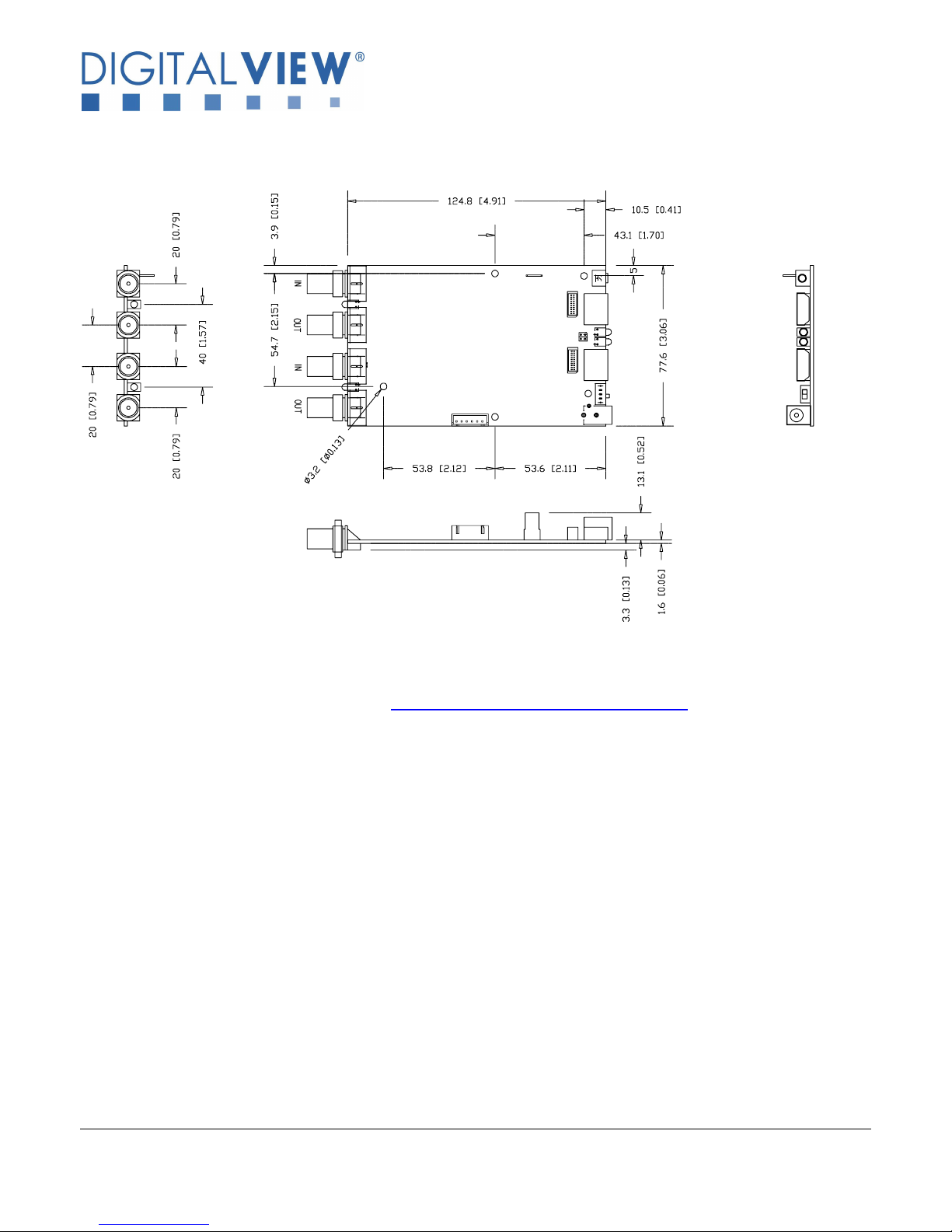

3. BOARD DIMENSIONS

Ready- ade 3D Pro-E (SLDPRT) drawing files - Save time and effort for your system vo umetric ana ysis design.

Inc udes jpg fi e previews. P ease go to down oad at http://www.digita view.com/accessories/hd-3000

The maximum thickness of the adaptor board is 18mm (measured from bottom of PCB to top of components, exc uding the

BNC connectors. We recommend c earances of:

• 5mm from bottom of PCB - if mounting on a meta p ate we a so recommend a ayer of suitab e insu ation materia is

added to the mounting p ate surface.

• 10mm above the components

• 3~5mm around the edges

Any of the ho es shown above can be used for mounting the PCB, they are 3.2mm in diameter.

CAUTION: Ensure adequate insulation is provided for all areas of the PCB with special attention to high voltage parts

such as the inverter.

Specifications subject to change without notice

11 of 15

4. SIGNAL SUPPORT MODE TABLE

Mode

576i50 (PAL)

480i60 (NTSC)

720p60 (4:2:2)

720p59.94 (4:2:2)

720p50 (4:2:2)

720p30 (4:2:2)

720p29.97 (4:2:2)

720p25 (4:2:2)

1035i60 (4:2:2)

1035i59.94 (4:2:2)

1080p30 (4:2:2)

1080p29.97 (4:2:2)

1080p25 (4:2:2)

1080p24 (4:2:2)

1080p23.98 (4:2:2)

1080psf30 (4:2:2)

1080psf25 (4:2:2)

1080psf24 (4:2:2)

1080psf23.98 (4:2:2)

1080i60 (4:2:2)

1080i59.94 (4:2:2)

1080i50 (4:2:2)

1080p60 (4:2:2)

1080p50 (4:2:2)

Specifications subject to change without notice

12 of 15

5. Specification

Supported seria interface standard SMPTE 292M, 259M-C, 424M, 425M (Leve A)

Supported video mode 576i50 (PAL)

480i60 (NTSC)

720p60 (4:2:2)

720p59.94 (4:2:2)

720p50 (4:2:2)

720p30 (4:2:2)

720p29.97 (4:2:2)

720p25 (4:2:2)

1035i60 (4:2:2)

1035i59.94 (4:2:2)

1080p30 (4:2:2)

1080p29.97 (4:2:2)

1080p25 (4:2:2)

1080p24 (4:2:2)

1080p23.98 (4:2:2)

1080psf30 (4:2:2)

1080psf25 (4:2:2)

1080psf24 (4:2:2)

1080psf23.98 (4:2:2)

1080i60 (4:2:2)

1080i59.94 (4:2:2)

1080i50 (4:2:2)

1080p60 (4:2:2)

1080p50 (4:2:2)

Number of channe input port supported 2

HD-SDI re-c ock oop through output Yes

Output port HDMI (v1.3) x 2

Embedded audio Supported with Stereo

LEDs Status LED (Green)

On board power on/off switch Yes

Power requirement Regu ated DC 12V input (2.5mm center positive)

Power consumption +12VDC ±5%, 5W

Environmenta Operating temperature : 0

o

C to 60

o

C

Re ative humidity : 5%-95% re ative humidity

(Non-condensing)

RoHS Comp iant Yes

Dimensions 124.8(W) x 77.6 (D) x 18(H) mm

Specifications subject to change without notice

13 of 15

6. WARRANTY

The products are warranted against defects in workmanship and materia for a period of three (3) year from the date of purchase

provided no modifications are made to it and it is operated under norma conditions and in comp iance with the instruction manua .

The warranty does not app y to:

• Product that has been insta ed incorrect y, this specifica y inc udes but is not imited to cases where e ectrica short circuit is

caused.

• Product that has been a tered or repaired except by the manufacturer (or with the manufacturer’s consent).

• Product that has subjected to misuse, accidents, abuse, neg igence or unusua stress whether physica or e ectrica .

• Ordinary wear and tear.

Except for the above express warranties, the manufacturer disc aims a warranties on products furnished hereunder, inc uding a

imp ied warranties of merchantabi ity and fitness for a particu ar app ication or purpose. The stated express warranties are in ieu of

a ob igations or iabi ities on the part of the manufacturer for damages, inc uding but not imited to specia , indirect consequentia

damages arising out of or in connection with the use of or performance of the products.

CAUTION

Whi st care has been taken to provide as much detai as possib e for use of this product it cannot be re ied upon as an

exhaustive source of information. This product is for use by suitab y qua ified persons who understand the nature of the

work they are doing and are ab e to take suitab e precautions and design and produce a product that is safe and meets

regu atory requirements.

LIMITATION OF LIABILITY

The manufacturer’s iabi ity for damages to customer or others resu ting from the use of any product supp ied hereunder sha in no

event exceed the purchase price of said product.

TRADEMARKS

The fo owing are trademarks of Digita View Ltd:

•Digita View

•HD-3000

Specifications subject to change without notice

14 of 15

7. CONTACT DETAILS

Digita View has offices in Asia, Europe and USA :

USA

Digita View Inc.

18440 Techno ogy Drive

Bui ding 130

Morgan Hi ,

Ca ifornia, 95037

USA

Tel: (1) 408-782 7773 Fax: (1) 408-782 7883

Sales: ussa es@digita view.com

EUROPE

Digita View Ltd.

6 Mary ebone Passage,

London, W1W 8EX,

UK.

Tel: +44-(0)20-7631-2150 Fax: Fax: +44-(0)20-7631-2156

Sales: uksa es@digita view.com

ASIA

Digita View Ltd

Unit 705-708, 7/F Texwood P aza

6 How Ming Street

Kwun Tong, Hong Kong

Tel: (852) 2861 3615 Fax: (852) 2520 2987

Sales: hksa es@digita view.com

WEBSITE

www.digita view.com

Specifications subject to change without notice

15 of 15

Revision History

Date

Rev No.

Page

Summary

30

Sept 201

6

1.00

All

First Issue

version.

7 uly 2017 1.01 7

14

15

- Correct pin definition of CN1 pin 1 & 2

- Update new Digital View HK office address

- Add document revision history section
