Dimplex LI 11MS Instruction manual

Drawing freely available heat from the ambient air, even
at chilly outside temperatures as low as –20°C Dimplex
LI MS and LI AS air source heat pumps are the cost
effective and energy efficient heating and hot water
solution of the future.
The heat pump is designed for installation indoors, with
air ducts or hoses providing inlet/outlet air from the
outside. For space saving, a built-under buffer tank is
also available.
Range of 2 models with nominal heating capacities of 11kW
(single phase) and 16kW (three phase).
Indoor installation in a basement, utility room or garage.
Air ducting kits provided as accessories.
Complementary built-under buffer tank for space saving.
Operational temperatures from +35°C down to –20°C.
Energy optimised, auto adaptive defrosting cycle.
Variable heating water flow temperatures up to 55°C.
Typical CoP (A2/W35): 3.2 – 3.4 (depending on model).
Supplied complete with wall mountable WPM 2004 Plus Heat
Pump Manager.
Scroll compressor, providing efficient, low noise running.
Economiser, providing high co-efficients of performance.
Electronic soft starter controls to reduce starting currents.
LI MS / LI AS RANGE KEY
FEATURES:
EVEN COLD AIR IS FULL OF ENERGY
heat pumps
using nature’s energy
INDOOR AIR SOURCE HEAT PUMPS
LI MS / LI AS

EVERYTHING IS UNDER CONTROL
Dimplex LI MS and LI AS air source heat pumps utilise the WPM2004
Plus Heat Pump Manager designed to regulate, control and monitor
the entire heating system.
The heat pump, heating and hot
water pumps, mixer motor and
supplementary heating sources
are all automatically activated by
the wall mounted WPM2004 Plus
unit.
Water temperatures for up to 3
space heating circuits plus
domestic hot water are individually
programmable, providing maximum
comfort and efficiency.
Simple to understand ‘warmer / cooler’ buttons adjust the temperature
settings, while the heating system can be programmed to operate on
a timed basis if required.
The WPM2004 Plus Heat Pump Manager allows Dimplex LI MS and LI AS air source heat
pumps to provide full control over 3 separate heating circuits as well as the preparation of
domestic hot water.
Key features:
Simple 6 key operation.
Large, well laid out illuminated display with indication of
present operating status and service messages.
Dynamic menu-based user guidance, adapted to the
configuration of the heat pump system.
Interface for remote control unit with identical menu options.
Outdoor temperature controlled heating cycle.
Control over 3 heating circuits and domestic hot water.
Priority control:
– Water heating takes priority over space heating.
Automatic actuation of supplementary heat sources (electric
immersion heater or gas/oil boiler).
Automatic actuation of mixer valves for supplementary heat
source (gas/oil boiler or solar energy storage system).
Heating
Zone 3
Heating Zone 2
Heating Zone 1
DHW
Tank
Heat
Pump
Buffer Tank
Dimplex heat pumps offer a variety of services—providing the home
with comfortable
warmth is only one
of them. It can also
produce all the hot
water needed for
the kitchen or
bathroom.
Dimplex provides all
the components
needed for these applications, including buffer tanks, hot water
cylinders, heating system manifolds and hydraulic accessories.
1. WPM2004 Plus Heat Pump Manager
With air source heat pumps the Heat Pump Manager is supplied in
its own housing for wall mounting.
2. Buffer tank
A 140L under-unit buffer tank is available for use with Dimplex LI MS
and LI AS heat pumps, providing the benefit of minimising the
space required.
A buffer tank extends operating times and ensures a minimum water flow
rate through the heat pump in all operating conditions. Where the heat
pump provides the sole source of heating, an electric immersion element
can also be integrated to provide supplementary heating if required.
3. Heating system connections
A range of compact accessories are available to ensure a
professional and trouble-free heat pump installation, with all the
connections and individual components combined and assembled
in the minimum of space. Options include:
Compact manifold with shell-type insulation and integrated
hot water connection.
Hot water module for connection of an additional heating
circuit (e.g. hot water heating).
Simultaneous connection of compact manifold and hot water
module to the heat pump via a manifold bar.
4. Hot water cylinder
For the central hot water supply Dimplex offers a range of unvented
hot-water cylinders, sized correctly for the maximum heating
capacity of the heat pump.
An integrated temperature sensor is connected to the heat pump
manager, allowing the heat pump to automatically control the
production of hot water as and when it is required.
AIR SOURCE HEAT PUMPS —
BENEFITS OF THE UK CLIMATE
Compared with central Europe (where air source heat pumps
are already very popular), the UK has a relatively moderate
winter climate.
With average winter
temperatures of around
5°C, seasonal co-
efficients of performance
comparable with ground
source heat pumps are
achievable, without the
additional cost of
expensive ground loop
systems having to be
installed.
JF
28
24
20
16
12
8
4
0
28
24
20
16
12
8
4
0
MAM J J A S OND
Average UK temperatures
over 12 month period
maximum temperature (°C)
minimum temperature (°C)
DIMPLEX HEAT PUMP ACCESSORIES
3
4
2
1

TECHNICAL DATA
EQUIPMENT DATA for air source heat pumps for heating purposes
1 TYPE AND COMMERCIAL DESCRIPTIONS LI11MS LI16AS
2 MODEL
2.1 Enclosure type acc to EN 60 529 for compact unit or heating element IP 21 IP 21 IP 21
2.2 Installation site Indoors Indoors
3 PERFORMANCE DATA
3.1 Operating temperature limits:
Heating water supply / return 3) °C / °C Max. 55 / min. 18 Max. 55 / min. 18
Air °C -20 to +35 -20 to +35
3.2 Heating water temperature difference at A2 / W35 7.5 7.5
3.3 Heating capacity/coeff.of perform. at A-7 / W35 1) kW/--- 7.6 / 2.9 9.8 / 2.6
at A2 / W35 1) kW/--- 9.1 / 3.4 12.2 / 3.2
at A2 / W50 1) kW/--- 9.0 / 2.5 11.5 / 2.4
at A7 / W35 1) kW/--- 10.9 / 4.1 15.4 / 3.7
at A10 / W35 1) kW/--- 12.0 / 4.6 16.1 / 3.8
3.4 Sound power level of unit / outside dB(A) 55 / 61 57 / 62
3.5 Heating water flow rate at internal pressure difference m3/h/Pa 1.0 / 3000 1.4 / 4500
3.6 Air flow rate at external static pressure difference m3/h/Pa 4200 / 0 5200 / 0
m3/h/Pa 2500 / 25 4000 / 25
3.7 Refrigerant: total charge weight Type / kg R404A / 2.5 R404A / 3.1
4 DIMENSIONS, CONNECTIONS AND WEIGHT
4.1 Equipment dimensions H x W x L mm 1360 x 750 x 850 1570 x 750 x 850
4.2 Equipment connections for heating system inches G 1” ext. thread G 1” ext. thread
4.3 Air duct inlet and outlet (min. inside dimensions) L x W mm 500 x 500 570 x 570
4.4 Weight of transport unit(s) incl. packaging kg 200 235
5 ELECTRICAL CONNECTIONS
5.1 Nominal voltage; fusing V/A 230 / 25 400 / 20
5.2 Nominal power consumption 1) A2 W35 kW 2.65 3.81
5.3 Starting current with soft starter A 38 25
5.4 Nominal current A2 W35/cos A /--- 14.4 / 0.8 6.9 / 0.8
6 COMPLIES WITH EUROPEAN SAFETY REGULATIONS 4) 4)
7 OTHER DESIGN CHARACTERISTICS
7.1 Defrosting Automatic Automatic
Type of defrosting Cycle reversal Cycle reversal
Defrost pan available Yes (heated) Yes (heated)
7.2 Heating water inside unit protected against freezing 2) Yes Yes
7.3 Performance settings 11
7.4 Controller internal / external External External
1) This data characterises the size and performance capacity of the system. For economic and energy consumption reasons, additional factors such as
defrosting behaviour, bivalence point and control need to be taken into consideration. Abbreviations have the following meaning e.g. A2 / W55: heat source
temperature 2°C and heating water supply temperature 55°C.
2) The heat circulating pump and the controller of the heat pump must be on standby at all times.
3) See operating limits diagram.
4) See CE Declaration of Comformity.
Subject to technical modifications

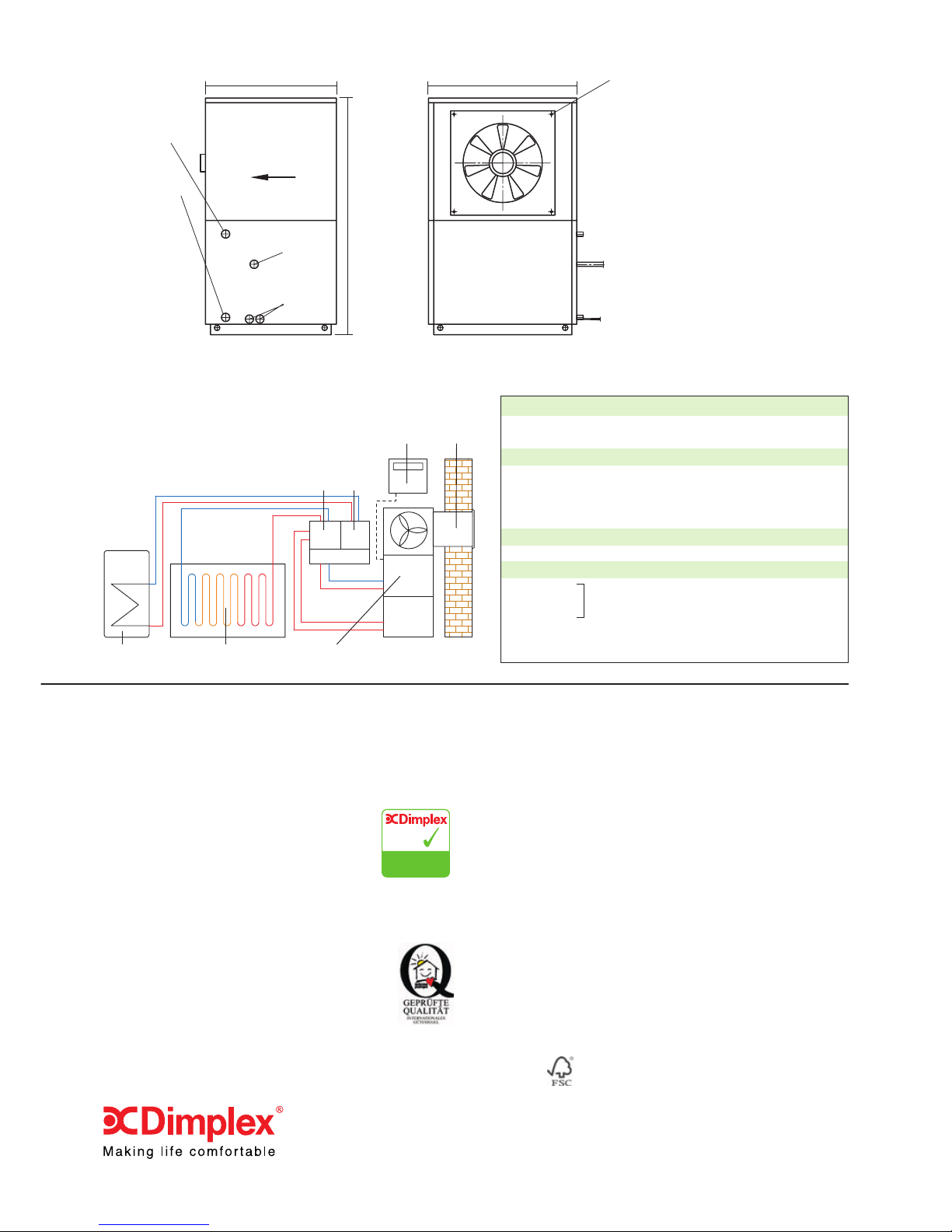

DIMENSIONS AND CONNECTIONS
TYPICAL SYSTEM CONFIGURATION AND ACCESSORIES
LI 11MS / LI 16AS
Heat Pump
Buffer
Tank
VTB25
Heat Pump
Control
Heating
Circuit
DHW
Cylinder
The diagram below shows a typical LI MS / LI AS heat
pump configuration for heating and domestic hot water
including typical accessories required for a single
heating circuit.
(Note this is for illustrative purposes only and is not intended as a full
hydraulic schematic)
RSG 600/700
LKL
LKB
LKK
600/700
KPV25 WWM25
D1238/0406
Heat Pump Qty
LI 11 MS or Indoor air source heat pump (single phase) 1
LI 16 AS Indoor air source heat pump (three phase) 1
Heating and Hot Water Accessories
PSP 890 140L built-under buffer tank 1
KPV25 Compact manifold 1
WWM25 Heating circuit/hot water module 1
VTB25 Manifold bar 1
Controller Accessories
EVL 995/6/7/8 – 1 Heat pump/controller connecting cable 1
Ducting Accessories
LKL 600/700 Long, short or 90° elbow ducts
LKB 600/700 (dependent on requirement) 1 or 2
LKK 600/700
DMK 600/700 Sealing collar 1 pair
RSG 600/700 Rain guard 2
4x Internal screw threadM8x15
Condensate
drain inside
30mm
Heatingwater supply.
Heat pump outlet
1" external thread
Heatingwater return.
Heat pump inlet
1" external thread
Electrical
lines
Direction of air flow
750 850
1360 / 1570
Glen Dimplex UK Limited, Marketing Department, Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF. Telephone: [phone] Fax: [phone]
For Northern Ireland please contact – Glen Dimplex N.I. Limited, Unit No. 24, Seagoe Industrial Estate, Portadown, Craigavon, Co. Armagh, BT63 5TH. Telephone: [phone]
Designed and produced by CCA Ltd, Christchurch (Bournemouth). Telephone [phone]
TRUST OUR EXPERIENCE
As the world's largest manufacturer of electrical heating technology, Dimplex
has been at the forefront of product development and innovation for nearly 60
years. We are well respected within the construction industry for producing
products of the highest specification and quality and for our pre and post sales
support. At our manufacturing plant in Kulmbach, Germany, we have been
developing and producing innovative heat pumps for over 30 years.
EVERYTHING'S A MATTER OF PROPER PLANNING
Heat pumps are one of the most efficient and economical
heating systems provided the individual components of the
heat pump system, including the heat source, heat pump
and connected heating system are properly matched.
Dimplex can provide advice and guidance on the correct
heat pump for your application and our network of experienced, fully trained
installers will provide complete system planning assistance, installation and
comprehensive after-sales service.
CERTIFIED QUALITY
Maximum operational reliability of all Dimplex appliances is
ensured at all times due to continuous quality assurance during
production and quality certification to EN ISO 9001. The
international heat pump quality label for heat pump heating
systems guarantees highest safety and quality standards.The
tests conducted by recognised testing institutes provide
comparability of results, ensure compliance with standards and guarantee an
extensive after-sales network with at least 10-year spare parts availability.
Dimplex is also a member of the UK Heat Pump Association.
SPECIFICATIONS
Dimplex policy is one of continuous improvement; the Company therefore
reserves the right to alter specifications without notice. Although every care
has been taken in the reproduction of product finishes in this brochure,
photographs should be taken only as a guide. The information is correct at the
time of printing.
CE MARK
Products carrying the CE mark comply with European safety standards and
the European Standard for electro-magnetic compatibility.
FURTHER INFORMATION
For more information on Dimplex heat pumps please speak to your local
Dimplex Installer Partner or contact us directly:
Tel: [phone] Fax: [phone]
Email: [email protected] Website: www.dimplex.co.uk
ADDITIONAL LITERATURE
In addition to this publication we have separate, more detailed brochures on
the following products: • domestic heating • water heating • fires and
surrounds • portable heating • commercial heating
Please ring our Brochureline for your copy:
Brochureline: Tel: [phone] Fax: [phone]
Please note – these phone numbers are charged at standard rate, they are NOT
premium rate numbers.
Printed on accredited paper.
© Glen Dimplex UK Limited
All rights reserved. Material contained in this publication may not be reproduced in
whole or in part, without prior permission in writing of Glen Dimplex UK Limited.
Heat Pump
Installer Partner
APPRO ED
