Direct power BH26S3 Installation manual

5kg SDS Plus Rotary Hammer Drill BH26S3
SAFETY AND OPERATING MANUAL

GUARANTEE
This product carries a Screwfix Direct Ltd guarantee of 12 months. If your
product develops a fault within this period, you should,in the first instance contact
Screwfix Direct Ltd on Freephone 0500 41 41 41. If the fault occurs within the first 12
months, you may return the goods for a full refund or we will repair or replace the goods
if you prefer. When repair is not practical or identical goods are not available, alternative
goods of similar specification and quality will usually be provided but, failing this, you
will be offered a partial or full refund depending on the time period since purchase.
This guarantee specifically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
- Repairs attempted by anyone, unless authorised by Screwfix Direct Ltd.
This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.
For further technical advice, spare parts or repair service (outside of guarantee) please
contact the customer helpline number on 0845 607 6380.
Congratulations on your purchase of a power tool from Screwfix
Direct Ltd. We want you to continue getting the best performance from it
so this handbook includes information on safety, handling and care. Please
retain this handbook in case you need to refer to any of the information in
the future.
Your power tool comes with a 12-month guarantee,so should it
develop a fault within this period contact Screwfix Direct Ltd on Freephone
0500 41 41 41.

5kg SDS Plus Rotary Hammer Drill BH26S3
SAFETY INSTRUCTIONS
WARNING! Read all instructions.Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury.
SAVE THESE INSTRUCTIONS
1. Work area.
a. Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
b. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical safety.
a. Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat,oil,sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f. Use a Residual Circuit Breaker on all 230V Power tools. This can help
minimise the risk of an electrical shock if an earth fault or short circuits occurs.
g. If using a power cable extension ensure that the cable is fully unwound
and that its length is less than 30m. Lengths over 30 m will effect the tools
performance as a result of voltage drop.
3. Personal safety.
a. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b. Use safety equipment. Always wear eye protection. Safety equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the off-position
before plugging in. Carrying power tools with your finger on the switch or
plugging in power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool

on. A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
of these devices can reduce dust-related hazards.
4. Power tool use and care.
a. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate for
which it was designed.
b. Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tools operation. If damaged, have the power tool repaired before
use. Poorly maintained power tools cause many accidents.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from intended could
result in a hazardous situation.
5. Service.
a. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
HEALTH ADVICE
WARNING! When drilling, sanding, sawing or grinding, dust particles will be
produced. In some instances, depending on the materials you are working with,
this dust can be particularly harmful to you (e.g. lead from old gloss paint).
You are advised to consider the risks associated with the materials you are working
with and to reduce the risk of exposure. You should:
- Work in a well-ventilated area.

5kg SDS Plus Rotary Hammer Drill BH26S3
- Work with approved safety equipment, such as those dust masks that are specially
designed to filter microscopic particles.
ADDITIONAL SAFETY RULES FOR YOUR HAMMER DRILL
This is a powerful hammer drill. Caution needs to be observed when operating.
1.If the supply cord is damaged have it replaced by a qualified person.
2.Always wear a dust mask.
3.Dress in suitable overalls.
4.Safety boots are recommended at all times especially when using the chisel action.
5.Proper safety gloves are also recommended.
6.When using chisel a dust mask is necessary because of the dust created by the
action.
7.Wear ear protectors. Exposure to noise can cause hearing loss.
8.This heavy duty high torque machine should not be used, while standing on a
ladder.
9.Watch out for the initial torque reaction of the drill, especially when drill bit is tight.
10.Do not use damaged or worn drills.
11.Do not run the machine with any part of the casing missing or damaged.
12.Check walls for hidden electric cable, gas and electric pipe before you start any
drilling task.
13.Chisel bits and drill bits may be flung out of the machine accidentally and cause
serious injury.
14.Before starting to work, always check that the chisel or drill bit is properly locked in
the chuck.
15.Vibrations can injure the hand-arm system. Keep exposure to vibrations as short
as possible.
16.When carrying out work, always hold the drill with both hands and ensure that you
have a stable standing position.
17. Lubricating the gear box.The gear box must be lubricated after approximately 5
hours of use to ensure it works efficiently.A small container of grease is supplied with
the drill.Go to section “Maintenance“ for the details.
18. Always use the appropriate safety equipment that is required for the product. e.g.
Goggles / Safety Spectacles, Ear defenders (essential with tools with a noise rating of
over 85 dbA), Gloves and face masks. In all cases ensure that the safety equipment is
in good condition.
19. Ensure that if a side handle or stabilising handle is provided with the power tool
then these are adjusted into a comfortable position and that both handles are used to
securely grip the power tool when in use.
Double insulation:
The tool is double insulated. This means that all the external metal parts are electrically
insulated from the mains power supply. This is done by placing insulation barriers
between the electrical and mechanical components making it unnecessary for the tool
to be earthed.

Important note:
Remove the main plug from socket before carrying out any adjustment or servicing.
Ensure your mains supply voltage is the same as your tool rating plate voltage.
Always wear eye protection with this tool.
Always wear ear protection with this tool.
Always wear dust mask protection with this tool.

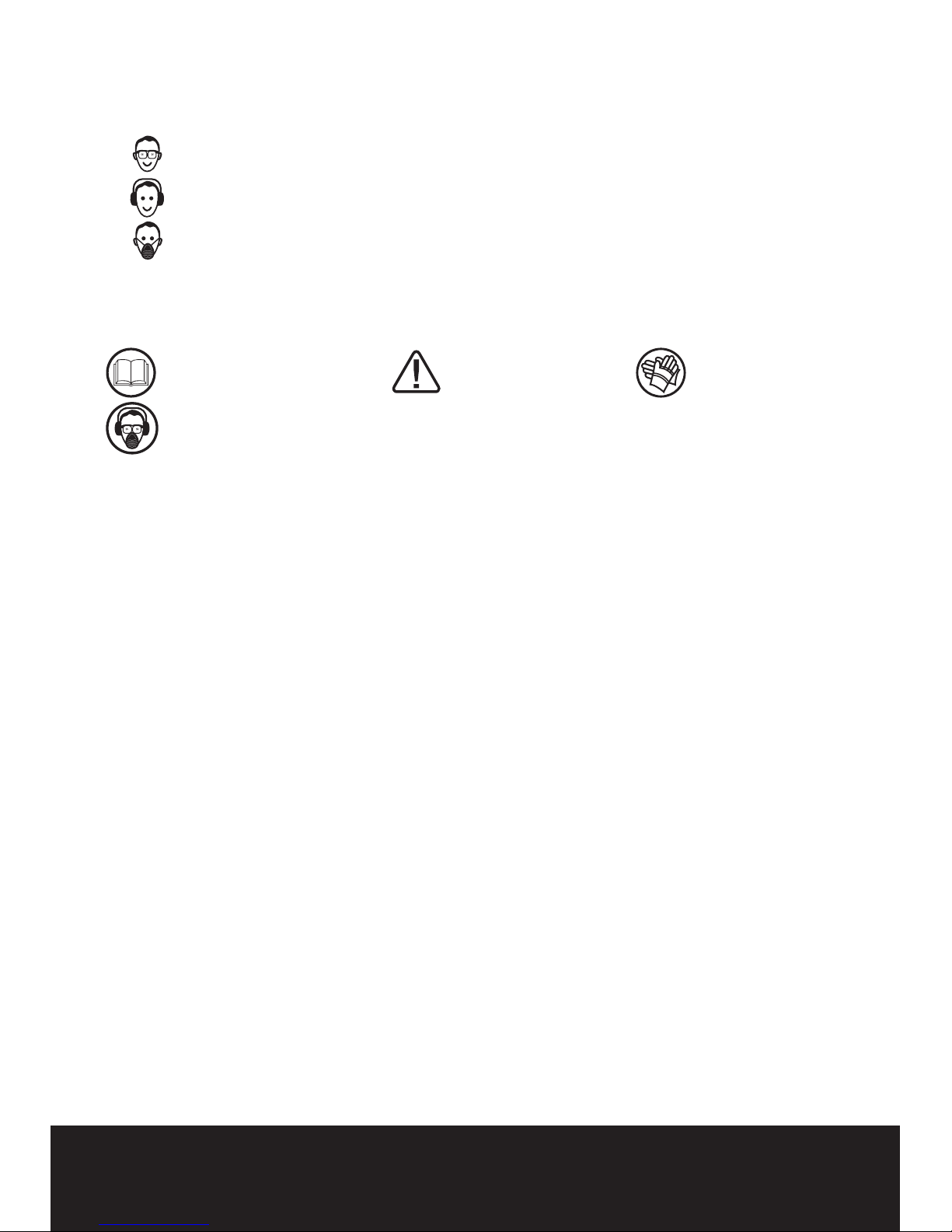

SYMBOLS
Read the manual Warning Wear gloves
Wear dust mask,eye & ear protection

5kg SDS Plus Rotary Hammer Drill BH26S3

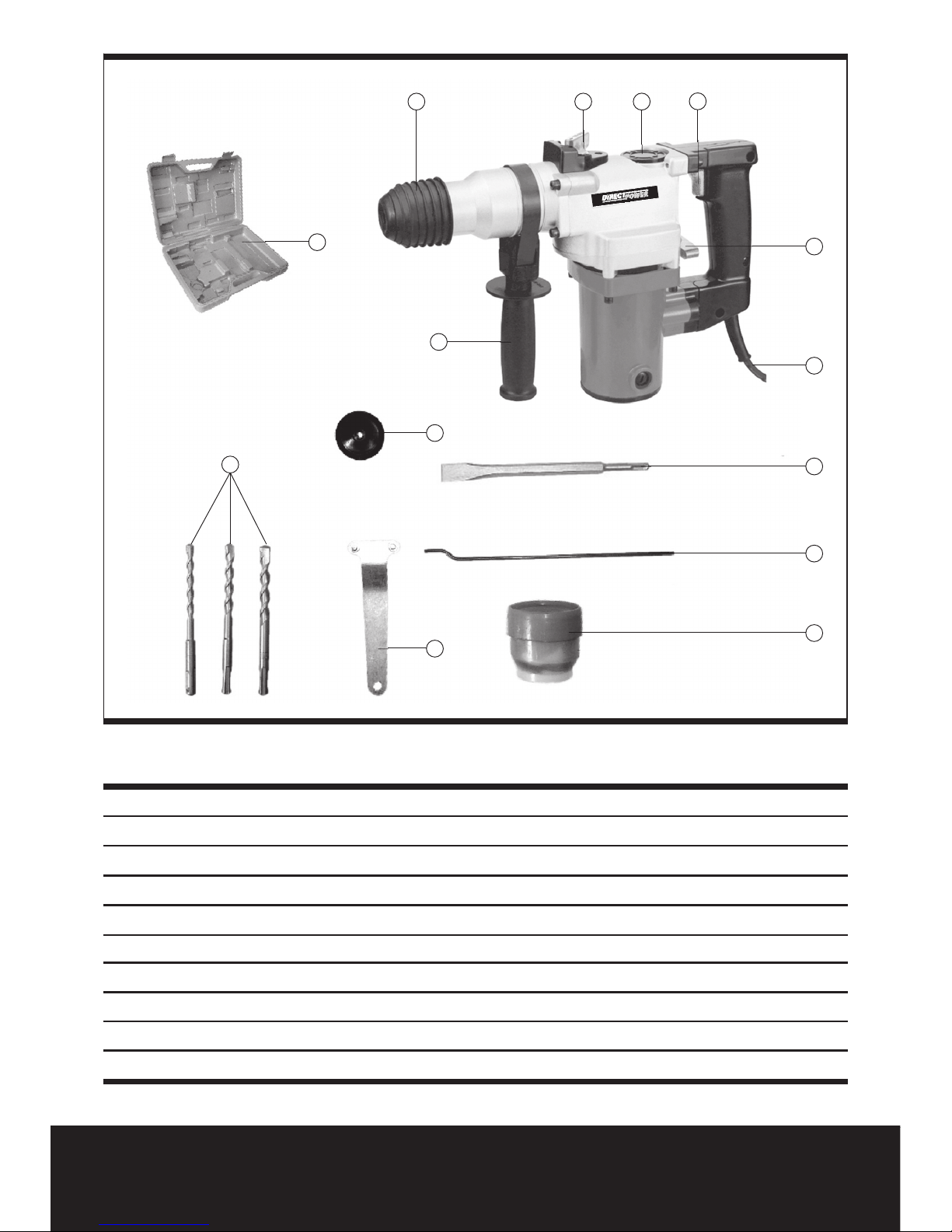

1. ON/OFF SWITCH
2. FUNCTION DIAL SELECTOR LOCK
3. FUNCTION SELECTOR
4. AUXILIARY HANDLE
5. FASTENING SLEEVE
6. MAINS POWER CABLE
7. GEAR BOX COVER SPANNER
8. SDS MASONRY DRILL BITS (8, 10, 12MM)
9. GREASE TUBE
10. CHISEL BIT















TECHNICAL DATA
Voltage:
Wattage:
No load speed:
Hammer rate:
Double insulation:
Weight:
NOISE AND VIBRATION DATA
Sound pressure level: 92.7dB (A)
Sound power level: 105.7dB (A)
Vibration level: 6.795m/s2
11. DEPTH GAUGE
12. DUST COVER
13. BLOW MOULD CASE
14. GEAR BOX COVER
ACCESSORIES
Gear box cover spanner: 1pc
SDS drill bits: 3pcs
Grease tube: 1pc
Flat chisel bit: 1pc
Depth gauge: 1pc
Dust cover: 1pc
Auxiliary handle: 1pc
230V~50Hz
850W
750min-1
3150min-1
4.8kg

5kg SDS Plus Rotary Hammer Drill BH26S3
OPERATION INSTRUCTIONS
1. GENERAL DESCRIPTION
This ROTARY HAMMER DRILL can be used
for drilling masonry. contained in the case is
a selection of larger masonry bits and chisels.
These fi t directly into the rotary hammer. Using
the hammer setting the supplied chisels can be
used to break brick work. The machine uses a
single phase alternating current 230V, 50Hz motor,
its compact and robust format makes it versatile
and effi cient for uses described in specifi c safety
instructions. It complies to current regulations
and the optimum quality of materials used will
ensure a long working life in complete safety.
2. OPERATING INSTRUCTION
Familiarize yourself with the rotary hammer drill
before use.
Note:Make sure the hammer is isolated from the
mains supply before fi tting accessories. Before
undertaking any maintenance or operations on
the rotary hammer detach the plug from the
mains socket.
3. FITTING THE AUXILIARY HANDLE
Attached the handle as shown in Fig 2 depending
on being left handed or right handed.
4. FITTING SDS TOOLS
The drill is equipped with an SDS-plus attachment
system. The SDS tools have slots in the shank.
These locate with tabs in the rotary hammer.
Hold the rotary hammer with one hand facing
away from yourself. See Fig 3.
Grip and pull back the fastening sleeve and insert
the SDS tool.
Push inwards until a resistance is felt. It may be
necessary to spin the SDS tool until the shaft
drops completely into place.
Once you are satisfi ed it has seated release the
black fastening sleeve. This should lock the SDS
tool into position.
5. REMOVE SDS TOOL
Pull back fastening sleeve, hold and remove tool.
See Fig 3.
Note:The SDS tools will be gripped fi rmly by its
shank and will not be able to be removed.
Loosen the handle
Fig 2
Fig 5
Fig 3
Fig 4

See Fig 3. If the SDS tool is not located repeat the
installation operation again.
6. OPERATING THE ON/OFF SWITCH
Holding the Rotary Hammer with both hands
and press the single speed on/off switch in for
operation (see Fig 4), release switch to stop.
WARNING!If the hammer/drill selector
can not go into position, turn the
gearbox.Before operating, select required
mode by aligning symbol on switch with
arrow. And ensure selector is positioned.
It could cause a hazard if the selector
switch is not firmly locked.
Note: Press the dial selector lock before
adjusting the dial selector anytime.

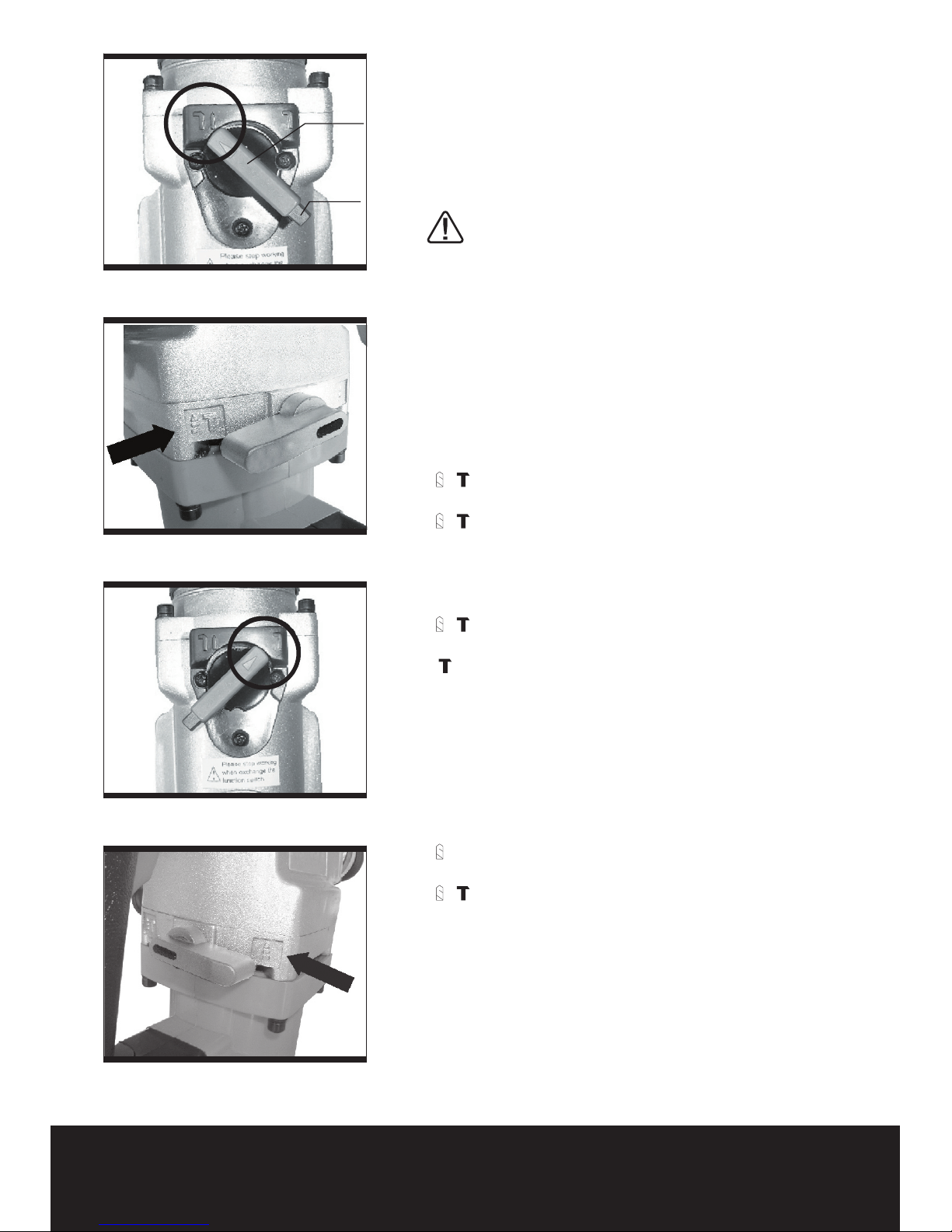

7. HAMMER DRILL FUNCTION
1 Adjust the lever selector to position
“ “ to provide the hammer action (see Fig 5)
2 Adjust the dial selector to position
“ “ to provide rotation of the chuck (see Fig 6)
3 you are now set up for drilling into masonry.
8. CHISEL FUNCTION
1 Adjust the lever selector to position
“ “ to provide the hammer action (see Fig 7)
2 Adjust the dial selector to position
“ “ to stop rotation of the chuck (see Fig 8)
3 you are now set up for chisel work using
hammer action.
To fit a chisel bit, see FITTING SDS TOOLS OR
CHUCK on page 9. The chisel will be gripped
firmly by its shank.
9. DRILLING FUNCTION
1 Adjust the lever selector to position
“ “ to stop the hammer action (see Fig 9)
2 Adjust the dial selector to position
“ “ to provide rotation of the chuck
(see Fig 10)
3 you are now set up for chisel work using
hammer action.
10. USING THE DEPTH GAUGE:
1. Rotate the handle anti-clockwise, insert depth
gauge into the handle (see Fig 11).
2. Adjust the depth gauge to desired depth.
Fig 6
Fig 7
Fig 8
Fig 9
Dial
selector
lock
Dial
selector

5kg SDS Plus Rotary Hammer Drill BH26S3
3. Rotate the handle clockwise to tighten the
depth gauge.
11. SAFETY WHEN USING THE ROTARY
HAMMER
This is a powerful tool. Caution needs to be
observed when operating. Dress in suitable
overalls. Safety boots are recommended at all
times especially when using the chisel actions.
Proper safety gloves are also recommended.
When using chisel mode, a dust mask is
necessary because of the cement dust created by
the action.
NOTE: DO NOT USE THE DRILL WHEN
STANDING ON A LADDER.
CAUTION! Care should be taken if
asbestos is suspected of being drilled
or chiseled. This is highly dangerous to
the user and people in the vicinity and
professional help should be sought for its
removal and disposal.
12. GEARBOX MAINTENANCE
Always check there is sufficient grease in the
grease box before usage. Check every 5 hrs of
usage. Open the grease box lid at the top of the
drill using the pin spanner provided. Then top
up the grease box (capacity 20gms max) using
the grease provided with your tool. The grease
specification is general purpose lithium based.
Use the end open spanner open the Gearbox oil
cap. See Fig 12.
13. CHANGING THE CARBON BRUSHES
When the carbon brushes need replacing call the
help line.
14. CHISEL AND DRILL BITS
Inspect regularly chisel and drill bits for damage
and sharpness. If in doubt obtain new chisels and
bits from a qualified dealer.
MAINTENANCE
1.Your power tool requires no additional
lubrication or maintenance.
Fig 12
Fig 11
Fig 10

2. Never use water or chemical cleaners to clean
your power tool. Wipe clean with a dry cloth.
3. Always store your power tool in a dry place.
4. Keep the motor ventilation slots clean.
5. If you see some sparks flashing in the ventilation
slots, this is normal and will not damage your
power tool.
6. If the supply cord becomes damaged etc.
HANDY HINTS
Always use sharp good quality drill bits and
chisels. The performance of the drill is dependent
on the quality of the bits used.
• Reduce the pressure on the drill bit when it is
about to break through. This will prevent the
drill from jamming.
• When drilling a large hole, first drill a pilot
hole using a smaller drill bit.
• Always apply pressure to your drill bit in a
straight line, and if possible at right angles to
the workpiece.
• When drilling holes into walls, floors etc.,
always make sure that there are no live electrical
wires, or pipe work in the path of the bit.
• Always operate your drill using both the
handle and the front handle.
• Never change the operating mode whilst the
drill is running.
• When using the product in the hammer only
mode, or when chiseling masonry, make sure
that you wear safety glasses and protective
gloves.
• Do not apply excessive pressure to the tool
when chiseling. Expressive force does not
speed up the work.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your Local Authority or retailer for recycling
advice.

5kg SDS Plus Rotary Hammer Drill BH26S3

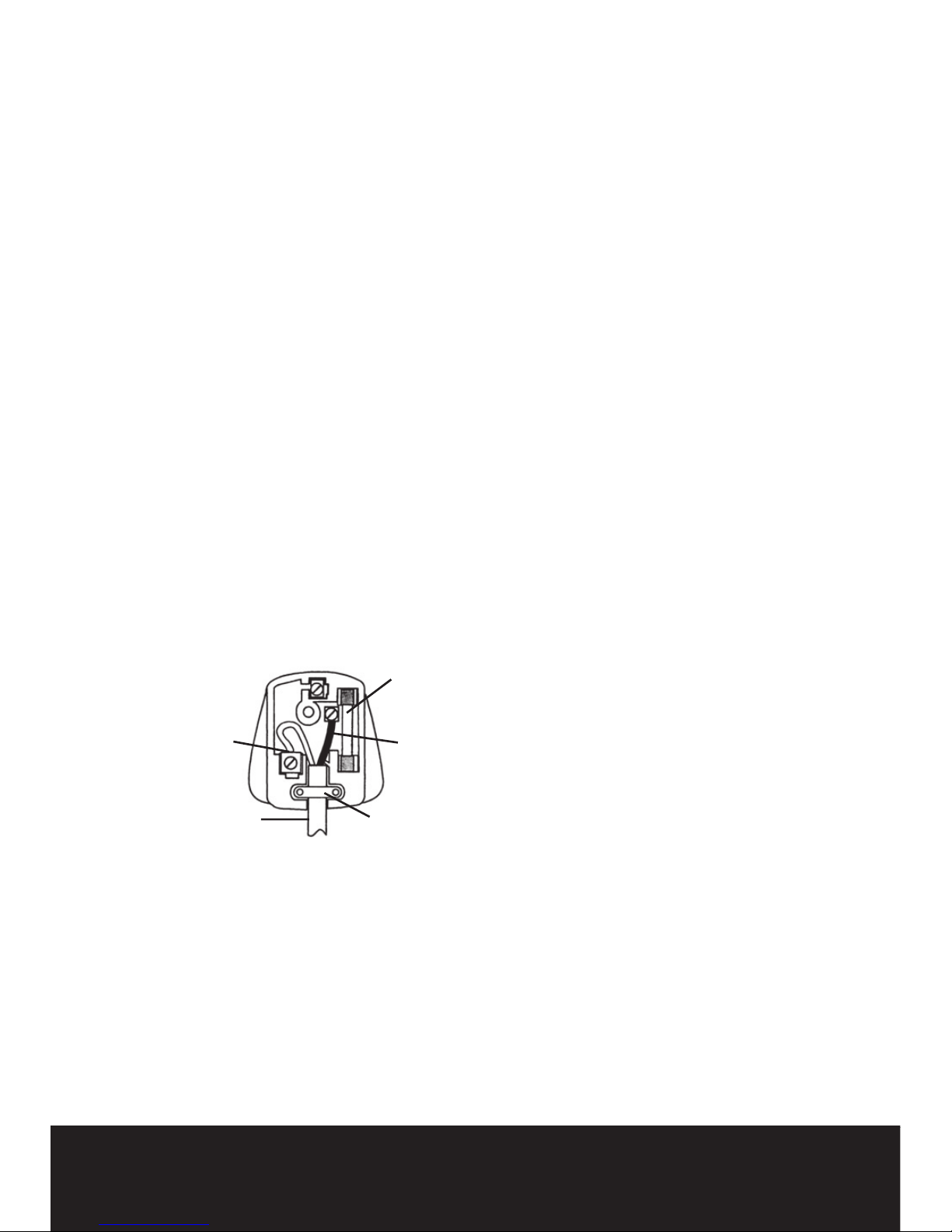

PLUG REPLACEMENT
The fuse in the main plug of your power tool
should always be replaced with one of identical
rating.
Check the voltage given on your power tool
matches the supply voltage.
The power tool is supplied with a fitted plug,
however if you should need to fit a new plug
follows the instruction below.
IMPORTANT
The wire in the mains lead are coloured in
accordance with the following code:
Blue ---Neutral
Brown ---Live
The wire that is coloured blue must be connected
to the terminal that is marked with the letter N. The
wire that is coloured brown must be connected
to the terminal that is marked with the letter L.
A 13AMP (BS1363 or BS1363/A) plug must be
used and a 13 AMP fuse must be fitted.
13 AMP
FUSE
BROWN
L (LIVE)
BLUE
N (NEUTRAL)
OUTER
SLEEVE CABLE GRIP

Declaration of Conformity
We, Importer
Screwfix Direct Ltd
Mead Avenue
Houndstone Business Park
Yeovil
BA 22 8RT
Declare that the product
ROTARY HAMMER
BH26S3
Complies with the essential health and safety requirements of the following directives:
89/336 EEC, 93/68 EEC. –EMC Directive.
73/23 EEC, 93/68 EEC. –Low Voltage Directive
98/37 EC. –Machinery Directive.
Standards and technical specifications referred to:
EN 60745-1:2003/A1:2003
EN 60745-2-6:2003
EN 55014-1/A2:2002
EN 55014-2/A1:2001
EN 61000-3-2:2000
EN 61000-3-3/A1:2001
2005
Authorised Signatory
Date: 03/15/05
Signature:
Name: Peter Harries
Screwfix Direct Ltd
Quality Manager

5kg SDS Plus Rotary Hammer Drill BH26S3
