7 CIRCULAR SAW BC185J
SAFETY AND OPERATING MANUAL

7 CIRCULAR SAW BC185J
GUARANTEE
This product carries a Screwfix Direct Ltd guarantee of 12 months. If your
product develops a fault within this period, you should,in the first instance contact
Screwfix Direct Ltd on Freephone 0500 41 41 41. If the fault occurs within the first 12
months, you may return the goods for a full refund or we will repair or replace the goods
if you prefer. When repair is not practical or identical goods are not available, alternative
goods of similar specification and quality will usually be provided but, failing this, you
will be offered a partial or full refund depending on the time period since purchase.
This guarantee specifically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
- Repairs attempted by anyone, unless authorised by Screwfix Direct Ltd.
This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.
For further technical advice, spare parts or repair service (outside of guarantee) please
contact the customer helpline number on 0845 607 6380.
Congratulations on your purchase of a power tool from Screwfix
Direct Ltd. We want you to continue getting the best performance from it
so this handbook includes information on safety, handling and care. Please
retain this handbook in case you need to refer to any of the information in
the future.
Your power tool comes with a 12-month guarantee,so should it
develop a fault within this period contact Screwfix Direct Ltd on Freephone
0500 41 41 41.

SAFETY INSTRUCTIONS
WARNING! Read all instructions.Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury.
SAVE THESE INSTRUCTIONS
1. Work area.
a. Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
b. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical safety.
a. Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat,oil,sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f. Use a Residual Circuit Breaker on all 230V Power tools. This can help
minimise the risk of an electrical shock if an earth fault or short circuits occurs.
g. If using a power cable extension ensure that the cable is fully unwound
and that its length is less than 30m. Lengths over 30 m will effect the tools
performance as a result of voltage drop.
3. Personal safety.
a. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b. Use safety equipment. Always wear eye protection. Safety equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the off-position
before plugging in. Carrying power tools with your finger on the switch or
plugging in power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool

7 CIRCULAR SAW BC185J
on. A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
of these devices can reduce dust-related hazards.
4. Power tool use and care.
a. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate for
which it was designed.
b. Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tools operation. If damaged, have the power tool repaired before
use. Poorly maintained power tools cause many accidents.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from intended could
result in a hazardous situation.
5. Service.
a. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
HEALTH ADVICE
WARNING! When drilling, sanding, sawing or grinding, dust particles will be
produced. In some instances, depending on the materials you are working with,
this dust can be particularly harmful to you (e.g. lead from old gloss paint).
You are advised to consider the risks associated with the materials you are working
with and to reduce the risk of exposure. You should:
- Work in a well-ventilated area.

- Work with approved safety equipment, such as those dust masks that are specially
designed to filter microscopic particles.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR CIRCULAR
SAW
1.If the supply cord is damaged have it replaced by a qualified person.
2.Do not use blades which are deformed or cracked.
3.Do not use saw blades made of high speed steel.
4.Do not use blades which do not comply with the characteristics specified in these
instructions.
5.Do not stop the blade by lateral pressure on the disc.
6.Ensure that movable guards operate freely without jamming.
7.Do not lock the guard in the open position.
8.Ensure that any-retraction mechanism of the guard system operates correctly.
9.Characteristics of saw blades. Take carful note of blade thickness & diameter and
ensure it is suitable for the circular saw.
10.Do not use saw blades, the body of which is thicker, or the set of which is smaller
than the thickness of the riving knife.
11.Ensure that the riving knife is adjusted so that the distance between the riving knife
and the toothed rim of the saw blade is not more than 5mm. The toothed rim does not
extend more than 5mm beyond the lower end of the riving knife. The riving knife should
always be used except when plunging in the middle of the work piece.
12.For circular saws for woodworking it is advised that if used in confined areas dust
protection or separate dust collection system should be used.
13. Always use the appropriate safety equipment that is required for the product. e.g.
Goggles / Safety Spectacles, Ear defenders (essential with tools with a noise rating of
over 85 dbA), Gloves and face masks. In all cases ensure that the safety equipment is
in good condition.
Double insulation:
The tool is double insulated. This means that all the external metal parts are electrically
insulated from the mains power supply. This is done by placing insulation barriers
between the electrical and mechanical components making it unnecessary for the tool
to be earthed.
Important note:
Ensure your mains supply voltage is the same as your tool rating plate voltage. Remove
the mains plug from socket before carrying out any adjustment or servicing.
SYMBOLS
Read the manual Warning Wear gloves
Wear dust mask,eye & ear protection

7 CIRCULAR SAW BC185J
1. SAFETY BUTTON
2. TRIGGER SWITCH
3. CUTTING DEPTH LOCK KNOB
4. MOTOR HOUSING
5. FRONT HANDLE
6. MITRE CUTTING ADJUSTMENT GUIDE
7. MITRE CUTTING LOCK KNOB
8. PARALLEL FENCE SECURING SCREW
9. PARALLEL FENCE
10. RIVING KNIFE
11. BLADE
12. MOVABLE GUARD HANDLE
13. MOVABLE GUARD
14. ALUMINIUM GUARD
15. DUST OUTLET
















ACCESSORIES
Parallel guide: 1pc
Spanner: 1pc
Allen key: 1pc
NOISE AND VIBRATION DATA
Sound pressure level: 96dB (A)
Sound power level: 107dB (A)
Vibration level: 1.7m/s2
TECHNICAL DATA
Voltage: 230V~50Hz
Input power: 1200W
No load speed: 5,000min-1
Max. cutting depths: 64mm
Mitre limit: 45
Blade size: Ø185mmx2.8mmxØ16mm bore
Double insulation:
Weight: 4.5 Kg

7 CIRCULAR SAW BC185J
OPERATING INSTRUCTIONS
1. ADJUSTMENTS
With this saw there are two things you can adjust:
the blade cutting depth and the mitre cutting
angle.
2. CUTTING DEPTH ADJUSTMENT (See fig2)
1.To adjust the blade cutting depth, face the saw
away from you.
2.Loosen the cutting depth adjustment screw
which is located at the back of the saw guard.
3.Hold the baseplate flat against the edge of the
workpiece and lift the main body until the blade is
at the required depth.
4.Firmly tighten the cutting depth adjustment
screw.
3. MITRE CUTTING (See fig3a,fig 3b)
1.Loosen the mitre cutting adjustment knob which
can be found at the front and back of the metal
base plate.
2.Twist the main body until the required angle is
reached. Use the mitre adjustment guide to help
set the required angle.
3.Tighten the screw to secure the baseplate.
4. USING THE CIRCULAR SAW
SWITCHING ON (See fig4)
1.Connect the plug to the mains power supply.
2.Make sure your circular saw switch is locked off
to prevent accidental starting.
To start the unit, press and hold the safety button,
then press the trigger switch.
SWITCHING OFF
To switch off the unit, release the trigger switch.
The blade may continue to rotate after the trigger
switch has been released. Wait until the unit has
come to a complete stop before setting down.

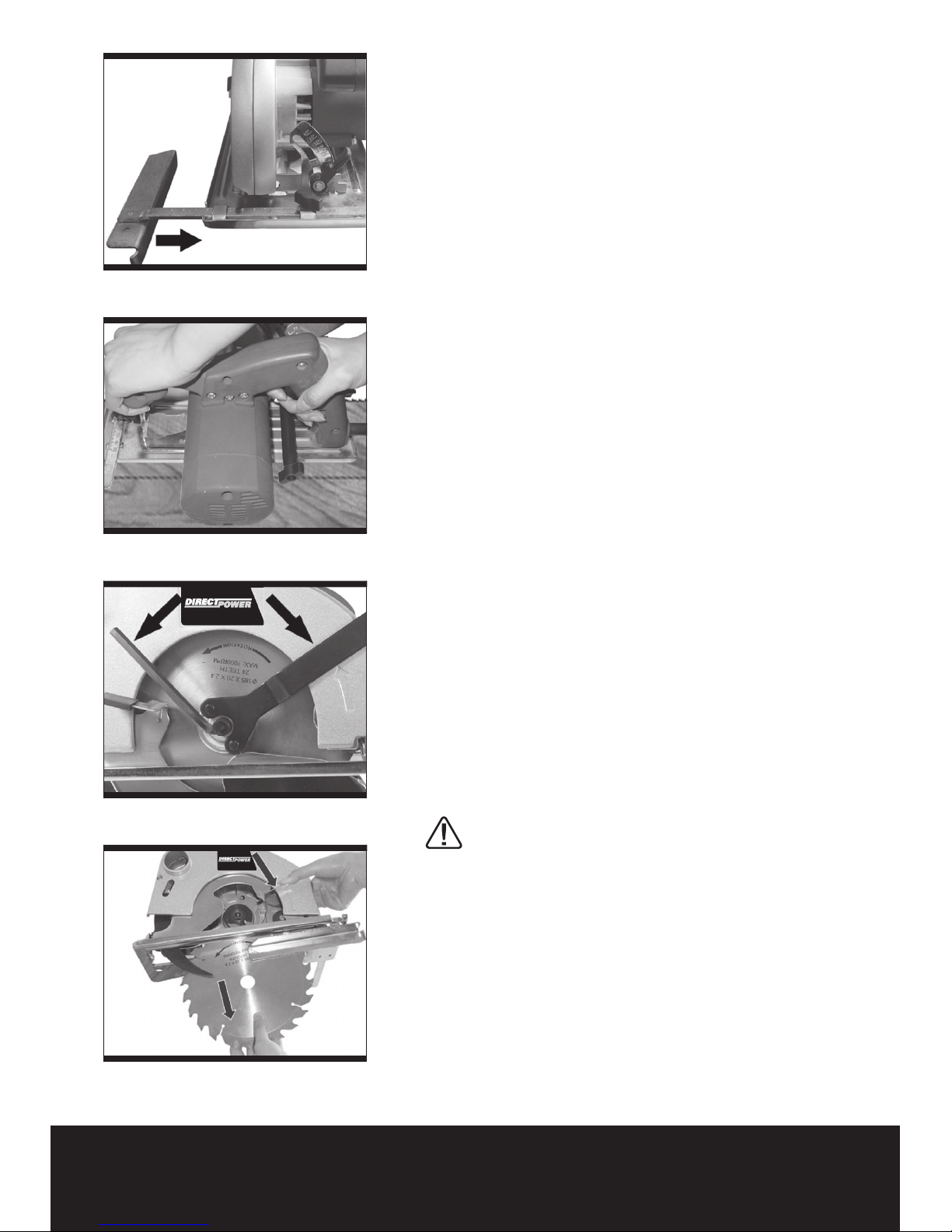

5. USING THE PARALLEL FENCE (See fig5)
A parallel fence allows you to make parallel cuts
in sheets of wood, which are consistently the
same width.
1.Slide the parallel fence into position.
2.Adjust the fence to the required width, and
secure by tightening the parallel fence securing
screw.
When you now use the saw, ensure that the edge Fig 4
Fig 3a
Fig 2
Fig 3b
Loosen Loosen

of the parallel fence is resting against the edge of
the wood to give a perfect parallel cut.
6. OPERATION (See fi g6)
Adjust the mitre angle and cutting depth to the
required level and place front of the base plate
on the workpiece (do not allow the blade to touch
the workpiece at this time).
Start the saw, when the saw is at maximum speed
slowly push forward. Hold the saw securely with
both hands.
7. FITTING A NEW BLADE (See fi g7, 8 & 9)
NOTE: Remove the mains plug from socket
before carrying out any adjustment or servicing.
1.Using the spanner and allen key provided, undo
the blade securing bolt and washer. (See fi g7)
2.Remove the outer fl ange. (See fi g9)
3.Pull the blade guard handle round as far as it will
go and hold it there. Remove the old blade (See
fi g8). There is no need to remove the inner fl ange.
If the inner fl ange is inadvertently removed this
will need to be re-fi tted before fi tting new blade.
Fit inner fl ange with smaller diameter section
facing inwards to saw body. (See fi g8 for blade
component fi tting order.)
4.Slide a 185mm cutting blade through the hole
in the bottom of the metal baseplate and place
on the central hub on top of the inner fl ange, you
may need to wiggle the blade a little to achieve
this.
5.Place the outer fl ange back on the centre of the
blade and place the washer on top of the outer
fl ange.
6.Screw the blade securing bolt back on using the
spanner and Allen key provided.
7.Release the blade guard.
Note: Only use the correct diameter blade
(185mm)with a 16mm bore,rated speed
of blade should be higher than rated speed of
machine.
8. RIVING KNIFE ADJUSTMENT (See fi g10)
1.The riving knife prevents the blade from being
jammed by the workpiece. It must always be
adjusted when the blade is changed or the correct
setting has been changed.
2.Loosen the hex head screws on the riving knife
with the allen key(not supplied).
3.Adjust the riving knife position according to
Fig 6
Fig 7
Fig 8
Fig 5

7 CIRCULAR SAW BC185J
fig10. Then firmly tighten the screws.
4.Check the distance between the riving knife and
the toothed rim of the saw blade is not more than
5mm.The toothed rim does not extend more than
5mm beyond the lower of the riving knife.
WORKING HINTS FOR YOUR
CIRCULAR SAW
1.If your power tool becomes too hot, run no load
for 2-3 minutes to cool the motor.
2.Always use a blade suited to the material and
material thickness to be cut.
3.The quality of cut will improve as the number of
blade teeth increase.
4.Always ensure the workpiece is firmly held or
clamped to prevent movement.
5.Support large panels close to the cut line.
6.Any movement of the material may affect the
quality of the cut.
MAINTENANCE
There are very few user serviceable parts in this
machine, the only parts which can be changed
safely by the user are:
1.The mains plug
2.The circular blade
To clean the unit, wipe the outer casing using a
damp cloth. Do not use abrasive cleaners, thin-
ner, etc. on this product. Refer servicing to a qual-
ified service personnel.
TROUBLESHOOTING
1.If your circular saw will not operate, check plug
fuse and power at mains plug.
2.There are no user serviceable parts in the saw
other than those listed in Care and Maintenance.
3.If a fault is suspected return to an authorised
dealer to repair.
Fig 10





Fig 9

ENVIRONMENTAL PROTECTION
Waste electrical products should not be dis-
posed of with household waste. Please re-
cycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
PLUG REPLACEMENT
The fuse in the main plug of your power tool
should always be replaced with one of identical
rating.
Check the voltage given on your power tool
matches the supply voltage.
The power tool is supplied with a fitted plug,
however if you should need to fit a new plug
follows the instruction below.
IMPORTANT
The wire in the mains lead are coloured in
accordance with the following code:
Blue ---Neutral
Brown ---Live
The wire that is coloured blue must be connected
to the terminal that is marked with the letter N. The
wire that is coloured brown must be connected
to the terminal that is marked with the letter L.
A 13AMP (BS1363 or BS1363/A) plug must be
used and a 13 AMP fuse must be fitted.
13 AMP
FUSE
BROWN
L (LIVE)
BLUE
N (NEUTRAL)
OUTER
SLEEVE CABLE GRIP

7 CIRCULAR SAW BC185J
Declaration of Conformity
We, Importer
Screwfix Direct Ltd
Mead Avenue
Houndstone Business Park
Yeovil
BA 22 8RT
Declare that the product
CIRCULAR SAW
BC185J
Complies with the essential health and safety requirements of the following directives:
89/336 EEC, 93/68 EEC. –EMC Directive.
73/23 EEC, 93/68 EEC. –Low Voltage Directive
98/37 EC. –Machinery Directive.
Standards and technical specifications referred to:
EN 60745-1:2003/A1:2003
EN 60745-2-5:2003
EN 55014-1:2000/A1:2001/A2:2002
EN 55014-2:1997/A1:2001
EN 61000-3-2:2000
EN 61000-3-3:1995/A1:2001
2005
Authorised Signatory
Date: 03/15/05
Signature:
Name: Peter Harries
Screwfix Direct Ltd
Quality Manager

7 CIRCULAR SAW BC185J
